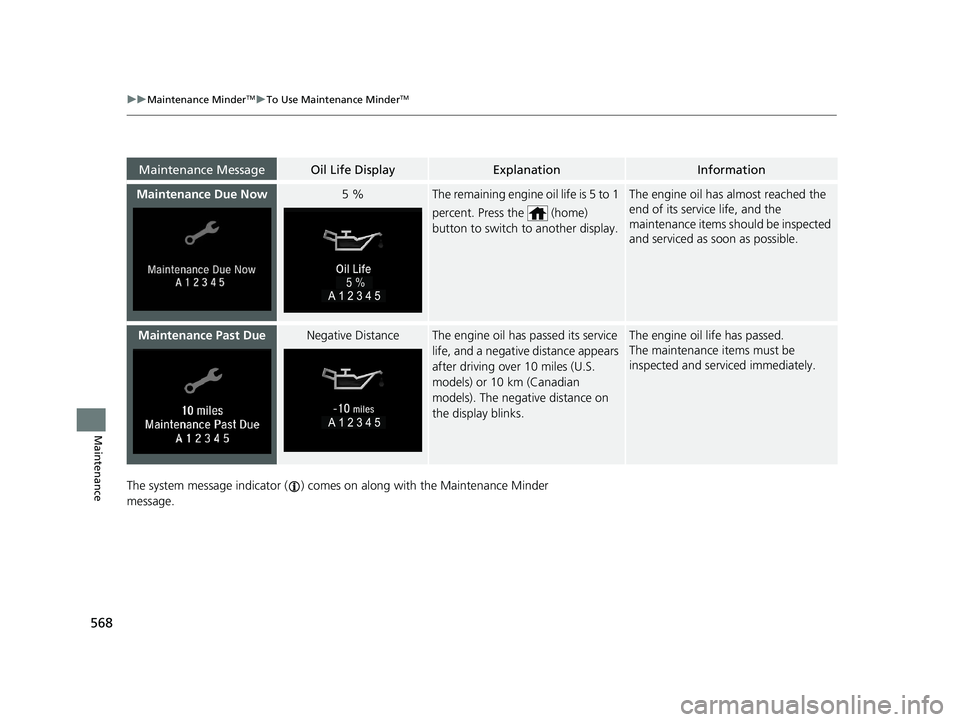

568
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
The system message indicator ( ) comes on along with the Maintenance Minder
message.
Maintenance Due Now5 %The remaining engine oil life is 5 to 1
percent. Press the (home)
button to switch to another display.The engine oil has almost reached the
end of its service life, and the
maintenance items should be inspected
and serviced as soon as possible.
Maintenance Past DueNegative DistanceThe engine oil has passed its service
life, and a negative distance appears
after driving over 10 miles (U.S.
models) or 10 km (Canadian
models). The negative distance on
the display blinks.The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
Maintenance MessageOil Life DisplayExplanationInformation
5 %
21 INSIGHT-31TXM6200.book 568 ページ ２０２０年２月５日　水曜日　午前１０時０分

569
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 668.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiry date for tire repair kit bottle●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles or 3 years (76,000 km or 3 years).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
21 INSIGHT-31TXM6200.book 569 ページ ２０２０年２月５日　水曜日　午前１０時０分

570
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder Message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles or 3 years (76,000 km or 3 years).
*5: If a Maintenance Minder Message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 668.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes●Check expiry date for tire repair kit bottle●Inspect tie rod ends, steer ing gear box, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system #
●Inspect fuel lines and connections #
21 INSIGHT-31TXM6200.book 570 ページ ２０２０年２月５日　水曜日　午前１０時０分

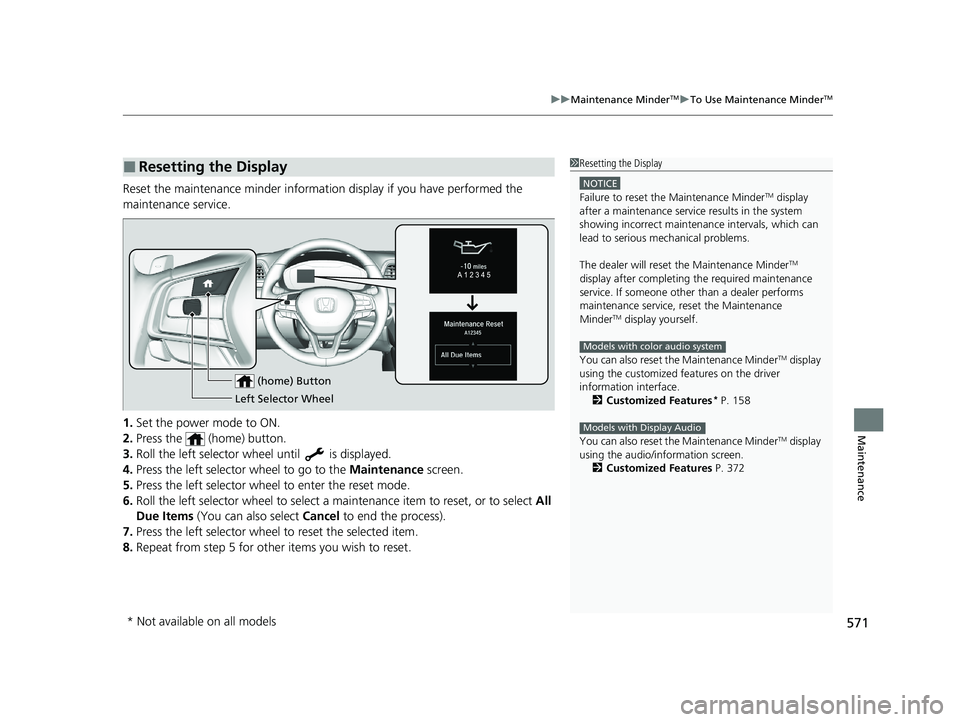

571
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
Reset the maintenance minder information display if you have performed the
maintenance service.
1. Set the power mode to ON.
2. Press the (home) button.
3. Roll the left selector wheel until is displayed.
4. Press the left selector wheel to go to the Maintenance screen.
5. Press the left selector wheel to enter the reset mode.
6. Roll the left selector wheel to select a ma intenance item to reset, or to select All
Due Items (You can also select Cancel to end the process).
7. Press the left selector wheel to reset the selected item.
8. Repeat from step 5 for other items you wish to reset.
■Resetting the Display1Resetting the Display
NOTICE
Failure to reset the Maintenance MinderTM display
after a maintenance servic e results in the system
showing incorrect maintena nce intervals, which can
lead to serious mechanical problems.
The dealer will reset the Maintenance Minder
TM
display after completing th e required maintenance
service. If someone other than a dealer performs
maintenance service, reset the Maintenance
Minder
TM display yourself.
You can also reset the Maintenance Minder
TM display
using the customized features on the driver
information interface.
2 Customized Features
* P. 158
You can also reset the Maintenance Minder
TM display
using the audio/information screen.
2 Customized Features P. 372
Models with color audio system
Models with Display Audio
Left Selector Wheel (home) Button
* Not available on all models
21 INSIGHT-31TXM6200.book 571 ページ ２０２０年２月５日　水曜日　午前１０時０分

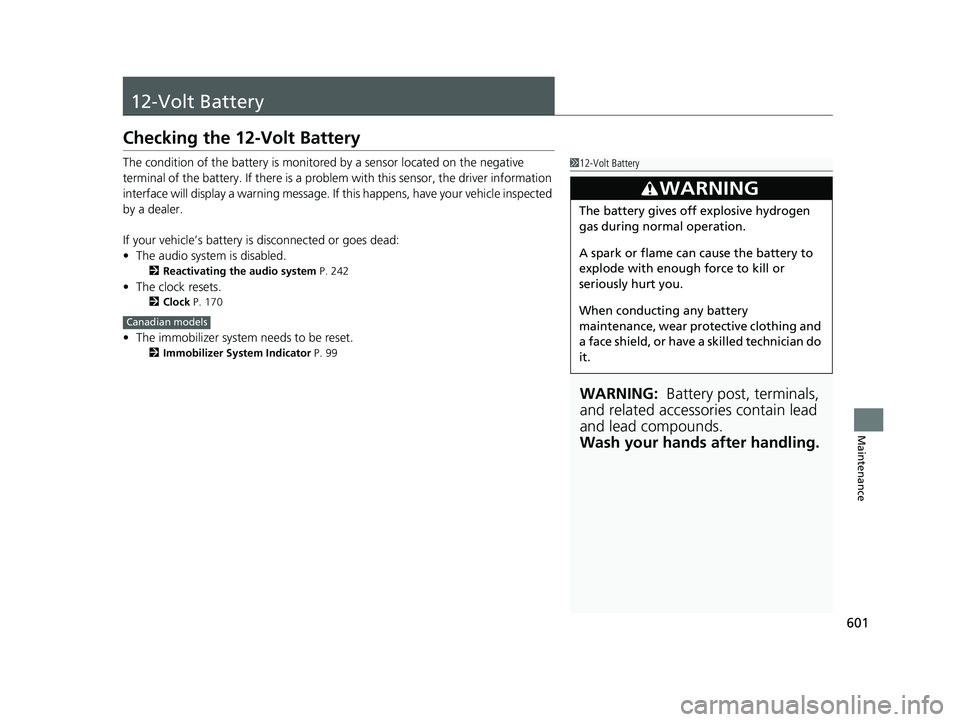

601
Maintenance
12-Volt Battery
Checking the 12-Volt Battery
The condition of the battery is monitored by a sensor located on the negative
terminal of the battery. If there is a problem with this sensor, the driver information
interface will display a warning message. If th is happens, have your vehicle inspected
by a dealer.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 242
•The clock resets.
2 Clock P. 170
•The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 99
112-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Canadian models
21 INSIGHT-31TXM6200.book 601 ページ ２０２０年２月５日　水曜日　午前１０時０分

Index
674
Index
Index
Numbers
12-Volt Battery.................................... 12, 601
Charging System Indicator ................. 92, 644
High Voltage ..................................... 12, 486
Jump Starting .......................................... 638
Maintenance (Checking the Battery) ........ 601
Maintenance (Replacing).......................... 603
A
ABS (Anti-lock Brake System) ................... 547
Accessories and Modifications ................. 611
Accessory Power Socket ........................... 228
Acoustic Vehicle Alerting System ............ 474
Adaptive Cruise Control (ACC) ......... 101, 102
Adaptive Cruise Control (ACC)
with Low Speed Follow .......... 101, 102, 499
Additives
Coolant ................................................... 579
Engine Oil ................................................ 574
Washer .................................................... 584
Additives, Engine Oil ................................ 574
Adjusting Armrest ................................................... 221
Front Seats .............................................. 214
Head Restraints........................................ 219
Mirrors .................................................... 212
Rear Seats................................................ 217
Steering Wheel ........................................ 211
Adjusting the Sound ................................. 252
Agile Handling Assist ................................ 477 Air Conditioning System (Climate
Control System) ...................................... 232
Changing the Mode ................................ 234
Defrosting the Windshield and Windows ............................................... 235
Dust and Pollen Filter............................... 604
Recirculation/Fresh Air Mode ................... 234
Sensors ................................................... 238
Synchronized Mode................................. 237
Using Automatic Climate Control ............ 232
Air Pressure ....................................... 593, 663
Airbags ........................................................ 53
Advanced Airbags ..................................... 59
After a Collision ........................................ 56
Airbag Care............................................... 67
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 56
Indicator.............................................. 64, 95
Passenger Front Airbag Off Indicator ......... 65
Sensors ..................................................... 53
Side Airbags .............................................. 61
Side Curtain Airbags.................................. 63
AM/FM Radio .................................... 254, 296
Android Auto ........................................... 334
Anti-lock Brake System (ABS) .................. 547
Indicator.................................................... 95
Apple CarPlay ........................................... 331
Armrest ..................................................... 221
Audio Remote Controls ........................... 243
Audio System .................................... 240, 247
Adjusting the Sound........................ 252, 290 AM/FM Radio.......................................... 254
Audio/Information Screen ............... 248, 269
Display Setup .................................. 253, 291
Error Messages ....................................... 338
General Information................................ 343
Home Screen .......................................... 277
How to Update Wirelessly ....................... 284
How to Update with a USB Device .......... 288
How to use Siri Eyes Free ................ 267, 330
iPod ................................................ 256, 311
Limitations for Manual Operation ............ 292
MP3/WMA/AAC ............................. 261, 314
Pandora
®.............................................. 259
Playing Bluetooth ® Audio........................ 264
Reactivating ............................................ 242
Remote Controls ..................................... 243
Security Code ......................................... 242
Selecting an Audio Source ...................... 292
Status Area ............................................. 282
System Updates ...................................... 284
Theft Protection ...................................... 242
USB Flash Drives...................... 261, 314, 344
USB Ports ................................................ 241
Wallpaper Setup ............................. 250, 275
Audio/Information Screen ............... 248, 269
Authorized Manuals ................................ 671
Auto Door Locking/Unlocking ................ 185
Customize ...................................... 164, 389
Auto High-Beam ...................................... 204
Indicator ................................................... 98
21 INSIGHT-31TXM6200.book 674 ページ ２０２０年２月５日　水曜日　午前１０時０分

676
Index
Cup Holders............................................... 226
Customer Service Information ................. 672
Customized Features ................ 158, 365, 372
D
Daytime Running Lights ........................... 203
Dead Battery ............................................. 638
Deceleration Paddle Selector ................... 470
Defaulting All the Settings ...................... 391
Defrosting the Windshield and Windows .................................................. 235
Devices that Emit Radio Waves ................ 665
Dimming Headlights ............................................... 200
Rearview Mirror ....................................... 212
Dipstick (Engine Oil) ................................. 575
Directional Signals (Turn Signal) .............. 199
Display Setup ............................................ 253
Door Mirrors ............................................. 213
Doors ......................................................... 172
Auto Door Locking .................................. 185
Auto Door Unlocking ............................... 185
Door and Trunk Open Message ................. 45
Keys ........................................................ 172
Locking/Unlocking the Doors from the Inside ..................................................... 182
Locking/Unlocking the Doors from the Outside .................................................. 175
Lockout Prevention System ...................... 181
DOT Tire Quality Grading ........................ 595Driver Attention Monitor
........................ 149
Driver Information Interface ................... 136
Switching the Display .............................. 136
Warning and Information Messages ........ 107
Driving ...................................................... 447
Braking ................................................... 539
Shifting Gear ........................................... 463
Transmission ........................................... 462
Turning on the Power.............................. 454
Driving Support Information ................... 152
Dust and Pollen Filter ............................... 604
E
Eco Assist® System ...................................... 18
Eco Drive Display/Drive Cycle Score/
Lifetime Points ........................................ 155
ECON Mode .............................................. 473
Indicator.................................................. 100
Elapsed Time ............................................. 143
Electric Power Steering (EPS) System
Indicator............................................ 95, 648
Electronic Stability Control (ESC) ............. 475
Emergency ................................................ 657
Emergency Power System Off ................. 637
Emergency Trunk Opener ........................ 188
Emissions Testing (Readiness Codes) ....... 667
Engine ....................................................... 664
Coolant ................................................... 579
Jump Starting .......................................... 638
Oil ........................................................... 574 Starting................................................... 454
Engine Oil ................................................. 574
Adding ................................................... 576
Checking ................................................ 575
Displaying Oil Life ................................... 566
Low Oil Pressure Warning ....................... 643
Recommended Engine Oil ....................... 574
EPS (Electric Power Steering) System ...... 648
EV Button ................................................... 14
Exhaust Gas Hazard (Carbon Monoxide) .. 81
Exterior Care (Cleaning) .......................... 607
Exterior Mirrors ........................................ 213F
Features.................................................... 239
Filters Dust and Pollen....................................... 604
Oil .......................................................... 577
Flat Tire ..................................................... 615
Floor Mats ................................................ 606
Fluids Brake ...................................................... 583
Engine Coolant ....................................... 579
Inverter Coolant ...................................... 581
Windshield Washer ................................. 584
FM/AM Radio ................................... 254, 296
Fog Lights ................................................. 203
Indicator ................................................... 98
Folding Down the Rear Seat ................... 217
Foot Brake ................................................ 543
21 INSIGHT-31TXM6200.book 676 ページ ２０２０年２月５日　水曜日　午前１０時０分

677
Index
Front Airbags (SRS).................................... 56
Front Seat Heaters ................................... 230
Front Seats Adjusting ................................................ 214
Front Sensor Camera ............................... 536
Fuel ..................................................... 33, 557
Economy................................................. 560
Gauge .................................................... 133
Instant Fuel Economy .............................. 141
Low Fuel Indicator..................................... 94
Range ..................................................... 141
Recommendation.................................... 557
Refueling ................................................ 557
Fuel Economy and CO
2 Emissions ............ 560
Fuel Fill Cap ........................................ 33, 558
Fuel Fill Door ...................................... 33, 558
Unable to Unlock .................................... 658
Fuses ......................................................... 651
Inspecting and Changing ........................ 656
Locations ........................................ 651, 655
G
Gasoline (Fuel)
Economy................................................. 560
Gauge .................................................... 133
Information............................................. 557
Instant Fuel Economy .............................. 141
Low Fuel Indicator..................................... 94
Refueling ................................................ 557
Gauges ...................................................... 133 Glass (care)
........................................ 605, 608
Glove Box .................................................. 224
H
Handling the Unexpected ........................ 613
HandsFreeLink ® (HFL) ....................... 395, 420
Automatic Import of Cellular Phonebook and Call History ........... 410, 429
Automatic Transferring ............................ 428
Caller’s ID Information ............................. 407
Displaying Messages ................................ 439
Favorite Contacts ..................................... 430
HFL Buttons ..................................... 395, 420
HFL Menus ...................................... 397, 423
HFL Status Display ........................... 396, 422
In Case of Emergency ...................... 323, 443
Limitations for Manual Operation .... 396, 422
Making a Call .................................. 414, 432
Options During a Call ...................... 419, 435
Phone Setup .................................... 401, 425
Receiving a Call ............................... 418, 435
Receiving a Text Message ........................ 437
Ring Tone ........................................ 407, 428
Selecting a Phone .................................... 438
Speed Dial ............................................... 411
To Clear the System ................................. 409
To Set Up a Text Message Options ........... 436
Hazard Warning Button ............................... 6
HD Radio
TM................................................ 299
Head Restraints ......................................... 219 Headlights
................................................. 200
Auto High-Beam System.......................... 204
Automatic Operation............................... 201
Dimming ......................................... 200, 203
Operating................................................ 200
Heaters (Seat) ................................... 230, 231
HFL (HandsFreeLink ®)....................... 395, 420
High Beam Indicator .................................. 98
High Voltage Battery ............................... 486
High Voltage Battery Charge Level Gauge ...................................................... 134
Hill Start Assist System ............................. 459
HomeLink ® Universal Transceiver ............ 392
Honda App License Agreement .............. 345
Honda Sensing ®................................ 34, 487
HondaLink ®............................................. 319
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent Multi-Mode Drive) ................................... 11
I
Identification Numbers Engine and Transmission ......................... 664
Vehicle Identification ............................... 664
Illumination Control Dial ......................................................... 210
Immobilizer System .................................. 189
Indicator.................................................... 99
21 INSIGHT-31TXM6200.book 677 ページ ２０２０年２月５日　水曜日　午前１０時０分

679
Index
From Outside .......................................... 175
Keys........................................................ 172
Using a Key............................................. 180
Lockout Prevention System ..................... 181
Low Battery Charge ................................. 644
Low Fuel Indicator ..................................... 94
Low Oil Pressure Warning ....................... 643
Low Remote Signal Strength .................. 174
Lower Anchors ........................................... 73
Luggage (Maximum Load Limit) ............. 451
M
Maintenance.................................... 145, 561
Battery .................................................... 601
Brake Fluid .............................................. 583
Cleaning ................................................. 605
Climate Control System .......................... 604
Coolant .................................................. 579
Maintenance Minder
TM............................ 565
Oil .......................................................... 575
Precautions ............................................. 562
Radiator .................................................. 580
Remote Transmitter ................................ 603
Replacing Light Bulbs .............................. 585
Safety ..................................................... 563
Service Items ........................................... 569
Tires........................................................ 592
Transmission Fluid ................................... 582
Under the Hood ...................................... 572
Malfunction Indicator Lamp ............. 91, 645Map Lights
................................................ 223
Maximum Load Limit ............................... 451
Meters, Gauges ......................................... 133
Mirrors ....................................................... 212
Adjusting ................................................. 212
Door ........................................................ 213
Exterior .................................................... 213
Interior Rearview ..................................... 212
Modifications (and Accessories) .............. 611
Moonroof .................................................. 195
MP3 ................................................... 261, 314
MP3/WMA/AAC ........................................ 314
Multi-View Rear Camera .......................... 554
N
Navigation................................................ 144
Numbers (Identification) .......................... 664
O
Odometer.................................................. 138
Oil (Engine) ............................................... 574
Adding .................................................... 576
Checking ................................................. 575
Displaying Oil Life .................................... 566
Low Oil Pressure Warning ........................ 643
Oil Life ..................................................... 145
Recommended Engine Oil ........................ 574
Viscosity .................................................. 574
Open Source Licenses ............................... 359 Opening
Trunk ...................................................... 659
Opening/Closing Hood....................................................... 573
Moonroof ............................................... 195
Power Windows ...................................... 192
Trunk ...................................................... 186
Outside Temperature Display .................. 139
Overheating .............................................. 641
P
Pandora®................................................. 259
Panic Mode ............................................... 191
Parking ...................................................... 549
Parking Brake ........................................... 539
Parking Brake and Brake System Indicator (Amber) ............................. 86, 647
Parking Brake and Brake System Indicator (Red) .......................... 85, 646, 647
Passenger Front Airb ag Off Indicator....... 65
Passing Indicators ..................................... 200
Phone ........................................................ 146
Playing Bluetooth ® Audio ................ 264, 317
POWER Button ......................................... 196
Power Flow Monitor ................................ 157
Power Windows ....................................... 192
POWER/CHARGE Gauge ........................... 135
Precautions While Driving ....................... 460
Rain ........................................................ 460
Pregnant Women ....................................... 51
21 INSIGHT-31TXM6200.book 679 ページ ２０２０年２月５日　水曜日　午前１０時０分

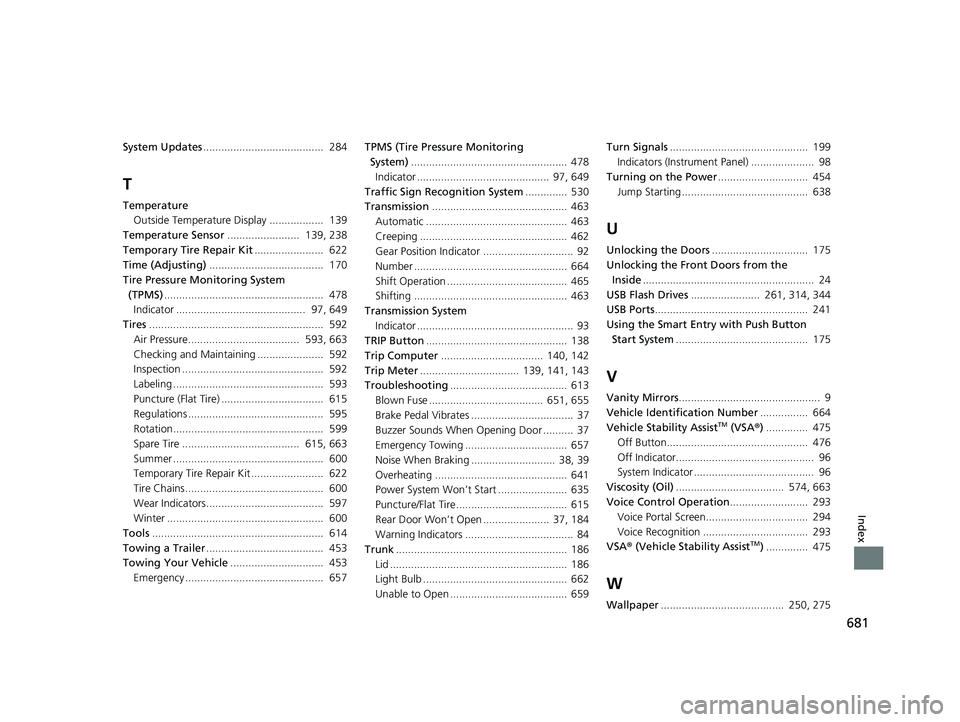

681
Index
System Updates........................................ 284
T
Temperature
Outside Temperature Display .................. 139
Temperature Sensor ........................ 139, 238
Temporary Tire Repair Kit ....................... 622
Time (Adjusting) ...................................... 170
Tire Pressure Monitoring System
(TPMS) ..................................................... 478
Indicator ........................................... 97, 649
Tires .......................................................... 592
Air Pressure..................................... 593, 663
Checking and Maintaining ...................... 592
Inspection ............................................... 592
Labeling .................................................. 593
Puncture (Flat Tire) .................................. 615
Regulations ............................................. 595
Rotation.................................................. 599
Spare Tire ....................................... 615, 663
Summer .................................................. 600
Temporary Tire Repair Kit ........................ 622
Tire Chains.............................................. 600
Wear Indicators....................................... 597
Winter .................................................... 600
Tools ......................................................... 614
Towing a Trailer ....................................... 453
Towing Your Vehicle ............................... 453
Emergency .............................................. 657 TPMS (Tire Pressure Monitoring
System) .................................................... 478
Indicator ............................................ 97, 649
Traffic Sign Recognition System .............. 530
Transmission ............................................. 463
Automatic ............................................... 463
Creeping ................................................. 462
Gear Position Indicator .............................. 92
Number ................................................... 664
Shift Operation ........................................ 465
Shifting ................................................... 463
Transmission System Indicator .................................................... 93
TRIP Button ............................................... 138
Trip Computer .................................. 140, 142
Trip Meter ................................. 139, 141, 143
Troubleshooting ....................................... 613
Blown Fuse ...................................... 651, 655
Brake Pedal Vibrates .................................. 37
Buzzer Sounds When Opening Door .......... 37
Emergency Towing .................................. 657
Noise When Braking ............................ 38, 39
Overheating ............................................ 641
Power System Won’t Start ....................... 635
Puncture/Flat Tire ..................................... 615
Rear Door Won’t Open ...................... 37, 184
Warning Indicators .................................... 84
Trunk ......................................................... 186
Lid ........................................................... 186
Light Bulb ................................................ 662
Unable to Open ....................................... 659 Turn Signals
.............................................. 199
Indicators (Instrument Panel) ..................... 98
Turning on the Power .............................. 454
Jump Starting .......................................... 638
U
Unlocking the Doors ................................ 175
Unlocking the Fron t Doors from the
Inside ......................................................... 24
USB Flash Drives ....................... 261, 314, 344
USB Ports ................................................... 241
Using the Smart Entr y with Push Button
Start System ............................................ 175
V
Vanity Mirrors ............................................... 9
Vehicle Identification Number ................ 664
Vehicle Stability Assist
TM (VSA ®) .............. 475
Off Button............................................... 476
Off Indicator.............................................. 96
System Indicator ........................................ 96
Viscosity (Oil) .................................... 574, 663
Voice Control Operation .......................... 293
Voice Portal Screen.................................. 294
Voice Recognition ................................... 293
VSA ® (Vehicle Stability Assist
TM) .............. 475
W
Wallpaper ......................................... 250, 275
21 INSIGHT-31TXM6200.book 681 ページ ２０２０年２月５日　水曜日　午前１０時０分
