Continued505
uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
Driving
■A vehicle detected ahead is within ACC with Low Speed Follow range and
slows to a stop Your vehicle also stops, automatically. The
Stopped message appears on the driver
information interface.
When the vehicle ahead of you starts again,
the vehicle icon on the driver information
interface blinks. If you press the RES/+ or
SET/ – button, or depress the accelerator
pedal, ACC with Low Sp eed Follow operates
again within the prior set speed.
If no vehicle is ahead of you before you
resume driving, depress the accelerator pedal
and ACC with Low Speed Follow will operate
again within the prior set speed.1 A vehicle detected ahead is within ACC with Low Speed Follow
range and slows to a stop
3WARNING
Exiting a vehicle that has been stopped
while the ACC with Low Speed Follow
system is operating can result in the vehicle
moving without operator control.
A vehicle that moves without operator
control can cause a crash, resulting in
serious injury or death.
Never exit a vehicle when the vehicle is
stopped by ACC with Low Speed Follow.
21 INSIGHT-31TXM6200.book 505 ページ ２０２０年２月５日　水曜日　午前１０時０分

521
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Continued
Driving
■The system operatio n is suspended if
you:
• The wipers are set to HI.
u Turning the wipers off resumes the
LKAS.
• Set the wiper switch to AUTO and the
wipers operate at high speed.
u The LKAS resumes when the wipers stop
or operate at low speed.
• Decrease the vehicle speed to about 40 mph
(64 km/h) or less.
u Increasing the vehicle speed to about
45 mph (72 km/h) or more resumes the
LKAS.
• Depress the brake pedal.
u The LKAS resumes and starts detecting
the lane lines again once you release the
brake pedal.
■The LKAS may automatica lly be suspended when:
• The system fails to detect lane lines.
• The steering wheel is quickly turned.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 90 mph (145 km/h).
Once these conditions no longer exist, the LKAS automatically resumes.
When the LKAS is suspended,
the lane lines on the driver
information interface change to
contour lines, and the beeper
sounds (if activated).
Models with automatic intermittent wipers
All models
21 INSIGHT-31TXM6200.book 521 ページ ２０２０年２月５日　水曜日　午前１０時０分

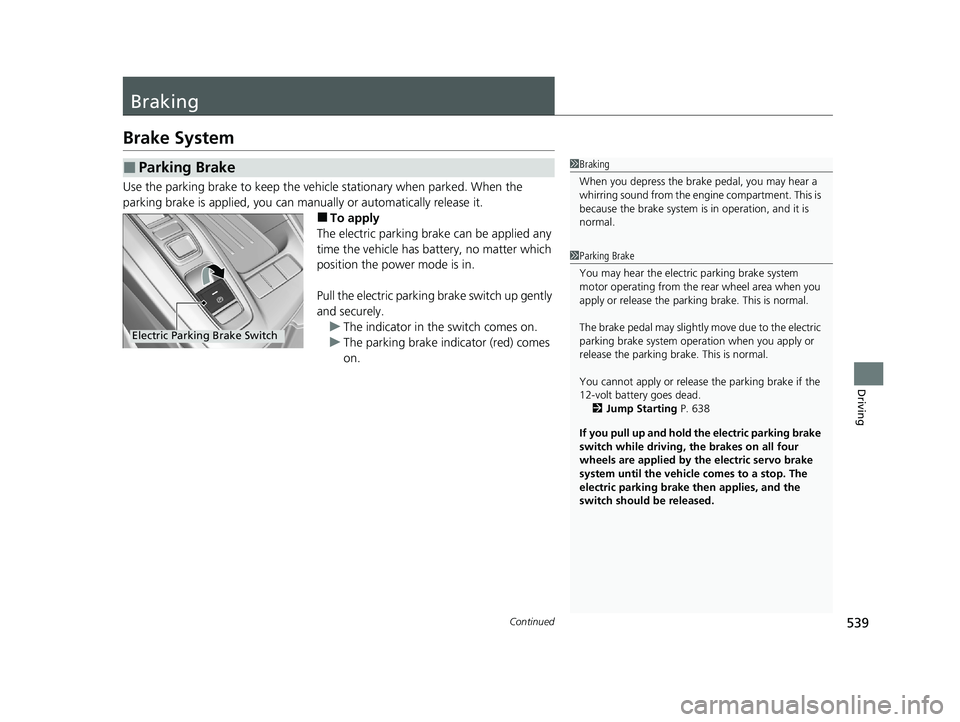

539Continued
Driving
Braking
Brake System
Use the parking brake to keep the vehicle stationary when parked. When the
parking brake is applied, you can manu ally or automatically release it.
■To apply
The electric parking brake can be applied any
time the vehicle has battery, no matter which
position the power mode is in.
Pull the electric parking brake switch up gently
and securely. u The indicator in the switch comes on.
u The parking brake indicator (red) comes
on.
■Parking Brake1Braking
When you depress the brak e pedal, you may hear a
whirring sound from the engine compartment. This is
because the brake system is in operation, and it is
normal.
1 Parking Brake
You may hear the electric parking brake system
motor operating from the re ar wheel area when you
apply or release the parki ng brake. This is normal.
The brake pedal may slightly move due to the electric
parking brake system opera tion when you apply or
release the parking br ake. This is normal.
You cannot apply or release the parking brake if the
12-volt battery goes dead.
2 Jump Starting P. 638
If you pull up and hold the electric parking brake
switch while driving, the brakes on all four
wheels are applied by the electric servo brake
system until the vehicle comes to a stop. The
electric parking brake then applies, and the
switch should be released.
Electric Parking Brake Switch
21 INSIGHT-31TXM6200.book 539 ページ ２０２０年２月５日　水曜日　午前１０時０分

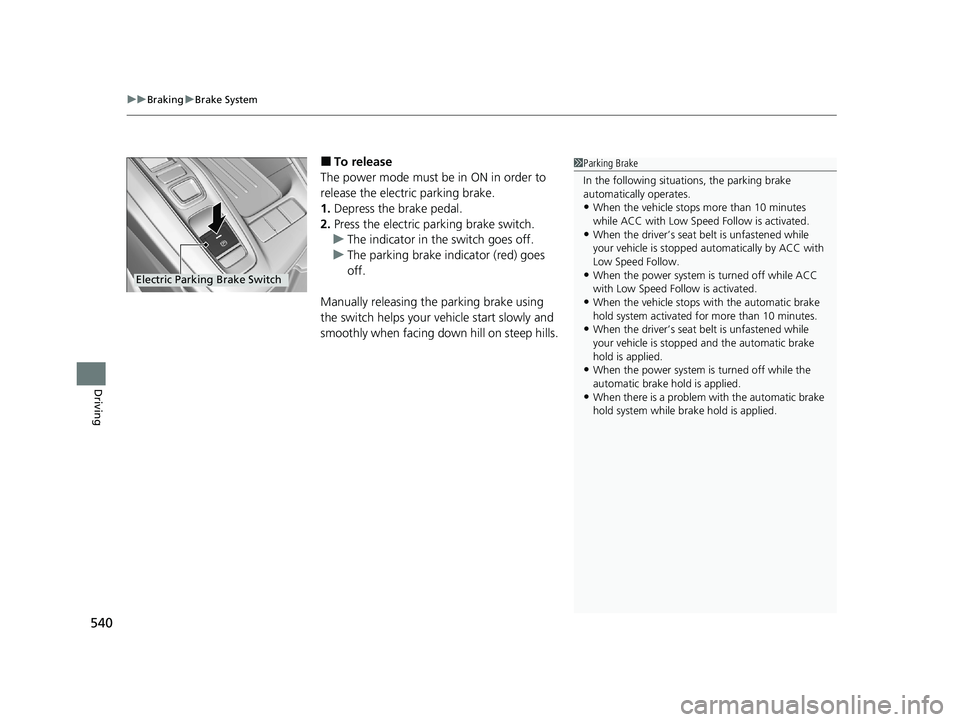

uuBraking uBrake System
540
Driving
■To release
The power mode must be in ON in order to
release the electric parking brake.
1. Depress the brake pedal.
2. Press the electric parking brake switch.
u The indicator in th e switch goes off.
u The parking brake indicator (red) goes
off.
Manually releasing the parking brake using
the switch helps your ve hicle start slowly and
smoothly when facing down hill on steep hills.1 Parking Brake
In the following situations, the parking brake
automatically operates.
•When the vehicle stops more than 10 minutes
while ACC with Low Speed Follow is activated.
•When the driver’s seat belt is unfastened while
your vehicle is stopped au tomatically by ACC with
Low Speed Follow.
•When the power system is turned off while ACC
with Low Speed Follow is activated.
•When the vehicle stops with the automatic brake
hold system activated for more than 10 minutes.
•When the driver’s seat belt is unfastened while
your vehicle is stopped and the automatic brake
hold is applied.
•When the power system is turned off while the
automatic brake hold is applied.
•When there is a problem with the automatic brake
hold system while br ake hold is applied.
Electric Parking Brake Switch
21 INSIGHT-31TXM6200.book 540 ページ ２０２０年２月５日　水曜日　午前１０時０分

uuBraking uBrake System
544
Driving
Keeps the brake applied after releasing the br ake pedal until the accelerator pedal is
pressed. You can use this system while th e vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.
■Automatic Brake Hold1 Automatic Brake Hold
3WARNING
Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3WARNING
Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in
( P and applying the parking
brake.
■Turning on the system
Fasten your seat belt
properly, then start the
power system. Press the
automatic brake hold
button.
●The automatic brake
hold system indicator
comes on. The system
is turned on.
■Activating the system
Depress the brake pedal
to come to a complete
stop. The transmission
must be in
( D or (N.●The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.
●Release the brake pedal
after the automatic
brake hold indicator
comes on.
■Canceling the system
Depress the accelerator
pedal while the
transmission must be in
( D. The system is
canceled and the vehicle
starts to move.
●The automatic brake
hold indicator goes
off. The system
continues to be on.
Accelerator PedalBrake PedalAutomatic Brake
Hold Button
Goes
Off
U.S.
Canada
On
On
Comes
On
Comes
On
Comes
On
21 INSIGHT-31TXM6200.book 544 ページ ２０２０年２月５日　水曜日　午前１０時０分

558
uuRefueling uHow to Refuel
Driving
How to Refuel
1. Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Put the transmission into
(P.
3. Turn the power system off.
4. Press the fuel fill door release button.
u Please Wait appears for a few seconds
on the driver information interface.
5. When the message changes to Ready, the
fuel fill door automatically opens.
u You can now unscrew the fuel cap and
start refueling.
6. Remove the fuel fill cap slowly. If you hear a
release of air, wait until this stops, then turn
the knob slowly to open the fuel fill cap.
1How to Refuel
This vehicle has a pressurized fuel system.
When the fuel vapor pressure inside the fuel tank is
high, it takes about 10 seconds for the vehicle to vent
the fuel tank. Once the pressure is vented, the driver
information interface changes from Please Wait to
Ready.
If the filler nozzle keeps tu rning off when the tank is
not full, there may be a pr oblem with the pump’s fuel
vapor recovery system. Try fi lling at another pump. If
this does not fix the problem, consult a dealer.
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel do es not overflow as a result
of changes in air temperature.
Do not continue to add fuel after the filler nozzle has
automatically stopped. Addi tional fuel can exceed
the full tank capacity.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power syste m off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Fuel Fill Door Release Button
Fuel Fill Cap
21 INSIGHT-31TXM6200.book 558 ページ ２０２０年２月５日　水曜日　午前１０時０分

uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
578
Maintenance
5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
3.5 US qt (3.3 L)
10. Reinstall the engine oi l fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that ther e is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter
21 INSIGHT-31TXM6200.book 578 ページ ２０２０年２月５日　水曜日　午前１０時０分

637
uuPower System Won’t StartuEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the power system off due to an emergency
situation even while driving. If you must tu rn the power system off, do either of the
following operations:
• Press and hold the POWER button about for two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The transmission automa tically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the POWER button while driving unless
it is absolutely necessary for the power system to be
turned off.
If you press the POWER button while driving, the
beeper sounds.
21 INSIGHT-31TXM6200.book 637 ページ ２０２０年２月５日　水曜日　午前１０時０分

645
uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system, or the fuel fill cap is missing, or loose.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
■The message appears on when:
An evaporative system leak is detected. This may be caused by the fuel fill cap being
loose or not being installed.
■What to do when the message appears:
1. Turn the power system off.
2. Check if the fuel fill cap is fully installed.
u If not, loosen the cap, and then retight en it until it clicks at least once.
3. Drive for several days of normal driving.
u The message should go off.
■When the malfunction indicator lamp comes on
Malfunction indicator lamp comes on if th e system continues to detect a leak of
gasoline vapor. If this happens, check the fu el fill cap using the procedures described
above.
■Tighten Fuel Cap Message
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
21 INSIGHT-31TXM6200.book 645 ページ ２０２０年２月５日　水曜日　午前１０時０分

680
Index
Puncture (Tire).......................................... 615
R
Radar Sensor............................................. 538
Radiator ..................................................... 580
Radio (AM/FM) .......................................... 296
Radio (FM/AM) .......................................... 254
Radio (SiriusXM ®)...................................... 300
Radio Data System (RDS) .................. 255, 298
Range ........................................................ 141
RDS (Radio Data System) .................. 255, 298
Readiness Codes (Emissions Testing) ....... 667
Rear Defogger/Heated Door Mirror Button ...................................................... 209
Rear Seat (Folding Down) ........................ 217
Rear Seat Heaters ..................................... 231
Rearview Mirror ........................................ 212
Refueling ................................................... 557
Fuel Gauge .............................................. 133
Gasoline .......................................... 557, 662
Low Fuel Indicator ..................................... 94
Regulations ............................... 481, 595, 665
Remote Engine Start with Vehicle
Feedback ................................................. 456
Remote Transmitter .................................. 179
Replacement
Battery..................................................... 603
Bulbs ....................................................... 585
Fuses ............................................... 651, 655
Tires ........................................................ 598 Wiper Blade Rubber ................................ 589
Reporting Safety Defects ......................... 666
Resetting a Trip Meter ..................... 139, 141
Road Departure Mitigation (RDM) ......... 525
On and Off.............................................. 527
S
Safe Driving ................................................ 41
Safety Check ............................................... 45
Safety Labels ............................................... 82
Safety Message ............................................. 3
Safety Support .......................................... 153
Seat Belts .................................................... 46
Adjusting the Shoulder Anchor.................. 50
Automatic Seat Belt Tensioners ................. 48
Checking................................................... 52
Fastening .................................................. 49
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 75
Pregnant Women ...................................... 51
Reminder .................................................. 47
Warning Indicator ............................... 47, 94
Seat Heaters ...................................... 230, 231
Seats .......................................................... 214
Adjusting ................................................ 214
Front Seats .............................................. 214
Rear Seats ............................................... 217
Seat Heaters .................................... 230, 231
Security System ......................................... 189
Immobilizer System Indicator ..................... 99 Security System Alarm Indicator ................ 99
Selecting a Child Seat ................................ 72
Selector Knob (Audio) ............................. 247
Shift Buttons ...................................... 30, 463
Operation ............................................... 465
Shift Position Indicator .............................. 92
Shifting (Transmission) ............................ 463
Shoulder Anchor ........................................ 50
Side Airbags ............................................... 61
Side Curtain Airbags .................................. 63
Siri Eyes Free ..................................... 267, 330
SiriusXM ® Radio ....................................... 300
Smart Entry with Push Button Start System ..................................................... 175
Snow Tires ................................................ 600
Spare Tire ......................................... 615, 663
Spark Plugs ............................................... 662
Specifications ........................................... 662
Specified Fuel ................................... 557, 662
Speedometer ............................................ 133
SPORT Mode ............................................. 469
Indicator ................................................. 100
SRS Airbags (Airbags) ................................ 56
Steering Wheel Adjusting ................................................ 211
Stopping ................................................... 549
Summer Tires ............................................ 600
Supplemental Restraint System (SRS) ....... 56
Switches (Around the Steering Wheel) ............................................ 6, 7, 196
System Message Indicator ....................... 100
21 INSIGHT-31TXM6200.book 680 ページ ２０２０年２月５日　水曜日　午前１０時０分
