TPMS HONDA INSIGHT 2021 (in English) Owner's Guide

602
uu12-Volt Battery uCharging the AGM Battery
Maintenance

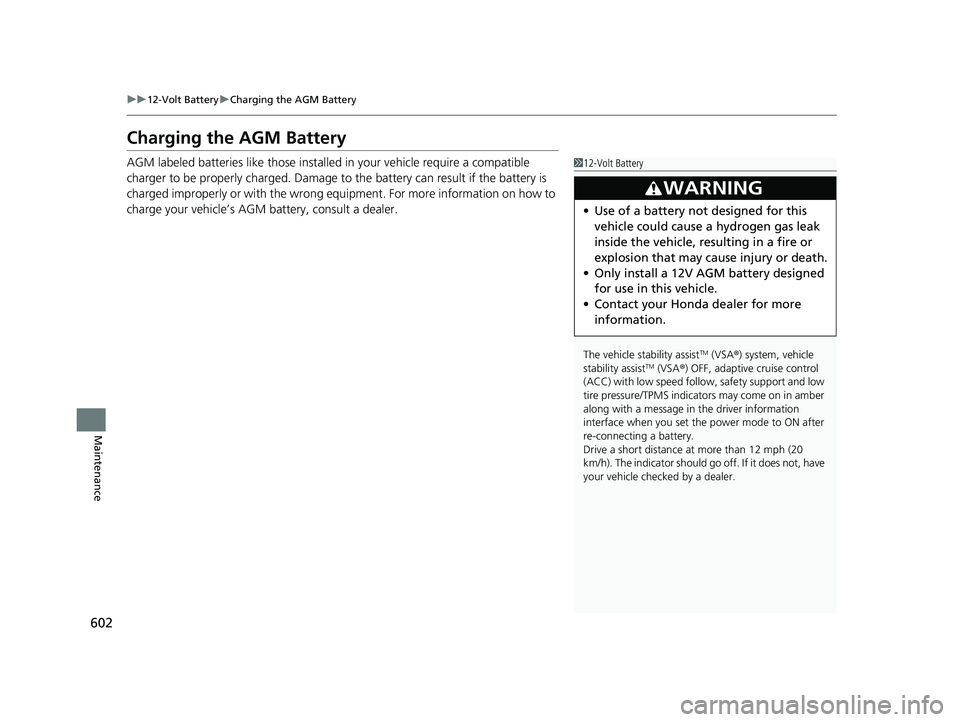

Charging the AGM Battery
AGM labeled batteries like those installe d in your vehicle require a compatible
charger to be properly charged. Damage to the battery can result if the battery is
charged improperly or with the wrong equi pment. For more information on how to
charge your vehicle’s AGM battery, consult a dealer.112-Volt Battery
The vehicle stability assist
TM (VSA ®) system, vehicle
stability assistTM (VSA ®) OFF, adaptive cruise control
(ACC) with low speed follow, safety support and low
tire pressure/TPMS indicato rs may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
re-connecting a battery.
Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not, have
your vehicle checked by a dealer.
3WARNING
• Use of a battery not designed for this
vehicle could cause a hydrogen gas leak
inside the vehicle, resulting in a fire or
explosion that may cause injury or death.
• Only install a 12V AGM battery designed
for use in this vehicle.
• Contact your Honda dealer for more
information.
21 INSIGHT-31TXM6200.book 602 ページ ２０２０年２月５日　水曜日　午前１０時０分

613
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 614
If a Tire Goes Flat
Changing a Flat Tire ......................... 615
Temporarily Repairi ng a Flat Tire....... 621
Power System Won’t Start Checking the Procedure ................... 635
If the Remote Battery is Weak .......... 636
Emergency Power System Off........... 637
Jump Starting .................................... 638
Overheating
How to Handle Overheating ............. 641
Models with optional spare tire
Indicator, Coming On/BlinkingIf the Low Oil Pressure Warning Appears ... 643If the 12-Volt Battery Charging System Indicator Comes On ....................... 644
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 645
If the Brake System Indicator (Red) Comes On or Blinks ..................................... 646
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On.... 647
If the Electric Power Steering (EPS) System Indicator Comes On......................... 648 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 649
If the Transmission System Indicator Blinks
along with the Warning Message ...... 650
Fuses Fuse Locations ................................. 651
Inspecting and Changing Fuses ........ 656
Emergency Towing ........................... 657
When You Cannot Unlock the Fuel Fill
Door ................................................. 658
When You Cannot Open the Trunk ... 659
21 INSIGHT-31TXM6200.book 613 ページ ２０２０年２月５日　水曜日　午前１０時０分

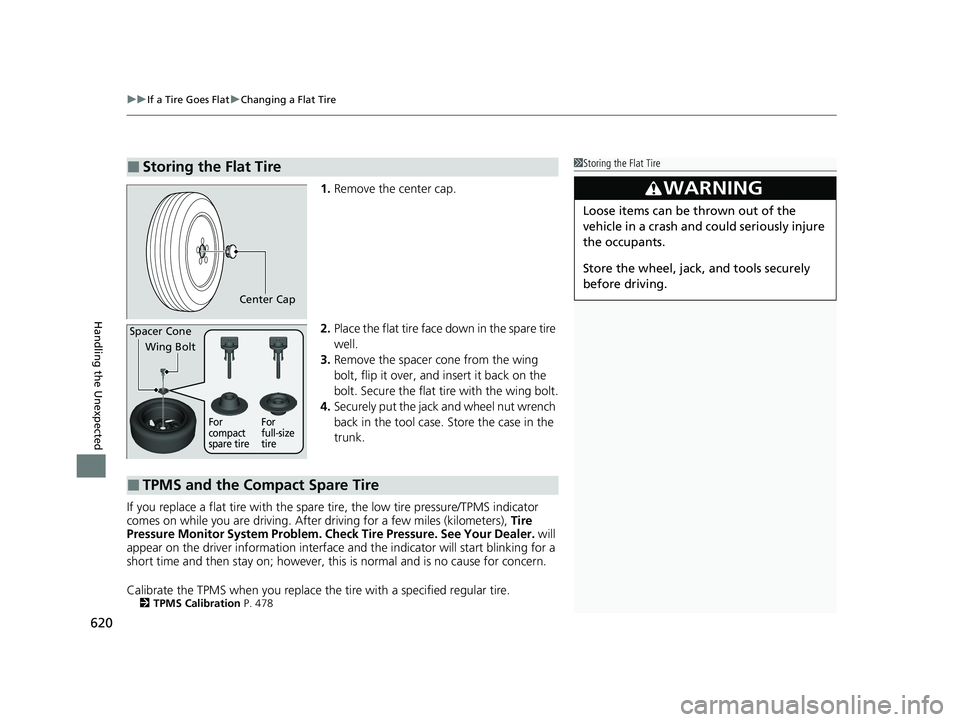

uuIf a Tire Goes Flat uChanging a Flat Tire
620
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. Afte r driving for a few miles (kilometers), Tire
Pressure Monitor System Problem. Ch eck Tire Pressure. See Your Dealer. will
appear on the driver information interface and the indicator will start blinking for a
short time and then stay on; however, this is normal and is no cause for concern.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 478
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can be thrown out of the
vehicle in a crash and could seriously injure
the occupants.
Store the wheel, jack, and tools securely
before driving.
Center Cap
Spacer Cone
Wing Bolt
For
compact
spare tire For
full-size
tire
■TPMS and the Compact Spare Tire
21 INSIGHT-31TXM6200.book 620 ページ ２０２０年２月５日　水曜日　午前１０時０分

uuJump Starting u
640
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s jump start box + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1What to Do After the Engine Starts
The vehicle stability assist
TM (VSA ®) system, vehicles
stability assistTM (VSA ®) OFF, adaptive cruise control
(ACC) with low speed follow, safety support and low
tire pressure/TPMS indicato rs may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
re-connecting a battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
21 INSIGHT-31TXM6200.book 640 ページ ２０２０年２月５日　水曜日　午前１０時０分

649
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

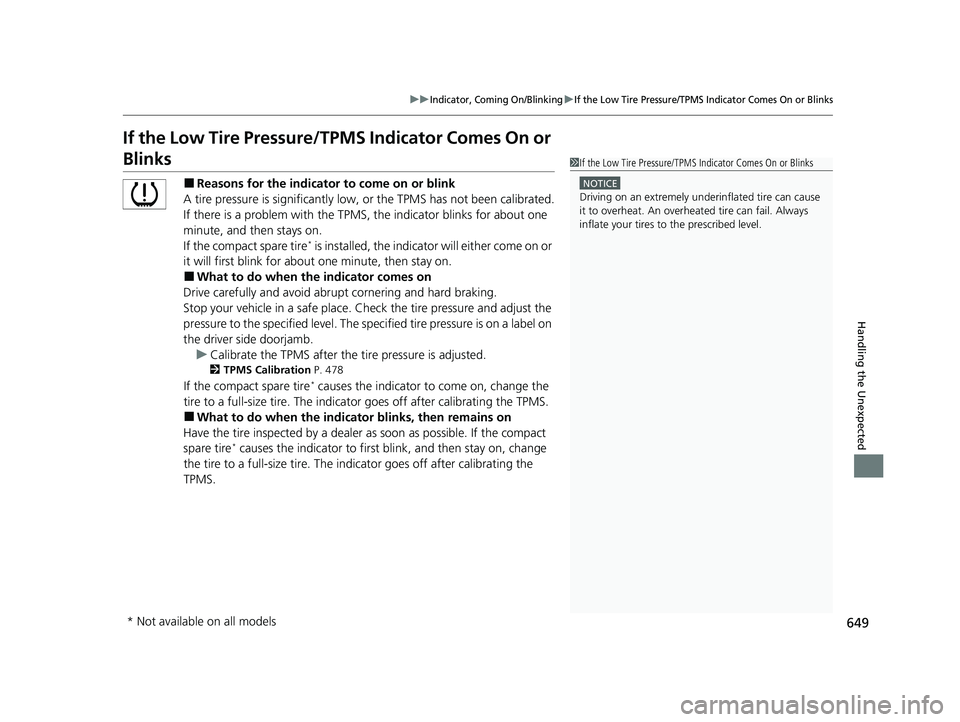

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is signif icantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire
* is installed, the indicator will either come on or
it will first blink for about one minute, then stay on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 478
If the compact spare tire* causes the indicator to come on, change the
tire to a full-size tire. The indicato r goes off after calibrating the TPMS.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to first b link, and then stay on, change
the tire to a full-size tire. The indi cator goes off after calibrating the
TPMS.
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models
21 INSIGHT-31TXM6200.book 649 ページ ２０２０年２月５日　水曜日　午前１０時０分

678
Index
Indicators..................................................... 84
12-Volt Battery Charging System ....... 92, 644
Adaptive Cruise Control (ACC) with Low Speed Follow (Amber) ............................ 101
Adaptive Cruise Control (ACC) with
Low Speed Follow (Green) ............. 102, 500
Anti-lock Brake System (ABS) ..................... 95
Auto High-Beam ........................................ 98
Automatic Brake Hold........................ 88, 544
Automatic Brake Hold System ............ 88, 544
Blind spot information System ................. 484
Deceleration Paddle Selector ...................... 92
ECON Mode .................................... 100, 473
Electric Power Steering (EPS) System .. 95, 648
EV ............................................................. 90
EV Mode ................................................... 90
Fog Light ................................................... 98
High Beam................................................. 98
Immobilizer System .................................... 99
Lane Keeping Assist System (LKAS) (Amber) ................................................. 102
Lane Keeping Assist System (LKAS)
(Green) .......................................... 102, 519
Lights On ................................................... 98
Low Fuel .................................................... 94
Low Tire Pressure/TPMS ............. 97, 478, 481
Malfunction Indicator Lamp ............... 91, 645
Parking Brake and Brake System
(Amber) ........................................... 86, 647
Parking Brake and Brake System (Red) ........................................ 85, 646, 647 POWER SYSTEM ........................................ 89
READY ...................................................... 90
Safety Support (Amber) ........................... 103
Safety Support (Green/Gray) .................... 106
Seat Belt Reminder .............................. 47, 94
Security System Alarm ............................... 99
Shift Position ............................................. 92
SPORT Mode ................................... 100, 469
Supplemental Restraint System ............ 64, 95
System Message ...................................... 100
Transmission System.................................. 93
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA
®) OFF .. 96, 476
Vehicle Stability AssistTM (VSA ®)
System ............................................ 96, 475
Information .............................................. 661
Instant Fuel Economy ............................... 141
Instrument Panel ........................................ 83
Brightness Control................................... 210
Interior Lights ........................................... 222
Interior Rearview Mirror .......................... 212
Inverter Coolant ....................................... 581
iPad ........................................................... 344
iPhone ....................................................... 344
iPod ........................................... 256, 311, 344
J
Jack (Wheel Nut Wrench) ........................ 618
Jump Starting ........................................... 638
K
Key Number Tag ...................................... 173
Keyless Lockout Prevention ..................... 181
Keys ........................................................... 172
Lockout Prevention ................................. 181
Number Tag............................................ 173
Rear Door Won’t Open ........................... 184
Remote Transmitter ................................ 179
Types and Functions................................ 172
L
Lane Keeping Assist System (LKAS) ........ 517
Language (HFL) ........................................ 422
LATCH (Child Seats) ................................... 73
Left Selector Wheel ................................. 158
Lights ................................................ 200, 585
Automatic............................................... 201
Bulb Replacement ................................... 585
Daytime Running Lights .......................... 203
Fog Lights ............................................... 203
High Beam Indicator ................................. 98
Interior.................................................... 222
Light Switches......................................... 200
Lights On Indicator .................................... 98
Turn Signals ............................................ 199
Load Limits ............................................... 451
Locking/Unlocking ................................... 172
Auto Door Locking/Unlocking ................. 185
Childproof Door Locks ............................ 184
From Inside ............................................. 182
21 INSIGHT-31TXM6200.book 678 ページ ２０２０年２月５日　水曜日　午前１０時０分

681
Index
System Updates........................................ 284
T
Temperature
Outside Temperature Display .................. 139
Temperature Sensor ........................ 139, 238
Temporary Tire Repair Kit ....................... 622
Time (Adjusting) ...................................... 170
Tire Pressure Monitoring System
(TPMS) ..................................................... 478
Indicator ........................................... 97, 649
Tires .......................................................... 592
Air Pressure..................................... 593, 663
Checking and Maintaining ...................... 592
Inspection ............................................... 592
Labeling .................................................. 593
Puncture (Flat Tire) .................................. 615
Regulations ............................................. 595
Rotation.................................................. 599
Spare Tire ....................................... 615, 663
Summer .................................................. 600
Temporary Tire Repair Kit ........................ 622
Tire Chains.............................................. 600
Wear Indicators....................................... 597
Winter .................................................... 600
Tools ......................................................... 614
Towing a Trailer ....................................... 453
Towing Your Vehicle ............................... 453
Emergency .............................................. 657 TPMS (Tire Pressure Monitoring
System) .................................................... 478
Indicator ............................................ 97, 649
Traffic Sign Recognition System .............. 530
Transmission ............................................. 463
Automatic ............................................... 463
Creeping ................................................. 462
Gear Position Indicator .............................. 92
Number ................................................... 664
Shift Operation ........................................ 465
Shifting ................................................... 463
Transmission System Indicator .................................................... 93
TRIP Button ............................................... 138
Trip Computer .................................. 140, 142
Trip Meter ................................. 139, 141, 143
Troubleshooting ....................................... 613
Blown Fuse ...................................... 651, 655
Brake Pedal Vibrates .................................. 37
Buzzer Sounds When Opening Door .......... 37
Emergency Towing .................................. 657
Noise When Braking ............................ 38, 39
Overheating ............................................ 641
Power System Won’t Start ....................... 635
Puncture/Flat Tire ..................................... 615
Rear Door Won’t Open ...................... 37, 184
Warning Indicators .................................... 84
Trunk ......................................................... 186
Lid ........................................................... 186
Light Bulb ................................................ 662
Unable to Open ....................................... 659 Turn Signals
.............................................. 199
Indicators (Instrument Panel) ..................... 98
Turning on the Power .............................. 454
Jump Starting .......................................... 638
U
Unlocking the Doors ................................ 175
Unlocking the Fron t Doors from the
Inside ......................................................... 24
USB Flash Drives ....................... 261, 314, 344
USB Ports ................................................... 241
Using the Smart Entr y with Push Button
Start System ............................................ 175
V
Vanity Mirrors ............................................... 9
Vehicle Identification Number ................ 664
Vehicle Stability Assist
TM (VSA ®) .............. 475
Off Button............................................... 476
Off Indicator.............................................. 96
System Indicator ........................................ 96
Viscosity (Oil) .................................... 574, 663
Voice Control Operation .......................... 293
Voice Portal Screen.................................. 294
Voice Recognition ................................... 293
VSA ® (Vehicle Stability Assist
TM) .............. 475
W
Wallpaper ......................................... 250, 275
21 INSIGHT-31TXM6200.book 681 ページ ２０２０年２月５日　水曜日　午前１０時０分
