buttons HONDA INSIGHT 2021 (in English) Owner's Guide

420
Features
Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL
■HFL Buttons
1 Bluetooth ® HandsFreeLink ®
Place your phone where y ou can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit automobiles.honda.com /handsfreelink/,
or call 1-888-528-7876.
•Canada: For more info rmation on smartphone
compatibility, call 1-855-490-7351.
To use the system, the Bluetooth setting must be
ON .
2 Phone Setup P. 425
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphones.
•Press the button when you want to call a
number using a phonebook name or a number.
Speak clearly and naturally after a beep.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, select the audio
system’s VOL (Volume) or use the remote audio
controls on the steering wheel.
If there is no Favorite Contact entry in the system, the
pop-up notification appears on the screen. 2 Favorite Contacts P. 430
Models with Display Audio
(Talk) Button
Microphone
(Hang-up) Button
(Pick-up) Button
(Back) Button
(home) Button
VOL( +/VOL(- (Volume) Buttons
Left Selector Wheel
21 INSIGHT-31TXM6200.book 420 ページ ２０２０年２月５日　水曜日　午前１０時０分

Continued435
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
When there is an inco ming call, an audible
notification sounds (if activated) and the
Incoming Call... screen appears.
Press the button to answer the call.
Press the button to decline or end the
call.
The following options are available during a call.
Mute : Mute your voice.
Use Handheld : Transfer a call from the system to your phone.
Keypad : Send numbers during a call. This is useful when you call a menu-driven
phone system.
The available options are shown on the lower
half of the screen.
Select the option. u The mute icon appears when Mute is
selected. Select Mute again to turn it off.
■Receiving a Call1Receiving a Call
Call Waiting
Press the button to put th e current call on hold to
answer the incoming call.
Press the button again to return to the current
call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Press the button if you want to hang up the
current call.
You can select the icons on the audio/information
screen instead of the and buttons.
■Options During a Call1 Options During a Call
You can select the icons on the audio/information
screen.
Mute Icon
21 INSIGHT-31TXM6200.book 435 ページ ２０２０年２月５日　水曜日　午前１０時０分

463
uuWhen Driving uShifting
Continued
Driving

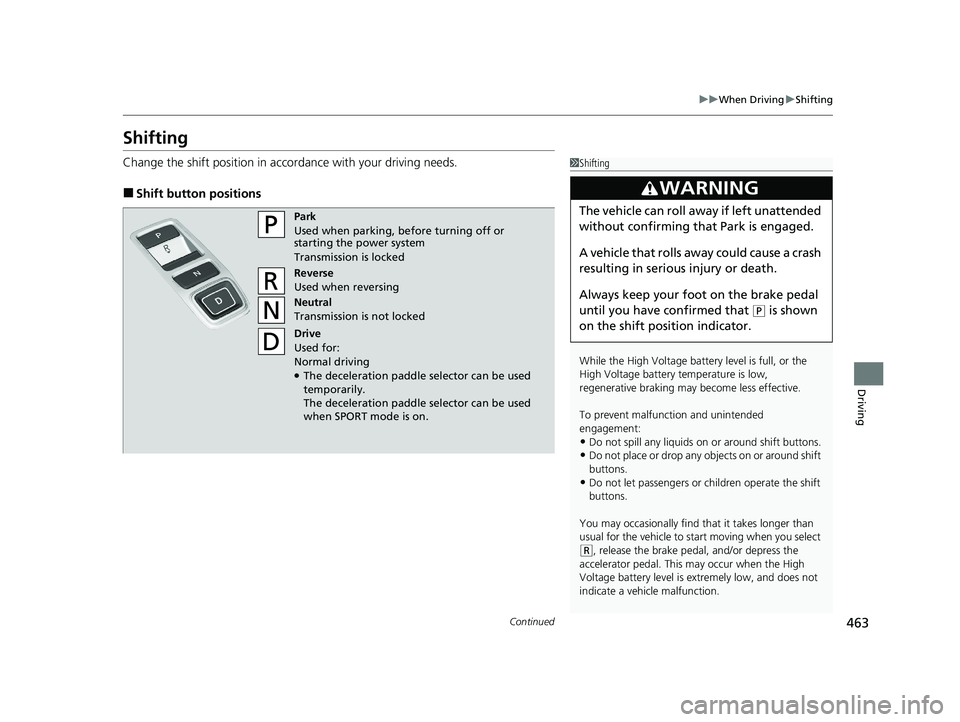

Shifting
Change the shift position in accordance with your driving needs.
■Shift button positions
1Shifting
While the High Voltage battery level is full, or the
High Voltage battery temperature is low,
regenerative braking ma y become less effective.
To prevent malfunc tion and unintended
engagement:
•Do not spill any liquids on or around shift buttons.•Do not place or drop any objects on or around shift
buttons.
•Do not let passengers or ch ildren operate the shift
buttons.
You may occasionally find th at it takes longer than
usual for the vehicle to start moving when you select
( R, release the brake peda l, and/or depress the
accelerator pedal. This may occur when the High
Voltage battery level is extremely low, and does not
indicate a vehicle malfunction.
3WARNING
The vehicle can roll aw ay if left unattended
without confirming th at Park is engaged.
A vehicle that rolls away could cause a crash
resulting in serious injury or death.
Always keep your foot on the brake pedal
until you have confirmed that
( P is shown
on the shift posi tion indicator.
Park
Used when parking, be fore turning off or
starting the power system
Transmission is locked
Reverse
Used when reversing
Neutral
Transmission is not locked
Drive
Used for:
Normal driving
●The deceleration paddle selector can be used
temporarily.
The deceleration paddle selector can be used
when SPORT mode is on.
21 INSIGHT-31TXM6200.book 463 ページ ２０２０年２月５日　水曜日　午前１０時０分

603
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
u Remove carefully to avoid losing the
buttons.
3. Make sure to replace the battery with the
correct polarity.1Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Battery type: CR2032
Battery
21 INSIGHT-31TXM6200.book 603 ページ ２０２０年２月５日　水曜日　午前１０時０分

636
uuPower System Won’t Start uIf the Remote Battery is Weak
Handling the Unexpected
If the Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver info rmation interface, and the POWER button flashes, the
READY indicator does not come on. Turn on the power system as follows:
1.Touch the center of the POWER button
with the H logo on the remote while the
POWER button is flashing. The buttons on
the remote should be facing you.
u The POWER button flashes for about 30
seconds.
2. Depress the brake pedal and press the
POWER button within 10 seconds after the
beeper sounds and the POWER button
changes from flashing to on.
u The READY indicator comes on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
21 INSIGHT-31TXM6200.book 636 ページ ２０２０年２月５日　水曜日　午前１０時０分

677
Index
Front Airbags (SRS).................................... 56
Front Seat Heaters ................................... 230
Front Seats Adjusting ................................................ 214
Front Sensor Camera ............................... 536
Fuel ..................................................... 33, 557
Economy................................................. 560
Gauge .................................................... 133
Instant Fuel Economy .............................. 141
Low Fuel Indicator..................................... 94
Range ..................................................... 141
Recommendation.................................... 557
Refueling ................................................ 557
Fuel Economy and CO
2 Emissions ............ 560
Fuel Fill Cap ........................................ 33, 558
Fuel Fill Door ...................................... 33, 558
Unable to Unlock .................................... 658
Fuses ......................................................... 651
Inspecting and Changing ........................ 656
Locations ........................................ 651, 655
G
Gasoline (Fuel)
Economy................................................. 560
Gauge .................................................... 133
Information............................................. 557
Instant Fuel Economy .............................. 141
Low Fuel Indicator..................................... 94
Refueling ................................................ 557
Gauges ...................................................... 133 Glass (care)
........................................ 605, 608
Glove Box .................................................. 224
H
Handling the Unexpected ........................ 613
HandsFreeLink ® (HFL) ....................... 395, 420
Automatic Import of Cellular Phonebook and Call History ........... 410, 429
Automatic Transferring ............................ 428
Caller’s ID Information ............................. 407
Displaying Messages ................................ 439
Favorite Contacts ..................................... 430
HFL Buttons ..................................... 395, 420
HFL Menus ...................................... 397, 423
HFL Status Display ........................... 396, 422
In Case of Emergency ...................... 323, 443
Limitations for Manual Operation .... 396, 422
Making a Call .................................. 414, 432
Options During a Call ...................... 419, 435
Phone Setup .................................... 401, 425
Receiving a Call ............................... 418, 435
Receiving a Text Message ........................ 437
Ring Tone ........................................ 407, 428
Selecting a Phone .................................... 438
Speed Dial ............................................... 411
To Clear the System ................................. 409
To Set Up a Text Message Options ........... 436
Hazard Warning Button ............................... 6
HD Radio
TM................................................ 299
Head Restraints ......................................... 219 Headlights
................................................. 200
Auto High-Beam System.......................... 204
Automatic Operation............................... 201
Dimming ......................................... 200, 203
Operating................................................ 200
Heaters (Seat) ................................... 230, 231
HFL (HandsFreeLink ®)....................... 395, 420
High Beam Indicator .................................. 98
High Voltage Battery ............................... 486
High Voltage Battery Charge Level Gauge ...................................................... 134
Hill Start Assist System ............................. 459
HomeLink ® Universal Transceiver ............ 392
Honda App License Agreement .............. 345
Honda Sensing ®................................ 34, 487
HondaLink ®............................................. 319
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent Multi-Mode Drive) ................................... 11
I
Identification Numbers Engine and Transmission ......................... 664
Vehicle Identification ............................... 664
Illumination Control Dial ......................................................... 210
Immobilizer System .................................. 189
Indicator.................................................... 99
21 INSIGHT-31TXM6200.book 677 ページ ２０２０年２月５日　水曜日　午前１０時０分

680
Index
Puncture (Tire).......................................... 615
R
Radar Sensor............................................. 538
Radiator ..................................................... 580
Radio (AM/FM) .......................................... 296
Radio (FM/AM) .......................................... 254
Radio (SiriusXM ®)...................................... 300
Radio Data System (RDS) .................. 255, 298
Range ........................................................ 141
RDS (Radio Data System) .................. 255, 298
Readiness Codes (Emissions Testing) ....... 667
Rear Defogger/Heated Door Mirror Button ...................................................... 209
Rear Seat (Folding Down) ........................ 217
Rear Seat Heaters ..................................... 231
Rearview Mirror ........................................ 212
Refueling ................................................... 557
Fuel Gauge .............................................. 133
Gasoline .......................................... 557, 662
Low Fuel Indicator ..................................... 94
Regulations ............................... 481, 595, 665
Remote Engine Start with Vehicle
Feedback ................................................. 456
Remote Transmitter .................................. 179
Replacement
Battery..................................................... 603
Bulbs ....................................................... 585
Fuses ............................................... 651, 655
Tires ........................................................ 598 Wiper Blade Rubber ................................ 589
Reporting Safety Defects ......................... 666
Resetting a Trip Meter ..................... 139, 141
Road Departure Mitigation (RDM) ......... 525
On and Off.............................................. 527
S
Safe Driving ................................................ 41
Safety Check ............................................... 45
Safety Labels ............................................... 82
Safety Message ............................................. 3
Safety Support .......................................... 153
Seat Belts .................................................... 46
Adjusting the Shoulder Anchor.................. 50
Automatic Seat Belt Tensioners ................. 48
Checking................................................... 52
Fastening .................................................. 49
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 75
Pregnant Women ...................................... 51
Reminder .................................................. 47
Warning Indicator ............................... 47, 94
Seat Heaters ...................................... 230, 231
Seats .......................................................... 214
Adjusting ................................................ 214
Front Seats .............................................. 214
Rear Seats ............................................... 217
Seat Heaters .................................... 230, 231
Security System ......................................... 189
Immobilizer System Indicator ..................... 99 Security System Alarm Indicator ................ 99
Selecting a Child Seat ................................ 72
Selector Knob (Audio) ............................. 247
Shift Buttons ...................................... 30, 463
Operation ............................................... 465
Shift Position Indicator .............................. 92
Shifting (Transmission) ............................ 463
Shoulder Anchor ........................................ 50
Side Airbags ............................................... 61
Side Curtain Airbags .................................. 63
Siri Eyes Free ..................................... 267, 330
SiriusXM ® Radio ....................................... 300
Smart Entry with Push Button Start System ..................................................... 175
Snow Tires ................................................ 600
Spare Tire ......................................... 615, 663
Spark Plugs ............................................... 662
Specifications ........................................... 662
Specified Fuel ................................... 557, 662
Speedometer ............................................ 133
SPORT Mode ............................................. 469
Indicator ................................................. 100
SRS Airbags (Airbags) ................................ 56
Steering Wheel Adjusting ................................................ 211
Stopping ................................................... 549
Summer Tires ............................................ 600
Supplemental Restraint System (SRS) ....... 56
Switches (Around the Steering Wheel) ............................................ 6, 7, 196
System Message Indicator ....................... 100
21 INSIGHT-31TXM6200.book 680 ページ ２０２０年２月５日　水曜日　午前１０時０分
