headlights HONDA INSIGHT 2021 Owner's Manual (in English)

7
Quick Reference Guide❚Headlights/Turn Signals (P 199)
❚Fog Lights* (P 203)
❚Lane Keeping Assist System (LKAS) Button
(P 519)
❚Interval Button (P 510)
❚Steering Wheel Adjustments (P 211)
❚Bluetooth® HandsFreeLink ® System Voice Control Buttons (P 395, 420)
❚Audio Remote Controls (P 243)
❚Voice Control Buttons* (P 293)
❚Deceleration Paddle Selector (−) (P 470)
❚Left Selector Wheel (P 137)
❚ (home) Button (P 137)
❚MAIN Button (P 500)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P 509)
❚Wipers/Washers (P 207)
❚Deceleration Paddle Selector (+) (P 470)
❚Horn (Press an area around .)
* Not available on all models
21 INSIGHT-31TXM6200.book 7 ページ ２０２０年２月５日　水曜日　午前１０時０分

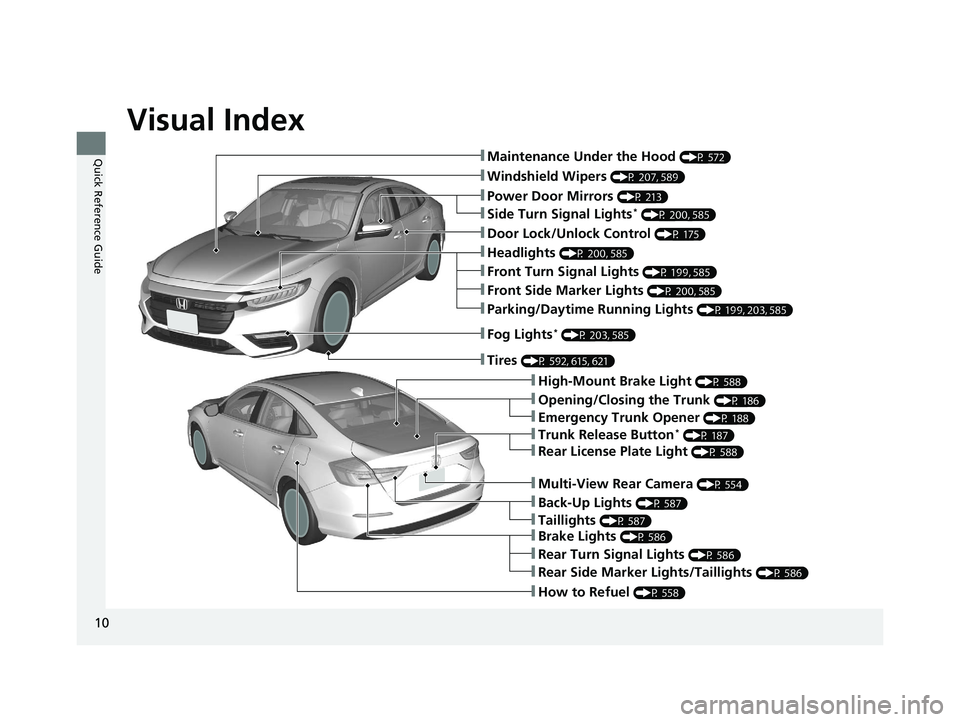

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P 572)
❚Windshield Wipers (P 207, 589)
❚Door Lock/Unlock Control (P 175)
❚Power Door Mirrors (P 213)
❚Headlights (P 200, 585)
❚High-Mount Brake Light (P 588)
❚Emergency Trunk Opener (P 188)
❚Opening/Closing the Trunk (P 186)
❚Parking/Daytime Running Lights (P 199, 203, 585)
❚Fog Lights* (P 203, 585)
❚Trunk Release Button* (P 187)
❚Brake Lights (P 586)
❚Rear Side Marker Lights/Taillights (P 586)
❚Rear Turn Signal Lights (P 586)
❚Back-Up Lights (P 587)
❚How to Refuel (P 558)
❚Tires (P 592, 615, 621)
❚Taillights (P 587)
❚Multi-View Rear Camera (P 554)
❚Rear License Plate Light (P 588)
❚Front Turn Signal Lights (P 199, 585)
❚Front Side Marker Lights (P 200, 585)
❚Side Turn Signal Lights* (P 200, 585)
21 INSIGHT-31TXM6200.book 10 ページ ２０２０年２月５日　水曜日　午前１０時０分

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard
Warning
Indicators•Blinks when you operate the turn
signal lever.
• Blink along with all turn signals
when you press the hazard warning
button.• Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 585
—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
Lights On
Indicator
•Comes on when the light switch in
a position other than OFF or when
the switch is set to AUTO and the
exterior lights come on.• If you set the power mode to VEHICLE OFF
while the lights are on, a chime sounds
when the driver’s door is opened.
—
Fog Light
Indicator*
•Comes on when the fog lights are
on.——
Auto High-
Beam Indicator•Comes on when all the operating
conditions of the auto high-beam
are met.
2 Auto High-Beam P. 204—
* Not available on all models
21 INSIGHT-31TXM6200.book 98 ページ ２０２０年２月５日　水曜日　午前１０時０分

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if the vehicle is being driven in a manner
consistent with drowsy or inattentive driving.
2 Driver Attention Monitor P. 149
•Appears if there is a pr oblem with the automatic
lighting control system.• Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a pr oblem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a d ealer as soon as possible.
21 INSIGHT-31TXM6200.book 111 ページ ２０２０年２月５日　水曜日　午前１０時０分

123
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if there is a prob lem with the auto high-
beam.• Manually operate the headlight switch.
• If you are driving with th e high-beam headlights when
this happens, the headlights are changed to low beams.
●Appears when ACC with Lo w Speed Follow has been
automatically canceled.●You can resume the set speed after the condition that
caused ACC with Low Speed Fo llow to cancel improves.
Press the RES/+ button.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 499
●Flashes when the system senses a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2Collision Mitigation Braking SystemTM (CMBSTM)
P. 490
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 499
21 INSIGHT-31TXM6200.book 123 ページ ２０２０年２月５日　水曜日　午前１０時０分

163
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Lighting
Setup Interior Light Dimming
Time
Changes the length of time
the interior lights stay
on after you close the doors. 60sec
/30sec
*1/15sec
Headlight Auto OFF
Timer Changes the length of time the exterior lights stay
on after you close the driver’s door.
60sec
/30sec /15sec
*1/0sec
Auto Light Sensitivity Changes the timing for the headlights to come on.Max/High /Mid
*1/Low/ Min
Auto Interior
Illumination Sensitivity Changes the sensitivity of the brightness of the
instrument panel when the headlight switch is in
AUTO
. Max
/High /Mid
*1/Low/ Min
Auto Headlight ON
With Wiper ON Used to automatically come
on the headlights when
the wipers are used several times within a certain
number of intervals with th e headlight switch is in
AUTO . ON
*1/
OFF
21 INSIGHT-31TXM6200.book 163 ページ ２０２０年２月５日　水曜日　午前１０時０分

200
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the power mode
setting.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
■Lights off
Turn the lever to OFF either when:
• The transmission is in
(P.
• The parking brake is applied.
To turn the lights on ag ain, turn the lever to
OFF to cancel the lights off mode. Even if you
do not cancel the lights off mode, the lights
come on automatically when:
• The transmission is taken out of
(P and the
parking brake is released.
• The vehicle starts to move.
■Manual Operation1Light Switches
If you leave the power mode in VEHICLE OFF (LOCK)
while the lights are on, a chime sounds when the
driver’s door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 98
Do not leave the lights on when the power system is
off because it will caus e the 12-volt battery to
discharge.
If you sense that the le vel of the headlights is
abnormal, have the vehicl e inspected by a dealer.
High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail, and rear license plate lights
Turns on headlights, parking, side
marker, tail, and rear license plate
lights
High Beams
Canadian models
Low Beams Flashing the high beams
U.S. models
Canadian models
21 INSIGHT-31TXM6200.book 200 ページ ２０２０年２月５日　水曜日　午前１０時０分

Continued201
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
Automatic lighting control can be used when
the power mode is in ON.
When the light switch is in AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness.
The headlights come on when you unlock a
door in dark areas with the headlight switch in
AUTO .
u Once you lock the door, the headlights
will go off.
■Automatic Operation (automatic lighting control)1 Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a de nse fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor
Models without automatic
intermittent wipers
Light Sensor
Models with automatic
intermittent wipers
21 INSIGHT-31TXM6200.book 201 ページ ２０２０年２月５日　水曜日　午前１０時０分

uuOperating the Switches Around the Steering Wheel uLight Switches
202
Controls
The headlights automatically come on when the wipers are used several times within
a certain number of intervals wi th the headlight switch in AUTO.
The headlights automatically go off a few minutes later if the wipers are stopped.
The headlights, all other exterior lights, an d the instrument panel lights turn off 15
seconds after you set the power mode to VE HICLE OFF (LOCK), take the remote with
you, and close th e driver’s door.
If you set the power mode to VEHICLE OFF (LOCK) with the headlight switch on, but
do not open the door, the lights turn off after 10 minutes (3 minutes, if the switch
is in the AUTO position).
The lights turn on again when you unlock or open the driver’s door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver’s door, you will hear a reminder chime alerting you that the lights are on.
■Headlight Integration with Wipers
■Automatic Lighting Off Feature
1Automatic Operation (aut omatic lighting control)
You can adjust the auto li ght sensitivity as follows:
2 Customized Features
* P. 158, 372
SettingThe exterior lights come on
when the ambient light is at
Max
High
Mid
Low
Min
U.S. models
Bright
Dark
1 Headlight Integration with Wipers
This feature activates while the headlights are off in
AUTO .
The instrument panel br ightness does not change
when the headlights come on.
At dark ambient light leve ls, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.
1 Automatic Lighting Off Feature
You can change the headlight auto off timer setting.
2 Customized Features
* P. 158, 372
* Not available on all models
21 INSIGHT-31TXM6200.book 202 ページ ２０２０年２月５日　水曜日　午前１０時０分

203
uuOperating the Switches Around the Steering Wheel uFog Lights*
Controls
Fog Lights*
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
Daytime Running Lights
The parking/daytime running lights come on when the following conditions have
been met:
• The power mode is in ON.
• The headlight switch is AUTO or OFF .
• The parking brake is released.
The lights remain on even if you set th e parking brake. Setting the power mode to
VEHICLE OFF (LOCK) will turn off the daytime running lights.
The daytime running lights are off once the h eadlight switch is turned on, or when
the headlight switch is in AUTO and it is getting darker outside.
Fog Light Switch
* Not available on all models
