Page 209 of 687
207
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO, HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust the wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one second, the spray stops, the wipers sweep two
or three more times to clea r the windshield, then stop.
*1: Models with manual intermittent operation
*2: Models with automati c intermittent operation
■Windshield Wipers/Washers1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay se tting ( ) and the LO setting become
the same.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defogger to warm the
windshield, then turn the wipers on.
Models with intermittent time adjustment ring
MIST
INT
*1/AUTO*2OFF
LO : Low speed wipe
HI : High speed wipe Pull to
use
washer.
Intermittent Time
Adjustment Ring*
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
21 INSIGHT-31TXM6200.book 207 ページ 2020年2月5日 水曜日 午前10時0分

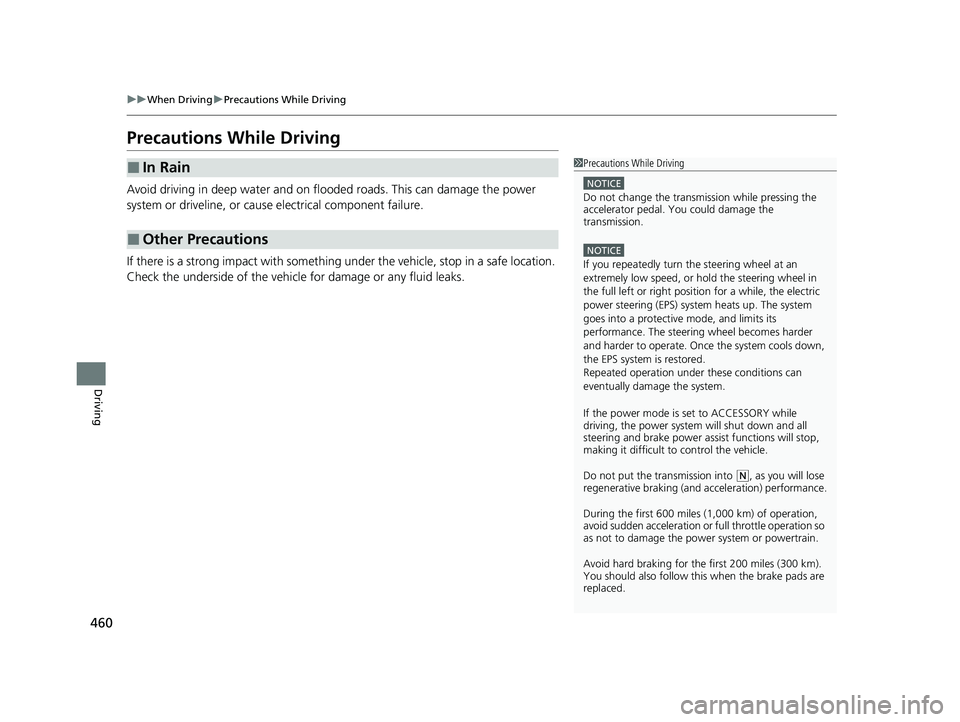

Page 462 of 687
460
uuWhen Driving uPrecautions While Driving
Driving
Precautions While Driving
Avoid driving in deep water and on flooded roads. This can damage the power
system or driveline, or caus e electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
■In Rain
■Other Precautions
1 Precautions While Driving
NOTICE
Do not change the transmission while pressing the
accelerator pedal. You could damage the
transmission.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.
If the power mode is set to ACCESSORY while
driving, the power system will shut down and all
steering and brake power a ssist functions will stop,
making it difficult to control the vehicle.
Do not put the transmission into
( N, as you will lose
regenerative braking (and ac celeration) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as not to damage the pow er system or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
21 INSIGHT-31TXM6200.book 460 ページ 2020年2月5日 水曜日 午前10時0分
Page 571 of 687
569
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 668.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiry date for tire repair kit bottle●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles or 3 years (76,000 km or 3 years).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
21 INSIGHT-31TXM6200.book 569 ページ 2020年2月5日 水曜日 午前10時0分
Page 678 of 687
676
Index
Cup Holders............................................... 226
Customer Service Information ................. 672
Customized Features ................ 158, 365, 372
D
Daytime Running Lights ........................... 203
Dead Battery ............................................. 638
Deceleration Paddle Selector ................... 470
Defaulting All the Settings ...................... 391
Defrosting the Windshield and Windows .................................................. 235
Devices that Emit Radio Waves ................ 665
Dimming Headlights ............................................... 200
Rearview Mirror ....................................... 212
Dipstick (Engine Oil) ................................. 575
Directional Signals (Turn Signal) .............. 199
Display Setup ............................................ 253
Door Mirrors ............................................. 213
Doors ......................................................... 172
Auto Door Locking .................................. 185
Auto Door Unlocking ............................... 185
Door and Trunk Open Message ................. 45
Keys ........................................................ 172
Locking/Unlocking the Doors from the Inside ..................................................... 182
Locking/Unlocking the Doors from the Outside .................................................. 175
Lockout Prevention System ...................... 181
DOT Tire Quality Grading ........................ 595Driver Attention Monitor
........................ 149
Driver Information Interface ................... 136
Switching the Display .............................. 136
Warning and Information Messages ........ 107
Driving ...................................................... 447
Braking ................................................... 539
Shifting Gear ........................................... 463
Transmission ........................................... 462
Turning on the Power.............................. 454
Driving Support Information ................... 152
Dust and Pollen Filter ............................... 604
E
Eco Assist® System ...................................... 18
Eco Drive Display/Drive Cycle Score/
Lifetime Points ........................................ 155
ECON Mode .............................................. 473
Indicator.................................................. 100
Elapsed Time ............................................. 143
Electric Power Steering (EPS) System
Indicator............................................ 95, 648
Electronic Stability Control (ESC) ............. 475
Emergency ................................................ 657
Emergency Power System Off ................. 637
Emergency Trunk Opener ........................ 188
Emissions Testing (Readiness Codes) ....... 667
Engine ....................................................... 664
Coolant ................................................... 579
Jump Starting .......................................... 638
Oil ........................................................... 574 Starting................................................... 454
Engine Oil ................................................. 574
Adding ................................................... 576
Checking ................................................ 575
Displaying Oil Life ................................... 566
Low Oil Pressure Warning ....................... 643
Recommended Engine Oil ....................... 574
EPS (Electric Power Steering) System ...... 648
EV Button ................................................... 14
Exhaust Gas Hazard (Carbon Monoxide) .. 81
Exterior Care (Cleaning) .......................... 607
Exterior Mirrors ........................................ 213F
Features.................................................... 239
Filters Dust and Pollen....................................... 604
Oil .......................................................... 577
Flat Tire ..................................................... 615
Floor Mats ................................................ 606
Fluids Brake ...................................................... 583
Engine Coolant ....................................... 579
Inverter Coolant ...................................... 581
Windshield Washer ................................. 584
FM/AM Radio ................................... 254, 296
Fog Lights ................................................. 203
Indicator ................................................... 98
Folding Down the Rear Seat ................... 217
Foot Brake ................................................ 543
21 INSIGHT-31TXM6200.book 676 ページ 2020年2月5日 水曜日 午前10時0分
