service indicator HONDA INSIGHT 2021 Owner's Manual (in English)

36
Quick Reference Guide
Handling the Unexpected (P 613)
Flat Tire (P 615)
●Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
●Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Indicators Come On
(P 643)
●Identify the indicator and consult the
owner’s manual.
Models with optional spare tire
Power System Won’t
Start
(P 635)
●If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse (P 651)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P 641)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 657)
●Call a professional towing service if you
need to tow your vehicle.
21 INSIGHT-31TXM6200.book 36 ページ ２０２０年２月５日　水曜日　午前１０時０分

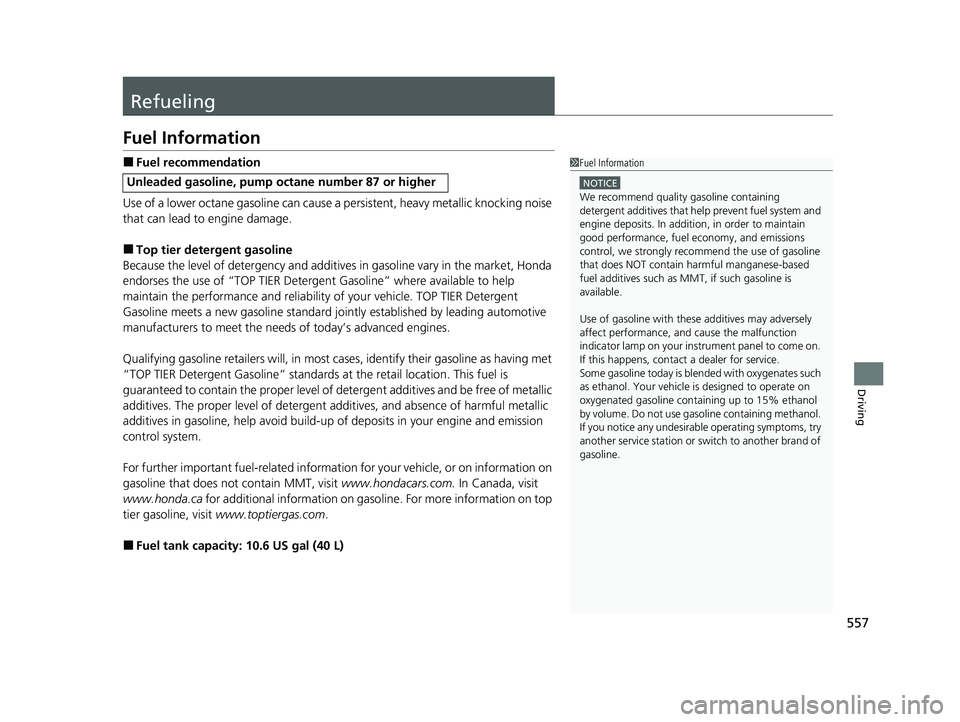

557
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.
■Top tier detergent gasoline
Because the level of detergency and additive s in gasoline vary in the market, Honda
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of de tergent additives and be free of metallic
additives. The proper level of detergent ad ditives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gaso line. For more information on top
tier gasoline, visit www.toptiergas.com .
■Fuel tank capacity: 10.6 US gal (40 L)
Unleaded gasoline, pump octane number 87 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.
21 INSIGHT-31TXM6200.book 557 ページ ２０２０年２月５日　水曜日　午前１０時０分

561
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 562
Safety When Performing Maintenance ...563Parts and Fluids Used in Maintenance Service ........................................... 564
Maintenance Minder
TM..................... 565
Maintenance Under the Hood Maintenance Items Under the Hood .. 572
Opening the Hood ........................... 573
Recommended Engine Oil ................ 574
Oil Check ......................................... 575
Adding Engine Oil ............................ 576
Changing the Engine Oil and Oil Filter ..... 577
Cooling System ................................ 579
Inverter Coolant ............................... 581
Transmission Fluid ............................ 582
Brake Fluid ....................................... 583
Refilling Window Washer Fluid......... 584
Replacing Light Bulbs ....................... 585
Checking and Maintaining Wiper
Blades .......................................... 589
Checking and Maintaining Tires
Checking Tires ................................. 592
Tire and Loading Information Label .. 593
Tire Labeling .................................... 593
DOT Tire Quality Grading (U.S. Vehicles) .. 595
Wear Indicators ............................... 597
Tire Service Life ................................ 597
Tire and Wheel Replacement ........... 598
Tire Rotation .................................... 599
Winter Tires ..................................... 600
12-Volt Battery ................................. 601
Remote Transmitter Care Replacing the Button Battery ........... 603
Climate Control System Maintenance.. 604Cleaning
Interior Care .................................... 605
Exterior Care.................................... 607
Accessories and Modifications ........ 611
21 INSIGHT-31TXM6200.book 561 ページ ２０２０年２月５日　水曜日　午前１０時０分

567
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Minder Messages on the Driver Information
Interface
Maintenance MessageOil Life DisplayExplanationInformation
—
When you select the Maintenance
screen, it displays codes for
maintenance items due at the next
engine oil change, along with the
percentage of engine oil life
remaining.
—
Maintenance Due Soon15 %The engine oil life indicator starts to
appear along with other due-soon
maintenance item codes when the
remaining oil life drops to 15
percent.The engine oil is approaching the end
of its service life.
21 INSIGHT-31TXM6200.book 567 ページ ２０２０年２月５日　水曜日　午前１０時０分

568
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
The system message indicator ( ) comes on along with the Maintenance Minder
message.
Maintenance Due Now5 %The remaining engine oil life is 5 to 1
percent. Press the (home)
button to switch to another display.The engine oil has almost reached the
end of its service life, and the
maintenance items should be inspected
and serviced as soon as possible.
Maintenance Past DueNegative DistanceThe engine oil has passed its service
life, and a negative distance appears
after driving over 10 miles (U.S.
models) or 10 km (Canadian
models). The negative distance on
the display blinks.The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
Maintenance MessageOil Life DisplayExplanationInformation
5 %
21 INSIGHT-31TXM6200.book 568 ページ ２０２０年２月５日　水曜日　午前１０時０分

569
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 668.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiry date for tire repair kit bottle●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles or 3 years (76,000 km or 3 years).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
21 INSIGHT-31TXM6200.book 569 ページ ２０２０年２月５日　水曜日　午前１０時０分

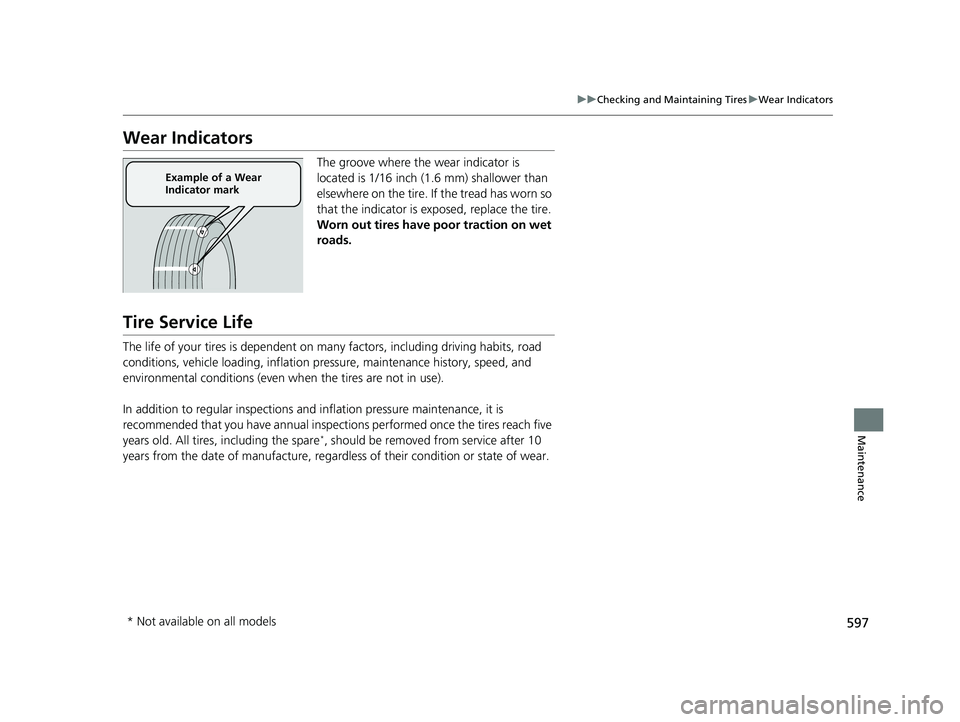

597
uuChecking and Maintaining Tires uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is ex posed, replace the tire.
Worn out tires have po or traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even wh en the tires are not in use).
In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare
*, should be removed from service after 10
years from the date of manufacture, regardle ss of their condition or state of wear.
Example of a Wear
Indicator mark
* Not available on all models
21 INSIGHT-31TXM6200.book 597 ページ ２０２０年２月５日　水曜日　午前１０時０分

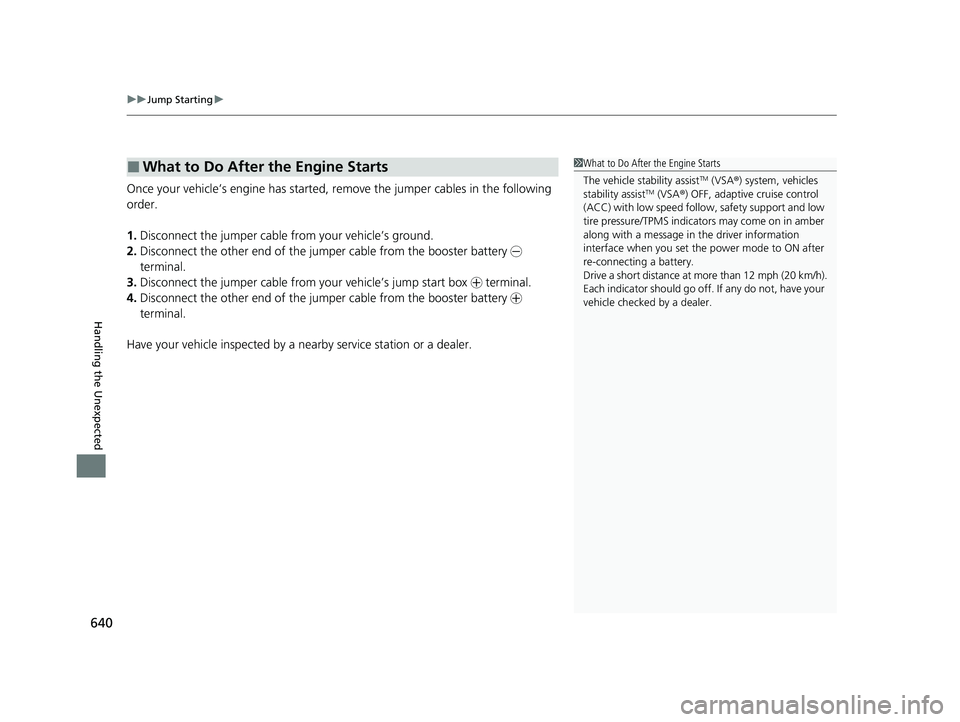

uuJump Starting u
640
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s jump start box + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1What to Do After the Engine Starts
The vehicle stability assist
TM (VSA ®) system, vehicles
stability assistTM (VSA ®) OFF, adaptive cruise control
(ACC) with low speed follow, safety support and low
tire pressure/TPMS indicato rs may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
re-connecting a battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
21 INSIGHT-31TXM6200.book 640 ページ ２０２０年２月５日　水曜日　午前１０時０分

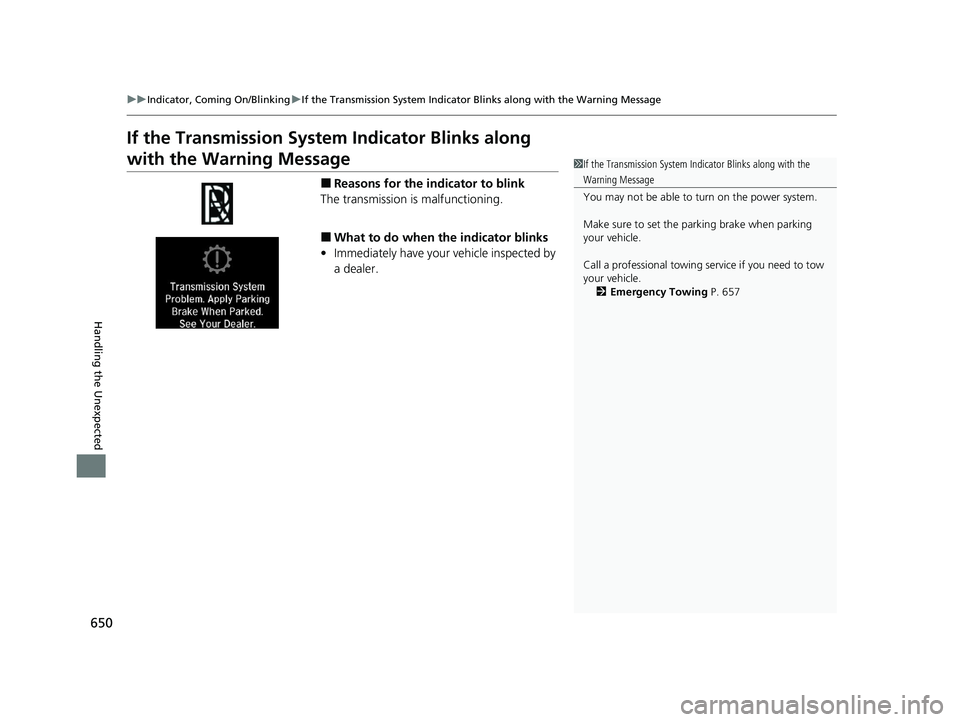

650
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
a dealer.
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 657
21 INSIGHT-31TXM6200.book 650 ページ ２０２０年２月５日　水曜日　午前１０時０分

676
Index
Cup Holders............................................... 226
Customer Service Information ................. 672
Customized Features ................ 158, 365, 372
D
Daytime Running Lights ........................... 203
Dead Battery ............................................. 638
Deceleration Paddle Selector ................... 470
Defaulting All the Settings ...................... 391
Defrosting the Windshield and Windows .................................................. 235
Devices that Emit Radio Waves ................ 665
Dimming Headlights ............................................... 200
Rearview Mirror ....................................... 212
Dipstick (Engine Oil) ................................. 575
Directional Signals (Turn Signal) .............. 199
Display Setup ............................................ 253
Door Mirrors ............................................. 213
Doors ......................................................... 172
Auto Door Locking .................................. 185
Auto Door Unlocking ............................... 185
Door and Trunk Open Message ................. 45
Keys ........................................................ 172
Locking/Unlocking the Doors from the Inside ..................................................... 182
Locking/Unlocking the Doors from the Outside .................................................. 175
Lockout Prevention System ...................... 181
DOT Tire Quality Grading ........................ 595Driver Attention Monitor
........................ 149
Driver Information Interface ................... 136
Switching the Display .............................. 136
Warning and Information Messages ........ 107
Driving ...................................................... 447
Braking ................................................... 539
Shifting Gear ........................................... 463
Transmission ........................................... 462
Turning on the Power.............................. 454
Driving Support Information ................... 152
Dust and Pollen Filter ............................... 604
E
Eco Assist® System ...................................... 18
Eco Drive Display/Drive Cycle Score/
Lifetime Points ........................................ 155
ECON Mode .............................................. 473
Indicator.................................................. 100
Elapsed Time ............................................. 143
Electric Power Steering (EPS) System
Indicator............................................ 95, 648
Electronic Stability Control (ESC) ............. 475
Emergency ................................................ 657
Emergency Power System Off ................. 637
Emergency Trunk Opener ........................ 188
Emissions Testing (Readiness Codes) ....... 667
Engine ....................................................... 664
Coolant ................................................... 579
Jump Starting .......................................... 638
Oil ........................................................... 574 Starting................................................... 454
Engine Oil ................................................. 574
Adding ................................................... 576
Checking ................................................ 575
Displaying Oil Life ................................... 566
Low Oil Pressure Warning ....................... 643
Recommended Engine Oil ....................... 574
EPS (Electric Power Steering) System ...... 648
EV Button ................................................... 14
Exhaust Gas Hazard (Carbon Monoxide) .. 81
Exterior Care (Cleaning) .......................... 607
Exterior Mirrors ........................................ 213F
Features.................................................... 239
Filters Dust and Pollen....................................... 604
Oil .......................................................... 577
Flat Tire ..................................................... 615
Floor Mats ................................................ 606
Fluids Brake ...................................................... 583
Engine Coolant ....................................... 579
Inverter Coolant ...................................... 581
Windshield Washer ................................. 584
FM/AM Radio ................................... 254, 296
Fog Lights ................................................. 203
Indicator ................................................... 98
Folding Down the Rear Seat ................... 217
Foot Brake ................................................ 543
21 INSIGHT-31TXM6200.book 676 ページ ２０２０年２月５日　水曜日　午前１０時０分
