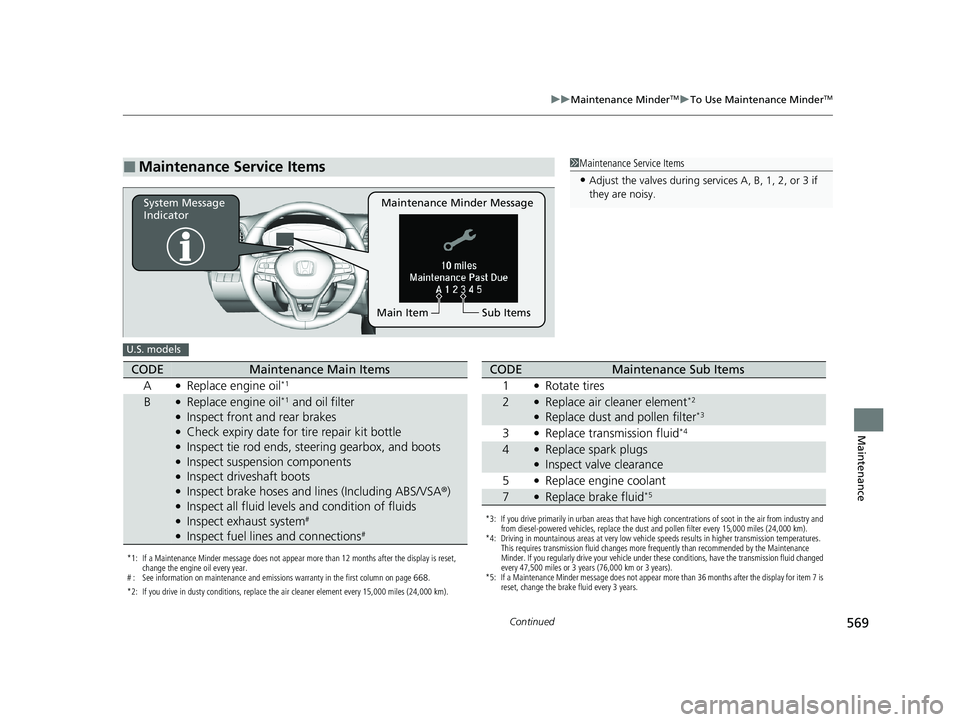

spark plugs replace HONDA INSIGHT 2021 Owner's Manual (in English)

569
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 668.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiry date for tire repair kit bottle●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles or 3 years (76,000 km or 3 years).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
21 INSIGHT-31TXM6200.book 569 ページ ２０２０年２月５日　水曜日　午前１０時０分

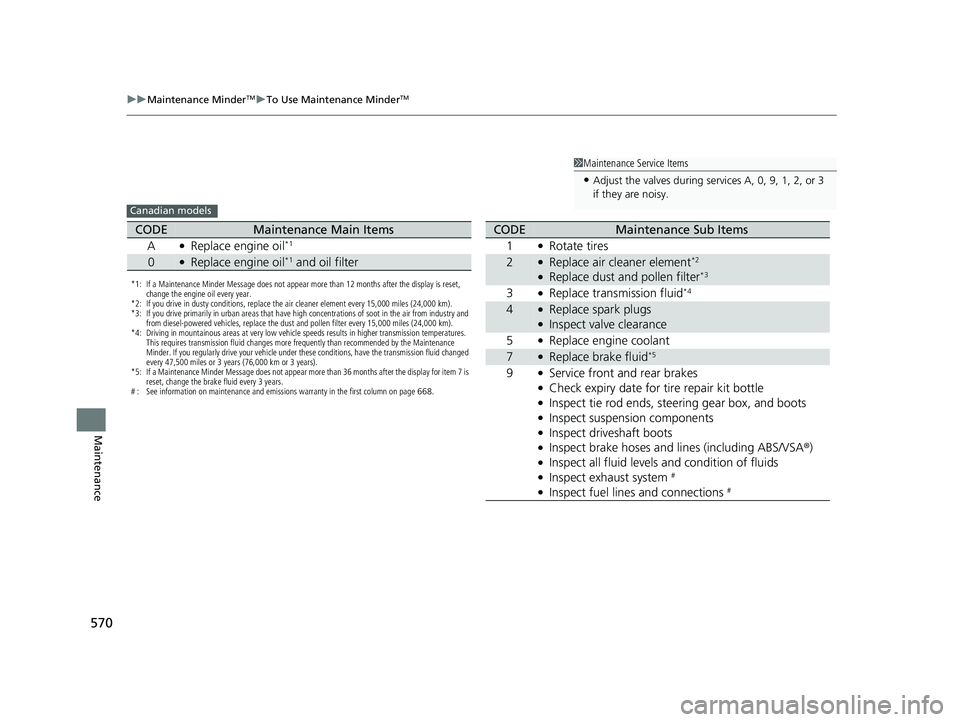

570
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder Message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles or 3 years (76,000 km or 3 years).
*5: If a Maintenance Minder Message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 668.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes●Check expiry date for tire repair kit bottle●Inspect tie rod ends, steer ing gear box, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system #
●Inspect fuel lines and connections #
21 INSIGHT-31TXM6200.book 570 ページ ２０２０年２月５日　水曜日　午前１０時０分

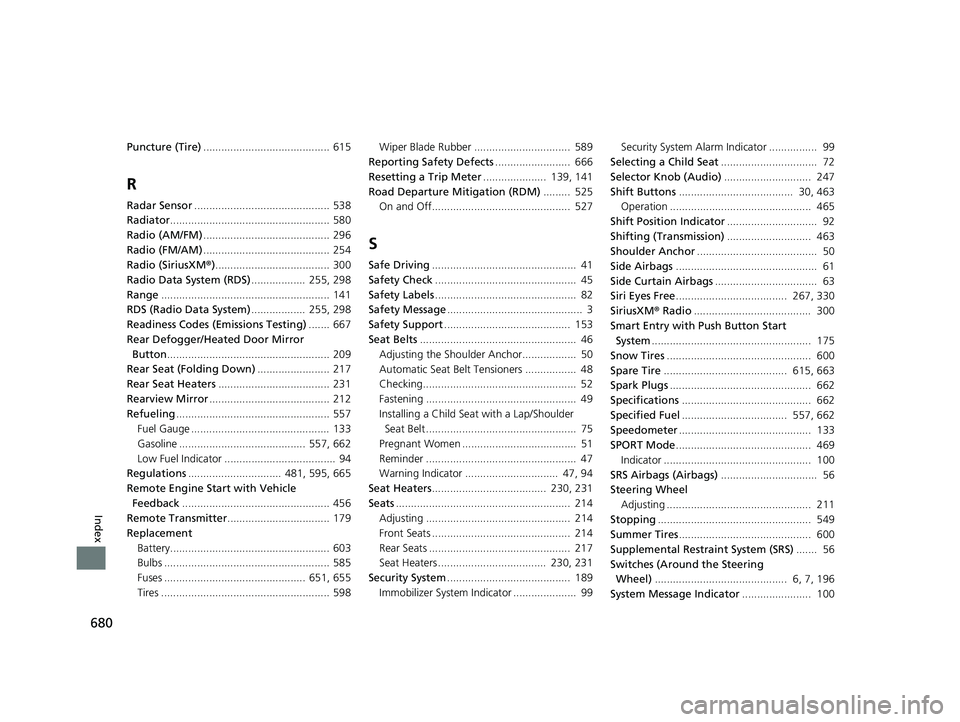

680
Index
Puncture (Tire).......................................... 615
R
Radar Sensor............................................. 538
Radiator ..................................................... 580
Radio (AM/FM) .......................................... 296
Radio (FM/AM) .......................................... 254
Radio (SiriusXM ®)...................................... 300
Radio Data System (RDS) .................. 255, 298
Range ........................................................ 141
RDS (Radio Data System) .................. 255, 298
Readiness Codes (Emissions Testing) ....... 667
Rear Defogger/Heated Door Mirror Button ...................................................... 209
Rear Seat (Folding Down) ........................ 217
Rear Seat Heaters ..................................... 231
Rearview Mirror ........................................ 212
Refueling ................................................... 557
Fuel Gauge .............................................. 133
Gasoline .......................................... 557, 662
Low Fuel Indicator ..................................... 94
Regulations ............................... 481, 595, 665
Remote Engine Start with Vehicle
Feedback ................................................. 456
Remote Transmitter .................................. 179
Replacement
Battery..................................................... 603
Bulbs ....................................................... 585
Fuses ............................................... 651, 655
Tires ........................................................ 598 Wiper Blade Rubber ................................ 589
Reporting Safety Defects ......................... 666
Resetting a Trip Meter ..................... 139, 141
Road Departure Mitigation (RDM) ......... 525
On and Off.............................................. 527
S
Safe Driving ................................................ 41
Safety Check ............................................... 45
Safety Labels ............................................... 82
Safety Message ............................................. 3
Safety Support .......................................... 153
Seat Belts .................................................... 46
Adjusting the Shoulder Anchor.................. 50
Automatic Seat Belt Tensioners ................. 48
Checking................................................... 52
Fastening .................................................. 49
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 75
Pregnant Women ...................................... 51
Reminder .................................................. 47
Warning Indicator ............................... 47, 94
Seat Heaters ...................................... 230, 231
Seats .......................................................... 214
Adjusting ................................................ 214
Front Seats .............................................. 214
Rear Seats ............................................... 217
Seat Heaters .................................... 230, 231
Security System ......................................... 189
Immobilizer System Indicator ..................... 99 Security System Alarm Indicator ................ 99
Selecting a Child Seat ................................ 72
Selector Knob (Audio) ............................. 247
Shift Buttons ...................................... 30, 463
Operation ............................................... 465
Shift Position Indicator .............................. 92
Shifting (Transmission) ............................ 463
Shoulder Anchor ........................................ 50
Side Airbags ............................................... 61
Side Curtain Airbags .................................. 63
Siri Eyes Free ..................................... 267, 330
SiriusXM ® Radio ....................................... 300
Smart Entry with Push Button Start System ..................................................... 175
Snow Tires ................................................ 600
Spare Tire ......................................... 615, 663
Spark Plugs ............................................... 662
Specifications ........................................... 662
Specified Fuel ................................... 557, 662
Speedometer ............................................ 133
SPORT Mode ............................................. 469
Indicator ................................................. 100
SRS Airbags (Airbags) ................................ 56
Steering Wheel Adjusting ................................................ 211
Stopping ................................................... 549
Summer Tires ............................................ 600
Supplemental Restraint System (SRS) ....... 56
Switches (Around the Steering Wheel) ............................................ 6, 7, 196
System Message Indicator ....................... 100
21 INSIGHT-31TXM6200.book 680 ページ ２０２０年２月５日　水曜日　午前１０時０分
