start stop button HONDA INSIGHT 2021 Owner's Manual (in English)

120
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you try to ch ange the shift position
without releasing your foot off the accelerator pedal.• Release your foot off the accelerator pedal, then select
a shift button.
•Appears when the (P button is pressed while the
vehicle is moving.
• Appears if you put the transmission into
(R while
the vehicle is moving forward, or into
(D while the
vehicle is reversing.
• Make sure that the vehicl e comes to a stop before
operating the select button.
• Appears when you set the power mode to ON
without fastening the driver’s seat belt.
• Appears when you change the shift position after
(P has been automatically selected with the driver’s
door open, the driver’s se at belt unfastened, then
the brake pedal is released.
• Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 465
•Appears when you try to ch ange the shift position
without depressing the brake pedal.• Depress the brake pedal, then select a shift button.
21 INSIGHT-31TXM6200.book 120 ページ ２０２０年２月５日　水曜日　午前１０時０分

Continued455
uuWhen Driving uTurning on the Power
Driving
3. Without depressing the accelerator pedal,
press the POWER button while depressing
the brake pedal.
4. Check the READY indicator.
u Keep depressing the brake pedal until
the READY indicator comes on.
u The READY indicator comes on when
the power system is on and you can start
driving.
u If the outside temperature is extremely
low, you cannot drive until conditions are
improved. In this case, the READY
indicator does not come on and a
warning message appears on the driver
information interface.
2 Driver Information Interface
Warning and Information Messages
P. 107
You can turn the power system off when the vehicle is completely stopped.
1. Put the transmission into
(P.
2. Press the POWER button.
■Stopping the Power System
1Turning on the Power
Bring the remote close to the POWER button if the
battery in the remote is weak. 2 If the Remote Battery is Weak P. 636
The power system may not activate if the remote is
subjected to strong radio waves.
The engine may not run when the vehicle is ready for
driving.
You can start driving with the READY indicator on.
If you press the POWER button while depressing the
brake pedal with the READY indicator on, the power
mode is set to VEHICLE OFF and you cannot start
driving. 2 READY Indicator P. 90
Do not hold the POWER button to start the power
system.
If the power system does not start, wait at least 30
seconds before trying again.
21 INSIGHT-31TXM6200.book 455 ページ ２０２０年２月５日　水曜日　午前１０時０分

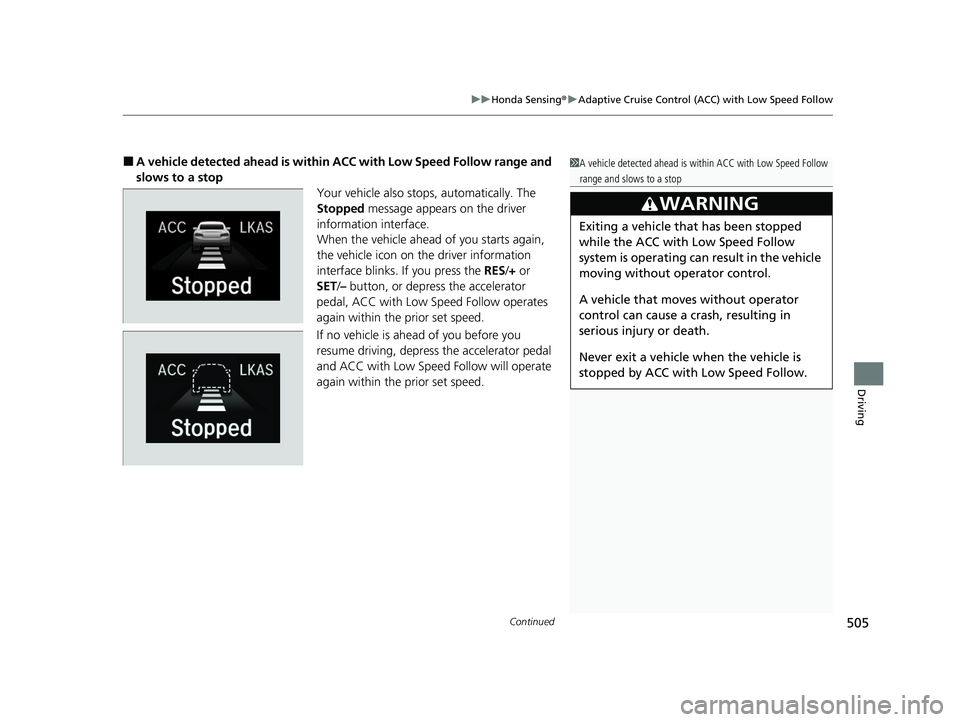

Continued505
uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
Driving
■A vehicle detected ahead is within ACC with Low Speed Follow range and
slows to a stop Your vehicle also stops, automatically. The
Stopped message appears on the driver
information interface.
When the vehicle ahead of you starts again,
the vehicle icon on the driver information
interface blinks. If you press the RES/+ or
SET/ – button, or depress the accelerator
pedal, ACC with Low Sp eed Follow operates
again within the prior set speed.
If no vehicle is ahead of you before you
resume driving, depress the accelerator pedal
and ACC with Low Speed Follow will operate
again within the prior set speed.1 A vehicle detected ahead is within ACC with Low Speed Follow
range and slows to a stop
3WARNING
Exiting a vehicle that has been stopped
while the ACC with Low Speed Follow
system is operating can result in the vehicle
moving without operator control.
A vehicle that moves without operator
control can cause a crash, resulting in
serious injury or death.
Never exit a vehicle when the vehicle is
stopped by ACC with Low Speed Follow.
21 INSIGHT-31TXM6200.book 505 ページ ２０２０年２月５日　水曜日　午前１０時０分

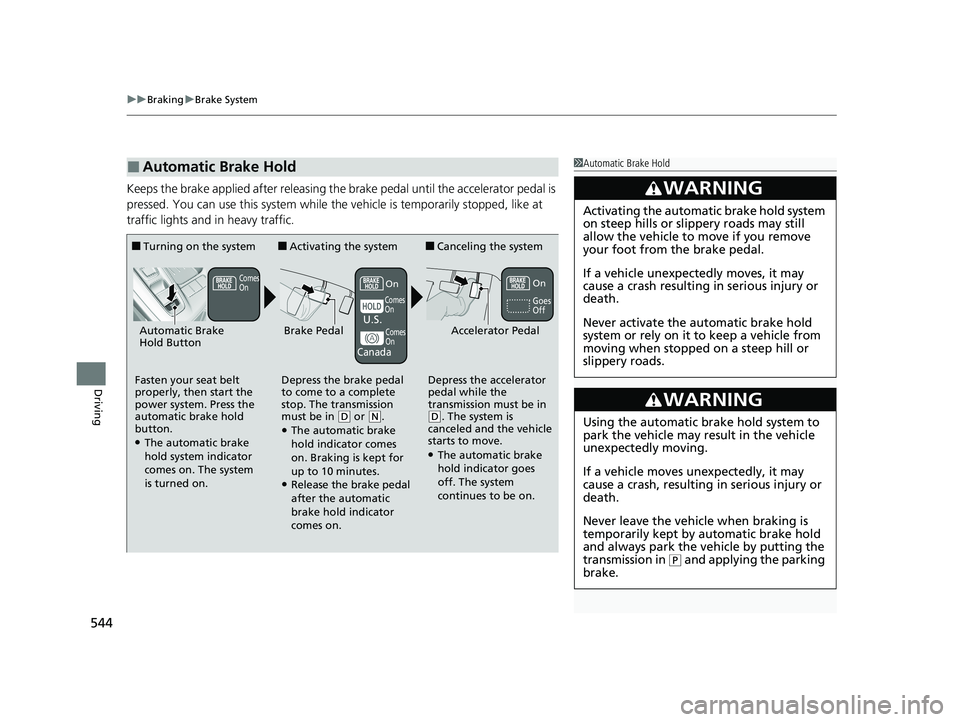

uuBraking uBrake System
544
Driving
Keeps the brake applied after releasing the br ake pedal until the accelerator pedal is
pressed. You can use this system while th e vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.
■Automatic Brake Hold1 Automatic Brake Hold
3WARNING
Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3WARNING
Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in
( P and applying the parking
brake.
■Turning on the system
Fasten your seat belt
properly, then start the
power system. Press the
automatic brake hold
button.
●The automatic brake
hold system indicator
comes on. The system
is turned on.
■Activating the system
Depress the brake pedal
to come to a complete
stop. The transmission
must be in
( D or (N.●The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.
●Release the brake pedal
after the automatic
brake hold indicator
comes on.
■Canceling the system
Depress the accelerator
pedal while the
transmission must be in
( D. The system is
canceled and the vehicle
starts to move.
●The automatic brake
hold indicator goes
off. The system
continues to be on.
Accelerator PedalBrake PedalAutomatic Brake
Hold Button
Goes
Off
U.S.
Canada
On
On
Comes
On
Comes
On
Comes
On
21 INSIGHT-31TXM6200.book 544 ページ ２０２０年２月５日　水曜日　午前１０時０分

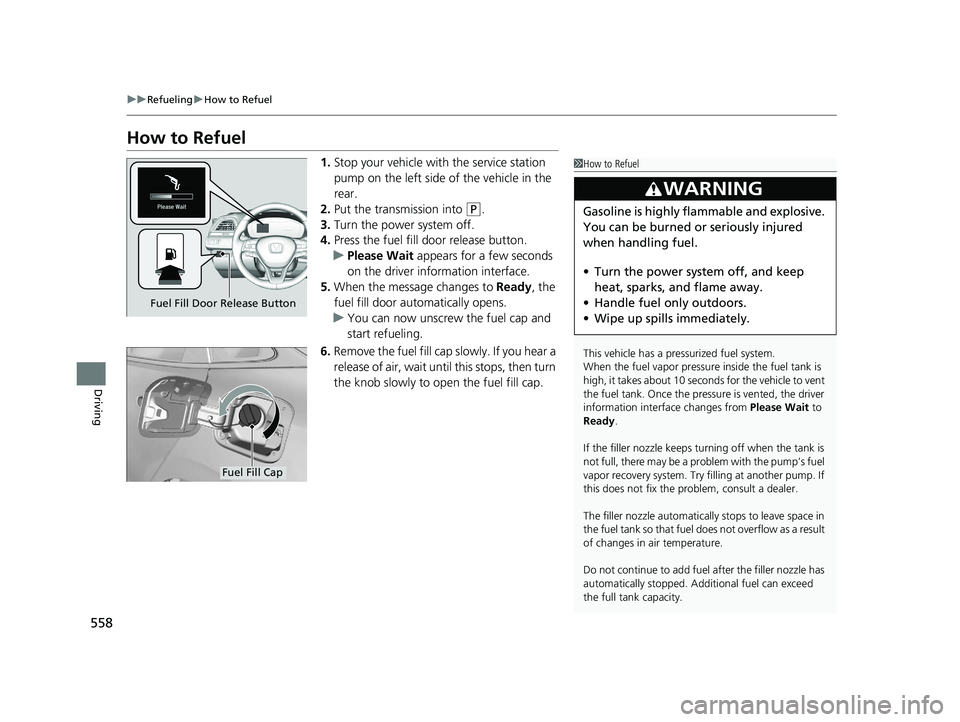

558
uuRefueling uHow to Refuel
Driving
How to Refuel
1. Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Put the transmission into
(P.
3. Turn the power system off.
4. Press the fuel fill door release button.
u Please Wait appears for a few seconds
on the driver information interface.
5. When the message changes to Ready, the
fuel fill door automatically opens.
u You can now unscrew the fuel cap and
start refueling.
6. Remove the fuel fill cap slowly. If you hear a
release of air, wait until this stops, then turn
the knob slowly to open the fuel fill cap.
1How to Refuel
This vehicle has a pressurized fuel system.
When the fuel vapor pressure inside the fuel tank is
high, it takes about 10 seconds for the vehicle to vent
the fuel tank. Once the pressure is vented, the driver
information interface changes from Please Wait to
Ready.
If the filler nozzle keeps tu rning off when the tank is
not full, there may be a pr oblem with the pump’s fuel
vapor recovery system. Try fi lling at another pump. If
this does not fix the problem, consult a dealer.
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel do es not overflow as a result
of changes in air temperature.
Do not continue to add fuel after the filler nozzle has
automatically stopped. Addi tional fuel can exceed
the full tank capacity.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power syste m off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Fuel Fill Door Release Button
Fuel Fill Cap
21 INSIGHT-31TXM6200.book 558 ページ ２０２０年２月５日　水曜日　午前１０時０分

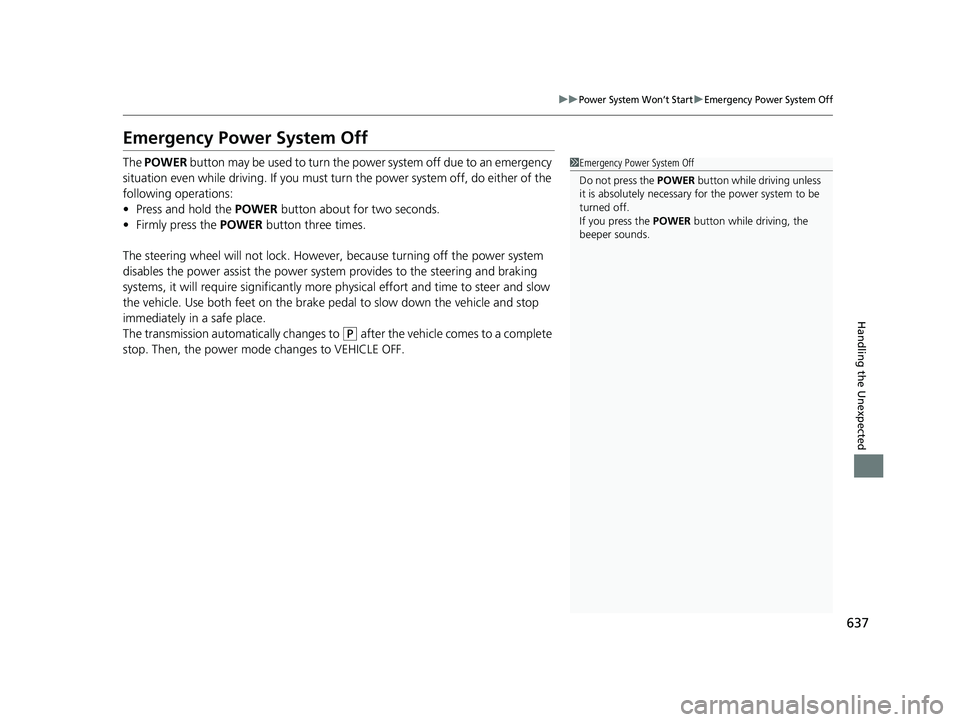

637
uuPower System Won’t StartuEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the power system off due to an emergency
situation even while driving. If you must tu rn the power system off, do either of the
following operations:
• Press and hold the POWER button about for two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The transmission automa tically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the POWER button while driving unless
it is absolutely necessary for the power system to be
turned off.
If you press the POWER button while driving, the
beeper sounds.
21 INSIGHT-31TXM6200.book 637 ページ ２０２０年２月５日　水曜日　午前１０時０分

680
Index
Puncture (Tire).......................................... 615
R
Radar Sensor............................................. 538
Radiator ..................................................... 580
Radio (AM/FM) .......................................... 296
Radio (FM/AM) .......................................... 254
Radio (SiriusXM ®)...................................... 300
Radio Data System (RDS) .................. 255, 298
Range ........................................................ 141
RDS (Radio Data System) .................. 255, 298
Readiness Codes (Emissions Testing) ....... 667
Rear Defogger/Heated Door Mirror Button ...................................................... 209
Rear Seat (Folding Down) ........................ 217
Rear Seat Heaters ..................................... 231
Rearview Mirror ........................................ 212
Refueling ................................................... 557
Fuel Gauge .............................................. 133
Gasoline .......................................... 557, 662
Low Fuel Indicator ..................................... 94
Regulations ............................... 481, 595, 665
Remote Engine Start with Vehicle
Feedback ................................................. 456
Remote Transmitter .................................. 179
Replacement
Battery..................................................... 603
Bulbs ....................................................... 585
Fuses ............................................... 651, 655
Tires ........................................................ 598 Wiper Blade Rubber ................................ 589
Reporting Safety Defects ......................... 666
Resetting a Trip Meter ..................... 139, 141
Road Departure Mitigation (RDM) ......... 525
On and Off.............................................. 527
S
Safe Driving ................................................ 41
Safety Check ............................................... 45
Safety Labels ............................................... 82
Safety Message ............................................. 3
Safety Support .......................................... 153
Seat Belts .................................................... 46
Adjusting the Shoulder Anchor.................. 50
Automatic Seat Belt Tensioners ................. 48
Checking................................................... 52
Fastening .................................................. 49
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 75
Pregnant Women ...................................... 51
Reminder .................................................. 47
Warning Indicator ............................... 47, 94
Seat Heaters ...................................... 230, 231
Seats .......................................................... 214
Adjusting ................................................ 214
Front Seats .............................................. 214
Rear Seats ............................................... 217
Seat Heaters .................................... 230, 231
Security System ......................................... 189
Immobilizer System Indicator ..................... 99 Security System Alarm Indicator ................ 99
Selecting a Child Seat ................................ 72
Selector Knob (Audio) ............................. 247
Shift Buttons ...................................... 30, 463
Operation ............................................... 465
Shift Position Indicator .............................. 92
Shifting (Transmission) ............................ 463
Shoulder Anchor ........................................ 50
Side Airbags ............................................... 61
Side Curtain Airbags .................................. 63
Siri Eyes Free ..................................... 267, 330
SiriusXM ® Radio ....................................... 300
Smart Entry with Push Button Start System ..................................................... 175
Snow Tires ................................................ 600
Spare Tire ......................................... 615, 663
Spark Plugs ............................................... 662
Specifications ........................................... 662
Specified Fuel ................................... 557, 662
Speedometer ............................................ 133
SPORT Mode ............................................. 469
Indicator ................................................. 100
SRS Airbags (Airbags) ................................ 56
Steering Wheel Adjusting ................................................ 211
Stopping ................................................... 549
Summer Tires ............................................ 600
Supplemental Restraint System (SRS) ....... 56
Switches (Around the Steering Wheel) ............................................ 6, 7, 196
System Message Indicator ....................... 100
21 INSIGHT-31TXM6200.book 680 ページ ２０２０年２月５日　水曜日　午前１０時０分
