HONDA INSIGHT 2022 Owners Manual

uuGauges and Driver Information Interface uGauges
130
Instrument Panel
Shows the remaining high voltage battery charge level.
■High Voltage Battery Charge Level Gauge1High Voltage Battery Charge Level Gauge
The high voltage battery ch arge level may decrease
under the following conditions:
•When the 12-volt battery has been replaced.
•When the 12-volt battery has been disconnected.•When the high voltage battery control system
corrects its reading.
The charge level readi ng will be corrected
automatically while driving.
Changes in the temperature of the high voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charge remains the
same.
22 INSIGHT HMIN-31TXM6300.book 130 ページ ２０２１年２月２４日　水曜日　午後３時４５分

131
uuGauges and Driver Information Interface uGauges
Instrument Panel
■Electric motor
The power level supplied to the electric motor
is displayed by th e readings on the POWER
side.
■Battery charge in progress
The power level supplied to the high voltage
battery is displayed by readings on the
CHARGE side.
■Speed Unit
Enables you to show another speed unit on
the driver information interface and set the
displayed measurements to read in either mph
and km/h.
Select the Gauge Only screen.
2Accessing contents in the main display
P. 132
Press and hold the left selector wheel when
you select the Gauge Only on the driver
information interface. Each time you do this,
the unit will change from mph to km/h or vice
versa. After this, a confirmation screen will
appear for a few seconds.
■POWER/CHARGE Gauge
22 INSIGHT HMIN-31TXM6300.book 131 ページ ２０２１年２月２４日　水曜日　午後３時４５分

132
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Driver Information Interface
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Accessing contents in the main display
Press the (home) button, then roll the le ft selector wheel to scroll to the content
you want to see. Press the left select or wheel to see detailed information.
■Switching the Display1Switching the Display
If a warning initially appear s, you can - after reading
it - press the (hom e) button to proceed
immediately to the cont ent or to any other
warning(s).
To go back to the previous screen, press the
(back) button.
To go back to the home screen, press the (home)
button.
You can edit, add, or delete the meter contents using
the audio/information screen.
2 Customizing the Meter P. 245
22 INSIGHT HMIN-31TXM6300.book 132 ページ ２０２１年２月２４日　水曜日　午後３時４５分

133
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

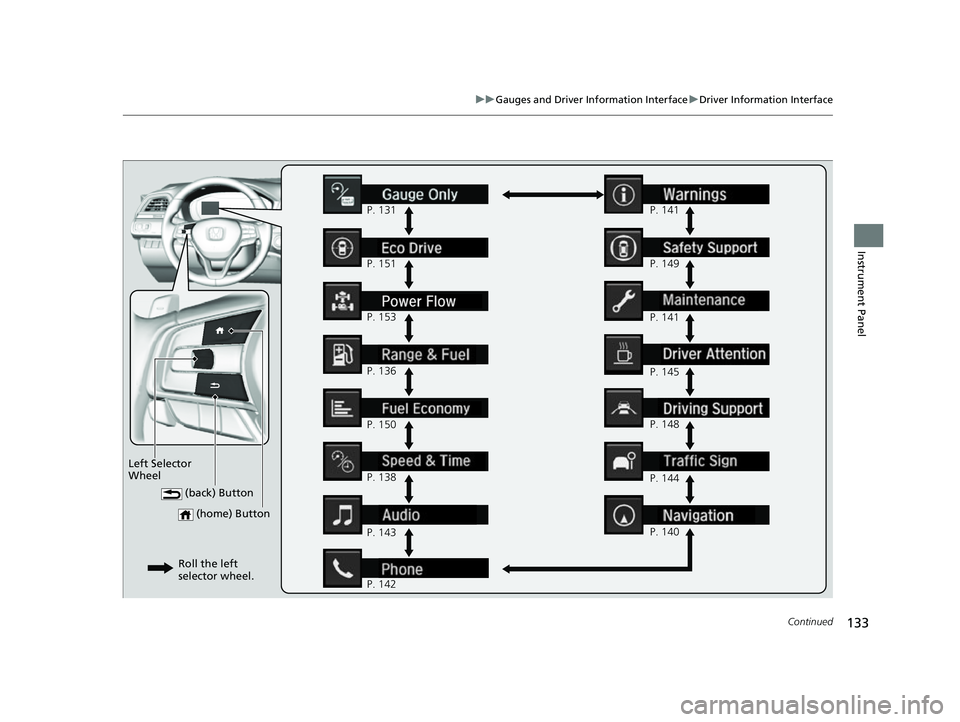

(home) Button
P. 131
P. 136
P. 138
P. 140 P. 144
P. 142 P. 143 P. 149
P. 141 P. 141
Left Selector
Wheel Roll the left
selector wheel.
P. 148 P. 145
P. 151
P. 153
P. 150
(back) Button
22 INSIGHT HMIN-31TXM6300.book 133 ページ ２０２１年２月２４日　水曜日　午後３時４５分

134
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Sub display
Press the TRIP button to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Odometer
Odometer
Outside temperatureTrip A
Trip B
TRIP Button
TRIP
TRIPTRIP
22 INSIGHT HMIN-31TXM6300.book 134 ページ ２０２１年２月２４日　水曜日　午後３時４５分

Continued135
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP Button. The trip meter
is reset to 0.0.
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature display
Adjust the temperature reading by up to ±5°F if the temperature reading seems
incorrect.
Use the customized features in the driver information interface or audio/information
screen to correct the temperature.
2 Customized Features P. 326
■Trip Meter
■Outside Temperature
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP Button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
22 INSIGHT HMIN-31TXM6300.book 135 ページ ２０２１年２月２４日　水曜日　午後３時４５分

136
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

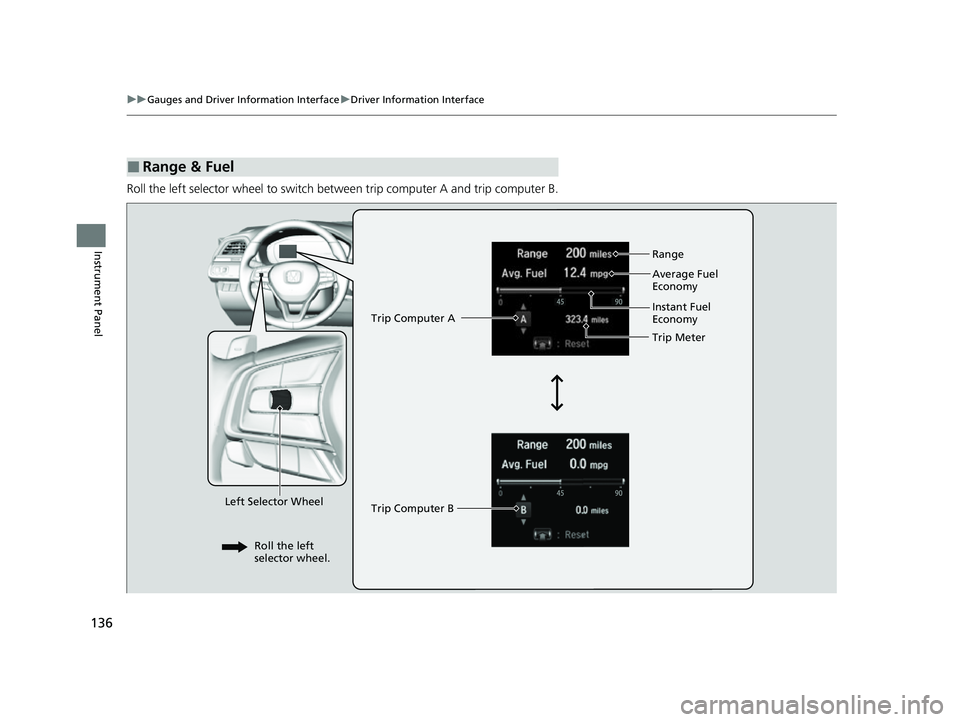

Roll the left selector wheel to switch between trip computer A and trip computer B.
■Range & Fuel
Left Selector Wheel Trip Computer A
Trip Computer B
Trip Meter Range
Average Fuel
Economy
Instant Fuel
Economy
Roll the left
selector wheel.
22 INSIGHT HMIN-31TXM6300.book 136 ページ ２０２１年２月２４日　水曜日　午後３時４５分

Continued137
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Trip meter
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, press the left selector wheel and then select Reset.
u The trip meter is reset to 0.0.
■Average fuel economy (Avg. Fuel)
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
1 Trip meter
Switch between trip meter A and trip meter B by
rolling the left selector wheel.
Resetting the trip meter in the Range & Fuel, the trip
meter in the sub display resets at the same time.
1 Average fuel economy (Avg. Fuel)
You can change when the average fuel economy is
reset.
2 Customized Features P. 326
22 INSIGHT HMIN-31TXM6300.book 137 ページ ２０２１年２月２４日　水曜日　午後３時４５分

138
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Roll the left selector wheel to switch between trip computer A and trip computer B.
■Speed & Time
Trip Computer A
Trip Computer B Trip Meter Average Speed
Elapsed Time
Left Selector Wheel
Roll the left
selector wheel.
22 INSIGHT HMIN-31TXM6300.book 138 ページ ２０２１年２月２４日　水曜日　午後３時４５分

Continued139
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

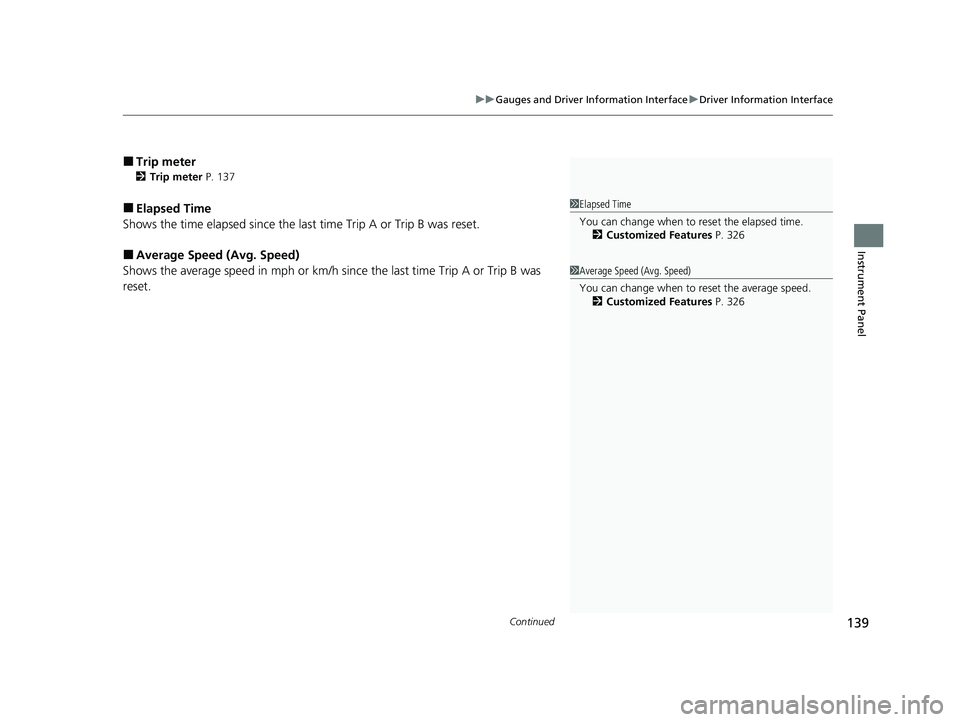

■Trip meter
2 Trip meter P. 137
■Elapsed Time
Shows the time elapsed since the last time Trip A or Trip B was reset.
■Average Speed (Avg. Speed)
Shows the average speed in mph or km/h si nce the last time Trip A or Trip B was
reset.
1 Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 326
1Average Speed (Avg. Speed)
You can change when to reset the average speed.
2 Customized Features P. 326
22 INSIGHT HMIN-31TXM6300.book 139 ページ ２０２１年２月２４日　水曜日　午後３時４５分
