HONDA INSIGHT 2022 Owners Manual

150
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Shows the average fuel economy for the last
three driving cycles (1-3), and the current
driving cycle (0) in mpg or l/100 km.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.
■Average Fuel Economy Records
22 INSIGHT HMIN-31TXM6300.book 150 ページ ２０２１年２月２４日　水曜日　午後３時４５分

Continued151
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Eco Drive Display
The vehicle icon on the display moves forward or backward while driving.
The more aggressive the acceleration is , the further the icon moves forward.
The more aggressive the deceleration is , the further the icon moves backward.
Keep the icon near the cent er of the circle for better fuel economy while driving.
■Eco Drive Display/Drive Cycle Score/Lifetime Points
1Eco Drive Display
Switch between the average fuel economy A and
average fuel economy B by ro lling the left selector
wheel.
Aggressive
Deceleration Fuel-Efficient
Driving Aggressive
Acceleration
Moderate
Deceleration Moderate
Acceleration
Average Fuel
Economy
Vehicle Icon
22 INSIGHT HMIN-31TXM6300.book 151 ページ ２０２１年２月２４日　水曜日　午後３時４５分

152
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

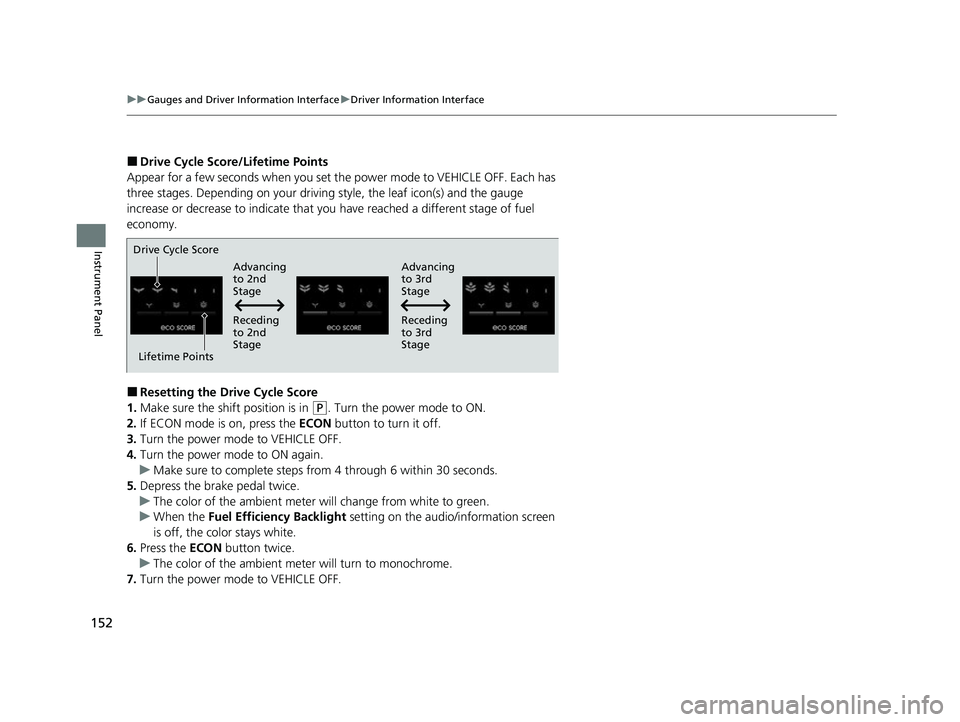

■Drive Cycle Score/Lifetime Points
Appear for a few seconds when you set th e power mode to VEHICLE OFF. Each has
three stages. Depending on your driving style, the leaf icon(s) and the gauge
increase or decrease to indicate that you have reached a different stage of fuel
economy.
■Resetting the Drive Cycle Score
1. Make sure the shift position is in
(P. Turn the power mode to ON.
2. If ECON mode is on, press the ECON button to turn it off.
3. Turn the power mode to VEHICLE OFF.
4. Turn the power mode to ON again.
u Make sure to complete steps from 4 through 6 within 30 seconds.
5. Depress the brake pedal twice.
u The color of the ambient meter wi ll change from white to green.
u When the Fuel Efficiency Backlight setting on the audio/information screen
is off, the color stays white.
6. Press the ECON button twice.
u The color of the ambient mete r will turn to monochrome.
7. Turn the power mode to VEHICLE OFF.
Drive Cycle Score
Lifetime Points Advancing
to 2nd
Stage
Advancing
to 3rd
Stage
Receding
to 3rd
Stage
Receding
to 2nd
Stage
22 INSIGHT HMIN-31TXM6300.book 152 ページ ２０２１年２月２４日　水曜日　午後３時４５分

153
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Displays the power flow of the motor an d engine, indicating the vehicle’s power
source and whether the battery is being charged.
■Power Flow Monitor1 Power Flow Monitor
While the vehicle is stat ionary with the engine
running, the following ma y appear on the driver
information interface.
Engine ON
Engine OFF
Power Flow
Engine
Power is supplied
by the motor and
the engine.
Hybrid (HV)
Power is supplied
by the motor.
Electric Vehicle (EV)
Power is being supplied to
charge the High Voltage
battery and supply power
to the wheels.
Engine (Direct Drive)
The motor is
charging the High
Voltage battery.
RegenerationPower is being
supplied by the
engine only. The engine is running
and the motor is
charging the High
Voltage battery.
22 INSIGHT HMIN-31TXM6300.book 153 ページ ２０２１年２月２４日　水曜日　午後３時４５分

154
22 INSIGHT HMIN-31TXM6300.book 154 ページ ２０２１年２月２４日　水曜日　午後３時４５分

155
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 156
Locking and Unlocking the Doors Key .................................................. 157
Low Keyless Remote Signal Strength ... 159
Locking/Unlocking the Doors from the Outside .......................................... 160
Locking/Unlocking the Doors from the Inside ............................................. 167
Childproof Door Locks ..................... 169
Auto Door Locking/Unlocking .......... 170
Opening and Closing the Trunk ....... 171
Security System
Immobilizer System .......................... 174 Security System Alarm...................... 175
Opening and Closing the Windows ... 177
Moonroof*................................................ 180Operating the Switches Around the
Steering Wheel POWER Button................................. 181
Turn Signals ..................................... 184
Light Switches.................................. 185
Fog Lights
*...................................... 188
Daytime Running Lights ................... 188
Auto High-Beam .............................. 189
Wipers and Washers ........................ 192
Rear Defogger/Heated Door Mirror Button ........................................ 194
Brightness Control ........................... 195
Adjusting the Steering Wheel .......... 196
Adjusting the Mirrors Interior Rearview Mirror ................... 197
Power Door Mirrors ......................... 198
Adjusting the Seats .......................... 199
Interior Lights/Interior Convenience
Items ................................................ 207
Climate Control System Using Automatic Climate Control .... 216
Automatic Climate Control Sensors ... 222
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 155 ページ ２０２１年２月２４日　水曜日　午後３時４５分

156
Controls
Clock
Adjusting the Clock
You can adjust the time manually in the audio/information screen with the power
mode in ON.
■Using the Settings menu on the audio/
information screen
1. Press the , then select Settings.
2. Select System .
3. Select Day & Time .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then
select OFF.
To adjust time:
6. Select Set Time.
7. Selecting / .
8. Select Save to set the time.
To adjust date:
6. Select Set Date .
7. Selecting / .
8. Select Save to set the date.
■Adjusting the Time
1Clock
The clock is automatically updated through the audio
system.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 326
1Using the Settings menu on the audio/information screen
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display or
the Clock icon on the home screen.
1. Touch the clock on the display. The clock screen of the select face-type appears.
2. Select Settings .
3. Select Day & Time .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then select OFF.
6. Select Set Date or Set Time.
7. Adjusting the dates, hours and minutes by
selecting / .
8. Select Save to set the time.
You can customize the date display to MM/DD/
YYYY, DD/MM/YYYY or YYYY/MM/DD .
2 Customized Features P. 326
34
34
34
22 INSIGHT HMIN-31TXM6300.book 156 ページ ２０２１年２月２４日　水曜日　午後３時４５分

157Continued
Controls
Locking and Unlocking the Doors
Key
This vehicle comes with the following key:Use the keys to turn on and off the power
system, and to lock and unlock all the doors
and to open the trunk.1 Key
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 174
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely turn the power system on using the
remote engine start. 2 Remote Engine Start with Vehicle
Feedback P. 384
22 INSIGHT HMIN-31TXM6300.book 157 ページ ２０２１年２月２４日　水曜日　午後３時４５分

uuLocking and Unlocking the Doors uKey
158
Controls
The built-in key can be used to lock/unlock the
doors when the keyless remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
keyless remote until it clicks.
Contains a number that you will need if you
purchase a replacement key.
■Built-in Key
Built-in Key
Release Knob
■Key Number Tag1
Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key an d you cannot activate the
power system, contact a dealer.
22 INSIGHT HMIN-31TXM6300.book 158 ページ ２０２１年２月２４日　水曜日　午後３時４５分

159
uuLocking and Unlocking the Doors uLow Keyless Remote Signal Strength
Controls
Low Keyless Remote Signal Strength
The vehicle transmits radio waves to lo cate the keyless remote when locking/
unlocking the doors, opening the trunk, or to activate the power system.
In the following cases, locking/unlocking the doors, opening the trunk, or activating
the power system may be inhibited or operation may be unstable:
• Strong radio waves are being transmitted by nearby equipment.
• You are carrying the keyless remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the keyless remote.1Low Keyless Remote Signal Strength
Communication between the keyless remote and the
vehicle consumes the ke yless remote’s battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the keyless
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
22 INSIGHT HMIN-31TXM6300.book 159 ページ ２０２１年２月２４日　水曜日　午後３時４５分
