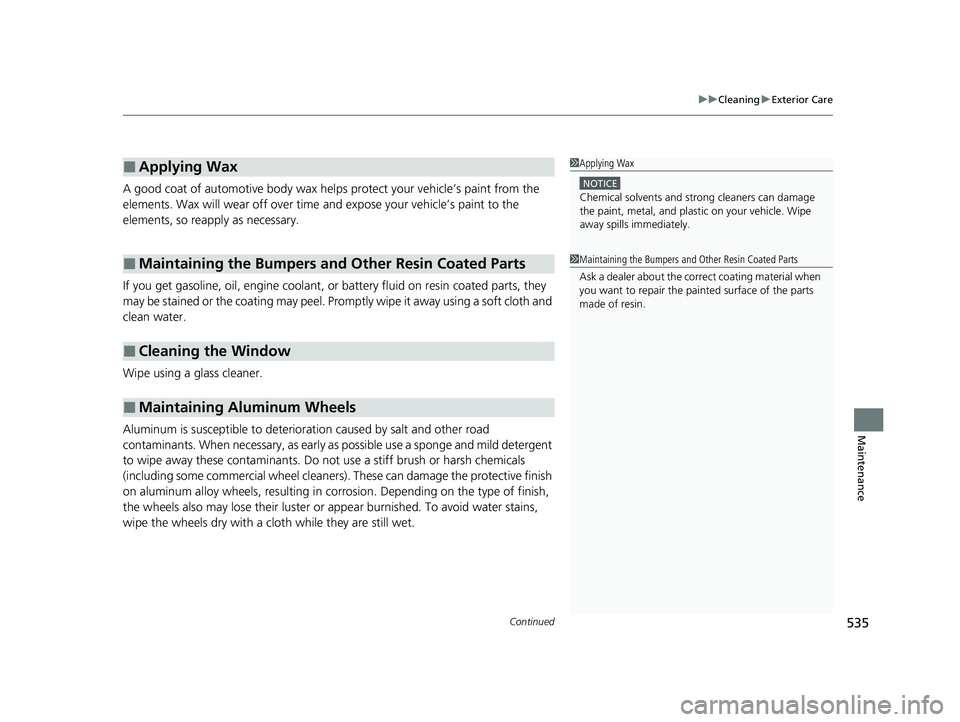

Continued535
uuCleaning uExterior Care
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Applying Wax
NOTICE
Chemical solvents and strong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the painted surface of the parts
made of resin.
22 INSIGHT HMIN-31TXM6300.book 535 ページ ２０２１年２月２４日　水曜日　午後３時４５分

uuOverheating uHow to Handle Overheating
568
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
turn the power system off once the Engine
Temperature Too Hot. Do Not Drive.
Allow Engine To Cool. message
disappears.
u If the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, turn the power system on. If the Engine
Temperature Too Hot. Do Not Drive. Allow Engine To Cool. message does not
appear, resume driving. If it appears again, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
MAXReserve Tank
MIN
22 INSIGHT HMIN-31TXM6300.book 568 ページ ２０２１年２月２４日　水曜日　午後３時４５分

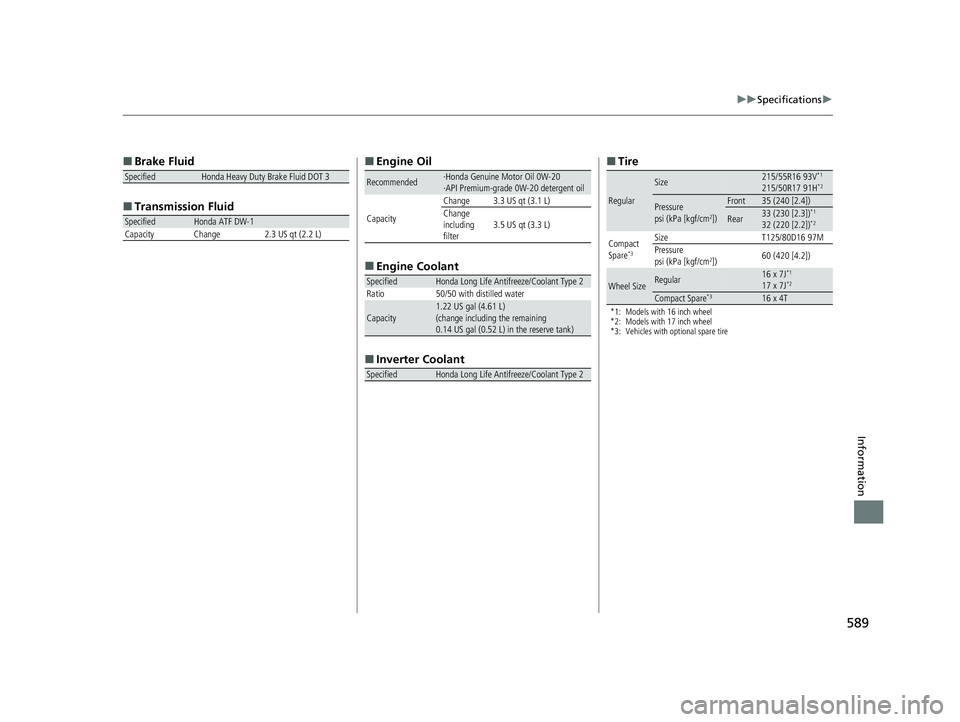

589
uuSpecifications u
Information
■
Brake Fluid
■ Transmissi on Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
Capacity Change 2.3 US qt (2.2 L)
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
Recommended·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.3 US qt (3.1 L)
Change
including
filter
3.5 US qt (3.3 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.22 US gal (4.61 L)
(change including the remaining
0.14 US gal (0.52 L) in the reserve tank)
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
■ Tire
*1: Models with 16 inch wheel
*2: Models with 17 inch wheel
*3: Vehicles with optional spare tire
Regular
Size215/55R16 93V*1
215/50R17 91H*2
Pressure
psi (kPa [kgf/cm2])
Front35 (240 [2.4])
Rear33 (230 [2.3])*1
32 (220 [2.2])*2
Compact
Spare*3
Size T125/80D16 97M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 7J*1
17 x 7J*2
Compact Spare*316 x 4T
22 INSIGHT HMIN-31TXM6300.book 589 ページ ２０２１年２月２４日　水曜日　午後３時４５分

Index
599
Index
Index
Numbers
12-Volt Battery................................... 12, 528
Charging System Indicator ................ 89, 570
High Voltage..................................... 12, 414
If the 12-Volt Battery Is Dead .................. 564
Maintenance (Checking the Battery) ....... 528
Maintenance (Replacing) ......................... 530
A
ABS (Anti-lock Brake System) .................. 476
Accessories and Modifications ................ 537
Accessory Power Socket ........................... 213
Acoustic Vehicle Alerting System ............ 402
Adaptive Cruise Control (ACC) ............ 98, 99
Adaptive Cruise Control (ACC)
with Low Speed Follow ............. 98, 99, 428
Additives
Coolant .................................................. 506
Engine Oil ............................................... 501
Washer ................................................... 511
Additives, Engine Oil ............................... 501
Adjusting Armrest .................................................. 206
Front Seats.............................................. 199
Head Restraints ....................................... 204
Mirrors.................................................... 197
Rear Seats ............................................... 202
Steering Wheel ....................................... 196
Agile Handling Assist ............................... 405 Air Conditioning System (Climate Control
System) .................................................... 216
Changing the Mode ................................ 218
Defrosting the Windshield and Windows ............................................... 219
Dust and Pollen Filter ............................... 531
Recirculation/Fresh Air Mode ................... 218
Sensors .................................................... 222
Synchronized Mode ................................. 221
Using Automatic Climate Control ............ 216
Air Pressure ....................................... 520, 589
Airbags ........................................................ 51
Advanced Airbags ..................................... 57
After a Collision ......................................... 54
Airbag Care ............................................... 65
Event Data Recorder .................................... 1
Front Airbags (SRS) .................................... 54
Indicator .............................................. 62, 92
Passenger Airbag Off Indicator .................. 63
Sensors ...................................................... 51
Side Airbags .............................................. 59
Side Curtain Airbags .................................. 61
AM/FM Radio ............................................ 258
Android Auto
TM........................................ 298
Anti-lock Brake System (ABS) .................. 476
Indicator .................................................... 92
Apple CarPlay
TM........................................ 294
Armrest ..................................................... 206
Audio Remote Controls ............................ 227
Audio System ............................................ 224
Adjusting the Sound ................................ 252 Audio/Information Screen........................ 231
Display Setup .......................................... 253
Error Messages ........................................ 302
General Information ................................ 304
Home Screen........................................... 239
How to Update Wirelessly ....................... 246
How to Update with a USB Device........... 250
How to use Siri Eyes Free ......................... 293
iPod ........................................................ 273
Limitations for Manual Operation ............ 254
MP3/WMA/AAC ...................................... 276
Reactivating ............................................ 226
Remote Controls ..................................... 227
Security Code .......................................... 226
Selecting an Audio Source ....................... 254
Status Area ............................................. 244
System Updates....................................... 246
Theft Protection ...................................... 226
USB Flash Drives .............................. 276, 305
USB Ports ................................................ 225
Wallpaper Setup...................................... 237
Audio/Information Screen ....................... 231
Authorized Manuals ................................ 597
Auto Door Locking/Unlocking ................. 170
Customize ............................................... 343
Auto High-Beam ....................................... 189
Indicator.................................................... 95
Automatic Brake Hold ............................. 473
Indicator............................................ 85, 473
Automatic Brake Hold System Indicator............................................ 85, 473
22 INSIGHT HMIN-31TXM6300.book 599 ページ ２０２１年２月２４日　水曜日　午後３時４５分

600
Index
Automatic Intermittent Wipers............... 193
Automatic Lighting .................................. 186
Average Fuel Economy ............................. 137
Average Fuel Economy Records ............... 150
Average Speed .......................................... 139
B
Belts (Seat).................................................. 44
Beverage Holders ...................................... 211
Blind spot information System ................ 411
Bluetooth ® Audio ..................................... 279
Bluetooth ® HandsFreeLink ®................... 349
Booster Seats (For Children) ....................... 78
Brake System ............................................. 468
Anti-lock Brake System (ABS) ................... 476
Automatic Brake Hold.............................. 473
Brake Assist System ................................. 477
Fluid ........................................................ 510
Foot Brake ............................................... 472
Indicator .............................. 83, 84, 572, 573
Parking Brake .......................................... 468
Brightness Control (Instrument Panel) .... 195
Bulb Replacement ..................................... 512
Back-Up Lights......................................... 514
Brake and Rear Side Marker Lights ........... 513
Fog Lights ................................................ 512
Front Turn Signal, Parking/Daytime Running and Front Side Marker Lights.... 512
Headlights ............................................... 512
High-Mount Brake Light .......................... 515 Rear License Plate Light ........................... 515
Rear Turn Signal Lights ............................ 513
Side Turn Signal/Emergency Indicator
Lights .................................................... 512
Taillights.................................................. 514
Bulb Specifications ................................... 588C
Carbon Monoxide Gas ............................... 79
Carrying Cargo ................................. 377, 379
Certification Label .................................... 590
Changing Bulbs ........................................ 512
Charging System Indicator ................. 89, 570
Child Safety ................................................. 66
Childproof Door Locks............................. 169
Emergency Trunk Opener ........................ 173
Child Seat .................................................... 66
Booster Seats ............................................ 78
Child Seat for Infants................................. 68
Child Seat for Small Children ..................... 69
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 73
Larger Children ......................................... 77
Rear-facing Child Seat ............................... 68
Selecting a Child Seat ................................ 70
Using a Tether ........................................... 75
Childproof Door Locks ............................. 169
Cleaning the Exterior ............................... 534
Cleaning the Interior ................................ 532 Climate Control System
........................... 216
Changing the Mode................................ 216
Defrosting the Windshield and Windows .............................................. 219
Dust and Pollen Filter .............................. 531
Recirculation and Fresh Air Mode ............ 218
Sensors ................................................... 222
Synchronized Mode ................................ 221
Using Automatic Climate Control............ 216
Clock ......................................................... 156
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 418
Coat Hooks ............................................... 214
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 418
Compact Spare Tire .......................... 541, 589
Console Compartment ............................. 210
Controls .................................................... 155
Coolant (Engine) ...................................... 506
Adding to the Radiator ........................... 507
Adding to the Reserve Tank .................... 506
Overheating ............................................ 567
Cooling System ......................................... 506
Adding to the Radiator ........................... 507
Adding to the Reserve Tank .................... 506
Overheating ............................................ 567
Creeping ................................................... 390
Cross Traffic Monitor ............................... 480
Cup Holders .............................................. 211
Customer Service Information ................ 598
Customized Features ............................... 326
22 INSIGHT HMIN-31TXM6300.book 600 ページ ２０２１年２月２４日　水曜日　午後３時４５分

601
Index
D
Daytime Running Lights.......................... 188
Dead Battery ............................................ 564
Deceleration Paddle Selector .................. 398
Defaulting All the Settings ...................... 345
Defrosting the Windshield and Windows ................................................. 219
Devices that Emit Radio Waves ............... 591
Dimming Headlights .............................................. 185
Rearview Mirror ...................................... 197
Dipstick (Engine Oil) ................................ 502
Directional Signals (Turn Signal) ............. 184
Door Mirrors ............................................. 198
Doors ........................................................ 157
Auto Door Locking.................................. 170
Auto Door Unlocking .............................. 170
Door and Trunk Open Message................. 43
Keys........................................................ 157
Locking/Unlocking the Doors from the Inside .................................................... 167
Locking/Unlocking the Doors from the
Outside ................................................. 160
Lockout Prevention System ..................... 166
DOT Tire Quality Grading ........................ 522
Driver Attention Monitor ........................ 145
Driver Information Interface ................... 132
Switching the Display .............................. 132
Warning and Information Messages ........ 104
Driving ...................................................... 375
Braking ................................................... 468 Shifting Gear ........................................... 391
Transmission ............................................ 390
Turning on the Power .............................. 382
Driving Support Information ................... 148
Dust and Pollen Filter ............................... 531
E
Eco Assist® System ...................................... 18
Eco Drive Display/Drive Cycle Score/
Lifetime Points ........................................ 151
ECON Mode .............................................. 401
Indicator .................................................... 97
Elapsed Time ............................................. 139
Electric Power Steering (EPS) System Indicator ............................................ 92, 574
Electronic Stability Control (ESC) ............. 403
Emergency ................................................ 583
Emergency Power System Off .................. 563
Emergency Trunk Opener ........................ 173
Emissions Testing (Readiness Codes) ....... 593
Engine ....................................................... 590
Coolant ................................................... 506
If the 12-Volt Battery Is Dead ................... 564
Oil ........................................................... 501
Starting ................................................... 382
Engine Oil ................................................. 501
Adding .................................................... 503
Checking ................................................. 502
Displaying Oil Life .................................... 494
Low Oil Pressure Warning ........................ 569 Recommended Engine Oil ....................... 501
EPS (Electric Power Steering) System ...... 574
EV Button .................................................... 14
Exhaust Gas Hazard (Carbon Monoxide) .. 79
Exterior Care (Cleaning) ........................... 534
Exterior Mirrors ........................................ 198F
Features.................................................... 223
Filters Dust and Pollen ....................................... 531
Oil ........................................................... 504
Flat Tire ..................................................... 541
Floor Mats ................................................. 533
Fluids
Brake ...................................................... 510
Engine Coolant ....................................... 506
Inverter Coolant ...................................... 508
Windshield Washer ................................. 511
FM/AM Radio ............................................ 258
Fog Lights ................................................. 188
Indicator.................................................... 95
Folding Down the Rear Seats .................. 202
Foot Brake ................................................ 472
Front Airbags (SRS) ..................................... 54
Front Seat Heaters .................................... 215
Front Seats Adjusting ................................................ 199
Front Sensor Camera ................................ 465
22 INSIGHT HMIN-31TXM6300.book 601 ページ ２０２１年２月２４日　水曜日　午後３時４５分

604
Index
Low Oil Pressure Warning........................ 569
Lower Anchors ............................................ 71
Luggage (Maximum Load Limit) .............. 379
M
Maintenance..................................... 141, 489
12-Volt Battery ........................................ 528
Brake Fluid............................................... 510
Cleaning .................................................. 532
Climate Control System ........................... 531
Coolant ................................................... 506
Maintenance Minder
TM............................ 493
Oil ........................................................... 502
Precautions .............................................. 490
Radiator................................................... 507
Remote Transmitter ................................. 530
Replacing Light Bulbs ............................... 512
Safety ...................................................... 491
Service Items............................................ 497
Tires ........................................................ 519
Transmission Fluid.................................... 509
Under the Hood....................................... 499
Malfunction Indicator Lamp .............. 88, 571
Map Lights ................................................ 208
Maximum Load Limit ................................ 379
Meters, Gauges ......................................... 129
Mirrors ....................................................... 197
Adjusting ................................................. 197
Door ........................................................ 198
Exterior .................................................... 198 Interior Rearview ..................................... 197
Modifications (and Accessories) .............. 537
Moonroof ................................................. 180
MP3 ........................................................... 276
MP3/WMA/AAC ........................................ 276
Multi-View Rear Camera .......................... 483
N
Navigation................................................ 140
Numbers (Identification) .......................... 590
O
Odometer................................................. 134
Oil (Engine) ............................................... 501
Adding .................................................... 503
Checking................................................. 502
Displaying Oil Life .................................... 494
Low Oil Pressure Warning........................ 569
Oil Life .................................................... 141
Recommended Engine Oil ....................... 501
Viscosity .................................................. 501
Open Source Licenses ............................... 320
Opening Trunk ...................................................... 585
Opening/Closing Hood....................................................... 500
Moonroof ............................................... 180
Power Windows ...................................... 177
Trunk ...................................................... 171 Outside Temperature Display
................. 135
Overheating ............................................. 567
P
Panic Mode............................................... 176
Parking ..................................................... 478
Parking Brake ........................................... 468
Parking Brake and Brake System Indicator (Amber) ............................. 84, 573
Parking Brake and Brake System Indicator (Red) .......................... 83, 572, 573
Passenger Airbag Off Indicator ................. 63
Passing Indicators ..................................... 185
Phone ........................................................ 142
Playing Bluetooth ® Audio ....................... 279
POWER Button ......................................... 181
Power Flow Monitor ................................ 153
Power Windows ....................................... 177
POWER/CHARGE Gauge .......................... 131
Precautions While Driving ....................... 388
Rain ........................................................ 388
Pregnant Women ....................................... 49
Puncture (Tire) ......................................... 541
R
Radar Sensor............................................ 467
Radiator .................................................... 507
Radio (AM/FM) ......................................... 258
Radio (SiriusXM ®)..................................... 262
22 INSIGHT HMIN-31TXM6300.book 604 ページ ２０２１年２月２４日　水曜日　午後３時４５分
