uuWhen Driving uTurning on the Power
384
Driving
You can remotely turn the power system on using the button on the keyless
remote.
■To turn the power system on
The power system is on for up to 10 minutes without you starting the vehicle.
To extend the time for another 10 minute s during the first 10 minutes, press the
button, then press and hold the button.
u Some exterior lights flash six times if a 10-minute extension request was
transmitted successfully.
■Remote Engine Start with Vehicle Feedback1Remote Engine Start with Vehicle Feedback
The remote engine start may violate local laws.
Before using the remote e ngine start, check your
local laws.
If there are buildings an d obstacles between your
vehicle and the keyless re mote, the range will be
reduced.
This distance may vary by external electrical
interference.
The power system may not be turned on by the
remote engine start if:
•You have disabled a remo te engine start setting
using the audio/information screen. 2Customized Features P. 326
•The power mode is not in VEHICLE OFF.
•The transmission is in a position other than (P.•The hood is open, or any door or the trunk is
unlocked.
3WARNING
Carbon monoxide ga s is toxic and can
rapidly accumulate in closed or even partly
enclosed areas.
Breathing it can cause unconsciousness and
even kill you.
Never use the remote engine starter with
the vehicle parked in a garage or other
areas with limited ventilation.
Press the button, th en press and hold
the button.
Some exterior lights flash once.
Go within the range,
and try again.
LED: Blinks when any button is pressed.
Some exterior lights flash six
times if the power system
turns on successfully. Some exterior lights will not
flash if the power system
turns on unsuccessfully.
22 INSIGHT HMIN-31TXM6300.book 384 ページ ２０２１年２月２４日　水曜日　午後３時４５分

Continued385
uuWhen Driving uTurning on the Power
Driving
■To turn the power system off1Remote Engine Start with Vehicle Feedback
•You have already used the keyless remote twice to
turn the power system on.
•Another registered keyless remote is in the vehicle.
•There is any antenna failure.•The door is unlocked with the built-in key.
•The engine oil pressure is low.
•The engine coolant temper ature is extremely high.•The telematics unit* malfunctions.
•The security system alarm is not set.
The power system may be turned off while it is
running if:
•You do not start the vehicl e within 10 minutes of
turning the power system on with the keyless
remote.
•The power system is turned off by using the keyless
remote.
•The security system alarm is activated.
•The door is unlocked with the built-in key.
•The hood is open.•The engine coolant temper ature is extremely high.
•The 12-volt battery is low.
•The engine oil pressure is low.•The malfunction indicator la mp comes on if there is
a problem with the emissions control systems.
•You press the POWER button without depressing
the brake pedal.
•The transmission is in a position other than ( P.
Press and hold the
button for one second.
Go within the range,
and try again.
The exterior lights flash once if the power system turned off
successfully.
The exterior lights will not flash when the keyless remote
is out of the keyless access system range.
The power system will not be turned off.
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 385 ページ ２０２１年２月２４日　水曜日　午後３時４５分

uuWhen Driving uTurning on the Power
386
Driving
1Remote Engine Start with Vehicle Feedback
While the power system is on, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The climate control system is activated in auto
mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters are
activated.
•The seat heaters* are activated.
2 Seat Heaters* P. 215
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 386 ページ ２０２１年２月２４日　水曜日　午後３時４５分

387
uuWhen Driving uTurning on the Power
Driving
1. Depress the brake pedal and press the POWER button simultaneously.
2. Keeping your right foot on th e brake pedal, check that the READY indicator is on,
then press the
(D button. Select (R when reversing.
3. With the parking brake applied, release the brake pedal and gently depress the
accelerator pedal.
u Make sure the parking brake indicator (red) goes off.
2 Parking Brake P. 468
■Hill start assist system
Hill start assist keeps the brake engaged br iefly to help prevent the vehicle from
rolling on inclines as you move your foot from the brake pedal to the accelerator.
Put the transmission into
(D when facing uphill, or (R when facing downhill, then
release the brake pedal.
■Starting to Drive1 Starting to Drive
The power system is off when the transmission
position is ch anged from
(P before the POWER
button is pressed. Follow step 1 when starting to
drive.
You can also release the parking brake by pressing
the electric parking brake sw itch while depressing the
brake pedal.
When facing downhill, you can start your vehicle
more smoothly by manually releasing it with the
electric parking brake switch than by releasing it with
the accelerator pedal.
As a hybrid vehicle, the sounds and vibrations from
the engine may be absent even though the vehicle is
ready for driving. It also makes you fail to recognize
that you can start.
Make sure to check if the READY indicator is on
before you start to drive.
When the power system is turned on using the
button on the keyless remoteWhen the power system is turned on using the button on the keyless remote
When the power system is turned on in any case
1 Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very steep or slippe ry slope, and
will not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
22 INSIGHT HMIN-31TXM6300.book 387 ページ ２０２１年２月２４日　水曜日　午後３時４５分

539

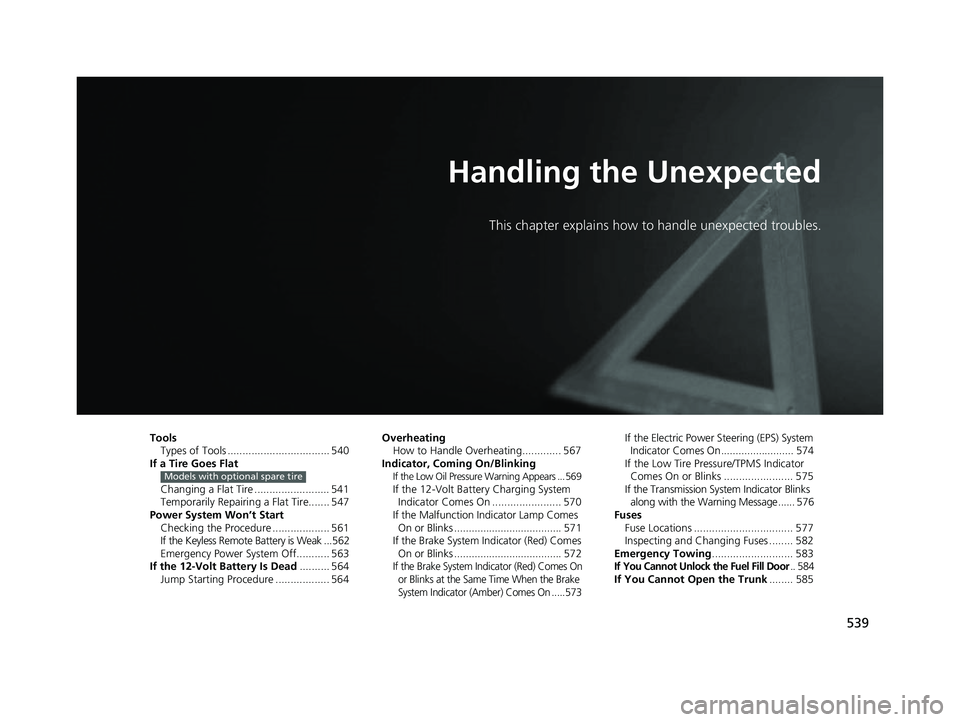

Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 540
If a Tire Goes Flat
Changing a Flat Tire ......................... 541
Temporarily Repairi ng a Flat Tire....... 547
Power System Won’t Start Checking the Procedure ................... 561
If the Keyless Remote Battery is Weak ...562
Emergency Power System Off........... 563
If the 12-Volt Battery Is Dead .......... 564
Jump Starting Procedure .................. 564
Models with optional spare tire
Overheating How to Handle Overheating............. 567
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears ... 569If the 12-Volt Battery Charging System Indicator Comes On ....................... 570
If the Malfunction Indicator Lamp Comes On or Blinks ..................................... 571
If the Brake System Indicator (Red) Comes
On or Blinks ..................................... 572
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .....573
If the Electric Power Steering (EPS) System Indicator Comes On......................... 574
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 575
If the Transmission System Indicator Blinks along with the Warning Message ...... 576
Fuses Fuse Locations ................................. 577
Inspecting and Changing Fuses ........ 582
Emergency Towing ........................... 583
If You Cannot Unlock the Fuel Fill Door.. 584If You Cannot Open the Trunk ........ 585
22 INSIGHT HMIN-31TXM6300.book 539 ページ ２０２１年２月２４日　水曜日　午後３時４５分

561
Handling the Unexpected

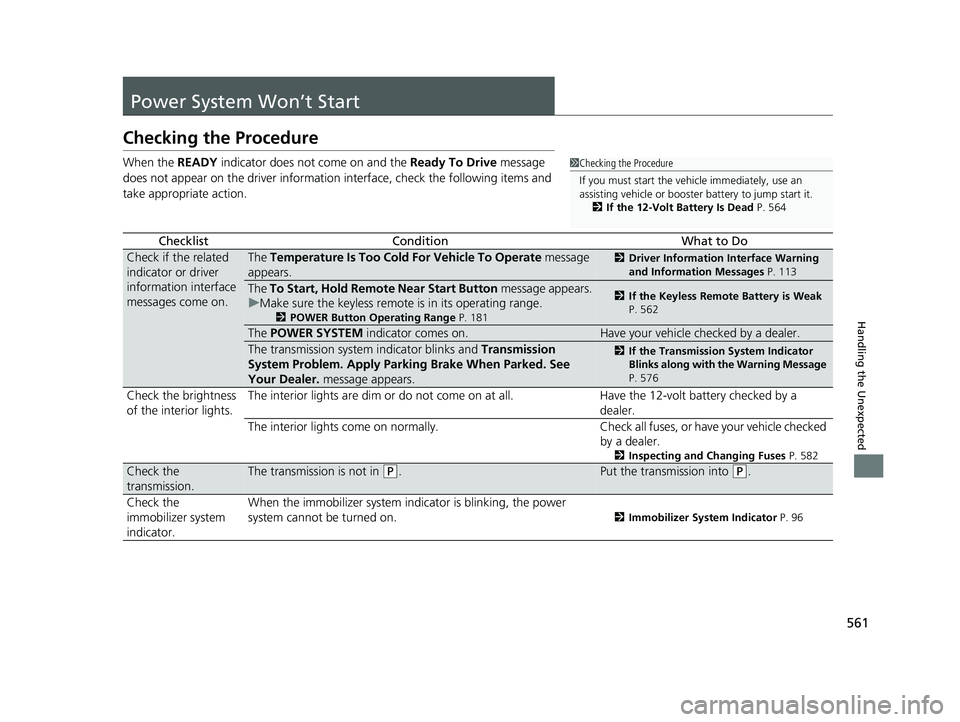

Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready To Drive message
does not appear on the driver informatio n interface, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Temperature Is Too Cold For Vehicle To Operate message
appears.2 Driver Information Interface Warning
and Information Messages P. 113
The To Start, Hold Remote Near Start Button message appears.
u Make sure the keyless remote is in its operating range.
2 POWER Button Operating Range P. 181
2If the Keyless Remote Battery is Weak
P. 562
The POWER SYSTEM indicator comes on.Have your vehicle checked by a dealer.
The transmission system indicator blinks and Transmission
System Problem. Apply Parking Brake When Parked. See
Your Dealer. message appears.2If the Transmission System Indicator
Blinks along with the Warning Message
P. 576
Check the brightness
of the interior lights. The interior lights are dim or do not come on at all. Have the 12-volt battery checked by a
dealer.
The interior lights come on normally. Check all fuses, or have your vehicle checked
by a dealer.
2 Inspecting and Changing Fuses P. 582
Check the
transmission.The transmission is not in (P.Put the transmission into (P.
Check the
immobilizer system
indicator. When the immobilizer system indicator is blinking, the power
system cannot be turned on.
2
Immobilizer System Indicator P. 96
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 If the 12-Volt Battery Is Dead P. 564
22 INSIGHT HMIN-31TXM6300.book 561 ページ ２０２１年２月２４日　水曜日　午後３時４５分

562
uuPower System Won’t Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected

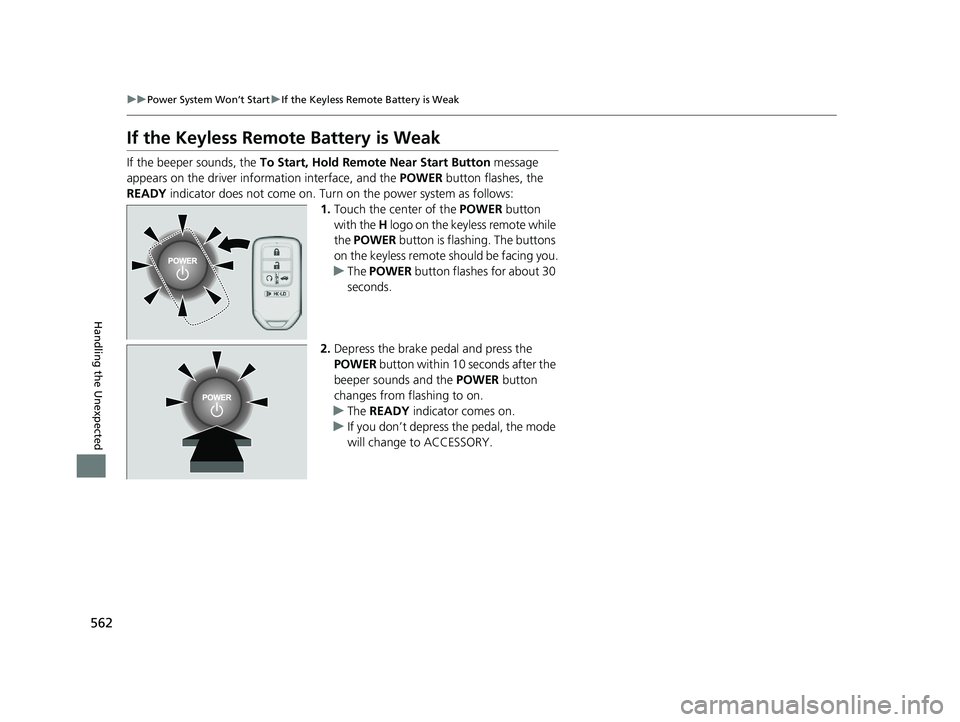

If the Keyless Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver info rmation interface, and the POWER button flashes, the
READY indicator does not come on. Turn on the power system as follows:
1.Touch the center of the POWER button
with the H logo on the keyle ss remote while
the POWER button is flashing. The buttons
on the keyless remote should be facing you.
u The POWER button flashes for about 30
seconds.
2. Depress the brake pedal and press the
POWER button within 10 seconds after the
beeper sounds and the POWER button
changes from flashing to on.
u The READY indicator comes on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
22 INSIGHT HMIN-31TXM6300.book 562 ページ ２０２１年２月２４日　水曜日　午後３時４５分

603
Index
Automatic Brake Hold System ........... 85, 473
Blind spot information System................. 412
Deceleration Paddle Selector ..................... 89
ECON Mode ..................................... 97, 401
Electric Power Steering (EPS)
System ............................................ 92, 574
EV............................................................. 87
EV Mode................................................... 87
Fog Light .................................................. 95
High Beam ................................................ 95
Immobilizer System ................................... 96
Lane Keeping Assist System (LKAS) (Amber) .................................................. 99
Lane Keeping Assist System (LKAS)
(Green) ........................................... 99, 448
Lights On .................................................. 95
Low Fuel ................................................... 91
Low Tire Pressure/TPMS ............ 94, 406, 409
Malfunction Indicator Lamp .............. 88, 571
Parking Brake and Brake System (Amber) .......................................... 84, 573
Parking Brake and Brake System
(Red) ....................................... 83, 572, 573
POWER SYSTEM ....................................... 86
READY ...................................................... 87
Safety Support (Amber)........................... 100
Safety Support (Green/Gray) ................... 103
Seat Belt Reminder.............................. 45, 91
Security System Alarm............................... 96
Shift Position............................................. 89
SPORT Mode..................................... 97, 397 Supplemental Restraint System ............ 62, 92
System Message ........................................ 97
Transmission System .................................. 90
Turn Signal and Haza
rd Warning ............... 95
Vehicle Stability Assist
TM (VSA ®) OFF ... 93, 404
Vehicle Stability AssistTM (VSA ®)
System............................................. 93, 403
Information ............................................... 587
Instant Fuel Economy ............................... 137
Instrument Panel ........................................ 81
Brightness Control ................................... 195
Interior Lights ........................................... 207
Interior Rearview Mirror .......................... 197
Inverter Coolant ....................................... 508
iPad ............................................................ 305
iPhone ....................................................... 305
iPod ................................................... 273, 305
J
Jack (Wheel Nut Wrench) ........................ 544
Jump Starting ........................................... 564
K
Key Number Tag ....................................... 158
Keyless Access System ............................... 160
Keyless Lockout Prevention ..................... 166
Keys ........................................................... 157
Lockout Prevention .................................. 166
Number Tag ............................................ 158 Rear Door Won’t Open............................ 169
Remote Transmitter ................................. 164
Types and Functions ................................ 157
L
Lane Keeping Assist System (LKAS)
......... 446
Language (HFL) ........................................ 351
LATCH (Child Seats) .................................... 71
Lights ................................................. 185, 512
Automatic ............................................... 186
Bulb Replacement ................................... 512
Daytime Running Lights........................... 188
Fog Lights ............................................... 188
High Beam Indicator .................................. 95
Interior .................................................... 207
Light Switches ......................................... 185
Lights On Indicator .................................... 95
Turn Signals ............................................ 184
Load Limits ................................................ 379
Locking/Unlocking .................................... 157
Auto Door Locking/Unlocking.................. 170
Childproof Door Locks............................. 169
From Inside ............................................. 167
From Outside .......................................... 160
Keys ........................................................ 157
Using a Key ............................................. 165
Lockout Prevention System ..................... 166
Low Battery Charge ................................. 570
Low Fuel Indicator ...................................... 91
Low Keyless Remote Signal Strength ...... 159
22 INSIGHT HMIN-31TXM6300.book 603 ページ ２０２１年２月２４日　水曜日　午後３時４５分

605
Index
Radio Data System (RDS)......................... 260
Range ........................................................ 137
RDS (Radio Data System) ......................... 260
Readiness Codes (Emissions Testing) ...... 593
Rear Defogger/Heated Door Mirror
Button ..................................................... 194
Rear Seat (Folding Down) ....................... 202
Rearview Mirror ....................................... 197
Refueling .................................................. 485
Fuel Gauge ............................................. 129
Gasoline ......................................... 485, 588
Low Fuel Indicator..................................... 91
Regulations .............................. 409, 522, 591
Remote Engine Start with Vehicle
Feedback ................................................. 384
Remote Transmitter ................................. 164
Replacement
Battery .................................................... 530
Bulbs ...................................................... 512
Fuses .............................................. 577, 581
Tires........................................................ 525
Wiper Blade Rubber ................................ 516
Reporting Safety Defects ......................... 592
Resetting a Trip Meter ..................... 135, 137
Road Departure Mitigation (RDM) ......... 454
On and Off ............................................. 456
S
Safe Driving ................................................ 39
Safety Check ............................................... 43 Safety Labels
............................................... 80
Safety Message ............................................. 3
Safety Support .......................................... 149
Seat Belts ..................................................... 44
Adjusting the Shoulder Anchor .................. 48
Automatic Seat Belt Tensioners .................. 46
Checking ................................................... 50
Fastening ................................................... 47
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 73
Pregnant Women ...................................... 49
Reminder ................................................... 45
Warning Indicator ................................ 45, 91
Seat Heaters .............................................. 215
Seats .......................................................... 199
Adjusting ................................................. 199
Front Seats .............................................. 199
Rear Seats ............................................... 202
Seat Heaters ............................................ 215
Security System ......................................... 174
Immobilizer System Indicator ..................... 96
Security System Alarm Indicator ................. 96
Selecting a Child Seat ................................. 70
Shift Buttons ....................................... 28, 391
Operation ................................................ 393
Shift Position Indicator ............................... 89
Shifting (Transmission) ............................. 391
Shoulder Anchor ......................................... 48
Side Airbags ................................................ 59
Side Curtain Airbags ................................... 61
Siri ® Eyes Free ........................................... 293 SiriusXM
® Radio ........................................ 262
Snow Tires ................................................. 527
Spare Tire .......................................... 541, 589
Spark Plugs ............................................... 588
Specifications ............................................ 588
Specified Fuel ................................... 485, 588
Speedometer ............................................ 129
SPORT Mode ............................................. 397
Indicator.................................................... 97
SRS Airbags (Airbags) ................................. 54
Steering Wheel
Adjusting ................................................ 196
Stopping ................................................... 478
Summer Tires ............................................ 527
Supplemental Restraint System (SRS) ........ 54
Switches (Around the Steering Wheel) ............................................. 6, 7, 181
System Message Indicator .......................... 97
System Updates ........................................ 246
T
Temperature
Outside Temperature Display ................... 135
Temperature Sensor ......................... 135, 222
Temporary Tire Repair Kit ....................... 548
Time (Adjusting) ....................................... 156
Tire Pressure Monitoring System (TPMS) ..................................................... 406
Indicator............................................ 94, 575
22 INSIGHT HMIN-31TXM6300.book 605 ページ ２０２１年２月２４日　水曜日　午後３時４５分
