uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
450
Driving
■The system operation is suspended if
you:
• The wipers are set to HI.
u Turning the wipers off resumes the
LKAS.
• Set the wiper switch to AUTO and the
wipers operate at high speed.
u The LKAS resumes when the wipers stop
or operate at low speed.
• Decrease the vehicle speed to about 40 mph
(64 km/h) or less.
u Increasing the vehicle speed to about
45 mph (72 km/h) or more resumes the
LKAS.
• Depress the brake pedal.
u The LKAS resumes and starts detecting
the lane lines again once you release the
brake pedal.
■The LKAS may be automa tically suspended when:
• The system fails to detect lane lines.
• The steering wheel is quickly turned.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 90 mph (145 km/h).
Once these conditions no longer exis t, the LKAS automatically resumes.
1The system operation is suspended if you:
You can change the setting for the LKAS.
LKAS suspended beep on and off can be selected.
2 Customized Features P. 326
When the LKAS is suspended,
the lane lines on the driver
information interface change to
contour lines, and the beeper
sounds (if activated).
Models with automatic intermittent wipers
All models
22 INSIGHT HMIN-31TXM6300.book 450 ページ ２０２１年２月２４日　水曜日　午後３時４５分

Continued469
uuBraking uBrake System
Driving

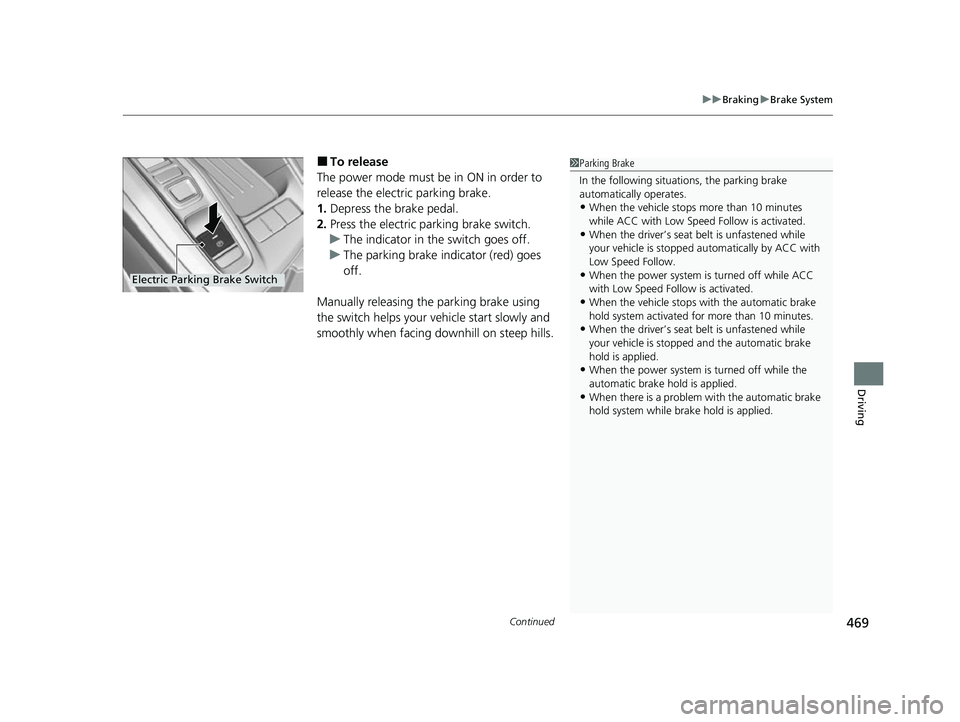

■To release
The power mode must be in ON in order to
release the electric parking brake.
1. Depress the brake pedal.
2. Press the electric parking brake switch.
u The indicator in the switch goes off.
u The parking brake indicator (red) goes
off.
Manually releasing the parking brake using
the switch helps your vehicle start slowly and
smoothly when facing downhill on steep hills.1 Parking Brake
In the following situations, the parking brake
automatically operates.
•When the vehicle stops more than 10 minutes
while ACC with Low Speed Follow is activated.
•When the driver’s seat belt is unfastened while
your vehicle is stopped au tomatically by ACC with
Low Speed Follow.
•When the power system is turned off while ACC
with Low Speed Follow is activated.
•When the vehicle stops with the automatic brake
hold system activated for more than 10 minutes.
•When the driver’s seat belt is unfastened while
your vehicle is stopped and the automatic brake
hold is applied.
•When the power system is turned off while the
automatic brake hold is applied.
•When there is a problem with the automatic brake
hold system while br ake hold is applied.
Electric Parking Brake Switch
22 INSIGHT HMIN-31TXM6300.book 469 ページ ２０２１年２月２４日　水曜日　午後３時４５分

Continued473
uuBraking uBrake System
Driving

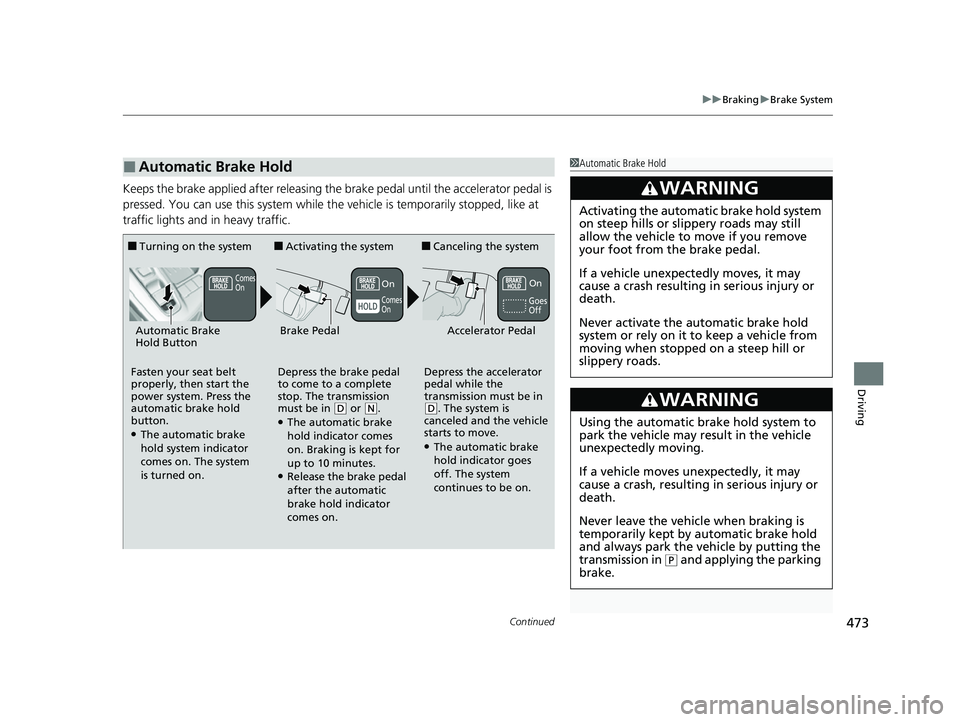

Keeps the brake applied after releasing the brake pedal until the accelerator pedal is
pressed. You can use this system while th e vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.
■Automatic Brake Hold1 Automatic Brake Hold
3WARNING
Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3WARNING
Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in
( P and applying the parking
brake.
■Turning on the system
Fasten your seat belt
properly, then start the
power system. Press the
automatic brake hold
button.
●The automatic brake
hold system indicator
comes on. The system
is turned on.
■Activating the system
Depress the brake pedal
to come to a complete
stop. The transmission
must be in
( D or (N.●The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes.
●Release the brake pedal
after the automatic
brake hold indicator
comes on.
■Canceling the system
Depress the accelerator
pedal while the
transmission must be in
( D. The system is
canceled and the vehicle
starts to move.
●The automatic brake
hold indicator goes
off. The system
continues to be on.
Accelerator PedalBrake PedalAutomatic Brake
Hold Button
Goes
Off
On
OnComes
On
Comes
On
22 INSIGHT HMIN-31TXM6300.book 473 ページ ２０２１年２月２４日　水曜日　午後３時４５分

486
uuRefueling uHow to Refuel
Driving

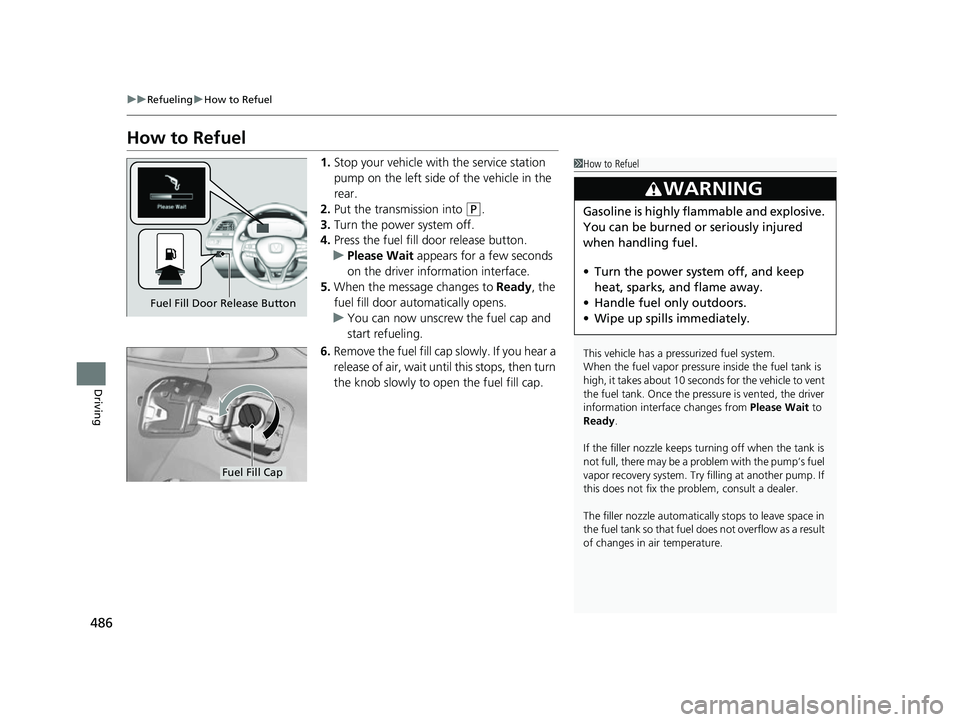

How to Refuel
1. Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Put the transmission into
(P.
3. Turn the power system off.
4. Press the fuel fill door release button.
u Please Wait appears for a few seconds
on the driver information interface.
5. When the message changes to Ready, the
fuel fill door automatically opens.
u You can now unscrew the fuel cap and
start refueling.
6. Remove the fuel fill cap slowly. If you hear a
release of air, wait until this stops, then turn
the knob slowly to open the fuel fill cap.
1How to Refuel
This vehicle has a pressurized fuel system.
When the fuel vapor pressure inside the fuel tank is
high, it takes about 10 seconds for the vehicle to vent
the fuel tank. Once the pressure is vented, the driver
information interface changes from Please Wait to
Ready.
If the filler nozzle keeps tu rning off when the tank is
not full, there may be a pr oblem with the pump’s fuel
vapor recovery system. Try fi lling at another pump. If
this does not fix the problem, consult a dealer.
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel do es not overflow as a result
of changes in air temperature.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power syste m off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Fuel Fill Door Release Button
Fuel Fill Cap
22 INSIGHT HMIN-31TXM6300.book 486 ページ ２０２１年２月２４日　水曜日　午後３時４５分

487
uuRefueling uHow to Refuel
Driving

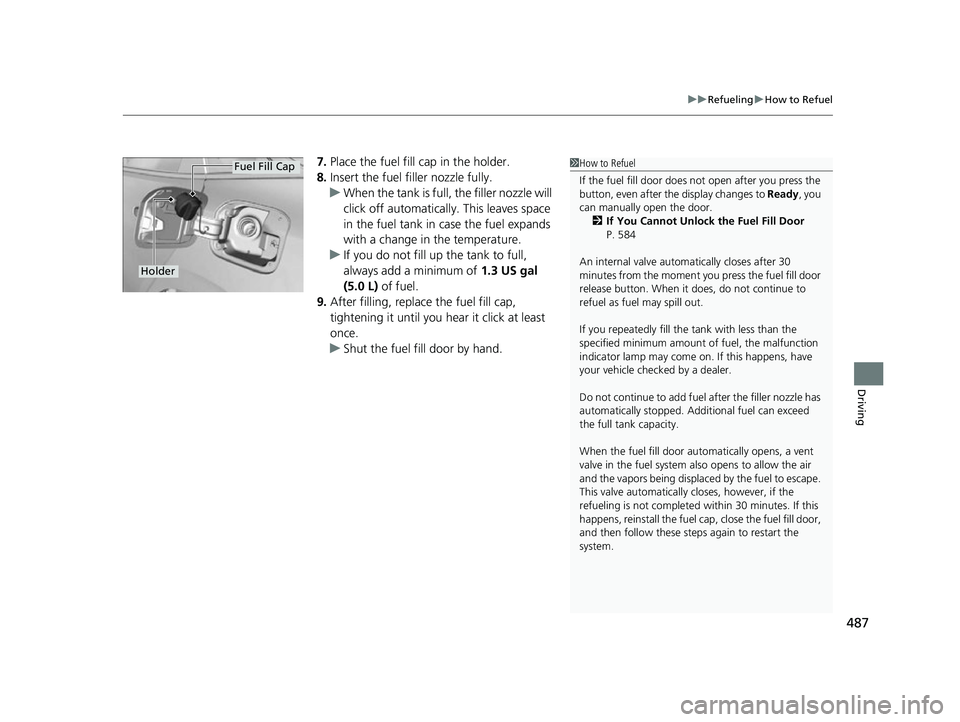

7. Place the fuel fill cap in the holder.
8. Insert the fuel filler nozzle fully.
u When the tank is full, the filler nozzle will
click off automatically. This leaves space
in the fuel tank in case the fuel expands
with a change in the temperature.
u If you do not fill up the tank to full,
always add a minimum of 1.3 US gal
(5.0 L) of fuel.
9. After filling, replace the fuel fill cap,
tightening it until you hear it click at least
once.
u Shut the fuel fill door by hand.1How to Refuel
If the fuel fill door does not open after you press the
button, even after the display changes to Ready, you
can manually open the door. 2 If You Cannot Unlock the Fuel Fill Door
P. 584
An internal valve automatically closes after 30
minutes from the moment y ou press the fuel fill door
release button. When it does, do not continue to
refuel as fuel may spill out.
If you repeatedly fill the tank with less than the
specified minimum amount of fuel, the malfunction
indicator lamp may come on. If this happens, have
your vehicle checked by a dealer.
Do not continue to add fuel after the filler nozzle has
automatically stopped. Addi tional fuel can exceed
the full tank capacity.
When the fuel fill door auto matically opens, a vent
valve in the fuel system also opens to allow the air
and the vapors being displace d by the fuel to escape.
This valve automatically closes, however, if the
refueling is not completed within 30 minutes. If this
happens, reinstall the fuel ca p, close the fuel fill door,
and then follow these steps again to restart the
system.
Holder
Fuel Fill Cap
22 INSIGHT HMIN-31TXM6300.book 487 ページ ２０２１年２月２４日　水曜日　午後３時４５分

505
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance

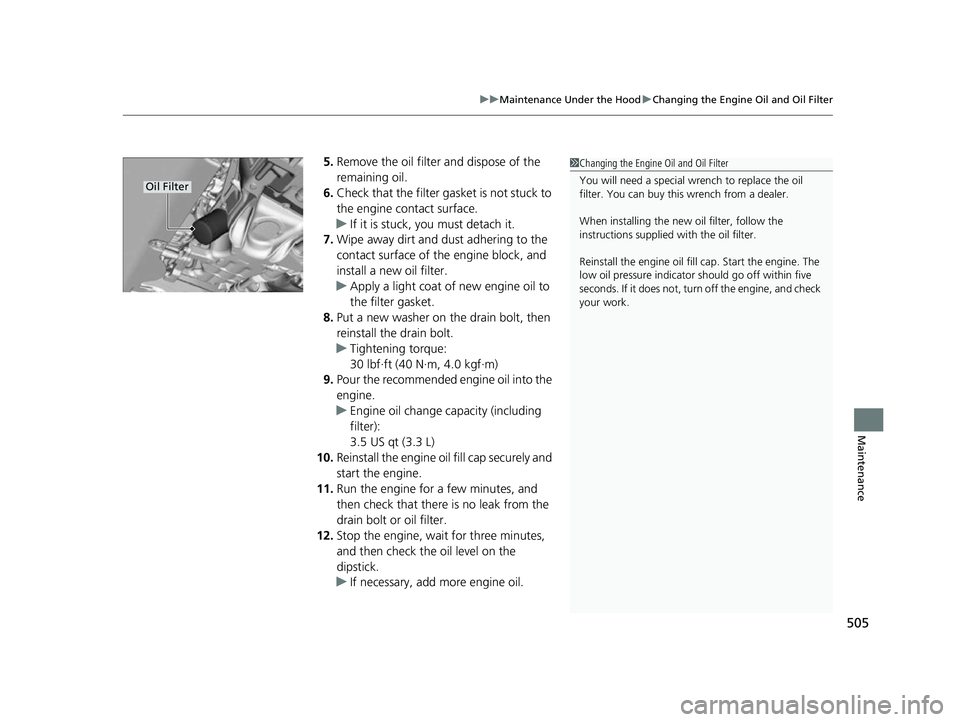

5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter gasket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
3.5 US qt (3.3 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter
22 INSIGHT HMIN-31TXM6300.book 505 ページ ２０２１年２月２４日　水曜日　午後３時４５分

563
uuPower System Won’t StartuEmergency Power System Off
Handling the Unexpected

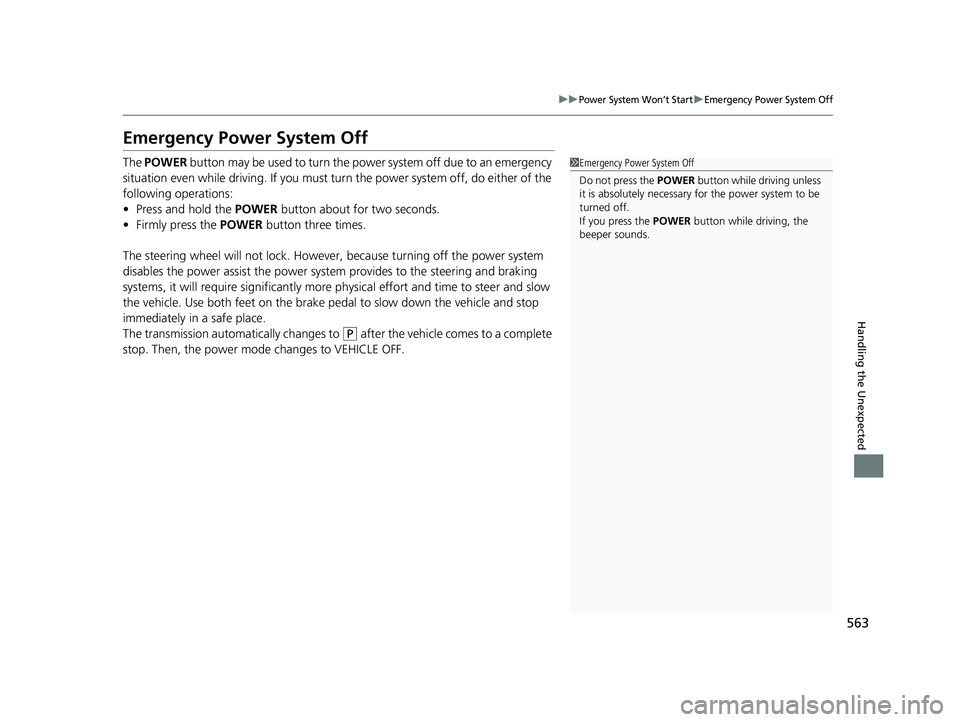

Emergency Power System Off
The POWER button may be used to turn the power system off due to an emergency
situation even while driving. If you must tu rn the power system off, do either of the
following operations:
• Press and hold the POWER button about for two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The transmission automa tically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the POWER button while driving unless
it is absolutely necessary for the power system to be
turned off.
If you press the POWER button while driving, the
beeper sounds.
22 INSIGHT HMIN-31TXM6300.book 563 ページ ２０２１年２月２４日　水曜日　午後３時４５分

571
uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected

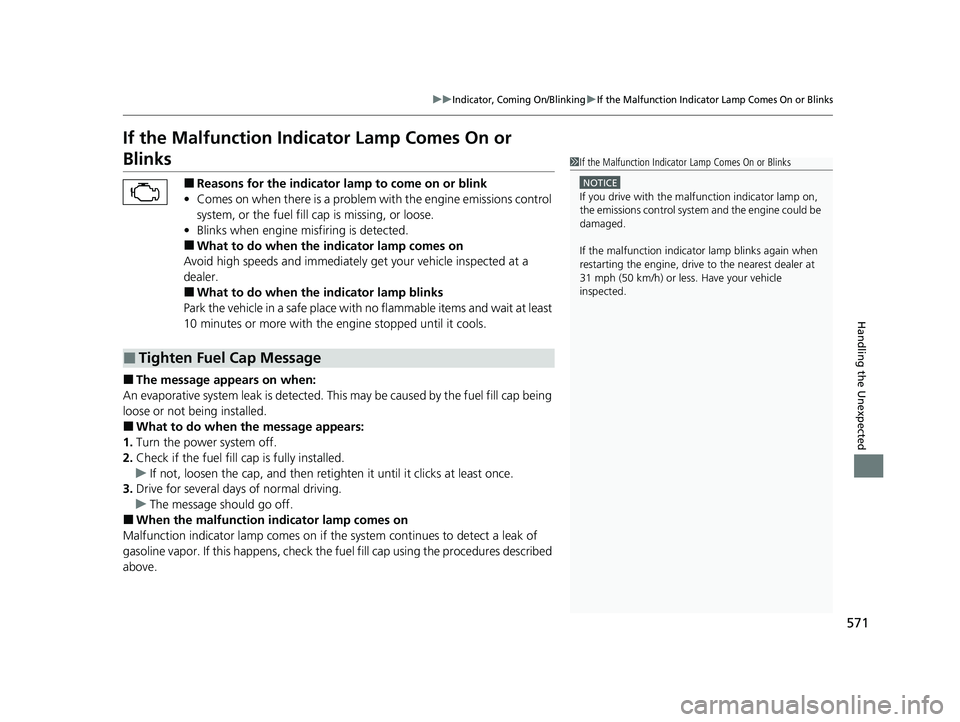

If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system, or the fuel fill cap is missing, or loose.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
■The message appears on when:
An evaporative system leak is detected. This may be caused by the fuel fill cap being
loose or not being installed.
■What to do when the message appears:
1. Turn the power system off.
2. Check if the fuel fill cap is fully installed.
u If not, loosen the cap, and then retight en it until it clicks at least once.
3. Drive for several days of normal driving.
u The message should go off.
■When the malfunction indicator lamp comes on
Malfunction indicator lamp comes on if th e system continues to detect a leak of
gasoline vapor. If this happens, check the fu el fill cap using the procedures described
above.
■Tighten Fuel Cap Message
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
22 INSIGHT HMIN-31TXM6300.book 571 ページ ２０２１年２月２４日　水曜日　午後３時４５分

605
Index
Radio Data System (RDS)......................... 260
Range ........................................................ 137
RDS (Radio Data System) ......................... 260
Readiness Codes (Emissions Testing) ...... 593
Rear Defogger/Heated Door Mirror
Button ..................................................... 194
Rear Seat (Folding Down) ....................... 202
Rearview Mirror ....................................... 197
Refueling .................................................. 485
Fuel Gauge ............................................. 129
Gasoline ......................................... 485, 588
Low Fuel Indicator..................................... 91
Regulations .............................. 409, 522, 591
Remote Engine Start with Vehicle
Feedback ................................................. 384
Remote Transmitter ................................. 164
Replacement
Battery .................................................... 530
Bulbs ...................................................... 512
Fuses .............................................. 577, 581
Tires........................................................ 525
Wiper Blade Rubber ................................ 516
Reporting Safety Defects ......................... 592
Resetting a Trip Meter ..................... 135, 137
Road Departure Mitigation (RDM) ......... 454
On and Off ............................................. 456
S
Safe Driving ................................................ 39
Safety Check ............................................... 43 Safety Labels
............................................... 80
Safety Message ............................................. 3
Safety Support .......................................... 149
Seat Belts ..................................................... 44
Adjusting the Shoulder Anchor .................. 48
Automatic Seat Belt Tensioners .................. 46
Checking ................................................... 50
Fastening ................................................... 47
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 73
Pregnant Women ...................................... 49
Reminder ................................................... 45
Warning Indicator ................................ 45, 91
Seat Heaters .............................................. 215
Seats .......................................................... 199
Adjusting ................................................. 199
Front Seats .............................................. 199
Rear Seats ............................................... 202
Seat Heaters ............................................ 215
Security System ......................................... 174
Immobilizer System Indicator ..................... 96
Security System Alarm Indicator ................. 96
Selecting a Child Seat ................................. 70
Shift Buttons ....................................... 28, 391
Operation ................................................ 393
Shift Position Indicator ............................... 89
Shifting (Transmission) ............................. 391
Shoulder Anchor ......................................... 48
Side Airbags ................................................ 59
Side Curtain Airbags ................................... 61
Siri ® Eyes Free ........................................... 293 SiriusXM
® Radio ........................................ 262
Snow Tires ................................................. 527
Spare Tire .......................................... 541, 589
Spark Plugs ............................................... 588
Specifications ............................................ 588
Specified Fuel ................................... 485, 588
Speedometer ............................................ 129
SPORT Mode ............................................. 397
Indicator.................................................... 97
SRS Airbags (Airbags) ................................. 54
Steering Wheel
Adjusting ................................................ 196
Stopping ................................................... 478
Summer Tires ............................................ 527
Supplemental Restraint System (SRS) ........ 54
Switches (Around the Steering Wheel) ............................................. 6, 7, 181
System Message Indicator .......................... 97
System Updates ........................................ 246
T
Temperature
Outside Temperature Display ................... 135
Temperature Sensor ......................... 135, 222
Temporary Tire Repair Kit ....................... 548
Time (Adjusting) ....................................... 156
Tire Pressure Monitoring System (TPMS) ..................................................... 406
Indicator............................................ 94, 575
22 INSIGHT HMIN-31TXM6300.book 605 ページ ２０２１年２月２４日　水曜日　午後３時４５分
