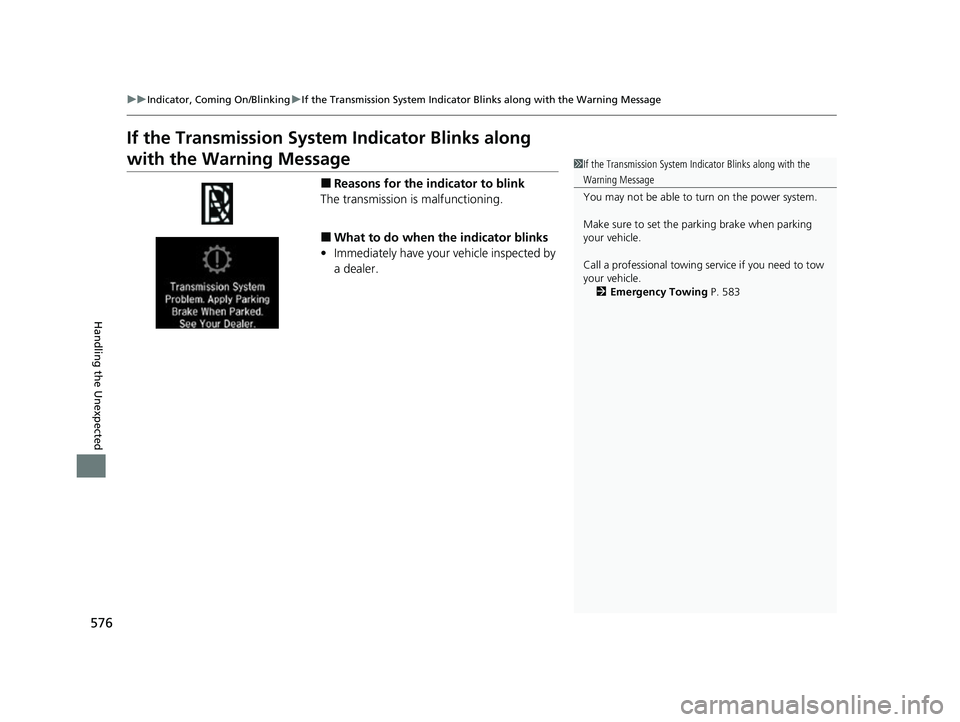

System HONDA INSIGHT 2022 Owners Manual

576
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
a dealer.
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 583
22 INSIGHT HMIN-31TXM6300.book 576 ページ ２０２１年２月２４日　水曜日　午後３時４５分

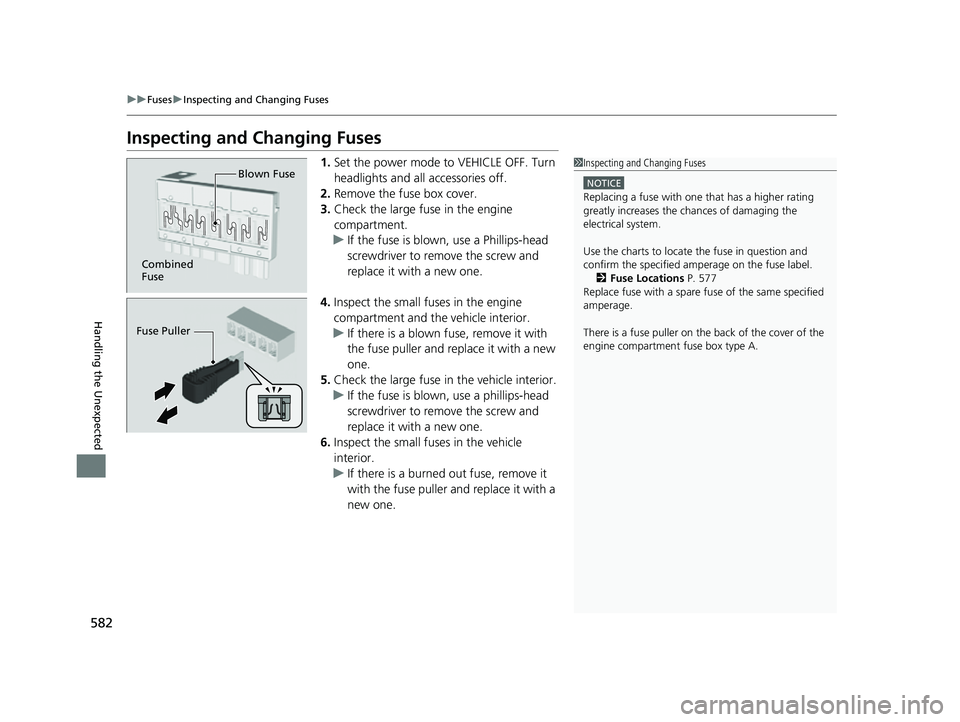

582
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
6. Inspect the small fuses in the vehicle
interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse labelM 2 Fuse Locations P. 577
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller on the back of the cover of the
engine compartment fuse box type A.
Combined
Fuse Blown Fuse
Fuse Puller
22 INSIGHT HMIN-31TXM6300.book 582 ページ ２０２１年２月２４日　水曜日　午後３時４５分

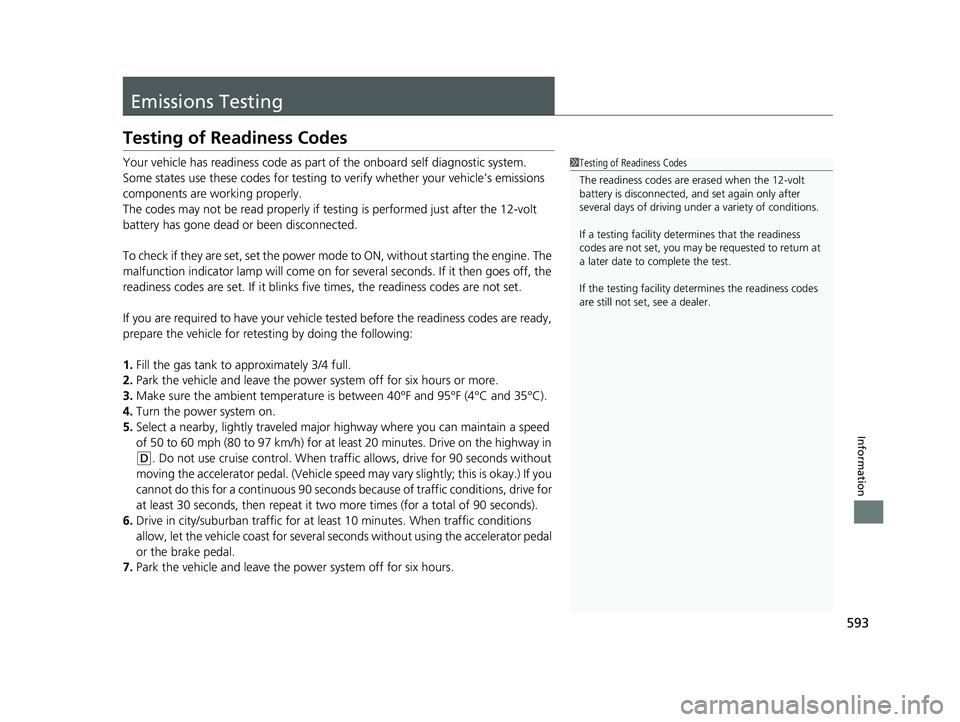

593
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Turn the power system on.
5. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When traffi c allows, drive for 90 seconds without
moving the accelerator pedal. (V ehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
6. Drive in city/suburban traffic for at leas t 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
7. Park the vehicle and leave the power system off for six hours.
1Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
22 INSIGHT HMIN-31TXM6300.book 593 ページ ２０２１年２月２４日　水曜日　午後３時４５分

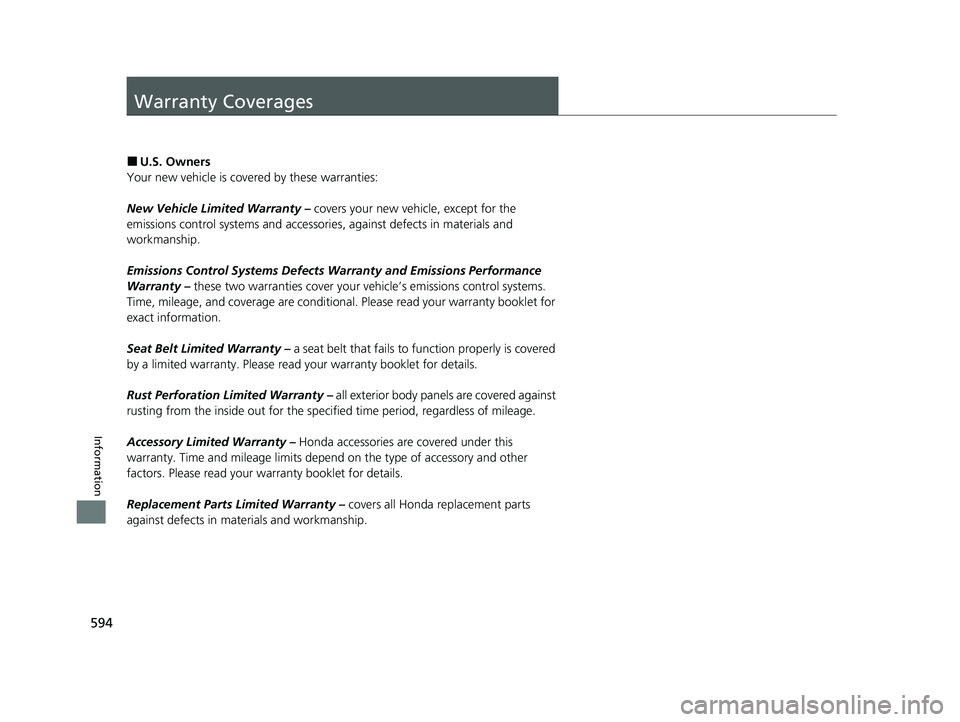

594
Information
Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessori es, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditiona l. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.
22 INSIGHT HMIN-31TXM6300.book 594 ページ ２０２１年２月２４日　水曜日　午後３時４５分

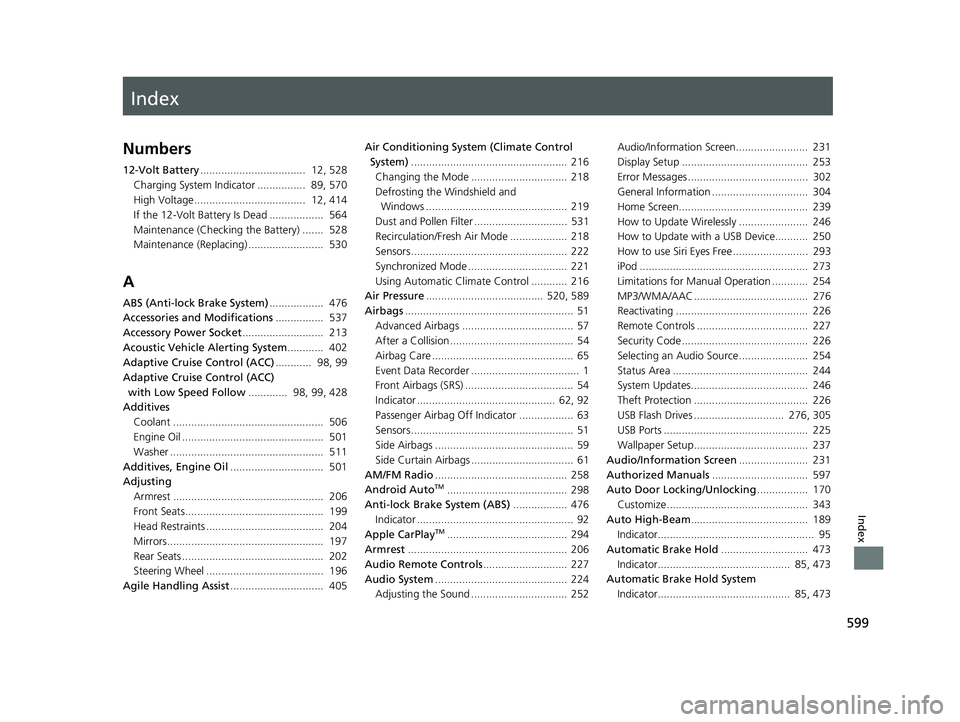

Index
599
Index
Index
Numbers
12-Volt Battery................................... 12, 528
Charging System Indicator ................ 89, 570
High Voltage..................................... 12, 414
If the 12-Volt Battery Is Dead .................. 564
Maintenance (Checking the Battery) ....... 528
Maintenance (Replacing) ......................... 530
A
ABS (Anti-lock Brake System) .................. 476
Accessories and Modifications ................ 537
Accessory Power Socket ........................... 213
Acoustic Vehicle Alerting System ............ 402
Adaptive Cruise Control (ACC) ............ 98, 99
Adaptive Cruise Control (ACC)
with Low Speed Follow ............. 98, 99, 428
Additives
Coolant .................................................. 506
Engine Oil ............................................... 501
Washer ................................................... 511
Additives, Engine Oil ............................... 501
Adjusting Armrest .................................................. 206
Front Seats.............................................. 199
Head Restraints ....................................... 204
Mirrors.................................................... 197
Rear Seats ............................................... 202
Steering Wheel ....................................... 196
Agile Handling Assist ............................... 405 Air Conditioning System (Climate Control
System) .................................................... 216
Changing the Mode ................................ 218
Defrosting the Windshield and Windows ............................................... 219
Dust and Pollen Filter ............................... 531
Recirculation/Fresh Air Mode ................... 218
Sensors .................................................... 222
Synchronized Mode ................................. 221
Using Automatic Climate Control ............ 216
Air Pressure ....................................... 520, 589
Airbags ........................................................ 51
Advanced Airbags ..................................... 57
After a Collision ......................................... 54
Airbag Care ............................................... 65
Event Data Recorder .................................... 1
Front Airbags (SRS) .................................... 54
Indicator .............................................. 62, 92
Passenger Airbag Off Indicator .................. 63
Sensors ...................................................... 51
Side Airbags .............................................. 59
Side Curtain Airbags .................................. 61
AM/FM Radio ............................................ 258
Android Auto
TM........................................ 298
Anti-lock Brake System (ABS) .................. 476
Indicator .................................................... 92
Apple CarPlay
TM........................................ 294
Armrest ..................................................... 206
Audio Remote Controls ............................ 227
Audio System ............................................ 224
Adjusting the Sound ................................ 252 Audio/Information Screen........................ 231
Display Setup .......................................... 253
Error Messages ........................................ 302
General Information ................................ 304
Home Screen........................................... 239
How to Update Wirelessly ....................... 246
How to Update with a USB Device........... 250
How to use Siri Eyes Free ......................... 293
iPod ........................................................ 273
Limitations for Manual Operation ............ 254
MP3/WMA/AAC ...................................... 276
Reactivating ............................................ 226
Remote Controls ..................................... 227
Security Code .......................................... 226
Selecting an Audio Source ....................... 254
Status Area ............................................. 244
System Updates....................................... 246
Theft Protection ...................................... 226
USB Flash Drives .............................. 276, 305
USB Ports ................................................ 225
Wallpaper Setup...................................... 237
Audio/Information Screen ....................... 231
Authorized Manuals ................................ 597
Auto Door Locking/Unlocking ................. 170
Customize ............................................... 343
Auto High-Beam ....................................... 189
Indicator.................................................... 95
Automatic Brake Hold ............................. 473
Indicator............................................ 85, 473
Automatic Brake Hold System Indicator............................................ 85, 473
22 INSIGHT HMIN-31TXM6300.book 599 ページ ２０２１年２月２４日　水曜日　午後３時４５分

600
Index
Automatic Intermittent Wipers............... 193
Automatic Lighting .................................. 186
Average Fuel Economy ............................. 137
Average Fuel Economy Records ............... 150
Average Speed .......................................... 139
B
Belts (Seat).................................................. 44
Beverage Holders ...................................... 211
Blind spot information System ................ 411
Bluetooth ® Audio ..................................... 279
Bluetooth ® HandsFreeLink ®................... 349
Booster Seats (For Children) ....................... 78
Brake System ............................................. 468
Anti-lock Brake System (ABS) ................... 476
Automatic Brake Hold.............................. 473
Brake Assist System ................................. 477
Fluid ........................................................ 510
Foot Brake ............................................... 472
Indicator .............................. 83, 84, 572, 573
Parking Brake .......................................... 468
Brightness Control (Instrument Panel) .... 195
Bulb Replacement ..................................... 512
Back-Up Lights......................................... 514
Brake and Rear Side Marker Lights ........... 513
Fog Lights ................................................ 512
Front Turn Signal, Parking/Daytime Running and Front Side Marker Lights.... 512
Headlights ............................................... 512
High-Mount Brake Light .......................... 515 Rear License Plate Light ........................... 515
Rear Turn Signal Lights ............................ 513
Side Turn Signal/Emergency Indicator
Lights .................................................... 512
Taillights.................................................. 514
Bulb Specifications ................................... 588C
Carbon Monoxide Gas ............................... 79
Carrying Cargo ................................. 377, 379
Certification Label .................................... 590
Changing Bulbs ........................................ 512
Charging System Indicator ................. 89, 570
Child Safety ................................................. 66
Childproof Door Locks............................. 169
Emergency Trunk Opener ........................ 173
Child Seat .................................................... 66
Booster Seats ............................................ 78
Child Seat for Infants................................. 68
Child Seat for Small Children ..................... 69
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 73
Larger Children ......................................... 77
Rear-facing Child Seat ............................... 68
Selecting a Child Seat ................................ 70
Using a Tether ........................................... 75
Childproof Door Locks ............................. 169
Cleaning the Exterior ............................... 534
Cleaning the Interior ................................ 532 Climate Control System
........................... 216
Changing the Mode................................ 216
Defrosting the Windshield and Windows .............................................. 219
Dust and Pollen Filter .............................. 531
Recirculation and Fresh Air Mode ............ 218
Sensors ................................................... 222
Synchronized Mode ................................ 221
Using Automatic Climate Control............ 216
Clock ......................................................... 156
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 418
Coat Hooks ............................................... 214
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 418
Compact Spare Tire .......................... 541, 589
Console Compartment ............................. 210
Controls .................................................... 155
Coolant (Engine) ...................................... 506
Adding to the Radiator ........................... 507
Adding to the Reserve Tank .................... 506
Overheating ............................................ 567
Cooling System ......................................... 506
Adding to the Radiator ........................... 507
Adding to the Reserve Tank .................... 506
Overheating ............................................ 567
Creeping ................................................... 390
Cross Traffic Monitor ............................... 480
Cup Holders .............................................. 211
Customer Service Information ................ 598
Customized Features ............................... 326
22 INSIGHT HMIN-31TXM6300.book 600 ページ ２０２１年２月２４日　水曜日　午後３時４５分

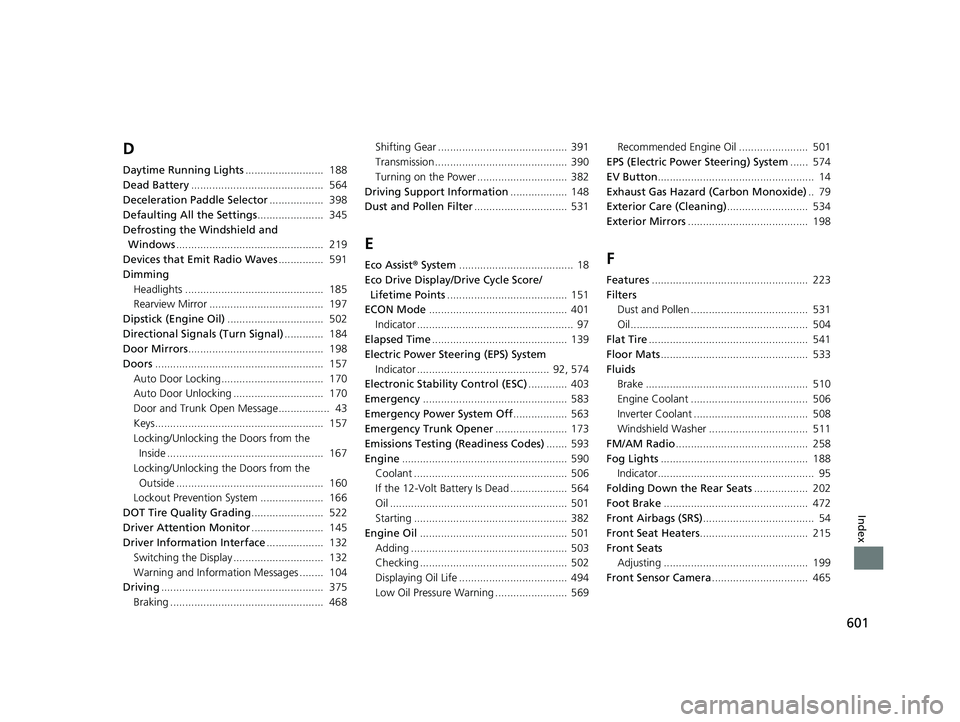

601
Index
D
Daytime Running Lights.......................... 188
Dead Battery ............................................ 564
Deceleration Paddle Selector .................. 398
Defaulting All the Settings ...................... 345
Defrosting the Windshield and Windows ................................................. 219
Devices that Emit Radio Waves ............... 591
Dimming Headlights .............................................. 185
Rearview Mirror ...................................... 197
Dipstick (Engine Oil) ................................ 502
Directional Signals (Turn Signal) ............. 184
Door Mirrors ............................................. 198
Doors ........................................................ 157
Auto Door Locking.................................. 170
Auto Door Unlocking .............................. 170
Door and Trunk Open Message................. 43
Keys........................................................ 157
Locking/Unlocking the Doors from the Inside .................................................... 167
Locking/Unlocking the Doors from the
Outside ................................................. 160
Lockout Prevention System ..................... 166
DOT Tire Quality Grading ........................ 522
Driver Attention Monitor ........................ 145
Driver Information Interface ................... 132
Switching the Display .............................. 132
Warning and Information Messages ........ 104
Driving ...................................................... 375
Braking ................................................... 468 Shifting Gear ........................................... 391
Transmission ............................................ 390
Turning on the Power .............................. 382
Driving Support Information ................... 148
Dust and Pollen Filter ............................... 531
E
Eco Assist® System ...................................... 18
Eco Drive Display/Drive Cycle Score/
Lifetime Points ........................................ 151
ECON Mode .............................................. 401
Indicator .................................................... 97
Elapsed Time ............................................. 139
Electric Power Steering (EPS) System Indicator ............................................ 92, 574
Electronic Stability Control (ESC) ............. 403
Emergency ................................................ 583
Emergency Power System Off .................. 563
Emergency Trunk Opener ........................ 173
Emissions Testing (Readiness Codes) ....... 593
Engine ....................................................... 590
Coolant ................................................... 506
If the 12-Volt Battery Is Dead ................... 564
Oil ........................................................... 501
Starting ................................................... 382
Engine Oil ................................................. 501
Adding .................................................... 503
Checking ................................................. 502
Displaying Oil Life .................................... 494
Low Oil Pressure Warning ........................ 569 Recommended Engine Oil ....................... 501
EPS (Electric Power Steering) System ...... 574
EV Button .................................................... 14
Exhaust Gas Hazard (Carbon Monoxide) .. 79
Exterior Care (Cleaning) ........................... 534
Exterior Mirrors ........................................ 198F
Features.................................................... 223
Filters Dust and Pollen ....................................... 531
Oil ........................................................... 504
Flat Tire ..................................................... 541
Floor Mats ................................................. 533
Fluids
Brake ...................................................... 510
Engine Coolant ....................................... 506
Inverter Coolant ...................................... 508
Windshield Washer ................................. 511
FM/AM Radio ............................................ 258
Fog Lights ................................................. 188
Indicator.................................................... 95
Folding Down the Rear Seats .................. 202
Foot Brake ................................................ 472
Front Airbags (SRS) ..................................... 54
Front Seat Heaters .................................... 215
Front Seats Adjusting ................................................ 199
Front Sensor Camera ................................ 465
22 INSIGHT HMIN-31TXM6300.book 601 ページ ２０２１年２月２４日　水曜日　午後３時４５分

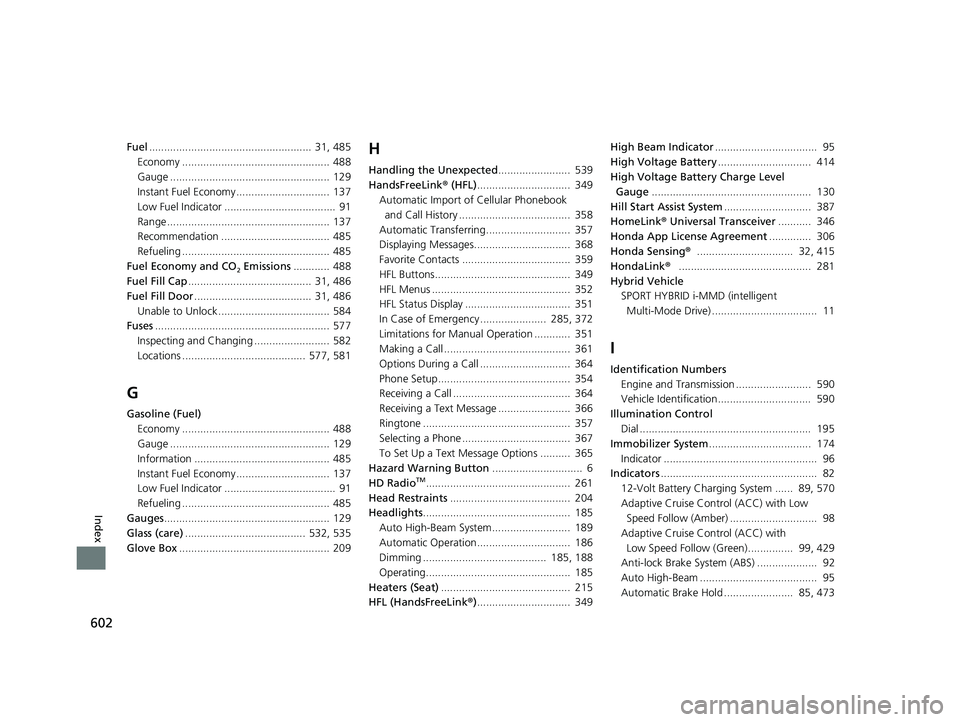

602
Index
Fuel...................................................... 31, 485
Economy ................................................. 488
Gauge ..................................................... 129
Instant Fuel Economy ............................... 137
Low Fuel Indicator ..................................... 91
Range ...................................................... 137
Recommendation .................................... 485
Refueling ................................................. 485
Fuel Economy and CO
2 Emissions ............ 488
Fuel Fill Cap ......................................... 31, 486
Fuel Fill Door ....................................... 31, 486
Unable to Unlock ..................................... 584
Fuses .......................................................... 577
Inspecting and Changing ......................... 582
Locations ......................................... 577, 581
G
Gasoline (Fuel) Economy ................................................. 488
Gauge ..................................................... 129
Information ............................................. 485
Instant Fuel Economy ............................... 137
Low Fuel Indicator ..................................... 91
Refueling ................................................. 485
Gauges ....................................................... 129
Glass (care) ........................................ 532, 535
Glove Box .................................................. 209
H
Handling the Unexpected ........................ 539
HandsFreeLink ® (HFL) ............................... 349
Automatic Import of Cellular Phonebook
and Call History ..................................... 358
Automatic Transferring............................ 357
Displaying Messages................................ 368
Favorite Contacts .................................... 359
HFL Buttons............................................. 349
HFL Menus .............................................. 352
HFL Status Display ................................... 351
In Case of Emergency ...................... 285, 372
Limitations for Manual Operation ............ 351
Making a Call .......................................... 361
Options During a Call .............................. 364
Phone Setup............................................ 354
Receiving a Call ....................................... 364
Receiving a Text Message ........................ 366
Ringtone ................................................. 357
Selecting a Phone .................................... 367
To Set Up a Text Message Options .......... 365
Hazard Warning Button .............................. 6
HD Radio
TM................................................ 261
Head Restraints ........................................ 204
Headlights ................................................. 185
Auto High-Beam System.......................... 189
Automatic Operation............................... 186
Dimming ......................................... 185, 188
Operating................................................ 185
Heaters (Seat) ........................................... 215
HFL (HandsFreeLink ®)............................... 349 High Beam Indicator
.................................. 95
High Voltage Battery ............................... 414
High Voltage Battery Charge Level Gauge ..................................................... 130
Hill Start Assist System ............................. 387
HomeLink ® Universal Transceiver ........... 346
Honda App License Agreement .............. 306
Honda Sensing ®................................ 32, 415
HondaLink ®............................................ 281
Hybrid Vehicle SPORT HYBRID i-MMD (intelligent
Multi-Mode Drive) ................................... 11
I
Identification Numbers Engine and Transmission ......................... 590
Vehicle Identification............................... 590
Illumination Control Dial ......................................................... 195
Immobilizer System .................................. 174
Indicator ................................................... 96
Indicators .................................................... 82
12-Volt Battery Charging System ...... 89, 570
Adaptive Cruise Control (ACC) with Low Speed Follow (Amber) ............................. 98
Adaptive Cruise Control (ACC) with
Low Speed Follow (Green)............... 99, 429
Anti-lock Brake System (ABS) .................... 92
Auto High-Beam ....................................... 95
Automatic Brake Hold ....................... 85, 473
22 INSIGHT HMIN-31TXM6300.book 602 ページ ２０２１年２月２４日　水曜日　午後３時４５分

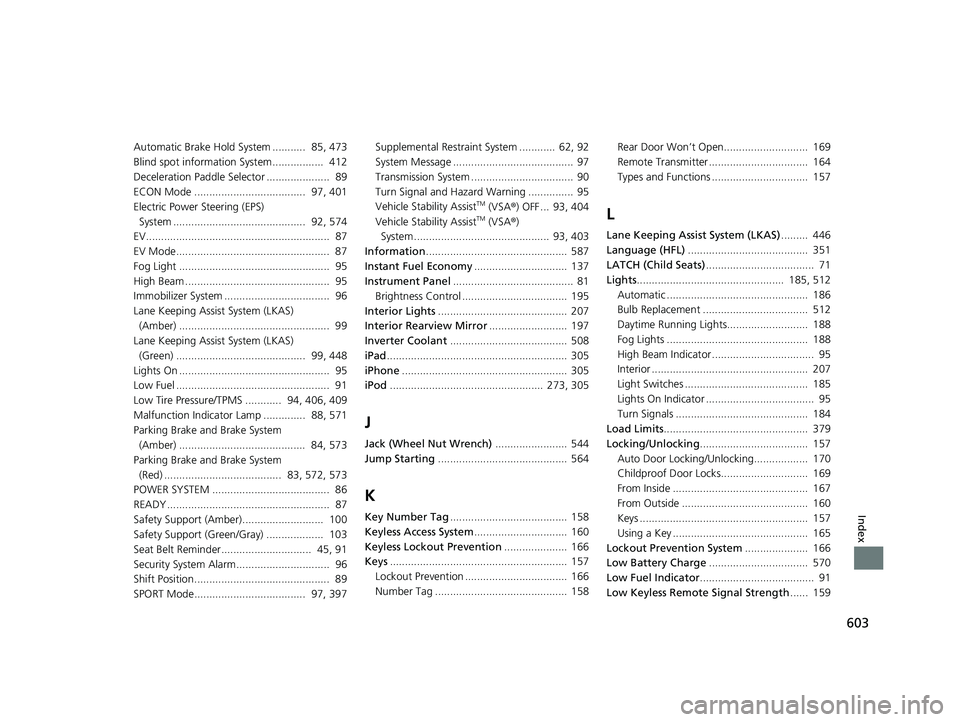

603
Index
Automatic Brake Hold System ........... 85, 473
Blind spot information System................. 412
Deceleration Paddle Selector ..................... 89
ECON Mode ..................................... 97, 401
Electric Power Steering (EPS)
System ............................................ 92, 574
EV............................................................. 87
EV Mode................................................... 87
Fog Light .................................................. 95
High Beam ................................................ 95
Immobilizer System ................................... 96
Lane Keeping Assist System (LKAS) (Amber) .................................................. 99
Lane Keeping Assist System (LKAS)
(Green) ........................................... 99, 448
Lights On .................................................. 95
Low Fuel ................................................... 91
Low Tire Pressure/TPMS ............ 94, 406, 409
Malfunction Indicator Lamp .............. 88, 571
Parking Brake and Brake System (Amber) .......................................... 84, 573
Parking Brake and Brake System
(Red) ....................................... 83, 572, 573
POWER SYSTEM ....................................... 86
READY ...................................................... 87
Safety Support (Amber)........................... 100
Safety Support (Green/Gray) ................... 103
Seat Belt Reminder.............................. 45, 91
Security System Alarm............................... 96
Shift Position............................................. 89
SPORT Mode..................................... 97, 397 Supplemental Restraint System ............ 62, 92
System Message ........................................ 97
Transmission System .................................. 90
Turn Signal and Haza
rd Warning ............... 95
Vehicle Stability Assist
TM (VSA ®) OFF ... 93, 404
Vehicle Stability AssistTM (VSA ®)
System............................................. 93, 403
Information ............................................... 587
Instant Fuel Economy ............................... 137
Instrument Panel ........................................ 81
Brightness Control ................................... 195
Interior Lights ........................................... 207
Interior Rearview Mirror .......................... 197
Inverter Coolant ....................................... 508
iPad ............................................................ 305
iPhone ....................................................... 305
iPod ................................................... 273, 305
J
Jack (Wheel Nut Wrench) ........................ 544
Jump Starting ........................................... 564
K
Key Number Tag ....................................... 158
Keyless Access System ............................... 160
Keyless Lockout Prevention ..................... 166
Keys ........................................................... 157
Lockout Prevention .................................. 166
Number Tag ............................................ 158 Rear Door Won’t Open............................ 169
Remote Transmitter ................................. 164
Types and Functions ................................ 157
L
Lane Keeping Assist System (LKAS)
......... 446
Language (HFL) ........................................ 351
LATCH (Child Seats) .................................... 71
Lights ................................................. 185, 512
Automatic ............................................... 186
Bulb Replacement ................................... 512
Daytime Running Lights........................... 188
Fog Lights ............................................... 188
High Beam Indicator .................................. 95
Interior .................................................... 207
Light Switches ......................................... 185
Lights On Indicator .................................... 95
Turn Signals ............................................ 184
Load Limits ................................................ 379
Locking/Unlocking .................................... 157
Auto Door Locking/Unlocking.................. 170
Childproof Door Locks............................. 169
From Inside ............................................. 167
From Outside .......................................... 160
Keys ........................................................ 157
Using a Key ............................................. 165
Lockout Prevention System ..................... 166
Low Battery Charge ................................. 570
Low Fuel Indicator ...................................... 91
Low Keyless Remote Signal Strength ...... 159
22 INSIGHT HMIN-31TXM6300.book 603 ページ ２０２１年２月２４日　水曜日　午後３時４５分

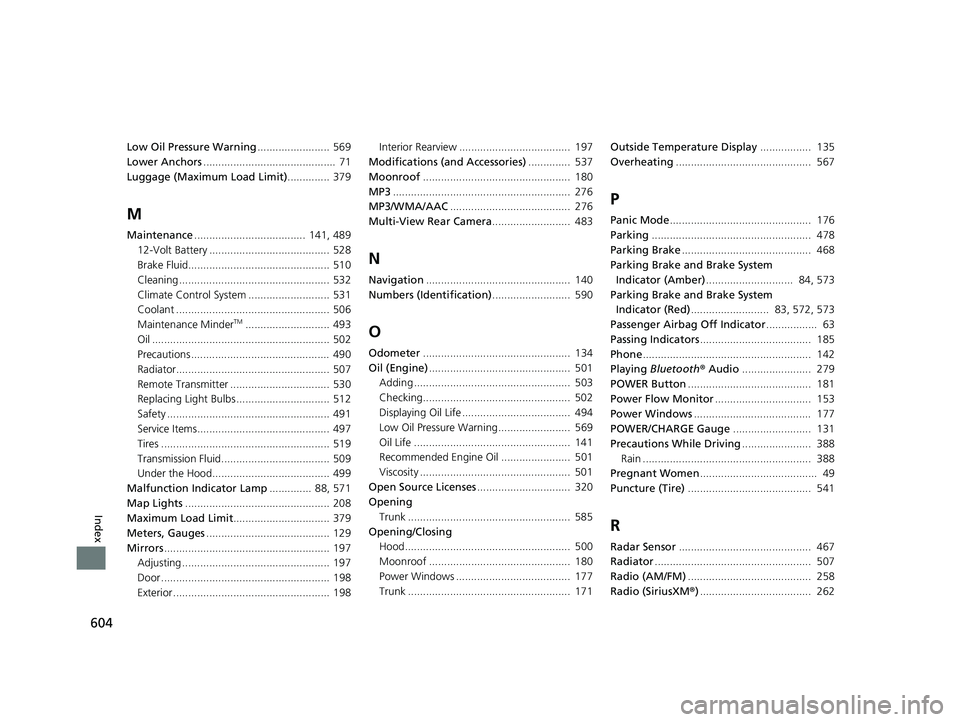

604
Index
Low Oil Pressure Warning........................ 569
Lower Anchors ............................................ 71
Luggage (Maximum Load Limit) .............. 379
M
Maintenance..................................... 141, 489
12-Volt Battery ........................................ 528
Brake Fluid............................................... 510
Cleaning .................................................. 532
Climate Control System ........................... 531
Coolant ................................................... 506
Maintenance Minder
TM............................ 493
Oil ........................................................... 502
Precautions .............................................. 490
Radiator................................................... 507
Remote Transmitter ................................. 530
Replacing Light Bulbs ............................... 512
Safety ...................................................... 491
Service Items............................................ 497
Tires ........................................................ 519
Transmission Fluid.................................... 509
Under the Hood....................................... 499
Malfunction Indicator Lamp .............. 88, 571
Map Lights ................................................ 208
Maximum Load Limit ................................ 379
Meters, Gauges ......................................... 129
Mirrors ....................................................... 197
Adjusting ................................................. 197
Door ........................................................ 198
Exterior .................................................... 198 Interior Rearview ..................................... 197
Modifications (and Accessories) .............. 537
Moonroof ................................................. 180
MP3 ........................................................... 276
MP3/WMA/AAC ........................................ 276
Multi-View Rear Camera .......................... 483
N
Navigation................................................ 140
Numbers (Identification) .......................... 590
O
Odometer................................................. 134
Oil (Engine) ............................................... 501
Adding .................................................... 503
Checking................................................. 502
Displaying Oil Life .................................... 494
Low Oil Pressure Warning........................ 569
Oil Life .................................................... 141
Recommended Engine Oil ....................... 501
Viscosity .................................................. 501
Open Source Licenses ............................... 320
Opening Trunk ...................................................... 585
Opening/Closing Hood....................................................... 500
Moonroof ............................................... 180
Power Windows ...................................... 177
Trunk ...................................................... 171 Outside Temperature Display
................. 135
Overheating ............................................. 567
P
Panic Mode............................................... 176
Parking ..................................................... 478
Parking Brake ........................................... 468
Parking Brake and Brake System Indicator (Amber) ............................. 84, 573
Parking Brake and Brake System Indicator (Red) .......................... 83, 572, 573
Passenger Airbag Off Indicator ................. 63
Passing Indicators ..................................... 185
Phone ........................................................ 142
Playing Bluetooth ® Audio ....................... 279
POWER Button ......................................... 181
Power Flow Monitor ................................ 153
Power Windows ....................................... 177
POWER/CHARGE Gauge .......................... 131
Precautions While Driving ....................... 388
Rain ........................................................ 388
Pregnant Women ....................................... 49
Puncture (Tire) ......................................... 541
R
Radar Sensor............................................ 467
Radiator .................................................... 507
Radio (AM/FM) ......................................... 258
Radio (SiriusXM ®)..................................... 262
22 INSIGHT HMIN-31TXM6300.book 604 ページ ２０２１年２月２４日　水曜日　午後３時４５分
