HONDA INSIGHT 2022 Owners Manual

590
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/Vehicle Identification Number
Transmission Number Motor Number
22 INSIGHT HMIN-31TXM6300.book 590 ページ ２０２１年２月２４日　水曜日　午後３時４５分

591
Information
Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
22 INSIGHT HMIN-31TXM6300.book 591 ページ ２０２１年２月２４日　水曜日　午後３時４５分

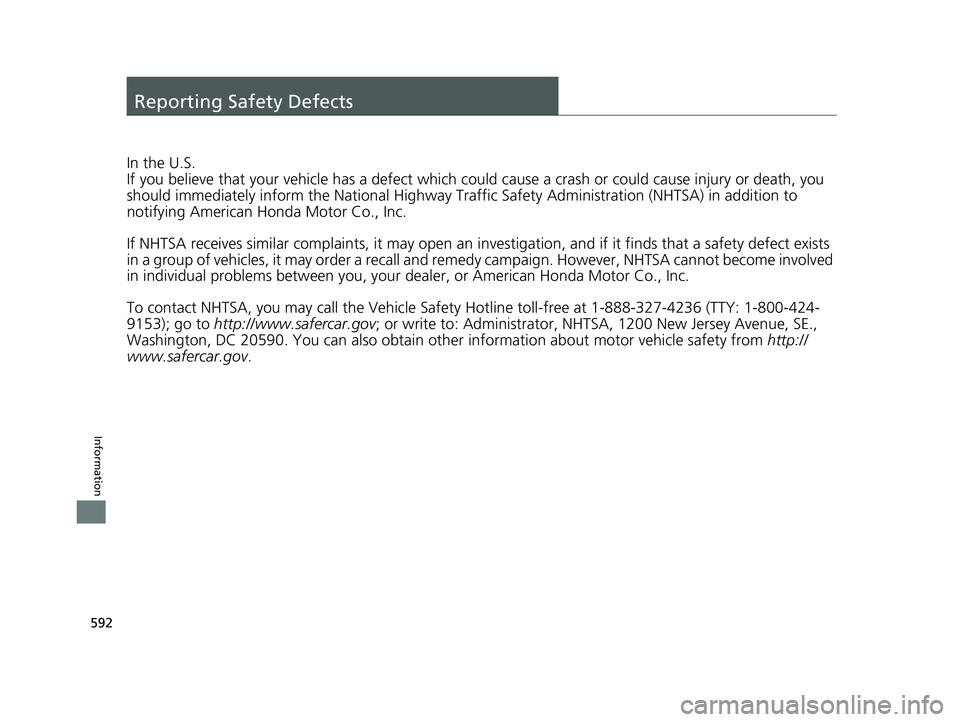

592
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and reme dy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
22 INSIGHT HMIN-31TXM6300.book 592 ページ ２０２１年２月２４日　水曜日　午後３時４５分

593
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Turn the power system on.
5. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When traffi c allows, drive for 90 seconds without
moving the accelerator pedal. (V ehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
6. Drive in city/suburban traffic for at leas t 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
7. Park the vehicle and leave the power system off for six hours.
1Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
22 INSIGHT HMIN-31TXM6300.book 593 ページ ２０２１年２月２４日　水曜日　午後３時４５分

594
Information
Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessori es, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditiona l. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.
22 INSIGHT HMIN-31TXM6300.book 594 ページ ２０２１年２月２４日　水曜日　午後３時４５分

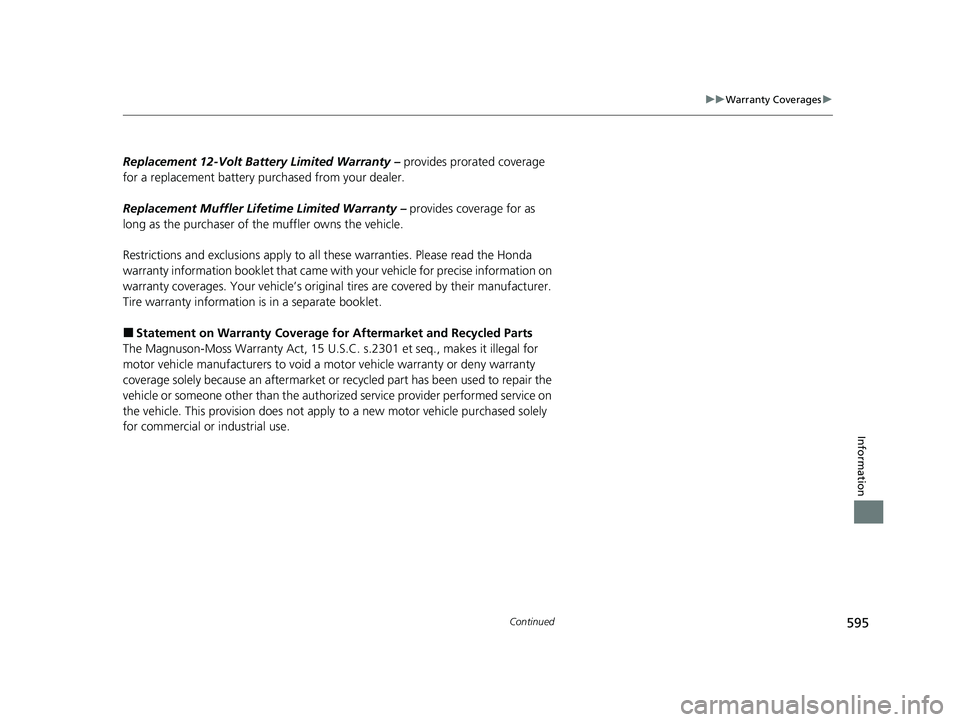

595
uuWarranty Coverages u
Continued
Information
Replacement 12-Volt Battery Limited Warranty – provides prorated coverage
for a replacement battery purchased from your dealer.
Replacement Muffler Lifeti me Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet th at came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Statement on Warranty Coverage for Aftermarket and Recycled Parts
The Magnuson-Moss Warranty Act, 15 U.S.C. s.2301 et seq., makes it illegal for
motor vehicle manufacturers to void a motor vehicle warranty or deny warranty
coverage solely because an aftermarket or recycled part has been used to repair the
vehicle or someone other than the authoriz ed service provider performed service on
the vehicle. This provision does not apply to a new motor vehicle purchased solely
for commercial or industrial use.
22 INSIGHT HMIN-31TXM6300.book 595 ページ ２０２１年２月２４日　水曜日　午後３時４５分

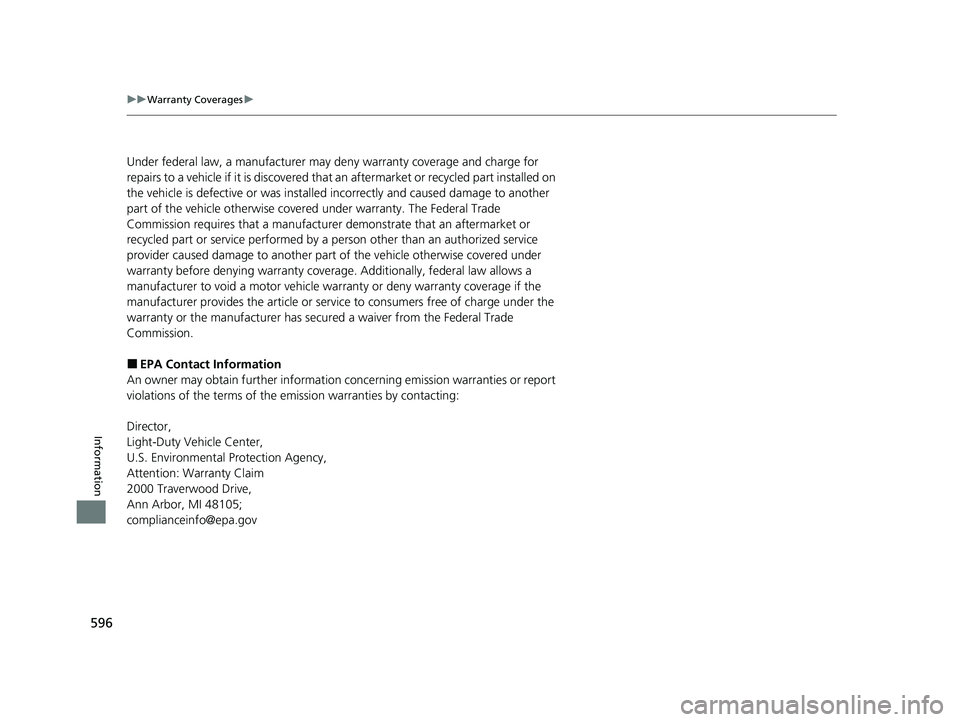

596
uuWarranty Coverages u
Information
Under federal law, a manufacturer may de ny warranty coverage and charge for
repairs to a vehicle if it is discovered that an aftermarket or recycled part installed on
the vehicle is defective or was installed incorrectly and caused damage to another
part of the vehicle otherwise covered under warranty. The Federal Trade
Commission requires that a manufacturer demonstrate that an aftermarket or
recycled part or service performed by a person other than an authorized service
provider caused damage to another part of the vehicle otherwise covered under
warranty before denying warranty coverage . Additionally, federal law allows a
manufacturer to void a motor vehicle warra nty or deny warranty coverage if the
manufacturer provides the arti cle or service to consumers free of charge under the
warranty or the manufacturer has secured a waiver from the Federal Trade
Commission.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the emission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]
22 INSIGHT HMIN-31TXM6300.book 596 ページ ２０２１年２月２４日　水曜日　午後３時４５分

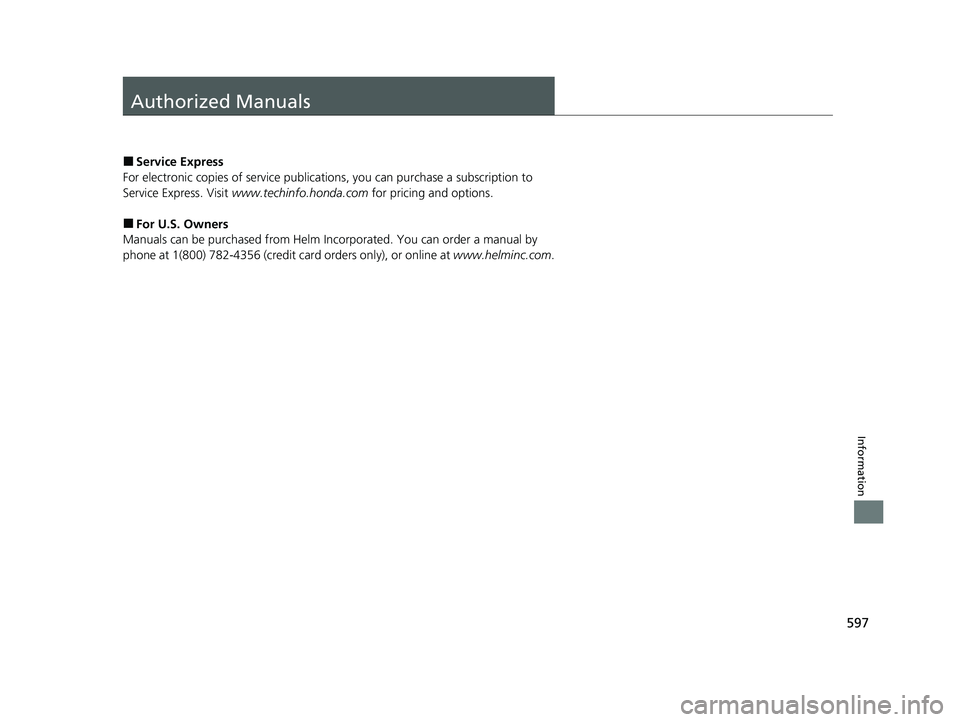

597
Information
Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1(800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
22 INSIGHT HMIN-31TXM6300.book 597 ページ ２０２１年２月２４日　水曜日　午後３時４５分

598
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolv e to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop CHI-5
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009
In Puerto Rico an d the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, Motor Number, and
Transmission Number P. 590
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
22 INSIGHT HMIN-31TXM6300.book 598 ページ ２０２１年２月２４日　水曜日　午後３時４５分

Index
599
Index
Index
Numbers
12-Volt Battery................................... 12, 528
Charging System Indicator ................ 89, 570
High Voltage..................................... 12, 414
If the 12-Volt Battery Is Dead .................. 564
Maintenance (Checking the Battery) ....... 528
Maintenance (Replacing) ......................... 530
A
ABS (Anti-lock Brake System) .................. 476
Accessories and Modifications ................ 537
Accessory Power Socket ........................... 213
Acoustic Vehicle Alerting System ............ 402
Adaptive Cruise Control (ACC) ............ 98, 99
Adaptive Cruise Control (ACC)
with Low Speed Follow ............. 98, 99, 428
Additives
Coolant .................................................. 506
Engine Oil ............................................... 501
Washer ................................................... 511
Additives, Engine Oil ............................... 501
Adjusting Armrest .................................................. 206
Front Seats.............................................. 199
Head Restraints ....................................... 204
Mirrors.................................................... 197
Rear Seats ............................................... 202
Steering Wheel ....................................... 196
Agile Handling Assist ............................... 405 Air Conditioning System (Climate Control
System) .................................................... 216
Changing the Mode ................................ 218
Defrosting the Windshield and Windows ............................................... 219
Dust and Pollen Filter ............................... 531
Recirculation/Fresh Air Mode ................... 218
Sensors .................................................... 222
Synchronized Mode ................................. 221
Using Automatic Climate Control ............ 216
Air Pressure ....................................... 520, 589
Airbags ........................................................ 51
Advanced Airbags ..................................... 57
After a Collision ......................................... 54
Airbag Care ............................................... 65
Event Data Recorder .................................... 1
Front Airbags (SRS) .................................... 54
Indicator .............................................. 62, 92
Passenger Airbag Off Indicator .................. 63
Sensors ...................................................... 51
Side Airbags .............................................. 59
Side Curtain Airbags .................................. 61
AM/FM Radio ............................................ 258
Android Auto
TM........................................ 298
Anti-lock Brake System (ABS) .................. 476
Indicator .................................................... 92
Apple CarPlay
TM........................................ 294
Armrest ..................................................... 206
Audio Remote Controls ............................ 227
Audio System ............................................ 224
Adjusting the Sound ................................ 252 Audio/Information Screen........................ 231
Display Setup .......................................... 253
Error Messages ........................................ 302
General Information ................................ 304
Home Screen........................................... 239
How to Update Wirelessly ....................... 246
How to Update with a USB Device........... 250
How to use Siri Eyes Free ......................... 293
iPod ........................................................ 273
Limitations for Manual Operation ............ 254
MP3/WMA/AAC ...................................... 276
Reactivating ............................................ 226
Remote Controls ..................................... 227
Security Code .......................................... 226
Selecting an Audio Source ....................... 254
Status Area ............................................. 244
System Updates....................................... 246
Theft Protection ...................................... 226
USB Flash Drives .............................. 276, 305
USB Ports ................................................ 225
Wallpaper Setup...................................... 237
Audio/Information Screen ....................... 231
Authorized Manuals ................................ 597
Auto Door Locking/Unlocking ................. 170
Customize ............................................... 343
Auto High-Beam ....................................... 189
Indicator.................................................... 95
Automatic Brake Hold ............................. 473
Indicator............................................ 85, 473
Automatic Brake Hold System Indicator............................................ 85, 473
22 INSIGHT HMIN-31TXM6300.book 599 ページ ２０２１年２月２４日　水曜日　午後３時４５分
