Page 13 of 609

12
Quick Reference Guide
SPORT HYBRID i-MMD SYSTEM MAIN COMPONENTS
Gasoline Engine– Runs the generator and under certain
conditions, drives the wheels directly.
Generator– Starts the engine and generates electric power
when driven by the gasoline engine to supply electricity to
power the electric motor and/or to charge the High Voltage
battery.
Electric Motor– Provides propulsion to drive the wheels in
conjunction with the gasoline engine in certain conditions, and
provides electricity to the High Voltage battery through
regenerative braking.
High Voltage Battery– Provides electrical storage and serves
as a power source for the electric motor.
Learning about the High Voltage battery’s characteristics will
help you get the best handling and maximize the range of your
electric vehicle. (P414)
High Voltage Battery Charge Level Indicator– Displays
battery state of charge.
When the indicator:
•Displays two or less segments, EV mode is no longer available.
•Displays ten segments, battery charge level is full.
High Voltage Battery
Generator & Electric Motor
Gasoline Engine
22 INSIGHT HMIN-31TXM6300.book 12 ページ 2021年2月24日 水曜日 午後3時45分
Page 19 of 609

18
Quick Reference Guide

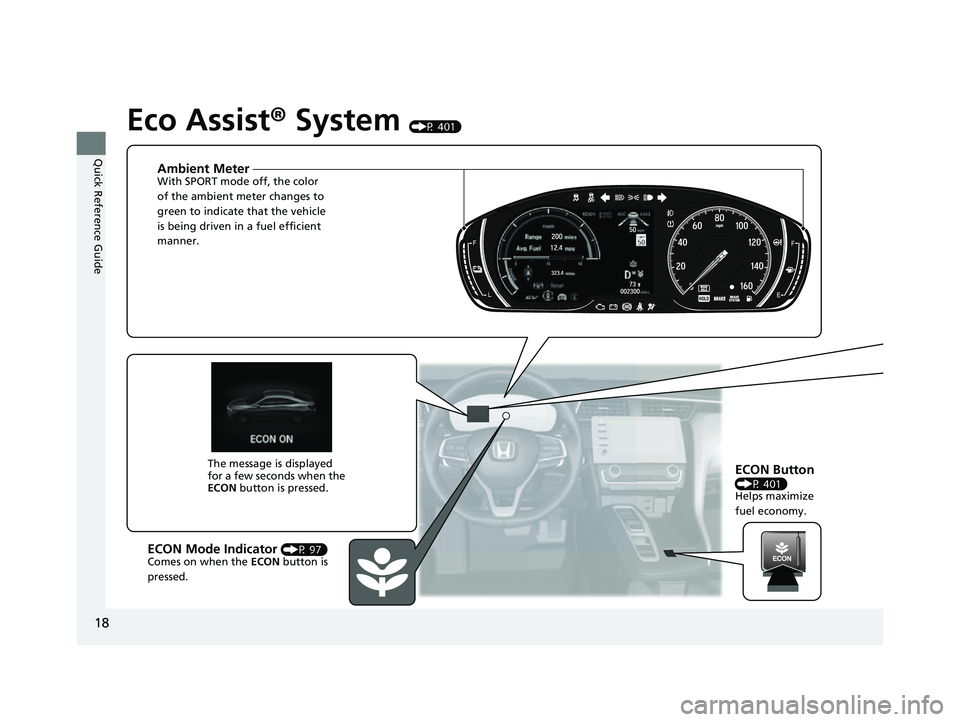

Eco Assist® System (P 401)
Ambient MeterWith SPORT mode off, the color
of the ambient meter changes to
green to indicate that the vehicle
is being driven in a fuel efficient
manner.
ECON Button (P 401)
Helps maximize
fuel economy.
ECON Mode Indicator (P 97)
Comes on when the ECON button is
pressed. The message is displayed
for a few seconds when the
ECON
button is pressed.
22 INSIGHT HMIN-31TXM6300.book 18 ページ 2021年2月24日 水曜日 午後3時45分
Page 20 of 609

19
Quick Reference Guide

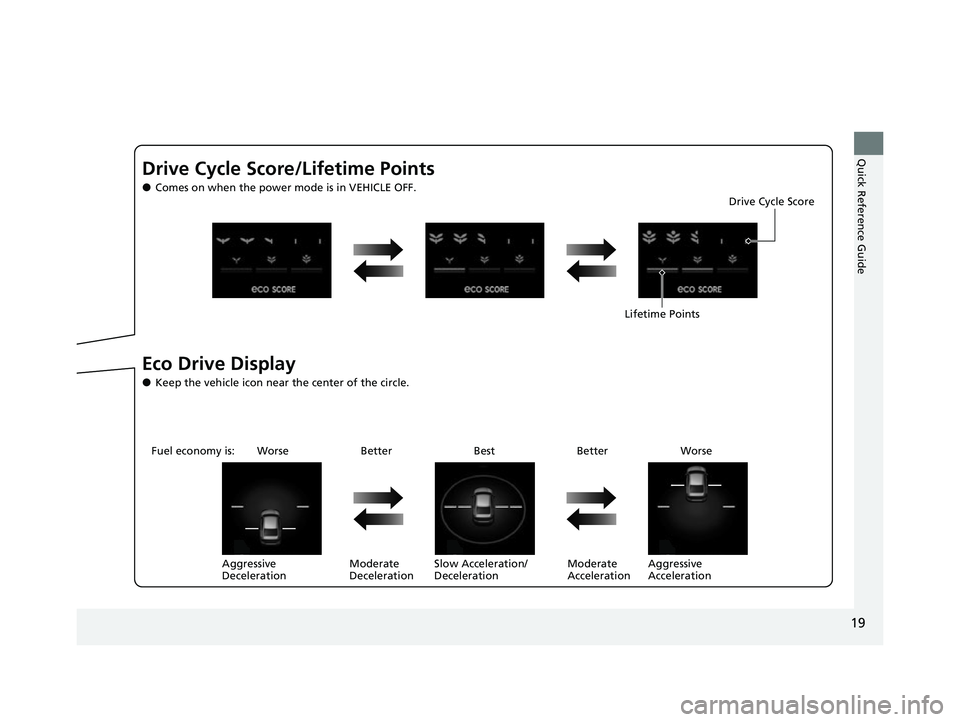

Drive Cycle Score/Lifetime Points
●Comes on when the power mode is in VEHICLE OFF.
Eco Drive Display
●Keep the vehicle icon near the center of the circle.Drive Cycle Score
Lifetime Points
Fuel ec onomy
is: Worse BetterBestBetter Worse
Aggressive
Deceleration Moderate
DecelerationSlow Acceleration/
Deceleration Moderate
AccelerationAggressive
Acceleration
22 INSIGHT HMIN-31TXM6300.book 19 ページ 2021年2月24日 水曜日 午後3時45分
Page 98 of 609

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System
Message
Indicator
•Comes on along with a beep when
a problem is detected. A system
message on the driver information
interface appears at the same time.•While the indicator is on, press the
(home) button to see the message again.
2 Accessing contents in the main
display P. 132
•Refer to the Indicators information in this
chapter when a system message appears
on the driver inform ation interface. Take
the appropriate action for the message.
• The driver information interface does not
return to the normal screen unless the
warning is canceled, or the left selector
wheel is pressed.
—
ECON Mode
Indicator
•Comes on when the ECON mode is
on.
2 ECON Mode P. 401
SPORT Mode
Indicator
• Comes on when you press the
SPORT button.
• The ambient meter remains lit up in
red as long as SPORT mode is on.
2 SPORT Mode P. 397
22 INSIGHT HMIN-31TXM6300.book 97 ページ 2021年2月24日 水曜日 午後3時45分
Page 103 of 609

102
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Amber)
●Comes on when RDM and/or
CMBSTM shuts itself off.
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place and wipe the debris
off with a soft cloth.
●Have your vehicle checked by a dealer if
the indicator and message are still
displayed even after you have cleaned the
area around the camera.
2 Front Sensor Camera P. 465
●Comes on when mud, snow, or ice
has accumulated in the vicinity of
the blind spot information system
sensor.●Comes on while driving - Something
may be interfering with the Blind spot
information System sensor. Check the
vicinity of the Blin d spot information
System sensor and remove any obstacles.
2 Blind spot information System P. 411
22 INSIGHT HMIN-31TXM6300.book 102 ページ 2021年2月24日 水曜日 午後3時45分
Page 105 of 609

104
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (home) button, select Warnings to see the message
again with the system message indicator on.
2Switching the Display P. 132
MessageConditionExplanation
●Appears when the vehicle is no longer able to run
due to a malfunction.●Immediately stop in a safe place.
●Appears when there is a risk that the vehicle will
move unexpectedly after you have stopped due to a
malfunction with the vehicle.●While the vehicle is stopped, apply the parking brake.●Have your vehicle checked by a dealer.
●Appears when you set the power mode to ON again
and the vehicle is able to run.
2 Turning on the Power P. 382
22 INSIGHT HMIN-31TXM6300.book 104 ページ 2021年2月24日 水曜日 午後3時45分
Page 114 of 609

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when you press the fuel fill door release
button.• The display changes to Ready when the fuel vapor
pressure inside the fuel tank is released. You can start
refueling once Ready appears.
2 Refueling P. 485
•Appears when the vehicle is ready to be refueled.
•Appears when the high voltage battery and other
system control temperatures are too low to operate
(approx. –40°F or below).• You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.
• Consult a dealer if necessary.
•Appears when the high voltage battery temperature
is too low to operate (approx. −22°F or below).•You can start the power system and use the climate
control system to warm up the interior, which will also
warm the High Voltage battery enough for you to drive
the vehicle.
22 INSIGHT HMIN-31TXM6300.book 113 ページ 2021年2月24日 水曜日 午後3時45分
Page 130 of 609

129Continued
Instrument Panel

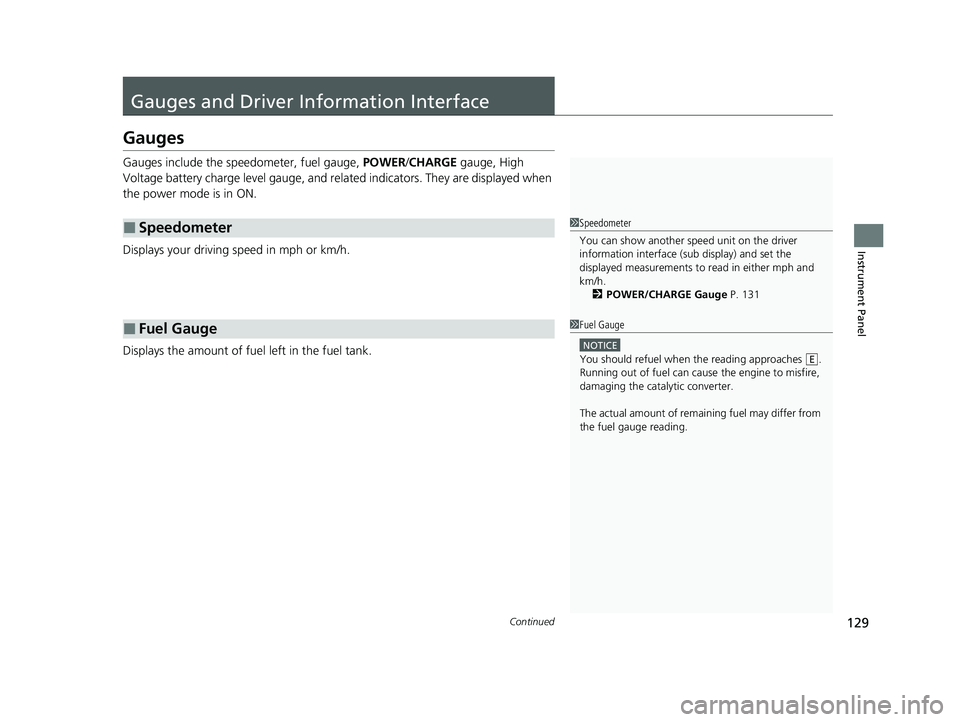

Gauges and Driver Information Interface
Gauges
Gauges include the speedometer, fuel gauge, POWER/CHARGE gauge, High
Voltage battery charge level gauge, and re lated indicators. They are displayed when
the power mode is in ON.
Displays your driving speed in mph or km/h.
Displays the amount of fuel left in the fuel tank.
■Speedometer
■Fuel Gauge
1 Speedometer
You can show another speed unit on the driver
information interface (s ub display) and set the
displayed measurements to read in either mph and
km/h. 2 POWER/CHARGE Gauge P. 131
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
22 INSIGHT HMIN-31TXM6300.book 129 ページ 2021年2月24日 水曜日 午後3時45分
Page 132 of 609

131
uuGauges and Driver Information Interface uGauges
Instrument Panel

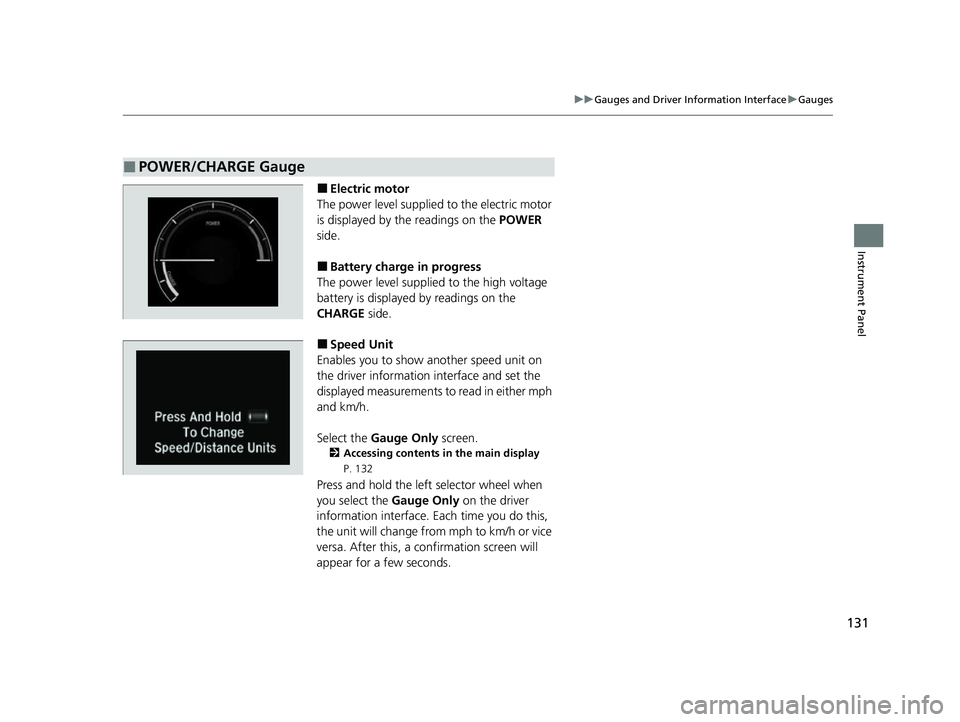

■Electric motor
The power level supplied to the electric motor
is displayed by th e readings on the POWER
side.
■Battery charge in progress
The power level supplied to the high voltage
battery is displayed by readings on the
CHARGE side.
■Speed Unit
Enables you to show another speed unit on
the driver information interface and set the
displayed measurements to read in either mph
and km/h.
Select the Gauge Only screen.
2Accessing contents in the main display
P. 132
Press and hold the left selector wheel when
you select the Gauge Only on the driver
information interface. Each time you do this,
the unit will change from mph to km/h or vice
versa. After this, a confirmation screen will
appear for a few seconds.
■POWER/CHARGE Gauge
22 INSIGHT HMIN-31TXM6300.book 131 ページ 2021年2月24日 水曜日 午後3時45分
Page 133 of 609

132
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

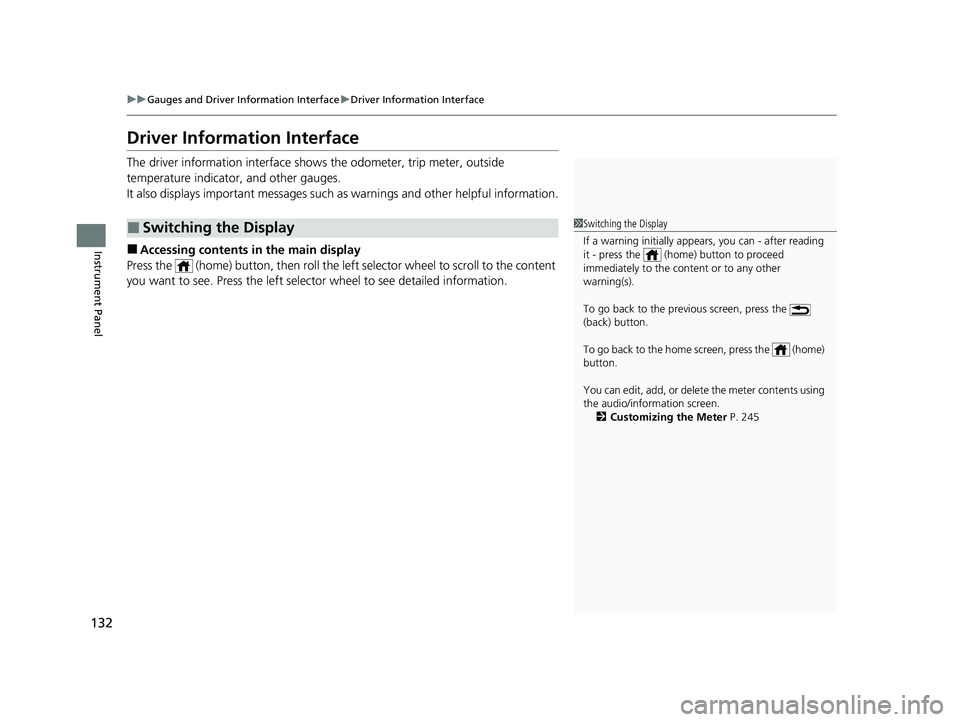

Driver Information Interface
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Accessing contents in the main display
Press the (home) button, then roll the le ft selector wheel to scroll to the content
you want to see. Press the left select or wheel to see detailed information.
■Switching the Display1Switching the Display
If a warning initially appear s, you can - after reading
it - press the (hom e) button to proceed
immediately to the cont ent or to any other
warning(s).
To go back to the previous screen, press the
(back) button.
To go back to the home screen, press the (home)
button.
You can edit, add, or delete the meter contents using
the audio/information screen.
2 Customizing the Meter P. 245
