Page 71 of 609

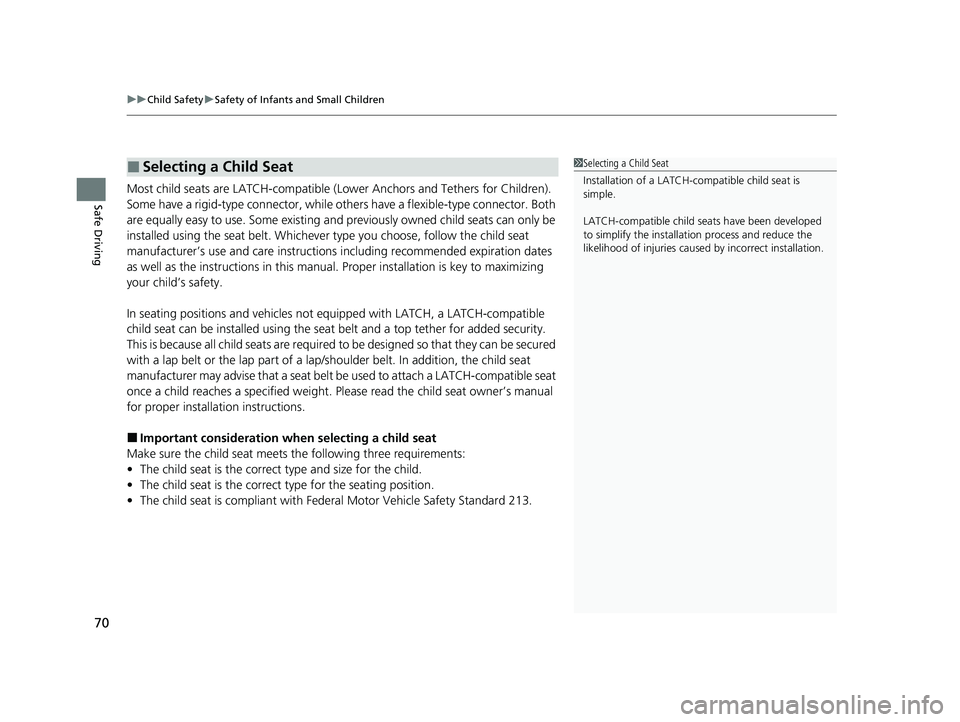

uuChild Safety uSafety of Infants and Small Children
70
Safe DrivingMost child seats are LATCH-compatible (L ower Anchors and Tethers for Children).
Some have a rigid-type connector, while ot hers have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/sh oulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.
■Important consideration wh en selecting a child seat
Make sure the child seat meets th e following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Fede ral Motor Vehicle Safety Standard 213.
■Selecting a Child Seat1Selecting a Child Seat
Installation of a LATCH-co mpatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.
22 INSIGHT HMIN-31TXM6300.book 70 ページ 2021年2月24日 水曜日 午後3時45分
Page 97 of 609

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Immobilizer
System
Indicator
•Blinks if the immobilizer system
cannot recognize the key
information.• Blinks - You cannot start the power
system. Set the power mode to VEHICLE
OFF, then select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
Security System
Alarm Indicator
•Blinks when the security system
alarm has been set.
2 Security System Alarm P. 175—
Indicator
Indicator
22 INSIGHT HMIN-31TXM6300.book 96 ページ 2021年2月24日 水曜日 午後3時45分
Page 111 of 609

110

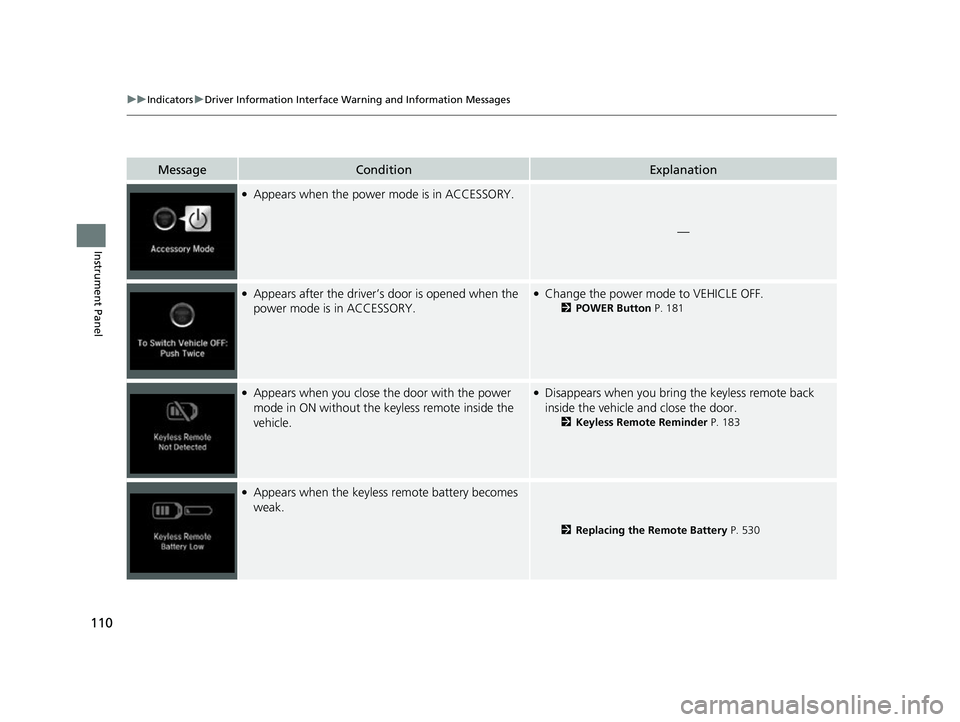

uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2POWER Button P. 181
●Appears when you close th e door with the power
mode in ON without the key less remote inside the
vehicle.●Disappears when you bring the keyless remote back
inside the vehicle and close the door.
2 Keyless Remote Reminder P. 183
●Appears when the keyless remote battery becomes
weak.
2Replacing the Remote Battery P. 530
22 INSIGHT HMIN-31TXM6300.book 110 ページ 2021年2月24日 水曜日 午後3時45分
Page 112 of 609

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the keyless remote battery is too weak to
turn on the power system or the key is not within
operating range to turn on the power system.
A beeper sounds six times.●Bring the back of the keyless remote into contact with
the POWER button.
2If the Keyless Remote Battery is Weak P. 562
●Appears as soon as a problem is detected in the
keyless access system (smart entry system) or push
button starting system.●Appears constantly - Have your vehicle checked by a
dealer.
●Appears after you set the power mode to
ACCESSORY or ON.
2 Turning on the Power P. 382
•Appears if you press the POWER button while the
vehicle is moving.• The message will disappear after six seconds or when
the power mode is set to VEHICLE OFF.
22 INSIGHT HMIN-31TXM6300.book 111 ページ 2021年2月24日 水曜日 午後3時45分
Page 156 of 609

155
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 156
Locking and Unlocking the Doors Key .................................................. 157
Low Keyless Remote Signal Strength ... 159
Locking/Unlocking the Doors from the Outside .......................................... 160
Locking/Unlocking the Doors from the Inside ............................................. 167
Childproof Door Locks ..................... 169
Auto Door Locking/Unlocking .......... 170
Opening and Closing the Trunk ....... 171
Security System
Immobilizer System .......................... 174 Security System Alarm...................... 175
Opening and Closing the Windows ... 177
Moonroof*................................................ 180Operating the Switches Around the
Steering Wheel POWER Button................................. 181
Turn Signals ..................................... 184
Light Switches.................................. 185
Fog Lights
*...................................... 188
Daytime Running Lights ................... 188
Auto High-Beam .............................. 189
Wipers and Washers ........................ 192
Rear Defogger/Heated Door Mirror Button ........................................ 194
Brightness Control ........................... 195
Adjusting the Steering Wheel .......... 196
Adjusting the Mirrors Interior Rearview Mirror ................... 197
Power Door Mirrors ......................... 198
Adjusting the Seats .......................... 199
Interior Lights/Interior Convenience
Items ................................................ 207
Climate Control System Using Automatic Climate Control .... 216
Automatic Climate Control Sensors ... 222
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 155 ページ 2021年2月24日 水曜日 午後3時45分
Page 158 of 609

157Continued
Controls
Locking and Unlocking the Doors
Key
This vehicle comes with the following key:Use the keys to turn on and off the power
system, and to lock and unlock all the doors
and to open the trunk.1 Key
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 174
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely turn the power system on using the
remote engine start. 2 Remote Engine Start with Vehicle
Feedback P. 384
22 INSIGHT HMIN-31TXM6300.book 157 ページ 2021年2月24日 水曜日 午後3時45分
Page 159 of 609

uuLocking and Unlocking the Doors uKey
158
Controls
The built-in key can be used to lock/unlock the
doors when the keyless remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
keyless remote until it clicks.
Contains a number that you will need if you
purchase a replacement key.
■Built-in Key
Built-in Key
Release Knob
■Key Number Tag1
Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key an d you cannot activate the
power system, contact a dealer.
22 INSIGHT HMIN-31TXM6300.book 158 ページ 2021年2月24日 水曜日 午後3時45分
Page 160 of 609

159
uuLocking and Unlocking the Doors uLow Keyless Remote Signal Strength
Controls
Low Keyless Remote Signal Strength
The vehicle transmits radio waves to lo cate the keyless remote when locking/
unlocking the doors, opening the trunk, or to activate the power system.
In the following cases, locking/unlocking the doors, opening the trunk, or activating
the power system may be inhibited or operation may be unstable:
• Strong radio waves are being transmitted by nearby equipment.
• You are carrying the keyless remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the keyless remote.1Low Keyless Remote Signal Strength
Communication between the keyless remote and the
vehicle consumes the ke yless remote’s battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the keyless
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
22 INSIGHT HMIN-31TXM6300.book 159 ページ 2021年2月24日 水曜日 午後3時45分
Page 161 of 609

160
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
Locking/Unlocking the Doors from the Outside
When you carry the keyless remote, you can
lock/unlock the doors and open the trunk.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.
■Locking the doors
Touch the door lock sensor on the front door.u Some exterior lights flash; the beeper
sounds; all the doors lock; and the
security system sets.
■Using the Keyless Access System1Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors.
No doors opened: The li ght fades out after 30
seconds.
Doors relocked: The light goes off immediately.
2 Interior Lights P. 207
Door Lock Sensor
1Using the Keyless Access System
If you do not open a door within 30 seconds of
unlocking the vehicle with the keyless access system,
the doors will automatically relock.
You can lock or unlock doors using the keyless access
system only when the power mode is in VEHICLE OFF.
The keyless access system will not lock the vehicle
when a door is open.
22 INSIGHT HMIN-31TXM6300.book 160 ページ 2021年2月24日 水曜日 午後3時45分
Page 162 of 609

Continued161
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Unlocking the doors and trunk
Grab the driver’s door handle:u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All doors unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button: u The trunk unlocks and opens.
u Some exterior lights flash twice and the
beeper sounds.
2 Using the Trunk Release Button P. 172
Trunk Release Button
1Using the Keyless Access System
•Do not leave the keyless remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the keyless remote, you
can lock/unlock the doors while someone else with
the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the keyless remote is within range.
•If you grip a front door ha ndle or touch a door lock
sensor wearing gloves, the door sensor may be
slow to respond or may no t respond by locking or
unlocking the doors.
•After locking the door, yo u have up to two seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least two seconds befo re gripping the handle,
otherwise the door will not unlock.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unloc k the doors with the keyless
remote if it is above or below the outside handle.
•The keyless remote may not operate if it is too close
to the door and door glass.
The light flash, beep and door unlock mode settings
can be customized using the audio/information
screen. 2 Customized Features P. 326
22 INSIGHT HMIN-31TXM6300.book 161 ページ 2021年2月24日 水曜日 午後3時45分
