Steering Gearbox
Installation (cont'd)
10. Install the steering joint cover with the clamps andcliDs.
STEERING JOINT COVER
11. Connect the fluid lines to the valve bodv unit.
CLIP
RETURN HOSE
17-64
38 N.m 13.9 kg{.m, 28 lbf.ft)
12. Install the rear beam brace rod and return pipe
clamp on the rear beam.
NOTE: Install the rear beam brace toward thereturn pipe clamp.
13. Install the three way catalytic converter with thenew gaskets and new self-locking nuts, and connectthe heated oxygen sensor (H02S) connector,
HEATED OXYGEN SENSOR CONNECTOF
SELF.LOCKING NUT33 N.m 13.4
SELF.LOCKING NUT22 N.m (2.2 kgt m, 16 lbt.ftl
14. Connect the shift linkage (M/T model: see section
13, A/T model: see section 14).

15. After the clearances have been adjusled properly.
reinstall the weatherstrip.
16. Check that the glass contacts the weatherstrip
evenly.
NOTE: Measuring points are described on page
20-42.
Conter Pillar soction:
WEATHERSTRIP
17.Check for water leaks.
NOTE; Do not use high pressure water.
18. Route the door harness and connectors, and fasten
them to the door (see pages 20-22, 331.
19. Disconnect the oowef window switch from the doo.
harness, then install the power window switch on
the door panel (see page 20-41).
2O. Attach the plastic cover, then install the door panel
(see pages 2O-2O, 321.
2047

Mirrors
Power Door Mirror Replacement
Hstchback
1. Pry out the cover panel with a flat tip screwdriver,
then remove it.
CAUTION: When prying with a flat tip screwdriver.
w'ap it whh protoctiva tapo to pravont damage.
2. Disconnect the connector. Remove the nuts, then
remove the door mirror while holdino it.
< : Nut locltion3, 3
^^ sxo.8mm I
l$9 111 - to.+ rst.. i| +|lmtu.+rgr.m, I3 lbl'lrl - ---J'/
cot{t{EcToB(Doo. mirror ddol
DOOR MIRROR
CONNECTORlDoor harnoss.ide)
CONNECTOR
3. Installation is the reverse o{ the removal procedure.
Sedan
1. Remove the door panel (see page 20-201 and dis-connect the connector.
2. Pry the cover panel out with a flat tip screwdriver,
then remove the cover panel.
CAUTION: Whsn prying with a flat tip scrowd.lv€l,
wrap it with protectiv€ taps to p.svont damag6.
3. Remove the screws while holding the door mirror.
< i Scrow locations
, A< : Scrow, 2 , B< : Scr6w, I
! ,"",''@ I 66
I s'0.4.- | sro.'"e-.
4 N.m (0.4 kst.m, + w.m (0.4 kgt.m,\3_!!t.rrr__ \!Lbllq
CONNECTOR
4. Installation is the reverse of the removal procedure,
HOOKS
20-49

Rear Window
Removal
Hatchback
CAUTION;
a Use covsrs to avoid damaging tho interior.
a Wear gloves to romove and install the glass.
a Do not damags the defroster grid linss.
a Tako care not scratch th€ raar window molding,
1. To remove the rear window. first remove the:a Rear shelt (see page 20-91)
a Hatch side trim and hatch trim panel (see page
20-146)
. High mount brake light (see section 23)a Rear wiper and wiper motor (see section 231
2. Remove the rear window trim and disconnect the
connectors.
3. Apply protective tape to the inner and outer edges
of the hatch.
Using an awl. make a hole th.ough the adhesive trom
the inside. at the top ot the hatch. Push piano wire
through the hole, and wrap each end a.ound a piece
of wood.
CONNECTOR
MOLOING
4.With a helper on the outside, pullthe piano wire back
and forth in a sawing motion, and carefully cut
through the adhesive the along the top and the sides
oJ the rear window.
CAUTION: Hold ths piano wire as clos€ to the roat
window as possible to prevont damage to the body
and molding.
PROTECTIVE TAPE
Cut the adhesive with a knife at the bottom of the
aear window.
NOTE: Do not use piano wire in this area.
6. Carefully remove the rear window.
NOTE: Replace the fasteners with new ones
whenever the rear window has been removed.
PROTECTIVE TAPE
20-61

Moonroof
Motor, Drain Tube and Frame Replacement
CAUTION: B€ caretul not to damag€ lhe seats, dash-
board and other interior trim.
1. Remove the glass (see page 2O-79) and headliner
(see page 20-98).
2. Disconnect the motor connector, and remove the
clips securing the ceiling light wire harness.
3. Remove the bolts and nuts, then remove the motor,
if necessarv,
NOTE: Make sure both sliders are parallel when in-
stalling the motor.


: 8olt, nut locationg
A

: Bolt, 2
6x1.Omm I9.8 N.m ILd tt.o kgf.-, I,.?- ", _,/
< : CliD locations. 2
CEILIING LIGHT
FRAME
B : Nut, 3
20-80
4.Disconnect the drain tubes.
Remove the bolts, then remove the trame from the
car.
NOTE: You may require assistance when removing
the frame.


: Eolt locations, I
6 x 1.0 mm
DRAIN TUBETo install, slide the draintube over the ftame nozzleat least 10 mm {O.4 in}.
6.
TUBE CI-IP
Pull the drain tubes out the front and rear pillars.
NOTE; Betore pulling out the drain tube, tie a string
to the end of it so it can be reinstalled.
Installation is the reverse ol the removal procedure.
NOTE:
a Clean the surtace of the frame.
a Check the trame seal.
a Check for water leaks.
7.
9.8 N.m (1.0 kgt m,7.2 rbr.ttl )
FRAME
FRONT

Motor, Drain Tube and Frame Replacement
CAUTION: Be carotul not to damago th€ seats, dash-
board and other int6rior trim,
1. Remove the glass (see page 2O-86) and headliner(see page 20-10O).
Disconnect the motor connector, and remove the
clips securing the ceiling light wire harness.
NOTE: To remove the motor, remove the screws.
Disconnect the drain tubes.
Loosen the front bolts.
Remove the bolts, then remove the trame from the
car.
NOTE:
a You may require assistance when removing the
trame.
a Take care not to bend the sunshade rails.
TUBECLIP
DRAIN TUBETo install, slade the drain tube ov6rthe frame nozzle at least 10 mm lO.4 in).
SUNSHADERAILS
Pullthe drain tubes out of the tront and rear oillars.
NOTE: Before pulling out the drain tube, tie a string
to the end of it so it can be reinstalled.
Installation is the reverse of the removal grocedure.
NOTE:
a Install the tube clips with the ends facing the side to easea Clean the surtace of the frame.
a Check the frame seal.
a Check for water leaks.
a Make sure the sunshade moves smoothlv.
SCREW
4.
\/
Make sure the sliders areparallel when installing themotor,
CONNECTOR
FRAME
BOLT6 x 1.0 mm9.8 N.m (1.O lg{.rn.7.2 tbt.ttl
Loosen the tront bohs
Fo?w!?d
tt.
FRONTDRAIN VALVES
installation of the headliner.
20-87

lnterior Trim
Replacement (cont'd)
5. Remove the rear trim panel.
v : Clip locations, 7
1) Push the inner clip. -2) Detach the clip by
NOTE: Do not push pulling it.it in too lar.
M)
Remove the speaker lid and left access panel from
the side trim panel.
SPEAKERLID
LEFTaccEssPANEL
INNER CLIP
@
PANEL
> : Clip locaiions
A> : Clip, 2 8V : CliP, 2
,e-, ff)
ffi
,Kl^\
B
\fo
7. Remove the side trim Panel.
> : Clip locations
A> : Clip. 4
W-t Nj
BD : Clip, 4
DV : Clip, 1CD : Clip, 3
> : Boll, screw locations
,Ull | ,,zqzz4 |
w) !)
A> : Bolt, 2B>: Sciow, 2
@-,
i,Gffi'^*^
NOTE: Disconnect the cargo area light connector
trom the left side trim Panel.
CARGO AREALIG}IT

Headliner
Replacement
CAUTION: Whon Fyhg with I flat tip sclewdrivsr, wrap
it whh protectivs tapo to prevent damaga.
NOTE:
a Take care not to bend and scratch the headliner.
a Be caretul not to damage the dashboard and other in-
terior lrim.
a Fold the front seat-back backward.
Halchback
1. Remove;
. Door trim (see page 20-93)
a Front Dillar tirm {see page 20-91)
a Ouarter trim (see page 20-93)
a Coat hanger (see page 20-93)
a Rearview mirror {see page 20-52)
2. Remove the sunvisor and holder from each side.


: Scrow location!, 6
al
u)
LOCK WASHER(Outside)
"^/
HAaqr+- SUNV|SOR
Y
BRACKETHOLDEB
NOTE:
a lf necessary, remove the sunvisor bracket as
shown.
a When installing the sunvisor bracket, apply grease
and make sure it's installed properly.
suNvlsoRBRACKET
suNvrsoR
20-98
3. Remove the tront and rear ceiling lights, then dis-
connect the conneclors.


: Sc.ew, nut localions
A

: Scrcw, 2B

: Nut, 2
&)?)
HOOK
A
ffi)
LENS
HOOK
I
,r--T-\
m)
H
LENS
CONNECTOR
CONNECTOR
HOOKS

3. Remove the tront and rear ceiling lights, then dis-connect the connectors.
A : Screw, nut locations
AA: Sc.6w, 2 B : Nur, 2
CONNECTOR
CEILING
REAR CEILINGLIGHT
CONNECTOR
HOOKS
4. Remove the grab handles (tront andsenger'sl and grab hole caps (driver,s).


: Sc.sw locatioh! l2l
rear pas'
-A-i
orlx
.-L----- ----z
GRAB HOLE CAPS
20-101

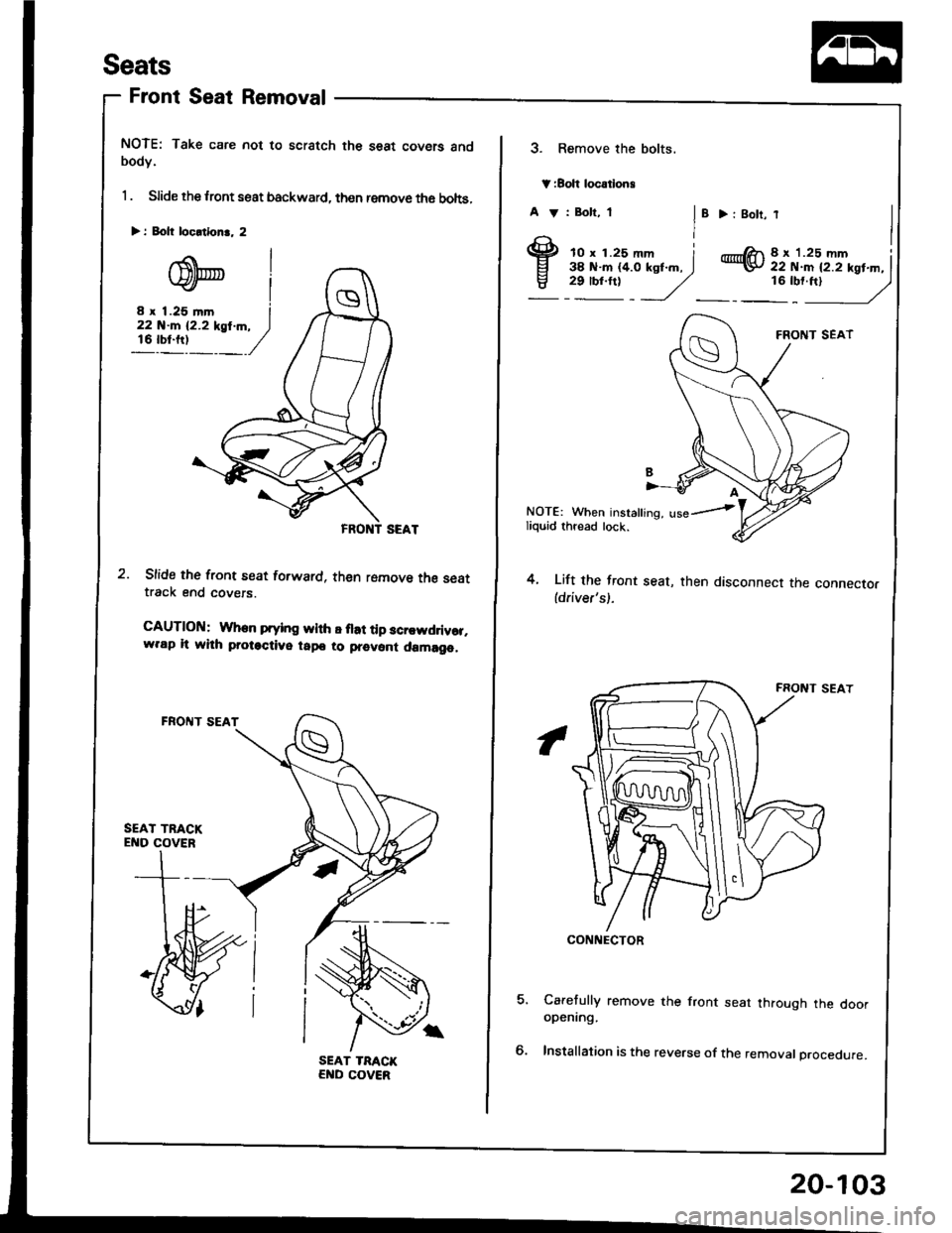

Seats
Front Seat Removal
NOTE: Take care not to scratch the seat covers andbodY.
1 . Slide the lront seat backward, then remove th6 bohs,
Slide the front seat forward, then romove the seattrack end covers.
CAUTlOltl: When prying wlth E flat tip scr.wddvor,w.ap lt whh protactive tapo to prevont damago,
> i Eolt locltlon.. 2
3. Remove the bolts.
V:Boh locatlong
A V : Bolt, 1
I'
> : 8olt,
@8 x '1.25 mm Iii i.:iiil..i'xst.^. I16:t'ftt
- /)
4.
NOTE: When insralling, use--iliquid thread lock.
Lift the front seat, then disconnect the connector(driver's).
Carefully remove the front seat through the dooropening.
Installation is the reverse of the removal procedure.
CONNECTOR
20-103
