Fuses

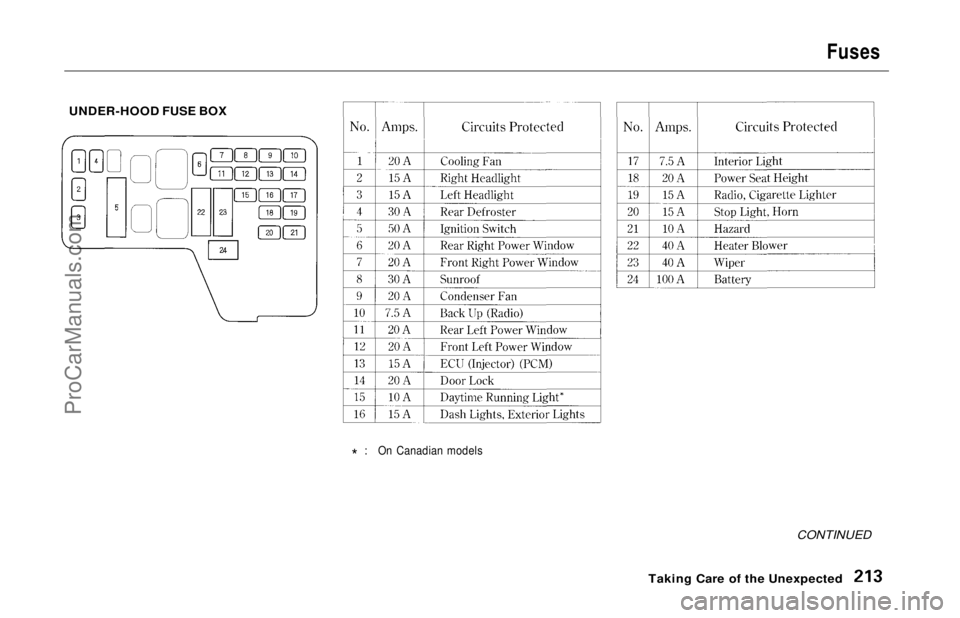

UNDER-HOOD FUSE BOX

* : On Canadian models

CONTINUED
Taking Care of the UnexpectedProCarManuals.comMain Menu Table of Contents s t

Fuses

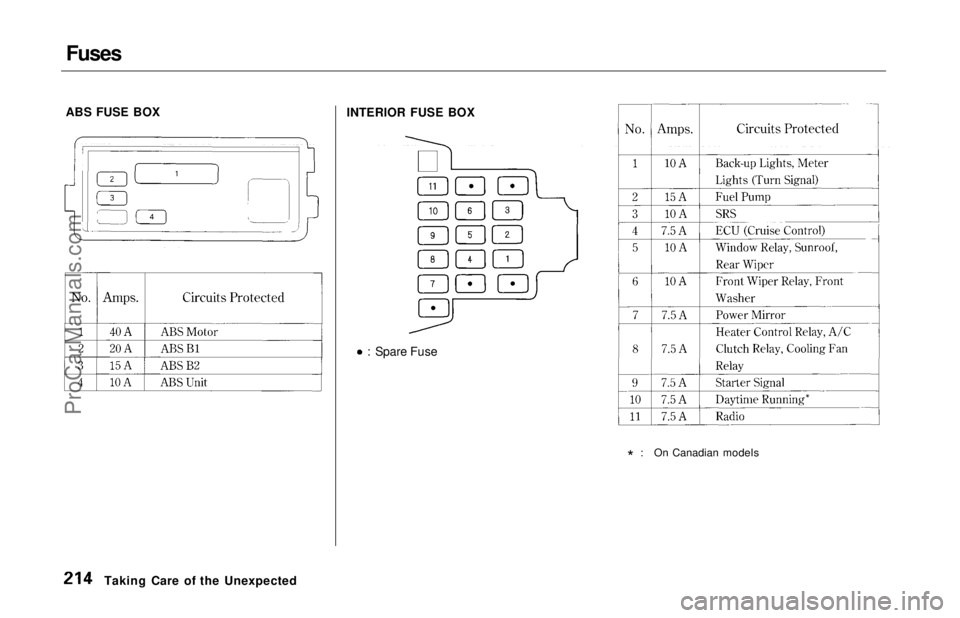

ABS FUSE BOX INTERIOR FUSE BOX
: Spare Fuse * : On Canadian models
Taking Care of the UnexpectedProCarManuals.comMain Menu Table of Contents s t

Towing

If your car needs to be towed, call a
professional towing service or, if you
belong to one, an organization that
provides roadside assistance. Never
tow your car behind another car with
just a rope or chain. It is very
dangerous.

Emergency Towing
There are three popular methods of towing a car:
Flat-bed Equipment — The operator
loads your car on the back of a truck.
This is the best way of trans- porting your Honda.
Wheel Lift Equipment — The tow
truck uses two pivoting arms that go
under the tires (front or rear) and lift
them off the ground. The other two
tires remain on the ground.
Sling-type Equipment — The tow

truck uses metal cables with hooks on the ends. These hooks go around
parts of the frame or suspension and
the cables lift that end of the car off
the ground. Your car's suspension and body can be seriously damaged
if this method of towing is attempted.
If your Honda cannot be transported
by flat-bed, it should be towed with
the front wheels off the ground. If due to damage, your car must be
towed with the front wheels on the
ground, do the following:
Release the parking brake.
Start the engine.
Shift to D4, then to N.
Turn off the engine.
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shift the transmission or start the
engine, your car must be transported

on a flat-bed.

It is best to tow the car no farther
than 50 miles (80 km), and keep
the speed below 35 mph (55

km/h).

Trying to lift or tow your car by the
bumpers will cause serious damage. The bumpers are not designed to
support the car's weight.
Taking Care of the Unexpected

NOTICE
NOTICEProCarManuals.comMain Menu Table of Contents s t

Technical Information

The diagrams in this section give you the dimensions and capacities of
your Honda, and the locations of the identification numbers. The expla-
nations of several electronic andmechanical systems on your Honda
are for the more technically-oriented
owner. Identification Numbers................. 218
Specifications................................. 220
Tire Information............................ 222
Tire Size Designation................ 222
Wheel Size Designation............ 222Tire Speed Ratings.................... 222
Tire Pressure Adjustment For High Speed Driving........ 223
DOT Tire Quality Grading....... 223 Treadwear.............................. 223
Traction.................................. 224
Temperature.......................... 224 Emission Controls......................... 225
The Clean Air Act...................... 225Crankcase Emission Control System..................................... 225
Evaporative Emission Control System..................................... 225
Exhaust Emission Controls...... 226 PGM-FI System..................... 226
Ignition Timing Control System................................. 226
Exhaust Gas Recirculation (EGR) System.................... 226
Three Way Catalytic Converter............................ 226
Replacement Parts..................... 226
Three Way Catalytic Converter... 227

Technical InformationProCarManuals.comMain Menu s t

Identification Numbers

Your car has several identifying numbers located in various places.
The Vehicle Identification Number (VIN) is the 17-digit number your
Honda dealer uses to register your
car for warranty purposes. It is also
necessary for licensing and insuring
your car. The easiest place to find the VIN is on a plate fastened to the
top of the dashboard. You can see it
by looking through the windshieldon the driver's side. It is also on the
Certification label attached to the
driver's doorjamb, and is stamped on
the engine compartment bulkhead.

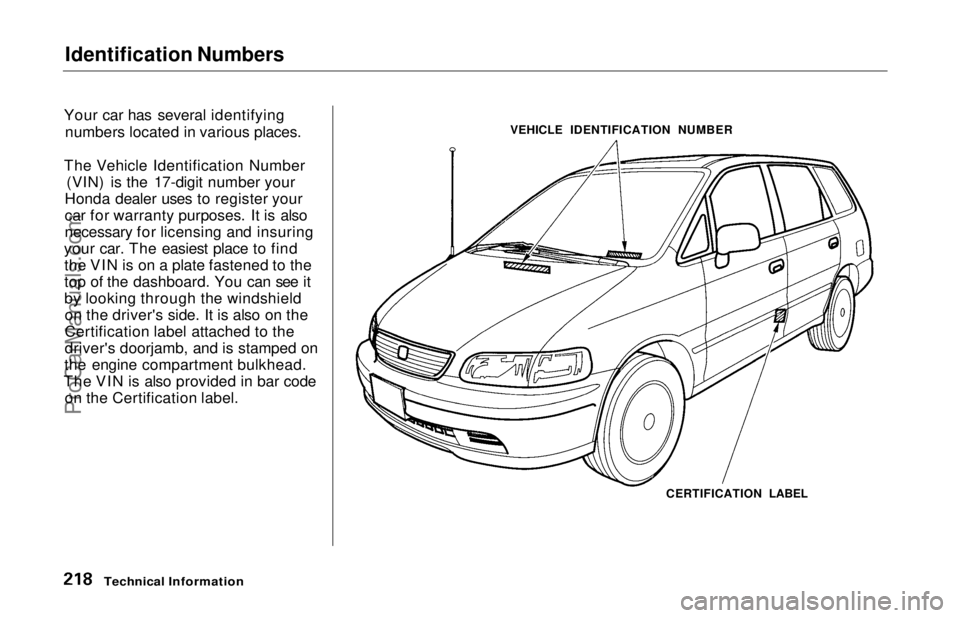

The VIN is also provided in bar code on the Certification label. VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABEL

Technical InformationProCarManuals.comMain Menu Table of Contents s t

Identification Numbers

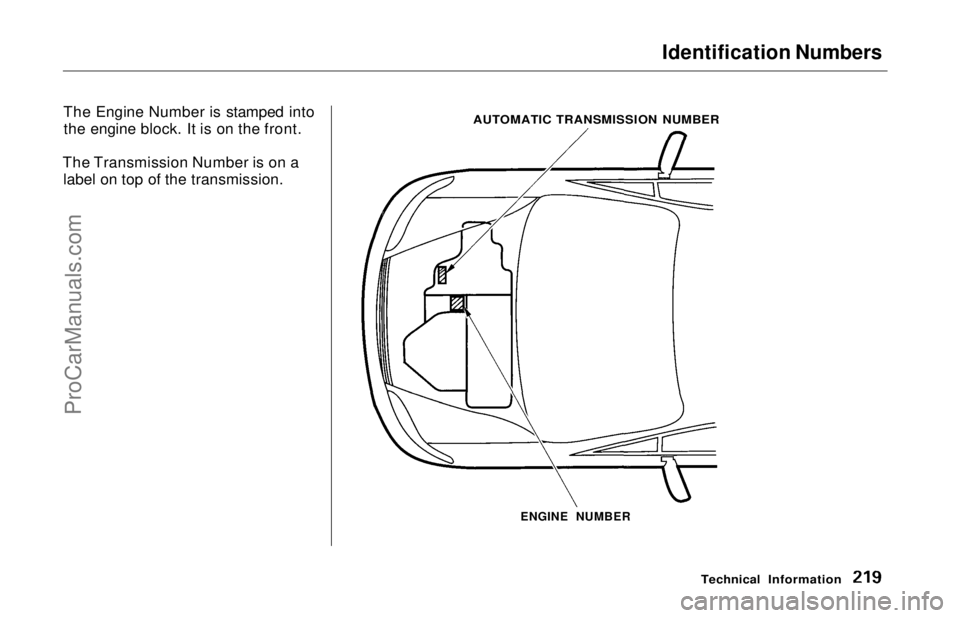

The Engine Number is stamped into the engine block. It is on the front.
The Transmission Number is on a label on top of the transmission.

Technical Information
AUTOMATIC TRANSMISSION NUMBER

ENGINE NUMBERProCarManuals.comMain Menu Table of Contents s t

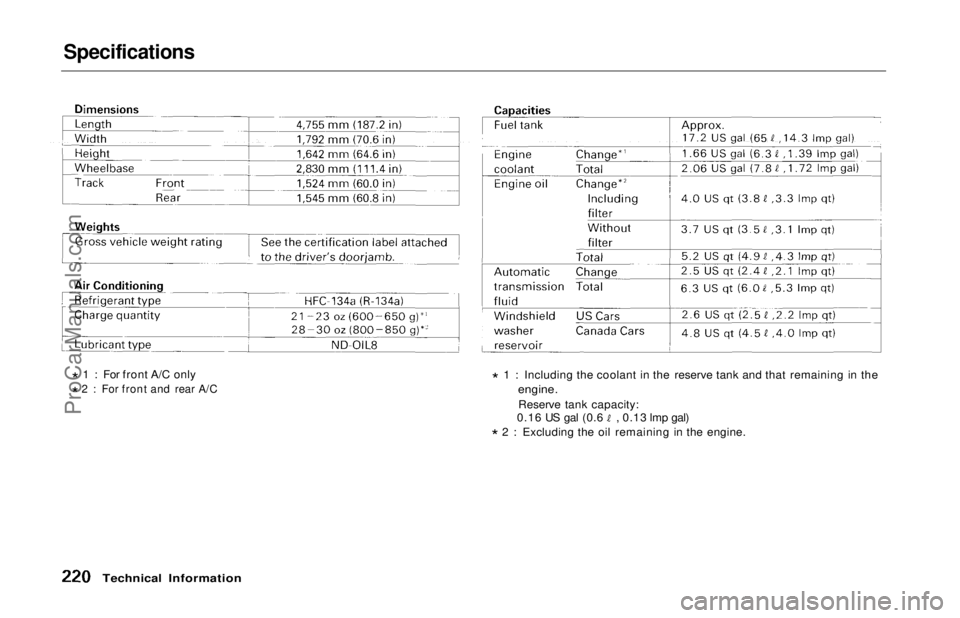

Specifications

* 1 : For front A/C only

* 2 : For front and rear A/C
*
1 : Including the coolant in the reserve tank and that remaining in the

engine.

Reserve tank capacity:
0.16
US gal
(0.6 , 0.13 lmp gal)

* 2 : Excluding the oil remaining in the engine.

Technical InformationProCarManuals.comMain Menu Table of Contents s t

Specifications

Technical Information

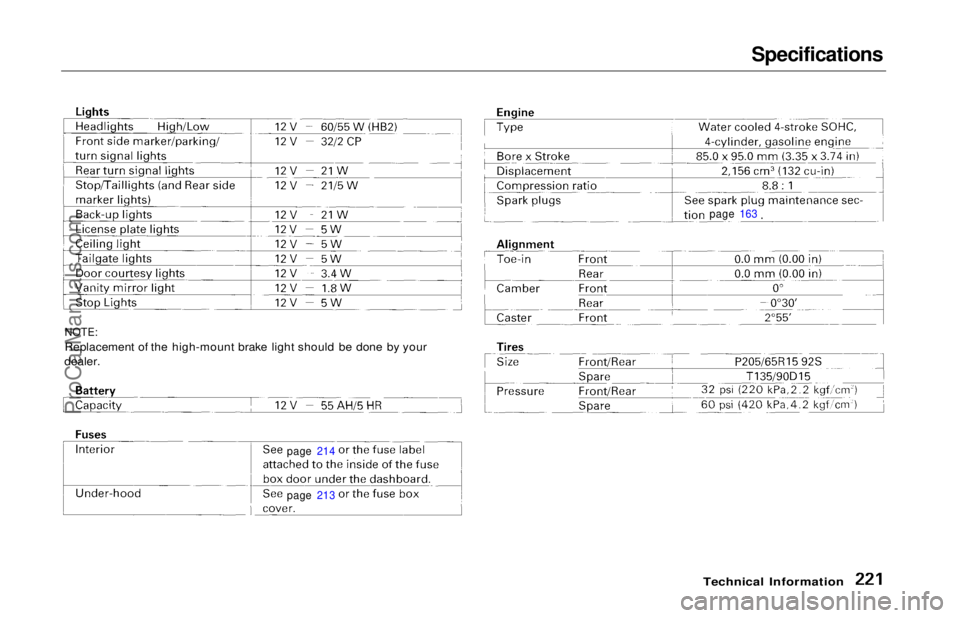

NOTE:

Replacement of the high-mount brake light should be done by your
dealer.

page 214
page 213 page 163ProCarManuals.comMain Menu Table of Contents s t

Tire Information

Tire Size Designation

A tire's sidewall is marked with a tire size designation. You will need this
information when selecting replace-
ment tires for your car. The follow-
ing explains what the letters and
numbers in the tire size designation

mean.

(Example tire size designation)
P205/65R15 92S
P —
Applicable vehicle type (tires
marked with the prefix "P" are
intended for use on passenger cars;
however, not all tires have this
marking).

205 —
Tire width in millimeters.
65 —
Aspect ratio. The tire's section
height as a percentage of its width.
R —
Tire construction code (Radial).
15 —
Rim diameter in inches. 92
—
Load Index, a numerical code

associated with the maximum load

the tire can carry.

S —
Speed Rating Symbol. See the

speed rating chart in this section for

additional information.

Wheel Size Designation

Wheels are also marked with important information that you needif you ever have to replace one. The
following explains what the letters and numbers in the wheel size
designation mean.
(Example wheel size designation)

15
x
6
JJ
15 —
Rim diameter in inches.
6 —
Rim width in inches.
JJ —
Rim contour designation.
Tire Speed Ratings

The chart below shows many of the
different speed ratings currently

being used for passenger car tires.

The speed rating symbol is part of the tire size designation on the
sidewall of the tire. This symbol

corresponds to that tire's designed

maximum safe operating speed.

Technical InformationProCarManuals.comMain Menu Table of Contents s t

Tire Information

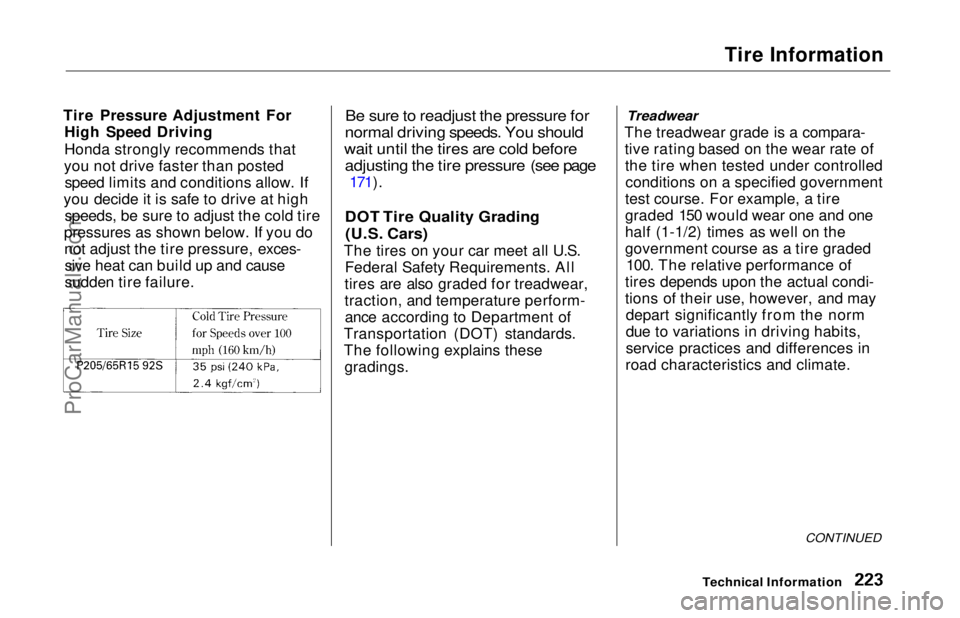

Tire Pressure Adjustment For High Speed Driving
Honda strongly recommends that
you not drive faster than posted speed limits and conditions allow. If
you decide it is safe to drive at high speeds, be sure to adjust the cold tire
pressures as shown below. If you do not adjust the tire pressure, exces-sive heat can build up and cause
sudden tire failure.
Be sure to readjust the pressure for

normal driving speeds. You should

wait until the tires are cold before adjusting the tire pressure (see page
171).

DOT Tire Quality Grading (U.S. Cars)

The tires on your car meet all U.S. Federal Safety Requirements. All
tires are also graded for treadwear,
traction, and temperature perform- ance according to Department of
Transportation (DOT) standards.
The following explains these gradings.
Treadwear

The treadwear grade is a compara- tive rating based on the wear rate ofthe tire when tested under controlledconditions on a specified government
test course. For example, a tire
graded 150 would wear one and one
half (1-1/2) times as well on the
government course as a tire graded 100. The relative performance of
tires depends upon the actual condi-
tions of their use, however, and may depart significantly from the norm
due to variations in driving habits,
service practices and differences in
road characteristics and climate.

CONTINUED
