Keys and Locks

ACCESSORY (I) — In this position, you can operate the audio systemand the cigarette lighter.
ON (II) — This is the normal key
position when driving. All features and accessories on the vehicle are
usable. Several of the lights on the
instrument panel come on as a test
when you turn the ignition switch
from ACCESSORY to ON (see page 51). START (III) — Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key.
The engine will not start if the Immobilizer System does not
recognize the key's coding (see page 68).
Each front door has a master door
lock switch. Either switch locks andunlocks all doors. Push the switch
down to lock all doors, and up to
unlock them. The lock tab on the
tailgate also locks and unlocks when
you use the master door lock switch.
Instruments and Controls Power Door Locks
MASTER DOOR LOCK SWITCHProCarManuals.comMain Menu Table of Contents s t

Keys and Locks

Each door also has a lock tab on the
top. When you push down the lock
tab on the driver's door, all the doors and the tailgate lock. Pulling up the
lock tab on the driver's door unlocks only that door. The lock tab on each
passenger's door locks and unlocks only that door. To lock any passenger's door when
getting out of the vehicle, push the
lock tab in and close the door. To
lock the driver's door, pull theoutside door handle and push the
lock tab in or push the master switch down. Release the handle, then close
the door.
All doors and the tailgate can be locked from the outside by using thekey in either front door. To unlockonly the driver's door from the
outside, turn the key and release it.
If you turn the key and hold it, all doors and the tailgate will unlock. All
four doors and the tailgate will unlock when you unlock the
passenger's door with the key. Remote Transmitter
U.S. EX model
You can lock and unlock your vehicle with the remote transmitter. When
you push the LOCK button, all doors and the tailgate lock.
When you push the UNLOCK button once, only the driver's door unlocks.
The remaining doors and the tailgate unlock when you push the button asecond time.
Instruments and Controls
LOCK TAB

CONTINUEDProCarManuals.comMain Menu Table of Contents s t

Keys and Locks

If you use the unlock feature on the
remote transmitter, and a door or the
tailgate is not opened within 20 seconds, all doors and the tailgate
will automatically lock. The remote transmitter will not work if the key isin the ignition.
As required by the FCC: This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly
approved by the party responsible for compliance could void the user's
authority to operate the equipment. Childproof Door Locks
The childproof door locks are designed to prevent children seated
in the rear from accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position, the door cannot be opened from the inside
regardless of the position of the lock
tab. To open the door, pull the lock
tab up and use the outside door

handle.
Tailgate
Use your key to lock and unlock the
tailgate. (On the U.S. EX model, your
remote transmitter will also lock and
unlock the tailgate.)
To open the tailgate, pull the handle, then lift up the tailgate.
Instruments and Controls
LEVERProCarManuals.comMain Menu Table of Contents s t

Keys and Locks

Glove Box
Open the glove box by pulling the
bottom of the handle. Close it with a
firm push. Lock or unlock the glove
box with the master key.
Instruments and Controls

An open glove box can cause
serious injury to your passenger
in a crash, even if the
passenger is wearing the seat

belt.

Always keep the glove box
closed while driving.ProCarManuals.comMain Menu Table of Contents s t

Seats
Passenger Seating

Six-passenger model
The six-passenger model has separate seats with armrests for two
front passengers, separate seats with armrests for two passengers in the
second row, and a bench seat for two
passengers in the third row.
For greater cargo capacity, the seats
in the second row can be removed, and the bench seat in the third row
can be folded into the floor. Seven-passenger model
The seven-passenger model has separate seats with armrests for two
front passengers, a bench seat for three passengers in the second row,
and a bench seat for two passengers
in the third row.
For greater cargo capacity, the seat
in the second row can be folded out
of the way in sections, and the bench
seat in the third row can be folded
into the floor.
Seat Adjustments

See pages 10 — 11 for important safety
information and warnings about how to

properly position seats and seat-backs.
Make all seat adjustments before
you start driving.
To adjust the seat forward and backward, pull up on the lever under
the seat cushion's front edge. Move
the seat to the desired position andrelease the lever. Try to move theseat to make sure it is locked in

position.

Instruments and ControlsProCarManuals.comMain Menu Table of Contents s t

Seats

Adjust the seat-back before you start driving. The seat-backs should be in
an upright position for you and your
passengers to get the most protec-
tion from the seat belts.
To change the seat-back angle of the front seats, or the second-row seats
in the six passenger model, pull upon the lever on the outside of the
seat bottom. To adjust the seat-back
angle of the second seat in the seven- passenger model, pull up on the lever
on the side of the seat-back.
Move the seat-back to the desired
position and release the lever. Let
the seat-back latch in the new
position.
The front seats can be reclined to a fully flat position. Driver's Seat Power Height
Adjustment

U.S. EX model only

The height of your driver's seat is power adjustable. Pull up on theswitch to raise the seat. Push it down
to lower the seat.
Instruments and ControlsProCarManuals.comMain Menu Table of Contents s t

Seats

Armrests
To adjust the front seat armrests, push the button on the front. Head Restraints

See page 12 for important safety
information and a warning about how to

properly position the head restraints.

The front head restraints help protect you and your passenger from
whiplash and other injuries. They are most effective when you adjust themso the back of the occupant's head
rests against the center of the
restraint. A taller person should
adjust the restraint as high as

possible.
The head restraints adjust for height.
You need both hands to adjust the restraint. Do not attempt to adjust it
while driving. To raise it, pull upward.
To lower the restraint, push the release button sideways and push
the restraint down.
To remove a head restraint for cleaning or repair, pull it up as far as
it will go. Push the release button
and pull the restraint out of the seat-
back.
Instruments and Controls
KNOBProCarManuals.comMain Menu Table of Contents s t

Seats

Third Seat Access Six-passenger model
To get into or out of the third row seat, walk between the second row

seats.
Seven-passenger model
Pull the seat-back angle adjustment
lever on the second row seat to tilt
the seat-back forward. Pull the lock
release lever and pivot the seat up out of the way. Move the second seat back into
place by pivoting the seat down. Make sure it locks to the floor. Pull
the seat-back angle adjustment lever
forward and push the seat-back to
the desired position, then release the
lever. Make sure the seat is securely
locked in place.

Instruments and Controls

LOCK RELEASE LEVERProCarManuals.comMain Menu Table of Contents s t

Seats

Removing the Second Seats in the

Six-Passenger Model

Both seats can be removed to give
more cargo capacity.
To remove a seat, unlock the seat from the floor by pulling both lock
release levers up at the same timeand pulling up on the rear of the seat. Unhook the front of the seat from
the floor by pulling it back slightly,
then pivoting it upward.
Always remove an unlocked seat from the vehicle before driving. A seat that is not locked in place could
fly around and cause injury in a sudden stop or crash. To reinstall a seat, hook the front of
the seat to the floor, then push the
back into the locks. Make sure both
the front and the back of the seat aresecurely fastened down before
driving.
Folding the Second Seats in the

Seven-Passenger Model

The left and right halves of the second seat can be folded up
separately to create more cargo

space.

Instruments and Controls LOCK RELEASE LEVERProCarManuals.comMain Menu Table of Contents s t

Seats

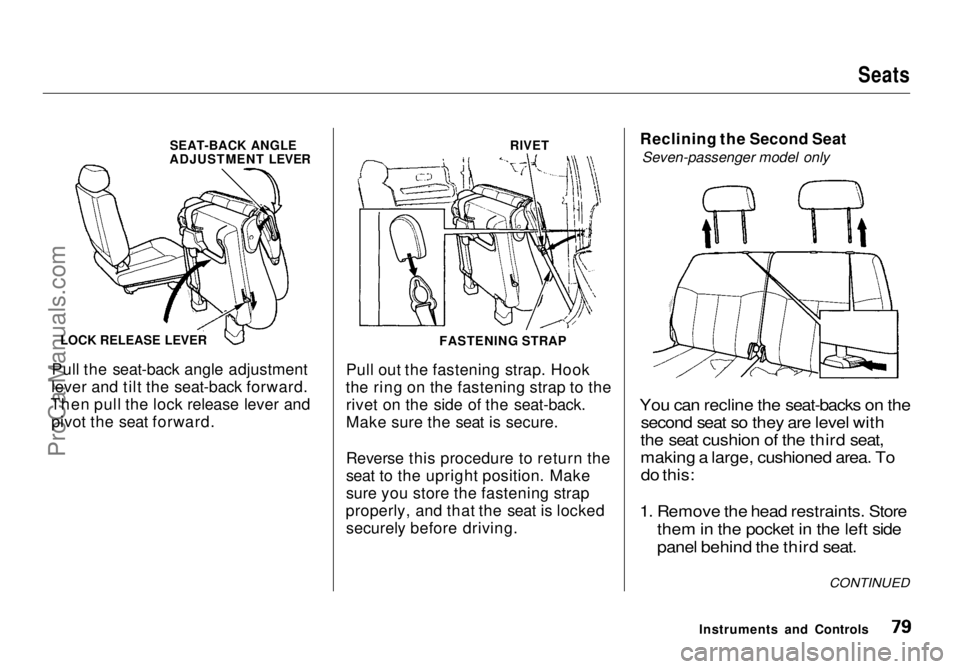

Pull the seat-back angle adjustment
lever and tilt the seat-back forward.
Then pull the lock release lever and pivot the seat forward. Pull out the fastening strap. Hook
the ring on the fastening strap to the rivet on the side of the seat-back.
Make sure the seat is secure.
Reverse this procedure to return the
seat to the upright position. Make
sure you store the fastening strap
properly, and that the seat is locked securely before driving. Reclining the Second Seat
Seven-passenger model only

You can recline the seat-backs on the second seat so they are level with
the seat cushion of the third seat,
making a large, cushioned area. To
do this:

1. Remove the hea d restraints. Store
them in
the pocket in the left side
panel behind the third seat.

Instruments and Controls
LOCK RELEASE LEVER
SEAT-BACK ANGLE
ADJUSTMENT LEVER
FASTENING STRAPRIVET
