This could result in
serious neck injuries during a crash.
This could cause
very serious injuries during a crash.
It also increases the chance that the
child will slide under the belt in a
crash and be injured.
If the shoulder part of the belt rests
over the child’s collarbone and
against the center of the chest, as
shown, the child is large enough to
wear the seat belt.
However, if the belt touches or
crosses the child’s neck, the child
needs to use a booster seat.
To determine if a lap/shoulder belt
properly f its a child, have the child
put on the seat belt. Follow the
instructions on page . Then check
how the belt f its. Devices intended to improve
occupant comf ort or reposition the
shoulder part of a seat belt, severely
compromise the protective capability
of the seat belt and increase the
chance of serious injury in a crash.
If they do, they could
be very seriously injured in a crash.
15
Driver and Passenger Saf ety
Protecting Children
Do not let a child wear a seat belt across t he neck.
Do not let a child put the shoulderpart of a seat belt behind t he back orunder t he arm.
Checking Seat Belt Fit
Do not put any accessories on a seatbelt.
T wo children should never use t hesame seat belt .
42
Page 42 of 363
CONT INUED
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
ages 12 and under be properly
restrained in a back seat.
The back seat is the saf est place f or
a child of any age or size.
In addition, the passenger’s airbag
poses serious risks to children. If the
seat is too far forward, or the child’s
head is thrown f orward during a
collision, or the child is unrestrained
or out of position, an inf lating airbag
can kill or seriously injure the child.
Of course, children vary widely. And
while age may be one indicator of
when a child can saf ely ride in the
f ront, there are other important
f actors you should consider.
A child may continue using a booster
seat until the tops of the ears are
even with the top of the seat-back. A
child of this height should be tall
enough to use the lap/shoulder belt
without a booster.
If a child needs a booster seat, we
recommend choosing a style that
allows the child to use the lap/
shoulder belt directly, without a
shield, as shown.
Whichever style you select, f ollow
the booster seat maker’s instructions. Driver and Passenger Saf ety
Protecting Children
When Can a Larger Child Sit in Front
Using a Boost er Seat
43
Page 43 of 363
If you decide that a child can saf ely
ride up f ront, be sure to:Caref ully read the owner’s manual
and make sure you understand all
seat belt instructions and all saf ety
inf ormation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the f loor.
Check that the child’s seat belt is
properly positioned and secured.
Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly.
Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it over the hips, chest, and
shoulder (see pages and ). If
the seat belt does not f it properly,
the child should not sit in the f ront.
To saf ely ride in f ront, a child must
be able to f ollow the rules, including
sitting properly and wearing the seat
belt properly throughout a ride.
15 41
Driver and Passenger Saf ety
Protecting Children
Physical Size Maturity
44
Page 44 of 363
CONT INUED
Your vehicle has attachment points
for a tether-style child seat to be
installed on the second or third row
as shown.
Since a tether can provide additional
security, we recommend using a
tether whenever one is required or
available.Each second row bucket seat has a
tether attachment point on the
underside of the seat cushion.Lift the head restraint, then route
the tether strap over the seat-back
between the legs of the head
restraint.
Second Seat Installation:
Driver and Passenger Saf ety
Protecting Children
Using Child Seats with T ethers
45
TTEETTHHEERRAATTTTAACCHHMMEENNTTPPOOIINNTT
Page 45 of 363
Third Seat Installation:
Attach the tether strap hook to the
tether attachment point and tighten
the strap according to the child seat
marker’s instruction. Make sure the
strap is not twisted.There are three attachment points
on the tailgate sill. Select the attach-
ment point you want to use, and
remove the plug with a small f lat-
tipped screwdriver or f ingernail f ile.Install the anchor plate and
mounting hardware. The hardware is
available f or purchase f rom your
Honda dealer (part number 82410-
SE3-C01). For Canadian models, the
hardware is supplied with the vehicle.
If you are not sure how to install the
tether, or you need mounting
hardware, contact your Honda dealer.
To attach the tether to the child seat,
f ollow the child seat maker’s
instructions.
If a torque wrench was not used, see
your Honda dealer as soon as
possible to verif y proper installation.
When installing tether hardware,
make sure the toothed washer is on
the bottom of the bolt. Tighten the
bolt to:
Driver and Passenger Saf ety
Protecting Children
46 16 lbf·ft (22 N·m , 2.2 kgf·m)
Page 46 of 363
CONT INUED

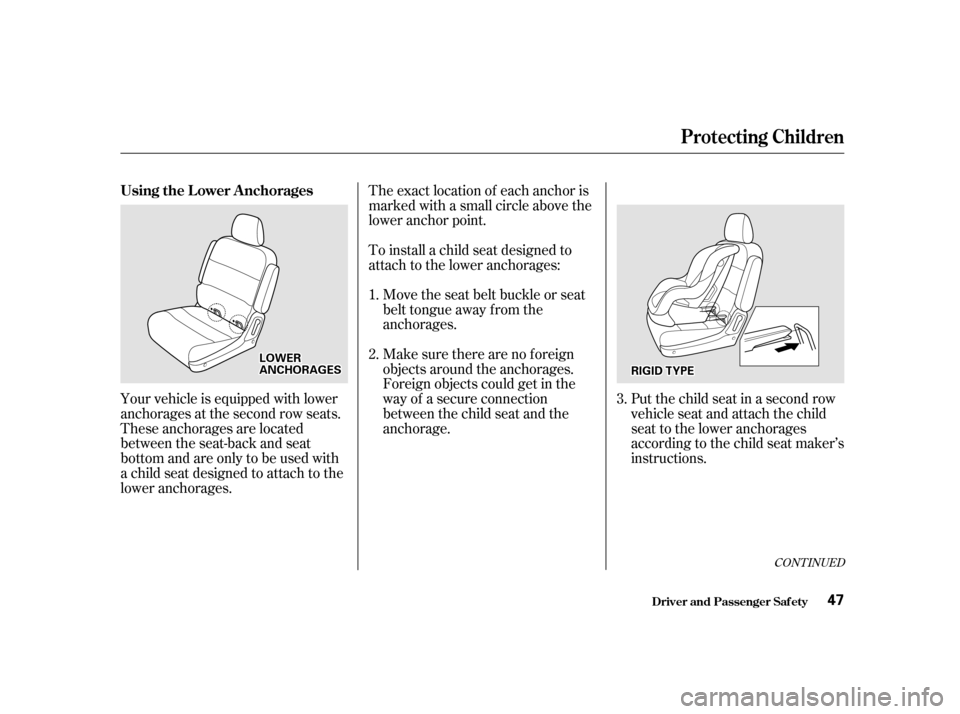

The exact location of each anchor is
marked with a small circle above the
lower anchor point.
To install a child seat designed to
attach to the lower anchorages:Move the seat belt buckle or seat
belt tongue away f rom the
anchorages.
Make sure there are no f oreign
objects around the anchorages.
Foreign objects could get in the
way of a secure connection
between the child seat and the
anchorage.
Your vehicle is equipped with lower
anchorages at the second row seats.
These anchorages are located
between the seat-back and seat
bottom and are only to be used with
a child seat designed to attach to the
lower anchorages. Put the child seat in a second row
vehicle seat and attach the child
seat to the lower anchorages
according to the child seat maker’s
instructions.
1. 2.
3.
Protecting Children
Driver and Passenger Saf ety
Using the L ower Anchorages
47
RRIIGGIIDDTTYYPPEELLOOWWEERRAANNCCHHOORRAAGGEESS
Page 47 of 363
Follow the child seat maker’s
instructions f or any additional
advice on adjusting or tightening
the fit.Push and pull the child seat
f orward and f rom side to side to
verif y that it is secure enough to
stay upright during normal driving
maneuvers.

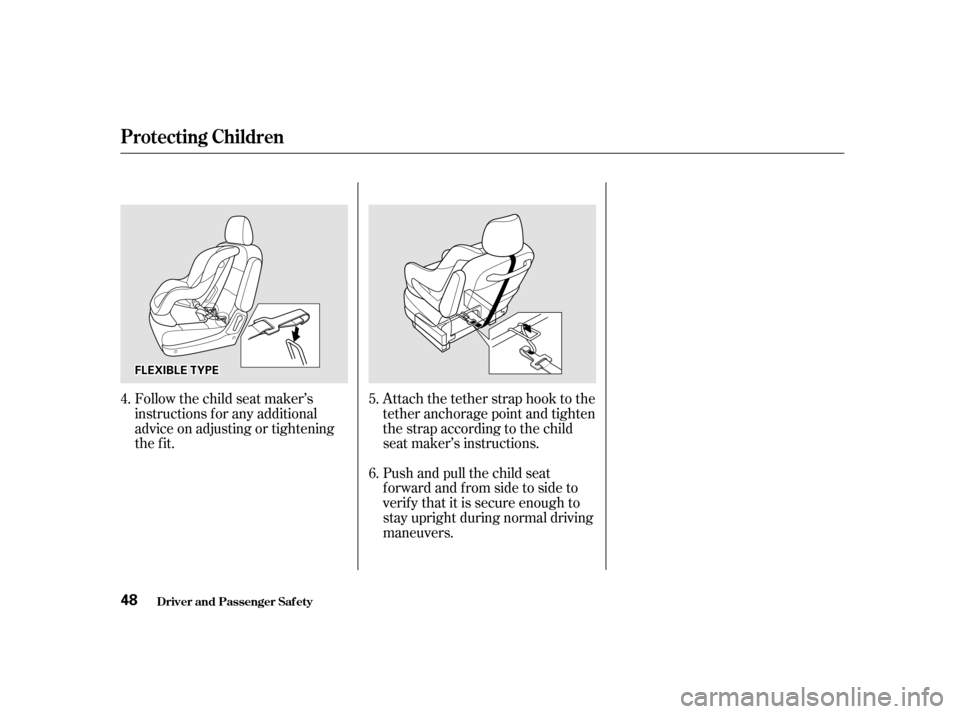

Attach the tether strap hook to the
tether anchorage point and tighten
the strap according to the child
seat maker’s instructions.
4.
5. 6.
Protecting Children
Driver and Passenger Saf ety
48
FFLLEEXXIIBBLLEETTYYPPEE
Page 48 of 363
CONT INUED
To unlock the belt, push the red
PRESSbuttononthebuckle.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched.
Guide the belt across your body so
that it retracts completely. After
exiting the vehicle, be sure the belt
is out of the way and will not get
closed in the door.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move f reely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.

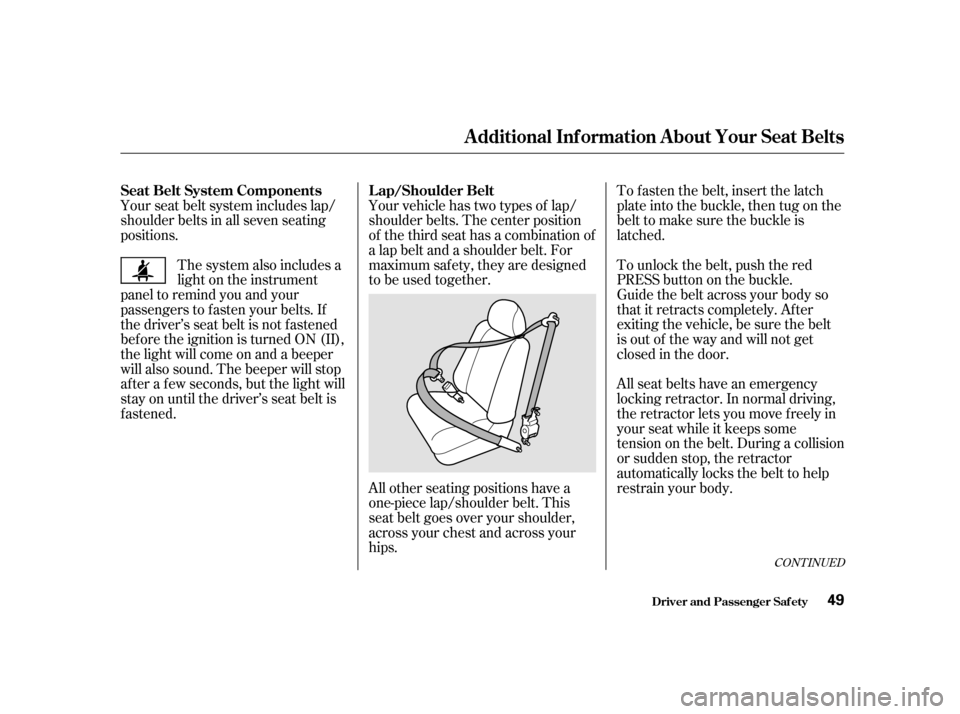

Your vehicle has two types of lap/
shoulder belts. The center position
of the third seat has a combination of
a lap belt and a shoulder belt. For
maximum saf ety, they are designed
to be used together.
All other seating positions have a
one-piece lap/shoulder belt. This
seat belt goes over your shoulder,
across your chest and across yourhips.
Your seat belt system includes lap/
shoulder belts in all seven seating
positions.
The system also includes a
light on the instrument
panel to remind you and your
passengers to f asten your belts. If
the driver’s seat belt is not f astened
before the ignition is turned ON (II),
the light will come on and a beeper
will also sound. The beeper will stop
af ter a f ew seconds, but the light will
stay on until the driver’s seat belt is
f astened.
Seat Belt System Components L ap/Shoulder Belt
Additional Inf ormation About Your Seat Belts
Driver and Passenger Saf ety
49
Page 49 of 363

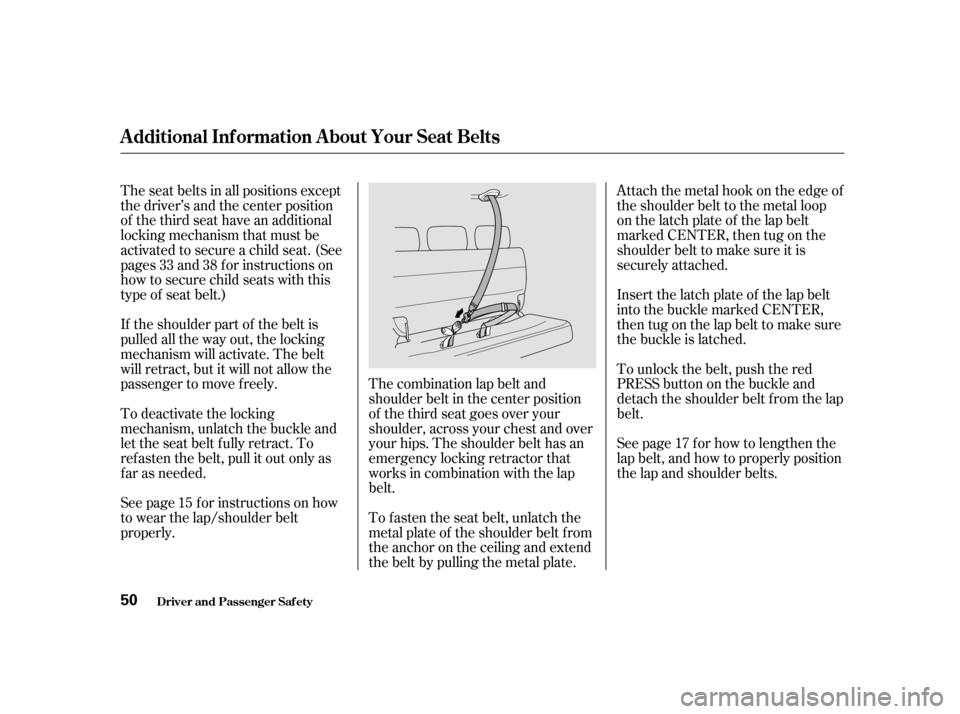

The combination lap belt and
shoulder belt in the center position
of the third seat goes over your
shoulder, across your chest and over
your hips. The shoulder belt has an
emergency locking retractor that
works in combination with the lap
belt.
The seat belts in all positions except
the driver’s and the center position
of the third seat have an additional
locking mechanism that must be
activated to secure a child seat. (See
pages and f or instructions on
how to secure child seats with this
type of seat belt.)
If the shoulder part of the belt is
pulled all the way out, the locking
mechanism will activate. The belt
will retract, but it will not allow the
passenger to move f reely.
To deactivate the locking
mechanism, unlatch the buckle and
let the seat belt f ully retract. To
ref asten the belt, pull it out only as
f ar as needed.
See page f or instructions on how
to wear the lap/shoulder belt
properly.
To f asten the seat belt, unlatch the
metal plate of the shoulder belt from
the anchor on the ceiling and extend
the belt by pulling the metal plate.Attach the metal hook on the edge of
the shoulder belt to the metal loop
on the latch plate of the lap belt
marked CENTER, then tug on the
shoulder belt to make sure it is
securely attached.
Insert the latch plate of the lap belt
into the buckle marked CENTER,
then tug on the lap belt to make sure
the buckle is latched.
To unlock the belt, push the red
PRESS button on the buckle and
detach the shoulder belt from the lap
belt.
See page f or how to lengthen the
lap belt, and how to properly position
the lap and shoulder belts.
15 17
33 38
Additional Inf ormation About Your Seat Belts
Driver and Passenger Saf ety
50
Page 50 of 363
For saf ety, you should check the
condition of your seat belts regularly.
Pull each belt out f ully and look f or
f rays, cuts, burns, and wear. Check
that the latches work smoothly and
that the lap/shoulder belts retract
easily. Any belt not in good condition
or not working properly will not
provide good protection and should
be replaced as soon as possible.
Honda provides a lif etime warranty
on seat belts. Honda will repair or
replace any seat belt component that
f ails to f unction properly during
normal use. Please see yourbooklet f or
details. If a seat belt is worn during a crash,
you should have your dealer inspect
the belt, and replace it if necessary.
A belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors f or damage and replace
them if needed.
For inf ormation on how to clean your
seat belts, see page .
297
Honda
Warranty Inf ormation
Seat Belt Maintenance
U.S. Models
Additional Inf ormation About Your Seat Belts
Driver and Passenger Saf ety 51
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly whenneeded.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
