Your vehicle has a compact spare
tire that takes up less space. Use this
sparetireasatemporaryreplace-
ment only. Get your regular tire
repaired or replaced and put it back
on your vehicle as soon as you can.Thecompactsparetirehasashorter
tread lif e than a regular tire. Replace
it when you can see the tread wear
indicator bars. The replacement
should be the same size and design
tire, mounted on the same wheel.
Thecompactsparetireisnot
designed to be mounted on a regular
wheel, and the compact wheel is not
designed f or mounting a regular tire.
Check the inf lation pressure of the
compact spare tire every time you
check the other tires. It should be
inf lated to:
This tire gives a harsher ride and
less traction on some road sur-
f aces than the regular tire. Use
greater caution while driving on
this tire. Do not exceed 50 mph (80 km/h)
under any circumstances.
Follow these precautions whenever
you are using the compact spare tire: Do not mount snow chains on the
compact spare.
Do not use the compact spare tire
if you are towing a trailer.
The wheel of the compact spare
tire is designed especially to f it
your vehicle. Do not use your
sparetireonanothervehicle
unlessitisthesamemakeand
model.
Turn off the Traction Control
System (see page ). Driving
withthecompactsparetiremay
activate the TCS.
257
Compact Spare Tire
T aking Care of t he Unexpect ed338
I IN
ND DI
ICCA A T
TO
OR R L
LOOC CAA T
TI
IOON N M
MA
AR
RKK
T
T R
RE EA
A D
D W
WE EA
A R
R I
INND DI
ICCA A T
TO
OR R B
BAA R
R
60 psi (420 kPa , 4.2 kgf/cm)

If you have a f lat tire while driving,
stop in a saf e place to change it.
Stopping in traf f ic or on the shoulder
of a busy road is dangerous. Drive
slowly along the shoulder until you
gettoanexitoranareatostopthat
is far away from the traffic lanes.Turn on the hazard warning lights
and turn the ignition switch to
LOCK (0). Have all the
passengers get out of the vehicle
while you change the tire.
Park the vehicle on f irm, level and
non-slippery ground away f rom
traffic. Put the transmission in
Park. Apply the parking brake.
2.
1.
CONT INUED
Changing a Flat T ire
T aking Care of t he Unexpect ed339
S SP PA
A R
REE T
TI
IRRE E
J
JA
A C
CKK
T
T O
OO OLLSS V
V
I
INNY YLL B
BAA G
G
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.

Open the tailgate.Take the tools out of the storage
compartment.The spare tire is stored under the
f loor between the f irst and second
row of seats. If the f ront seats are
adjusted to the rear-most position,
move the seats forward slightly
and adjust the seat-backs to an
upright position (see page ).
Lift up the center table (see page
).
Turn the jack’s end bracket
counterclockwise to loosen it, then
remove the jack.
Remove the cargo net.
Thetoolsandjackarebehinda
cover in the cargo area on the
driver’s side. Remove the cover by
turning the handle
counterclockwise, then pulling out
the cover.
3.
4.
5.
6.7.
118 99
Changing a Flat T ire
T aking Care of t he Unexpect ed340
C CO
OV VE
ER
R

CONT INUED
Open either of the rear sliding
doors. Pull the f loor carpet up by
lif ting up on the edge, then raise
the f loor lid by pulling up on the
handle. To keep the f loor carpet
and lid out of the way, pull out the
hook on the back of the f loor lid
and attach it into the seat-back
handle on the driver’s seat.Remove the spare tire basket.
Unscrew the wing bolt and take
the spare tire out of its well. After
you have removed the spare tire,
screw this wing bolt back into
place.
Loosen the f ive wheel nuts 1/2
turn with the wheel wrench. If you are changing a rear tire,
close the sliding door. Then turn
of f the sliding door MAIN switch.
8.
9.
11.
12.
10.On EX and EX-L models
On EX and EX-L models
Changing a Flat T ire
T aking Care of t he Unexpect ed341
W WHHE
EE
EL
L N
NUUTTS
S
H
H O
OO OKK
H
HA
AN
ND DL
LEE
W
WIINNG G B
BOOL LTT
S
SP
PA
A R
REE T
TI
IRRE E
B
BA A S
SKKEET
T
S
SP PA
A R
REE T
TI
IRRE E

ÚUse the extension and wheel
wrench as shown to raise the
vehicle until the f lat tire is of f the
ground. Remove the wheel nuts and f lat
tire. Temporarily place the f lat tire
on the ground with the outside
surf ace of the wheel f acing up.
You could scratch the wheel if you
putitfacedown.
Locate the jacking point nearest
thetireyouneedtochange.Itis
pointed to by a mark molded
into the underside of the body.
Place the jack under the jacking
point. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
13.
14. 15.
Changing a Flat T ire
T aking Care of t he Unexpect ed342
J JAA C
CKKIINNG G P
PO
OI INNT T E
E
X
X T
TE
EN
NS SIIOON N
W
WHHE
EE
EL
L
W
WR REEN
NC CHH

Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel wrench
until the wheel is f irmly against
the hub. Do not try to tighten
them f ully.
Bef ore mounting the spare tire,
wipeanydirtoff themounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully,itmaybehotfrom
driving.
Do not attempt to forcibly pry the
wheel cover of f with a screwdriver or
other tool. The wheel cover cannot
be removed without f irst removing
the wheel nuts. 16.
17.
CONT INUED
On LX model
Changing a Flat T ire
T aking Care of t he Unexpect ed343
B BRRAA K
KEE H
HU
UB B
W
WH
HE
EE
EL
L
C
CO OV VE
ER
R

Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:
Lower the vehicle to the ground
and remove the jack.
Put the flat tire in the supplied
vinyl bag. This bag is stored in the
rear compartment on the driver’s
side panel in the third row. Knot
the top of the vinyl bag.
18.
19.
20.
Changing a Flat T ire
T aking Care of t he Unexpect ed344
80 lbf·ft (108 N·m , 11 kgf·m)

CONT INUED

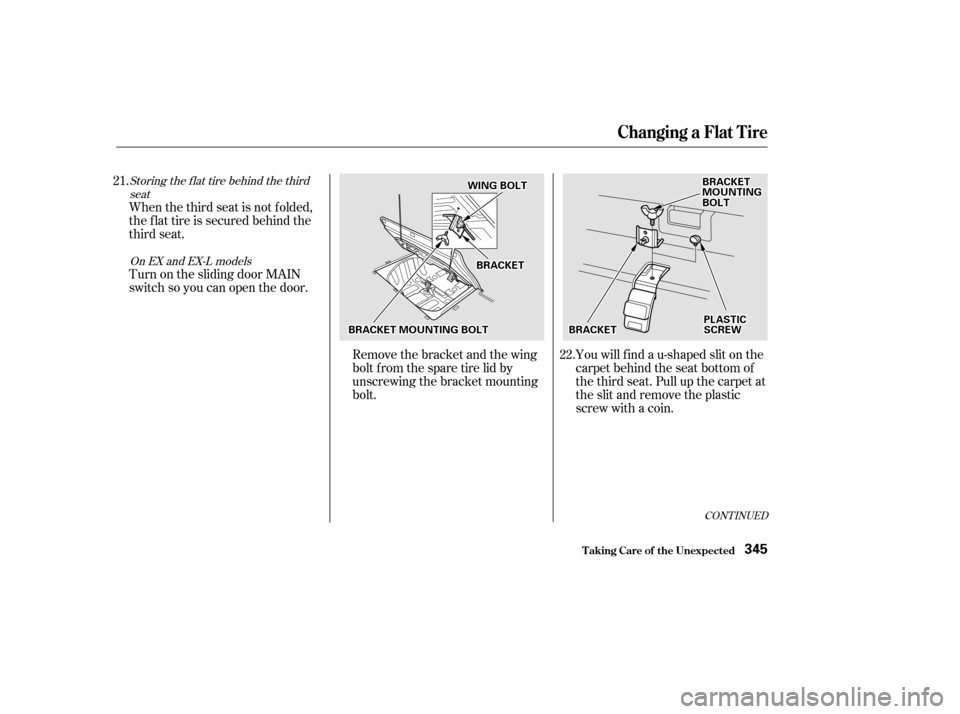

You will f ind a u-shaped slit on the
carpet behind the seat bottom of
the third seat. Pull up the carpet at
theslitandremovetheplastic
screw with a coin.
When the third seat is not f olded,
the f lat tire is secured behind the
third seat.
Remove the bracket and the wing
bolt f rom the spare tire lid by
unscrewing the bracket mounting
bolt.
Turn on the sliding door MAIN
switch so you can open the door.
21.
22.
Storing the f lat tire behind the thirdseat
On EX and EX-L models
Changing a Flat T ire
T aking Care of t he Unexpect ed345
B BRRAA C
CKKEET
T P
P
L
LAA S
STTI
ICC
S
SC CRREEW
W
B
BR
RAA C
CKKEET
T
M
M O
OUUNNTTI
INNG G
B
BO OL LTT
B
BR RAA C
CKKEET
T M
M O
OUUNNTTI
INNG G B
BOOL LTT
B
BR
RAA C
CKKEET
T
W
WI
INNG G B
BOOL LTT

Storing the Flat Tire on the Floor
When the third seat is f olded, the
f lat tire is secured to the f loor on
topof thefoldedseat.Pullupthe
carpet on the attachment point and
remove the plastic screw as
described in the previous
procedure.
Remove the wing bolt from the
bracket that is attached to the
spare tire lid.
Install the flat tire on the bracket
with the inside of the wheel facing
toward you. Put the tire mounting
wing bolt in the attachment point
through one of the f ive wheel nut
holes and the bracket as shown.
Poke holes in the vinyl bag. Secure
the f lat tire by tightening the wing
bolt.
Adjust the seat-back of the third
seat to the upright position (see
page ). Install the bracket and
the bracket mounting bolt to the
attachment point as shown, and
tighten the bolt. Make sure the
bracket is securely locked.
23.
100
Changing a Flat T ire
T aking Care of t he Unexpect ed346
B BR RAA C
CKKEET
T
T
T I
IRRE E M
M O
OUUNNTTI
INNG G W
WIINNG G B
BOOL LTT

Unclip the hook f rom the seat
back handle on the driver’s seat
and lower the f loor lid and the
carpet.
Make sure to adjust the f ront
seats properly bef ore you start
driving (see page ).
Store the jack in its holder. Turn
the jack’s end bracket clockwise to
lock it in place. Store the tools.
Replace the cover.
Close the tailgate.
Store the plastic screw in the spare
tire well.
Store the wheel cover in the spare
tire well. Make sure it will not get
scratched or damaged.
Storethesparetirebasketinthe
spare tire well.
Place the flat tire face down on the
attachment point. Put the tire
mountingwingboltinthe
attachment point through one of
the f ive wheel nut holes as shown.
Poke holes in the vinyl bag. Secure
the f lat tire by tightening the wing
bolt. 24.
25.
26.
27.
99On LX modelOn EX and EX-L models
Changing a Flat T ire
T aking Care of t he Unexpect ed347
T TI
IRRE E M
M O
OUUNNTTI
INNG G W
WIINNG G B
BOOL LTT
A
A T
TT
TA
A C
CHH M
M E
EN
NT T P
PO
OI INNT T
Loose items can fly around the
interiorinacrashandcould
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
