Page 260 of 296

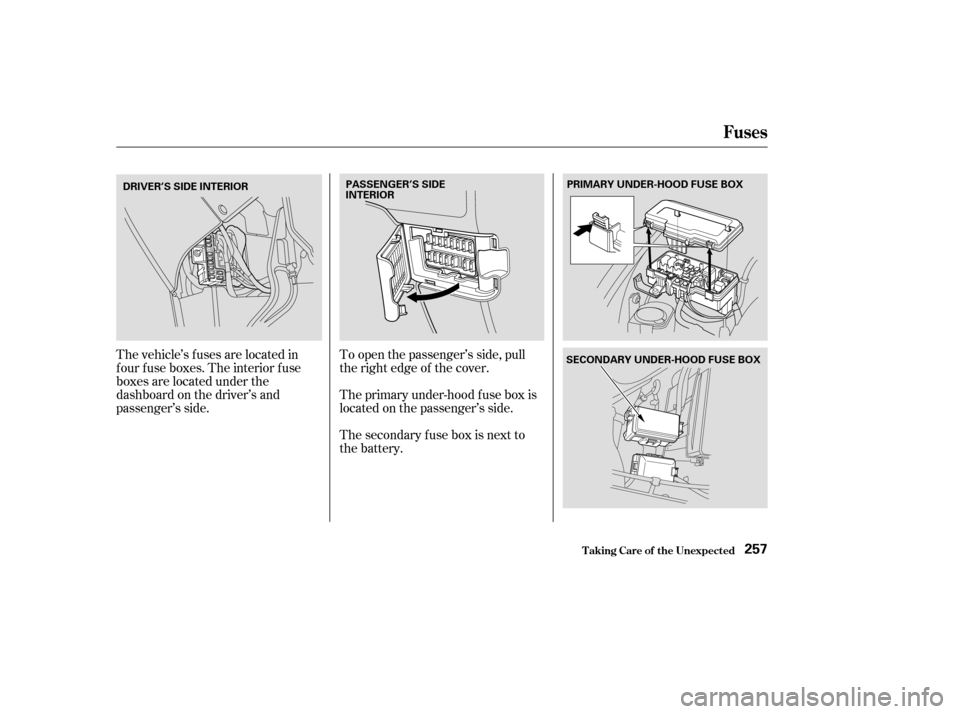

The vehicle’s f uses are located in
f our f use boxes. The interior f use
boxes are located under the
dashboard on the driver’s and
passenger’s side.To open the passenger’s side, pull
the right edge of the cover.
The primary under-hood f use box is
locatedonthepassenger’sside.
The secondary f use box is next to
the battery.
Fuses
T aking Care of t he Unexpect ed257
DRIVER’S SIDE INTERIOR
PASSENGER’S SIDE
INTERIORPRIMARY UNDER-HOOD FUSE BOX
SECONDARY UNDER-HOOD FUSE BOX
Page 261 of 296
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each f use with the f use
puller provided in the primary
under-hood f use box.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that device. The diagram f or
theinteriordriver’ssidefuseboxis
on the kick panel below the f use box.
Check those f uses f irst, but check all
the f uses bef ore deciding that a
blown f use is the cause. Replace any
blown f uses, and check if the device
works.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover f rom the f use
box. Check each of the large f uses in
the primary under-hood f use box
by looking through the top at the
wire inside. Removing these f uses
requires a Phillips-head
screwdriver.
1.
2. 3.
4.
260 261
Fuses
T aking Care of t he Unexpect ed

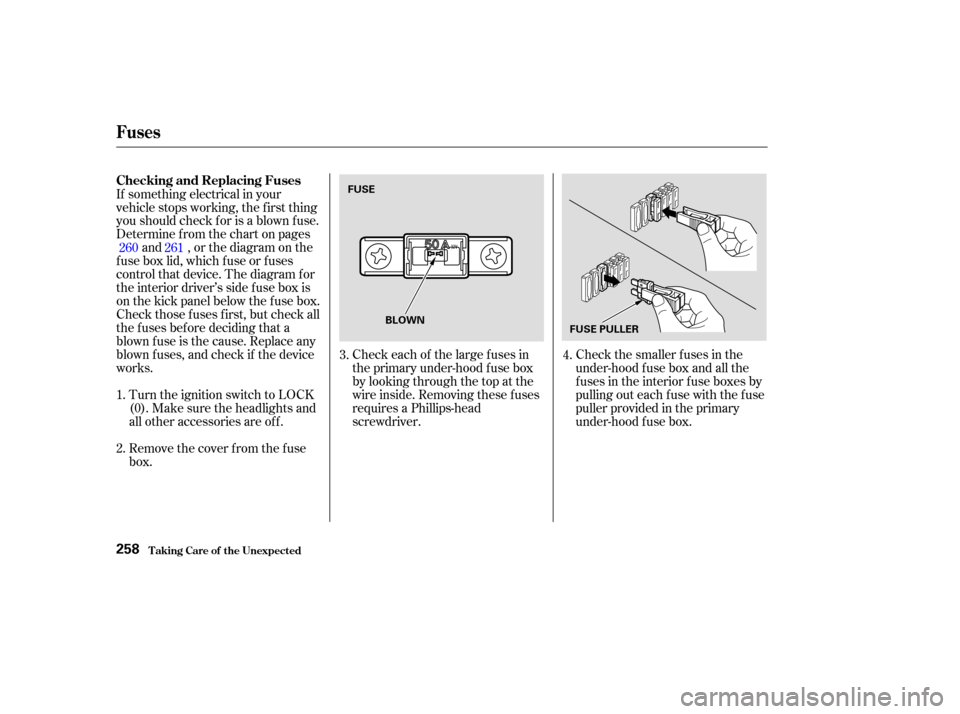

Checking and Replacing Fuses
258
FUSE
BLOWN FUSE PULLER
Page 263 of 296
Î
Î Î
Î
Î
µ
µµ Î
Î
Î
Circuits Protected
Circuits Protected
No. Amps. No. Amps.
Circuits Protected
Amps.
No.
Back Up, ACC
Power Seat
Heater Motor
Cooling Fan
Spare Fuse
Spare Fuse
Spare Fuse
Battery
Condenser Fan
MG Clutch
Ignition Switch (IG 1 Main)
ABS Motor
Spare Fuse
Spare Fuse
Right Headlight
ACG S
Hazard
Not Used
Stop
Lef t Headlight
ABS F/S
Power Window Motor
Power Sliding Door
Rear Defroster
1
2
3
4
5
6
7
8
9
10
11
12 20 A
30 A
15 A
15 A
15 A
20 A
15 A
20 A
40 A
30 A
30 A 13
14
15
16
17
18
19
20
21
22
23
2440 A
40 A
40 A
30 A
7.5 A 10 A
15 A
120 A 30 A
7.5 A 50 A
30 A
Rear Entertaiment System
Not Used
Seat Heaters
Driver’s Power Window
Rear A/C
Power Sliding Door
20 A
20 A
30 A
40 A
20 A
1
27 8
9
10
11 : EX and EX-L models
EX-L models
1:
EX and EX-L models
2:
1
1
2
Fuse Locations
T aking Care of t he Unexpect ed260
PRIMARY UNDER-HOOD FUSE BOX
SECONDARY UNDER-HOOD FUSE BOX
Page 264 of 296
ÎÎ
Î Î
Î
Î Î
Î
No. Amps. Circuits ProtectedNo. Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13 15 A
10 A
7.5 A
7.5 A
7.5 A 15 A
15 A
7.5 A 10 A
7.5 A 10 A
30 A
7.5 A Fuel Pump
SRS
Heater Control, A/C Clutch
Relay, Cooling Fan Relay
Power Mirror
Daytime Running Light
ECU(PCM),CruiseControl
IG Coil
ACC Relay
Back-up Lights, Instrument
Lights
Turn Signals
Rear Wiper
Front Wiper
Starter Signal 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 20 A
20 A
10 A
20 A
20 A
10 A
7.5 A 20 A
15 A
15 A
10 A
20 A
7.5 A
7.5 A 20 A
7.5 A Driver’s Side Automatic
Sliding Door
Power Seat Reclining
BSC
Power Seat Sliding
Passenger’s Side Automatic
Sliding Door
Daytime Running Light
Left Rear Window
Front Passenger’s Power
Window
ACC Socket
Inst. Panel Light, License
Light
Interior Light, Radio
Power Door Locks
Clock, Back Up
ABS Motor Check
Driver’s Power Window
Right Rear Window
EX and EX-L models
Canadian models
:
1:
2:
On Canadian models
1
1 1
2
Fuse Locations
T aking Care of t he Unexpect ed261
Driver’s Side INTERIOR FUSE BOX Passenger’s Side
Front Front
Page 270 of 296
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
´
µ
Specif ications
T echnical Inf ormation267
Lights
Battery
Fuses Engine
Alignment
Tires
12 V 21 W
12 V 21/5 W
3.50 x 3.66 in (89.0 x 93.0 mm)
212 cu-in (3,471 cm
)
10 : 1
24/2.2 CP
12 V 1.8 W 12 V 8 W 12 V 21 W
12 V 3 CP 2CP
21 CP (18 W)
4CP
10 W
12 V
12 V
12 V
12 V 12 V
60/55 W (HB2)
12 V
65 AH/20 HR 52 AH/5 HR
12 V
12 V 0.00 in (0.0 mm)
0.00 in (0.0 mm)
0°
0°30’
2°07’
225/60R16 98T
T135/80D16 101M
36 psi (250 kPa , 2.5 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)
PZFR5F-11
PKJ16CR-L11
0.04 in (1.1 mm)
Headlights
Front turn signal/parking/side
marker lights
Rear turn signal lights
Stop/Taillights/Rear side
marker lights
Taillights
Back-up lights
License plate light
High-mount brake light
Individual map lights
Cargo area light
Vanity mirror lights
Capacity
Interior
Under-hood Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark Plug Gap
Toe-in
Camber
Caster
Size
Pressure
See page 261or the fuse label
attached to the dashboard.
See page 261or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 260or the fuse box
cover.
High/Low
Front/Rear
Spare
Front/Rear
Spare Front
Rear
Front
Rear
Front
Front
Rear
Driver’s side
Passenger’s side (Amber)
NGK:
DENSO:
Water cooled 4-stroke SOHC VTEC,6-cylinder, gasoline engine
0
0.1 mm
