This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belts, the beeper sounds,
and the indicator f lashes. If you do
not fasten your seat belts before the
beeper stops, the indicator stops
f lashing but remains on.If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
This indicator comes on f or several
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more inf ormation, see page .
You will also see a ‘‘FASTEN SEAT
BELT’’ or ‘‘FASTEN PASSENGER
SEAT BELT’’ message on the multi-
inf ormation display (see page ). You will also see a ‘‘PASSENGER
SIDE AIRBAG OFF’’ message on the
multi-inf ormation display (see page
).
21
35
89
88
On Touring models On Touring models
Instrument Panel Indicators
Side Airbag Of f
Indicator
Seat Belt Reminder
Indicator
68
U.S. Canada
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey

CONT INUED
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires. If it remains on af ter you have
fully released the parking brake
while the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page .
You will also see a ‘‘CHECK ABS
SYSTEM’’ message on the multi-
inf ormation display (see page ). You will also see a ‘‘RELEASE
PARKING BRAKE’’ message on the
multi-inf ormation display (see page
). You will also see a ‘‘BRAKE FLUID
LOW’’ or ‘‘CHECK BRAKE
SYSTEM’’ message on the multi-
inf ormation display (see page ).
1.
2.
89 88 88
392 481
On Touring models
On Touring modelsOn Touring models
Instrument Panel Indicators
Anti-lock Brake System
(A BS) Indicator
Parking Brake and
Brake System
Indicator (Red)
Inst rument s and Cont rols
69
U.S. Canada
\f—\f—
y

\fy
(\fy\f\fy
2009 Odyssey

This indicator has three f unctions:
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
go of f if you have inserted a properly
coded ignition key. If it is not a
properly coded key, the indicator will
blink and the engine will not start
(see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position. If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See page
f or more inf ormation on the
VSA system. It comes on as a reminder that you
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
You will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
inf ormation display (see page ). You will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
inf ormation display (see page ).
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. See page f or more
inf ormation.
1.
2.
3.
143
8989
394 394
394
On Touring models On Touring models
Vehicle Stability Assist
(VSA ) System Indicator
VSA A ctivation Indicator
Immobilizer System
Indicator
Instrument Panel Indicators
70
\f—\f—
y


y
(\fy\f\fy
2009 Odyssey

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on while driving,
it indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure, and determine
the cause. If it is because of a flat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). For more
inf ormation, see page .If this happens, pull to the side of the
road when it is saf e, check which tire
has lost pressure on the multi-
inf ormation display, and determine
the cause. If it is because of a flat tire,
have the flat tire repaired as soon as
possible. If two or more tires are
underinf lated, call a prof essional
towing service. For more
inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator has two f unctions:
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
You will also see a ‘‘CHECK TIRE
PRESSURE’’ message on the multi-
inf ormation display (see page ).
Check the tire pressure monitor on
the multi-inf ormation display and
determinethecause(seepage ). Your vehicle has Michelin PAX tires.
Repair or replacement of PAX tires
must be done by a Honda dealer or
an authorized Michelin PAX system
dealer. For more inf ormation, see
page .
1.
88
465
488 396 401488
457
CONT INUED
On LX, EX, EX-L and Canadian DX models On Touring models
U.S. models with the Michelin
PAX
system
Instrument Panel Indicators
Low Tire Pressure
IndicatorLow Tire Pressure/
TPMS Indicator
Inst rument s and Cont rols
71
 — —
y

y
( y  y
2009 Odyssey

When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
If this indicator begins to f lash,
there is a problem with the tire
pressure monitoring system
(TPMS). You will also see a
‘‘CHECK TPMS SYSTEM’’
message on the multi-inf ormation
display. The indicator continues to
f lash f or a while (approximately 1
minute), then stays on. If this
happens, have your dealer check
the system as soon as possible.
For more inf ormation, see page
. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked.
2.
403 438441
On LX, EX, EX-L and Canadian DX
models
Instrument Panel Indicators
Turn Signal and Hazard Warning
Indicators
Tire Pressure Monitoring
System (T PMS) Indicator
72
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey

This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the high beam headlight’s circuit.
Have your vehicle checked by your
dealer.
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door and remove the key
from the ignition switch.
On Touring models, this indicator
also comes on when the light switch
is in AUTO and the lights turn on
automatically. If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem in the high beam headlight’s
circuit. Take your vehicle to a dealer
to have it checked (see page ).
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator comes on when you
turn on the fog lights. See page
f or inf ormation on f og light
operation. 89
136
138
138
On Touring models
On Touring models
Instrument Panel Indicators
Daytime Running L ights
Indicator Fog L ight Indicator
Lights On Indicator
High Beam Indicator
Inst rument s and Cont rols
73
DAYTIME RUNNING LIGHTS (DRL)
INDICATOR
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey

This indicator comes on when the
washer f luid level is low. Add washer
f luid when you see this indicator
come on (see page ).

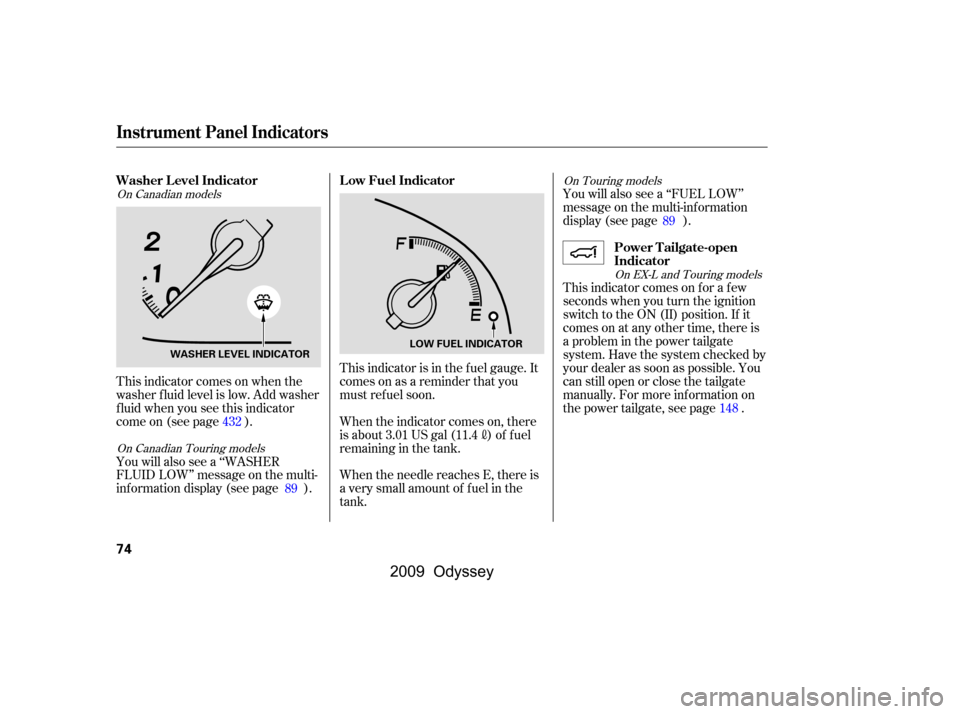

You will also see a ‘‘WASHER
FLUID LOW’’ message on the multi-
inf ormation display (see page ).This indicator is in the f uel gauge. It
comesonasareminderthatyou
must ref uel soon.
When the indicator comes on, there
is about 3.01 US gal (11.4
)of fuel
remaining in the tank.
When the needle reaches E, there is
a very small amount of f uel in the
tank. You will also see a ‘‘FUEL LOW’’
message on the multi-information
display (see page ).
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, there is
a problem in the power tailgate
system. Have the system checked by
your dealer as soon as possible. You
can still open or close the tailgate
manually. For more inf ormation on
the power tailgate, see page .
89 89
148
432
On Canadian models
On Canadian Touring models On Touring models
On EX-L and Touring models
Instrument Panel Indicators
Low Fuel Indicator
Washer Level Indicator
Power Tailgate-open
Indicator
74
LOW FUEL INDICATOR
WASHER LEVEL INDICATOR
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey

This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button on the
steering wheel (see page ).
This indicator comes on when you
set the cruise control. See pagef or inf ormation on operating the
cruise control.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, there is
a problem in the power sliding door
system. With this indicator on, move
themainswitchonthedashboardto
the OFF position, and have the
system checked by your dealer as
soon as possible. You can still open
or close each sliding door manually.
For more inf ormation on the power
sliding doors, see page .
The appropriate light comes on in
this indicator if the tailgate or any
door is not closed tightly.
All the lights in the indicator come
on f or a f ew seconds when you turn
the ignition switch to the ON (II)
position.
While the engine is operating in its
most economical range, this
indicator may come on and stay on.
It goes of f when your vehicle uses
extra f uel.
The door and tailgate open indicator
also appears on the multi-inf ormation
display.
You will also see a ‘‘CHECK LEFT
SLIDING DOOR’’ or ‘‘CHECK
RIGHT SLIDING DOOR’’ message
on the multi-information display (see
page ). 161 319
319
89
On EX and EX-L models
On Touring models On EX-L and Touring models
On Touring models
Instrument Panel Indicators
Cruise Main Indicator
Cruise Control Indicator
Fuel Economy Indicator
Power Sliding
Door Indicator
Door and Tailgate Open Indicator
Inst rument s and Cont rols
75
U.S. Canada
 — —
y

 y
( y   y
2009 Odyssey

This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the inf ormation display. See pagef or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service. This indicator comes on when there
is a system message on the multi-
inf ormation display. Press the INFO
button on the steering wheel (see
page ) to see the message (see
page ).
Most of the time, this indicator
comes on along with other indicators
in the instrument panel such as the
seat belt reminder indicator, SRS
indicator, VSA system indicator, etc.
This indicator comes on when the
security system is set. For more
inf ormation, see page .318
82
87
415
On LX, EX, EX-L and Canadian DX models On Touring modelsOn EX, EX-L and Touring models
Instrument Panel Indicators
Maintenance Minder
Indicator
System Message
IndicatorSecurity System Indicator
76
SECURITY SYSTEM INDICATOR
\f—\f—
y


y
(\fy\f\f
y
2009 Odyssey

This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. For
instructions and precautions on
checking the engine’s cooling
system, see page .477
Temperature Gauge
Fuel Gauge
Gauges
Inst rument s and Cont rols
77
SPEEDOMETER
TEMPERATURE
GAUGE
FUEL GAUGE
TEMPERATURE
GAUGE
TACHOMETER
SELECT/RESET KNOB
SELECT/RESET KNOB
TACHOMETER SPEEDOMETER
FUEL GAUGE
MULTI-INFORMATION DISPLAY INFORMATION DISPLAY
LX, EX, EX-L and Canadian DX models
Touring models
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey
