The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob. Adjust the volume
by turning the same knob.
The band and f requency that the
radio was last tuned to are displayed.
To change bands, press the AM or
FM button, or AM/FM button. On
the FM band, ST will be displayed if
the station is broadcasting in stereo.
Stereo reproduction in AM is not
available.
On the AM band, AM noise
reduction turns on automatically. Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency.
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it
press the or side of the bar,
then release it. If you do nothing, the system will
then scan f or the next strong station
andplayitfor5seconds.Whenit
plays a station you want to listen to,
press the SCAN button again.The SCAN function
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station for about 5 seconds.
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
CONT INUED
Playing the AM/FM Radio (EX and EX-L models without navigation system)
T o Play the A M/FM Radio
T o Select a Station
TUNE
SEEK SCAN
Features
235
——
y

y
(yy
2010 Odyssey

µµEach preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. You can store one f requency
on FM1, and one f requency on FM
2witheachpresetbutton.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. If you are
traveling and can no longer receive
your preset stations, you can use the
auto select feature to find stations in
the local area.
Press the A. SEL button. ‘‘A. SEL’’
appears in the display, and the
system goes into scan mode f or
several seconds. It stores the
f requencies of six AM and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
that preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described. ,pressthe
A. SEL (auto select) button. This
restores the presets you originally
set.
For inf ormation on AM/FM radio
f requencies and reception, see page .
1.
2.
3.
4. 275To turn of f auto select
Playing the AM/FM Radio (EX and EX-L models without navigation system)
Preset
A UT O SEL ECT
236
——
y
y
(y
y
2010 Odyssey

µµ
Press the SOUND (TUNE) knob
repeatedly to display the bass, treble,
balance, and f ader settings. Use the TRE/BAS
modes to adjust the tone to your
liking.
These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength. You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the system is turned
of f .
Eachmodeisshowninthedisplayas
it changes. Turn the SOUND
(TUNE) knob to adjust the setting to
your liking. When the level reaches
the center, you will see ‘‘C’’ in the
display. The system will
automatically return the display to
the selected audio mode about 5
seconds af ter you stop adjusting a
mode. 139
Playing the AM/FM Radio (EX and EX-L models without navigation system)
Adjusting the Sound
Treble/Bass
Balance/Fader A udio System L ighting
Features
237
——
y
y
(yy
2010 Odyssey

Playing the XMRadio (U.S. EX and all EX-L models without navigation system)
238

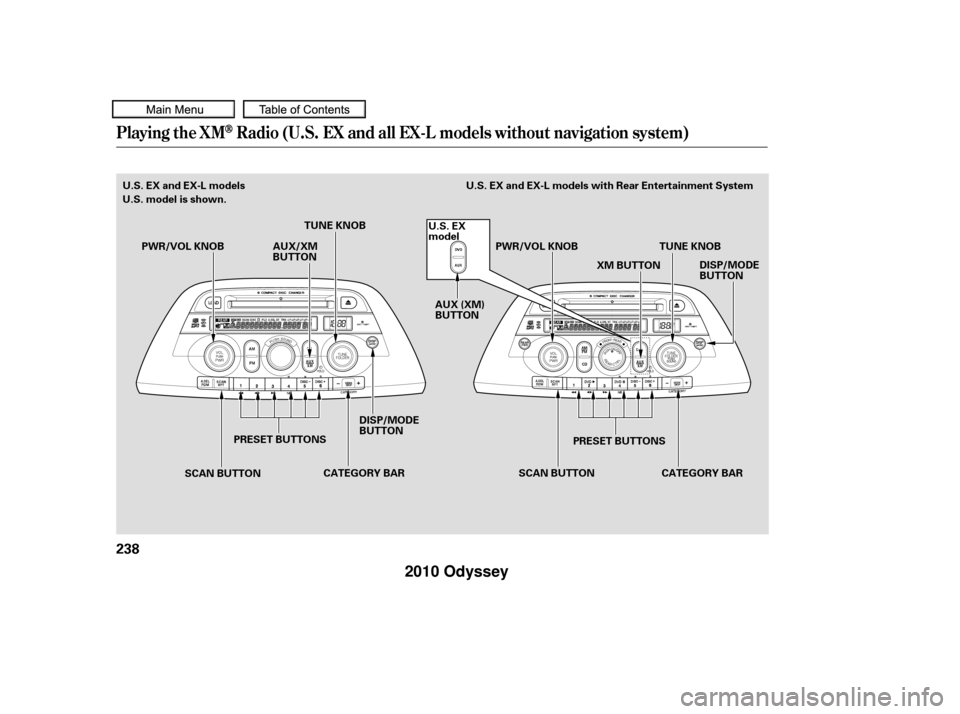

PRESET BUTTONS
PRESET BUTTONS TUNE KNOB
PWR/VOL KNOB
TUNE KNOB
U.S. EX and EX-L models
U.S. model is shown.
CATEGORY BARDISP/MODE
BUTTON
CATEGORY BARDISP/MODE
BUTTON
PWR/VOL KNOB
SCAN BUTTON XM BUTTON
SCAN BUTTON
AUX/XM
BUTTON
U.S. EX
model
AUX (XM)
BUTTON U.S. EX and EX-L models with Rear Entertainment System
——
y

y
(yy
2010 Odyssey

µ
To listen to XM Radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
PWR/VOL knob to turn on the audio
system, and press the AUX/XM
button. Adjust the volume by turning
the PWR/VOL knob. The last
channel you listened to will show in
the display.
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category. Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
channel name, channel number,
category, artist name, and music title.
On the audio display, you will see the
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
Your vehicle is capable of receiving
XM
Radio anywhere in the United
States, and Canada, except Hawaii
and Alaska. XM is a registered
trademark of Sirius XM Radio
,Inc.
and, XM CANADA
is a registered
business name of Canadian Satellite
Radio Inc.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
Though it is not equipped with an
XM Radio system, your vehicle is
‘‘XM Ready.’’ If you purchase an XM
Radio receiver, you can connect it to
your vehicle’s audio system to
receive XM broadcasts.
CONT INUED
U.S. EX models
Playing the XMRadio (U.S. EX and all EX-L models without navigation system)
Operating the XM Radio
MODE
Features
239
——
y


y
(yy
2010 Odyssey

µµ
µ
µ
µ´ The SCAN f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again. Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel: Press the AUX/XM button. Either
XM1 or XM2 will show in the
display.
Use the selector knob, or the
CATEGORYbarorSCANbutton
to tune to a desired channel.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected. Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
Turn the tune knob lef t or
right to select channels. In the
category mode, you can only select
channels within that category.
Press either side of
the bar ( or ) to select another
category. 1.
2.
3.
Playing the XMRadio (U.S. EX and all EX-L models without navigation system)
SCA NPreset
TUNE
CATEGORY
240
——
y


y
(yy
2010 Odyssey

µ
µ µ µ
µ
µ
µ
Repeat steps 2 and 3 to store the
f irst six channels.
Press the XM button again. The
other XM band will show. Store
the next six channels using steps 2
and 3.
Once a channel is stored, simply
press and release the proper preset
button to tune to it. The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
The selected channel
number does not exist or is not part
of your subscription.
The selected
channel has no artist or title
inf ormation at this time.
There is
a problem with the XM antenna.
Please consult your dealer.
XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally.
4.
5.
CONT INUED
Playing the XMRadio (U.S. EX and all EX-L models without navigation system)
XM Radio Display Messages ‘‘NO SIGNA L ’’
‘‘----’’
‘‘NO INFO’’
‘‘CHECK A NT ENNA ’’
‘‘L OA DING’’
‘‘OFF A IR’’
‘‘UPDA T ING’’
Features
241
——
y

y
(yy
2010 Odyssey

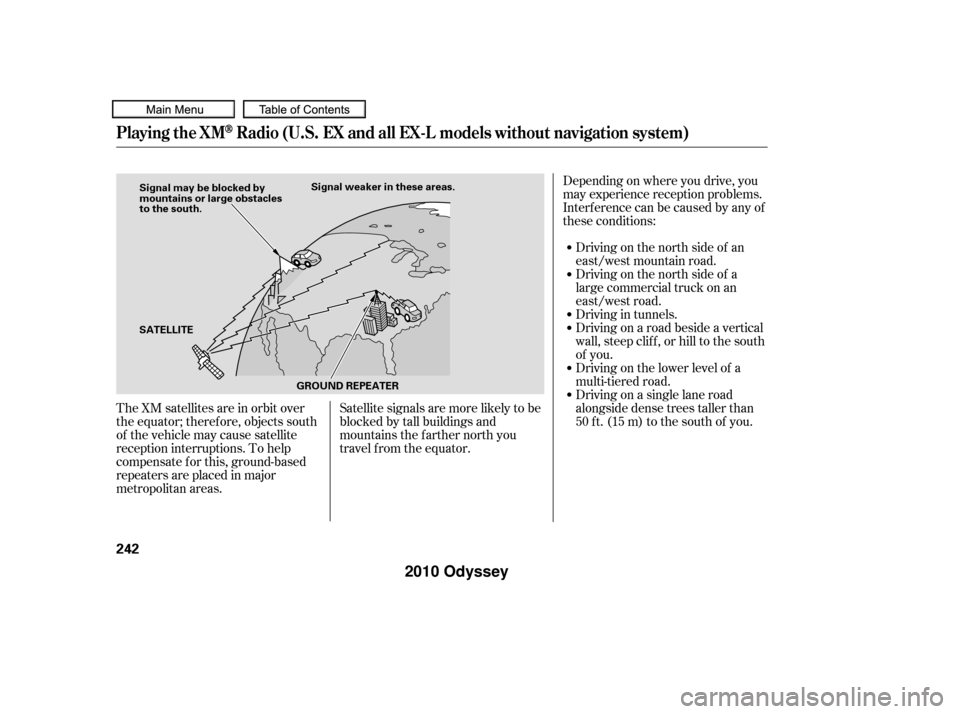

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel from the equator.Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:
Driving on the north side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Playing the XMRadio (U.S. EX and all EX-L models without navigation system)
242
SATELLITE
GROUND REPEATERSignal weaker in these areas.
Signal may be blocked by
mountains or large obstacles
to the south.
——
y

y
(yy
2010 Odyssey

There may be other geographic
situations that could af f ect XM Radio
reception.After you’ve registered with XM
Radio, keep your audio system in the
XM Radio mode while you wait f or
activation. This should take about 30
minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated,
‘‘CATEGORY’’ or ‘‘CH’’ will appear in
the display, and you’ll be able to
listen to XM Radio broadcasts. XM
Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio. In Canada, contact XM
CANADA
.
If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Radio. With the ignition
switch in the ACCESSORY (I) or the
ON (II) position, push the PWR/
VOL knob to turn on the audio
system and press the AUX/XM
button. A variety of music types and
styles will play.
If you decide to purchase XM Radio
service, contact XM Radio at
,orat
1-800-852-9696. In Canada, contact
XM CANADA
at , or
at 1-877-209-0079. You will need to
give them your radio I.D. number
and your credit card number. To get
your radio I.D. number, turn the
TUNE knob until ‘‘0’’ appears in the
display. Your I.D. will appear in the
display.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.comwww.xmradio.ca
Playing the XMRadio (U.S. EX and all EX-L models without navigation system)
Receiving XM Radio Service
Features
243
——
y

y
(yy
2010 Odyssey

´
µ ´
µ

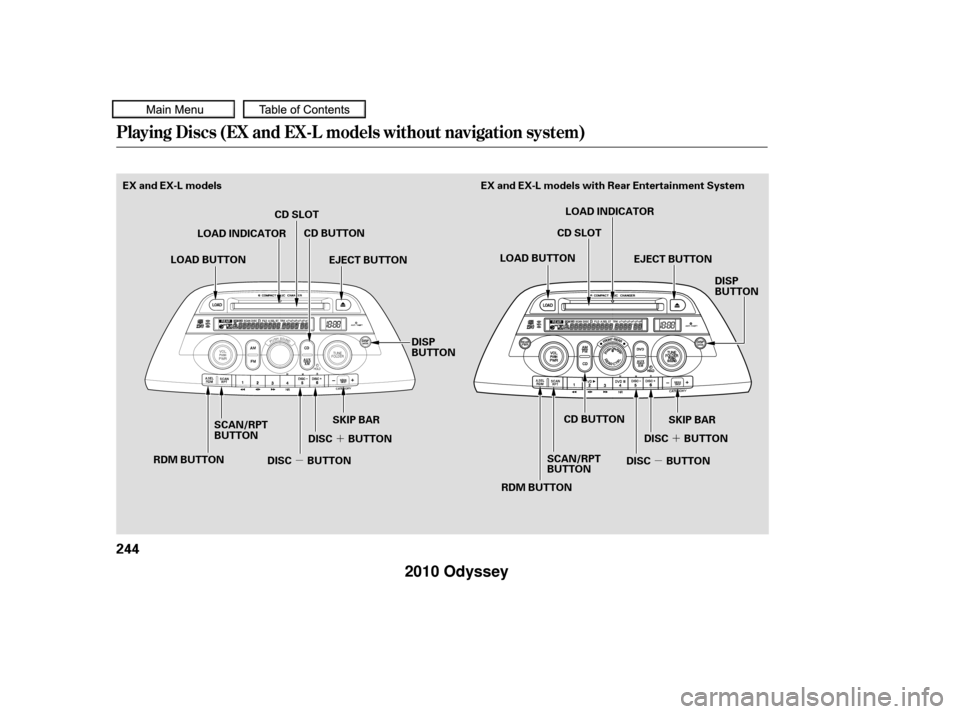

Playing Discs (EX and EX-L models without navigation system)
244
EX and EX-L models
CD SLOTCD BUTTON
SCAN/RPT
BUTTON
RDM BUTTON LOAD INDICATOR
DISP
BUTTON
SKIP BAR SKIP BAR
CD SLOT
CD BUTTON
SCAN/RPT
BUTTON DISP
BUTTON
LOAD BUTTON LOAD INDICATOR
EJECT BUTTON
RDM BUTTON
DISC BUTTON
DISC BUTTON DISC BUTTON
DISC BUTTON
EX and EX-L models with Rear Entertainment System
LOAD BUTTON EJECT BUTTON
——
y

y
(yy
2010 Odyssey
