HONDA ODYSSEY 2011 RB3-RB4 / 4.G Service Manual

µ

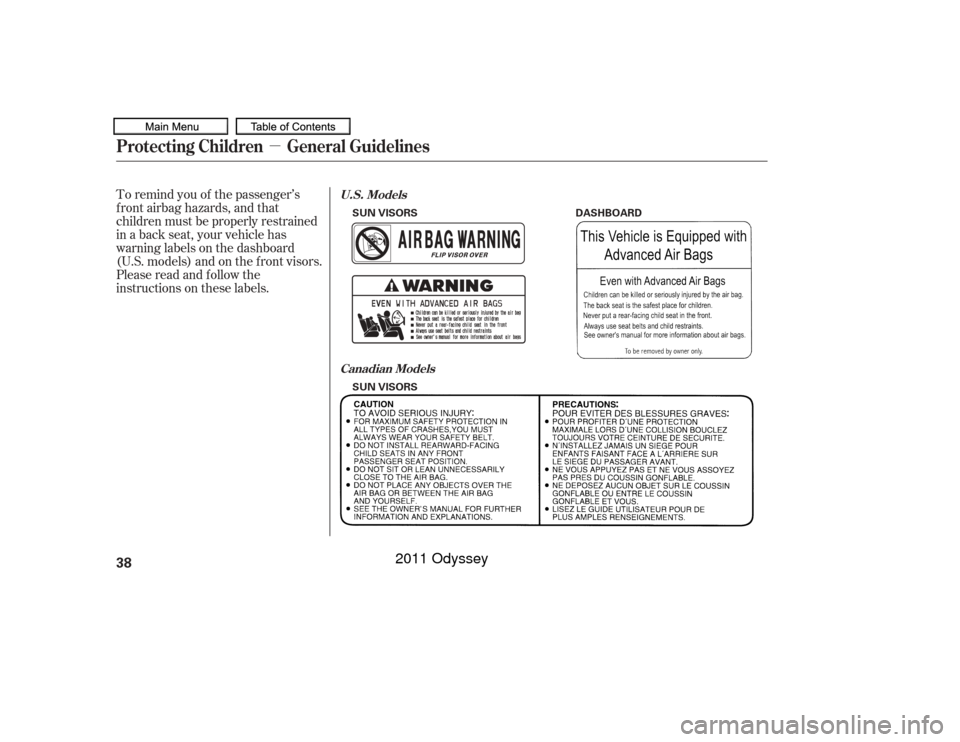

To remind you of the passenger’s
f ront airbag hazards, and that
children must be properly restrained
in a back seat, your vehicle has
warninglabelsonthedashboard
(U.S. models) and on the f ront visors.
Please read and follow the
instructions on these labels.
U.S. ModelsCanadian Models
Protecting Children General Guidelines38
DASHBOARD
SUN VISORS
SUN VISORS
10/07/17 09:39:23 31TK8600_043
2011 Odyssey

µ

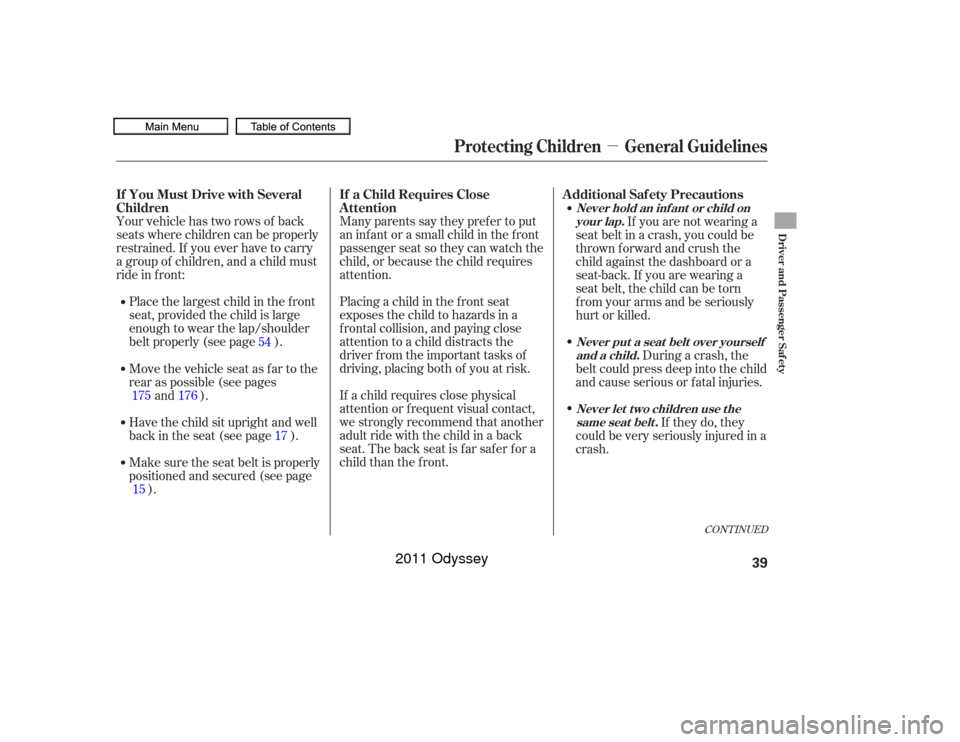

Your vehicle has two rows of back
seats where children can be properly
restrained. If you ever have to carry
a group of children, and a child must
ride in f ront:Many parents say they pref er to put
an inf ant or a small child in the f ront
passenger seat so they can watch the
child, or because the child requires
attention.
Placing a child in the f ront seat
exposes the child to hazards in a
f rontal collision, and paying close
attention to a child distracts the
driver from the important tasks of
driving, placing both of you at risk.
Place the largest child in the f ront
seat, provided the child is large
enough to wear the lap/shoulder
belt properly (see page ).
If a child requires close physical
attention or f requent visual contact,
we strongly recommend that another
adult ride with the child in a back
seat. The back seat is far safer for a
child than the front. If you are not wearing a
seat belt in a crash, you could be
thrown forward and crush the
child against the dashboard or a
seat-back. If you are wearing a
seat belt, the child can be torn
f rom your arms and be seriously
hurt or killed.
During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
If they do, they
could be very seriously injured in a
crash.
Move the vehicle seat as far to the
rear as possible (see pages
and ).
Make sure the seat belt is properly
positioned and secured (see page ).
Have the child sit upright and well
backintheseat(seepage ).
15 54
17
175 176
CONT INUED
If You Must Drive with Several
Children
If a Child Requires Close
Attention Additional Saf ety Precautions
Protecting Children General Guidelines
Neverholdaninfantorchildon
your lap.
Never put a seat belt over yourselfand a child.
Never let two children use thesame seat belt .
Driver and Passenger Saf ety
39
10/07/17 09:39:34 31TK8600_044
2011 Odyssey

µ
This
will prevent unintended use of the
doors.
Leaving children without
adult supervision is illegal in most
states, Canadian provinces and
territories, and can be very
hazardous.
For example, infants and small
childrenleftinavehicleonahot
day can die f rom heatstroke. A
child lef t alone with the key in the
ignition switch can accidentally set
the vehicle in motion, possibly
injuring themselves or others. Even very young
children learn how to unlock
vehicle doors, turn on the ignition
switch, and open the tailgate,
which can lead to accidental injury
or death. Children who play in vehicles can
accidentally get trapped inside.
Teach your children not to play in
or around vehicles.
If a child
wraps a loose seat belt around
their neck, they can be seriously
or f atally injured. (See pages
and for how to activate
and deactivate the lockable
retractor.)
This can prevent children
f rom accidentally f alling out (see
page ). 1625150
Protecting Children General Guidelines
Use t he power sliding door main
swit ch t o prevent children f romoperat ing t he sliding doors.
Do not leave children alone in avehicle. K eep vehicle keys and remot e
transmitters out of the reach ofchildren.
Lock all doors and the tailgate
when your vehicle is not in use.
Make sure any unused seat belt
t hat a child can reach is buckled,thelockableretractorisactivated, and the belt is f ullyretracted and locked.
Use childproof door locks t oprevent children f rom opening t hedoors.
40
10/07/17 09:39:40 31TK8600_045
2011 Odyssey

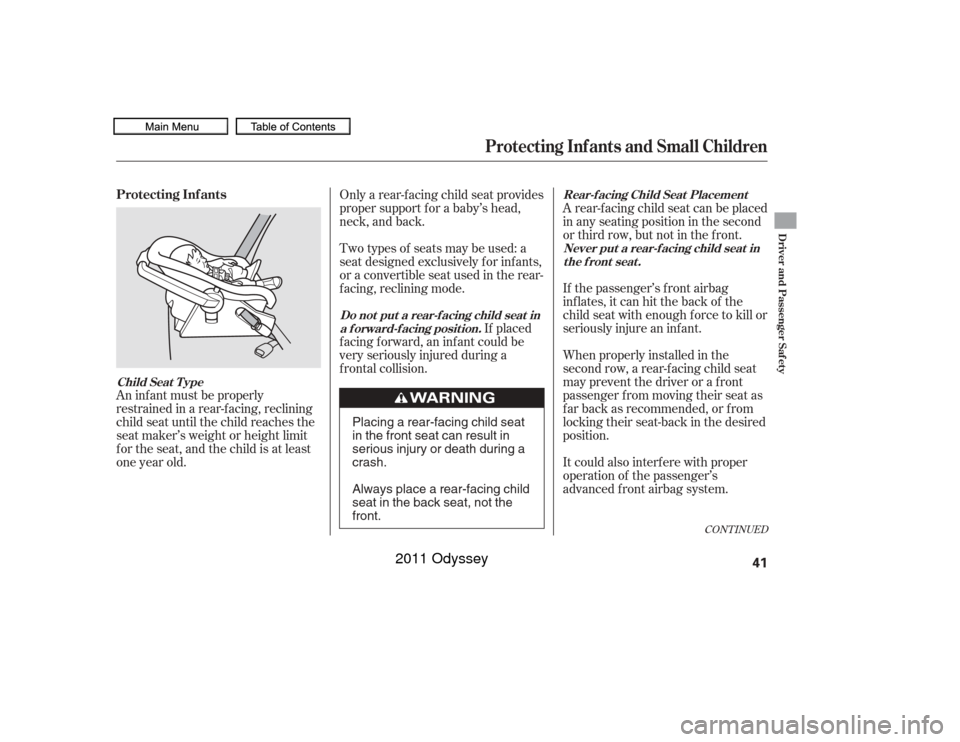

An inf ant must be properly
restrained in a rear-f acing, reclining
child seat until the child reaches the
seat maker’s weight or height limit
f or the seat, and the child is at least
one year old.If the passenger’s front airbag
inflates, it can hit the back of the
child seat with enough f orce to kill or
seriously injure an inf ant.
When properly installed in the
second row, a rear-f acing child seat
maypreventthedriverorafront
passenger f rom moving their seat as
f ar back as recommended, or f rom
locking their seat-back in the desired
position.
If placed
f acing f orward, an inf ant could be
very seriously injured during a
f rontal collision. Two types of seats may be used: a
seat designed exclusively f or inf ants,
or a convertible seat used in the rear-
f acing, reclining mode. Only a rear-f acing child seat provides
proper support f or a baby’s head,
neck, and back. A rear-f acing child seat can be placed
in any seating position in the second
or third row, but not in the f ront.
It could also interf ere with proper
operation of the passenger’s
advanced front airbag system.
CONT INUED
Protecting Inf antsChild Seat T ype Do not put a rear-f acing child seat in
a f orward-f acing position. Rear-f acing Child Seat Placement
Never put a rear-f acing child seat inthe front seat.
Protecting Inf ants and Small Children
Driver and Passenger Saf ety
41
Placing a rear-facing child seat
in the front seat can result in
serious injury or death during a
crash.
Always place a rear-facing child
seat in the back seat, not the
front.
10/07/17 09:39:51 31TK8600_046
2011 Odyssey

In any of these situations, we
strongly recommend that you install
the child seat directly behind the
f ront passenger’s seat, move the seat
as far forward as needed, and leave it
unoccupied. Or, you may wish to get
a smaller rear-f acing child seat.Many states, Canadian provinces and
territories allow a child one year of
age or older who also meets the
minimum size and weight
requirements to transition f rom a
rear-facing child seat to a forward
f acing seat. Know the requirements
where you are driving and f ollow the
child seat instructions. Many experts
recommend use of a rear-f acing seat
up to age two, if the child’s height and weight are appropriate f or a
rear-facing seat.
Of the different seats available, we
recommend those that have a f ive-
point harness system as shown.
We also recommend that a small
child use the child seat until the child
reaches the weight or height limit
for the seat.
Protecting Small Children
Child Seat T ype
Protecting Inf ants and Small Children42
10/07/17 09:39:57 31TK8600_047
2011 Odyssey

We strongly recommend placing a
forward-facing child seat in a back
seat, not the front.If the vehicle seat is too
f ar f orward, or the child’s head is
thrown f orward during a collision, an
inf lating airbag can strike the child
with enough force to cause very
serious or fatal injuries. Even with advanced front airbags
that automatically turn the
passenger’s front airbag off (see
page ), a back seat is the saf est
place f or a small child.
If it is necessary to put a f orward-
f acing child seat in the f ront, move
the vehicle seat as far to the rear as
possible, and be sure the child seat is
f irmly secured to the vehicle and the
child is properly strapped in the seat.
33Child Seat Placement
Placing a f orward-f acing child seat int he f ront seat of a vehicle equippedwith a passenger’s airbag can behazardous.
Protecting Inf ants and Small Children
Driver and Passenger Saf ety
43
Placing a forward-facing child
seat in the front seat can result
in serious injury or death if the
front airbag inflates.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
10/07/17 09:40:03 31TK8600_048
2011 Odyssey

When buying a child seat, you need
to choose either a conventional child
seat, or one designed f or use with
the Lower Anchors and Tethers f or
CHildren (LATCH) system.
Conventional child seats must be
secured to a vehicle with a seat belt,
whereas LATCH-compatible seats
are secured by attaching the seat to
hardware built into the rear seating
positions.Since LATCH-compatible child seats
are easier to install and reduce the
possibility of improper installation,
we recommend selecting this style.
Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:
In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using a seat belt. Look f or FMVSS 213 or CMVSS
213 on the box.
Rear-facing for infants, forward-
f acing f or small children.
Bef ore purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specif ic
vehicle seating position or positions
where the seat will be used.Selecting a Child Seat
T he child seat should meet Federal Mot or Vehicle Saf et ySt andard 213 or Canadian Mot orVehicle Saf et y St andard 213.
T he child seat should be of theproper type and size to f it the child.
T he child seat should f it thevehicle seat ing posit ion (orposit ions) where it will be used.
1.
2.3.
44
10/07/17 09:40:10 31TK8600_049
2011 Odyssey

Af ter selecting a proper child seat
and a good place to install the seat,
there are three main steps in
installing the seat:All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (Lower Anchors and
Tethers f or CHildren) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
Af ter installing a child
seat, push and pull the seat
f orward and f rom side-to-side to
verify that it is secure. A child seat secured with a seat belt
should be installed as f irmly as
possible. However, it does not need
to be ‘‘rock solid.’’ Some side-to-side
movement can be expected and
should not reduce the child seat’s
ef f ectiveness.
If the child seat is not secure, try
installing it in a dif f erent seating
position, or use a dif f erent style of
child seat that can be f irmly secured.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
The f ollowing pages provide
guidelines on how to properly install
a child seat. A f orward-f acing child
seat is used in all examples, but the
instructions are the same f or rear-
f acing child seats.
Properly secure t he child seat t o the vehicle.
Make sure t he child seat is f irmlysecured. Secure the child in the child seat.
1.
2. 3.
Installing a Child Seat
Driver and Passenger Saf ety
45
10/07/17 09:40:17 31TK8600_050
2011 Odyssey

Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker’s instructions.
Some LATCH-compatible seats
have a rigid-type connector as
shown above.
The lower anchors are located
between the seat-back and seat
bottom, and are to be used only with
a child seat designed f or use with
LATCH.
The location of each lower anchor is
indicated by a small button above the
anchor point. Your vehicle is equipped with
LATCH (Lower Anchors and
Tethers f or CHildren) at each of the
second and third row seats, and the
second row center seat (except LX
models).
Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and the
anchors. Move the seat belt buckle or
tongue away f rom the lower
anchors.
To install a LATCH-compatible child
seat in either outer second row seat:
1.
2. 3.
Installing a Child Seat with
LATCH
Installing a Child Seat
Using t he Out er L A T CH
46
LOWER
ANCHORS BUTTON
Rigid type
10/07/17 09:40:26 31TK8600_051
2011 Odyssey

Whatever type you have, f ollow
the child seat maker’s instructions
f or adjusting or tightening the f it.
Other LATCH-compatible seats have
a f lexible-type connector as shown
above.
Lif t the head restraint (see page
), then route the tether strap
through the legs of the head
restraint and over the seat-back,
making sure the strap is not
twisted. Attach the tether strap hook to the
tether anchor, then tighten the
strap as instructed by the child
seat maker.
Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure. If the tether strap is too long and
cannot be tightened f irmly, f ind a
route where the strap can be
tightened securely.
4. 5.
6.
7.
179
CONT INUED
Installing a Child Seat
Driver and Passenger Saf ety
47
ANCHOR TETHER
STRAP HOOK
TETHER STRAP
Flexible type
10/07/17 09:40:35 31TK8600_052
2011 Odyssey
