Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage. With the tailgate open, air flow can
pull exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
tailgate open, open all the windows
and set the heating and cooling
system/climate control system as
shown below.
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in a collision that
may have damaged the underside. If you must sit in your parked vehicle
with the engine running, even in an
unconf ined area, adjust the heating
and cooling system/climate control
system as f ollows:
Select the f resh air mode.
Select the mode.
Set the f an speed to high.
Set the temperature control to a
comfortable setting.
1.
2.
3.
4.Carbon Monoxide Hazard58
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
10/07/17 09:42:01 31TK8600_063
2011 Odyssey

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury or death. Read these labels
caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label which may be
removed by the owner), contact your
dealer f or a replacement.
CONT INUED
Canadian modelsU.S. models only
U.S. models
Saf ety L abels
Driver and Passenger Saf ety
59
DASHBOARD
SUN VISORS
10/07/17 09:42:14 31TK8600_064
2011 Odyssey

U.S. modelsCanadian models
Saf ety L abels60
DOORJAMB
RADIATOR CAP
10/07/17 09:42:24 31TK8600_065
2011 Odyssey

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .62
............................
Instrument Panel .63
..........
Instrument Panel Indicators . 65
.............................................
Gauges .77
.............
Multi-Inf ormation Display . 83
Controls Near the Steering .........................................
Wheel .134 Windshield Wipers and
.................................
Washers .135
Rear Window Wiper and ...................................
Washer .136
.........
Turn Signal and Headlights . 136
.....................................
Fog Lights .139
......
Instrument Panel Brightness . 140
...............
Hazard Warning Button . 142
...............
Rear Window Def ogger . 142
......
Steering Wheel Adjustments . 143
.............................
Keys and Locks .144
......................
Immobilizer System .145
..............................
Ignition Switch .147
.....................
Remote Transmitter .148
Opening or Closing the Power .........................
Sliding Doors .151
Opening or Closing the Power ..................................
Tailgate .151
....................................
Door Locks .155
....................
Power Door Locks . 155
Auto Door Locking/ ..............................
Unlocking .156
............
Childproof Door Locks . 162
..........................................
Tailgate .162
..........................
Power Tailgate .163
.................................
Sliding Doors .167 ...............................................
Seats .175
..................................
Seat Heaters .189
Driving Position Memory ........................................
System .190
............................
Power Windows .192
.......................................
Moonroof .195
...........................................
Mirrors .197
...............................
Parking Brake .199
.........
Interior Convenience Items . 201
.....
Removable Center Console . 202
............
Flip-up Trash Bag Ring . 203
.....................
Beverage Holders .203
..............
Integrated Sunshades . 205
....................
Sunglasses Holder .206
................
Conversation Mirror . 207
...................................
Sun Visor .207
............................
Vanity Mirror .208
................................
Coat Hooks .208
..................................
Glove Box .208
...........................
Center Pocket .209
....................................
C ool Box
.209
....................................
Coin Box .211
........
Accessory Power Sockets . 211
.......................
AC Power Outlet .212
...............................
Interior Lights .213
Instruments and Controls
Instruments and Controls
61
10/07/17 09:42:28 31TK8600_066
2011 Odyssey

Î
Î
Î Î Î
ÎÎ
Î
Î
: If equipped

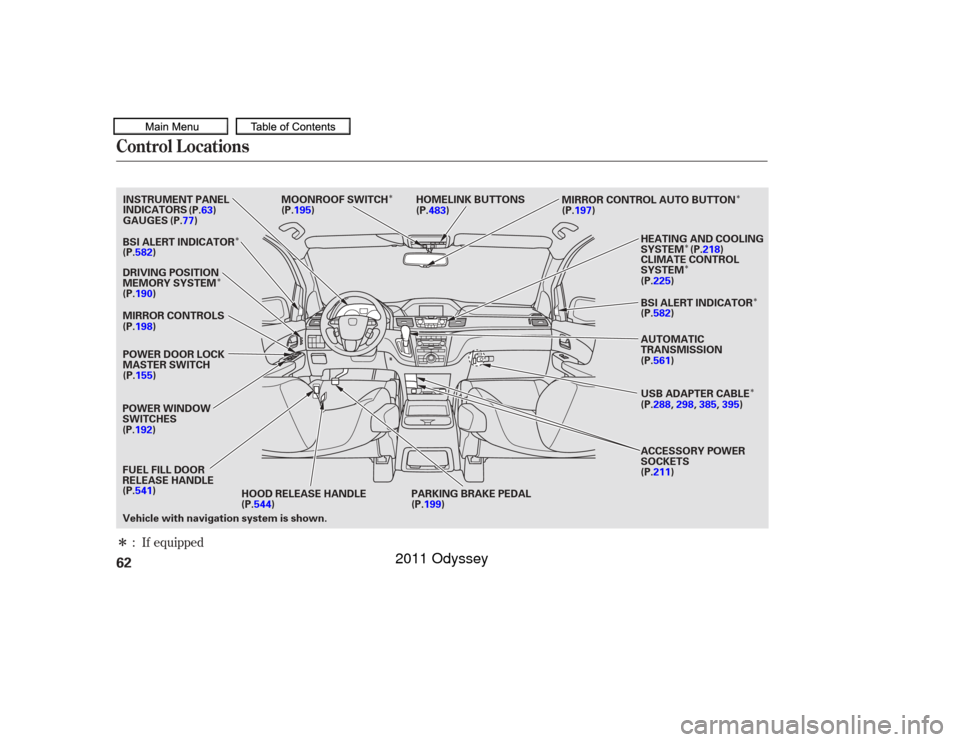

Control L ocations62
HOOD RELEASE HANDLE PARKING BRAKE PEDAL
FUEL FILL DOOR
RELEASE HANDLE
POWER WINDOW
SWITCHES
POWER DOOR LOCK
MASTER SWITCH
MIRROR CONTROLS INSTRUMENT PANEL
INDICATORS
GAUGES
MIRROR CONTROL AUTO BUTTON
Vehicle with navigation system is shown. DRIVING POSITION
MEMORY SYSTEM
CLIMATE CONTROL
SYSTEM HEATING AND COOLING
SYSTEM
USB ADAPTER CABLE
ACCESSORY POWER
SOCKETS AUTOMATIC
TRANSMISSION BSI ALERT INDICATOR
BSI ALERT INDICATOR
(P.63)
(P.77)
(P.190)
(P.198) (P.155)
(P.192)
(P.199)(P.211) (P.288,
298,385,395)
(P.225)
(P.218)
(P.197)
(P.483)
(P.195)
(P.582)
(P.541) (P.561) (P.582)
(P.544) MOONROOF SWITCH HOMELINK BUTTONS
10/07/19 15:50:18 31TK8600_067
2011 Odyssey

Î
Î Î
Î
Î

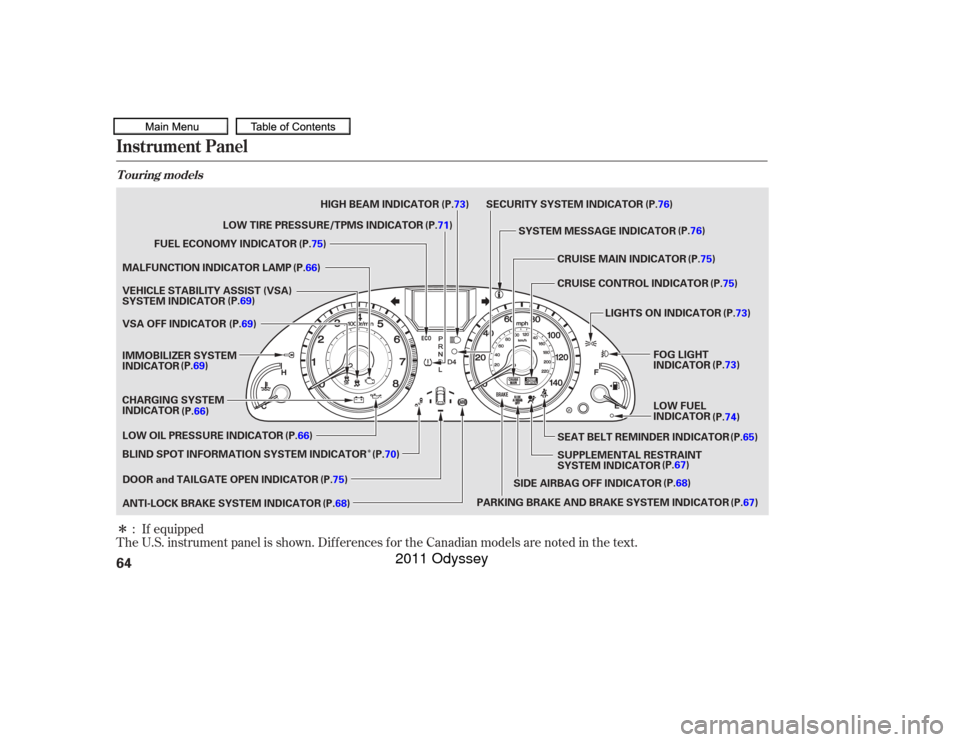

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
: If equipped
Instrument Panel
Instruments and Controls
LX, EX, EX-L models
63
LOW TIRE PRESSURE INDICATOR
LIGHTS ON INDICATORDAYTIME RUNNING
LIGHTS (DRL)
INDICATOR
SEAT BELT
REMINDER
INDICATOR
LOW FUEL
INDICATOR
STARTER SYSTEM INDICATOR
CRUISE MAIN INDICATOR
CRUISE CONTROL INDICATOR
IMMOBILIZER SYSTEM
INDICATOR VSA OFF INDICATOR VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR MALFUNCTION INDICATOR LAMP FUEL ECONOMY INDICATOR
MAINTENANCE MINDER INDICATOR
SIDE AIRBAG OFF INDICATOR
HIGH BEAM INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR
TIRE PRESSURE
MONITORING
SYSTEM (TPMS)
INDICATOR
CHARGING SYSTEM INDICATOR
LOW OIL PRESSURE INDICATOR
DOOR and TAILGATE OPEN INDICATOR SECURITY SYSTEM INDICATOR
PARKING SENSOR INDICATORS
POWER SLIDING DOOR INDICATOR POWER TAILGATE INDICATOR (P.71)
(P.75)
(P.69)
(P.69)
(P.69)
(P.72) (P.66)
(P.66)
(P.74) (P.75)
(P.487)
(P.75)
(P.66)
(P.76) (P.73)
(P.76)
(P.70)
(P. 75)
(P.75)
(P.73)
(P. 73)
(P.65) (P. 74)
(P.68)
(P.67)
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) INDICATOR
(P.
67)
ANTI-LOCK BRAKE SYSTEM (ABS) INDICATOR (P.68)
10/07/19 15:50:28 31TK8600_068
2011 Odyssey

Î
Î
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.: If equippedInstrument PanelT ouring models64
FUEL ECONOMY INDICATOR SYSTEM MESSAGE INDICATOR
ANTI-LOCK BRAKE SYSTEM INDICATOR SIDE AIRBAG OFF INDICATOR
MALFUNCTION INDICATOR LAMP
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
VSA OFF INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
CHARGING SYSTEM
INDICATOR
LOW OIL PRESSURE INDICATOR
PARKING BRAKE AND BRAKE SYSTEM INDICATORSEAT BELT REMINDER INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
LOW FUEL
INDICATOR
HIGH BEAM INDICATOR SECURITY SYSTEM INDICATOR
CRUISE MAIN INDICATOR
CRUISE CONTROL INDICATORLIGHTS ON INDICATOR
FOG LIGHT
INDICATOR
BLIND SPOT INFORMATION SYSTEM INDICATOR (P.73)
(P.75)
(P.66)
(P.69) (P.69)
(P.69)
(P.66) (P.66)(P.70)
(P.68) (P.
76)
(P. 76)
(P.75) (P.75)
(P.73)
(P. 73)
(P. 74)
(P. 65)
(P. 67)
(P. 68)
(P.67)
LOW TIRE PRESSURE/TPMS INDICATOR (P.71)
DOOR and TAILGATE OPEN INDICATOR (P.75)
10/07/19 15:50:37 31TK8600_069
2011 Odyssey

The instrument panel has many
indicators to give you important
inf ormation about your vehicle. This indicator comes on when youturn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belts, the beeper sounds,
and the indicator f lashes. If you do
not fasten your seat belts before the
beeper stops, the indicator stops
f lashing but remains on. If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
You will also see a ‘‘FASTEN SEAT
BELT’’ or ‘‘FASTEN PASSENGER
SEAT BELT’’ message on the multi-
inf ormation display (see page ).
20
90
On Touring models
Seat Belt Reminder
Indicator
Instrument Panel Indicators
Instruments and Controls
65
10/07/17 09:43:00 31TK8600_070
2011 Odyssey

For more inf ormation, see page.
You will also see a ‘‘CHECK
EMISSION SYSTEM’’ message on
the multi-information display (see
page ). The engine can be severely
damaged if this indicator f lashes
or stays on when the engine is
running. For more inf ormation,
see page .
You will also see a ‘‘CHECK
ENGINE OIL LEVEL’’ message
on the multi-information display
(see page ).
This indicator has two f unctions:
This indicator also comes on when
the battery needs to be replaced
along with a ‘‘REPLACE
BATTERY’’ message on the multi-
inf ormation display or a
‘‘CHANGE BATT’’ message on
the inf ormation display, depending
on models. For more inf ormation,
see page . If it comes on when the engine is
running, the battery is not being
charged, and you will see a
‘‘CHECK CHARGING SYSTEM’’
message on the multi-inf ormation
display or a ‘‘CHECK CHARGE
SYSTEM’’ message on the
inf ormation display, depending on
models.
1.
2.
91
91
671
670669On Touring models
On Touring modelsInstrument Panel Indicators
Malf unction Indicator
LampCharging System
IndicatorL ow Oil Pressure
Indicator
66
10/07/17 09:43:09 31TK8600_071
2011 Odyssey

If it remains on af ter you have
fully released the parking brake
while the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page .
You will also see a ‘‘BRAKE
FLUID LOW’’ or ‘‘CHECK
BRAKE SYSTEM’’ message on
the multi-information display (see
page ).
This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
You will also see a ‘‘RELEASE
PARKING BRAKE’’ message on
the multi-information display (see
page ) . You will also see a ‘‘CHECK
AIRBAG SYSTEM’’ message on the
multi-inf ormation display (see page
).
This indicator comes on f or several
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, it
indicates a potential problem with
your f ront airbags. This indicator will
also alert you to a potential problem
with your airbag system components.
For more inf ormation, see page .
1. 2.
90 90
32
90 672On Touring models
On Touring models
On Touring models
Instrument Panel Indicators
Supplemental Restraint
System (SRS) Indicator
Parking Brake
and Brake
System
Indicator (Red)
Instruments and Controls
67
Canada
U.S.
10/07/17 09:43:19 31TK8600_072
2011 Odyssey
