The exhaust emissions controls
include f our systems: PGM-FI,
ignition timing control, exhaust gas
recirculation, and three way catalytic
converter. These f our systems work
together to control the engine’s
combustion and minimize the
amount of HC, CO, and NOx that
come out the tailpipe. The exhaust
emissions control systems are
separate f rom the crankcase and
evaporative emissions control
systems.
The PGM-FI system uses sequential
multiport f uel injection.
It has three subsystems: air intake,
engine control, and f uel control. The
powertrain control module (PCM)
uses various sensors to determine
how much air is going into the
engine. It then controls how much
f uel to inject under all operating
conditions.This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The exhaust gas recirculation (EGR)
system takes some of the exhaust
gas and routes it back into the intake
manif old. Adding exhaust gas to the
air/f uel mixture reduces the amount
of NOx produced when the f uel is
burned.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
The emissions control systems are
designed and certif ied to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent f or repairs. Using lower
qualitypartsmayincreasethe
emissions f rom your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
2
2
Exhaust Emissions Controls Replacement PartsPGM-FI SystemIgnit ion T iming Cont rol Syst em
Exhaust Gas Recirculat ion (EGR)Syst em
Three Way Catalytic ConverterEmissions Controls698
10/07/17 11:07:25 31TK8600_703
2011 Odyssey

The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on f ire any
combustible materials that come
near it. Park your vehicle away from
high grass, dry leaves, or other
f lammables.Keep the engine well maintained.
Have your vehicle diagnosed and
repaired if it is misf iring, back-
f iring, stalling, or otherwise not
running properly.
The three way catalytic converters
contain precious metals that serve as
catalysts, promoting chemical
reactions to convert the exhaust
gasses without af f ecting the metals.
The catalytic converters are ref erred
to as three-way catalysts, since they
act on HC, CO, and NOx.
Replacement units must be original
Honda parts or their equivalent.
A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
f ormance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter inef f ective.
Three Way Catalytic Converter
T echnical Inf ormation
699
THREE WAY CATALYTIC CONVERTER
WARM UP THREE WAY CATALYTIC
CONVERTERS
10/07/17 11:07:32 31TK8600_704
2011 Odyssey

If you take your vehicle f or an
emissions test shortly af ter the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics f or the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.If the testing f acility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle retested within the
next two or three days, you can
condition the vehicle f or retesting by
doing the f ollowing.
Make sure the gas tank is nearly,
but not completely, f ull (around
3/4). Without touching the accelerator
pedal, start the engine, and let it
idle f or 20 seconds.
Make sure the vehicle has been
parked with the engine of f f or 6
hours or more.
Make sure the ambient
temperature is between 40° and
95°F (4° and 35°C). Keep the vehicle in Park. Increase
the engine speed to 2,000 rpm, and
hold it there until the temperature
gauge rises to at least 1/4 of the
scale (about 3 minutes).
Without touching the accelerator
pedal, let the engine idle f or 20
seconds.
1.
2.
3. 4.
5.
6.
T esting of Readiness CodesEmissions T esting700
10/07/17 11:07:40 31TK8600_705
2011 Odyssey

Then drive in city/suburban
traffic for at least 10 minutes.
When traf f ic conditions allow, let
the vehicle coast f or several
seconds without using the
accelerator pedal or the brake
pedal.
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
D (A/T). Do not use the cruise
control. When traf f ic allows, drive
f or 90 seconds without moving the
accelerator pedal. (Vehicle speed
may vary slightly; this is okay.) If
you cannot do this f or a
continuous 90 seconds because of
traf f ic conditions, drive f or at least
30 seconds, then repeat it two
more times (for a total of
90 seconds).
If the testing f acility determines the
readiness codes are still not set, see
your dealer.Make sure the vehicle has been
parked with the engine of f f or 30
minutes.
7.
8.
9.
Emissions T esting
T echnical Inf ormation
701
10/07/17 11:07:46 31TK8600_706
2011 Odyssey

702
10/07/17 11:07:48 31TK8600_707
2011 Odyssey

....
Customer Service Inf ormation . 704
....................
Warranty Coverages .705
.............
Reporting Saf ety Def ects . 706
.....................
Authorized Manuals .707
Warranty and Customer Relations
Warranty and Customer Relations
703
10/07/17 11:07:51 31TK8600_708
2011 Odyssey

Honda dealership personnel are
trained prof essionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisf action, please discuss it with
the dealership’s management. The
service manager or general manager
can help. Almost all problems are
solved in this way.
If you are dissatisf ied with the
decision made by the dealership’s
management, contact Honda
Customer Service.
U.S. Owners:Canadian Owners:
When you call or write, please give
us this inf ormation:
Vehicle Identif ication Number
(see page )
Name and address of the dealer
who services your vehicle
Date of purchase
Odometer reading of your vehicle
Your name, address, and tele-
phone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to you
In Puerto Rico and the U.S. Virgin
Islands: 686Customer Service Inf ormation704American Honda Motor Co., Inc.
Honda Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Boulevard
Torrance, California 90501-2746
Tel: (800) 999-1009Honda Canada Inc.
Customer Relations
180 Honda Boul
evard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-Mail: [email protected]
Vortex Motor Corp.
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7546
10/07/17 11:08:00 31TK8600_709
2011 Odyssey

µ
µ
µ
µ µ
µ
µ
µ

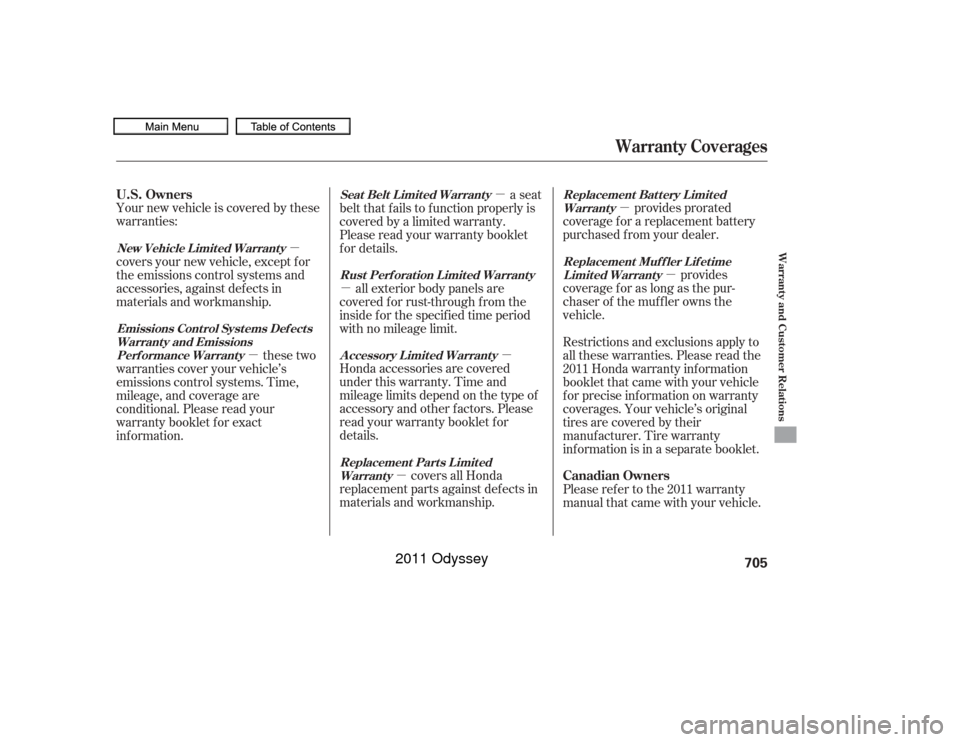

Your new vehicle is covered by these
warranties:
provides
coverageforaslongasthepur-
chaser of the muf f ler owns the
vehicle. provides prorated
coverage f or a replacement battery
purchased f rom your dealer.
a seat
belt that f ails to f unction properly is
covered by a limited warranty.
Please read your warranty booklet
f or details.
covers all Honda
replacement parts against defects in
materials and workmanship. Honda accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other f actors. Please
read your warranty booklet f or
details. all exterior body panels are
covered f or rust-through f rom the
inside f or the specif ied time period
with no mileage limit.
covers your new vehicle, except f or
the emissions control systems and
accessories, against def ects in
materials and workmanship.
these two
warranties cover your vehicle’s
emissions control systems. Time,
mileage, and coverage are
conditional. Please read your
warranty booklet f or exact
inf ormation. Restrictions and exclusions apply to
all these warranties. Please read the
2011 Honda warranty inf ormation
booklet that came with your vehicle
f or precise inf ormation on warranty
coverages. Your vehicle’s original
tires are covered by their
manuf acturer. Tire warranty
inf ormation is in a separate booklet.
Please ref er to the 2011 warranty
manual that came with your vehicle.
Warranty Coverages
U.S. Owners
Canadian Owners
Replacement Muf f ler L if et imeLimited Warranty
Replacement Bat t ery L imit ed
Warranty
Seat Belt Limited Warranty
Replacement Part s L imit edWarranty
Accessory Limited Warranty
Rust Perf orat ion L imit ed Warrant y
New Vehicle L imit ed Warrant y
Emissions Cont rol Syst ems Def ect sWarrant y and EmissionsPerf ormance Warranty
Warranty and Customer Relations
705
10/07/17 11:08:09 31TK8600_710
2011 Odyssey

If you believe that your vehicle has a def ect which
could cause a crash or could cause injury or death, you
should immediately inf orm the National Highway
Traf f ic Saf ety Administration (NHTSA), in addition to
notif ying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in
a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or
American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety
Hotline toll-f ree at 1-888-327-4236
(TTY: 1-800-424-9153); go to; or write to: Administrator,
NHTSA, 1200 New Jersey Avenue, SE., Washington,
DC 20590.
You can also obtain other information about motor
vehicle safety from .If you believe that your vehicle has a def ect which could
cause a crash or could cause injury or death, you should
immediately inf orm Honda Canada Inc. and you may also
inform Transport Canada.
To contact Transport Canada’s Def ect Investigations and
Recalls Division, you may call 1-800-333-0510. For more
inf ormation on reporting saf ety def ects or about motor
vehicle saf ety, go to
.
If Transport Canada receives similar complaints, it may
open an investigation, and if it f inds that a saf ety def ect
exists in a group of vehicles, it may lead to a recall and
remedy campaign. However, Transport Canada cannot
become involved in individual problems between you,
your dealer, or Honda Canada Inc.Reporting Saf ety Def ectsIn the US
In Canada706http://www.saf ercar.gov
http://www.saf ercar.gov http://www.tc.gc.ca/roadsaf ety
10/07/17 11:08:16 31TK8600_711
2011 Odyssey

T he publications shown below can be purchased f rom Helm
Incorporated. You can order by phone or online:
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356.Call Helm Inc. at 1-800-782-4356 (credit card orders only)
Go online at
Covers maintenance and recommended procedures f or
repair to engine and chassis components. It is written
f or the journeyman mechanic, but it is simple enough
f or most mechanically inclined owners to understand.
Complements the Service Manual by providing in-depth
troubleshooting inf ormation f or each electrical circuit
in your vehicle.
Describes the procedures involved in the replacement
of damaged body parts.
Authorized Manuals
Purchasing Factory Authorized Manuals
Service Manual:
Electrical T roubleshooting Manual:
Body Repair Manual:
(U.S. only)
Authorized Manuals
707
Form Description
2011 Honda Odyssey Service Manual 2011 Honda Odyssey
Electrical Troubleshooting Manual
2011 Model Series Honda Odyssey Body Repair Manual
2011 Honda Odyssey Owner’s Manual
2011 Honda Odyssey
Navigation System Manual
2011 Honda Odyssey Honda Service History
2011 Honda Odyssey
Technology Reference Guide
Order Form for Previous Years-Indicate Year and Model Desired
Publication
Form Number 61TK800
61TK800EL
61TK800
31TK8600
31TK8800
31TK8M00 31TK8Q00
HON-R
www.helminc.com
10/07/17 11:08:24 31TK8600_712
2011 Odyssey
