indicator HONDA ODYSSEY 2012 RB3-RB4 / 4.G Owner's Manual

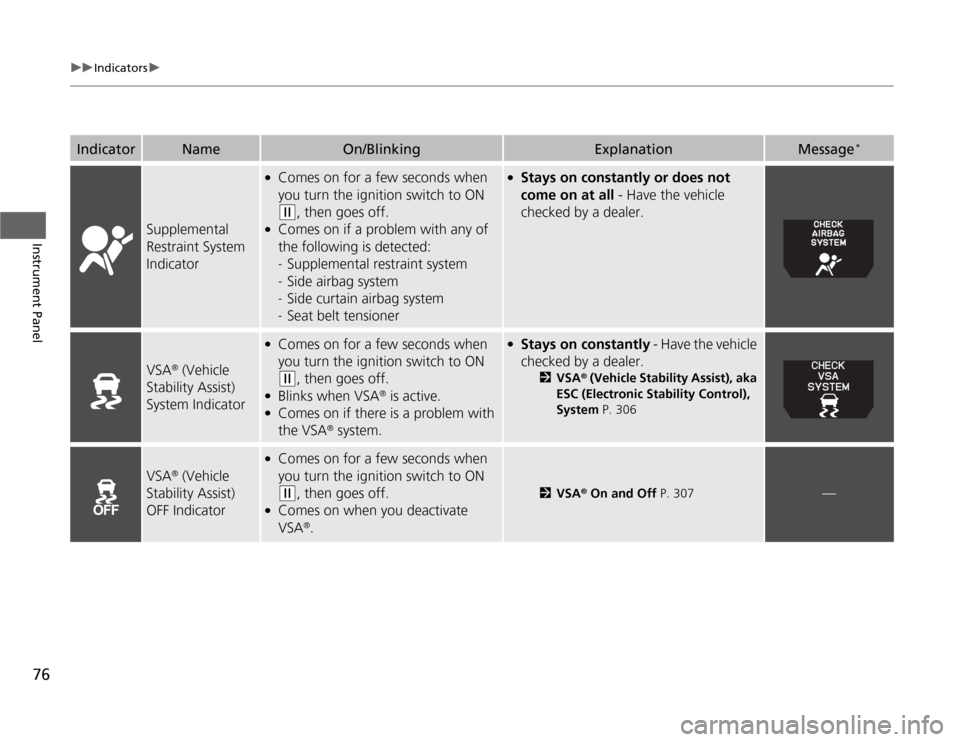

76
uuIndicatorsu
Instrument Panel
Supplemental
Restraint System
Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
-Side airbag system
-Side curtain airbag system
-Seat belt tensioner
●
Stays on constantly or does not
come on at all - Have the vehicle
checked by a dealer.
VSA
® (Vehicle
Stability Assist)
System Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Blinks when VSA
® is active.
●
Comes on if there is a problem with
the VSA
® system.
●
Stays on constantly - Have the vehicle
checked by a dealer.
2VSA
® (Vehicle Stability Assist), aka
ESC (Electronic Stability Control),
System P. 306
VSA
® (Vehicle
Stability Assist)
OFF Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Comes on when you deactivate
VSA
®.
2VSA
® On and Off P. 307
—
Indicator
Name
On/Blinking
Explanation
Message
*

77
uuIndicatorsu
Instrument Panel
Door and Tailgate
Open Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Comes on if any door or the tailgate
is not completely closed.
●
The beeper sounds and the indicator
comes on if any door or the tailgate
is opened while driving.
●
Goes off when all doors and tailgate are
closed.
Parking Sensor
Indicator
*
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
A corresponding indicator comes on
when an obstacle is detected while
parking.
●
Comes on if there is a problem with
the parking sensor system. The
beeper sounds.
●
Comes on without any obstacles or
when you are not parking - Check if
the area around the sensor(s) is covered
with mud, ice, snow, etc. If the
indicator(s) stays on even after you
clean the area, have the system checked
by a dealer.
—
Daytime Running
Lights Indicator
*
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Comes on if there is a problem with
the DRL system.
●
Have your vehicle checked by a dealer.
2Daytime Running Lights P. 144
Indicator
Name
On/Blinking
Explanation
Message
*
* Not available on all models

78
uuIndicatorsu
Instrument Panel
TPMS Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
.
●
Comes on if there is a problem with
the TPMS, or when a compact spare
tire is temporarily installed.
●
Stays on constantly or does not
come on at all - Have the vehicle
checked by a dealer. If the vehicle is
fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
—
Low Tire Pressure
Indicator
Low Tire Pressure/
TPMS Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
.
●
Comes on if the tire pressure of any
of the tires becomes significantly
low.
●
Comes on for a while and then goes
off when a compact spare tire is
temporarily installed.
●
Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire is temporarily installed.
●
Comes on while driving - Stop in a
safe place, check tire pressures, and
inflate the tire(s) if necessary.
●
Blinks and remains on - Have the
vehicle checked by a dealer. If the
vehicle is fitted with a compact spare,
get your regular tire repaired or
replaced and put back on your vehicle
as soon as you can.
Indicator
Name
On/Blinking
Explanation
Message
*
Models with
information
displayModels with
information
displayModels with
multi-
information
display
Models with information displayModels with multi-information display
Models with multi-information display

79
uuIndicatorsu
Instrument Panel
System Message
Indicator
*
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.
●
While the indicator is on, press the
/ (information) button to see the
message again.
●
Refer to the Indicators information in
this chapter when a system message
appears on the multi-information
display. Take the appropriate action for
the message.
●
The multi-information display does not return
to the normal screen unless the warning is
canceled, or the / (information)
button is pressed.
—
Turn Signal
Indicators
●
The turn signal indicators blink when
you operate the turn signal lever.
●
If you press the hazard warning
button, both indicators and all turn
signals blink at the same time.
●
Does not blink or blinks rapidly - A
turn signal light bulb has blown.
Change the bulb immediately.
2Replacing Light Bulbs
P. 360, 361
—
High Beam
Indicator
●
Comes on when the high beam
headlights are on.
—
—
Lights On
Indicator
●
Comes on whenever the light switch
is on, or in AUTO
* when the exterior
lights are on.
●
If you remove the key from the ignition
switch while the lights are on, a chime
sounds when the driver's door is
opened.
—
Indicator
Name
On/Blinking
Explanation
Message
*
* Not available on all models

80
uuIndicatorsu
Instrument Panel
Fog Light
Indicator
*
●
Comes on when the fog lights are
on.
—
—
Side Airbag Off
Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Comes on when the passenger side
airbag system is automatically shut
off.
●
It does not mean there is a problem
with your side airbags.
●
Comes on when nobody is sitting in
the passenger seat - Have the vehicle
checked by a dealer.
●
Comes on when someone is sitting
in the seat - Have the passenger sit
properly.
Immobilizer
System Indicator
●
Comes on briefly when you turn the
ignition switch to ON
(w
, then goes
off.
●
Comes on if the immobilizer system
cannot recognize the key
information.
●
Blinks - You cannot start the engine.
Turn the ignition switch to LOCK
(0
,
pull the key out, and then insert the key
and turn it to ON
(w
again.
●
Repeatedly blinks - The system may
be malfunctioning. Have the vehicle
checked by a dealer.
●
Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
—
Indicator
Name
On/Blinking
Explanation
Message
*
U.S.
Canada
U.S.
Canada
* Not available on all models

81
uuIndicatorsu
Instrument Panel
Security System
Alarm Indicator
*
●
Blinks when the security system
alarm has been set.
2Security System Alarm P. 134
—
Starter System
Indicator
*
●
Comes on if there is a problem with
the starter system.
●
As a temporary measure, hold the
ignition switch to START
(e
for up to
15 seconds and start the engine. Have
the vehicle checked by a dealer.
Fuel Economy
Indicator
●
Comes on and stays on while you are
driving with god fuel economy.
—
—
CRUISE MAIN
Indicator
●
Comes on when you press the
CRUISE button.
2Cruise Control P. 303
—
CRUISE
CONTROL
Indicator
●
Comes on if you have set a speed for
cruise control.
2Cruise Control P. 303
—
Indicator
Name
On/Blinking
Explanation
Message
*
Indicator
U.S.
Canada
U.S.
Canada
* Not available on all models

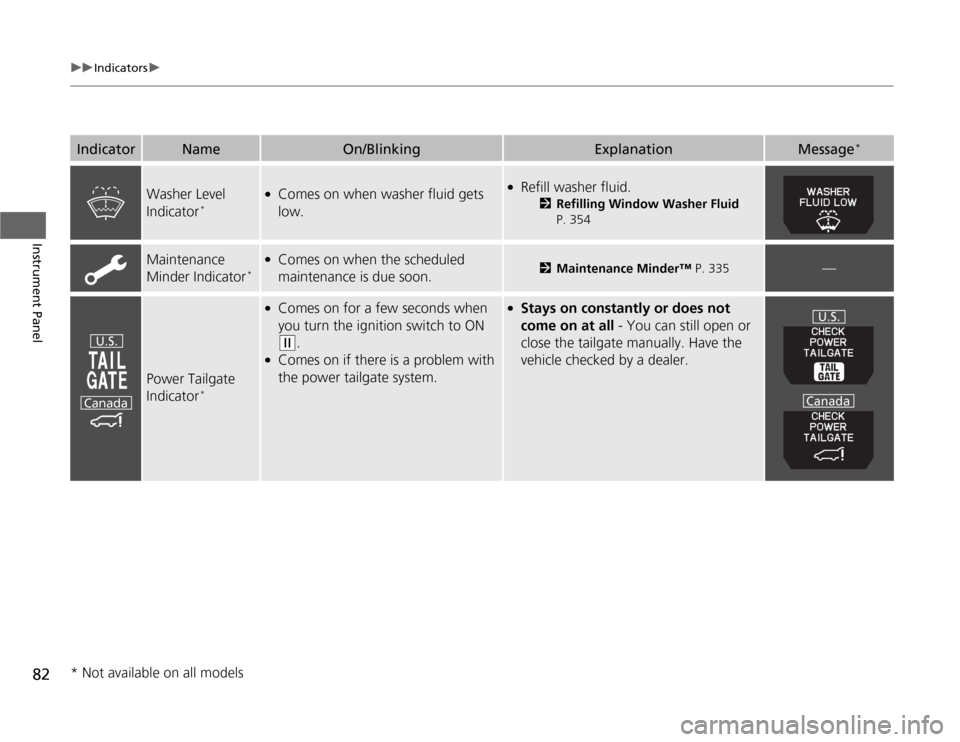

82
uuIndicatorsu
Instrument Panel
Washer Level
Indicator
*
●
Comes on when washer fluid gets
low.
●
Refill washer fluid.
2Refilling Window Washer Fluid
P. 354
Maintenance
Minder Indicator
*
●
Comes on when the scheduled
maintenance is due soon.
2Maintenance Minder™ P. 335
—
Power Tailgate
Indicator
*
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
.
●
Comes on if there is a problem with
the power tailgate system.
●
Stays on constantly or does not
come on at all - You can still open or
close the tailgate manually. Have the
vehicle checked by a dealer.
Indicator
Name
On/Blinking
Explanation
Message
*
U.S.
Canada
U.S.
Canada
* Not available on all models

83
uuIndicatorsu
Instrument Panel
Power Sliding
Door Indicator
*
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Comes on if there is a problem with
the power sliding door system.
●
Stays on constantly or does not
come on at all - Turn off the main
switch and manually operate the power
sliding doors. Have the vehicle checked
by a dealer.
2Opening/Closing the Power
Sliding Doors
* P. 128
BSI (Blind Spot
Information)
Indicator
*
●
Comes on for a few seconds when
you turn the ignition switch to ON (w
, then goes off.
●
Stays on while BSI is turned off.
●
Comes on when mud, snow, or ice
accumulates in the vicinity of sensor.
●
Comes on if there is a problem with
the system.
—
●
Comes on while driving - Remove the
obstacle in the vicinity of sensor.
●
Comes on while driving - Have the
vehicle checked by a dealer.
Indicator
Name
On/Blinking
Explanation
Message
*
U.S.
Canada
U.S.
Canada
* Not available on all models

84
uuIndicatorsuMulti-Information Display Warning and Information Messages
*
Instrument Panel
Multi-Information Display Warning and Information Messages
*
The following messages appear only on the multi-information display. Press the / (information) button to see the message again
with the system message indicator on.
Message
Condition
Explanation
●
Appears when the fuel fill cap is loose or is not
installed.
2Check/Tighten Fuel Cap Message P. 407
●
Appears when the scheduled maintenance is due
soon.
●
Consequently, SERVICE DUE NOW and SERVICE
PAST DUE follow.
2Maintenance Minder Messages on the Multi-
Information Display P. 340
●
Appears when the ignition key is turned to
ACCESSORY
(q
from ON
(w
. (The driver’s door is
closed.)
—
●
Appears when you open the driver's door while the
ignition key is in LOCK
(0
.
●
Remove the key from the ignition switch.
●
Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 404
* Not available on all models

85
uuIndicatorsuMulti-Information Display Warning and Information Messages
*
Instrument Panel
●
Appears when the daytime running lights are off.
2Daytime Running Lights P. 144
●
Appears when there is a problem with the sensor on
the battery.
●
Have your vehicle checked by a dealer.
2Checking the Battery P. 379
●
Appears if there is a problem with the parking sensor
system. The beeper sounds.
●
Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
Message
Condition
Explanation
