ContentsThis owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular model may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.
2Safe Driving P. 25For Safe Driving P. 26 Seat Belts P. 30 Airbags P. 392Instrument Panel P. 71Indicators P. 72 Gauges and Displays P. 862Controls P. 107Setting the Clock P. 108 Locking and Unlocking the Doors P. 110
Security System P. 134 Opening and Closing the Windows P. 137
Adjusting the Mirrors P. 152
Heating and Cooling
* P. 183
2Features P. 193Audio System P. 194 Audio System Basic Operation P. 197
Rear Entertainment System
* P. 241 HomeLink
® Universal Transceiver
* P. 257
2Driving P. 285Before Driving P. 286 Towing a Trailer P. 291
Rearview Camera
* P. 323 Refueling P. 325
2Maintenance P. 331Before Performing Maintenance P. 332 Maintenance Minder™ P. 335
Checking and Maintaining Wiper Blades P. 366
Remote Control and Wireless Headphone Care
* P. 382
2Handling the Unexpected P. 389Tools P. 390 If a Tire Goes Flat P. 391
Overheating P. 404 Indicator, Coming On/Blinking P. 406
When You Cannot Open or Close the Tailgate P. 4182Information P. 419Specifications P. 420 Identification Numbers P. 422
Warranty Coverages P. 427 Authorized Manuals P. 429

Visual Index
4Quick Reference Guide
❙Door Mirror Controls
(P153)
❙Master Door Lock Switch
(P114)
❙Hood Release Handle
(P344)
❙Fuel Fill Door Release Handle
(P326)
❙Coin Pocket❙Parking Brake Pedal
(P314)
❙Power Window Switches
(P137)
❙Rearview Mirror
(P152)
❙Driver’s Side Fuse Box (P413)❙Passenger's Front Airbag (P42)❙Glove Box
(P171)
❙Driver's Front Airbag
(P42)
❙USB Adapter Cable
* (P195)
❙Passenger’s Side Fuse Box (P414)

Visual Index
6Quick Reference Guide
❙Maintenance Under the Hood
(P343)
❙Windshield Wipers
(P145, 366)
❙Door Lock/Unlock Control
(P112)
❙Power Door Mirrors
(P153)
❙Headlights
(P142, 355)
❙Front Turn Signal/Parking/Side Marker Lights
(P142, 360)
❙Tires
(P370, 391)
❙Fog Lights
* (P144, 359)
❙How to Refuel
(P326)
❙High-Mount Brake Light
(P365)
❙Rearview Camera
* (P323)
❙Opening/Closing the Tailgate
(P120)
❙Back-Up/Taillights
(P363)
❙Brake/Taillights
(P361)
❙Rear Turn Signal Lights
(P361)
❙Rear Side Marker Lights
(P361)
❙Opening/Closing the Sliding Doors (P126)

107
Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock.............................. 108
Locking and Unlocking the Doors
Key Types and Functions .................. 110
Locking/Unlocking the Doors from the
Outside .......................................... 112
Locking/Unlocking the Doors from the
Inside ............................................. 114
Childproof Door Locks ..................... 115
Auto Door Locking/Unlocking .......... 116
Opening and Closing the Tailgate... 120Opening and Closing the Sliding Doors
...... 126
Security System................................ 134
Immobilizer System .......................... 134
Security System Alarm
*.................... 134
Opening and Closing the Windows.... 137Opening and Closing the Moonroof
*...... 140
Operating the Switches Around the
Steering Wheel
Ignition Switch ................................. 141
Turn Signals ..................................... 142
Light Switches.................................. 142
Fog Lights
*...................................... 144
Daytime Running Lights ................... 144
Wipers and Washers ........................ 145
Brightness Control ........................... 147
Rear Defogger/Heated Door Mirror
*
Button ........................................... 148
Driving Position Memory System
*.... 149
Adjusting the Steering Wheel........... 151Adjusting the Mirrors....................... 152
Interior Rearview Mirror ................... 152
Power Door Mirrors ......................... 153
Adjusting the Seats.......................... 154
Adjusting the Seat Positions ............. 154
Interior Lights/Interior Convenience
Items................................................ 169
Interior Lights .................................. 169
Interior Convenience Items .............. 171
Heating and Cooling
*....................... 183
Using Vents, Heating and A/C.......... 183
Climate Control System*.................. 187
Using Automatic Climate Control .... 187
Automatic Climate Control Sensors . 192
* Not available on all models

152Controls

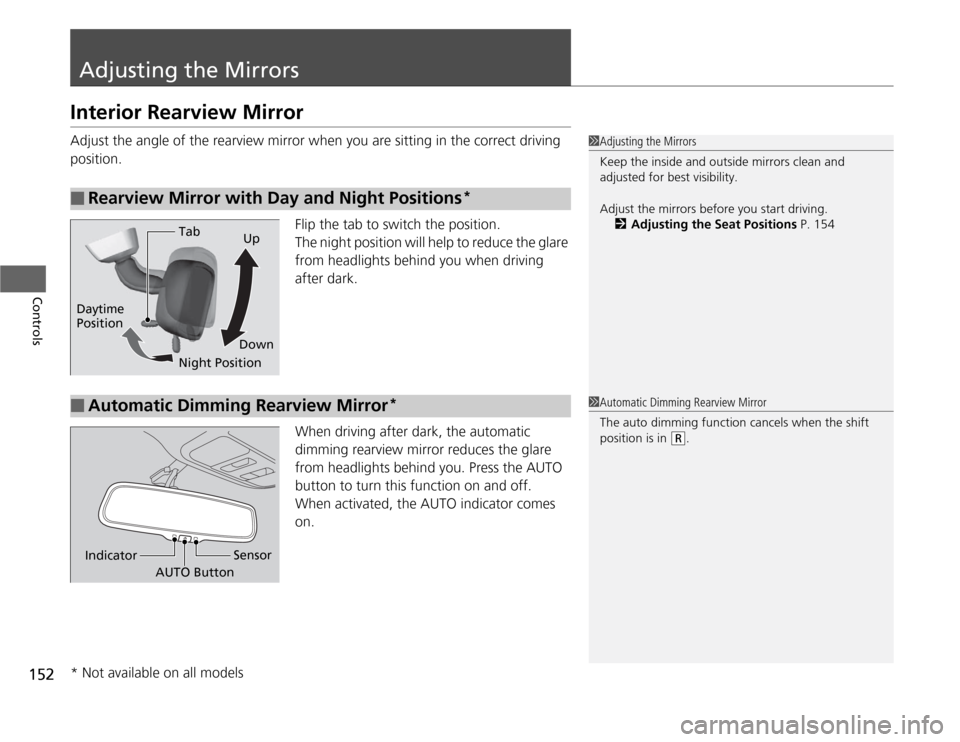

Adjusting the MirrorsInterior Rearview MirrorAdjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When driving after dark, the automatic
dimming rearview mirror reduces the glare
from headlights behind you. Press the AUTO
button to turn this function on and off.
When activated, the AUTO indicator comes
on.■
Rearview Mirror with Day and Night Positions
*
1Adjusting the Mirrors
Keep the inside and outside mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving.
2Adjusting the Seat Positions P. 154
Tab
Daytime
Position
Night PositionUp
Down■
Automatic Dimming Rearview Mirror
*
1Automatic Dimming Rearview Mirror
The auto dimming function cancels when the shift
position is in
(R
.
Sensor
AUTO Button Indicator
* Not available on all models

uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items
180Controls

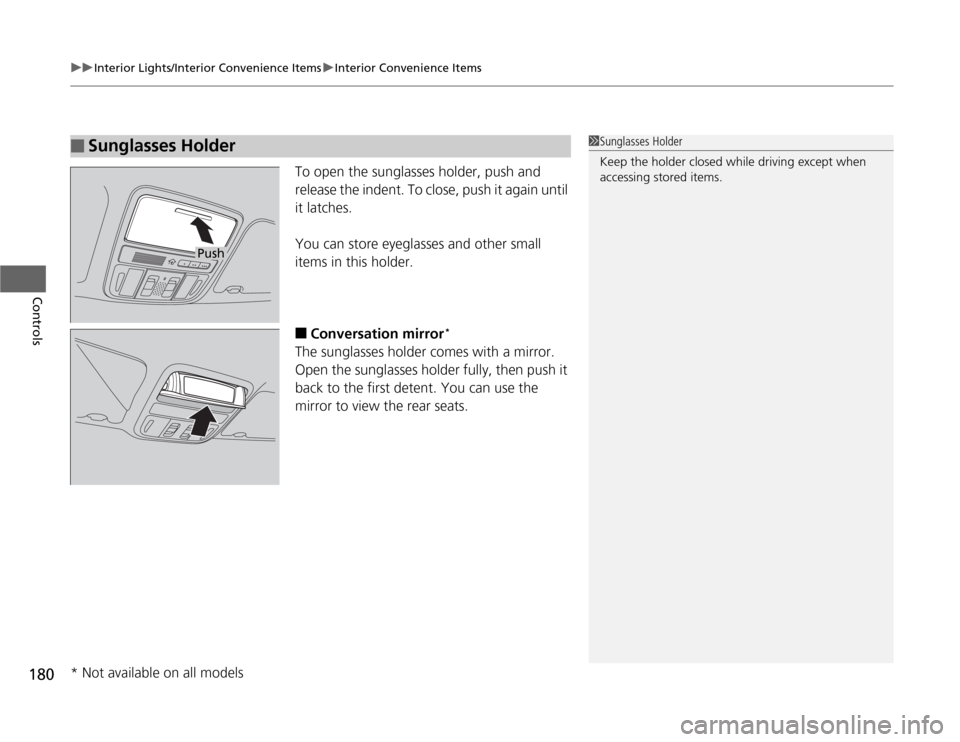

To open the sunglasses holder, push and
release the indent. To close, push it again until
it latches.
You can store eyeglasses and other small
items in this holder.■
Conversation mirror
*
The sunglasses holder comes with a mirror.
Open the sunglasses holder fully, then push it
back to the first detent. You can use the
mirror to view the rear seats.
■
Sunglasses Holder
1Sunglasses Holder
Keep the holder closed while driving except when
accessing stored items.
Push
* Not available on all models

312
uuWhen DrivinguBSI (Blind Spot Information) System
*
Driving

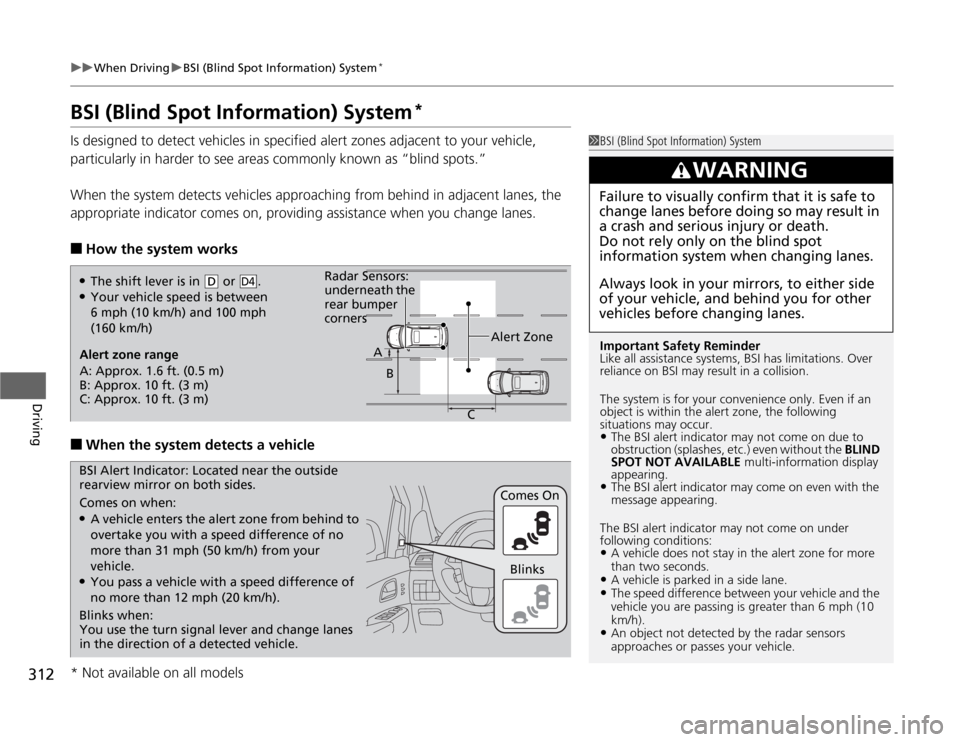

BSI (Blind Spot Information) System
*
Is designed to detect vehicles in specified alert zones adjacent to your vehicle,
particularly in harder to see areas commonly known as “blind spots.”
When the system detects vehicles approaching from behind in adjacent lanes, the
appropriate indicator comes on, providing assistance when you change lanes.■
How the system works
■
When the system detects a vehicle
1BSI (Blind Spot Information) System
Important Safety Reminder
Like all assistance systems, BSI has limitations. Over
reliance on BSI may result in a collision.
The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur.•The BSI alert indicator may not come on due to
obstruction (splashes, etc.) even without the BLIND
SPOT NOT AVAILABLE multi-information display
appearing.•The BSI alert indicator may come on even with the
message appearing.
The BSI alert indicator may not come on under
following conditions:•A vehicle does not stay in the alert zone for more
than two seconds.•A vehicle is parked in a side lane.•The speed difference between your vehicle and the
vehicle you are passing is greater than 6 mph (10
km/h).•An object not detected by the radar sensors
approaches or passes your vehicle.
3
WARNING
Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.
Do not rely only on the blind spot
information system when changing lanes.
Always look in your mirrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.
●The shift lever is in
(D
or .
●Your vehicle speed is between
6 mph (10 km/h) and 100 mph
(160 km/h)
D4
Alert zone range
A: Approx. 1.6 ft. (0.5 m)
B: Approx. 10 ft. (3 m)
C: Approx. 10 ft. (3 m)Alert Zone Radar Sensors:
underneath the
rear bumper
corners
A
B
C
Comes on when:●A vehicle enters the alert zone from behind to
overtake you with a speed difference of no
more than 31 mph (50 km/h) from your
vehicle.●You pass a vehicle with a speed difference of
no more than 12 mph (20 km/h).Comes On BSI Alert Indicator: Located near the outside
rearview mirror on both sides.
Blinks when:
You use the turn signal lever and change lanes
in the direction of a detected vehicle.Blinks
* Not available on all models

324
uuRearview Camera
*uRearview Display Image
Driving

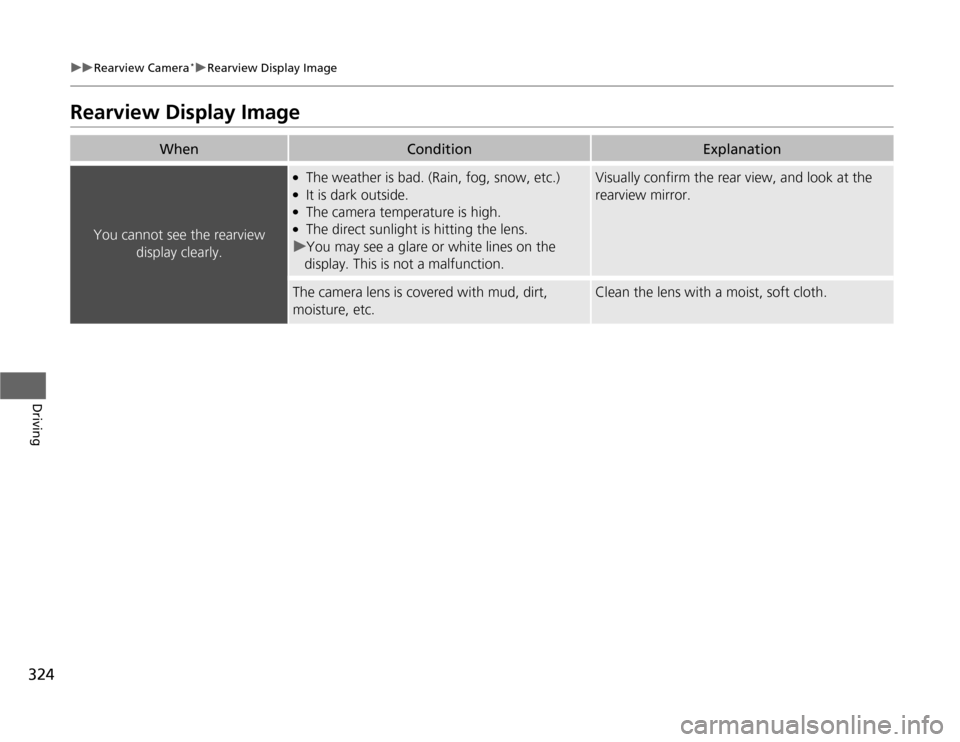

Rearview Display Image
When
Condition
Explanation
You cannot see the rearview
display clearly.
●
The weather is bad. (Rain, fog, snow, etc.)
●
It is dark outside.
●
The camera temperature is high.
●
The direct sunlight is hitting the lens.
uYou may see a glare or white lines on the
display. This is not a malfunction.
Visually confirm the rear view, and look at the
rearview mirror.
The camera lens is covered with mud, dirt,
moisture, etc.
Clean the lens with a moist, soft cloth.

434Index
Blind Spot Information (BSI) System........ 312
Bluetooth
® Audio..................................... 230
Bluetooth® HandsFreeLink
®..................... 259
Booster Seats (For Children)....................... 67
Brake System............................................. 314
Anti-lock Brake System (ABS) ................... 316
Brake Assist System ................................. 317
Fluid ........................................................ 353
Foot Brake ............................................... 315
Indicator ............................................ 72, 408
Parking Brake .......................................... 314
Brightness Control (Instrument Panel).... 147
BSI (Blind Spot Information) System........ 312
Bulb Replacement..................................... 355
Back-Up/Taillight...................................... 363
Brake/Rear Side Marker/Taillight
and Rear Turn Signal Lights .................... 361
Fog Lights ................................................ 359
Front Turn Signal/Parking/
Side Marker Lights ................................. 360
Headlights ............................................... 355
High-Mount Brake Light .......................... 365
Rear License Plate Light............................ 364
Bulb Specifications.................................... 420
CCarbon Monoxide Gas................................ 68
Cargo Hooks.............................................. 178
Carrying Cargo.................................. 287, 289
CD Library.................................................. 216CD Player........................................... 200, 212
Center Pocket........................................... 173
Certification Label.................................... 422
Changing Bulbs........................................ 355
Charging System Indicator................. 73, 406
Child Safety................................................. 54
Childproof Door Locks............................. 115
Child Seat.................................................... 54
Booster Seats ............................................ 67
Child Seat for Infants................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat
with a Lap/Shoulder Seat Belt .................. 62
Larger Children ......................................... 66
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Using a Tether ........................................... 64
Childproof Door Locks............................. 115
Cleaning the Exterior............................... 387
Cleaning the Interior................................ 385
Climate Control System............................ 187
Changing the Mode ................................ 187
Defrosting the Windshield
and Windows ........................................ 188
Dust and Pollen Filter............................... 384
Recirculation/Fresh Air Mode ................... 187
Sensors ................................................... 192
Using Automatic Climate Control ............ 187
Clock.......................................................... 108
Coat Hooks............................................... 178
Compact Spare Tire.......................... 391, 421Controls.................................................... 107
Coolant (Engine)...................................... 350
Adding to the Radiator ........................... 351
Adding to the Reserve Tank .................... 350
Overheating ............................................ 404
Temperature Gauge .................................. 86
Creeping (Automatic Transmission)........ 300
Cruise Control.......................................... 303
Indicator ................................................... 81
Cup Holders.............................................. 174
Customer Service Information................ 430
Customized Features............................... 101
DDaytime Running Lights.......................... 144
Dead Battery............................................ 401
Defrosting the Windshield
and Windows................................. 185, 188
Devices that Emit Radio Waves............... 423
Dimming
Headlights .............................................. 142
Rearview Mirror ...................................... 152
Dipstick (Engine Oil)................................ 346
Directional Signals (Turn Signal)............. 142
Display/Information Button...................... 98
Door Mirrors............................................. 153
Doors........................................................ 110
Auto Door Locking.................................. 116
Auto Door Unlocking .............................. 116
Door and Tailgate Open Indicator ....... 29, 77

437
Index
Instrument Panel........................................ 71
Brightness Control .................................. 147
Integrated Sunshades.............................. 182
Interior Lights........................................... 169
Interior Rearview Mirror......................... 152JJack (Wheel Nut Wrench)........................ 394
Jump Starting........................................... 401KKey Number Tag...................................... 111
Keyless Lockout Prevention..................... 113
Keys........................................................... 110
Lockout Prevention ................................. 113
Master Keys ............................................ 110
Number Tag............................................ 111
Rear Door Won’t Open ........................... 115
Remote Transmitter ................................ 112
Types and Functions................................ 110
Valet Key ................................................ 111
Won’t Turn ............................................... 21
Kickdown (Automatic Transmission)...... 300LLanguage (HFL)........................................ 260
LATCH (Child Seats)................................... 59
Lights................................................ 142, 355
Automatic............................................... 143Bulb Replacement .................................... 355
Daytime Running Lights ........................... 144
Fog Lights ................................................ 144
High Beam Indicator .................................. 79
Interior .................................................... 169
Light Switches ......................................... 142
Lights On Indicator .................................... 79
Turn Signals ............................................. 142
Load Limits................................................ 289
Locking/Unlocking.................................... 110
Auto Door Locking/Unlocking .................. 116
Childproof Door Locks ............................. 115
From Inside .............................................. 114
From Outside ........................................... 112
Keys ........................................................ 110
Using a Key ............................................. 113
Lockout Prevention System...................... 113
Low Battery Charge.................................. 406
Low Fuel Indicator...................................... 75
Low Oil Pressure Indicator................. 72, 406
Lower Anchors............................................ 59
Luggage (Maximum Load Limit)............. 289
MMaintenance............................................. 331
Battery .................................................... 379
Brake Fluid .............................................. 353
Cleaning .................................................. 385
Climate Control System ........................... 384
Coolant ................................................... 350Heating and Cooling System ................... 384
Maintenance Minder™ ........................... 335
Oil ........................................................... 346
Power Steering Fluid................................ 354
Precautions ............................................. 332
Radiator .................................................. 351
Remote Control
and Wireless Headphone ....................... 382
Remote Transmitter ................................. 380
Replacing Light Bulbs .............................. 355
Safety...................................................... 333
Service Items ................................... 337, 341
Tires ........................................................ 370
Transmission Fluid ................................... 352
Under the Hood ...................................... 343
Malfunction Indicator Lamp.............. 73, 407
Map Lights................................................ 170
Maximum Load Limit............................... 289
Meters, Gauges........................................... 86
Mirrors...................................................... 152
Adjusting ................................................ 152
Door ....................................................... 153
Exterior ................................................... 153
Interior Rearview ..................................... 152
Modifications (and Accessories).............. 329
Moonroof................................................. 140
MP3........................................... 200, 212, 226
Multi-Information Display......................... 98
