HONDA ODYSSEY 2016 RC1-RC2 / 5.G Owners Manual

uuAdjusting the Mirrors uPower Door Mirrors
160
Controls

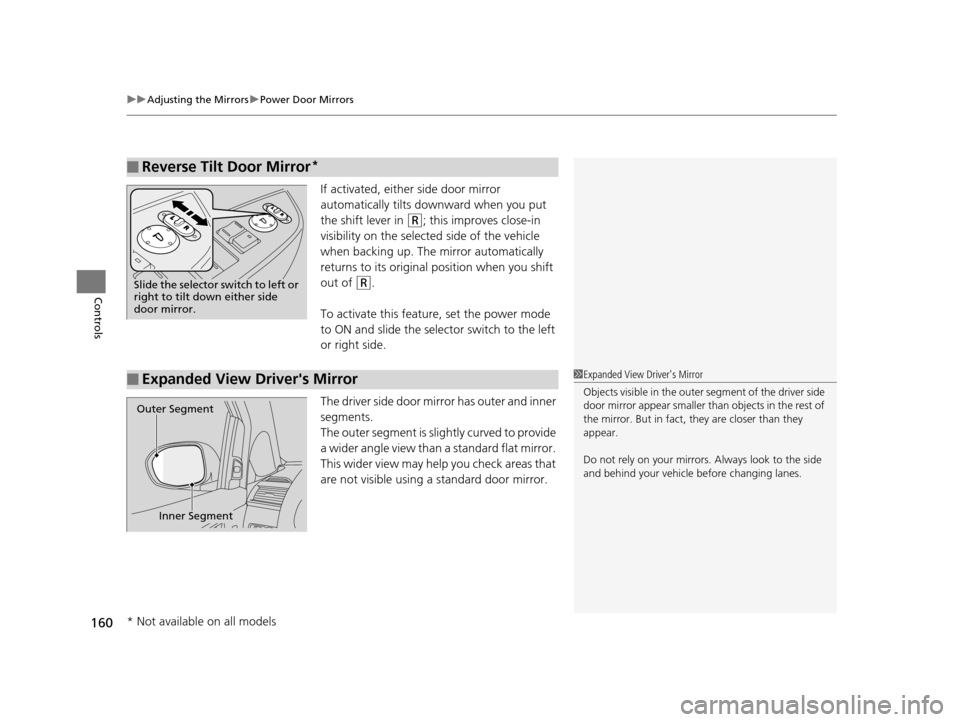

If activated, either side door mirror
automatically tilts do wnward when you put
the shift lever in
(R; this improves close-in
visibility on the selected side of the vehicle
when backing up. The mirror automatically
returns to its original position when you shift
out of
(R.
To activate this feature, set the power mode
to ON and slide the selector switch to the left
or right side.
The driver side door mirror has outer and inner
segments.
The outer segment is slightly curved to provide
a wider angle view than a standard flat mirror.
This wider view may help you check areas that
are not visible using a standard door mirror.
■Reverse Tilt Door Mirror*
Slide the selector switch to left or
right to tilt down either side
door mirror.
■Expanded View Driver's Mirror1 Expanded View Driver's Mirror
Objects visible in the outer segment of the driver side
door mirror appear smaller than objects in the rest of
the mirror. But in fact, they are closer than they
appear.
Do not rely on your mirrors. Always look to the side
and behind your vehicle before changing lanes.
Inner Segment
Outer Segment
* Not available on all models
16 US ODYSSEY-31TK86500.book 160 ページ ２０１５年６月２４日　水曜日　午後３時０分

161Continued
Controls

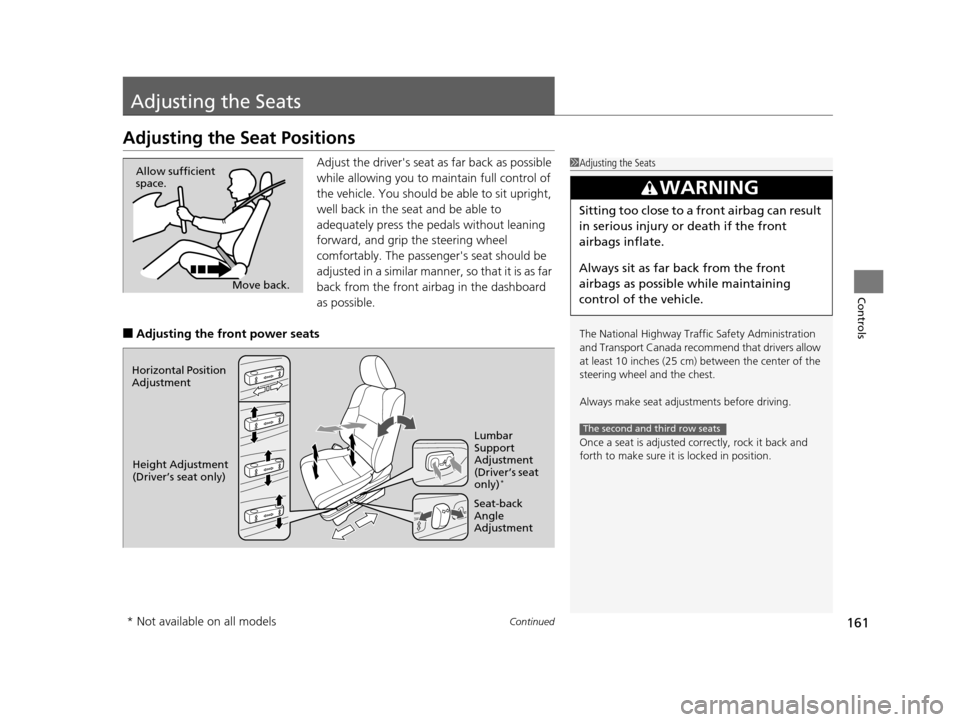

Adjusting the Seats
Adjusting the Seat Positions
Adjust the driver's seat as far back as possible
while allowing you to ma intain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger's seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.
■Adjusting the fro nt power seats
1Adjusting the Seats
The National Highway Traffic Safety Administration
and Transport Cana da recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.
Always make seat adjustments before driving.
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
3WARNING
Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.
Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.
The second and third row seats
Move back.
Allow sufficient
space.
Horizontal Position
Adjustment
Height Adjustment
(Driver’s seat only) Seat-back
Angle
AdjustmentLumbar
Support
Adjustment
(Driver’s seat
only)
*
* Not available on all models
16 US ODYSSEY-31TK86500.book 161 ページ ２０１５年６月２４日　水曜日　午後３時０分

162
uuAdjusting the Seats uAdjusting the Seat Positions
Controls

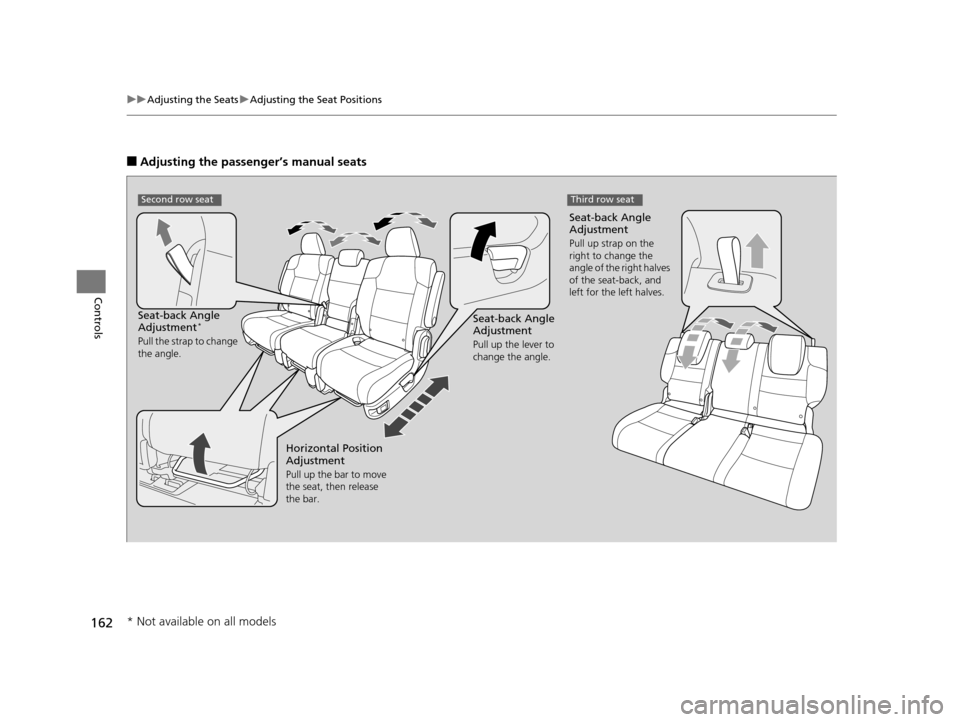

■Adjusting the passenger’s manual seats
Seat-back Angle
Adjustment
Pull up the lever to
change the angle.
Seat-back Angle
Adjustment*
Pull the strap to change
the angle.
Seat-back Angle
Adjustment
Pull up strap on the
right to change the
angle of the right halves
of the seat-back, and
left for the left halves.
Second row seat
Horizontal Position
Adjustment
Pull up the bar to move
the seat, then release
the bar.
Third row seat
* Not available on all models
16 US ODYSSEY-31TK86500.book 162 ページ ２０１５年６月２４日　水曜日　午後３時０分

Continued163
uuAdjusting the Seats uAdjusting the Seat Positions
Controls

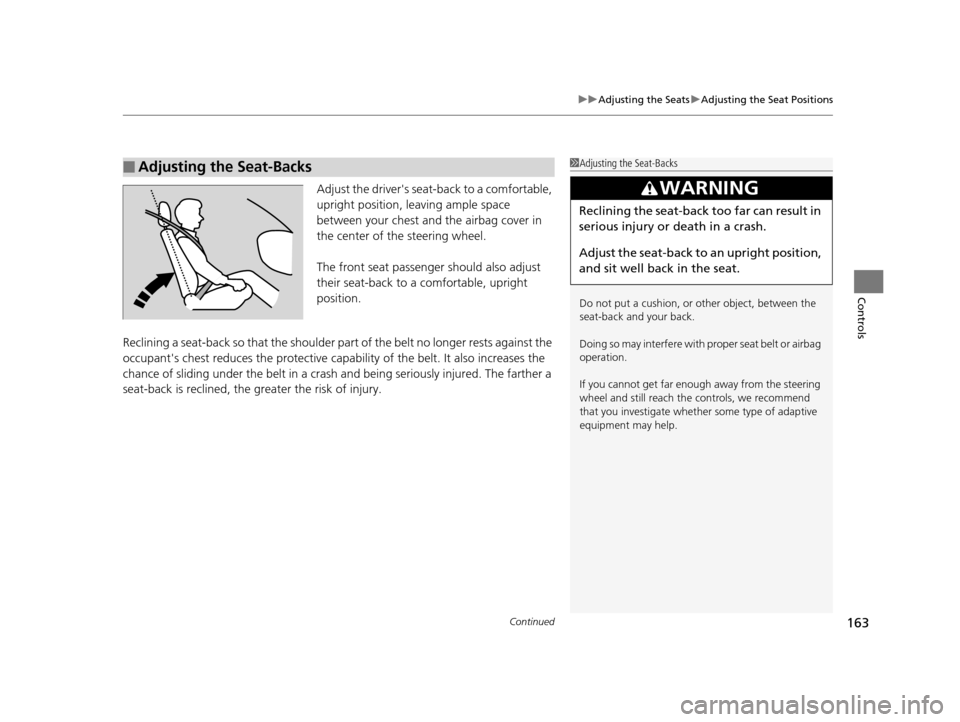

Adjust the driver's seat -back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.
The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant's chest reduces the protective capa bility of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the gr eater the risk of injury.
■Adjusting the Seat-Backs1Adjusting the Seat-Backs
Do not put a cushion, or other object, between the
seat-back and your back.
Doing so may interfere with proper seat belt or airbag
operation.
If you cannot get far e nough away from the steering
wheel and still reach th e controls, we recommend
that you investigate whether some type of adaptive
equipment may help.
3WARNING
Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.
16 US ODYSSEY-31TK86500.book 163 ページ ２０１５年６月２４日　水曜日　午後３時０分

uuAdjusting the Seats uAdjusting the Seat Positions
164
Controls
Your vehicle is equipped with head restraints
in all seating positions.
Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant's head rests against the
center of the restraint. The tops of the
occupant's ears should be level with the
center height of the restraint.
■Adjusting the Head Restraints1Adjusting the Head Restraints
3WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.
Position head in the center
of the head restraint.
16 US ODYSSEY-31TK86500.book 164 ページ ２０１５年６月２４日　水曜日　午後３時０分

165
uuAdjusting the Seats uAdjusting the Seat Positions
Continued
Controls

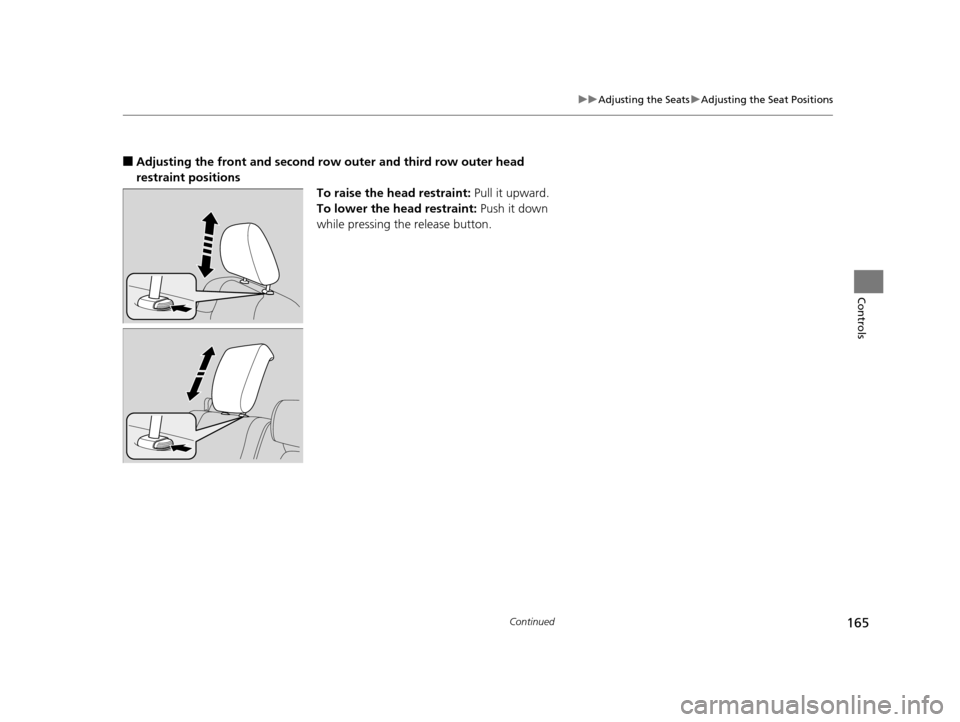

■Adjusting the front and second ro w outer and third row outer head
restraint positions To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.
16 US ODYSSEY-31TK86500.book 165 ページ ２０１５年６月２４日　水曜日　午後３時０分

uuAdjusting the Seats uAdjusting the Seat Positions
166
Controls
A passenger sitting in the second row/third
row center seating position should adjust the
height of their head restraint to an
appropriate position befo re the vehicle begins
moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.
■Changing the Second Row*/Third Row Center Seat Head
Restraint Positions
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
To remove the third row seat outer head restraints,
fold down the seat-back first.
2 Adjusting the passenger’s manual seats
P. 162
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
* Not available on all models
16 US ODYSSEY-31TK86500.book 166 ページ ２０１５年６月２４日　水曜日　午後３時０分

Continued167
uuAdjusting the Seats uAdjusting the Seat Positions
Controls

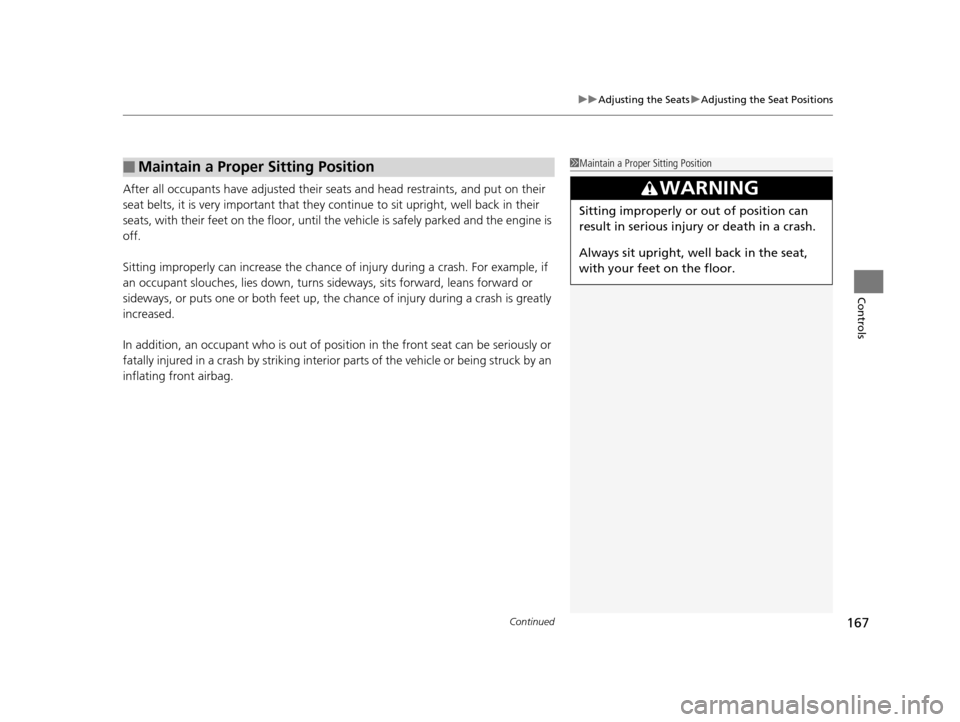

After all occupants have adjusted their s eats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safe ly parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of posi tion in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
■Maintain a Proper Sitting Position1 Maintain a Proper Sitting Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
16 US ODYSSEY-31TK86500.book 167 ページ ２０１５年６月２４日　水曜日　午後３時０分

uuAdjusting the Seats uAdjusting the Seat Positions
168
Controls

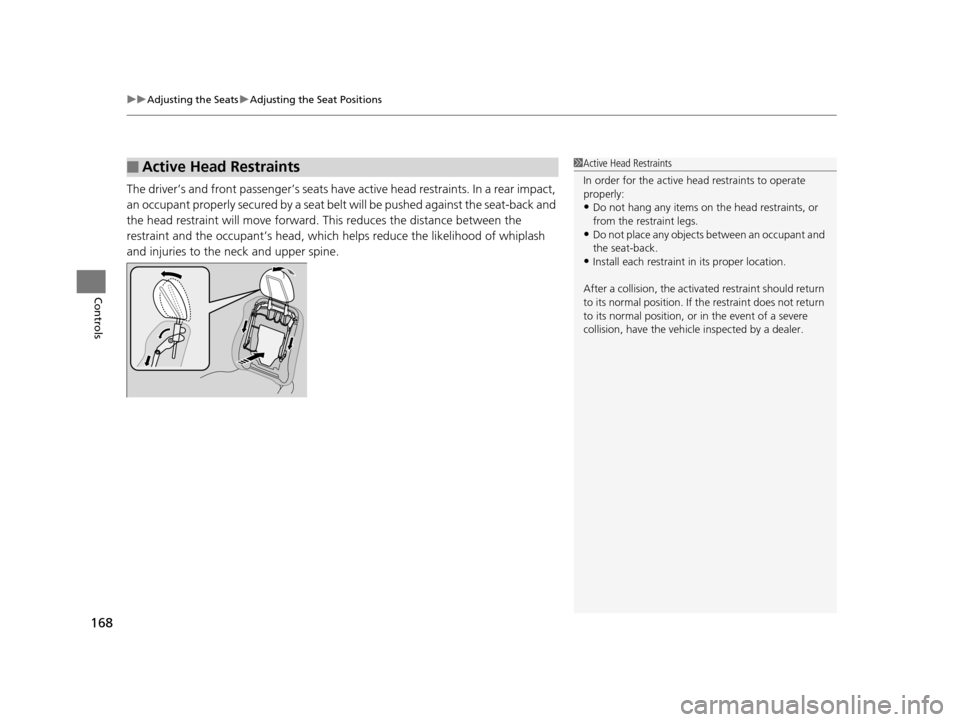

The driver’s and front passenger’s seats have active head restraints. In a rear impact,
an occupant properly secured by a seat belt will be pushed against the seat-back and
the head restraint will move forward. This reduces the distance between the
restraint and the occupant’s head, which helps reduce the likelihood of whiplash
and injuries to the neck and upper spine.
■Active Head Restraints1 Active Head Restraints
In order for the active head restraints to operate
properly:
•Do not hang any items on the head restraints, or
from the restraint legs.
•Do not place any objects between an occupant and
the seat-back.
•Install each restraint in its proper location.
After a collision, th e activated restraint should return
to its normal position. If the restraint does not return
to its normal position, or in the event of a severe
collision, have the vehicl e inspected by a dealer.
16 US ODYSSEY-31TK86500.book 168 ページ ２０１５年６月２４日　水曜日　午後３時０分

169
uuAdjusting the Seats uRear Seats
Continued
Controls

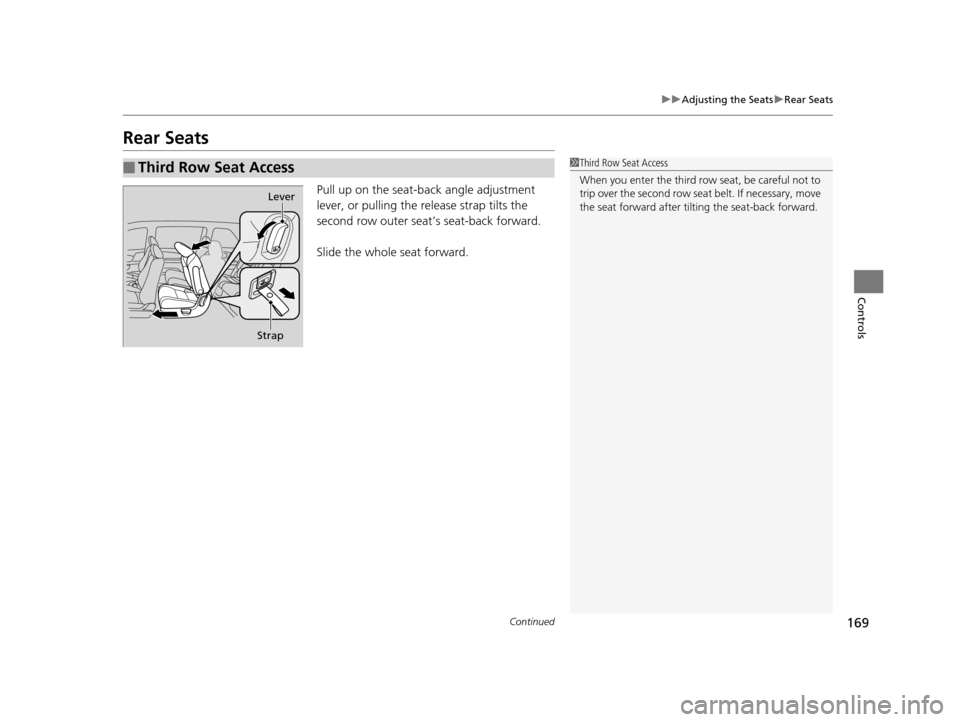

Rear Seats
Pull up on the seat-b ack angle adjustment
lever, or pulling the re lease strap tilts the
second row outer seat’s seat-back forward.
Slide the whole seat forward.
■Third Row Seat Access1 Third Row Seat Access
When you enter the third row seat, be careful not to
trip over the second row seat belt. If necessary, move
the seat forward after tilting the seat-back forward.
Lever
Strap
