uuAdjusting the Seats uRear Seats
170
Controls
1. Lower the head restra int to its lowest
position.
2. Move the seat to it s rearmost position.
3. Fold the seat-back down.
4. Pull the lock release lever, and lift the rear
of the seat.
u To lift the seat, grab the handle under
the rear side of the seat cushion.
5. Pull the seat-back slig htly, then pivot it
upward.
u This unhooks the front of the seat from
the floor.
■Removing a Second Row Outer Seat1Removing a Second Row Outer Seat
Do not remove the seat while driving.
To reinstall the seat, hook the front of the seat to the
floor first. Pushing the rear of the seat-back locks the
seat in place. Make sure the seat is latched before
driving.
Handle
Seat-back Angle
adjustment Lever
Lock Release Lever
16 US ODYSSEY-31TK86500.book 170 ページ ２０１５年６月２４日　水曜日　午後３時０分

Continued171
uuAdjusting the Seats uRear Seats
Controls
1. Lower the head restraint to its lowest
position.
2. Move the seat to its rearmost position.
3. Fold the seat-back down.
4. Pull the lock release lever, and lift the rear
of the seat.
u To lift the seat, gr ab the handle under
the rear side of the seat cushion.
5. With the front of the seat hooked to the
floor, slide the seat laterally to the outer
position until it stops.
6. Lower the seat and push the rear of the
seat-back until it locks. Make sure the seat
is latched before driving.
■Sliding the Second Row Outer Seats Outward1Sliding the Second Row Outer Seats Outward
When the second row outer seats are in the original
(center) position, passengers have easier access to the
third row seats. When they are in the outer position,
you can install two or three child seats in the second
row seats.
HandleSlide
16 US ODYSSEY-31TK86500.book 171 ページ ２０１５年６月２４日　水曜日　午後３時０分

uuAdjusting the Seats uRear Seats
172
Controls
Your vehicle’s multi-functional second row center seat is removable.
1.Store the center seat belt first. Insert a key
into the slot on the side of the anchor
buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 35
3.Pull up the adjustment strap, and fold down
the seat-back.
4. Pull the lock release strap under the seat
cushion, and lift the rear of the seat.
u To lift the seat, hold the seat-back.
5. Pull the seat-back slig htly, then pivot it
upward.
u This unhooks the front of the seat from
the floor.
■Removing the Second Row Center Seat*1Removing the Second Row Center Seat*
Do not remove the seat while driving.
The multi-functional center seat can be used as the
beverage holder when folded down. 2 Beverage Holders P. 181
To reinstall the seat, hook the front of the seat to the
floor first. Pushing the rear of the seat-back locks the
seat in place. Make sure the seat is latched before
driving.
Adjustment Strap
Lock Release
Strap
* Not available on all models
16 US ODYSSEY-31TK86500.book 172 ページ ２０１５年６月２４日　水曜日　午後３時０分

Continued173
uuAdjusting the Seats uRear Seats
Controls
1. Store the center seat belt first. Insert a key
into the slot on the side of the anchor
buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 35
3.Lower the head restrain ts to their lowest
position.
4. The right and left halves can be tucked
away separately. Pull either strap to release
the front leg lock of the third row seat.
5. Continue pulling the strap to tuck the seat
and strap away into the cargo area.

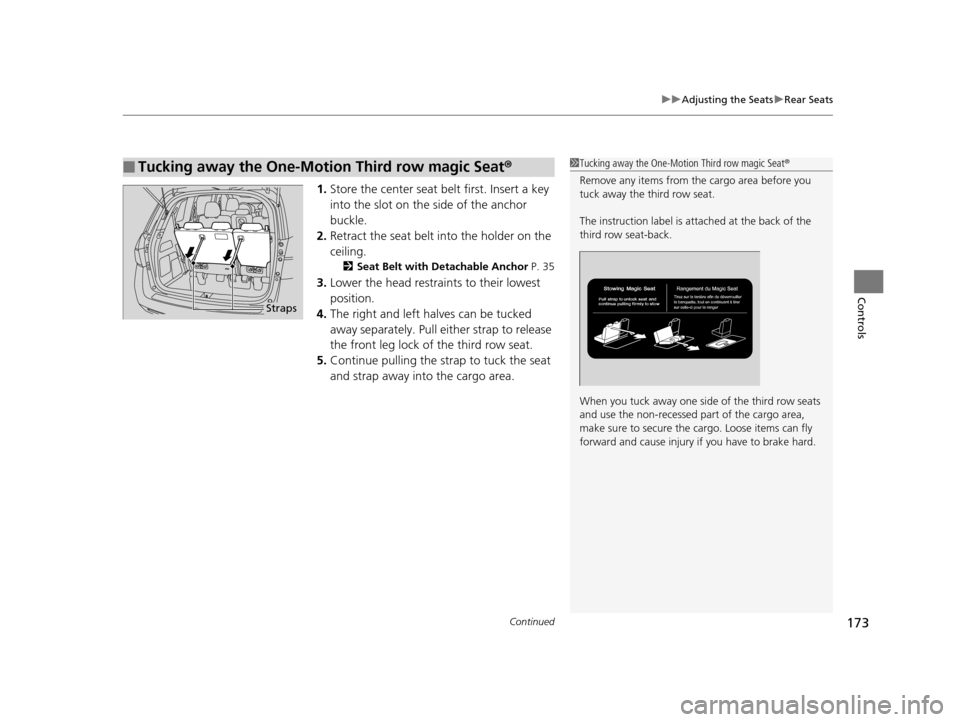

■Tucking away the One-Motion Third row magic Seat ®1Tucking away the One-Motion Third row magic Seat ®
Remove any items from the cargo area before you
tuck away the third row seat.
The instruction label is atta ched at the back of the
third row seat-back.
When you tuck away one si de of the third row seats
and use the non-recessed pa rt of the cargo area,
make sure to secure the cargo. Loose items can fly
forward and cause injury if you have to brake hard.
Straps
16 US ODYSSEY-31TK86500.book 173 ページ ２０１５年６月２４日　水曜日　午後３時０分

uuAdjusting the Seats uRear Seats
174
Controls
■To return the seat to the upright position:
1.Grab the handle from outside.
Pull up the folded seat and pivot it forward.
2. The front leg automatically latches.
Pull the strap to put the seat-back(s)
upright.1To return the seat to the upright position:
Make sure the seat is latched before driving.
Handles
Straps
16 US ODYSSEY-31TK86500.book 174 ページ ２０１５年６月２４日　水曜日　午後３時０分

175
uuAdjusting the Seats uArmrest
Controls

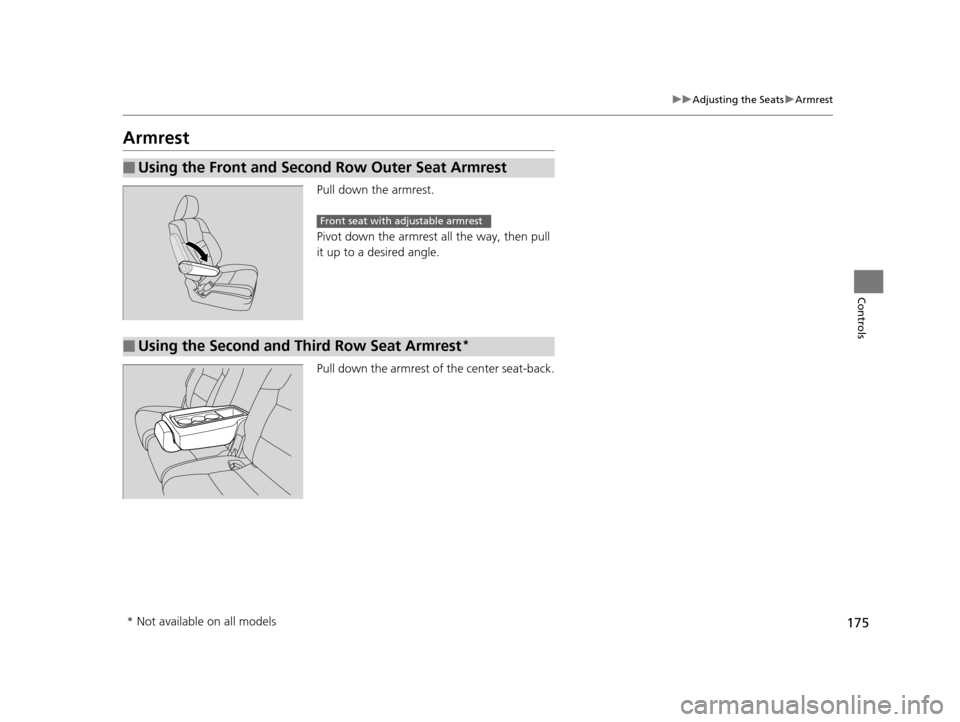

Armrest
Pull down the armrest.
Pivot down the armrest all the way, then pull
it up to a desired angle.
Pull down the armrest of the center seat-back.
■Using the Front and Second Row Outer Seat Armrest
Front seat with adjustable armrest
■Using the Second and Third Row Seat Armrest*
* Not available on all models
16 US ODYSSEY-31TK86500.book 175 ページ ２０１５年６月２４日　水曜日　午後３時０分

176
Controls

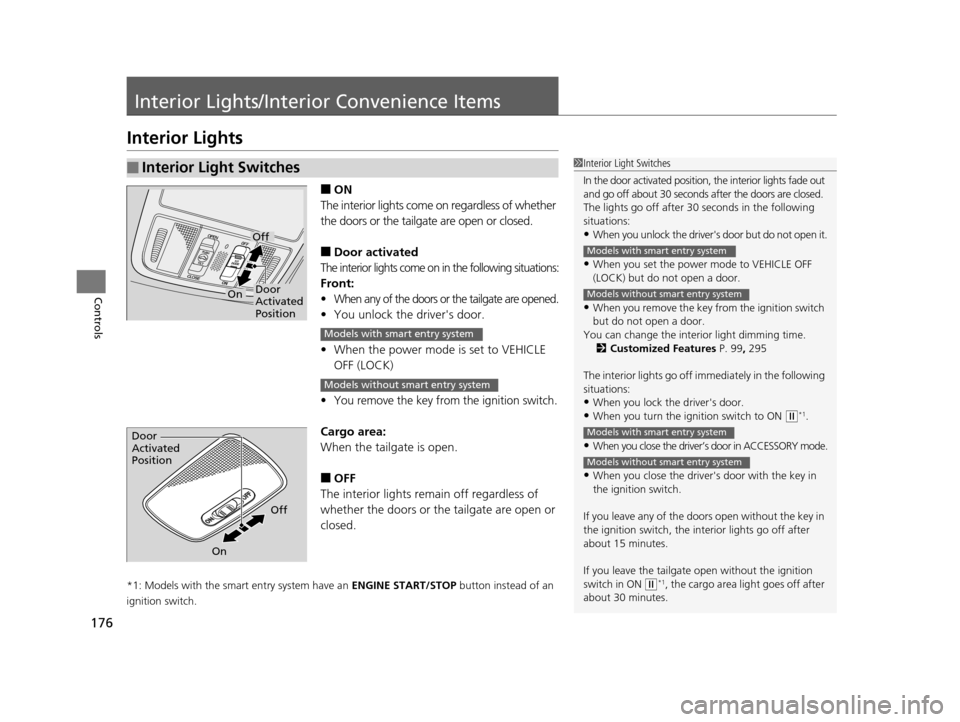

Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of whether
the doors or the tailgat e are open or closed.
■Door activated
The interior lights come on in the following situations:
Front:
•When any of the doors or the tailgate are opened.
•You unlock the driver's door.
• When the power mode is set to VEHICLE
OFF (LOCK)
•You remove the key from the ignition switch.
Cargo area:
When the tailg ate is open.
■OFF
The interior lights remain off regardless of
whether the doors or the tailgate are open or
closed.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver's door but do not open it.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
•When you remove the key from the ignition switch
but do not open a door.
You can change the inte rior light dimming time.
2 Customized Features P. 99, 295
The interior lights go off i mmediately in the following
situations:
•When you lock the driver's door.
•When you turn the ignition switch to ON ( w*1.
•When you close the driver’s door in ACCESSORY mode.
•When you close the driver's door with the key in
the ignition switch.
If you leave any of the doors open without the key in
the ignition switch, the interior lights go off after
about 15 minutes.
If you leave the tailgate open without the ignition
switch in ON
( w*1, the cargo area light goes off after
about 30 minutes.
Models with smart entry system
Models without smart entry system
Models with smart entry system
Models without smart entry system
Door
Activated
Position
Off
On
Models with smart entry system
Models without smart entry system
Door
Activated
Position
Off
On
16 US ODYSSEY-31TK86500.book 176 ページ ２０１５年６月２４日　水曜日　午後３時０分

177
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls

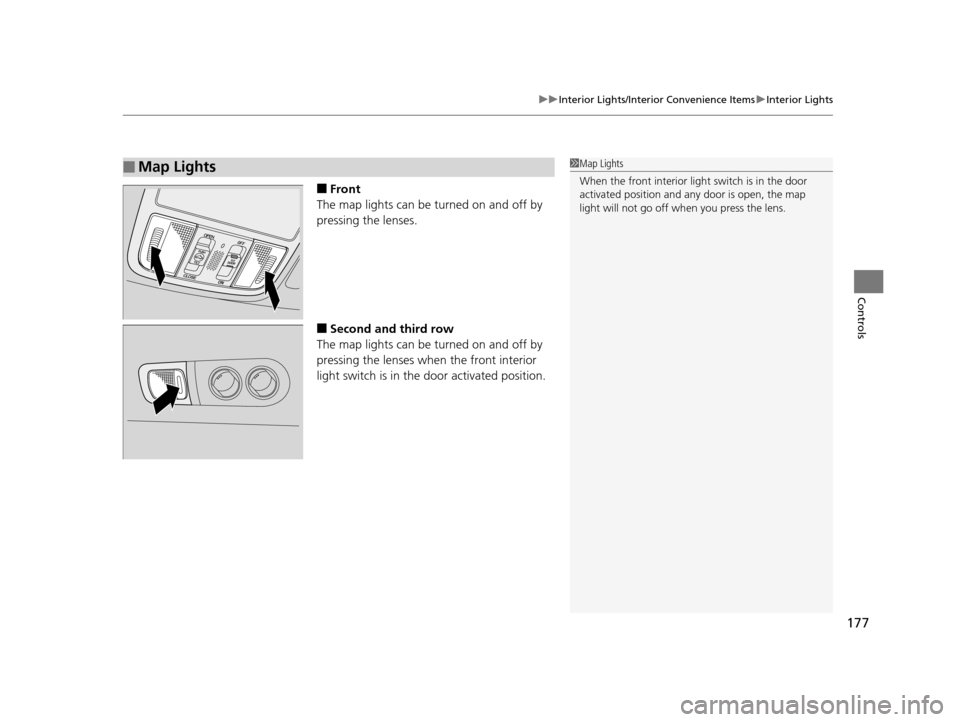

■Front
The map lights can be turned on and off by
pressing the lenses.
■Second and third row
The map lights can be turned on and off by
pressing the lenses when the front interior
light switch is in the door activated position.
■Map Lights1 Map Lights
When the front interior li ght switch is in the door
activated position and any door is open, the map
light will not go off when you press the lens.
16 US ODYSSEY-31TK86500.book 177 ページ ２０１５年６月２４日　水曜日　午後３時０分

178
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

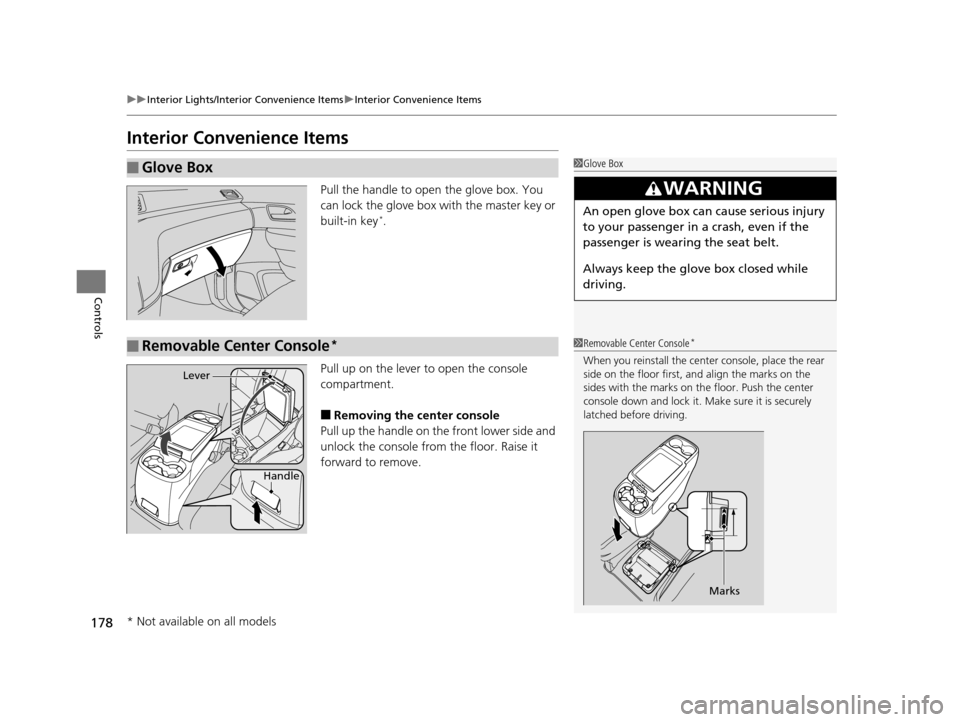

Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key or
built-in key
*.
Pull up on the lever to open the console
compartment.
■Removing the center console
Pull up the handle on the front lower side and
unlock the console from the floor. Raise it
forward to remove.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
■Removable Center Console*1Removable Center Console*
When you reinstall the center console, place the rear
side on the floor first, and align the marks on the
sides with the marks on the floor. Push the center
console down and lock it. M ake sure it is securely
latched before driving.
Marks
Handle
Lever
* Not available on all models
16 US ODYSSEY-31TK86500.book 178 ページ ２０１５年６月２４日　水曜日　午後３時０分

Continued179
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Pull up the ring until it clicks, and lift the tab.
Put a plastic bag in th e ring. Push the tab
down to hold the bag.

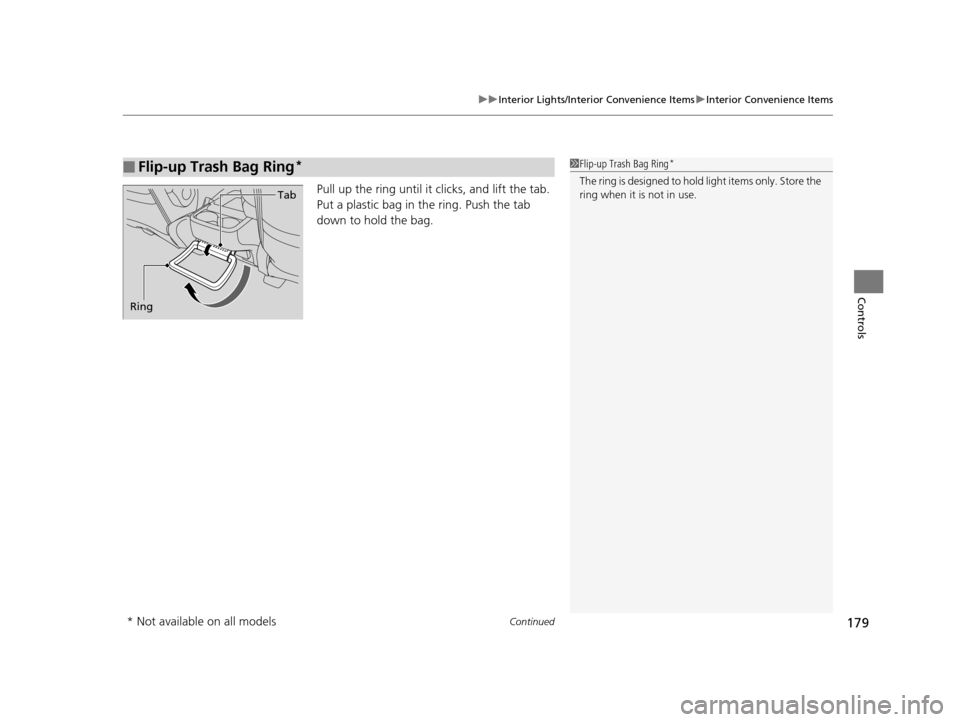

■Flip-up Trash Bag Ring*1 Flip-up Trash Bag Ring*
The ring is designed to hold light items only. Store the
ring when it is not in use.
Ring Tab
* Not available on all models
