HONDA ODYSSEY 2018 Owner's Manual (in English)

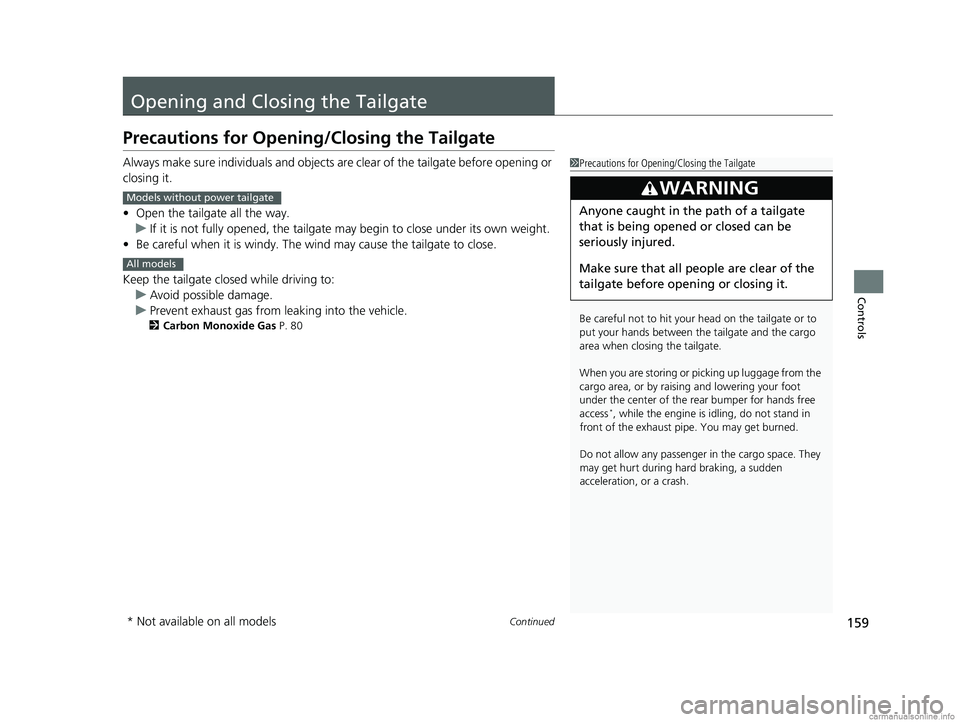

159Continued
Controls
Opening and Closing the Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
• Open the tailgate all the way.
u If it is not fully opened, the tailgate may begin to close under its own weight.
• Be careful when it is windy. The wi nd may cause the tailgate to close.
Keep the tailgate closed while driving to: u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 80
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between th e tailgate and the cargo
area when closing the tailgate.
When you are storing or pi cking up luggage from the
cargo area, or by raisi ng and lowering your foot
under the center of the rear bumper for hands free
access
*, while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
3WARNING
Anyone caught in the path of a tailgate
that is being opened or closed can be
seriously injured.
Make sure that all people are clear of the
tailgate before opening or closing it.
Models without power tailgate
All models
* Not available on all models
18 US ODYSSEY-31THR6010.book 159 ページ ２０１８年１２月６日　木曜日　午後４時１８分

uuOpening and Closing the Tailgate uPrecautions for Openi ng/Closing the Tailgate

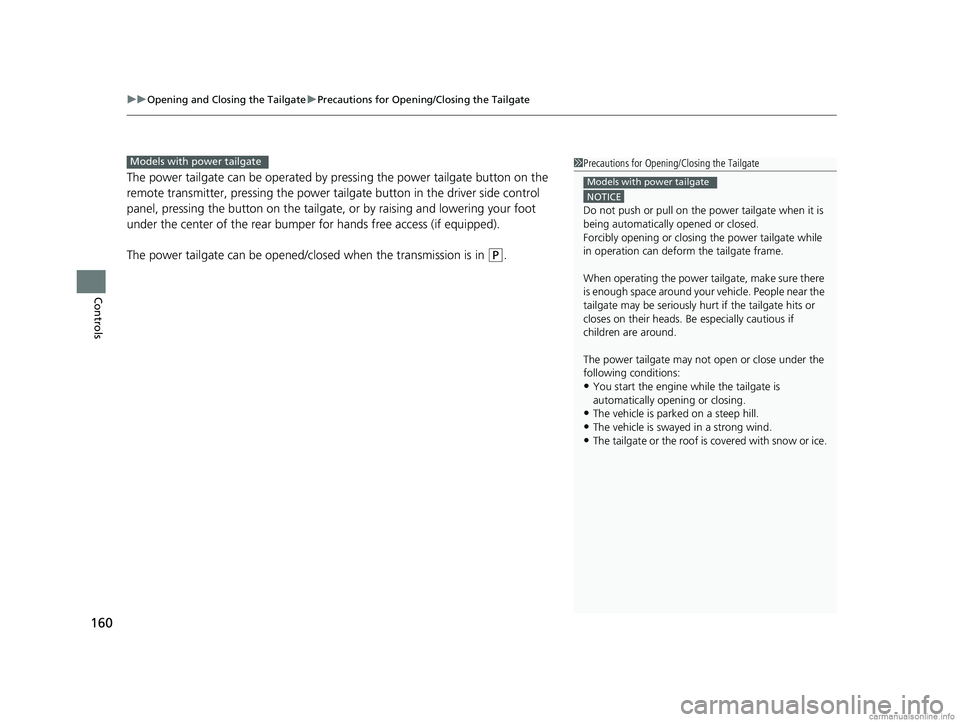

160
Controls
The power tailgate can be operated by pressing the power tailgate button on the
remote transmitter, pressing the power tail gate button in the driver side control
panel, pressing the button on the tailgate, or by raising and lowering your foot
under the center of the rear bumper for hands free access (if equipped).
The power tailgate can be opened/c losed when the transmission is in
(P.
1Precautions for Opening/Closing the Tailgate
NOTICE
Do not push or pull on the power tailgate when it is
being automatically opened or closed.
Forcibly opening or closing the power tailgate while
in operation can deform the tailgate frame.
When operating the power tailgate, make sure there
is enough space around your ve hicle. People near the
tailgate may be se riously hurt if the tailgate hits or
closes on their heads. Be especially cautious if
children are around.
The power tailgate may not open or close under the
following conditions:
•You start the engine while the tailgate is
automatically openi ng or closing.
•The vehicle is parked on a steep hill.
•The vehicle is swayed in a strong wind.
•The tailgate or the roof is covered with snow or ice.
Models with power tailgate
Models with power tailgate
18 US ODYSSEY-31THR6010.book 160 ページ ２０１８年１２月６日　木曜日　午後４時１８分

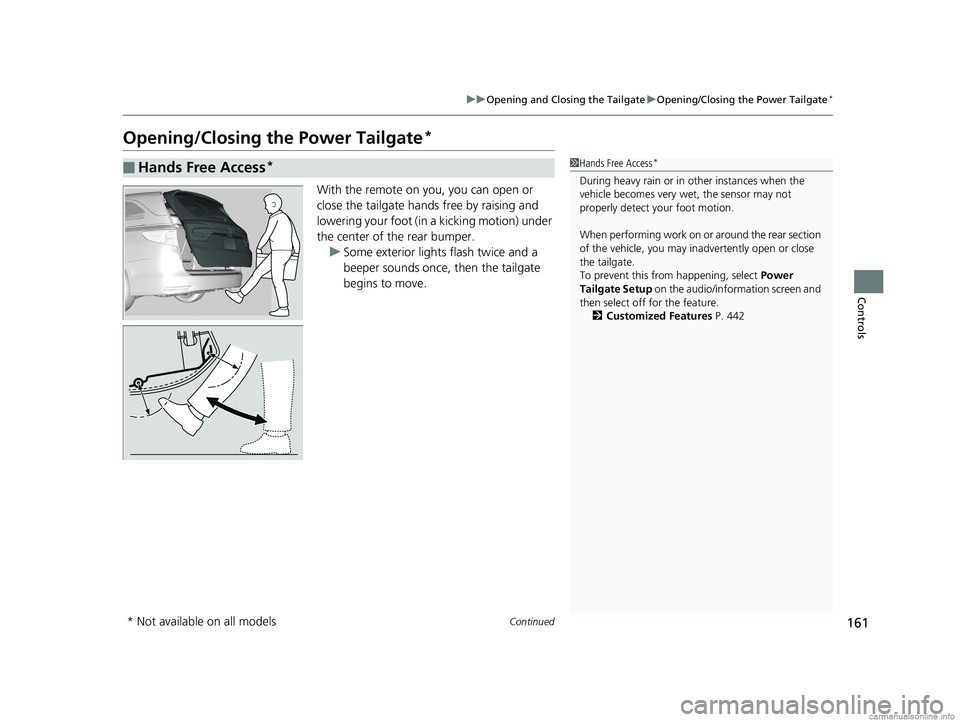

161
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Continued
Controls
Opening/Closing the Power Tailgate*
With the remote on you, you can open or
close the tailgate hands free by raising and
lowering your foot (in a kicking motion) under
the center of the rear bumper.
u Some exterior lights flash twice and a
beeper sounds once, then the tailgate
begins to move.
■Hands Free Access*1Hands Free Access*
During heavy rain or in other instances when the
vehicle becomes very wet, the sensor may not
properly detect your foot motion.
When performing work on or around the rear section
of the vehicle, you may in advertently open or close
the tailgate.
To prevent this from happening, select Power
Tailgate Setup on the audio/information screen and
then select off for the feature. 2 Customized Features P. 442
* Not available on all models
18 US ODYSSEY-31THR6010.book 161 ページ ２０１８年１２月６日　木曜日　午後４時１８分

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*

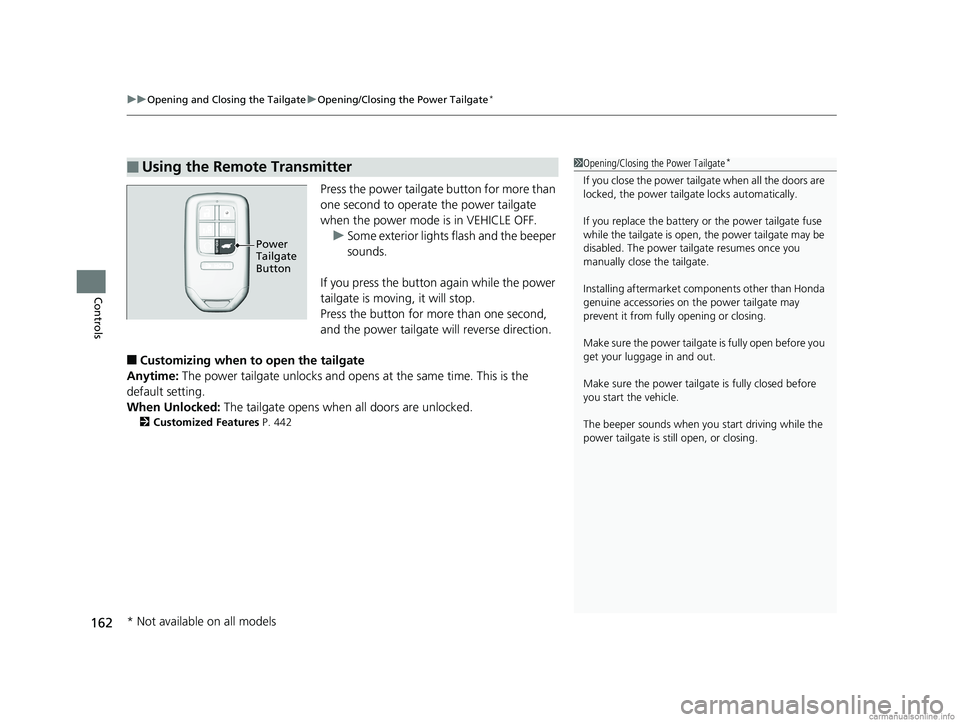

162
Controls
Press the power tailgate button for more than
one second to operate the power tailgate
when the power mode is in VEHICLE OFF.
u Some exterior lights flash and the beeper
sounds.
If you press the button again while the power
tailgate is moving, it will stop.
Press the button for more than one second,
and the power tailgate will reverse direction.
■Customizing when to open the tailgate
Anytime: The power tailgate unlocks and opens at the same time. This is the
default setting.
When Unlocked: The tailgate opens when all doors are unlocked.
2Customized Features P. 442
■Using the Remote Transmitter1Opening/Closing the Power Tailgate*
If you close the power tail gate when all the doors are
locked, the power tailgate locks automatically.
If you replace the battery or the power tailgate fuse
while the tailgate is open, the power tailgate may be
disabled. The power tail gate resumes once you
manually close the tailgate.
Installing aftermarket com ponents other than Honda
genuine accessories on the power tailgate may
prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your luggage in and out.
Make sure the power tailgat e is fully closed before
you start the vehicle.
The beeper sounds when you start driving while the
power tailgate is still open, or closing.
Power
Tailgate
Button
* Not available on all models
18 US ODYSSEY-31THR6010.book 162 ページ ２０１８年１２月６日　木曜日　午後４時１８分

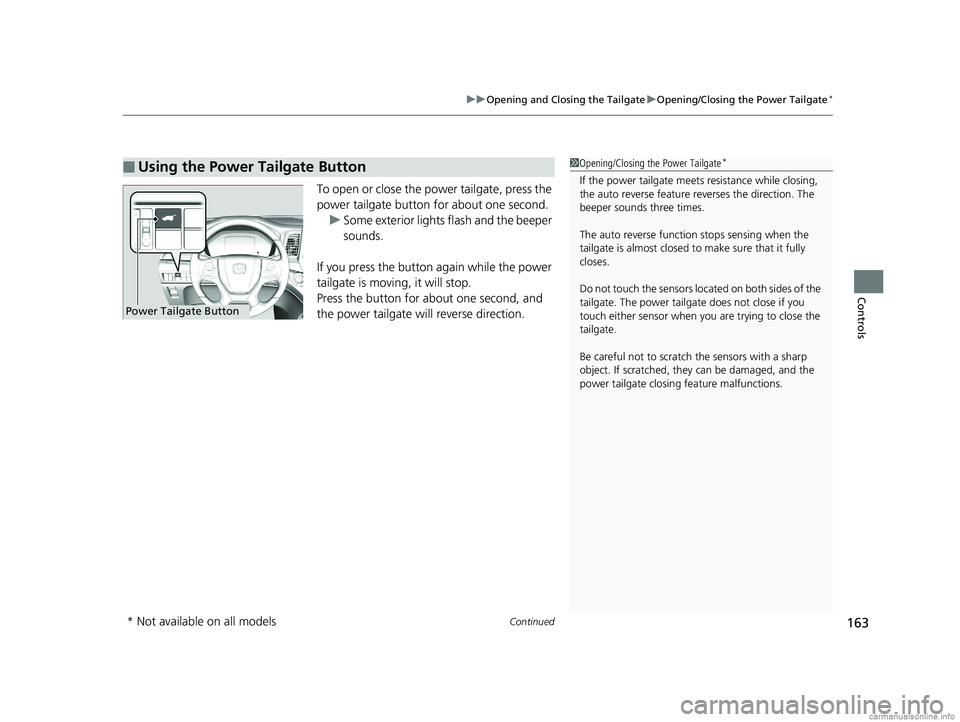

Continued163
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Controls
To open or close the power tailgate, press the
power tailgate button for about one second.
u Some exterior lights flash and the beeper
sounds.
If you press the button again while the power
tailgate is moving, it will stop.
Press the button for about one second, and
the power tailgate will reverse direction.
■Using the Power Tailgate Button1 Opening/Closing the Power Tailgate*
If the power tailgate meets resistance while closing,
the auto reverse feature reverses the direction. The
beeper sounds three times.
The auto reverse function stops sensing when the
tailgate is almost closed to make sure that it fully
closes.
Do not touch the sensors located on both sides of the
tailgate. The power tailga te does not close if you
touch either sensor when you are trying to close the
tailgate.
Be careful not to scratch the sensors with a sharp
object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.
Power Tailgate Button
* Not available on all models
18 US ODYSSEY-31THR6010.book 163 ページ ２０１８年１２月６日　木曜日　午後４時１８分

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*

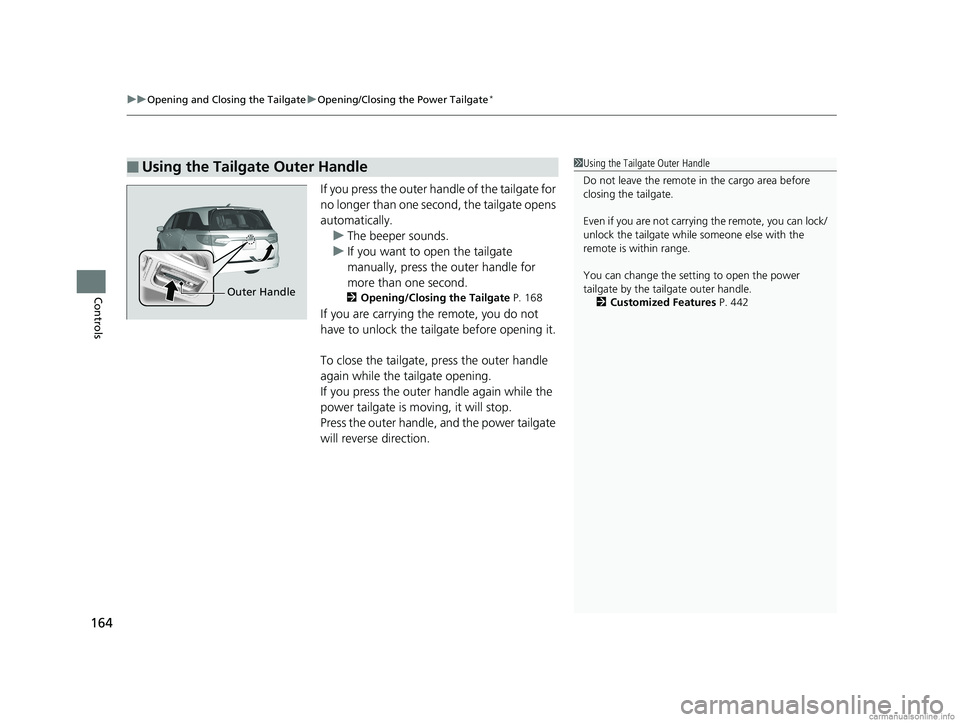

164
Controls
If you press the outer handle of the tailgate for
no longer than one second, the tailgate opens
automatically.
u The beeper sounds.
u If you want to open the tailgate
manually, press the outer handle for
more than one second.
2 Opening/Closing the Tailgate P. 168
If you are carrying the remote, you do not
have to unlock the tailgate before opening it.
To close the tailgate, press the outer handle
again while the tailgate opening.
If you press the outer handle again while the
power tailgate is moving, it will stop.
Press the outer handle, and the power tailgate
will reverse direction.
■Using the Tailgate Outer Handle1Using the Tailgate Outer Handle
Do not leave the remote in the cargo area before
closing the tailgate.
Even if you are not carrying the remote, you can lock/
unlock the tailgate while someone else with the
remote is within range.
You can change the setting to open the power
tailgate by the ta ilgate outer handle.
2 Customized Features P. 442
Outer Handle
18 US ODYSSEY-31THR6010.book 164 ページ ２０１８年１２月６日　木曜日　午後４時１８分

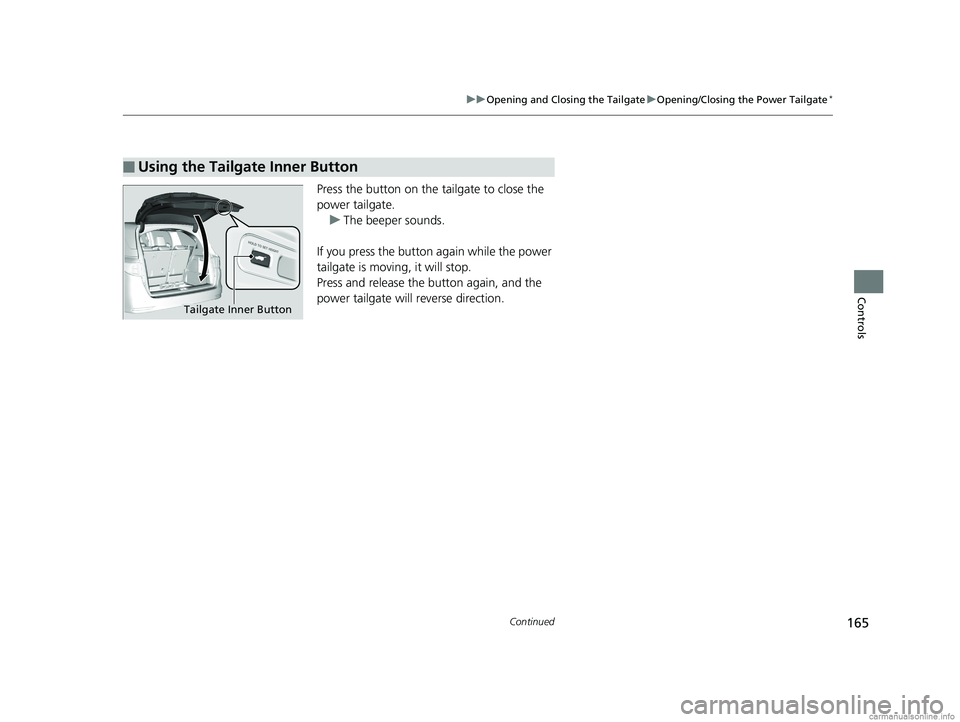

165
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Continued
Controls
Press the button on the tailgate to close the
power tailgate.
u The beeper sounds.
If you press the button again while the power
tailgate is moving, it will stop.
Press and release the button again, and the
power tailgate will reverse direction.
■Using the Tailgate Inner Button
Tailgate Inner Button
18 US ODYSSEY-31THR6010.book 165 ページ ２０１８年１２月６日　木曜日　午後４時１８分

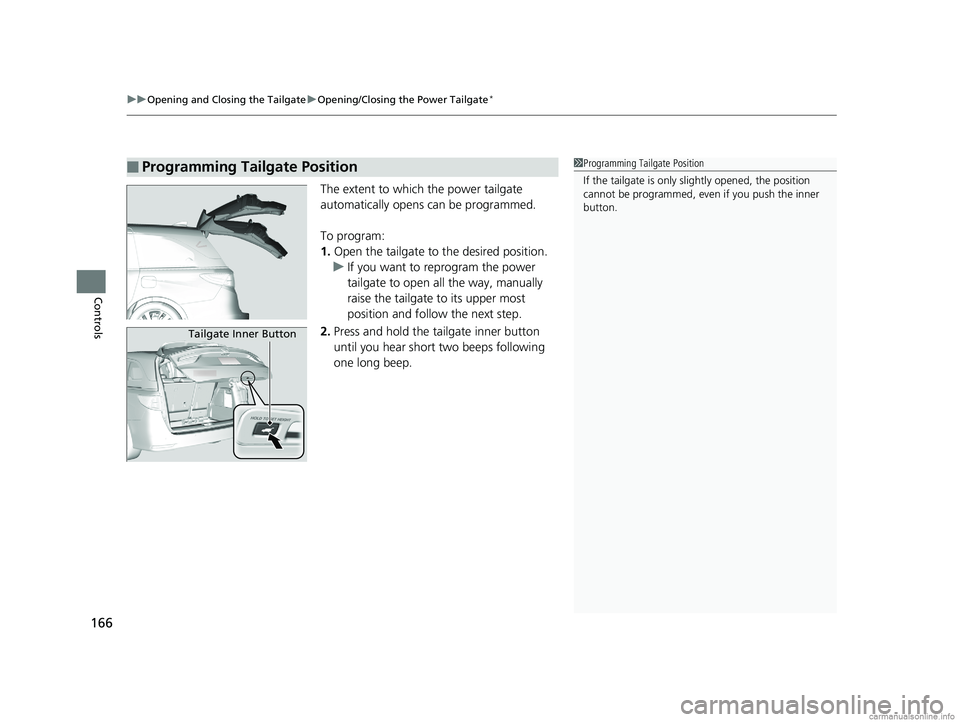

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
166
Controls
The extent to which the power tailgate
automatically opens can be programmed.
To program:
1. Open the tailgate to the desired position.
u If you want to reprogram the power
tailgate to open all the way, manually
raise the tailgate to its upper most
position and follow the next step.
2. Press and hold the tailgate inner button
until you hear short two beeps following
one long beep.
■Programming Tailgate Position1Programming Tailgate Position
If the tailgate is only sl ightly opened, the position
cannot be programmed, even if you push the inner
button.
Tailgate Inner Button
18 US ODYSSEY-31THR6010.book 166 ページ ２０１８年１２月６日　木曜日　午後４時１８分

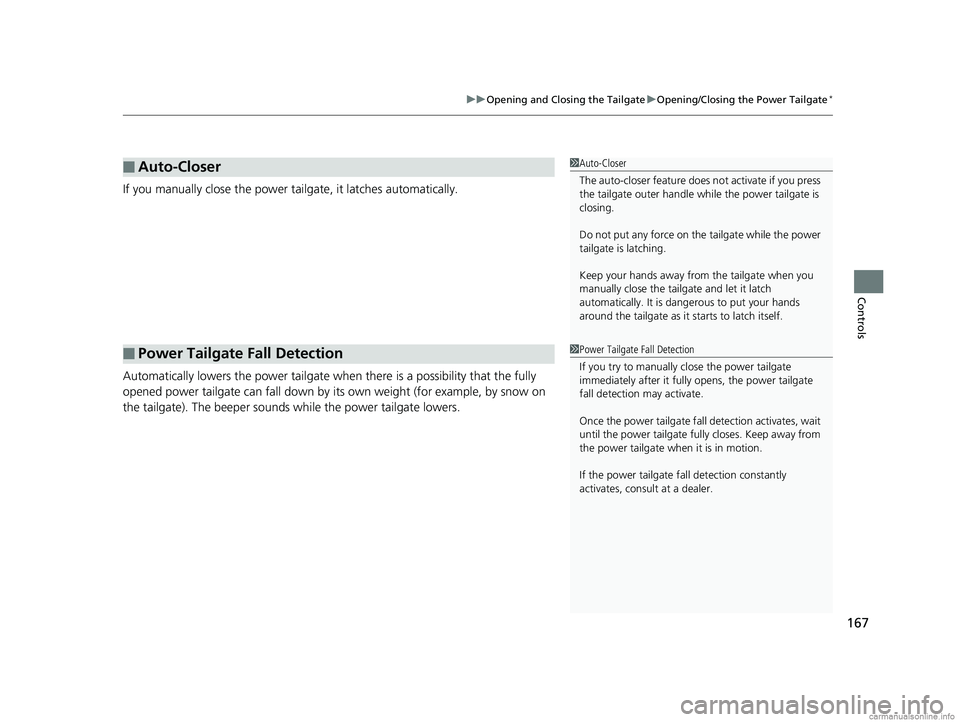

167
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Controls
If you manually close the power tailgate, it latches automatically.
Automatically lowers the power tailgate wh en there is a possibility that the fully
opened power tailgate can fall down by its own weight (for example, by snow on
the tailgate). The beeper sounds while the power tailgate lowers.
■Auto-Closer
■Power Tailgate Fall Detection
1Auto-Closer
The auto-closer feature does not activate if you press
the tailgate outer handle while the power tailgate is
closing.
Do not put any force on the tailgate while the power
tailgate is latching.
Keep your hands away from the tailgate when you
manually close the tailga te and let it latch
automatically. It is dange rous to put your hands
around the tailgate as it st arts to latch itself.
1Power Tailgate Fall Detection
If you try to manually close the power tailgate
immediately after it full y opens, the power tailgate
fall detection may activate.
Once the power tailgate fall detection activates, wait
until the power tailgate full y closes. Keep away from
the power tailgate when it is in motion.
If the power tailgate fa ll detection constantly
activates, consult at a dealer.
18 US ODYSSEY-31THR6010.book 167 ページ ２０１８年１２月６日　木曜日　午後４時１８分

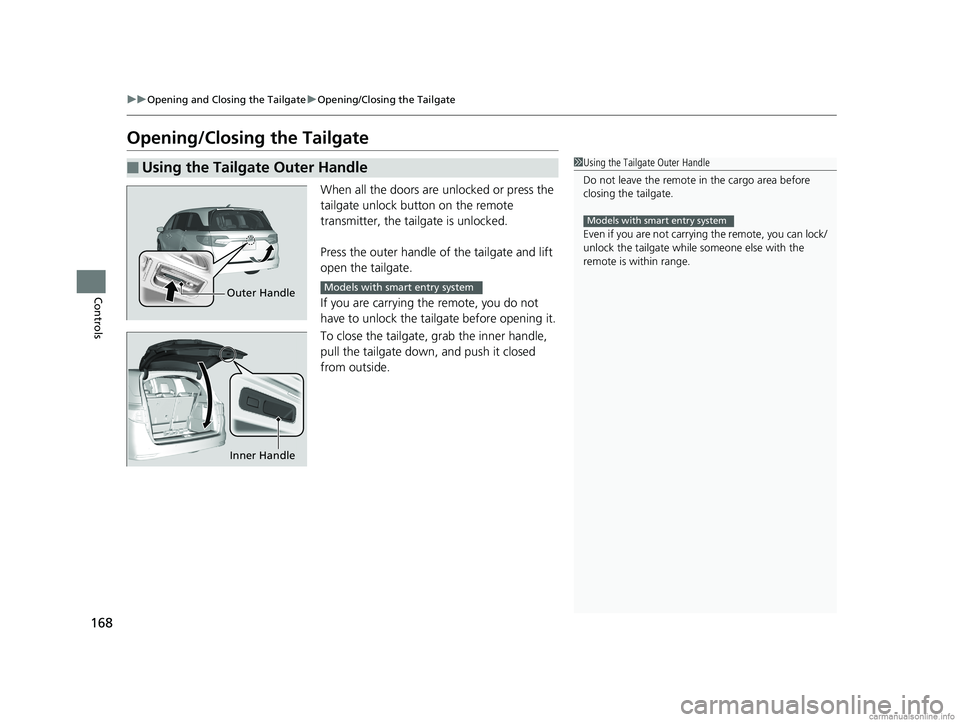

168
uuOpening and Closing the Tailgate uOpening/Closing the Tailgate
Controls
Opening/Closing the Tailgate
When all the doors are unlocked or press the
tailgate unlock button on the remote
transmitter, the tailgate is unlocked.
Press the outer handle of the tailgate and lift
open the tailgate.
If you are carrying the remote, you do not
have to unlock the tailgate before opening it.
To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
■Using the Tailgate Outer Handle1 Using the Tailgate Outer Handle
Do not leave the remote in the cargo area before
closing the tailgate.
Even if you are not carrying the remote, you can lock/
unlock the tailgate while someone else with the
remote is within range.
Models with smart entry system
Outer HandleModels with smart entry system
Inner Handle
