HONDA ODYSSEY 2018 Owner's Manual (in English)

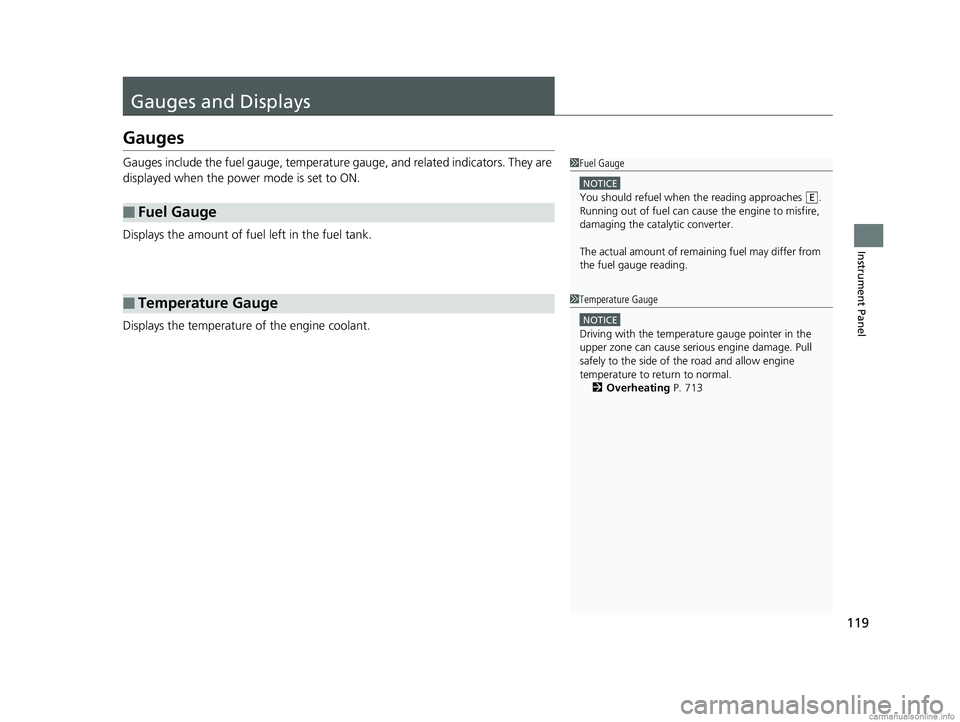

119
Instrument Panel
Gauges and Displays
Gauges
Gauges include the fuel gauge, temperature gauge, and related indicators. They are
displayed when the power mode is set to ON.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Fuel Gauge
■Temperature Gauge
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 713
18 US ODYSSEY-31THR6010.book 119 ページ ２０１８年１２月６日　木曜日　午後４時１８分

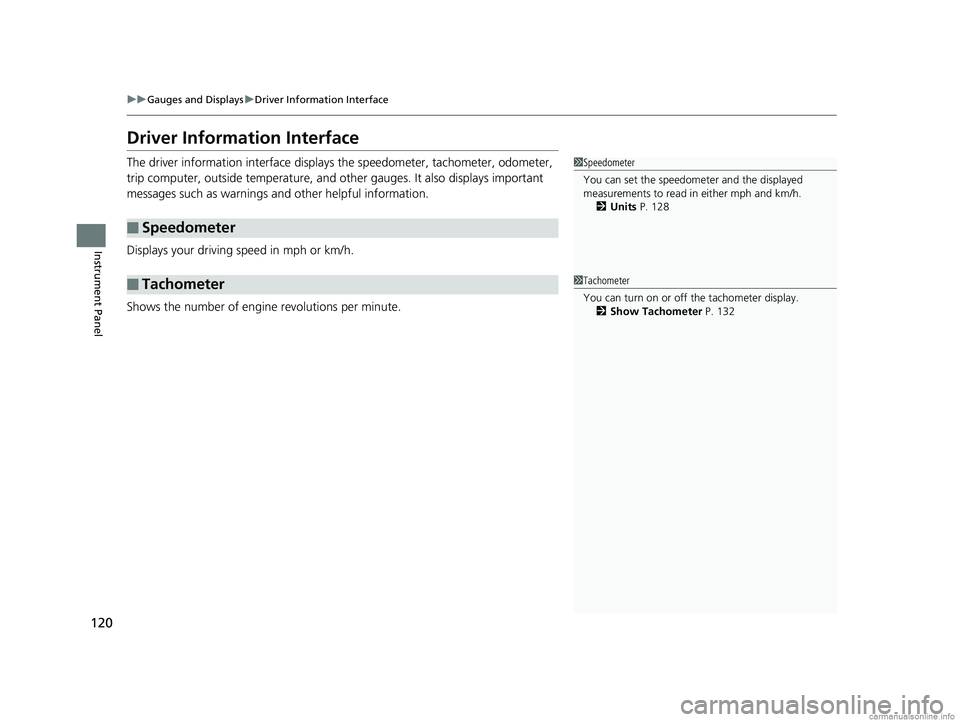

120
uuGauges and Displays uDriver Information Interface
Instrument Panel
Driver Information Interface
The driver information interface displays the speedometer, tachometer, odometer,
trip computer, outside temperature, and ot her gauges. It also displays important
messages such as warnings and other helpful information.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
■Speedometer
■Tachometer
1 Speedometer
You can set the speedometer and the displayed
measurements to read in either mph and km/h.
2 Units P. 128
1Tachometer
You can turn on or off the tachometer display.
2 Show Tachometer P. 132
18 US ODYSSEY-31THR6010.book 120 ページ ２０１８年１２月６日　木曜日　午後４時１８分

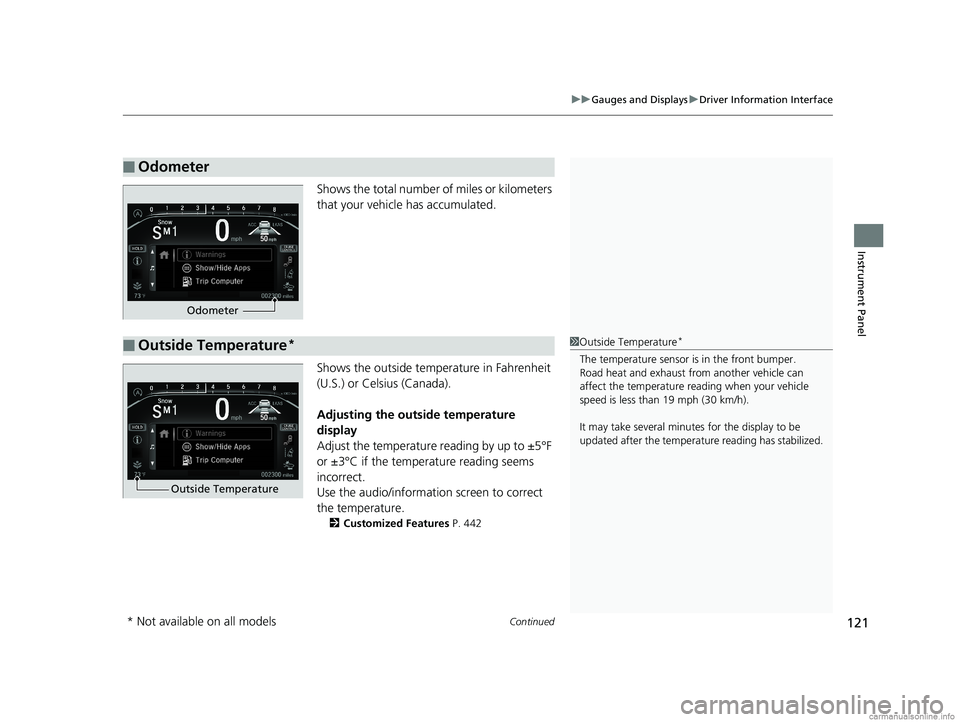

Continued121
uuGauges and Displays uDriver Information Interface
Instrument Panel
Shows the total number of miles or kilometers
that your vehicle has accumulated.
Shows the outside temperature in Fahrenheit
(U.S.) or Celsius (Canada).
Adjusting the outside temperature
display
Adjust the temperature reading by up to ±5°F
or ±3°C if the temperature reading seems
incorrect.
Use the audio/informatio n screen to correct
the temperature.
2 Customized Features P. 442
■Odometer
Odometer
■Outside Temperature*1Outside Temperature*
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Outside Temperature
* Not available on all models
18 US ODYSSEY-31THR6010.book 121 ページ ２０１８年１２月６日　木曜日　午後４時１８分

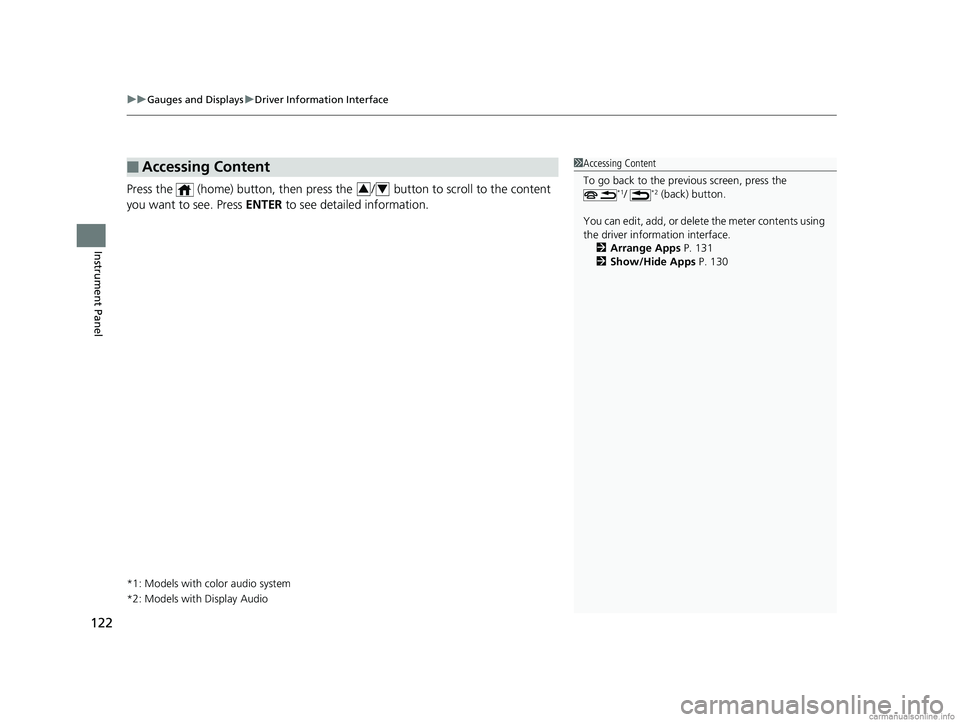

uuGauges and Displays uDriver Information Interface
122
Instrument Panel
Press the (home) button, then press the / button to scroll to the content
you want to see. Press ENTER to see detailed information.
*1: Models with color audio system
*2: Models with Display Audio
■Accessing Content1Accessing Content
To go back to the previous screen, press the
*1/ *2 (back) button.
You can edit, add, or delete the meter contents using
the driver information interface. 2 Arrange Apps P. 131
2 Show/Hide Apps P. 13034
18 US ODYSSEY-31THR6010.book 122 ページ ２０１８年１２月６日　木曜日　午後４時１８分

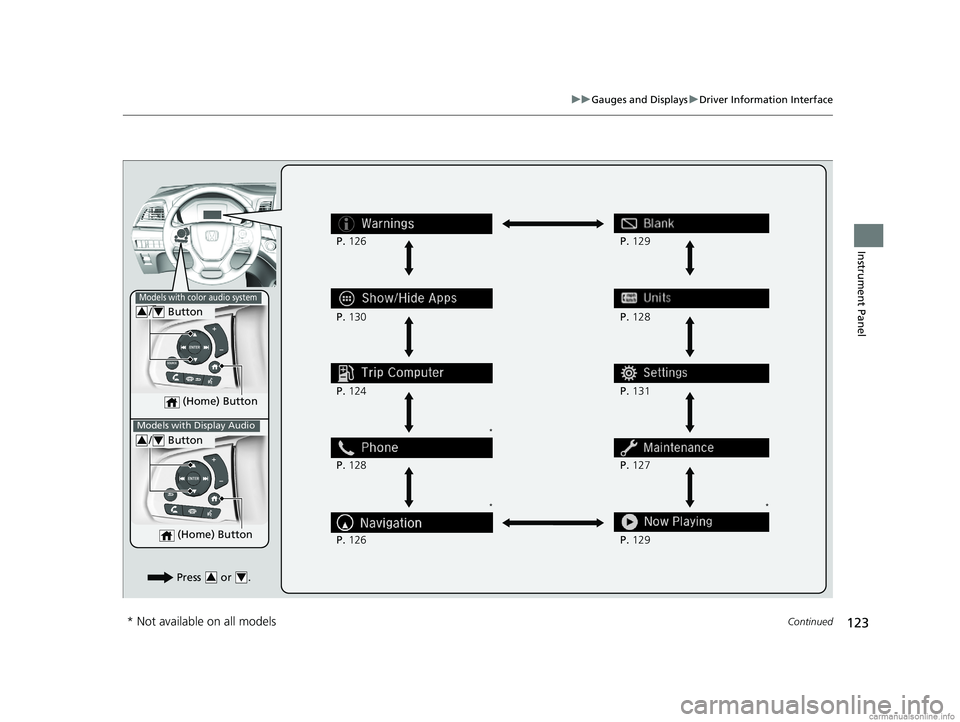

123
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
(Home) Button
/ Button34
*
* *
Press or .34
P.126
P. 130
P. 124
P. 128
P. 126 P.
128
P. 131
P. 127
P. 129
P.
129
Models with color audio system
Models with Display Audio
(Home) Button
/ Button34
* Not available on all models
18 US ODYSSEY-31THR6010.book 123 ページ ２０１８年１２月６日　木曜日　午後４時１８分

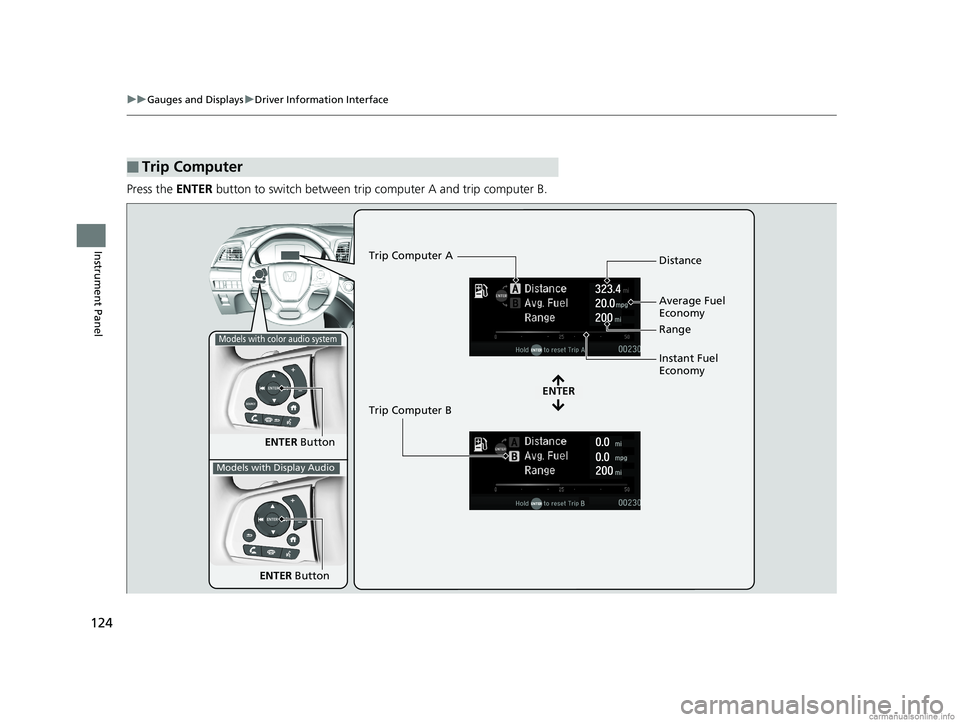

124
uuGauges and Displays uDriver Information Interface
Instrument Panel
Press the ENTER button to switch between trip computer A and trip computer B.
■Trip Computer
ENTER Button
ENTER
Trip Computer A
Trip Computer B Distance
Range
Average Fuel
Economy
Instant Fuel
Economy
Models with color audio system
Models with Display Audio
ENTER
Button
18 US ODYSSEY-31THR6010.book 124 ページ ２０１８年１２月６日　木曜日　午後４時１８分

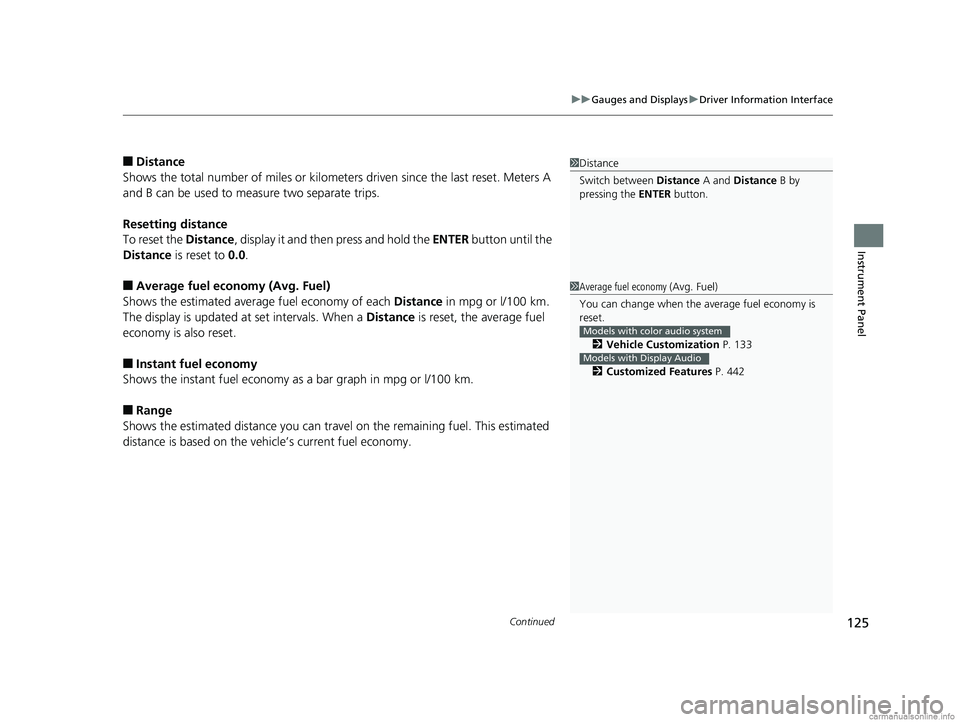

Continued125
uuGauges and Displays uDriver Information Interface
Instrument Panel
■Distance
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting distance
To reset the Distance, display it and then press and hold the ENTER button until the
Distance is reset to 0.0.
■Average fuel economy (Avg. Fuel)
Shows the estimated average fuel economy of each Distance in mpg or l/100 km.
The display is updated at set intervals. When a Distance is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
1 Distance
Switch between Distance A and Distance B by
pressing the ENTER button.
1Average fuel economy ( Avg. Fuel)
You can change when the average fuel economy is
reset.
2 Vehicle Customization P. 133
2 Customized Features P. 442
Models with color audio system
Models with Display Audio
18 US ODYSSEY-31THR6010.book 125 ページ ２０１８年１２月６日　木曜日　午後４時１８分

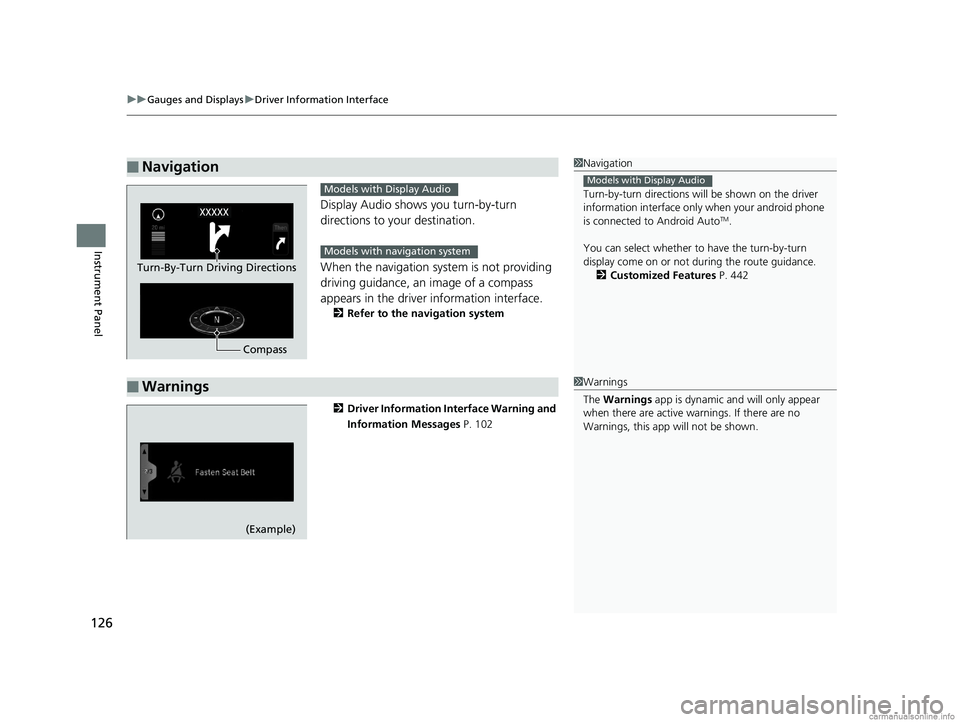

uuGauges and Displays uDriver Information Interface
126
Instrument Panel
Display Audio shows you turn-by-turn
directions to your destination.
When the navigation system is not providing
driving guidance, an image of a compass
appears in the driver information interface.
2Refer to the navigation system
2 Driver Information Interface Warning and
Information Messages P. 102
■Navigation1Navigation
Turn-by-turn directions wi ll be shown on the driver
information interface only when your android phone
is connected to Android Auto
TM.
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 442
Models with Display Audio
Compass
Turn-By-Turn Driving Directions
Models with Display Audio
Models with navigation system
■Warnings1Warnings
The Warnings app is dynamic a nd will only appear
when there are active warnings. If there are no
Warnings, this app will not be shown.
(Example)
18 US ODYSSEY-31THR6010.book 126 ページ ２０１８年１２月６日　木曜日　午後４時１８分

127
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

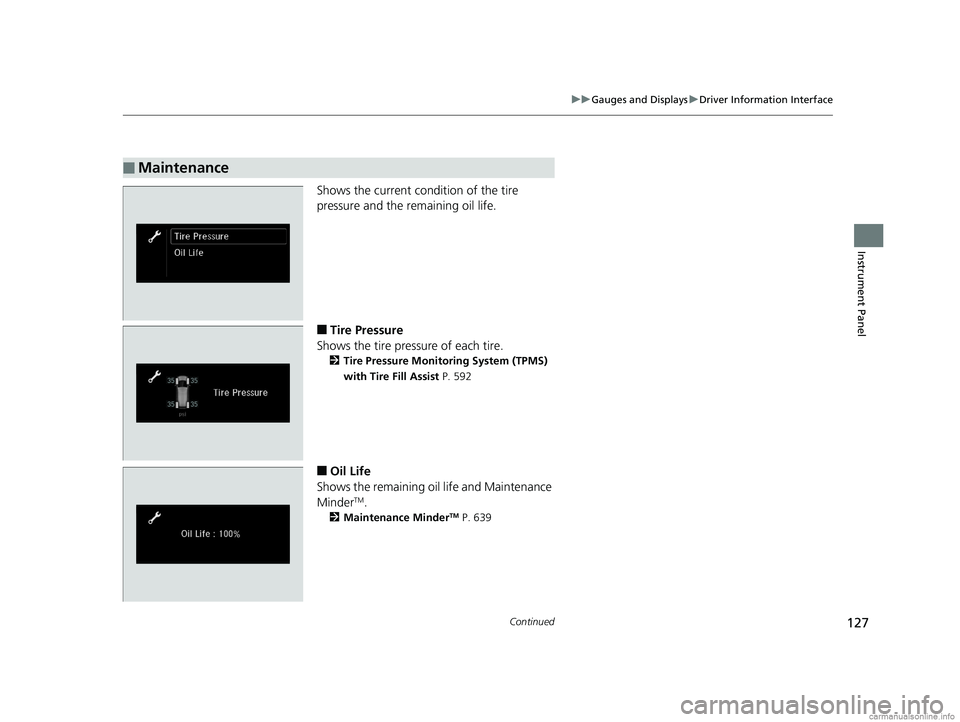

Shows the current condition of the tire
pressure and the remaining oil life.
■Tire Pressure
Shows the tire pressure of each tire.
2 Tire Pressure Monito ring System (TPMS)
with Tire Fill Assist P. 592
■Oil Life
Shows the remaining oil life and Maintenance
Minder
TM.
2 Maintenance MinderTM P. 639
■Maintenance
18 US ODYSSEY-31THR6010.book 127 ページ ２０１８年１２月６日　木曜日　午後４時１８分

128
uuGauges and Displays uDriver Information Interface
Instrument Panel

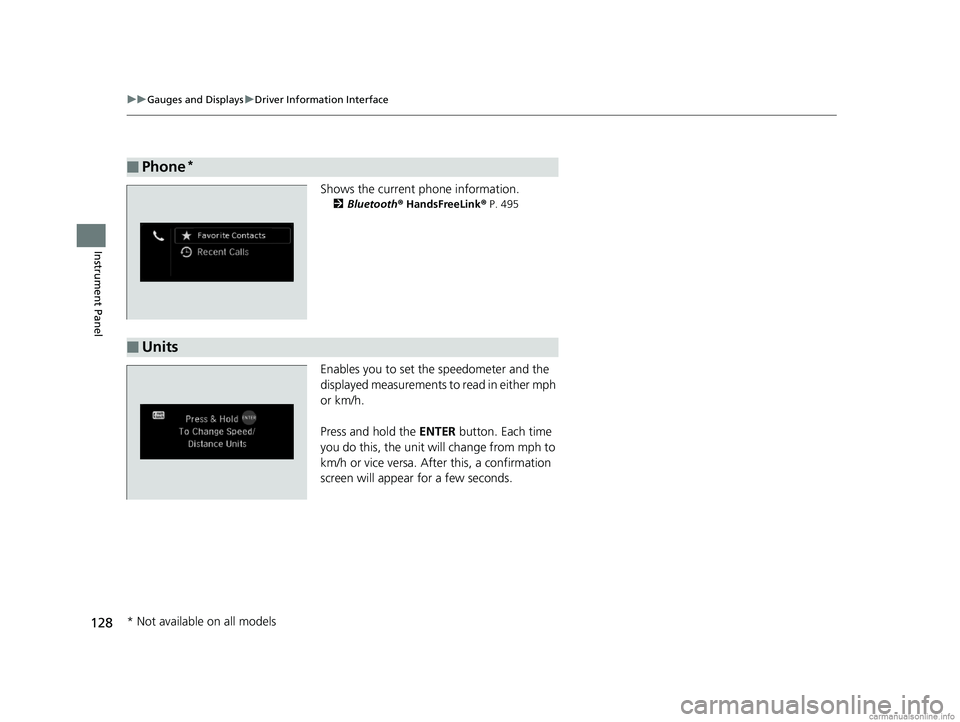

Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 495
Enables you to set the speedometer and the
displayed measurements to read in either mph
or km/h.
Press and hold the ENTER button. Each time
you do this, the unit will change from mph to
km/h or vice versa. A fter this, a confirmation
screen will appear for a few seconds.
■Phone*
■Units
* Not available on all models
