HONDA ODYSSEY 2018 Owner's Manual (in English)

229
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

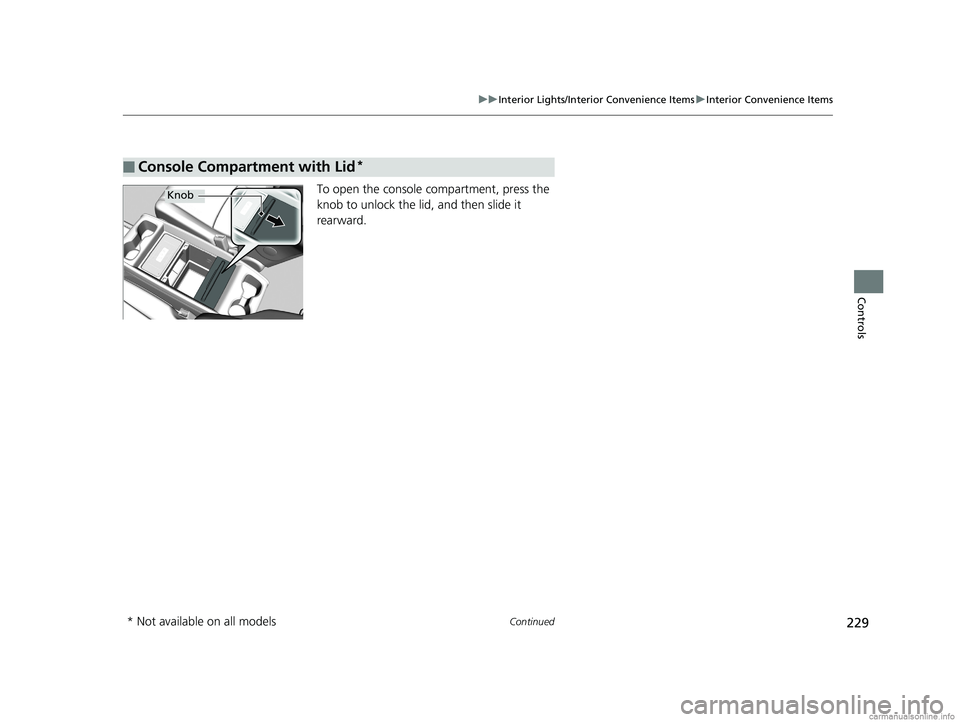

To open the console co mpartment, press the
knob to unlock the lid, and then slide it
rearward.
■Console Compartment with Lid*
Knob
* Not available on all models
18 US ODYSSEY-31THR6010.book 229 ページ ２０１８年１２月６日　木曜日　午後４時１８分

230
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

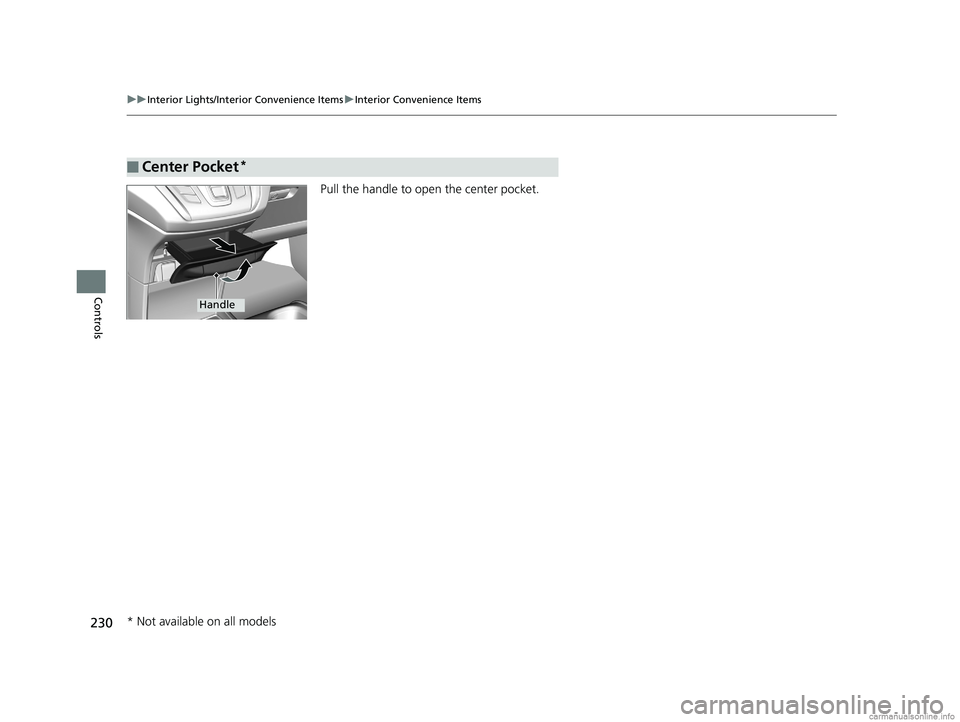

Pull the handle to open the center pocket.
■Center Pocket*
Handle
* Not available on all models
18 US ODYSSEY-31THR6010.book 230 ページ ２０１８年１２月６日　木曜日　午後４時１８分

Continued231
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

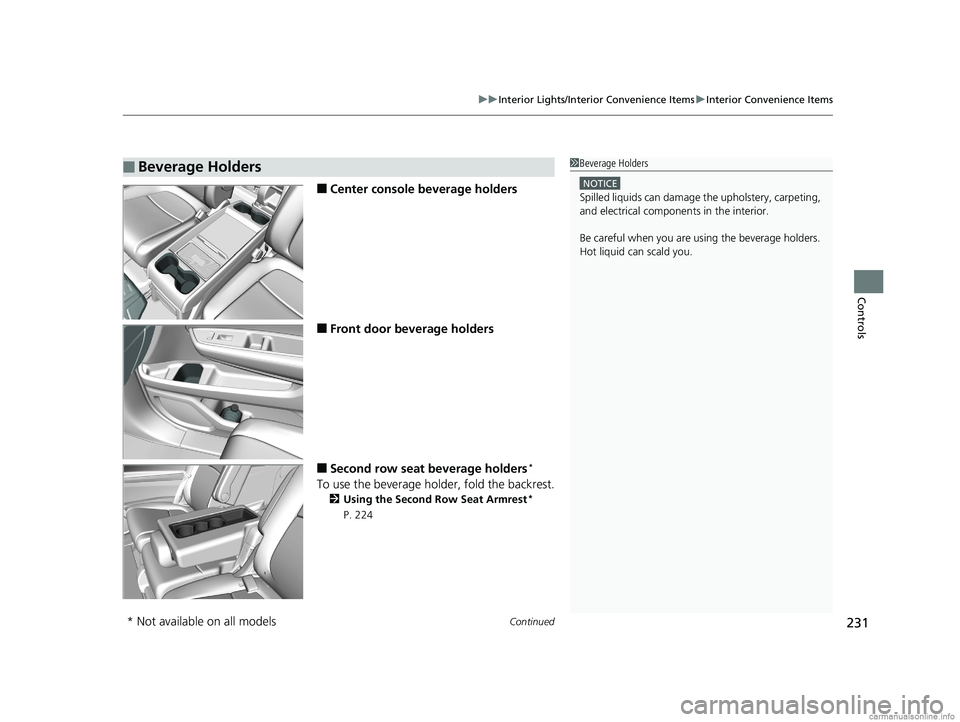

■Center console beverage holders
■Front door beverage holders
■Second row seat beverage holders*
To use the beverage holder, fold the backrest.
2 Using the Second Row Seat Armrest*
P. 224
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
* Not available on all models
18 US ODYSSEY-31THR6010.book 231 ページ ２０１８年１２月６日　木曜日　午後４時１８分

232
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

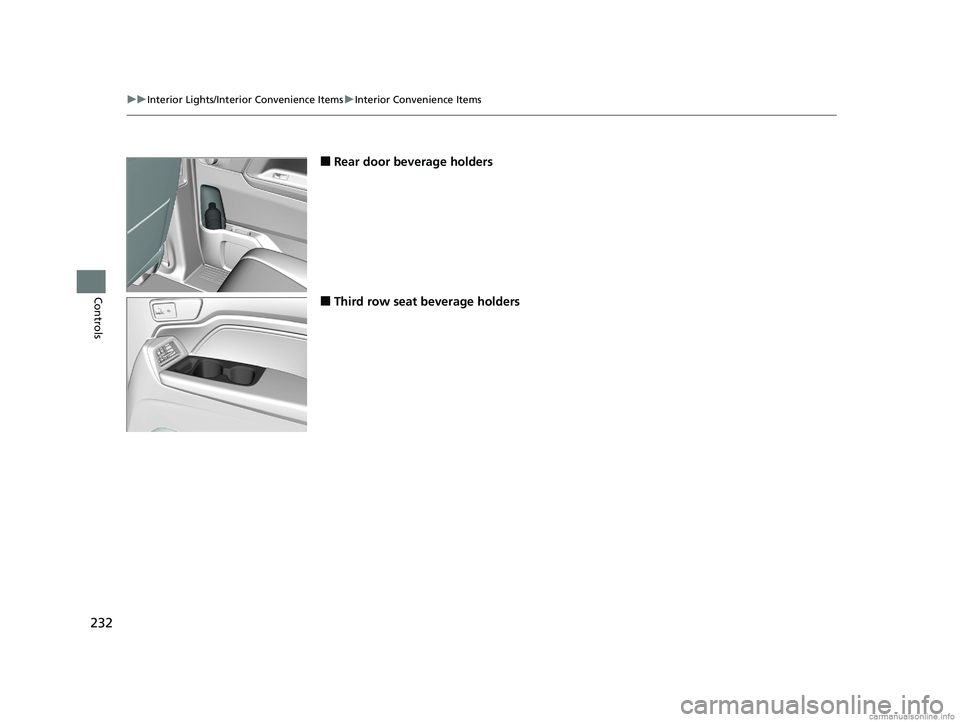

■Rear door beverage holders
■Third row seat beverage holders
18 US ODYSSEY-31THR6010.book 232 ページ ２０１８年１２月６日　木曜日　午後４時１８分

Continued233
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

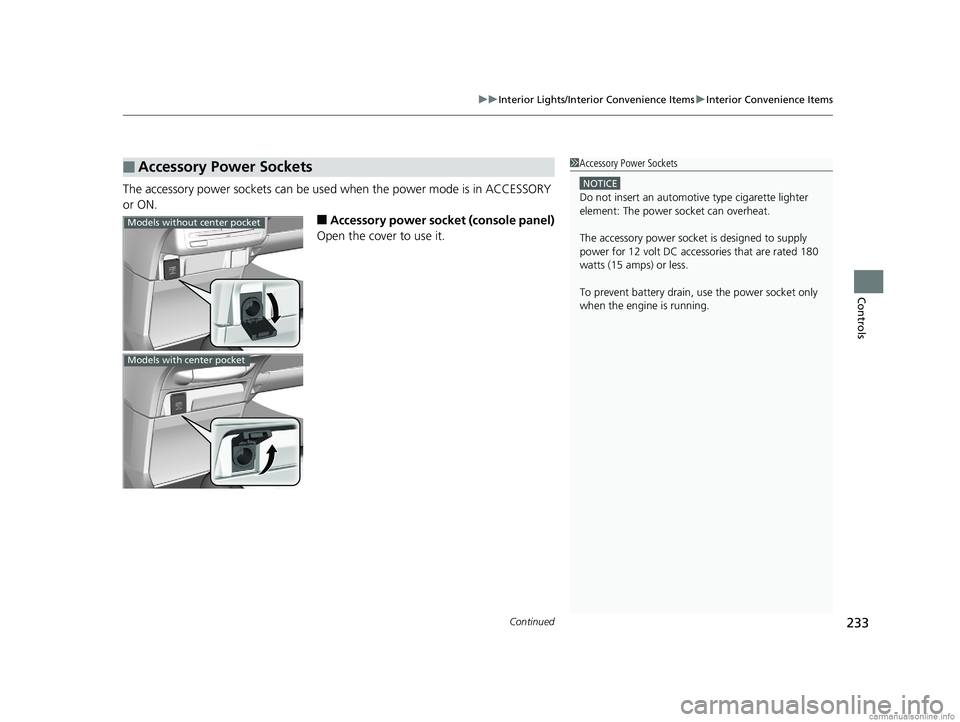

The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element: The power socket can overheat.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 180
watts (15 amps) or less.
To prevent battery drain, use the power socket only
when the engine is running.
Models without center pocket
Models with center pocket
18 US ODYSSEY-31THR6010.book 233 ページ ２０１８年１２月６日　木曜日　午後４時１８分

234
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

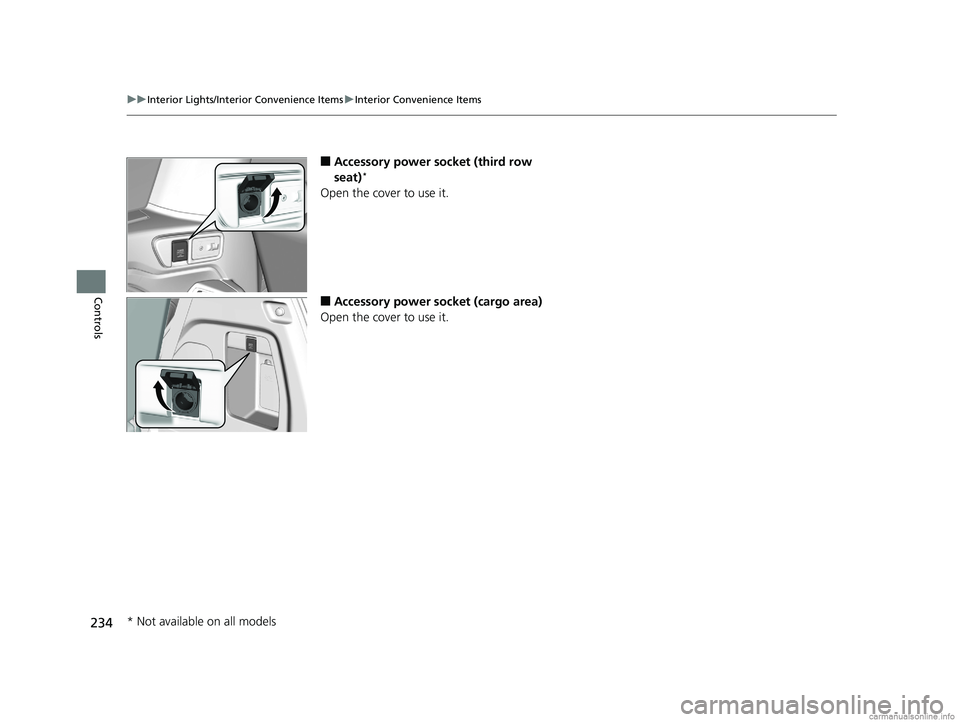

■Accessory power socket (third row
seat)*
Open the cover to use it.
■Accessory power socket (cargo area)
Open the cover to use it.
* Not available on all models
18 US ODYSSEY-31THR6010.book 234 ページ ２０１８年１２月６日　木曜日　午後４時１８分

Continued235
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

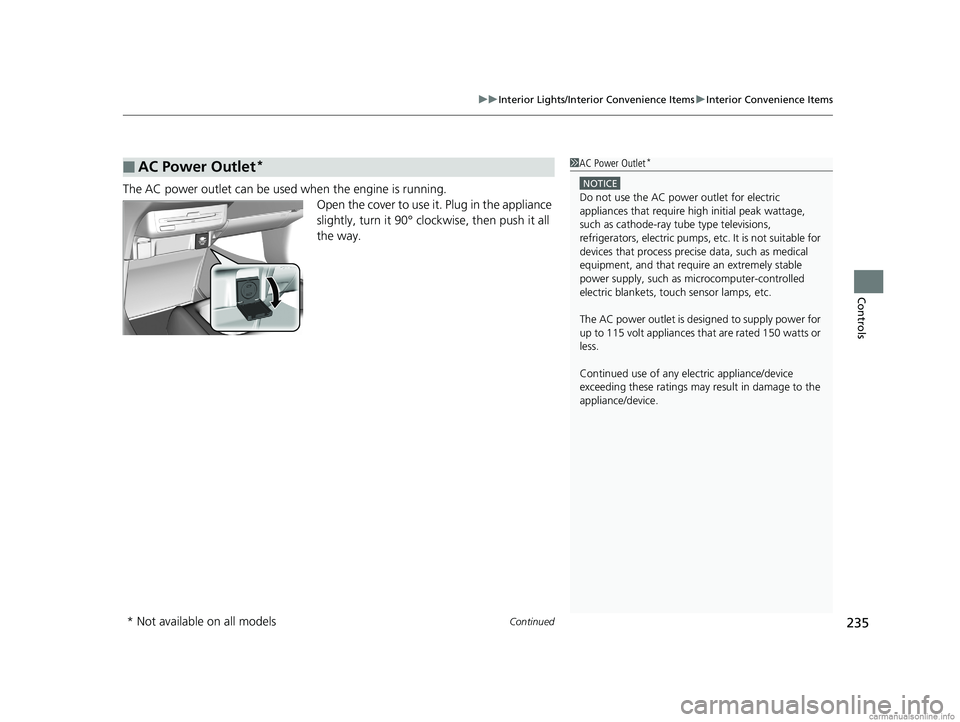

The AC power outlet can be used when the engine is running.
Open the cover to use it. Plug in the appliance
slightly, turn it 90° clockwise, then push it all
the way.
■AC Power Outlet*1AC Power Outlet*
NOTICE
Do not use the AC power outlet for electric
appliances that require hi gh initial peak wattage,
such as cathode-ray tube type televisions,
refrigerators, electric pumps, etc. It is not suitable for
devices that process precis e data, such as medical
equipment, and that require an extremely stable
power supply, such as microcomputer-controlled
electric blankets, touc h sensor lamps, etc.
The AC power outlet is desi gned to supply power for
up to 115 volt appliances that are rated 150 watts or
less.
Continued use of any elec tric appliance/device
exceeding these ratings may result in damage to the
appliance/device.
* Not available on all models
18 US ODYSSEY-31THR6010.book 235 ページ ２０１８年１２月６日　木曜日　午後４時１８分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
236
Controls

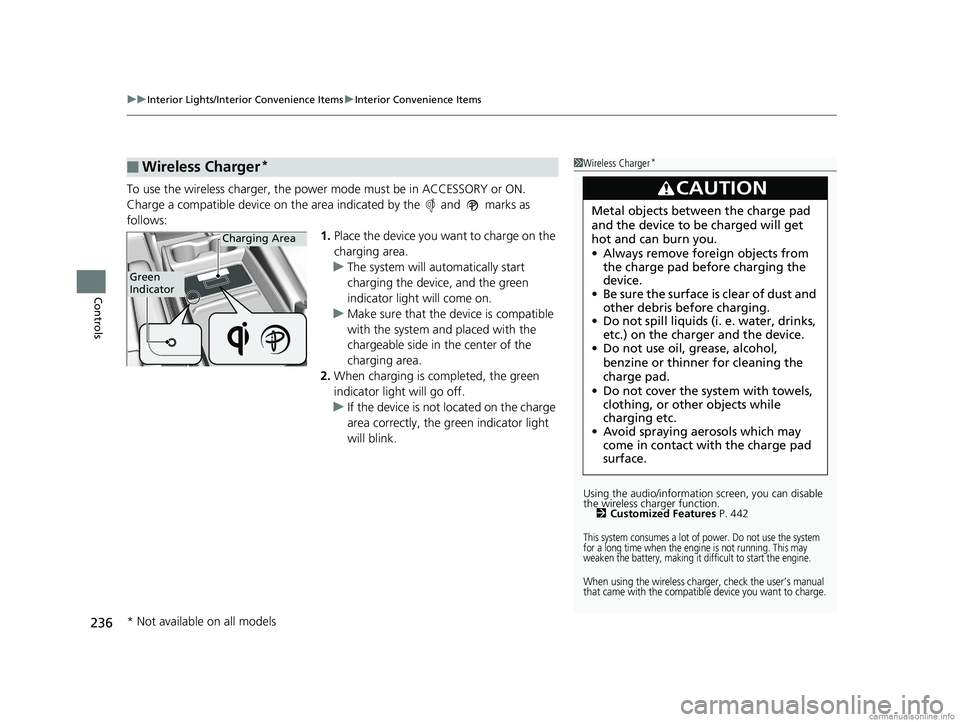

To use the wireless charger, the power mode must be in ACCESSORY or ON.
Charge a compatible device on the ar ea indicated by the and marks as
follows: 1.Place the device you want to charge on the
charging area.
u The system will automatically start
charging the device, and the green
indicator light will come on.
u Make sure that the device is compatible
with the system and placed with the
chargeable side in the center of the
charging area.
2. When charging is completed, the green
indicator light will go off.
u If the device is not located on the charge
area correctly, the green indicator light
will blink.
■Wireless Charger*1Wireless Charger*
Using the audio/informati on screen, you can disable
the wireless ch arger function.
2 Customized Features P. 442
This system consumes a lot of power. Do not use the system
for a long time when the engine is not running. This may
weaken the battery, making it difficult to start the engine.
When using the wireless charger, check the user’s manual
that came with the compatible device you want to charge.
3CAUTION
Metal objects between the charge pad
and the device to be charged will get
hot and can burn you.
•Always remove foreign objects from
the charge pad before charging the
device.
• Be sure the surface is clear of dust and
other debris before charging.
• Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.
• Do not use oil, grease, alcohol,
benzine or thinner for cleaning the
charge pad.
• Do not cover the system with towels,
clothing, or other objects while
charging etc.
• Avoid spraying aerosols which may
come in contact with the charge pad
surface.
Green
Indicator
Charging Area
* Not available on all models
18 US ODYSSEY-31THR6010.book 236 ページ ２０１８年１２月６日　木曜日　午後４時１８分

Continued237
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

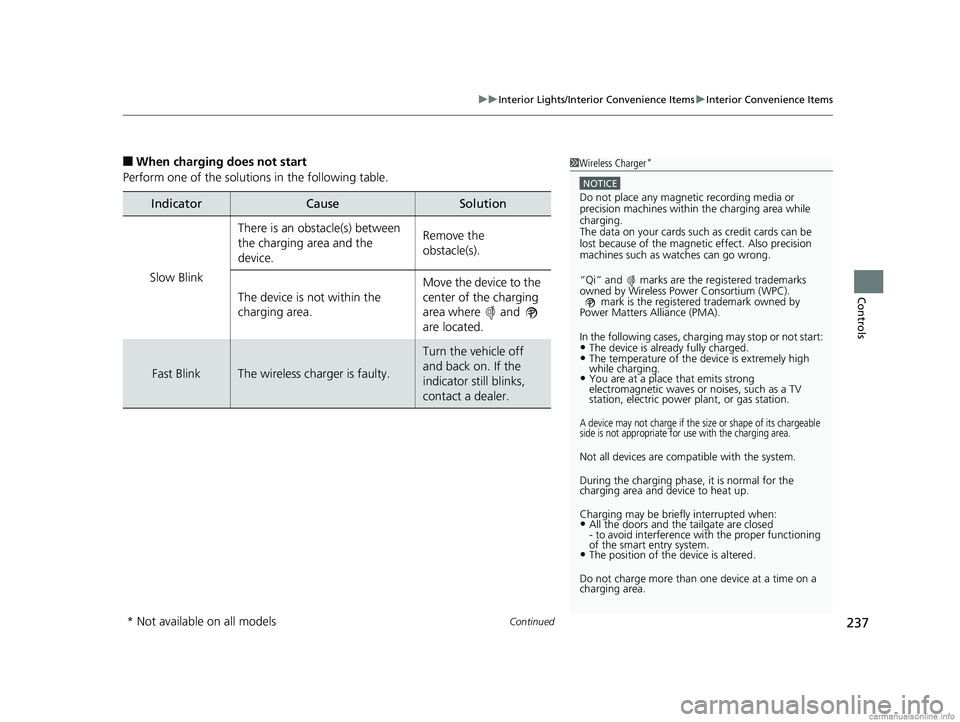

■When charging does not start
Perform one of the solutions in the following table.
IndicatorCauseSolution
Slow Blink
There is an obstacle(s) between
the charging area and the
device.Remove the
obstacle(s).
The device is not within the
charging area. Move the device to the
center of the charging
area where and
are located.
Fast BlinkThe wireless charger is faulty.
Turn the vehicle off
and back on. If the
indicator still blinks,
contact a dealer.
1
Wireless Charger*
NOTICE
Do not place any magneti c recording media or
precision machines within the charging area while
charging.
The data on your cards such as credit cards can be
lost because of the magneti c effect. Also precision
machines such as watches can go wrong.
“Qi” and marks are the registered trademarks
owned by Wire less Power Consortium (WPC).
mark is the registered trademark owned by
Power Matters Alliance (PMA).
In the following cases, ch arging may stop or not start:
•The device is already fully charged.•The temperature of the device is extremely high
while charging.
•You are at a place that emits strong
electromagnetic waves or noises, such as a TV
station, electric power plant, or gas station.
A device may not charge if the si ze or shape of its chargeable
side is not appropriate for use with the charging area.
Not all devices are compatible with the system.
During the charging phase, it is normal for the
charging area and de vice to heat up.
Charging may be briefl y interrupted when:
•All the doors and the tailgate are closed
- to avoid interference with the proper functioning
of the smart entry system.
•The position of the device is altered.
Do not charge more than one device at a time on a
charging area.
* Not available on all models
18 US ODYSSEY-31THR6010.book 237 ページ ２０１８年１２月６日　木曜日　午後４時１８分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
238
Controls

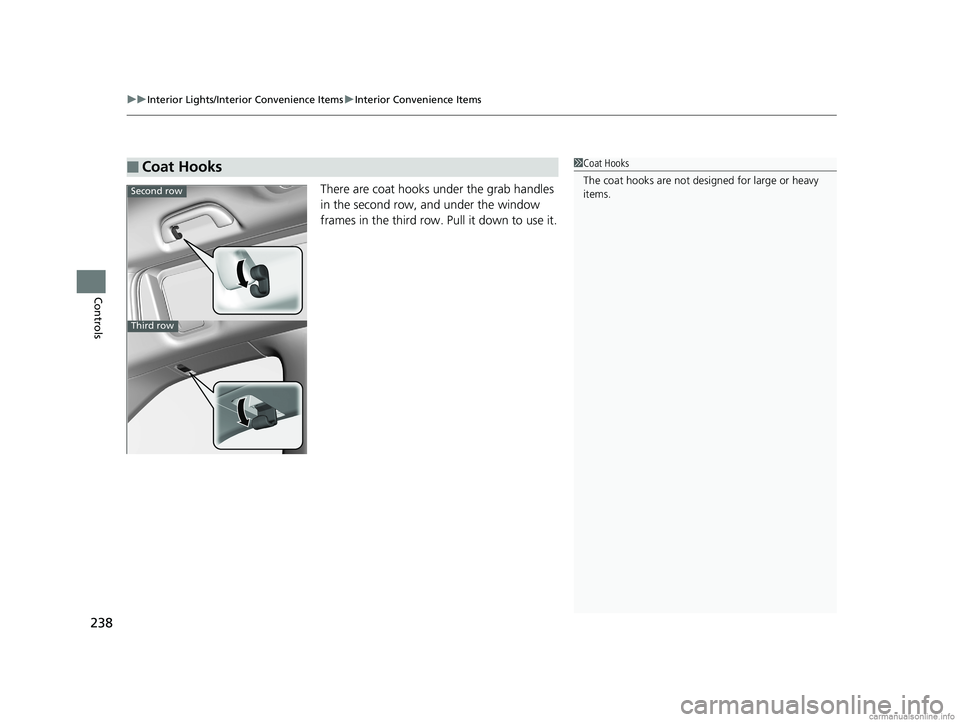

There are coat hooks under the grab handles
in the second row, and under the window
frames in the third row. Pull it down to use it.
■Coat Hooks1Coat Hooks
The coat hooks are not desi gned for large or heavy
items.
Second row
Third row
18 US ODYSSEY-31THR6010.book 238 ページ ２０１８年１２月６日　木曜日　午後４時１８分
