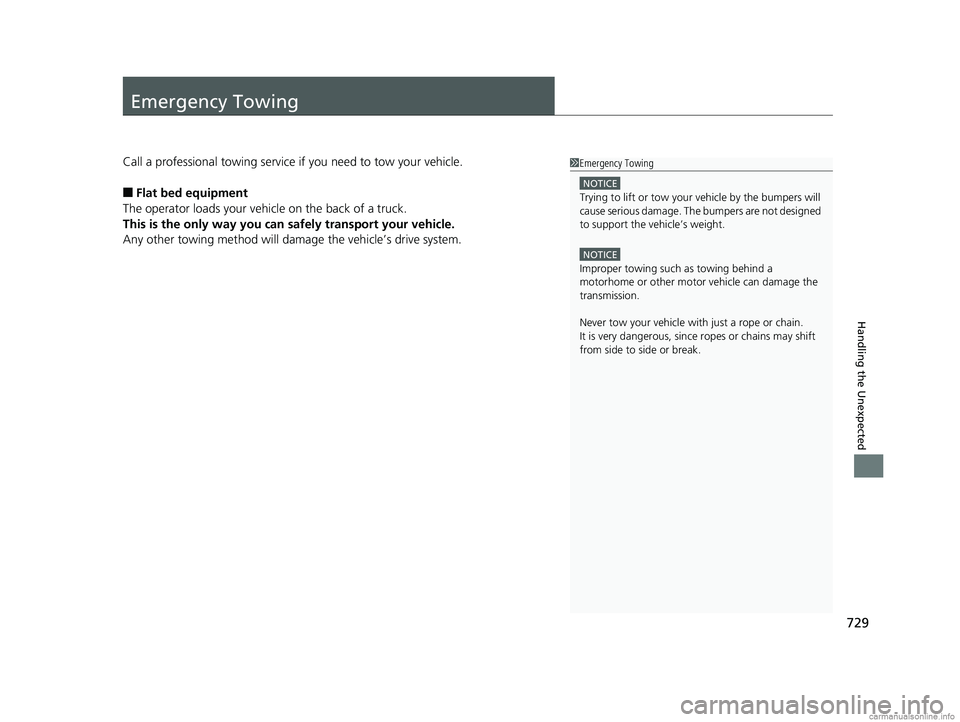

729
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will dama ge the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
18 US ODYSSEY-31THR6010.book 729 ページ ２０１８年１２月６日　木曜日　午後４時１８分

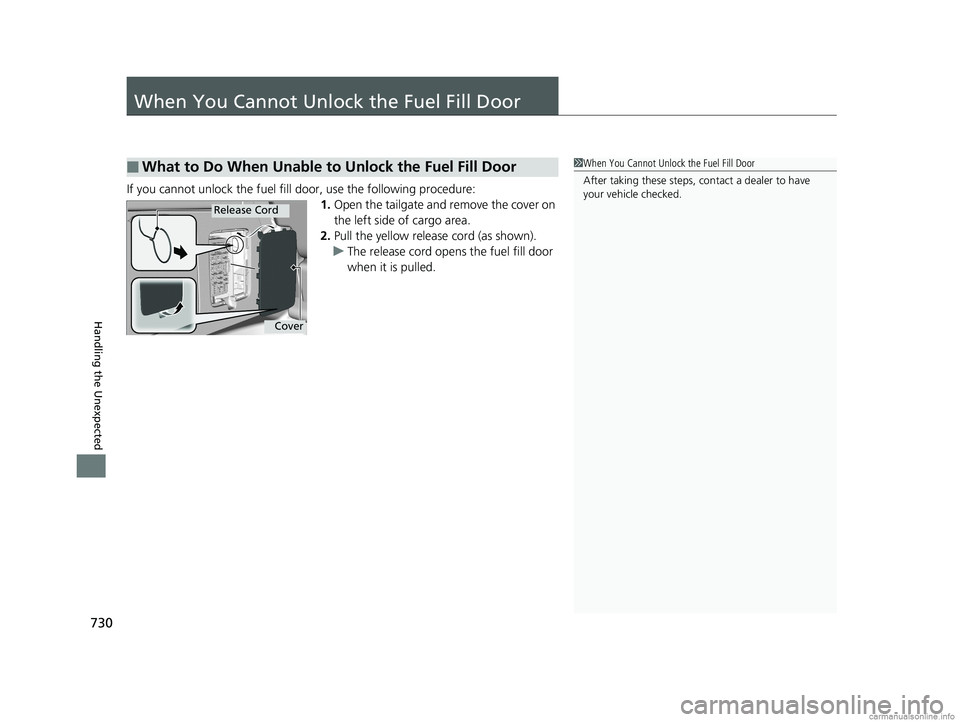

730
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure:1.Open the tailgate and remove the cover on
the left side of cargo area.
2. Pull the yellow releas e cord (as shown).
u The release cord opens the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1 When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Release Cord
18 US ODYSSEY-31THR6010.book 730 ページ ２０１８年１２月６日　木曜日　午後４時１８分

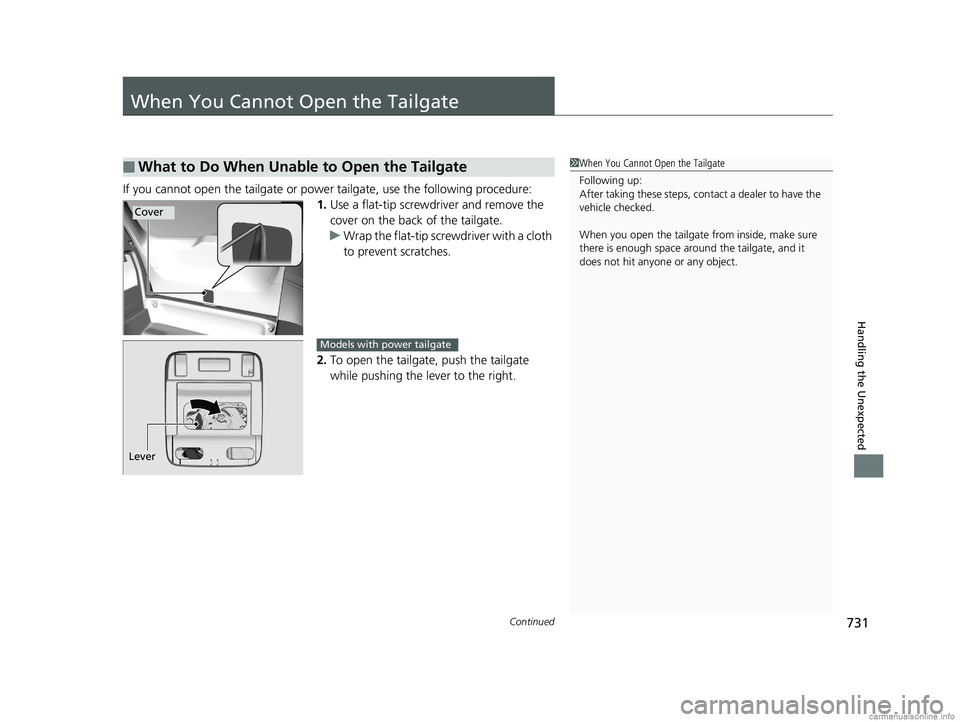

731Continued
Handling the Unexpected
When You Cannot Open the Tailgate
If you cannot open the tailgate or power tailgate, use the following procedure:
1. Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while pushing the lever to the right.
■What to Do When Unable to Open the Tailgate1When You Cannot Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
18 US ODYSSEY-31THR6010.book 731 ページ ２０１８年１２月６日　木曜日　午後４時１８分

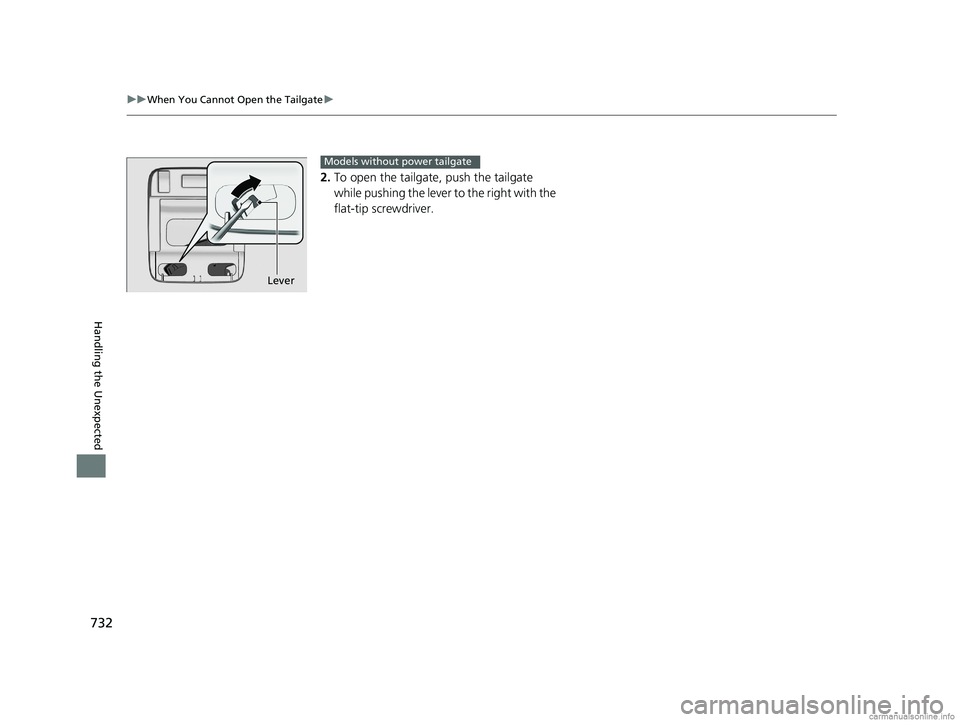

732
uuWhen You Cannot Open the Tailgate u
Handling the Unexpected
2.To open the tailgate, push the tailgate
while pushing the lever to the right with the
flat-tip screwdriver.
Lever
Models without power tailgate
18 US ODYSSEY-31THR6010.book 732 ページ ２０１８年１２月６日　木曜日　午後４時１８分

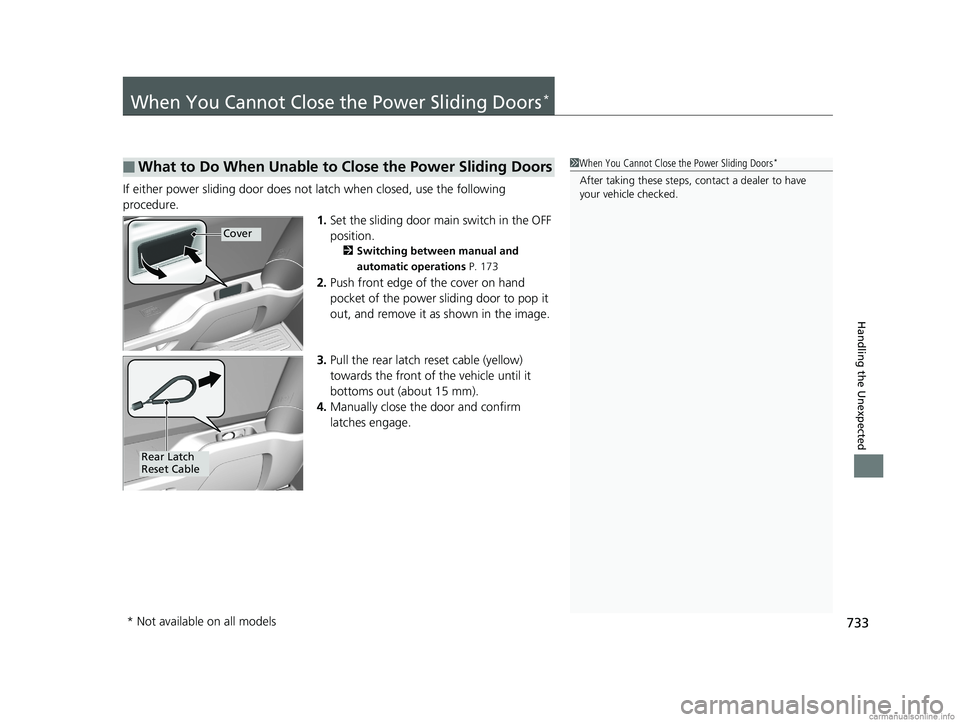

733
Handling the Unexpected
When You Cannot Close the Power Sliding Doors*
If either power sliding door does not latch when closed, use the following
procedure.
1.Set the sliding door main switch in the OFF
position.
2 Switching between manual and
automatic operations P. 173
2.Push front edge of the cover on hand
pocket of the power sliding door to pop it
out, and remove it as shown in the image.
3. Pull the rear latch reset cable (yellow)
towards the front of the vehicle until it
bottoms out (about 15 mm).
4. Manually close the door and confirm
latches engage.
■What to Do When Unable to Close the Power Sliding Doors1When You Cannot Close the Power Sliding Doors*
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Rear Latch
Reset Cable
* Not available on all models
18 US ODYSSEY-31THR6010.book 733 ページ ２０１８年１２月６日　木曜日　午後４時１８分

734
Handling the Unexpected

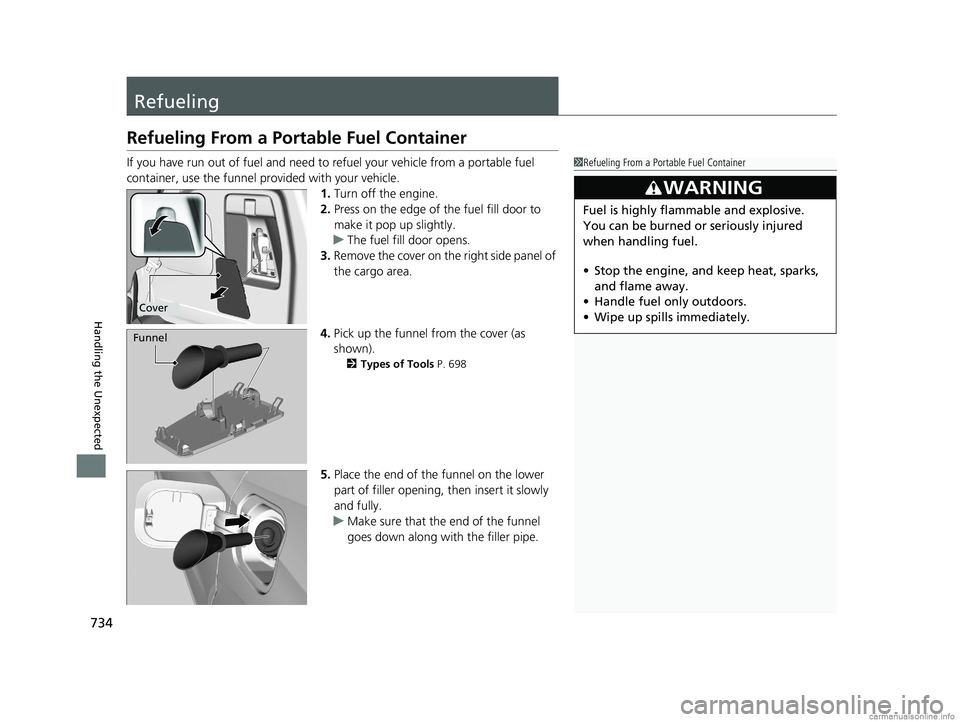

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Remove the cover on the right side panel of
the cargo area.
4. Pick up the funnel from the cover (as
shown).
2 Types of Tools P. 698
5.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
1Refueling From a Portable Fuel Container
3WARNING
Fuel is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Cover
Funnel
18 US ODYSSEY-31THR6010.book 734 ページ ２０１８年１２月６日　木曜日　午後４時１８分

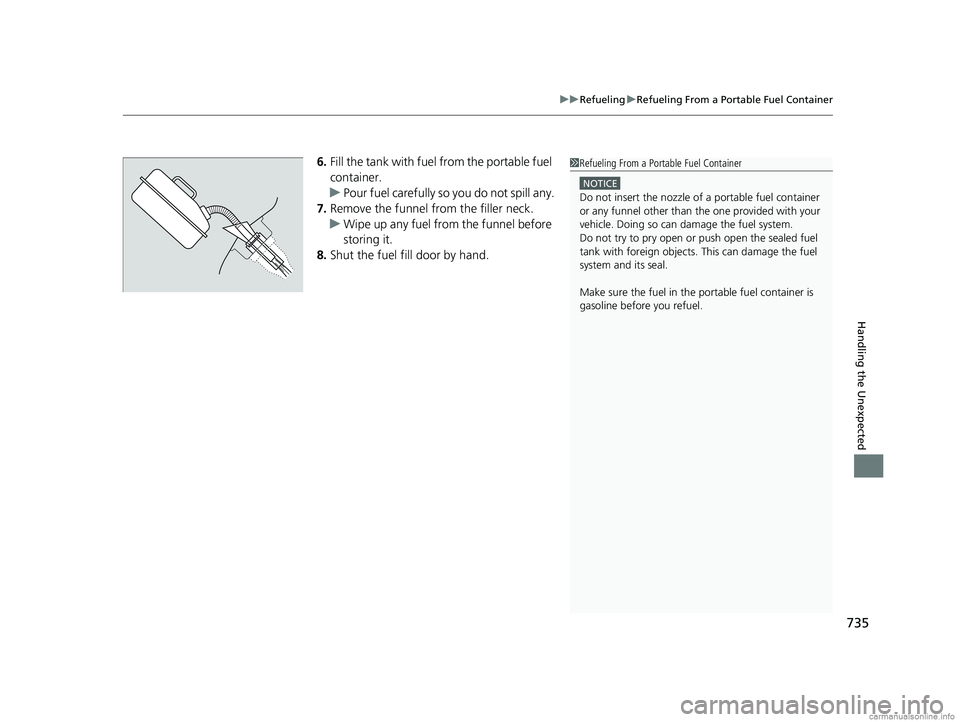

735
uuRefueling uRefueling From a Portable Fuel Container
Handling the Unexpected
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
18 US ODYSSEY-31THR6010.book 735 ページ ２０１８年１２月６日　木曜日　午後４時１８分

736
18 US ODYSSEY-31THR6010.book 736 ページ ２０１８年１２月６日　木曜日　午後４時１８分

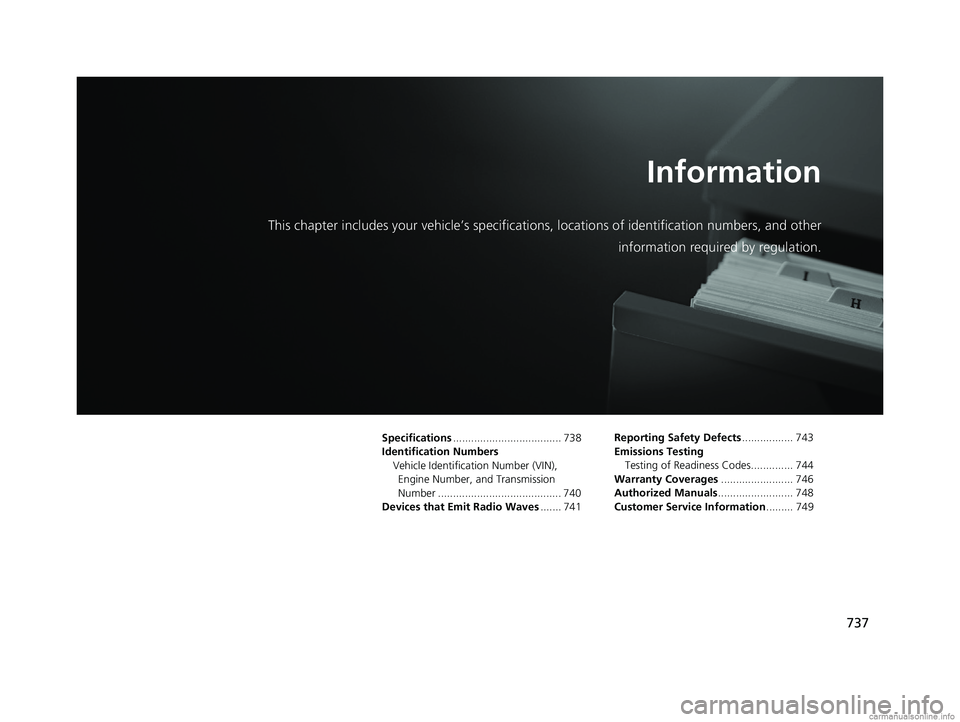

737
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 738
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 740
Devices that Emit Radio Waves ....... 741Reporting Safety Defects
................. 743
Emissions Testing Testing of Readiness Codes.............. 744
Warranty Coverages ........................ 746
Authorized Manuals ......................... 748
Customer Service Information ......... 749
18 US ODYSSEY-31THR6010.book 737 ページ ２０１８年１２月６日　木曜日　午後４時１８分

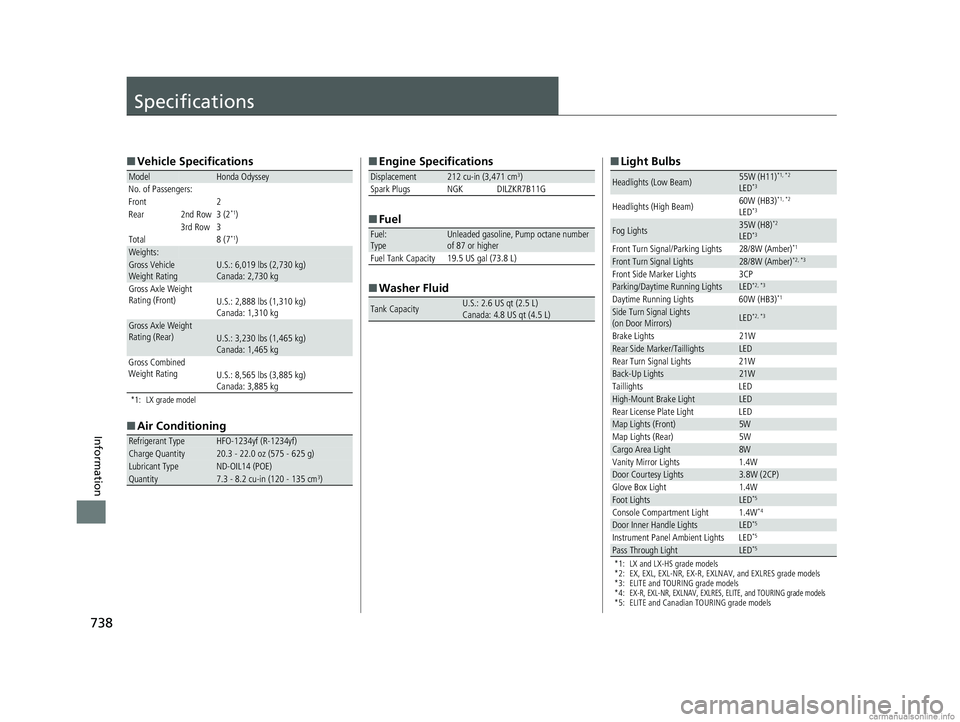

738
Information
Specifications
■Vehicle Specifications
*1: LX grade model
■Air Conditioning
ModelHonda Odyssey
No. of Passengers:
Front 2
Rear 2nd Row 3 (2
*1)
3rd Row 3
Total 8 (7
*1)Weights:Gross Vehicle
Weight Rating U.S.: 6,019 lbs (2,730 kg)
Canada: 2,730 kg
Gross Axle Weight
Rating (Front)U.S.: 2,888 lbs (1,310 kg)
Canada: 1,310 kg
Gross Axle Weight
Rating (Rear)U.S.: 3,230 lbs (1,465 kg)
Canada: 1,465 kg
Gross Combined
Weight Rating U.S.: 8,565 lbs (3,885 kg)
Canada: 3,885 kg
Refrigerant TypeHFO-1234yf (R-1234yf)Charge Quantity20.3 - 22.0 oz (575 - 625 g)Lubricant TypeND-OIL14 (POE)Quantity7.3 - 8.2 cu-in (120 - 135 cm3)
■Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
*1: LX and LX-HS grade models
*2: EX, EXL, EXL-NR, EX-R, EXLNAV, and EXLRES grade models
*3: ELITE and TOURING grade models
*4:
EX-R, EXL-NR, EXLNAV, EXLRES, ELITE, and TOURING grade models*5: ELITE and Canadian TOURING grade models
Headlights (Low Beam)55W (H11)*1, *2
LED*3
Headlights (High Beam) 60W (HB3)*1, *2
LED*3
Fog Lights35W (H8)*2
LED*3
Front Turn Signal/Parking Lights 28/8W (Amber)*1
Front Turn Signal Lights28/8W (Amber)*2, *3
Front Side Marker Lights 3CPParking/Daytime Running LightsLED*2, *3
Daytime Running Lights 60W (HB3)*1
Side Turn Signal Lights
(on Door Mirrors)LED*2, *3
Brake Lights
21WRear Side Marker/TaillightsLED
Rear Turn Signal Lights 21W
Back-Up Lights21W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Map Lights (Front)5W
Map Lights (Rear) 5W
Cargo Area Light8W
Vanity Mirror Lights 1.4W
Door Courtesy Lights3.8W (2CP)
Glove Box Light 1.4W
Foot LightsLED*5
Console Compartment Light 1.4W*4
Door Inner Handle LightsLED*5
Instrument Panel Ambient Lights LED*5
Pass Through LightLED*5
