HONDA ODYSSEY 2018 (in English) Manual PDF

69
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving

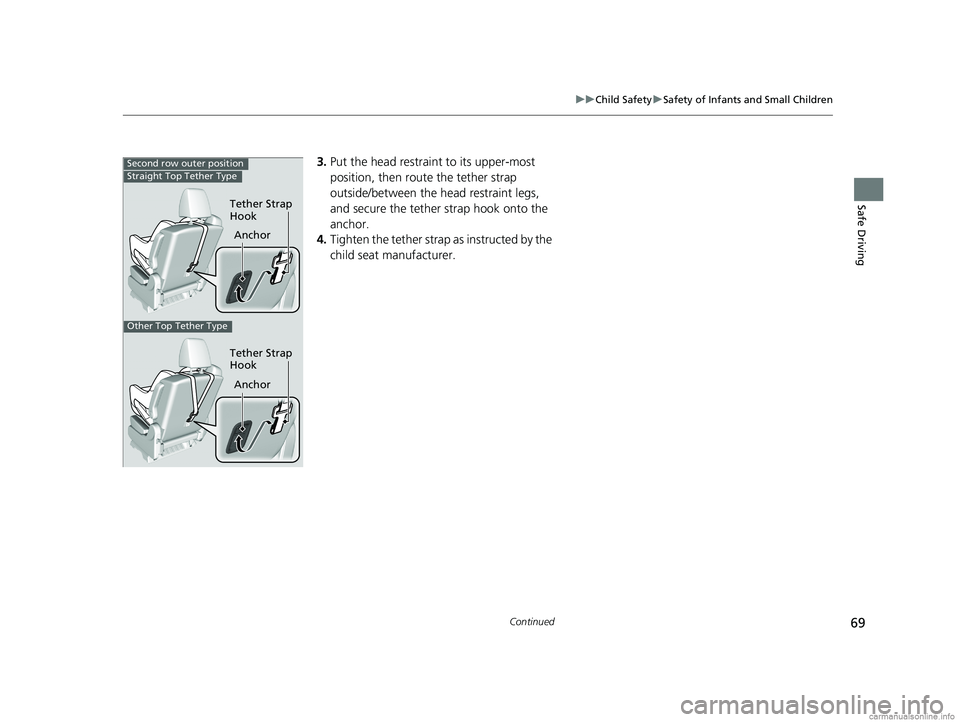

3. Put the head restraint to its upper-most
position, then route the tether strap
outside/between the head restraint legs,
and secure the tether strap hook onto the
anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
Anchor
Tether Strap
Hook
Anchor
Tether Strap
Hook
Other Top Tether Type
Second row outer positionStraight Top Tether Type
18 US ODYSSEY-31THR6010.book 69 ページ ２０１８年１２月６日　木曜日　午後４時１８分

70
uuChild Safety uSafety of Infants and Small Children
Safe Driving

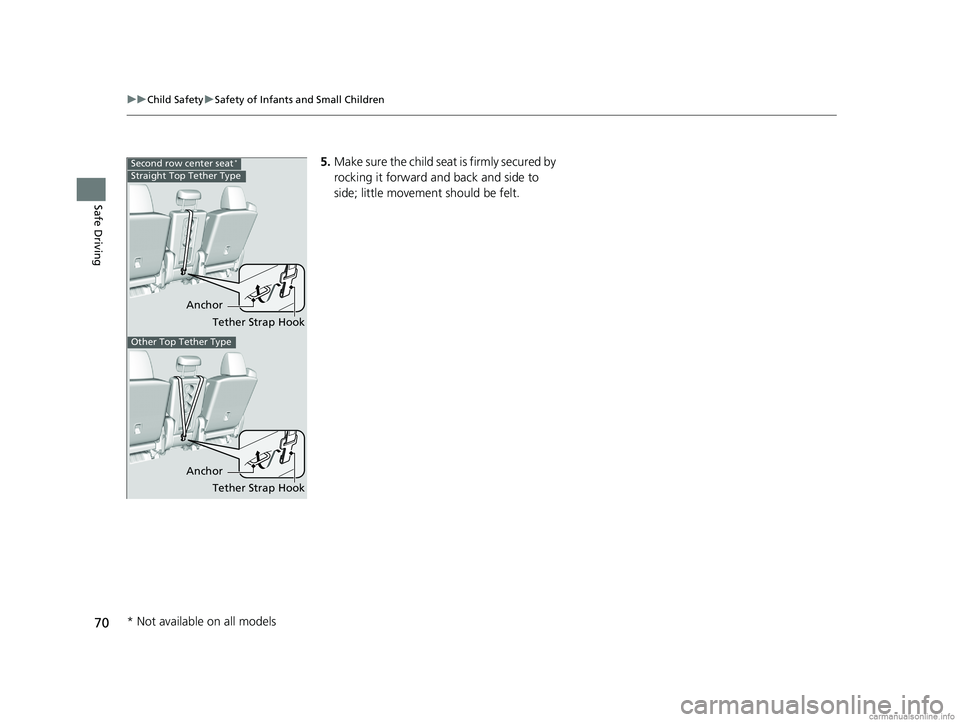

5. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
Anchor
Tether Strap Hook
Second row center seat*
Straight Top Tether Type
Other Top Tether Type
AnchorTether Strap Hook
* Not available on all models
18 US ODYSSEY-31THR6010.book 70 ページ ２０１８年１２月６日　木曜日　午後４時１８分

71
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving

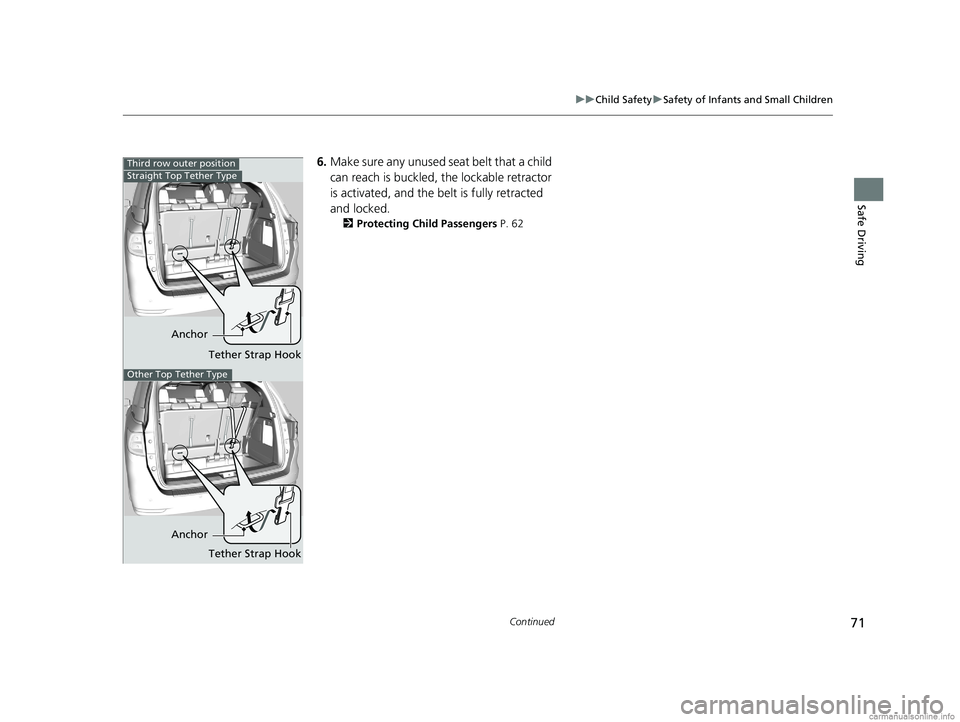

6. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 62
Anchor
Tether Strap Hook
Third row outer positionStraight Top Tether Type
Other Top Tether Type
AnchorTether Strap Hook
18 US ODYSSEY-31THR6010.book 71 ページ ２０１８年１２月６日　木曜日　午後４時１８分

uuChild Safety uSafety of Infants and Small Children
72

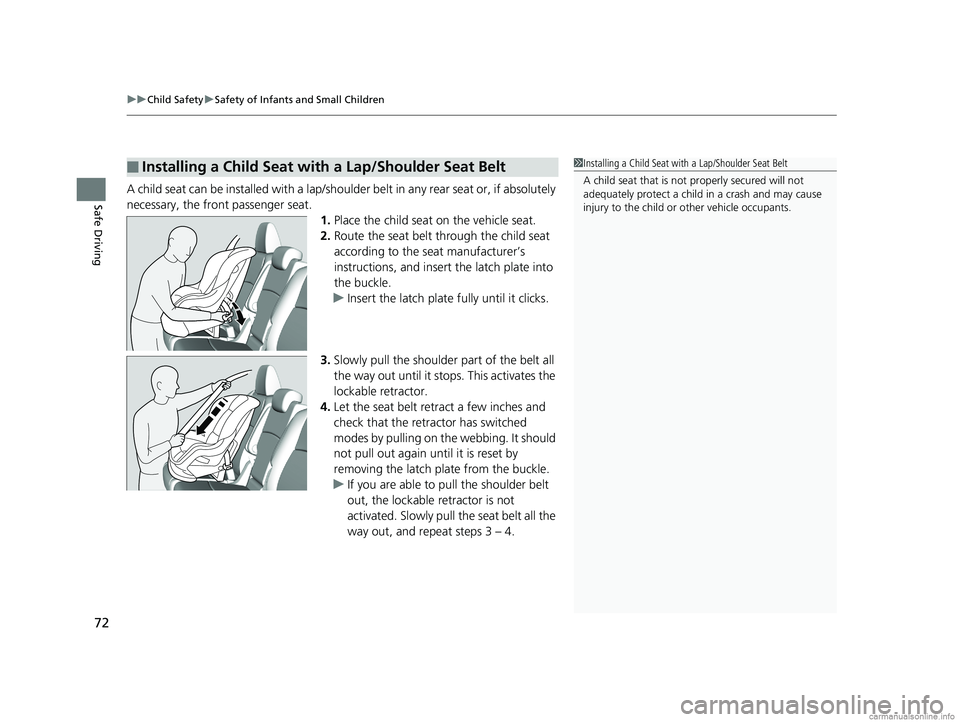

Safe DrivingA child seat can be installed with a lap/should er belt in any rear seat or, if absolutely
necessary, the front passenger seat. 1.Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch plate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
18 US ODYSSEY-31THR6010.book 72 ページ ２０１８年１２月６日　木曜日　午後４時１８分

Continued73
uuChild Safety uSafety of Infants and Small Children
Safe Driving

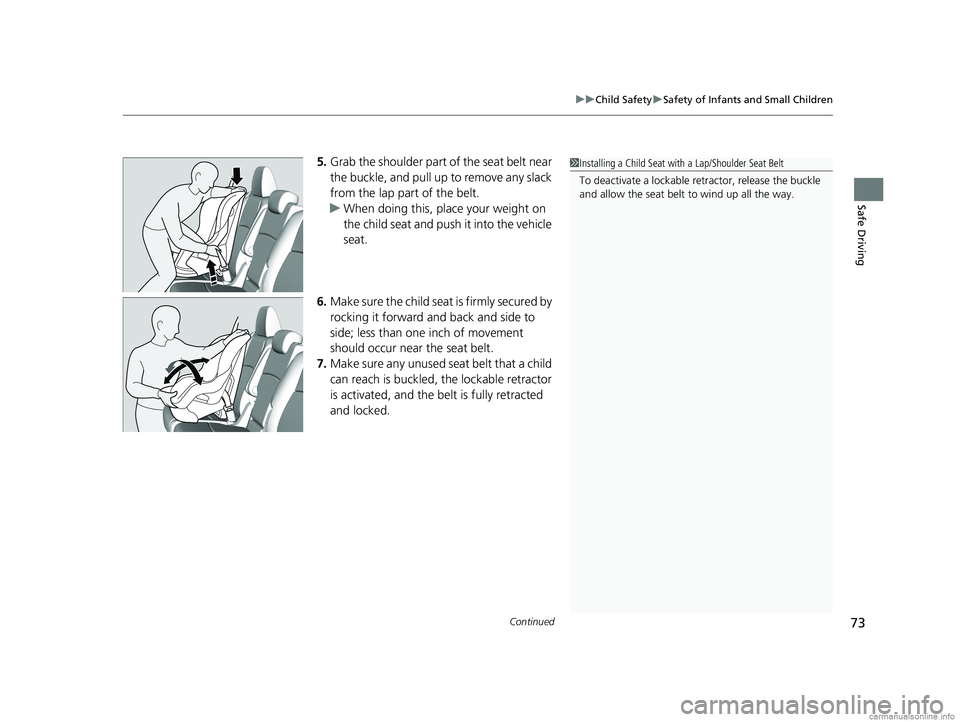

5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, place your weight on
the child seat and push it into the vehicle
seat.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; less than one inch of movement
should occur near the seat belt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.1 Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
18 US ODYSSEY-31THR6010.book 73 ページ ２０１８年１２月６日　木曜日　午後４時１８分

uuChild Safety uSafety of Infants and Small Children
74

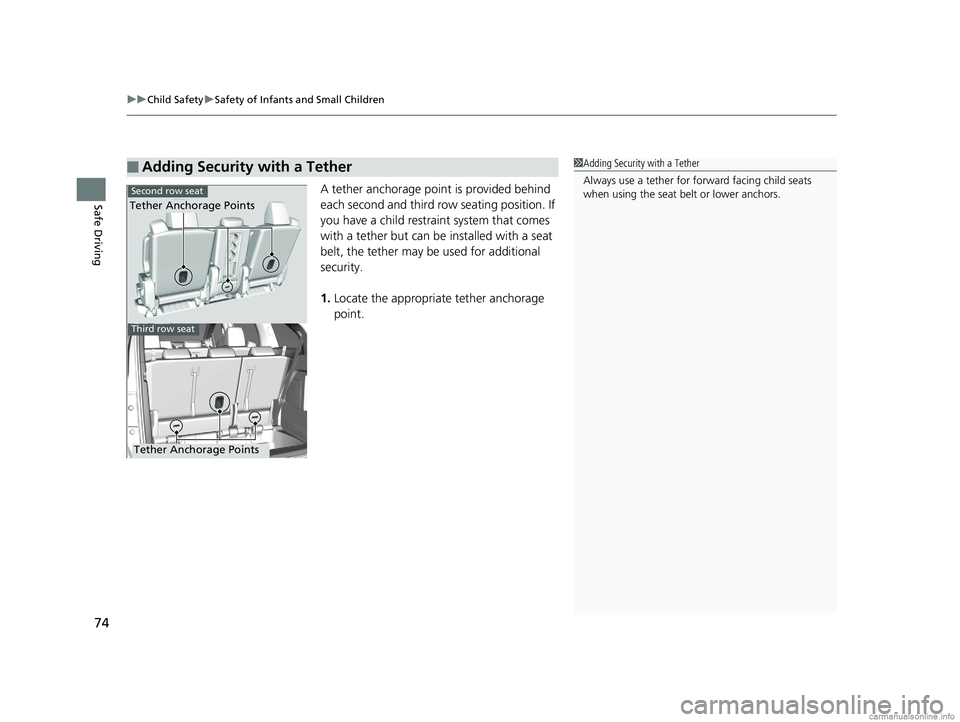

Safe DrivingA tether anchorage point is provided behind
each second and third row seating position. If
you have a child restraint system that comes
with a tether but can be installed with a seat
belt, the tether may be used for additional
security.
1. Locate the appropriate tether anchorage
point.
■Adding Security with a Tether1Adding Security with a Tether
Always use a tether for forward facing child seats
when using the seat be lt or lower anchors.
Second row seat
Third row seat
Tether Anchorage Points
Tether Anchorage Points
18 US ODYSSEY-31THR6010.book 74 ページ ２０１８年１２月６日　木曜日　午後４時１８分

75
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving

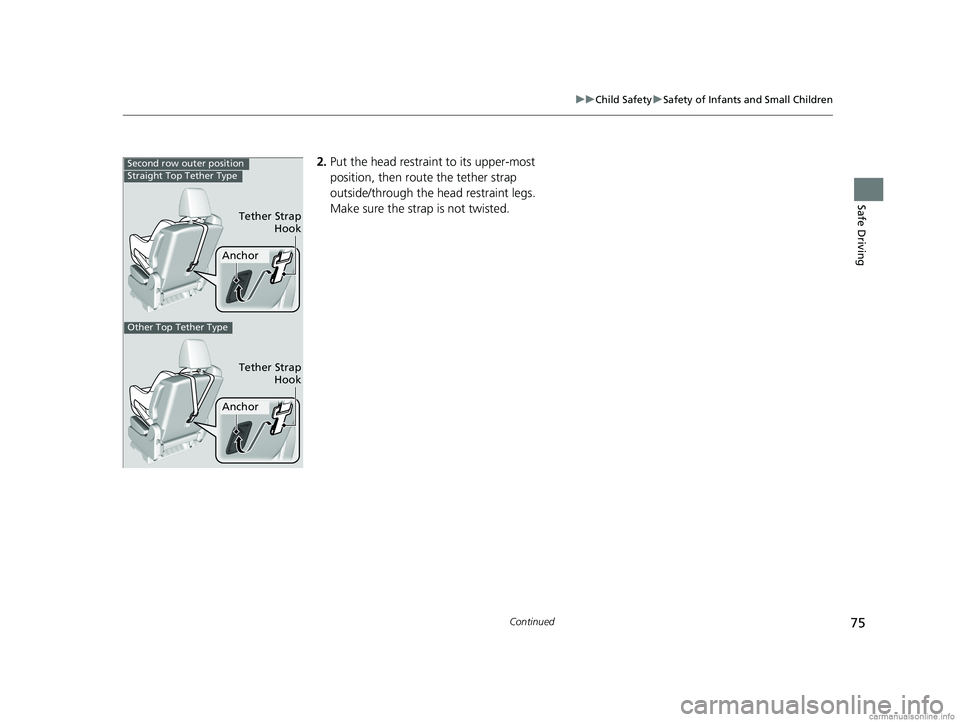

2. Put the head restraint to its upper-most
position, then route the tether strap
outside/through the head restraint legs.
Make sure the strap is not twisted.Second row outer position
Tether Strap
Hook
Anchor
Straight Top Tether Type
Other Top Tether Type
Tether StrapHook
Anchor
18 US ODYSSEY-31THR6010.book 75 ページ ２０１８年１２月６日　木曜日　午後４時１８分

76
uuChild Safety uSafety of Infants and Small Children
Safe Driving

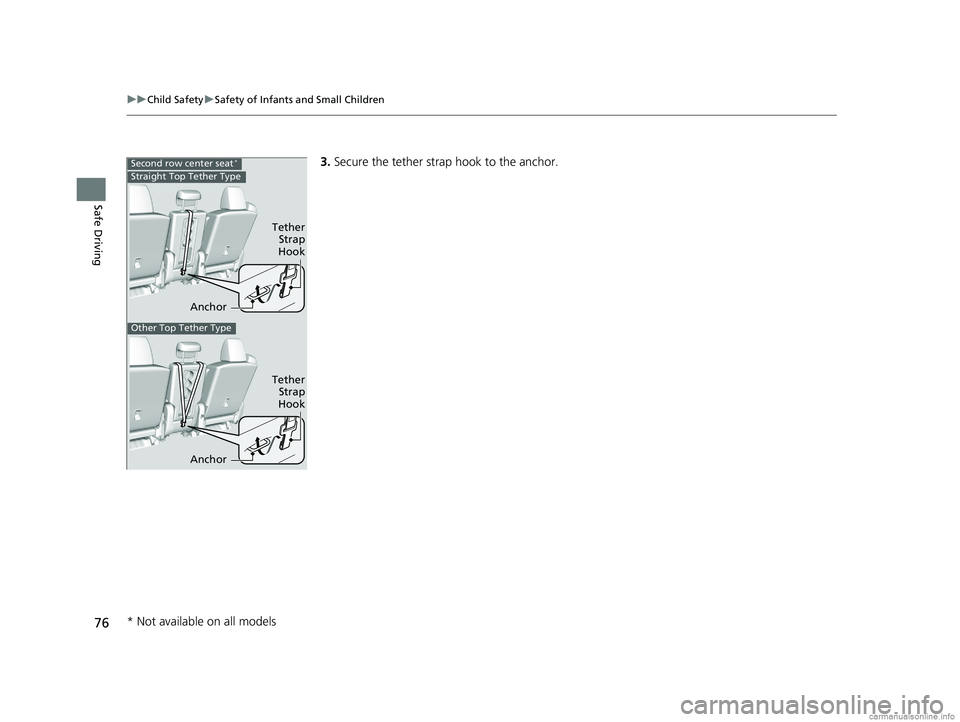

3. Secure the tether strap hook to the anchor.Second row center seat*
Anchor
Tether
Strap
Hook
Straight Top Tether Type
Other Top Tether Type
Anchor
Tether Strap
Hook
* Not available on all models
18 US ODYSSEY-31THR6010.book 76 ページ ２０１８年１２月６日　木曜日　午後４時１８分

77
uuChild Safety uSafety of Infants and Small Children
Safe Driving

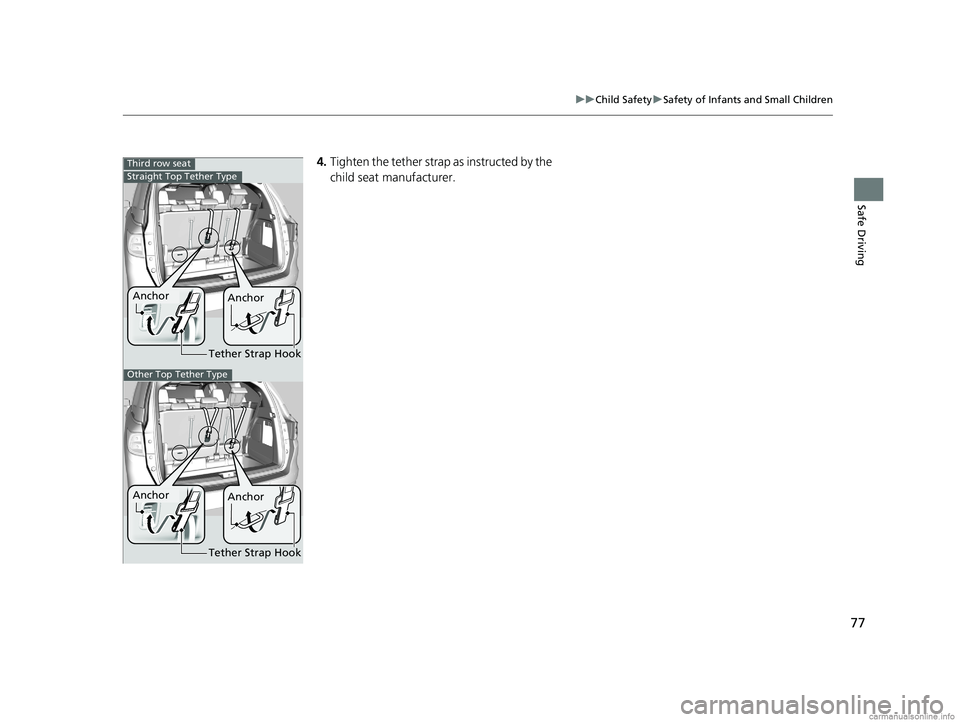

4. Tighten the tether strap as instructed by the
child seat manufacturer.Third row seat
Tether Strap Hook
Anchor Anchor
Straight Top Tether Type
Other Top Tether Type
Tether Strap Hook
AnchorAnchor
18 US ODYSSEY-31THR6010.book 77 ページ ２０１８年１２月６日　木曜日　午後４時１８分

78
uuChild Safety uSafety of Larger Children
Safe Driving

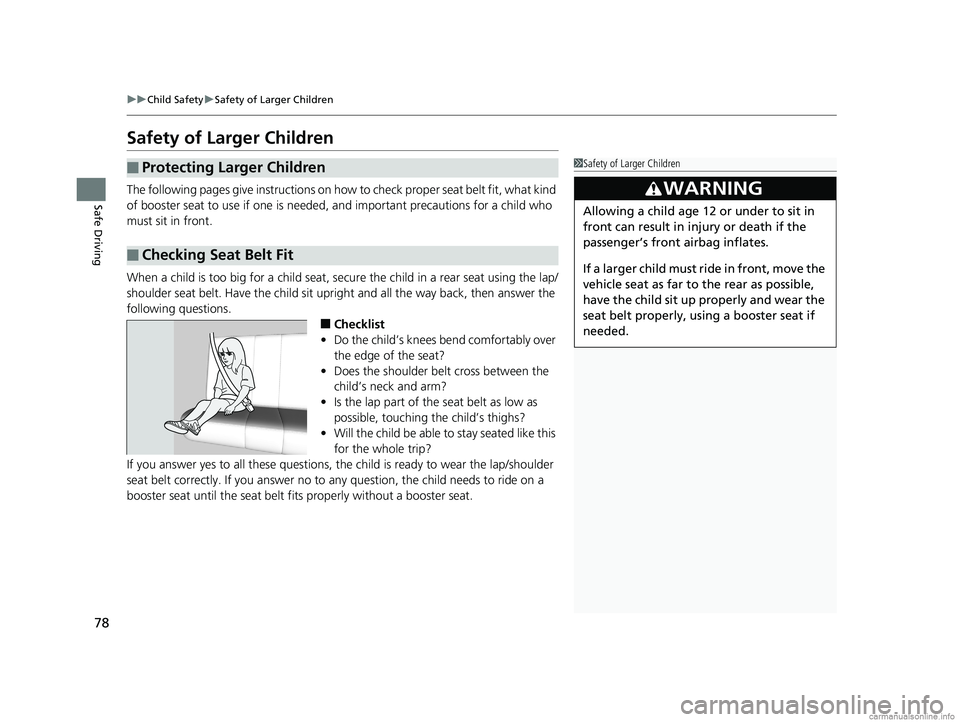

Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed , and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ri de in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, us ing a booster seat if
needed.
