Page 731 of 767
729

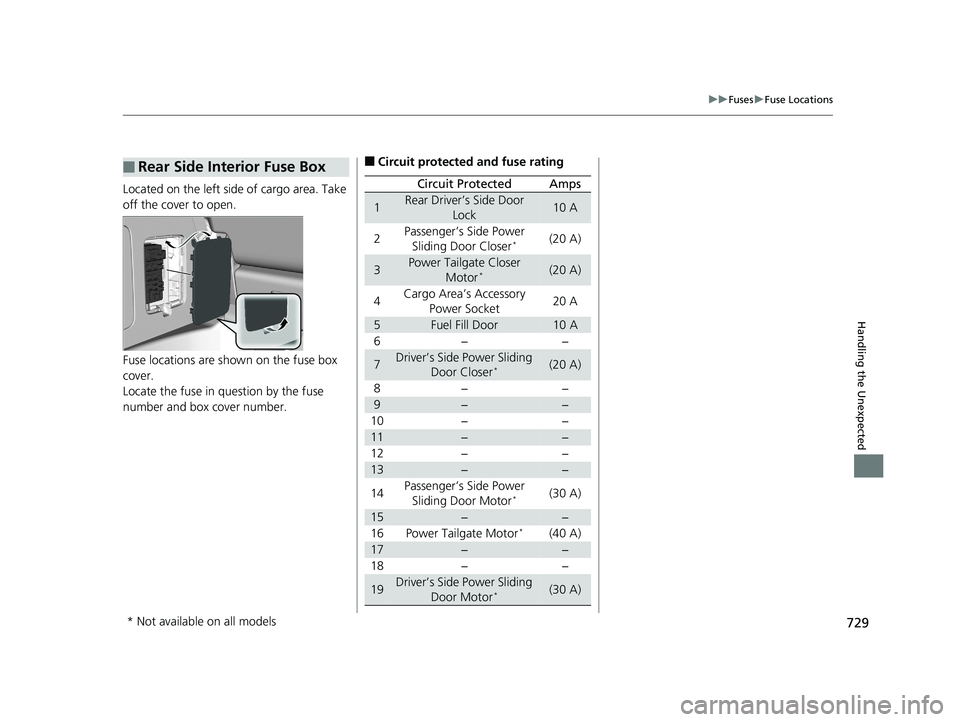

uuFuses uFuse Locations
Handling the Unexpected
Located on the left side of cargo area. Take
off the cover to open.
Fuse locations are shown on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.
■Rear Side Interior Fuse Box■Circuit protected and fuse rating
Circuit ProtectedAmps
1Rear Driver’s Side Door
Lock10 A
2Passenger’s Side Power Sliding Door Closer*(20 A)
3Power Tailgate Closer Motor*(20 A)
4Cargo Area’s Accessory
Power Socket20 A
5Fuel Fill Door10 A
6−−
7Driver’s Side Power Sliding Door Closer*(20 A)
8−−
9−−
10 − −
11−−
12 − −
13−−
14 Passenger’s Side Power
Sliding Door Motor
*(30 A)
15−−
16 Power Tailgate Motor*(40 A)
17−−
18 − −
19Driver’s Side Power Sliding
Door Motor*(30 A)
* Not available on all models
19 ODYSSEY-31THR6120.book 729 ページ 2018年12月6日 木曜日 午後4時35分
Page 732 of 767

730

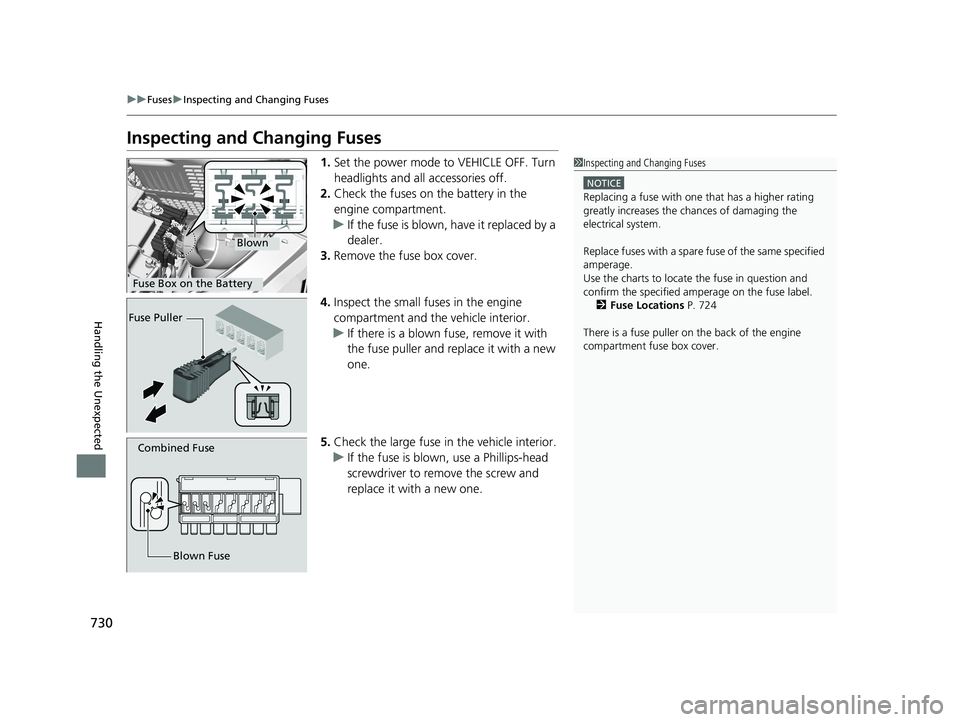

uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Check the fuses on the battery in the
engine compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Remove the fuse box cover.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuses with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 724
There is a fuse puller on the back of the engine
compartment fuse box cover.
Blown
Fuse Box on the Battery
Fuse Puller
Combined Fuse
Blown Fuse
19 ODYSSEY-31THR6120.book 730 ページ 2018年12月6日 木曜日 午後4時35分
Page 733 of 767
731
Handling the Unexpected

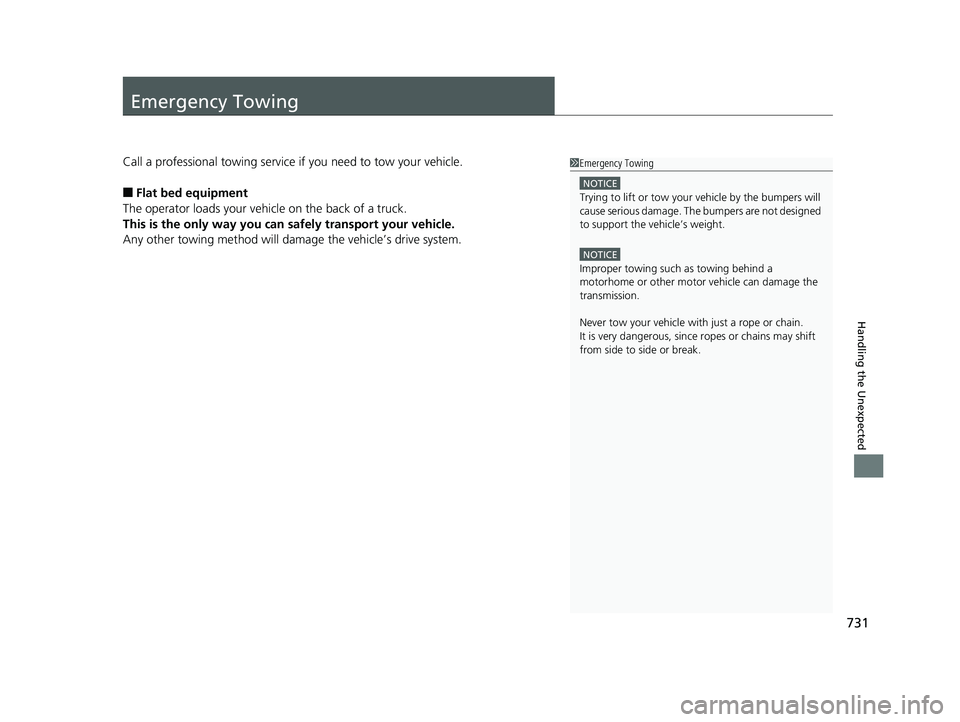

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will dama ge the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
19 ODYSSEY-31THR6120.book 731 ページ 2018年12月6日 木曜日 午後4時35分
Page 734 of 767
732
Handling the Unexpected

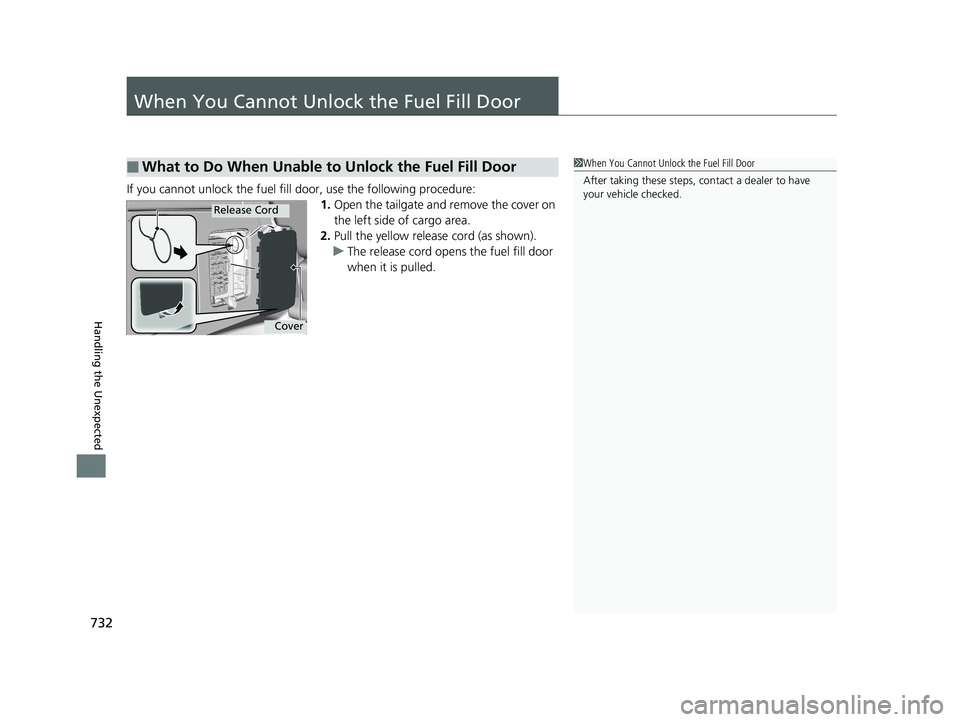

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure:1.Open the tailgate and remove the cover on
the left side of cargo area.
2. Pull the yellow releas e cord (as shown).
u The release cord opens the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1 When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Release Cord
19 ODYSSEY-31THR6120.book 732 ページ 2018年12月6日 木曜日 午後4時35分
Page 735 of 767
733Continued
Handling the Unexpected

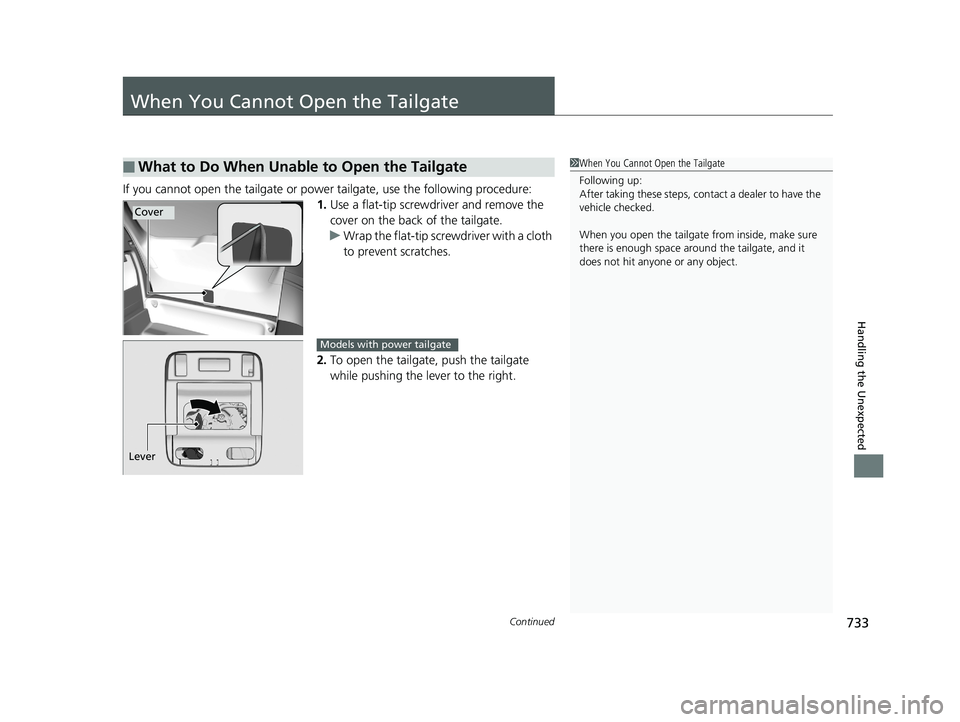

When You Cannot Open the Tailgate
If you cannot open the tailgate or power tailgate, use the following procedure:
1. Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while pushing the lever to the right.
■What to Do When Unable to Open the Tailgate1When You Cannot Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
19 ODYSSEY-31THR6120.book 733 ページ 2018年12月6日 木曜日 午後4時35分
Page 736 of 767
734

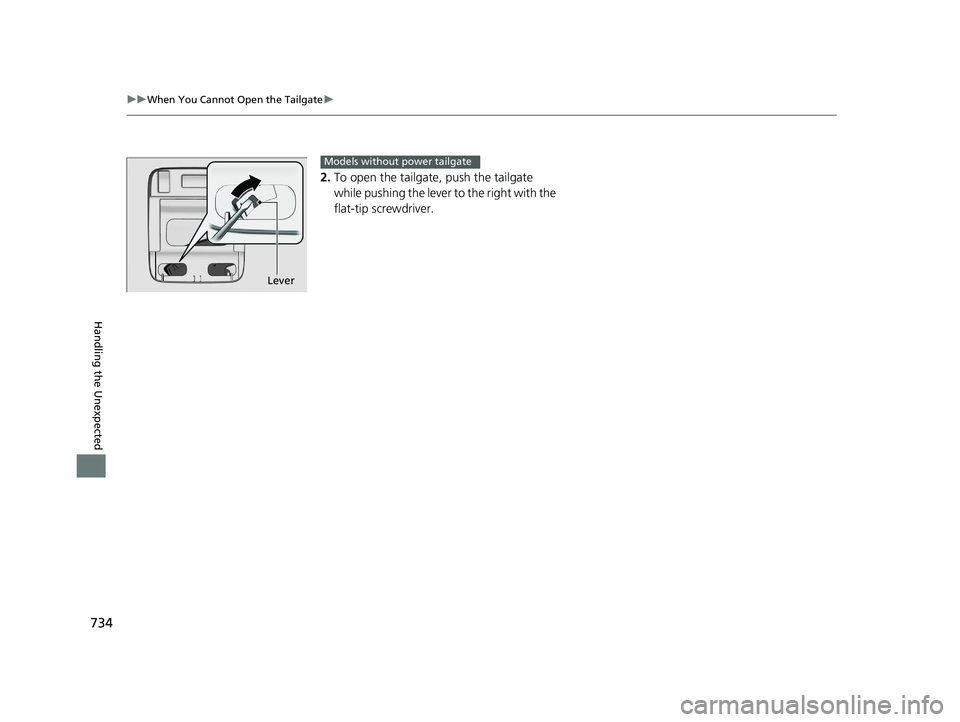

uuWhen You Cannot Open the Tailgate u
Handling the Unexpected
2.To open the tailgate, push the tailgate
while pushing the lever to the right with the
flat-tip screwdriver.
Lever
Models without power tailgate
19 ODYSSEY-31THR6120.book 734 ページ 2018年12月6日 木曜日 午後4時35分
Page 737 of 767
735
Handling the Unexpected

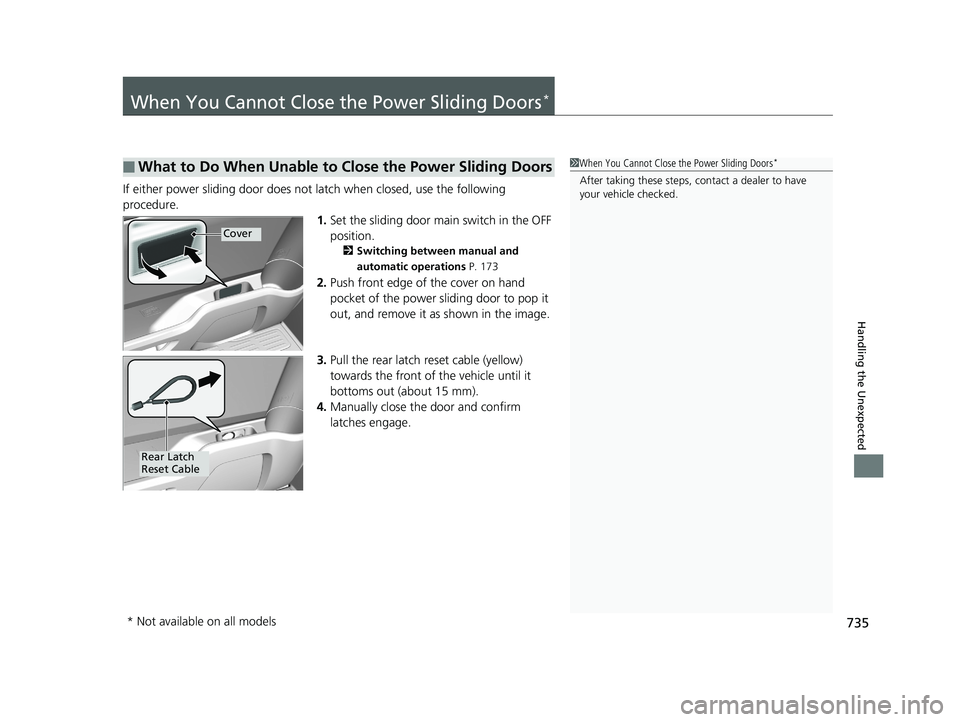

When You Cannot Close the Power Sliding Doors*
If either power sliding door does not latch when closed, use the following
procedure.
1.Set the sliding door main switch in the OFF
position.
2 Switching between manual and
automatic operations P. 173
2.Push front edge of the cover on hand
pocket of the power sliding door to pop it
out, and remove it as shown in the image.
3. Pull the rear latch reset cable (yellow)
towards the front of the vehicle until it
bottoms out (about 15 mm).
4. Manually close the door and confirm
latches engage.
■What to Do When Unable to Close the Power Sliding Doors1When You Cannot Close the Power Sliding Doors*
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Rear Latch
Reset Cable
* Not available on all models
19 ODYSSEY-31THR6120.book 735 ページ 2018年12月6日 木曜日 午後4時35分
Page 738 of 767

736
Handling the Unexpected

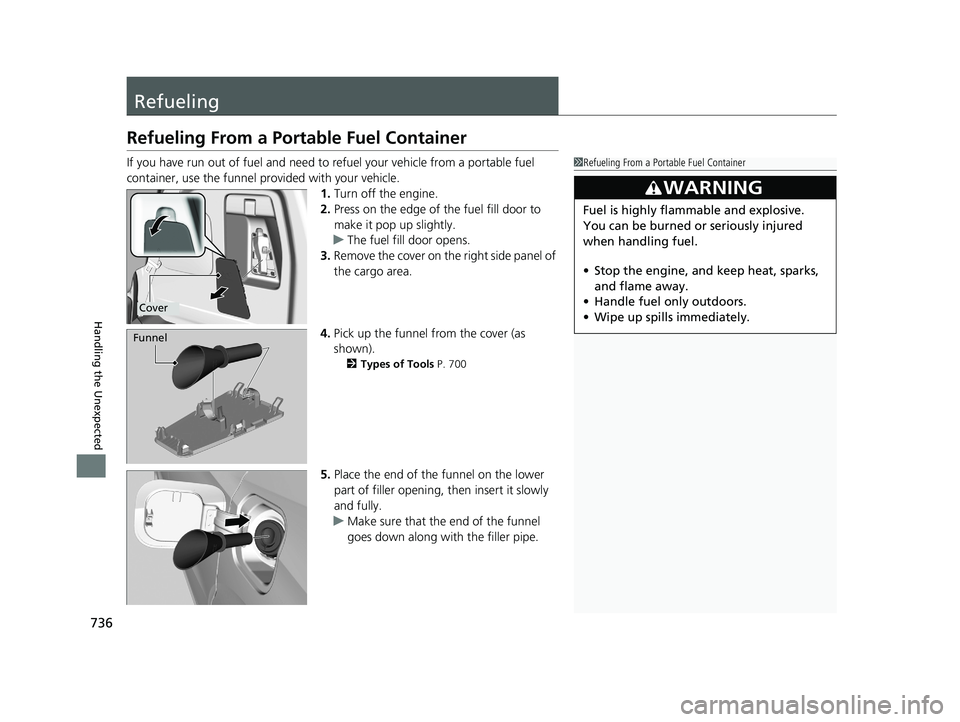

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Remove the cover on the right side panel of
the cargo area.
4. Pick up the funnel from the cover (as
shown).
2 Types of Tools P. 700
5.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
1Refueling From a Portable Fuel Container
3WARNING
Fuel is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Cover
Funnel
19 ODYSSEY-31THR6120.book 736 ページ 2018年12月6日 木曜日 午後4時35分
Page 739 of 767
737

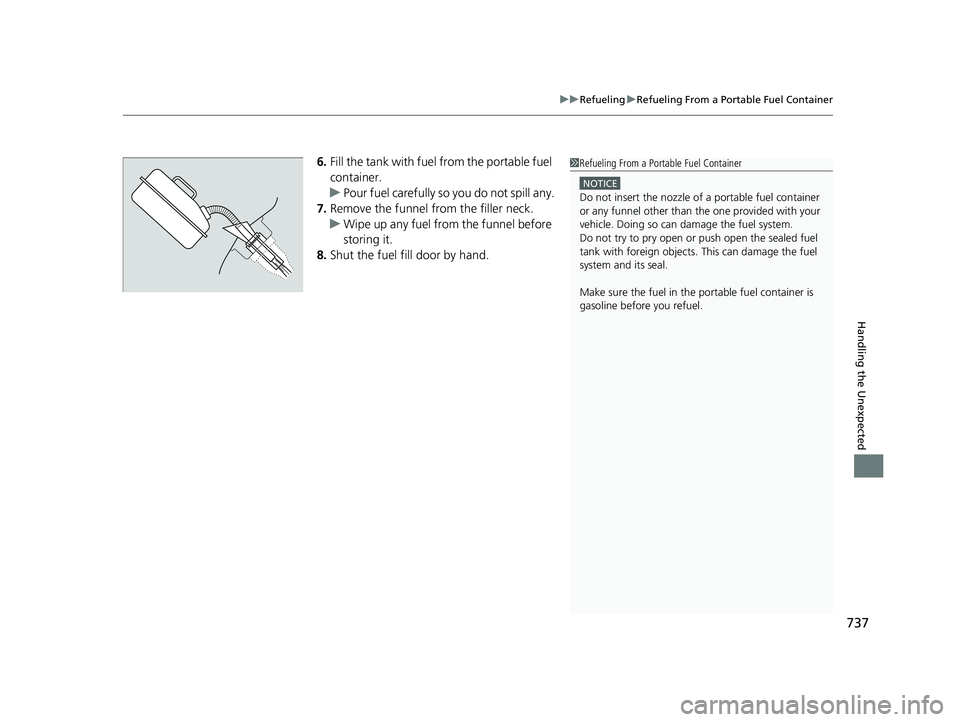

uuRefueling uRefueling From a Portable Fuel Container
Handling the Unexpected
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
19 ODYSSEY-31THR6120.book 737 ページ 2018年12月6日 木曜日 午後4時35分
Page 740 of 767
738
19 ODYSSEY-31THR6120.book 738 ページ 2018年12月6日 木曜日 午後4時35分
