washer fluid HONDA ODYSSEY 2019 Owner's Manual (in English)

15
Quick Reference Guide
Turn Signals (P189)
Lights (P189)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P197)
*1:Models with automatic intermittent wipers
*2:Models without auto matic intermittent
wipers
AUTO should always be turned OFF before
the following situation in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Wiper/Washer Control Lever
Adjustment Ring
( -: Low sensitivity*1
(-: Lower speed, fewer sweeps*2
(+: High sensitivity*1
(+: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO: Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
Steering Wheel (P205)
● To adjust, push the adjustment lever
down, adjust to the de sired position, then
pull up the lever back in place.
19 ODYSSEY-31THR6120.book 15 ページ ２０１８年１２月６日　木曜日　午後４時３５分

28
Quick Reference Guide
Maintenance (P637)
Under the Hood (P647)
● Check engine oil, engine coolant, and window washer fluid. Add
when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the dashboard.
bLocate the hood latch lever, pull it up, and then raise the hood.
Once you have raised the hood slightly, you can release the lever.
cWhen finished, close the hood and make sure it is firmly locked in
place.
Lights (P660)
● Inspect all lights regularly.
Wiper Blades (P671)
● Replace blades if they leave
streaks across the windshield.
Tires (P675)
● Inspect tires and wheels
regularly.
● Check tire pressures
regularly.
● Install snow tires for winter
driving.
19 ODYSSEY-31THR6120.book 28 ページ ２０１８年１２月６日　木曜日　午後４時３５分

103
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the washer fluid is low.•Refill the washer fluid.
2 Refilling Window Washer Fluid P. 659
•Appears while you are customizing the settings and
the transmission is in other than
(P.
2 Vehicle Customization P. 133
•Appears when the temperature of the transmission
is starting to get too hot.
• The performance of the vehicle may be reduced.•Until the message disappears, reduce your speed and
allow the system to cool down.
•Appears if the battery charge becomes low.•Charge the battery.
•Appears when the fuel fill door is opened.•Close the fuel fill door.
Canadian models
Models with color audio system
19 ODYSSEY-31THR6120.book 103 ページ ２０１８年１２月６日　木曜日　午後４時３５分

197
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with manual intermittent operation
*2: Models with automati c intermittent operation
■Windshield Wiper/Washer1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defrost er or heated windshield
*
to warm the windshield, then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
Models with intermittent time adjustment ring
Intermittent Time
Adjustment Ring
MIST
INT
*1/AUTO*2
OFF
LO : Low speed wipe
HI: High speed wipe Pull to
use
washer.
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
19 ODYSSEY-31THR6120.book 197 ページ ２０１８年１２月６日　木曜日　午後４時３５分

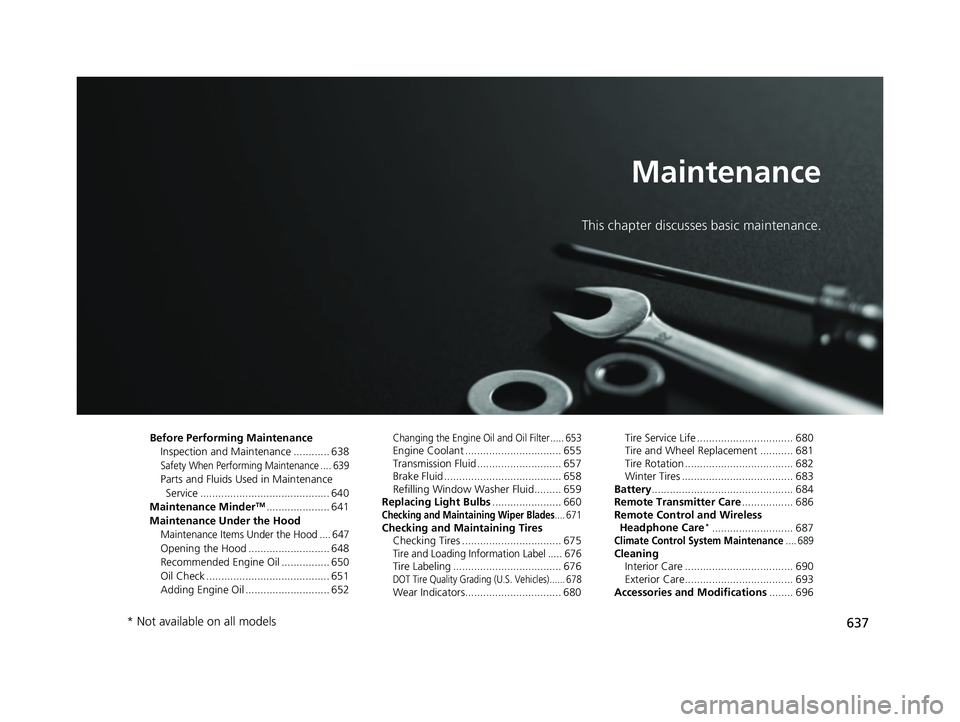

637
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 638
Safety When Performing Maintenance .... 639
Parts and Fluids Used in Maintenance Service ........................................... 640
Maintenance Minder
TM..................... 641
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 647
Opening the Hood ........................... 648
Recommended Engine Oil ................ 650
Oil Check ......................................... 651
Adding Engine Oil ............................ 652
Changing the Engine Oil and Oil Filter ..... 653Engine Coolant ................................ 655
Transmission Fluid ............................ 657
Brake Fluid ....................................... 658
Refilling Window Washer Fluid......... 659
Replacing Light Bulbs ....................... 660
Checking and Maintaining Wiper Blades.... 671Checking and Maintaining Tires
Checking Tires ................................. 675
Tire and Loading Information Label ..... 676Tire Labeling .................................... 676DOT Tire Quality Grading (U.S. Vehicles) ...... 678Wear Indicators................................ 680 Tire Service Life ................................ 680
Tire and Wheel Replacement ........... 681
Tire Rotation .................................... 682
Winter Tires ..................................... 683
Battery ............................................... 684
Remote Transmitter Care ................. 686
Remote Control and Wireless Headphone Care
*........................... 687Climate Control System Maintenance.... 689Cleaning Interior Care .................................... 690
Exterior Care.................................... 693
Accessories and Modifications ........ 696
* Not available on all models
19 ODYSSEY-31THR6120.book 637 ページ ２０１８年１２月６日　木曜日　午後４時３５分

647
Maintenance
Maintenance Under the Hood
Maintenance Items Under the Hood
Engine Oil Dipstick
(Orange) Washer Fluid
(Blue Cap)
Engine Coolant
Reserve Tank
Radiator CapBrake Fluid
(Black Cap)
Engine Oil Fill Cap Battery
19 ODYSSEY-31THR6120.book 647 ページ ２０１８年１２月６日　木曜日　午後４時３５分

659
uuMaintenance Under the Hood uRefilling Window Washer Fluid
Maintenance
Refilling Window Washer Fluid
Check the amount of window washer fluid by looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the driver information interface.
Pour the washer fluid carefully. Do not overflow the reservoir.1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.Canadian models
19 ODYSSEY-31THR6120.book 659 ページ ２０１８年１２月６日　木曜日　午後４時３５分

740
Information
Specifications
■Vehicle Specifications
*1: LX grade model
■Air Conditioning
ModelHonda Odyssey
No. of Passengers:
Front 2
Rear 2nd Row 3 (2
*1)
3rd Row 3
Total 8 (7
*1)Weights:Gross Vehicle
Weight Rating U.S.: 6,019 lbs (2,730 kg)
Canada: 2,730 kg
Gross Axle Weight
Rating (Front)U.S.: 2,888 lbs (1,310 kg)
Canada: 1,310 kg
Gross Axle Weight
Rating (Rear)U.S.: 3,230 lbs (1,465 kg)
Canada: 1,465 kg
Gross Combined
Weight Rating U.S.: 8,565 lbs (3,885 kg)
Canada: 3,885 kg
Refrigerant TypeHFO-1234yf (R-1234yf)Charge Quantity20.3 - 22.0 oz (575 - 625 g)Lubricant TypeND-OIL14 (POE)Quantity7.3 - 8.2 cu-in (120 - 135 cm3)
■Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
*1: LX and LX-HS grade models
*2: EX, EXL, EXL-NR, EX-R, EXLNAV, and EXLRES grade models
*3: ELITE and TOURING grade models
*4:
EX-R, EXL-NR, EXLNAV, EXLRES, ELITE, and TOURING grade models*5: ELITE and Canadian TOURING grade models
Headlights (Low Beam)55W (H11)*1, *2
LED*3
Headlights (High Beam) 60W (HB3)*1, *2
LED*3
Fog Lights35W (H8)*2
LED*3
Front Turn Signal/Parking Lights 28/8W (Amber)*1
Front Turn Signal Lights28/8W (Amber)*2, *3
Front Side Marker Lights 3CPParking/Daytime Running LightsLED*2, *3
Daytime Running Lights 60W (HB3)*1
Side Turn Signal Lights
(on Door Mirrors)LED*2, *3
Brake Lights
21WRear Side Marker/TaillightsLED
Rear Turn Signal Lights 21W
Back-Up Lights21W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Map Lights (Front)5W
Map Lights (Rear) 5W
Cargo Area Light8W
Vanity Mirror Lights 1.4W
Door Courtesy Lights3.8W (2CP)
Glove Box Light 1.4W
Foot LightsLED*5
Console Compartment Light 1.4W*4
Door Inner Handle LightsLED*5
Instrument Panel Ambient Lights LED*5
Pass Through LightLED*5
19 ODYSSEY-31THR6120.book 740 ページ ２０１８年１２月６日　木曜日　午後４時３５分

755
Index
Emergency................................................ 731
Emergency Engine Stop ........................... 712
Emissions Testing (Readiness Codes) ...... 746
Engine ....................................................... 742
Coolant .................................................. 655
Jump Starting ......................................... 713
Oil .......................................................... 650
Starting................................................... 538
Engine Coolant ........................................ 655
Adding to the Radiator ........................... 656
Adding to the Reserve Tank .................... 655
Overheating ............................................ 715
Temperature Gauge ................................ 119
Engine Oil ................................................. 650
Adding ................................................... 652
Checking ................................................ 651
Displaying Maintenance Minder Information ........................................... 642
Low Oil Pressure Symbol ......................... 718
Recommended Engine Oil ....................... 650
ENGINE START/STOP Button .................... 186
Exhaust Gas Hazard (Carbon Monoxide) .. 80
Exterior Care (Cleaning) .......................... 693
Exterior Mirrors ........................................ 207
F
Features.................................................... 259
File Manager ............................................ 306
Filters
Dust and Pollen....................................... 689 Oil ........................................................... 653
Flat Tire ..................................................... 701
Floor Mats ................................................. 691
Fluids Automatic Transmission ........................... 657
Brake ....................................................... 658
Engine Coolant ........................................ 655
Windshield Washer .................................. 659
FM/AM Radio .................................... 274, 318
Fog Light Indicator ..................................... 93
Folding Down the Rear Seats .................. 222
Foot Brake ................................................. 605
Front Airbags (SRS) ..................................... 50
Front Knee Airbags .................................... 54
Front Seat Heaters .................................... 242
Front Seat Heaters and Seat Ventilation .............................................. 243
Front Seats ................................................ 209
Adjusting ................................................. 209
Fuel ...................................................... 26, 632
Economy ................................................. 635
Gauge ..................................................... 119
Instant Fuel Economy ............................... 125
Low Fuel Indicator ..................................... 89
Range ...................................................... 125
Recommendation .................................... 632
Refueling ................................................. 632
Fuel Economy ............................................ 635
Fuel Fill Door ....................................... 26, 633
Fuses .......................................................... 724
Inspecting and Changing ......................... 730 Locations................................. 724, 726, 729
G
Gasoline (Fuel)
Economy ................................................. 635
Gauge ..................................................... 119
Information ............................................. 632
Instant Fuel Economy .............................. 125
Low Fuel Indicator ..................................... 89
Refueling................................................. 632
Gauges ...................................................... 119
Gear Position Indicator .............................. 87
Glass (care) ........................................ 690, 694
Glove Box .................................................. 227
Grocery Bag Hook .................................... 239
H
Halogen Bulbs.................................. 660, 663
Handling the Unexpected ........................ 699
HandsFreeLink ® (HFL) ....................... 473, 498
Automatic Import of Cellular Phonebook and
Call History .................................... 487, 507
Automatic Transferring............................ 506
Caller’s ID Information............................. 485
Displaying Messages................................ 517
Favorite Contacts .................................... 508
HFL Buttons..................................... 473, 498
HFL Menus ...................................... 475, 501
HFL Status Display ........................... 474, 500
19 ODYSSEY-31THR6120.book 755 ページ ２０１８年１２月６日　木曜日　午後４時３５分

760
Index
Wear Indicators ....................................... 680
Winter ..................................................... 683
Tools .......................................................... 700
Towing a Trailer ........................................ 532
Equipment and Accessories...................... 533
Load Limits .............................................. 532
Towing Your Vehicle ................................ 537
Emergency............................................... 731
TPMS (Tire Pressure Monitoring System)
Indicator ............................................ 92, 722
Transmission .............................................. 546
Automatic ............................................... 545
Fluid ........................................................ 657
Gear Position Indicator............................... 87
Number ................................................... 742
Transmission System Indicator ............................................ 88, 723
Trip Computer ........................................... 124
Trip Meter ................................................. 125
Troubleshooting ....................................... 699
Blown Fuse .............................. 724, 726, 729
Brake Pedal Vibrates .................................. 30
Buzzer Sounds When Opening Door .......... 31
Emergency Towing .................................. 731
Engine Won’t Start .................................. 710
Noise When Braking .................................. 31
Overheating............................................. 715
Puncture/Flat Tire ..................................... 701
Sliding Door Won’t Open................... 30, 157
Warning Indicators ............................ 84, 718 Tucking away the One-Motion Third Row
Stowing Magic Seat ®.............................. 222
Turn Signals .............................................. 189
Indicators (Instrument Panel) ..................... 92
U
Units .......................................................... 128
Unlocking the Doors ................................ 147
Unlocking the Front Doors from the
Inside ....................................................... 154
USB Flash Drives ....................... 279, 338, 375
USB Ports ................................................... 261
Using the Smart Entry with Push Button Start System ..................................................... 147
V
Vacuum ..................................................... 245
Vanity Mirrors ............................................... 7
Vehicle Customization ............................. 133
Vehicle Identification Number ................ 742
Vehicle Stability Assist (VSA ®).................. 591
Off Button............................................... 592
Off Indicator.............................................. 91
System Indicator ........................................ 91
Ventilation ................................................ 248
Viscosity (Oil) .................................... 650, 741
Voice Control Operation .......................... 315
Audio Commands ................................... 317
Phone Commands ................................... 317 Voice Portal Screen ................................. 316
Voice Recognition ................................... 315
VSA ® (Vehicle Stability Assist) ................. 591
W
Wallpaper......................................... 270, 290
Warning and Information Messages ...... 102
Warning Indicator On/Blinking ............... 718
Warning Labels .......................................... 81
Warnings .................................................. 126
Warranties (Warranty Manual provided separately) .............................................. 748
Watts ........................................................ 740
Wear Indicators (Tire) .............................. 680
Wheel Nut Wrench (Jack Handle) ........... 704
Wi-Fi Connection ..................................... 354
Window Washers ..................................... 197
Adding/Refilling Fluid .............................. 659
Switch .................................................... 197
Windows (Opening and Closing) ............ 182
Windshield ............................................... 197
Cleaning ......................................... 690, 694
Defrosting....................................... 249, 253
Washer Fluid ........................................... 659
Wiper Blades........................................... 671
Wipers and Washers ............................... 197
Winter Tires Snow Tires .............................................. 683
Tire Chains.............................................. 683
19 ODYSSEY-31THR6120.book 760 ページ ２０１８年１２月６日　木曜日　午後４時３５分
