Page 585 of 767

583
uuWhen Driving uRoad Departure Mitigation (RDM) System*
Continued
Driving

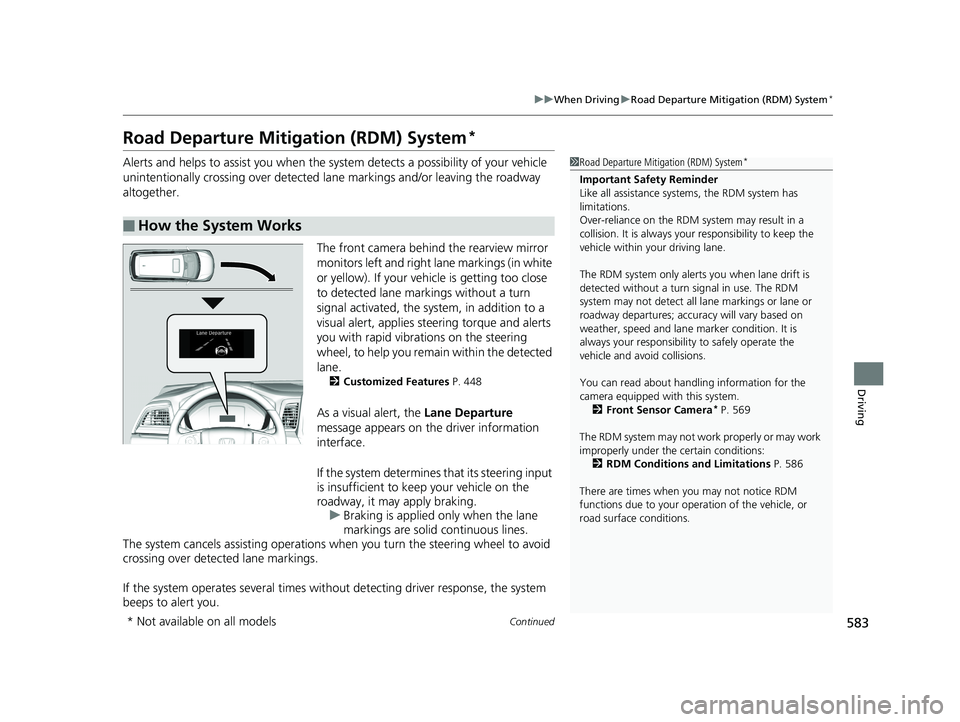

Road Departure Mitigation (RDM) System*
Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected lane markings and/or leaving the roadway
altogether.
The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow). If your vehicle is getting too close
to detected lane markings without a turn
signal activated, the system, in addition to a
visual alert, applies st eering torque and alerts
you with rapid vibrations on the steering
wheel, to help you remain within the detected
lane.
2 Customized Features P. 448
As a visual alert, the Lane Departure
message appears on the driver information
interface.
If the system determines that its steering input
is insufficient to keep your vehicle on the
roadway, it may apply braking. u Braking is applied only when the lane
markings are solid continuous lines.
The system cancels assisting operations wh en you turn the steering wheel to avoid
crossing over detected lane markings.
If the system operates several times with out detecting driver response, the system
beeps to alert you.
■How the System Works
1 Road Departure Mitigation (RDM) System*
Important Safety Reminder
Like all assistance systems, the RDM system has
limitations.
Over-reliance on the RDM system may result in a
collision. It is always your responsibility to keep the
vehicle within your driving lane.
The RDM system only alerts you when lane drift is
detected without a turn signal in use. The RDM
system may not detect all la ne markings or lane or
roadway departures; accu racy will vary based on
weather, speed and lane marker condition. It is
always your responsibilit y to safely operate the
vehicle and avoid collisions.
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera
* P. 569
The RDM system may not wo rk properly or may work
improperly under the certain conditions:
2 RDM Conditions and Limitations P. 586
There are times when you may not notice RDM
functions due to your opera tion of the vehicle, or
road surface conditions.
* Not available on all models
20 US ODYSSEY-31THR6210.book 583 ページ 2020年2月28日 金曜日 午前7時26分
Page 595 of 767

593
uuWhen Driving uLane Keeping Assist System (LKAS)*
Continued
Driving

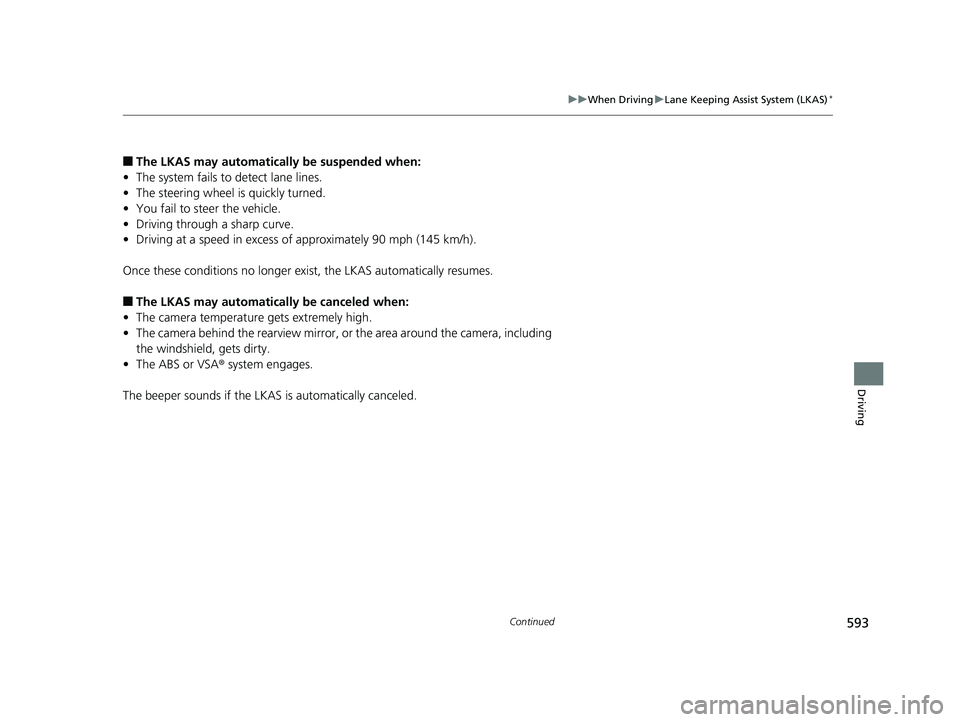

■The LKAS may automatica lly be suspended when:
• The system fails to detect lane lines.
• The steering wheel is quickly turned.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 90 mph (145 km/h).
Once these conditions no longer exist, the LKAS automatically resumes.
■The LKAS may automatically be canceled when:
• The camera temperature gets extremely high.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• The ABS or VSA ® system engages.
The beeper sounds if the LKAS is automatically canceled.
20 US ODYSSEY-31THR6210.book 593 ページ 2020年2月28日 金曜日 午前7時26分
Page 607 of 767

605
uuWhen Driving uLaneWatchTM*
Continued
Driving

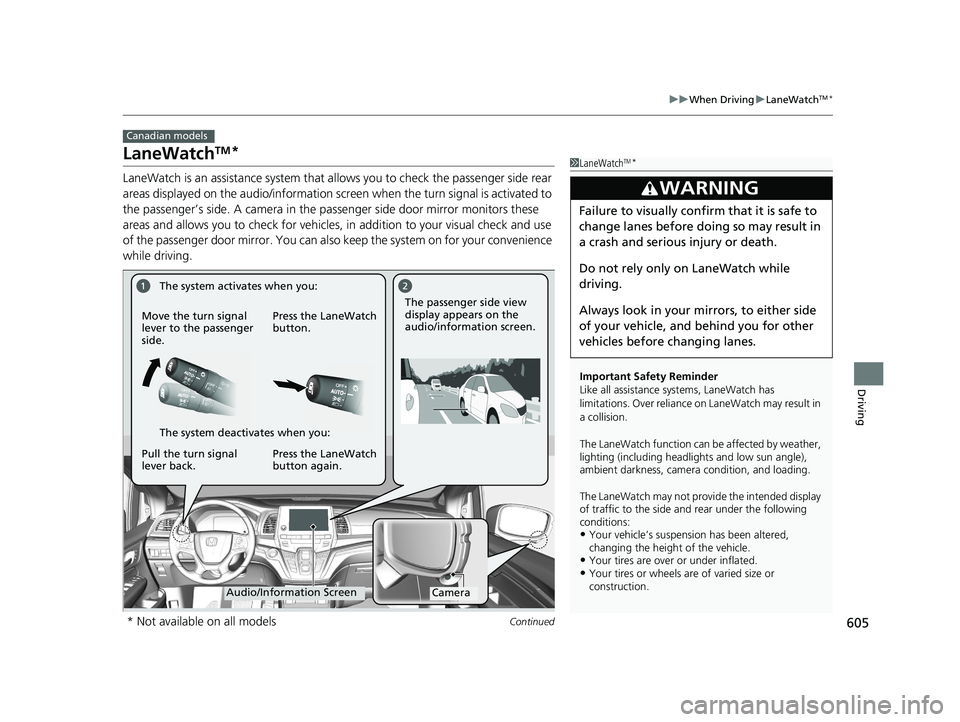

LaneWatchTM*
LaneWatch is an assistance system that al lows you to check the passenger side rear
areas displayed on the audio/information screen when the turn signal is activated to
the passenger’s side. A camera in the pa ssenger side door mirror monitors these
areas and allows you to check for vehicles, in addition to your visual check and use
of the passenger door mirror. You can also keep the system on for your convenience
while driving.
Canadian models
1 LaneWatchTM*
Important Safety Reminder
Like all assistance systems, LaneWatch has
limitations. Over reliance on LaneWatch may result in
a collision.
The LaneWatch function can be affected by weather,
lighting (including headli ghts and low sun angle),
ambient darkness, camera condition, and loading.
The LaneWatch may not prov ide the intended display
of traffic to the side and rear under the following
conditions:
•Your vehicle’s suspension has been altered,
changing the height of the vehicle.
•Your tires are over or under inflated.•Your tires or wheels are of varied size or
construction.
3WARNING
Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.
Do not rely only on LaneWatch while
driving.
Always look in your mi rrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.
CameraAudio/Information Screen
Move the turn signal
lever to the passenger
side.
Press the LaneWatch
button.
Pull the turn signal
lever back. Press the LaneWatch
button again. The passenger side view
display appears on the
audio/information screen.
The system activates when you:
The system deactivates when you:
* Not available on all models
20 US ODYSSEY-31THR6210.book 605 ページ 2020年2月28日 金曜日 午前7時26分
Page 608 of 767

uuWhen Driving uLaneWatchTM*
606
Driving

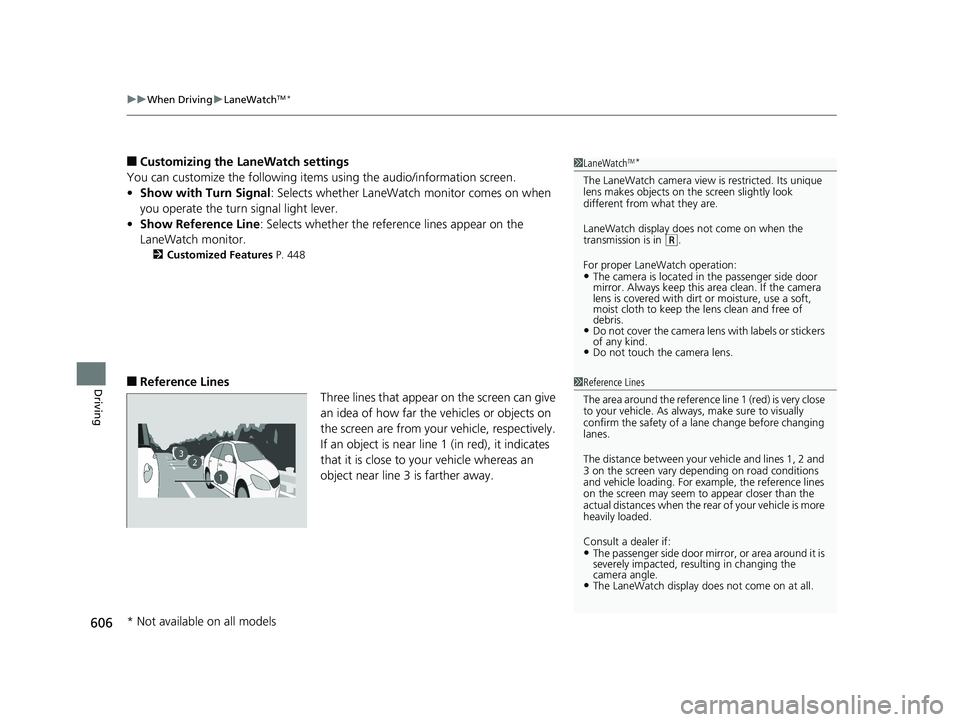

■Customizing the LaneWatch settings
You can customize the following items using the audio/information screen.
• Show with Turn Signal : Selects whether LaneWatch monitor comes on when
you operate the turn signal light lever.
• Show Reference Line : Selects whether the reference lines appear on the
LaneWatch monitor.
2 Customized Features P. 448
■Reference Lines
Three lines that appear on the screen can give
an idea of how far the vehicles or objects on
the screen are from your vehicle, respectively.
If an object is near line 1 (in red), it indicates
that it is close to your vehicle whereas an
object near line 3 is farther away.
1 LaneWatchTM*
The LaneWatch camera view is restricted. Its unique
lens makes objects on the screen slightly look
different from what they are.
LaneWatch display does not come on when the
transmission is in
( R.
For proper LaneWatch operation:
•The camera is located in the passenger side door
mirror. Always keep this area clean. If the camera
lens is covered with dirt or moisture, use a soft,
moist cloth to keep the lens clean and free of
debris.
•Do not cover the camera lens with labels or stickers
of any kind.
•Do not touch the camera lens.
1 Reference Lines
The area around the reference li ne 1 (red) is very close
to your vehicle. As always, make sure to visually
confirm the safety of a la ne change before changing
lanes.
The distance betwee n your vehicle and lines 1, 2 and
3 on the screen vary depending on road conditions
and vehicle loading. For ex ample, the reference lines
on the screen may seem to appear closer than the
actual distances when the rear of your vehicle is more
heavily loaded.
Consult a dealer if:
•The passenger side door mirr or, or area around it is
severely impacted, resulting in changing the
camera angle.
•The LaneWatch display doe s not come on at all.
23
1
* Not available on all models
20 US ODYSSEY-31THR6210.book 606 ページ 2020年2月28日 金曜日 午前7時26分
Page 617 of 767

615
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Continued
Driving

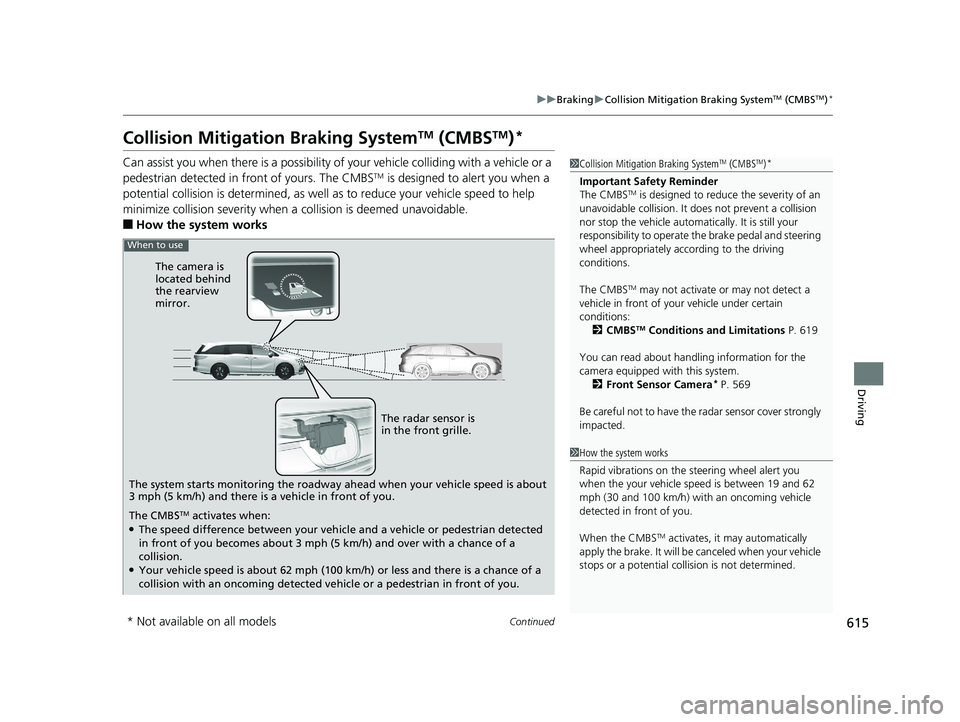

Collision Mitigation Braking SystemTM (CMBSTM)*
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
■How the system works
1 Collision Mitigation Braking SystemTM (CMBSTM)*
Important Safety Reminder
The CMBSTM is designed to reduce the severity of an
unavoidable collision. It do es not prevent a collision
nor stop the vehicle automati cally. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions:
2 CMBS
TM Conditions and Limitations P. 619
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera
* P. 569
Be careful not to have the radar sensor cover strongly
impacted.
1 How the system works
Rapid vibrations on the steering wheel alert you
when the your vehicle speed is between 19 and 62
mph (30 and 100 km/h) with an oncoming vehicle
detected in front of you.
When the CMBS
TM activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.
When to use
The camera is
located behind
the rearview
mirror.
The radar sensor is
in the front grille.
The system starts monitoring the roadway ahead when your vehicle speed is about
3 mph (5 km/h) and there is a vehicle in front of you.
The CMBS
TM activates when:●The speed difference between your vehicl e and a vehicle or pedestrian detected
in front of you becomes about 3 mph (5 km/h) and over with a chance of a
collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a
collision with an oncoming detected ve hicle or a pedestrian in front of you.
* Not available on all models
20 US ODYSSEY-31THR6210.book 615 ページ 2020年2月28日 金曜日 午前7時26分
Page 624 of 767

622
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Driving

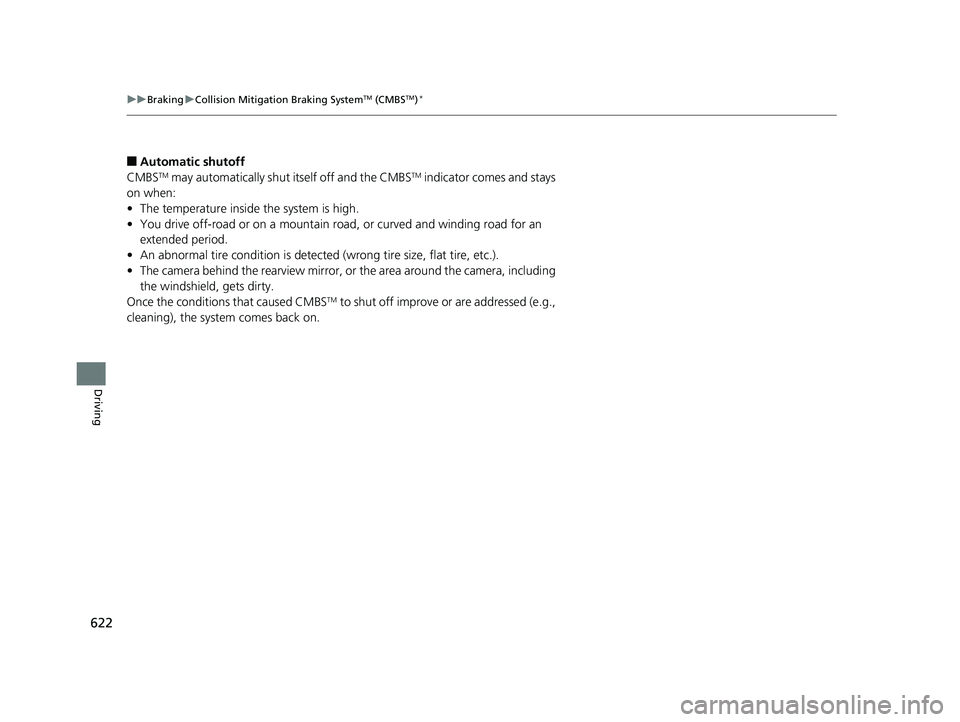

■Automatic shutoff
CMBSTM may automatically shut itself off and the CMBSTM indicator comes and stays
on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain road, or curved and wi nding road for an
extended period.
• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions that caused CMBS
TM to shut off improve or are addressed (e.g.,
cleaning), the system comes back on.
20 US ODYSSEY-31THR6210.book 622 ページ 2020年2月28日 金曜日 午前7時26分
Page 759 of 767

757

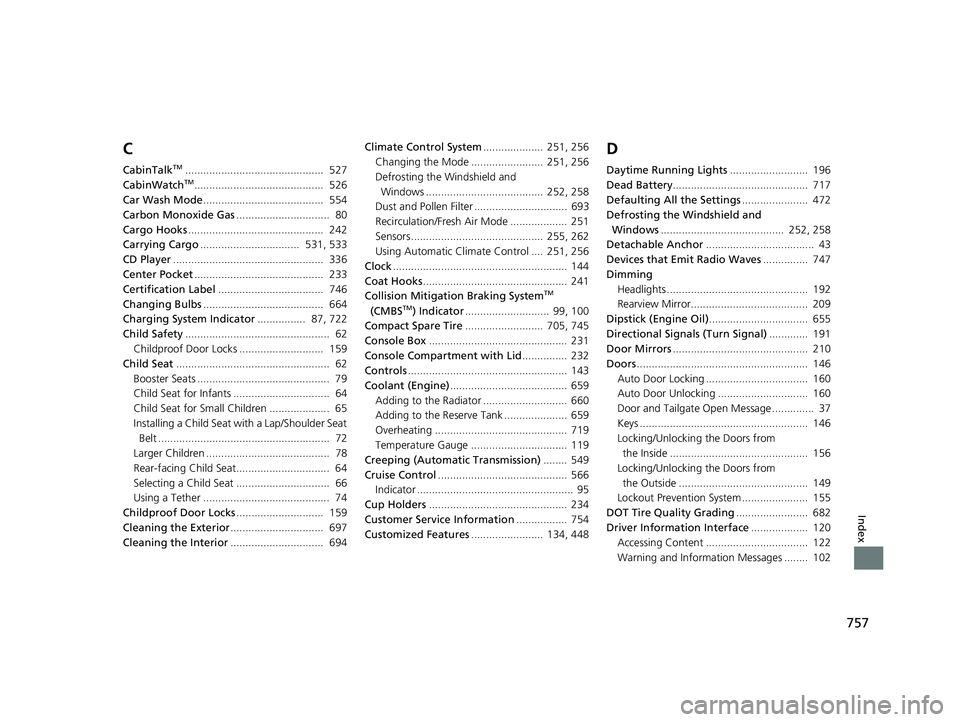

Index
C
CabinTalkTM.............................................. 527
CabinWatchTM........................................... 526
Car Wash Mode ........................................ 554
Carbon Monoxide Gas ............................... 80
Cargo Hooks ............................................. 242
Carrying Cargo ................................. 531, 533
CD Player .................................................. 336
Center Pocket ........................................... 233
Certification Label ................................... 746
Changing Bulbs ........................................ 664
Charging System Indicator ................ 87, 722
Child Safety ................................................ 62
Childproof Door Locks ............................ 159
Child Seat ................................................... 62
Booster Seats ............................................ 79
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 72
Larger Children ......................................... 78
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Using a Tether .......................................... 74
Childproof Door Locks ............................. 159
Cleaning the Exterior ............................... 697
Cleaning the Interior ............................... 694 Climate Control System
.................... 251, 256
Changing the Mode ........................ 251, 256
Defrosting the Windshield and Windows ....................................... 252, 258
Dust and Pollen Filter ............................... 693
Recirculation/Fresh Air Mode ................... 251
Sensors ............................................ 255, 262
Using Automatic Climate Control .... 251, 256
Clock .......................................................... 144
Coat Hooks ................................................ 241
Collision Mitigation Braking System
TM
(CMBSTM) Indicator ............................ 99, 100
Compact Spare Tire .......................... 705, 745
Console Box .............................................. 231
Console Compartment with Lid ............... 232
Controls ..................................................... 143
Coolant (Engine) ....................................... 659
Adding to the Radiator ............................ 660
Adding to the Reserve Tank ..................... 659
Overheating ............................................ 719
Temperature Gauge ................................ 119
Creeping (Automatic Transmission) ........ 549
Cruise Control ........................................... 566
Indicator .................................................... 95
Cup Holders .............................................. 234
Customer Service Information ................. 754
Customized Features ........................ 134, 448
D
Daytime Running Lights .......................... 196
Dead Battery ............................................. 717
Defaulting All the Settings ...................... 472
Defrosting the Windshield and
Windows ......................................... 252, 258
Detachable Anchor .................................... 43
Devices that Emit Radio Waves ............... 747
Dimming Headlights ............................................... 192
Rearview Mirror....................................... 209
Dipstick (Engine Oil) ................................. 655
Directional Signals (Turn Signal) ............. 191
Door Mirrors ............................................. 210
Doors ......................................................... 146
Auto Door Locking .................................. 160
Auto Door Unlocking .............................. 160
Door and Tailgate Open Message .............. 37
Keys ........................................................ 146
Locking/Unlocking the Doors from the Inside .............................................. 156
Locking/Unlocking the Doors from
the Outside ........................................... 149
Lockout Prevention System ...................... 155
DOT Tire Quality Grading ........................ 682
Driver Information Interface ................... 120
Accessing Content .................................. 122
Warning and Information Messages ........ 102
20 US ODYSSEY-31THR6210.book 757 ページ 2020年2月28日 金曜日 午前7時26分
Page 762 of 767

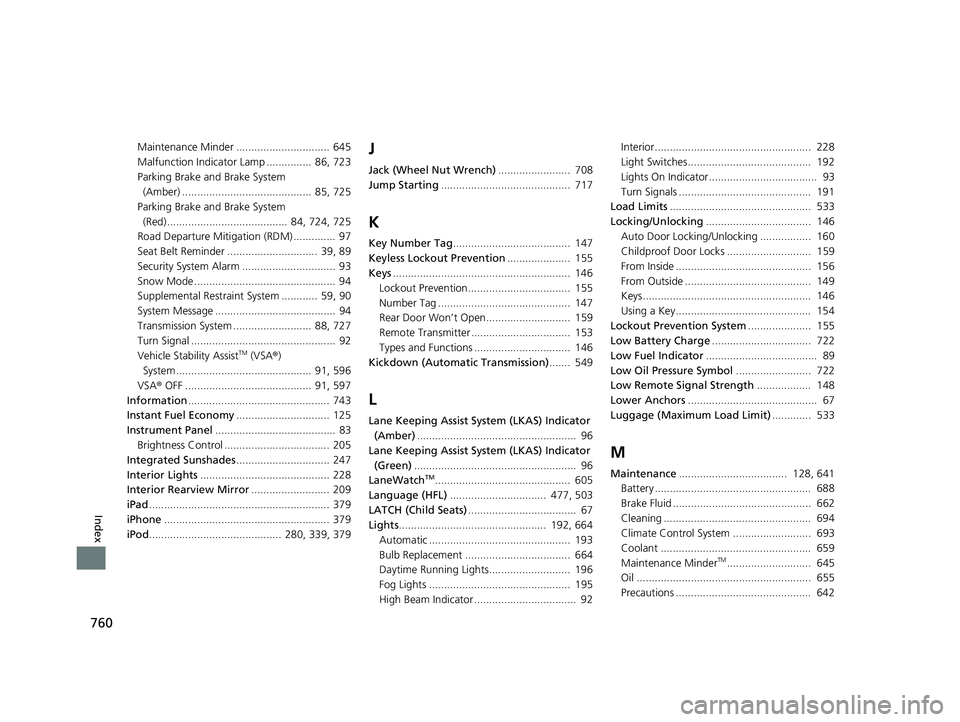

760
Index
Maintenance Minder ............................... 645
Malfunction Indicator Lamp ............... 86, 723
Parking Brake and Brake System (Amber) ........................................... 85, 725
Parking Brake and Brake System
(Red) ........................................ 84, 724, 725
Road Departure Mitigation (RDM) .............. 97
Seat Belt Reminder .............................. 39, 89
Security System Alarm ............................... 93
Snow Mode ............................................... 94
Supplemental Restraint System ............ 59, 90
System Message ........................................ 94
Transmission System .......................... 88, 727
Turn Signal ................................................ 92
Vehicle Stability Assist
TM (VSA ®)
System ............................................. 91, 596
VSA ® OFF .......................................... 91, 597
Information ............................................... 743
Instant Fuel Economy ............................... 125
Instrument Panel ........................................ 83
Brightness Control ................................... 205
Integrated Sunshades ............................... 247
Interior Lights ........................................... 228
Interior Rearview Mirror .......................... 209
iPad ............................................................ 379
iPhone ....................................................... 379
iPod ............................................ 280, 339, 379
J
Jack (Wheel Nut Wrench) ........................ 708
Jump Starting ........................................... 717
K
Key Number Tag ....................................... 147
Keyless Lockout Prevention ..................... 155
Keys ........................................................... 146
Lockout Prevention.................................. 155
Number Tag ............................................ 147
Rear Door Won’t Open............................ 159
Remote Transmitter ................................. 153
Types and Functions ................................ 146
Kickdown (Automatic Transmission) ....... 549
L
Lane Keeping Assist System (LKAS) Indicator
(Amber) ..................................................... 96
Lane Keeping Assist System (LKAS) Indicator (Green) ...................................................... 96
LaneWatch
TM............................................. 605
Language (HFL) ................................ 477, 503
LATCH (Child Seats) .................................... 67
Lights ................................................. 192, 664
Automatic ............................................... 193
Bulb Replacement ................................... 664
Daytime Running Lights........................... 196
Fog Lights ............................................... 195
High Beam Indicator .................................. 92 Interior.................................................... 228
Light Switches......................................... 192
Lights On Indicator.................................... 93
Turn Signals ............................................ 191
Load Limits ............................................... 533
Locking/Unlocking ................................... 146
Auto Door Locking/Unlocking ................. 160
Childproof Door Locks ............................ 159
From Inside ............................................. 156
From Outside .......................................... 149
Keys........................................................ 146
Using a Key............................................. 154
Lockout Prevention System ..................... 155
Low Battery Charge ................................. 722
Low Fuel Indicator ..................................... 89
Low Oil Pressure Symbol ......................... 722
Low Remote Signal Strength .................. 148
Lower Anchors ........................................... 67
Luggage (Maximum Load Limit) ............. 533
M
Maintenance.................................... 128, 641
Battery .................................................... 688
Brake Fluid .............................................. 662
Cleaning ................................................. 694
Climate Control System .......................... 693
Coolant .................................................. 659
Maintenance Minder
TM............................ 645
Oil .......................................................... 655
Precautions ............................................. 642
20 US ODYSSEY-31THR6210.book 760 ページ 2020年2月28日 金曜日 午前7時26分
Page 763 of 767

761
Index
Radiator .................................................. 660
Remote Control and Wireless Headphone ........................................... 691
Remote Transmitter ................................ 690
Replacing Light Bulbs .............................. 664
Safety ..................................................... 643
Service Items ........................................... 648
Tires........................................................ 679
Transmission Fluid ................................... 661
Under the Hood ...................................... 651
Malfunction Indicator Lamp ............. 86, 723
Map Lights ................................................ 229
Maximum Load Limit ............................... 533
Meters, Gauges ........................................ 119
Mirrors ...................................................... 209
Adjusting ................................................ 209
Door ....................................................... 210
Exterior ................................................... 210
Interior Rearview ..................................... 209
Modifications (and Accessories) .............. 700
Moonroof ................................................. 187
MP3/WMA/AAC ................ 283, 336, 342, 345
Multi-View Rear Camera ......................... 635
My Honda Music ...................................... 345
N
Navigation................................................ 126
Near Field Communication (NFC) ............ 360
Now Playing ............................................. 130
Numbers (Identification) ......................... 746
O
Odometer.................................................. 121
Oil (Engine) ............................................... 654
Adding .................................................... 656
Checking ................................................. 655
Displaying Maintenance Minder Information ........................................... 646
Low Oil Pressure Symbol .......................... 722
Oil Life ..................................................... 128
Recommended Engine Oil ........................ 654
Viscosity .................................................. 654
Open Source Licenses ............................... 394
Opening/Closing Hood ....................................................... 652
Moonroof................................................ 187
Power Windows ...................................... 184
Sliding Doors ........................................... 172
Tailgate ................................................... 161
Outside Temperature Display .................. 121
Overheating .............................................. 719
P
Panic Mode............................................... 183
Parking ...................................................... 624
Parking Brake ........................................... 607
Parking Brake and Brake System Indicator
(Amber) ............................................. 85, 725
Parking Brake and Brake System Indicator (Red) .......................................... 84, 724, 725 Parking Sensor System
............................. 626
Passenger Front Airb ag Off Indicator....... 60
Passing Indicators ..................................... 192
Phone ........................................................ 129
Playing Bluetooth ® Audio ................ 286, 349
Power Sliding Doors ................................. 174
Unable to Close....................................... 739
Power Tailgate ......................................... 163
Unable to Open....................................... 737
Power Windows ....................................... 184
Precautions While Driving
Rain ........................................................ 548
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 705
R
Radiator.................................................... 660
Radio (FM/AM) ................................. 278, 322
Radio (SiriusXM ®) ..................................... 326
Radio Data System (RDS) ................. 279, 324
Range ........................................................ 125
RDS (Radio Data System) ................. 279, 324
Readiness Codes (Emissions Testing) ....... 749
Rear Defogger/Heated Door Mirror Button ..................................................... 203
Rear Entertainment System ..................... 400
Rear Seats (Folding Down) ...................... 221
Rearview Mirror ....................................... 209
20 US ODYSSEY-31THR6210.book 761 ページ 2020年2月28日 金曜日 午前7時26分
