548
uuWhen Driving uPrecautions While Driving
Driving
Precautions While Driving
Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause elec trical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
■In Rain
■Other Precautions
1 Precautions While Driving
NOTICE
Do not change the gear position while pressing the
accelerator pedal. You could damage the
transmission.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.
If the power mode is set to ACCESSORY while
driving, the engine will shut down and all steering
and brake power assist functi ons will stop, making it
difficult to control the vehicle.
Do not change the gear position to
( N, as you will
lose engine braking (and acceleration) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as not to damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
20 US ODYSSEY-31THR6210.book 548 ページ ２０２０年２月２８日　金曜日　午前７時２６分

641
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 642
Safety When Performing Maintenance .... 643
Parts and Fluids Used in Maintenance Service ........................................... 644
Maintenance Minder
TM..................... 645
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 651
Opening the Hood ........................... 652
Recommended Engine Oil ................ 654
Oil Check ......................................... 655
Adding Engine Oil ............................ 656
Changing the Engine Oil and Oil Filter ..... 657
Engine Coolant ................................ 659
Transmission Fluid ............................ 661
Brake Fluid ....................................... 662
Refilling Window Washer Fluid......... 663
Replacing Light Bulbs ....................... 664
Checking and Maintaining Wiper Blades.... 675Checking and Maintaining Tires
Checking Tires ................................. 679
Tire and Loading Information Label ..... 680Tire Labeling .................................... 680DOT Tire Quality Grading (U.S. Vehicles) ...... 682Wear Indicators................................ 684 Tire Service Life ................................ 684
Tire and Wheel Replacement ........... 685
Tire Rotation .................................... 686
Winter Tires ..................................... 687
Battery ............................................... 688
Remote Transmitter Care ................. 690
Remote Control and Wireless Headphone Care
*........................... 691Climate Control System Maintenance.... 693Cleaning Interior Care .................................... 694
Exterior Care.................................... 697
Accessories and Modifications ........ 700
* Not available on all models
20 US ODYSSEY-31THR6210.book 641 ページ ２０２０年２月２８日　金曜日　午前７時２６分

661
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
■Automatic Transmission Fluid
Specified fluid: Honda Automatic Transmission Fluid ATF-Type 2
1Automatic Transmission Fluid
NOTICE
Honda ATF-Type 2 fluid must not be mixed with
other transmission fluids.
Using a transmission flui d other than Honda ATF-
Type 2 may adversely affect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Honda ATF-Type 2 is not covered
by Honda’s new vehi cle limited warranty.
20 US ODYSSEY-31THR6210.book 661 ページ ２０２０年２月２８日　金曜日　午前７時２６分

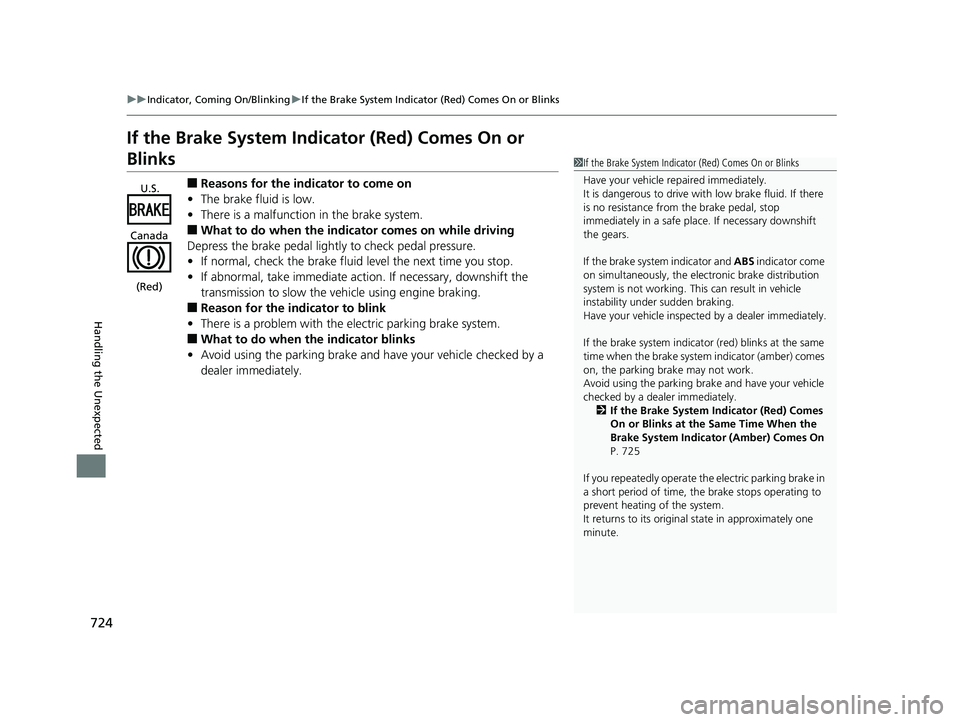

724
uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action . If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reason for the indicator to blink
• There is a problem with the electric parking brake system.
■What to do when the indicator blinks
• Avoid using the parking brake and ha ve your vehicle checked by a
dealer immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately.
2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 725
If you repeatedly operate th e electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system.
It returns to its original state in approximately one
minute.
U.S.
Canada
(Red)
20 US ODYSSEY-31THR6210.book 724 ページ ２０２０年２月２８日　金曜日　午前７時２６分

756
Index
Auto Idle Stop Indicator (Amber).............. 95
Auto Idle Stop Indicator (Green) ............... 95
Automatic Brake Hold Indicator .................................................... 86
Automatic Brake Hold System
Indicator .................................................... 86
Automatic Operation (automatic lighting control) .................................................... 193
Automatic Transmission ........................... 549
Creeping ................................................. 549
Fluid ........................................................ 661
Kickdown ................................................ 549
Shift Operation ........................................ 552
Shifting.................................................... 550
Auxiliary Input Jack .................................. 266
Average Fuel Economy ............................. 125
B
Battery....................................................... 688
Charging System Indicator ................. 87, 722
Jump Starting .......................................... 717
Maintenance (Checking the Battery) ........ 688
Maintenance (Replacing).................. 690, 691
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 234
Blank .......................................................... 130
Blind spot information System ................ 603
Bluetooth ® Audio ............................. 286, 349
Bluetooth ® HandsFreeLink ®............. 476, 501 Blu-ray/DVD Rear Entertainment
System ..................................................... 400
Audio Sources for Front and Rear Seats ... 421
Auxiliary Console Panels .......................... 402
DVD or Blu-ray
TM Player Error Messages ... 446
Front Control Panel Operation ................. 413
HDMI
TM Port ............................................ 403
How Much Farther?TM............................. 420
Media Servers.......................................... 420
Operating the System .............................. 404
Overhead Screen ..................................... 403
Playable Disc Region Codes ..................... 444
Playable Disc Types .................................. 444
Playable Discs .......................................... 422
Playing a Disc in the Rear......................... 418
Playing a DVD/Blu-ray
TM........................... 407
Playing a Video Using the HDMITM........... 419
Playing an iPod and a USB Flash Drive in the Rear ...................................................... 418
Playing Apps ........................................... 416
Rear DVD or Blu-ray
TM Menu ................... 408
Rear System Setup................................... 414
Recommended Discs ............................... 445
Selecting the Audio Sour ce using Front Control
Panel ..................................................... 413
Setting the DVD or Blu-ray
TM Menu ......... 415
System Controls .............................. 407, 417
System Settings ....................................... 411
Video Accessibility ................................... 405
Wireless Headphones .............................. 401 Booster Seats (For Children)
...................... 79
Brake System ............................................ 607
Anti-lock Brake System (ABS) .................. 613
Brake Assist System................................. 614
Fluid ....................................................... 662
Foot Brake .............................................. 610
Indicator (Amber) .............................. 85, 725
Indicator (Red) .......................... 84, 724, 725
Parking Brake.......................................... 607
Brightness Control (Instrument Panel) ... 205
Built-in Key ............................................... 147
Bulb Replacement .................................... 664
Back-Up Lights/Taillights ......................... 673
Brake, Rear Turn Signal Lights, and Rear Side
Marker/Taillights ................................... 671
Daytime Running Lights .......................... 668
Fog Lights ............................................... 667
Front Side Marker Lights ......................... 670
Front Turn Signal/Parking Lights .............. 669
Headlights .............................................. 664
High-Mount Brake Light.......................... 674
Parking/Daytime Running Lights .............. 668
Rear License Plate Light ........................... 674
Side Turn Signal/Emergency Indicator Lights .................................................... 670
Bulb Specifications ................................... 744
20 US ODYSSEY-31THR6210.book 756 ページ ２０２０年２月２８日　金曜日　午前７時２６分

758
Index
Driving....................................................... 529
Automatic Transmission ........................... 549
Braking .................................................... 607
Cruise Control ......................................... 566
Shifting Gear ........................................... 550
Starting the Engine .................................. 542
Driving Position Memory System ............. 206
Dust and Pollen Filter ............................... 693
E
Eco Assist® System ....................................... 11
Econ Mode
Indicator .................................................... 94
Electric Power Steering (EPS) System Indicator ............................................ 91, 726
Electronic Stability Control (ESC) ............. 596
Emergency ................................................. 735
Emergency Engine Stop ........................... 716
Emissions Testing (Readiness Codes) ....... 749
Engine ....................................................... 746
Coolant ................................................... 659
Jump Starting .......................................... 717
Oil ........................................................... 654
Starting ................................................... 542
Engine Coolant ......................................... 659
Adding to the Radiator ............................ 660
Adding to the Reserve Tank ..................... 659
Overheating............................................. 719
Temperature Gauge................................. 119 Engine Oil
................................................. 654
Adding .................................................... 656
Checking................................................. 655
Displaying Maintenance Minder Information ........................................... 646
Low Oil Pressure Symbol.......................... 722
Recommended Engine Oil ....................... 654
ENGINE START/STOP Button .................... 188
Exhaust Gas Hazard (Carbon Monoxide) .. 80
Exterior Care (Cleaning) ........................... 697
Exterior Mirrors ........................................ 210
F
Features.................................................... 263
File Manager ............................................. 310
Filters Dust and Pollen ....................................... 693
Oil ........................................................... 657
Flat Tire ..................................................... 705
Floor Mats ................................................. 695
Fluids Automatic Transmission .......................... 661
Brake ...................................................... 662
Engine Coolant ....................................... 659
Windshield Washer ................................. 663
FM/AM Radio .................................... 278, 322
Fog Light Indicator ..................................... 93
Folding Down the Rear Seats .................. 221
Foot Brake ................................................ 610 Front Airbags (SRS)
.................................... 50
Front Knee Airbags .................................... 54
Front Seat Heaters ................................... 245
Front Seat Heaters and Seat Ventilation .............................................. 246
Front Seats ................................................ 212
Adjusting ................................................ 212
Fuel ..................................................... 26, 637
Economy................................................. 640
Gauge .................................................... 119
Instant Fuel Economy .............................. 125
Low Fuel Indicator..................................... 89
Range ..................................................... 125
Recommendation.................................... 637
Refueling ................................................ 637
Fuel Economy ........................................... 640
Fuel Fill Door ...................................... 26, 638
Fuses ......................................................... 728
Inspecting and Changing ........................ 734
Locations ................................ 728, 730, 733
G
Gasoline (Fuel)
Economy................................................. 640
Gauge .................................................... 119
Information............................................. 637
Instant Fuel Economy .............................. 125
Low Fuel Indicator..................................... 89
Refueling ................................................ 637
20 US ODYSSEY-31THR6210.book 758 ページ ２０２０年２月２８日　金曜日　午前７時２６分

761
Index
Radiator .................................................. 660
Remote Control and Wireless Headphone ........................................... 691
Remote Transmitter ................................ 690
Replacing Light Bulbs .............................. 664
Safety ..................................................... 643
Service Items ........................................... 648
Tires........................................................ 679
Transmission Fluid ................................... 661
Under the Hood ...................................... 651
Malfunction Indicator Lamp ............. 86, 723
Map Lights ................................................ 229
Maximum Load Limit ............................... 533
Meters, Gauges ........................................ 119
Mirrors ...................................................... 209
Adjusting ................................................ 209
Door ....................................................... 210
Exterior ................................................... 210
Interior Rearview ..................................... 209
Modifications (and Accessories) .............. 700
Moonroof ................................................. 187
MP3/WMA/AAC ................ 283, 336, 342, 345
Multi-View Rear Camera ......................... 635
My Honda Music ...................................... 345
N
Navigation................................................ 126
Near Field Communication (NFC) ............ 360
Now Playing ............................................. 130
Numbers (Identification) ......................... 746
O
Odometer.................................................. 121
Oil (Engine) ............................................... 654
Adding .................................................... 656
Checking ................................................. 655
Displaying Maintenance Minder Information ........................................... 646
Low Oil Pressure Symbol .......................... 722
Oil Life ..................................................... 128
Recommended Engine Oil ........................ 654
Viscosity .................................................. 654
Open Source Licenses ............................... 394
Opening/Closing Hood ....................................................... 652
Moonroof................................................ 187
Power Windows ...................................... 184
Sliding Doors ........................................... 172
Tailgate ................................................... 161
Outside Temperature Display .................. 121
Overheating .............................................. 719
P
Panic Mode............................................... 183
Parking ...................................................... 624
Parking Brake ........................................... 607
Parking Brake and Brake System Indicator
(Amber) ............................................. 85, 725
Parking Brake and Brake System Indicator (Red) .......................................... 84, 724, 725 Parking Sensor System
............................. 626
Passenger Front Airb ag Off Indicator....... 60
Passing Indicators ..................................... 192
Phone ........................................................ 129
Playing Bluetooth ® Audio ................ 286, 349
Power Sliding Doors ................................. 174
Unable to Close....................................... 739
Power Tailgate ......................................... 163
Unable to Open....................................... 737
Power Windows ....................................... 184
Precautions While Driving
Rain ........................................................ 548
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 705
R
Radiator.................................................... 660
Radio (FM/AM) ................................. 278, 322
Radio (SiriusXM ®) ..................................... 326
Radio Data System (RDS) ................. 279, 324
Range ........................................................ 125
RDS (Radio Data System) ................. 279, 324
Readiness Codes (Emissions Testing) ....... 749
Rear Defogger/Heated Door Mirror Button ..................................................... 203
Rear Entertainment System ..................... 400
Rear Seats (Folding Down) ...................... 221
Rearview Mirror ....................................... 209
20 US ODYSSEY-31THR6210.book 761 ページ ２０２０年２月２８日　金曜日　午前７時２６分

763
Index
T
Tachometer.............................................. 120
Tailgate ..................................................... 161
Unable to Open ...................................... 737
Temperature
Gauge .................................................... 119
Outside Temperature Display .................. 121
Temperature Gauge ................................ 119
Temperature Sensor ................ 121, 255, 262
Third Row Seat Access ............................. 216
Time (Adjusting) ...................................... 144
Tire Pressure ............................................. 128
Tire Pressure Monitoring System (TPMS) Indicator ........................................... 92, 726
Tires .......................................................... 679
Air Pressure..................................... 680, 745
Checking and Maintaining ...................... 679
Inspection ............................................... 679
Labeling .................................................. 680
Puncture (Flat Tire) .................................. 705
Regulations ............................................. 682
Rotation.................................................. 686
Spare Tire ....................................... 705, 745
Summer .................................................. 687
Tire Chains.............................................. 687
Wear Indicators....................................... 684
Winter .................................................... 687
Tools ......................................................... 704
Towing a Trailer ....................................... 536
Equipment and Accessories ..................... 537
Load Limits ............................................. 536 Towing Your Vehicle
................................ 541
Emergency .............................................. 735
TPMS (Tire Pressure Monitoring System) Indicator ............................................ 92, 726
Transmission ............................................. 550
Automatic ............................................... 549
Fluid ........................................................ 661
Gear Position Indicator .............................. 87
Number ................................................... 746
Transmission System Indicator ............................................ 88, 727
Trip Computer .......................................... 124
Trip Meter ................................................. 125
Troubleshooting ....................................... 703
Blown Fuse .............................. 728, 730, 733
Brake Pedal Vibrates .................................. 30
Buzzer Sounds When Opening Door .......... 31
Emergency Towing .................................. 735
Engine Won’t Start .................................. 714
Noise When Braking .................................. 31
Overheating ............................................ 719
Puncture/Flat Tire ..................................... 705
Sliding Door Won’t Open .................. 30, 159
Warning Indicators ............................ 84, 722
Tucking away the One-Motion Third Row
Stowing Magic Seat ®.............................. 221
Turn Signals .............................................. 191
Indicators (Instrument Panel) ...................... 92
U
Units .......................................................... 129
Unlocking the Doors ................................ 149
Unlocking the Front Doors from the Inside ................................................ 156
USB Flash Drives ....................... 283, 342, 379
USB Ports ................................................... 265
Using the Smart Entry with Push Button Start
System ..................................................... 149
V
Vacuum ..................................................... 248
Vanity Mirrors ............................................... 7
Vehicle Customization ............................. 134
Vehicle Identification Number ................ 746
Vehicle Stability Assist
TM (VSA ®) .............. 596
Off Button............................................... 597
Off Indicator.............................................. 91
System Indicator ........................................ 91
Ventilation ................................................ 251
Viscosity (Oil) .................................... 654, 745
Voice Control Operation .......................... 319
Audio Commands ................................... 321
Phone Commands ................................... 321
Voice Portal Screen.................................. 320
Voice Recognition ................................... 319
VSA ® (Vehicle Stability Assist
TM) .............. 596
20 US ODYSSEY-31THR6210.book 763 ページ ２０２０年２月２８日　金曜日　午前７時２６分
