4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙ (Vehicle Stability AssistTM (VSA®) System OFF) Button (P597)
❙Road Departure Mitigation (RDM) Button* (P585)
❙Power Sliding Door Switch* (P175, 176)
❙Climate Control System (P251)
❙Driving Position Memory System Buttons* (P206)
❙Accessory Power Socket (P236)
❙Power Tailgate Button* (P165)
❙Parking Sensor System Switch* (P627)
❙Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P618)
❙Heated Windshield Button* (P204)
❙Electric Parking Brake Switch (P607)
❙Automatic Brake Hold Button (P611)
❙Shift Button
Automatic Transmission
(P550)
❙ECON Button (P564)
❙SNOW Button (P565)
❙Auto Idle Stop OFF Button (P559)
❙Hazard Warning Button
❙AC Power Outlet* (P238)
❙System Indicators (P84)
❙Gauges (P119)
❙Driver Information Interface (P120)
❙Audio System (P264)
❙Navigation System*
() See Navigation System Manual
❙Rear Defogger (P203)
❙Heated Mirror Button* (P203)
❙Seat Heater Switches* (P245)
❙Seat Heater and Seat Ventilation
Switches* (P246)
❙Center Pocket* (P233)
❙Blu-ray/DVD Rear Entertainment System* (P400)
20 US ODYSSEY-31THR6210.book 4 ページ ２０２０年２月２８日　金曜日　午前７時２６分

143
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 144
Locking and Unlocking the Doors
Key Types and Functions .................. 146
Low Remote Signal Strength ............ 148
Locking/Unlocking the Doors from the Outside .... 149
Locking/Unlocking the Doors from the Inside ...156
Childproof Door Locks ..................... 159
Auto Door Locking/Unlocking .......... 160
Opening and Closing the Tailgate ... 161
Opening and Closing the Sliding Doors.. 172Security System
Immobilizer System .............................. 181
Security System Alarm .......................... 181
Opening and Closing the Windows ..... 184
Moonroof
*............................................. 187
Operating the Switches Around the Steering Wheel
ENGINE START/STOP Button............. 188
Turn Signals ..................................... 191
Light Switches.................................. 192
Fog Lights
*...................................... 195
Daytime Running Lights ................... 196
Auto High-Beam
*............................ 197Wipers and Washers ............................ 200Rear Defogger/Heated Door Mirror* Button...203
Heated Windshield Button ................... 204
Brightness Control ............................... 205
Driving Position Memory System
*........ 206
Adjusting the Steering Wheel .............. 208
Canadian models
Adjusting the Mirrors ............................ 209
Interior Rearview Mirror ........................ 209
Power Door Mirrors .............................. 210
Adjusting the Seats
Front Seats ................................................212
Head Restraints .........................................224
Maintain a Proper Sitting Position ..............223
Interior Lights/Interior Convenience Items.. 228
Climate Control System
Using Automatic Climate Control ..............251
Rear Climate Control System .....................254
Climate Control System ..............................256
Using Automatic Climate Control ..............256
Automatic Climate Control Sensors ...........262Dual-zone climate control system
Tri-zone climate control system
* Not available on all models
20 US ODYSSEY-31THR6210.book 143 ページ ２０２０年２月２８日　金曜日　午前７時２６分

206
uuOperating the Switches Around the Steering Wheel uDriving Position Memory System*
Controls
Driving Position Memory System*
You can store two driver’s seat position s (except for power lumbar) and outside
mirror positions with the driving position memory system.
When you unlock and open the driver’s do or with a remote, the seat and outside
mirrors adjust automatically to one of the two preset positions.
When you enter the vehicle, the driver in formation interface briefly shows you which
remote transmitter you used to unlock the vehicle.
• DRIVER 1 transmitter is linked to memory button 1.
• DRIVER 2 transmitter is linked to memory button 2.
The driver’s seat moves rearward depending
on the set seating position once you
•Stop the vehicle.
• Put the transmission in
(P.
• Set the power mode to VEHICLE OFF.
• Then open the driver’s door.
Once the power mode is in the ACCESSORY
position, the driver’s seat moves to the
DRIVER 1 or 2 preset position.
1Driving Position Memory System*
Using the audio/informati on screen, you can disable
the automatic seat and d oor mirrors adjustment
function.
2 Customized Features P. 448
The driver’s seat easy exit feature:
•Will move rearward to allow you to more easily exit
the vehicle.
•Can be turned on or off. 2Customized Features P. 448
System Operation
The system will not operate if:
•The vehicle speed is above 2 mph (3 km/h).
•Either memory position button is pressed while the
seat is in motion.
•The seat position is adju sted while in operation.
•The memory 1 or 2 position is set fully to the rear.
DRIVER 1
DRIVER 2
* Not available on all models
20 US ODYSSEY-31THR6210.book 206 ページ ２０２０年２月２８日　金曜日　午前７時２６分

207
uuOperating the Switches Around the Steering Wheel uDriving Position Memory System*
Controls
1. Set the power mode to ON. Adjust the
driver’s seat and the door mirrors to the
desired position.
2. Press the SET button.
u You will hear the beeper, and the
memory button indicator light will blink.
3. Press and hold memory button
(1 or (2
within five seconds of pressing the SET
button.
u Once the seat and the outside mirrors
position has been memorized, the
indicator light on the button you pressed
stays on.
1. Change to
(P.
2. Apply the parking brake.
3. Press a memory button (
(1 or (2).
u You will hear the beeper, and the
indicator light will blink.
The seat and the door mirrors will
automatically move to the memorized
position. When it has finished moving, you
will hear the beeper, and the indicator light
stays on.
■Storing a Position in Memory1 Storing a Position in Memory
After you press the SET button, the storing operation
will be canceled when:
•You do not press the memory button within five
seconds.
•You readjust the seat and door mirrors position
before the double-beep.
•You set the power mode to any position except
ON.
Memory
Button 1
Memory
Button 2
SET Button
■Recalling the Stored Position1 Recalling the Stored Position
The seat and the door mirrors will stop moving if you:
•Press the SET button or memory button (1 or (2.
•Adjust the seat position or door mirrors.
•Put the transmission into a position other than (P.
Memory
Button 1
Memory
Button 2
SET Button
20 US ODYSSEY-31THR6210.book 207 ページ ２０２０年２月２８日　金曜日　午前７時２６分

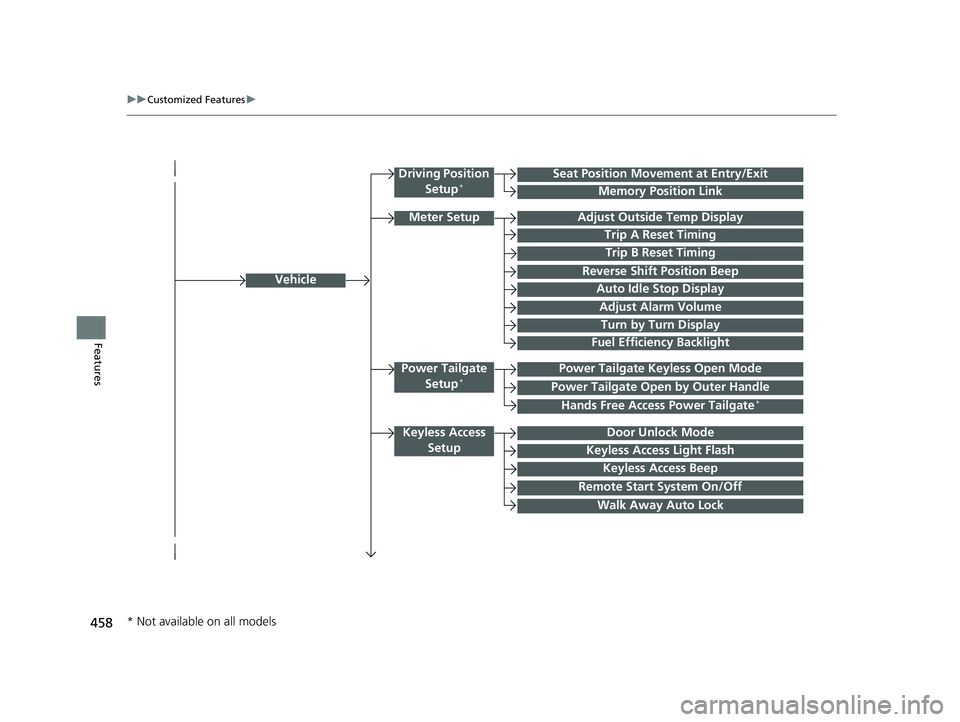

458
uuCustomized Features u
Features
Vehicle
Driving Position
Setup*Seat Position Movem ent at Entry/Exit
Memory Position Link
Meter SetupAdjust Outside Temp Display
Trip A Reset Timing
Trip B Reset Timing
Reverse Shift Position Beep
Auto Idle Stop Display
Adjust Alarm Volume
Turn by Turn Display
Power Tailgate
Setup*Power Tailgate Keyless Open Mode
Power Tailgate Open by Outer Handle
Keyless Access SetupDoor Unlock Mode
Keyless Access Light Flash
Keyless Access Beep
Remote Start System On/Off
Walk Away Auto Lock
Fuel Efficiency Backlight
Hands Free Access Power Tailgate*
* Not available on all models
20 US ODYSSEY-31THR6210.book 458 ページ ２０２０年２月２８日　金曜日　午前７時２６分

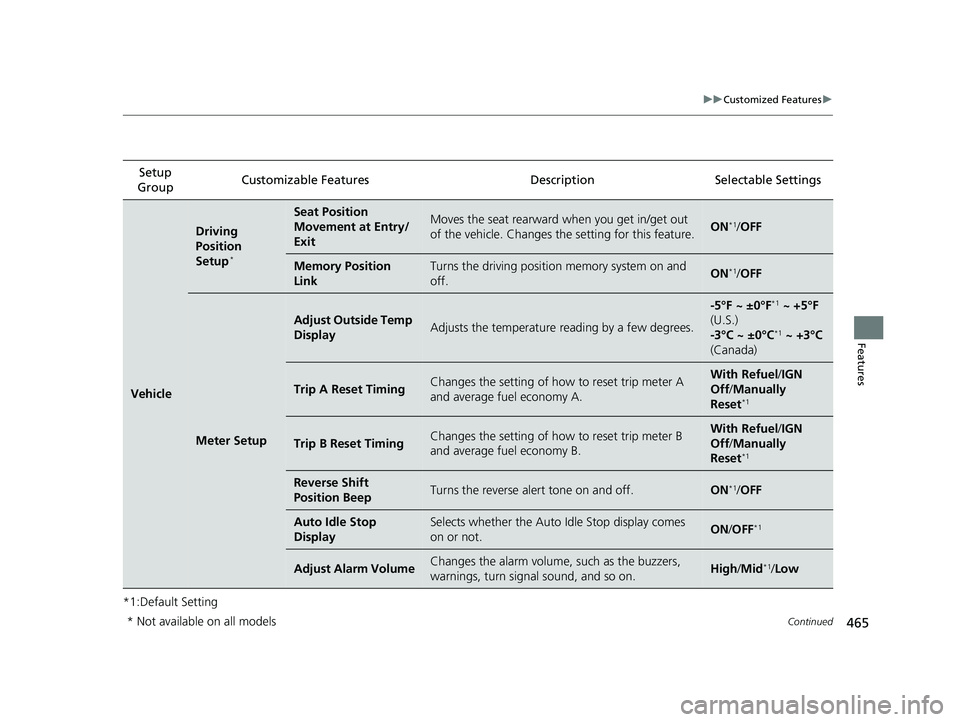

465
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features
DescriptionSelectable Settings
Vehicle
Driving
Position
Setup
*
Seat Position
Movement at Entry/
ExitMoves the seat rearward when you get in/get out
of the vehicle. Changes the setting for this feature.ON*1/OFF
Memory Position
LinkTurns the driving position memory system on and
off.ON*1/OFF
Meter Setup
Adjust Outside Temp
DisplayAdjusts the temperature reading by a few degrees.
-5°F ~ ±0°F*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
Trip A Reset TimingChanges the setting of how to reset trip meter A
and average fuel economy A.With Refuel /IGN
Off /Manually
Reset
*1
Trip B Reset TimingChanges the setting of how to reset trip meter B
and average fuel economy B.With Refuel /IGN
Off /Manually
Reset
*1
Reverse Shift
Position BeepTurns the reverse alert tone on and off.ON*1/ OFF
Auto Idle Stop
DisplaySelects whether the Auto Idle Stop display comes
on or not.ON /OFF*1
Adjust Alarm VolumeChanges the alarm volume, such as the buzzers,
warnings, turn signal sound, and so on.High /Mid*1/ Low
* Not available on all models
20 US ODYSSEY-31THR6210.book 465 ページ ２０２０年２月２８日　金曜日　午前７時２６分

758
Index
Driving....................................................... 529
Automatic Transmission ........................... 549
Braking .................................................... 607
Cruise Control ......................................... 566
Shifting Gear ........................................... 550
Starting the Engine .................................. 542
Driving Position Memory System ............. 206
Dust and Pollen Filter ............................... 693
E
Eco Assist® System ....................................... 11
Econ Mode
Indicator .................................................... 94
Electric Power Steering (EPS) System Indicator ............................................ 91, 726
Electronic Stability Control (ESC) ............. 596
Emergency ................................................. 735
Emergency Engine Stop ........................... 716
Emissions Testing (Readiness Codes) ....... 749
Engine ....................................................... 746
Coolant ................................................... 659
Jump Starting .......................................... 717
Oil ........................................................... 654
Starting ................................................... 542
Engine Coolant ......................................... 659
Adding to the Radiator ............................ 660
Adding to the Reserve Tank ..................... 659
Overheating............................................. 719
Temperature Gauge................................. 119 Engine Oil
................................................. 654
Adding .................................................... 656
Checking................................................. 655
Displaying Maintenance Minder Information ........................................... 646
Low Oil Pressure Symbol.......................... 722
Recommended Engine Oil ....................... 654
ENGINE START/STOP Button .................... 188
Exhaust Gas Hazard (Carbon Monoxide) .. 80
Exterior Care (Cleaning) ........................... 697
Exterior Mirrors ........................................ 210
F
Features.................................................... 263
File Manager ............................................. 310
Filters Dust and Pollen ....................................... 693
Oil ........................................................... 657
Flat Tire ..................................................... 705
Floor Mats ................................................. 695
Fluids Automatic Transmission .......................... 661
Brake ...................................................... 662
Engine Coolant ....................................... 659
Windshield Washer ................................. 663
FM/AM Radio .................................... 278, 322
Fog Light Indicator ..................................... 93
Folding Down the Rear Seats .................. 221
Foot Brake ................................................ 610 Front Airbags (SRS)
.................................... 50
Front Knee Airbags .................................... 54
Front Seat Heaters ................................... 245
Front Seat Heaters and Seat Ventilation .............................................. 246
Front Seats ................................................ 212
Adjusting ................................................ 212
Fuel ..................................................... 26, 637
Economy................................................. 640
Gauge .................................................... 119
Instant Fuel Economy .............................. 125
Low Fuel Indicator..................................... 89
Range ..................................................... 125
Recommendation.................................... 637
Refueling ................................................ 637
Fuel Economy ........................................... 640
Fuel Fill Door ...................................... 26, 638
Fuses ......................................................... 728
Inspecting and Changing ........................ 734
Locations ................................ 728, 730, 733
G
Gasoline (Fuel)
Economy................................................. 640
Gauge .................................................... 119
Information............................................. 637
Instant Fuel Economy .............................. 125
Low Fuel Indicator..................................... 89
Refueling ................................................ 637
20 US ODYSSEY-31THR6210.book 758 ページ ２０２０年２月２８日　金曜日　午前７時２６分
