26
uuPersonal Information uSaved Trips
System Setup

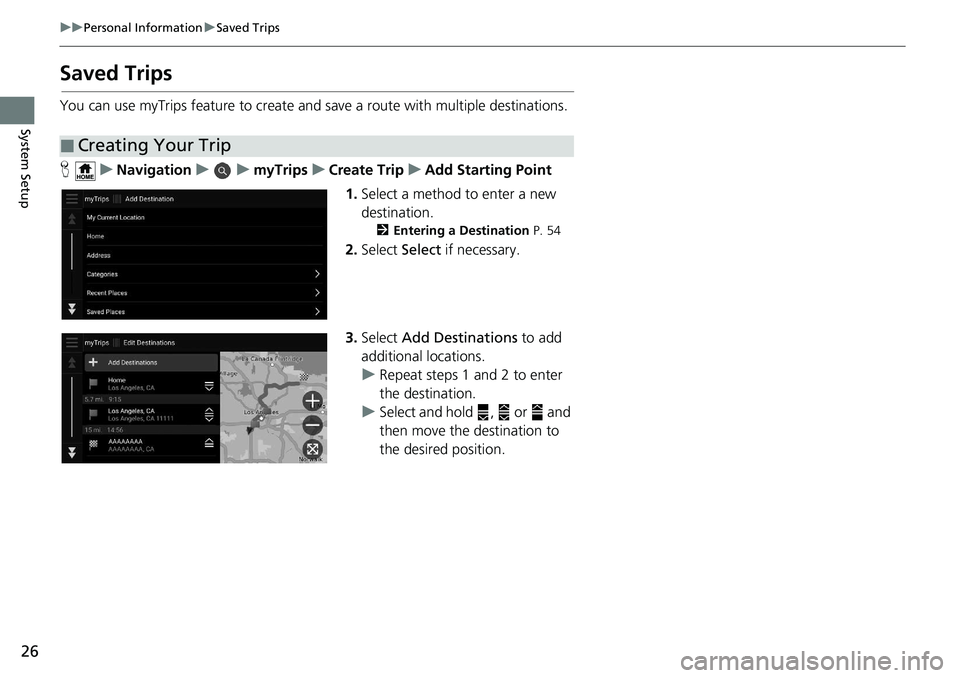

Saved Trips
You can use myTrips feature to create and save a route with multiple destinations.
H uNavigation uumyTripsuCreate Trip uAdd Starting Point
1. Select a method to enter a new
destination.
2 Entering a Destination P. 54
2.Select Select if necessary.
3. Select Add Destinations to add
additional locations.
u Repeat steps 1 and 2 to enter
the destination.
u Select and hold , or and
then move the destination to
the desired position.
■Creating Your Trip

Continued27
uuPersonal Information uSaved Trips
System SetupH uNavigation uumyTrips

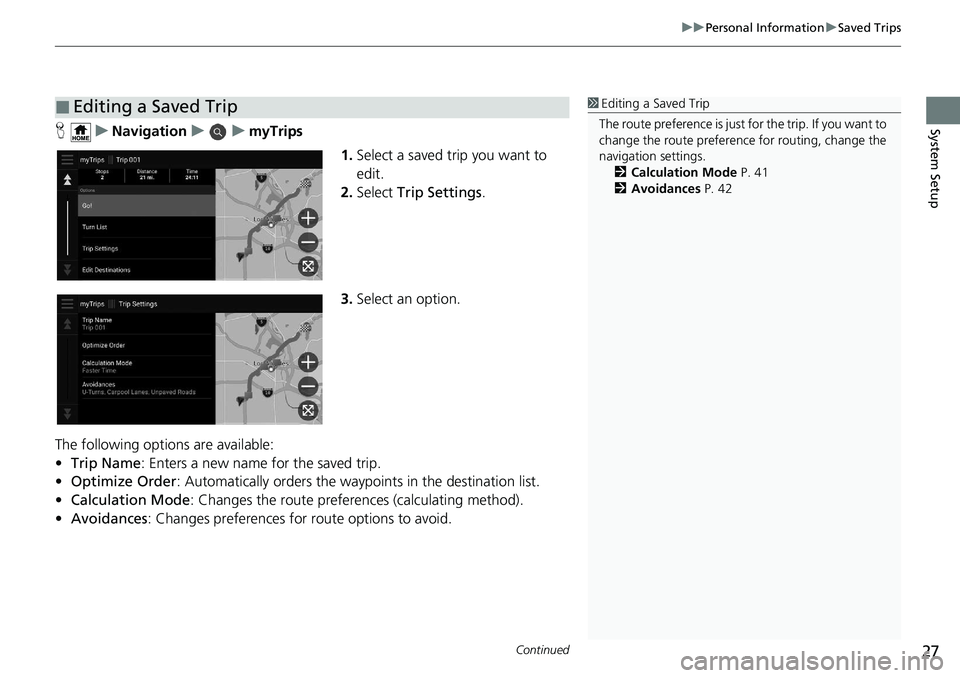

1.Select a saved trip you want to
edit.
2. Select Trip Settings .
3. Select an option.
The following options are available:
• Trip Name : Enters a new name for the saved trip.
• Optimize Order : Automatically orders the wayp oints in the destination list.
• Calculation Mode : Changes the route preferences (calculating method).
• Avoidances : Changes preferences for route options to avoid.
■Editing a Saved Trip1Editing a Saved Trip
The route preference is just for the trip. If you want to
change the route preference for routing, change the
navigation settings. 2 Calculation Mode P. 41
2 Avoidances P. 42

29
uuPersonal Information uSaved Trips
System SetupH uNavigation uumyTrips

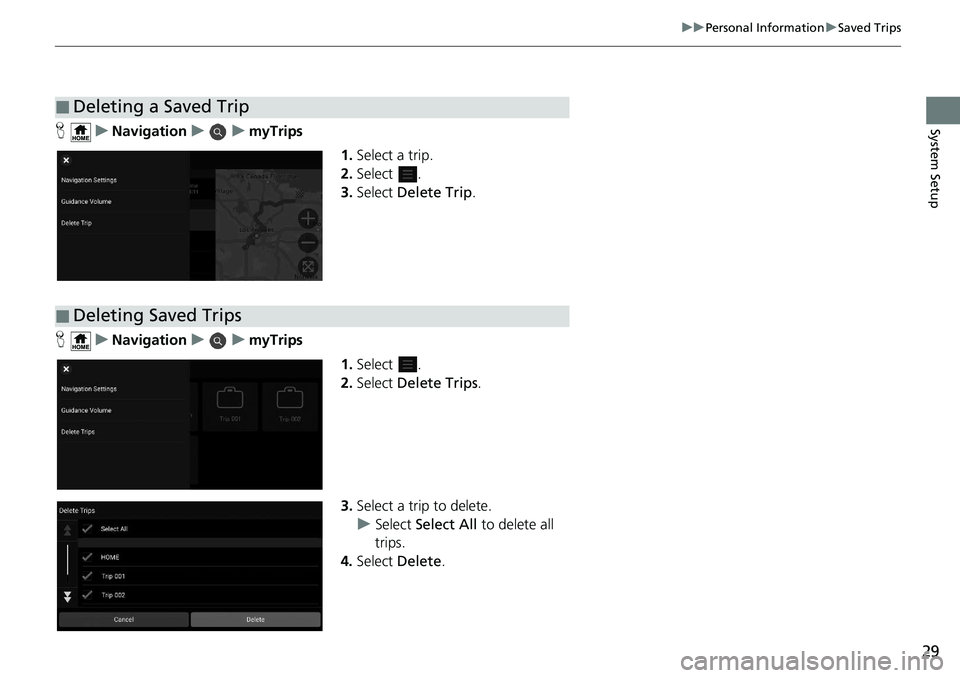

1.Select a trip.
2. Select .
3. Select Delete Trip .
H uNavigation uumyTrips
1.Select .
2. Select Delete Trips .
3. Select a trip to delete.
u Select Select All to delete all
trips.
4. Select Delete .
■Deleting a Saved Trip
■Deleting Saved Trips

32
System Setup

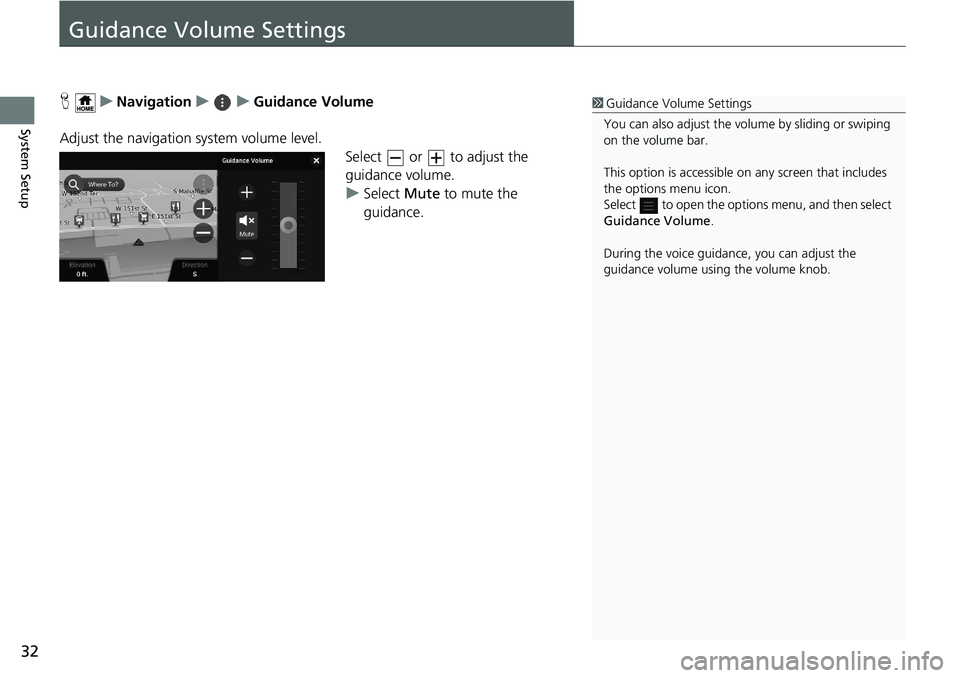

Guidance Volume Settings
HuNavigation uuGuidance Volume
Adjust the navigation system volume level. Select or to adjust the
guidance volume.
uSelect Mute to mute the
guidance.1 Guidance Volume Settings
You can also adjust the volume by sliding or swiping
on the volume bar.
This option is accessible on any screen that includes
the options menu icon.
Select to open the options menu, and then select
Guidance Volume .
During the voice guidance, you can adjust the
guidance volume using the volume knob.

33
System Setup

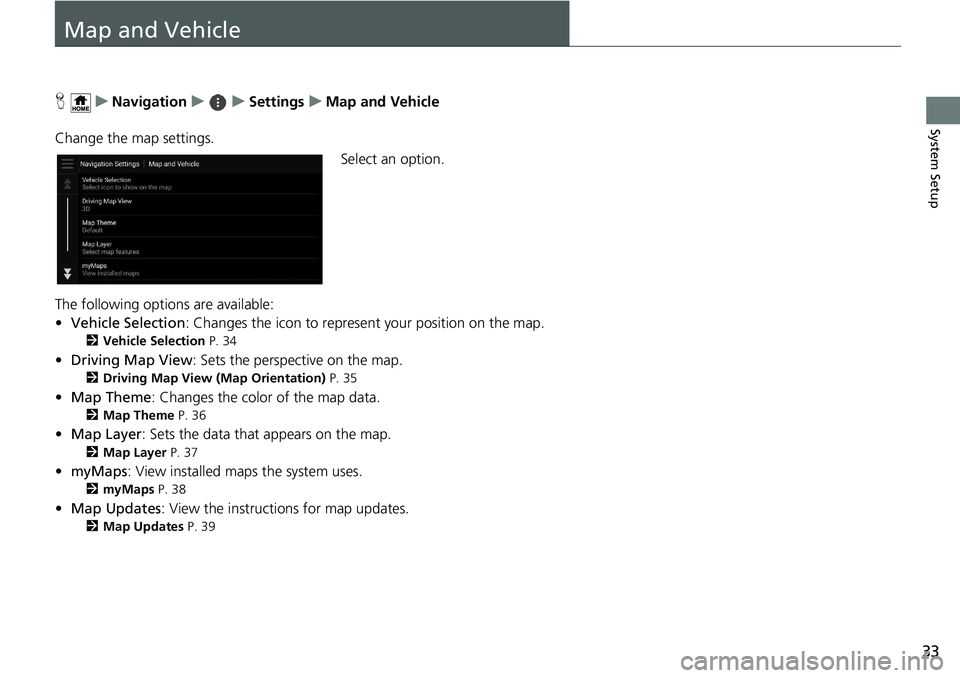

Map and Vehicle
HuNavigation uuSettings uMap and Vehicle
Change the map settings. Select an option.
The following options are available:
• Vehicle Selection : Changes the icon to represent your position on the map.
2Vehicle Selection P. 34
•Driving Map View : Sets the perspective on the map.
2Driving Map View (Map Orientation) P. 35
•Map Theme : Changes the color of the map data.
2Map Theme P. 36
•Map Layer : Sets the data that appears on the map.
2Map Layer P. 37
•myMaps : View installed maps the system uses.
2myMaps P. 38
•Map Updates : View the instructi ons for map updates.
2Map Updates P. 39

34
uuMap and Vehicle uVehicle Selection
System Setup

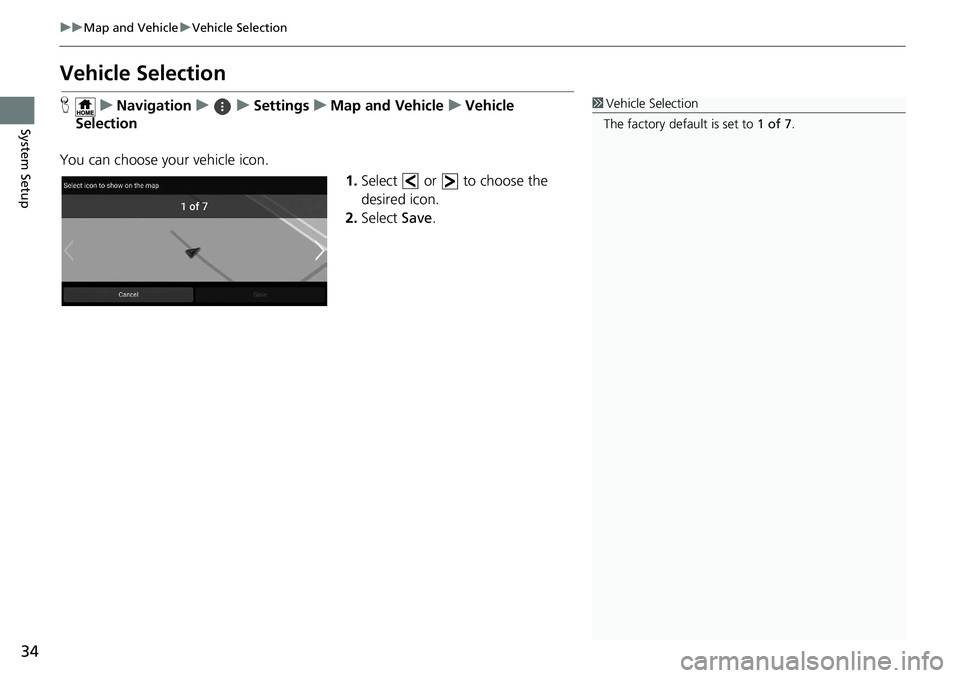

Vehicle Selection
H uNavigation uuSettings uMap and Vehicle uVehicle
Selection
You can choose your vehicle icon. 1.Select or to choose the
desired icon.
2. Select Save.1Vehicle Selection
The factory default is set to 1 of 7.

35
uuMap and Vehicle uDriving Map View (Map Orientation)
System Setup
Driving Map View (Map Orientation)
H uNavigation uuSettings uMap and Vehicle uDriving Map
View
Select the map orientation. 1.Select an option.
2. Select Save.
The following options are available:
• 3D (factory default): Displays the map in 3D with your direction of travel facing
upwards.
• Track Up : Displays the map with your direction of travel facing upwards.
• North Up: Displays the map with no rth always pointing up.

36
uuMap and Vehicle uMap Theme
System Setup
Map Theme
H uNavigation uuSettings uMap and Vehicle uMap Theme
Changes the color of the map data. 1.Select an option.
2. Select Save.

37
uuMap and Vehicle uMap Layer
System Setup

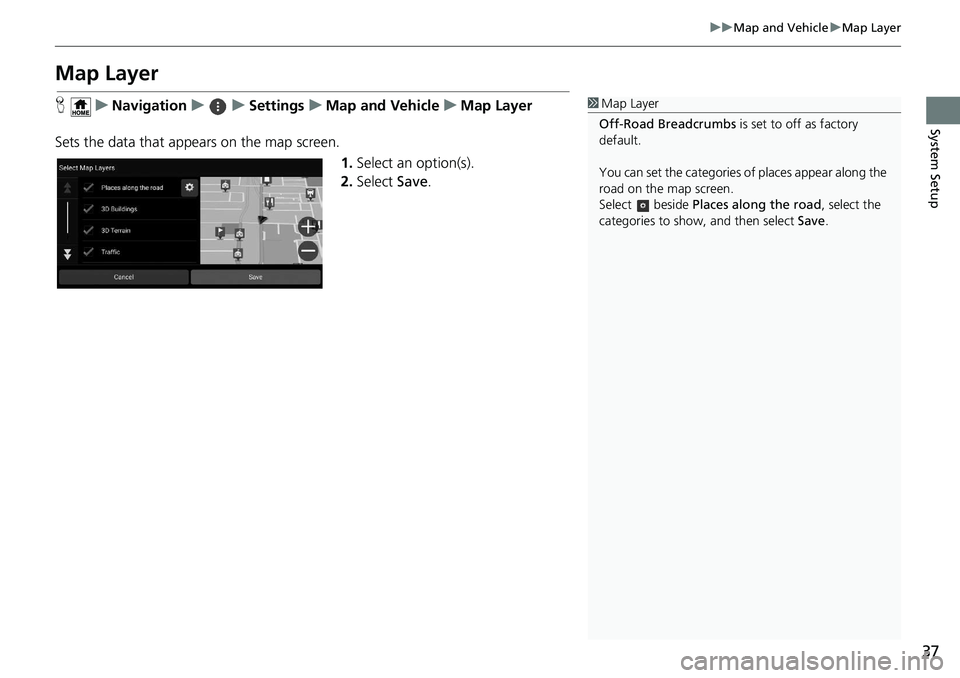

Map Layer
H uNavigation uuSettings uMap and Vehicle uMap Layer
Sets the data that appears on the map screen. 1.Select an option(s).
2. Select Save.1Map Layer
Off-Road Breadcrumbs is set to off as factory
default.
You can set the categories of places appear along the
road on the map screen.
Select beside Places along the road , select the
categories to show, and then select Save.

38
uuMap and Vehicle umyMaps
System Setup

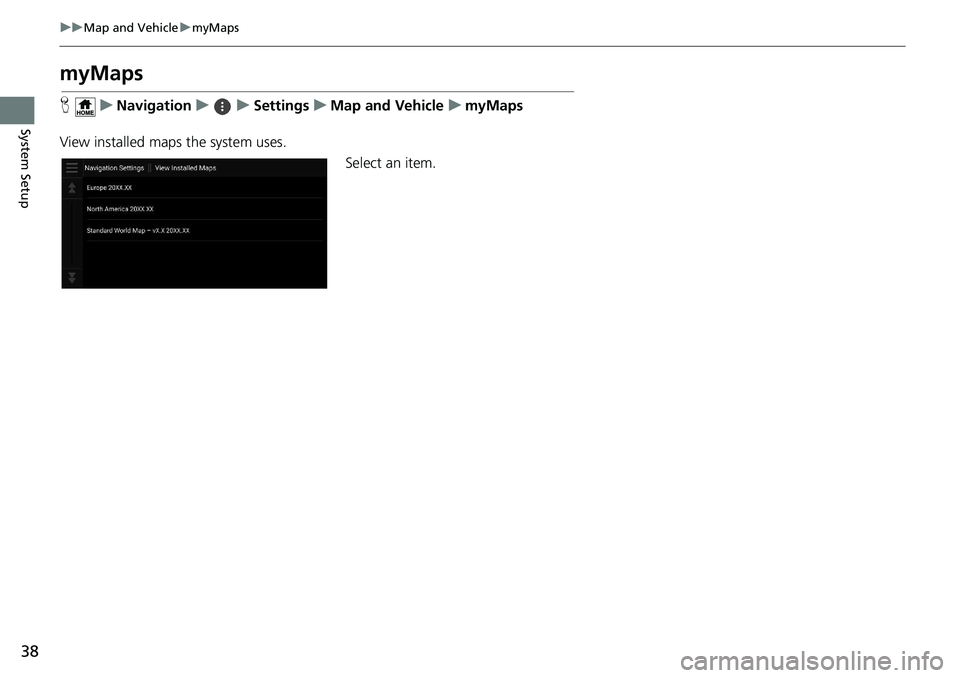

myMaps
H uNavigation uuSettings uMap and Vehicle umyMaps
View installed maps the system uses. Select an item.
