2021 ODYSSEY
Owner’s Manual
Page 2 of 787

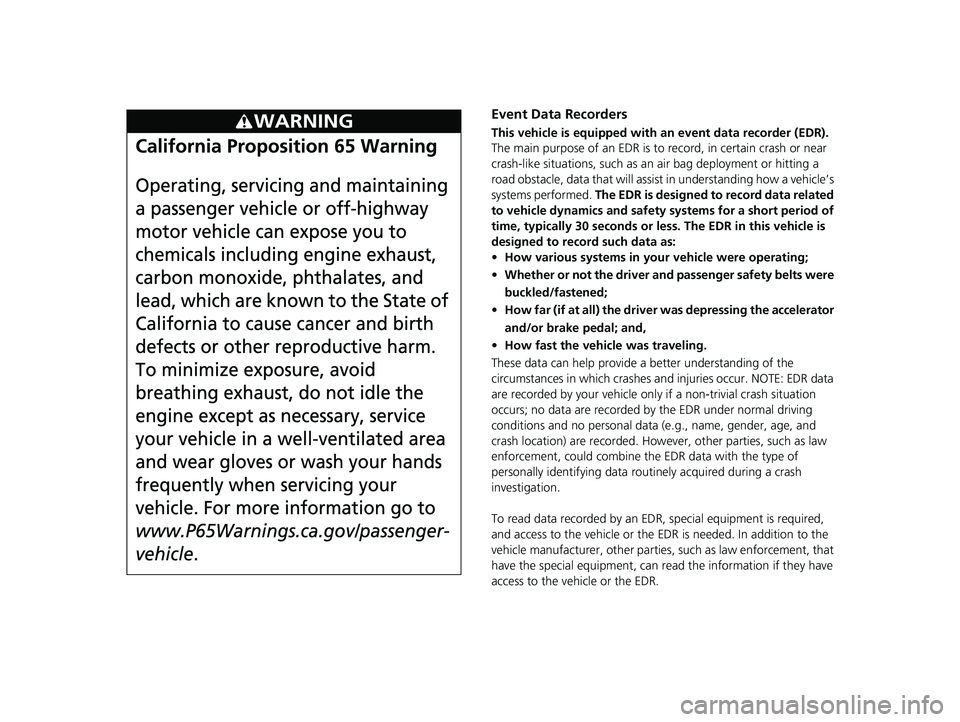

Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howeve r, other parties, such as law
enforcement, could co mbine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can re ad the information if they have
access to the vehicle or the EDR.
21 US ODYSSEY-31THR6310.book 0 ページ 2020年6月17日 水曜日 午後2時46分
Page 3 of 787

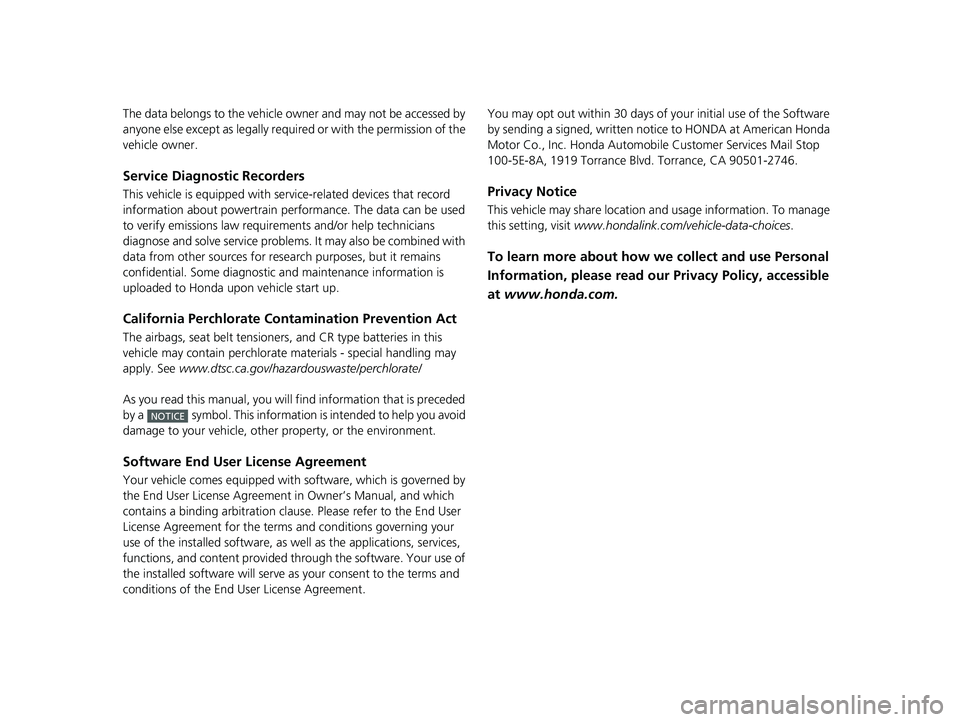

The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with se rvice-related devices that record
information about powertrain perfo rmance. The data can be used
to verify emissions law requirem ents and/or help technicians
diagnose and solve service problems . It may also be combined with
data from other sources for research purposes, but it remains
confidential. Some diagnostic and maintenance information is
uploaded to Honda upon vehicle start up.
California Perchlorate Conta mination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, othe r property, or the environment.
Software End User License Agreement
Your vehicle comes equipped with software, which is governed by
the End User License Agreement in Owner’s Manual, and which
contains a binding arbitration clau se. Please refer to the End User
License Agreement for the terms and conditions governing your
use of the installed software, as we ll as the applications, services,
functions, and content provided through the software. Your use of
the installed software wi ll serve as your consent to the terms and
conditions of the End User License Agreement.
NOTICE
You may opt out within 30 days of your initial use of the Software
by sending a signed, written noti ce to HONDA at American Honda
Motor Co., Inc. Honda Automobile Customer Services Mail Stop
100-5E-8A, 1919 Torrance Blvd. Torrance, CA 90501-2746.
Privacy Notice
This vehicle may share location and usage information. To manage
this setting, visit www.hondalink.com/vehicle-data-choices .
To learn more about how we collect and use Personal
Information, please read our Privacy Policy, accessible
at www.honda.com.
21 US ODYSSEY-31THR6310.book 1 ページ 2020年6月17日 水曜日 午後2時46分
Page 4 of 787

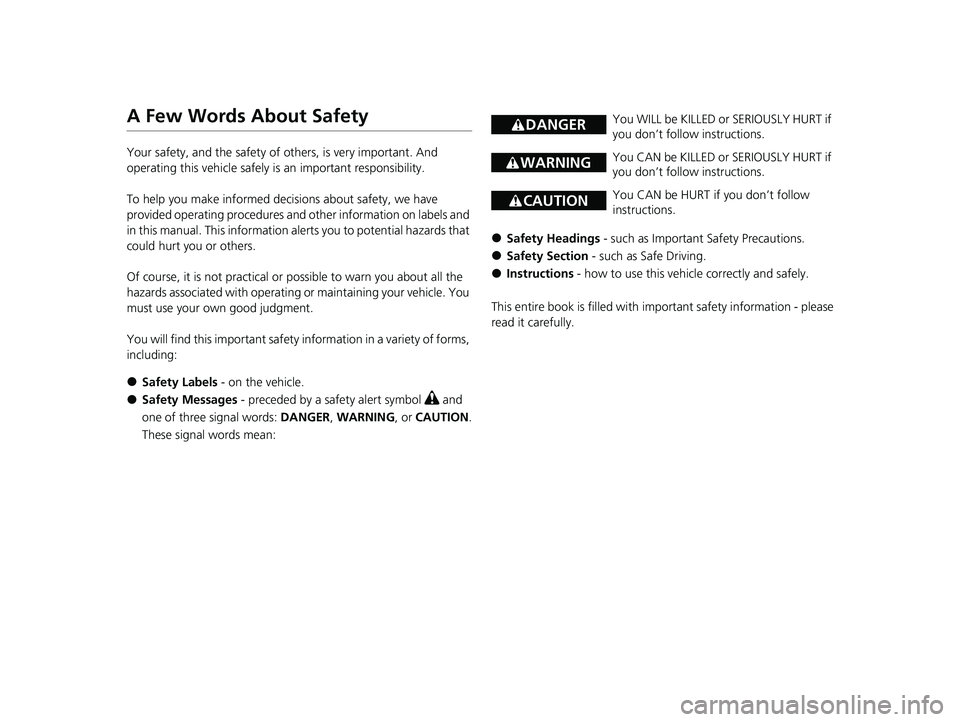

A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information al erts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment.
You will find this impo rtant safety information in a variety of forms,
including:
●Safety Labels - on the vehicle.
●Safety Messages - preceded by a safety alert symbol 3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
●Safety Headings - such as Important Safety Precautions.
●Safety Section - such as Safe Driving.
●Instructions - how to use this vehicle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
3CAUTIONYou CAN be HURT if you don’t follow
instructions.
21 US ODYSSEY-31THR6310.book 2 ページ 2020年6月17日 水曜日 午後2時46分
Page 5 of 787
21 US ODYSSEY-31THR6310.book 3 ページ 2020年6月17日 水曜日 午後2時46分
Page 6 of 787

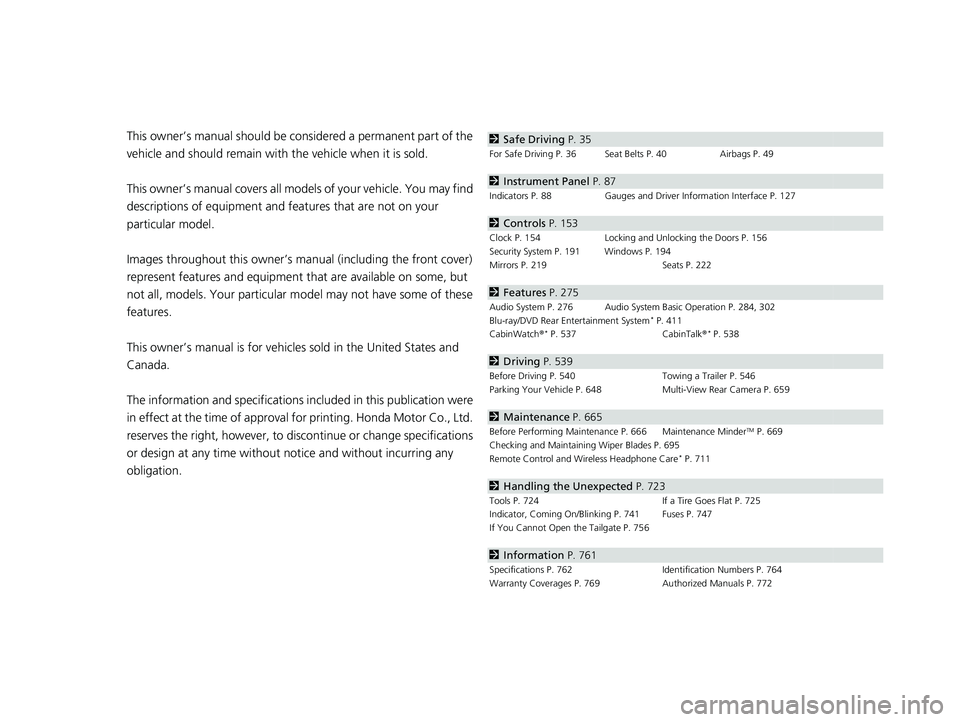

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 35
For Safe Driving P. 36 Seat Belts P. 40 Airbags P. 49
2Instrument Panel P. 87
Indicators P. 88 Gauges and Driver Information Interface P. 127
2Controls P. 153
Clock P. 154 Locking and Unlocking the Doors P. 156
Security System P. 191 Windows P. 194
Mirrors P. 219 Seats P. 222
2Features P. 275
Audio System P. 276 Audio System Basic Operation P. 284, 302
Blu-ray/DVD Rear Entertainment System* P. 411
CabinWatch ®* P. 537 CabinTalk®* P. 538
2Driving P. 539
Before Driving P. 540 Towing a Trailer P. 546
Parking Your Vehicle P. 648 Multi-View Rear Camera P. 659
2Maintenance P. 665
Before Performing Maintenance P. 666 Maintenance MinderTM P. 669
Checking and Maintaining Wiper Blades P. 695
Remote Control and Wireless Headphone Care
* P. 711
2 Handling the Unexpected P. 723
Tools P. 724 If a Tire Goes Flat P. 725
Indicator, Coming On/Blinking P. 741 Fuses P. 747
If You Cannot Open the Tailgate P. 756
2Information P. 761
Specifications P. 762 Identification Numbers P. 764
Warranty Coverages P. 769 Authorized Manuals P. 772
21 US ODYSSEY-31THR6310.book 4 ページ 2020年6月17日 水曜日 午後2時46分
Page 7 of 787

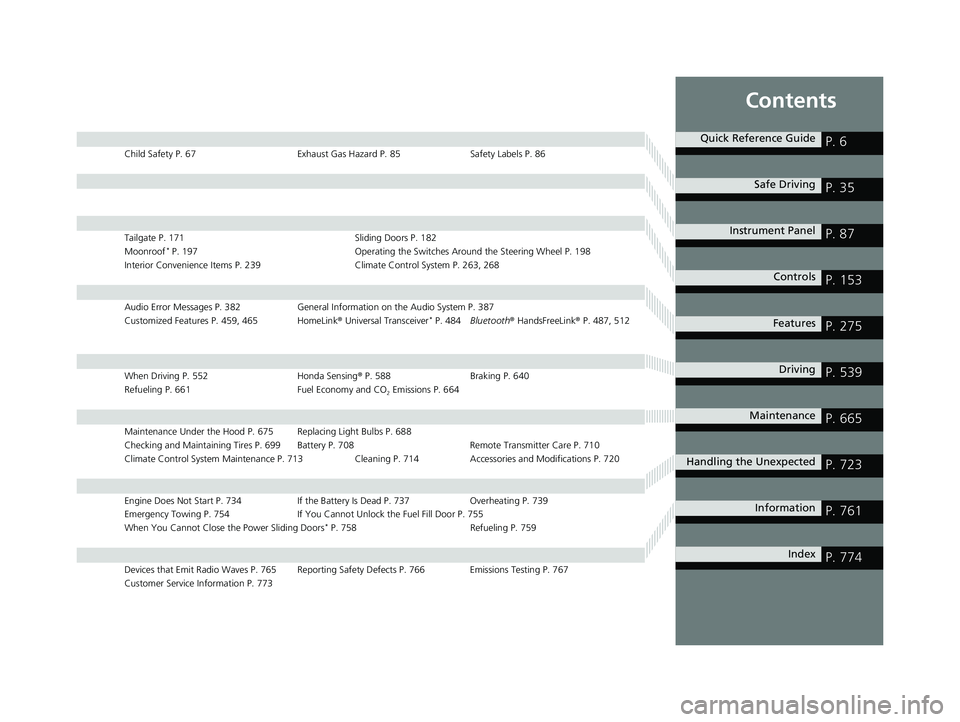

Contents
Child Safety P. 67Exhaust Gas Hazard P. 85Safety Labels P. 86
Tailgate P. 171 Sliding Doors P. 182
Moonroof* P. 197 Operating the Switches Around the Steering Wheel P. 198
Interior Convenience Items P. 239 Climate Control Syst em P. 263, 268
Audio Error Messages P. 382 General Information on the Audio System P. 387
Customized Features P. 459, 465 HomeLink ® Universal Transceiver* P. 484 Bluetooth ® HandsFreeLink ® P. 487, 512
When Driving P. 552 Honda Sensing® P. 588 Braking P. 640
Refueling P. 661 Fuel Economy and CO
2 Emissions P. 664
Maintenance Under the Hood P. 675 Replacing Light Bulbs P. 688
Checking and Maintaining Tires P. 699 Battery P. 708 Remote Transmitter Care P. 710
Climate Control System Maintenance P. 713 Clea ning P. 714 Accessories and Modifications P. 720
Engine Does Not Start P. 734If the Battery Is Dead P. 737Overheating P. 739
Emergency Towing P. 754 If You Cannot Unlock the Fuel Fill Door P. 755
When You Cannot Close the Power Sliding Doors
* P. 758 Refueling P. 759
Devices that Emit Radio Waves P. 765 Reporting Safety Defects P. 766 Emissions Testing P. 767
Customer Service Information P. 773
Quick Reference GuideP. 6
Safe DrivingP. 35
Instrument PanelP. 87
ControlsP. 153
FeaturesP. 275
DrivingP. 539
MaintenanceP. 665
Handling the UnexpectedP. 723
InformationP. 761
IndexP. 774
21 US ODYSSEY-31THR6310.book 5 ページ 2020年6月17日 水曜日 午後2時46分
Page 8 of 787
6
Quick Reference Guide
Quick Reference Guide

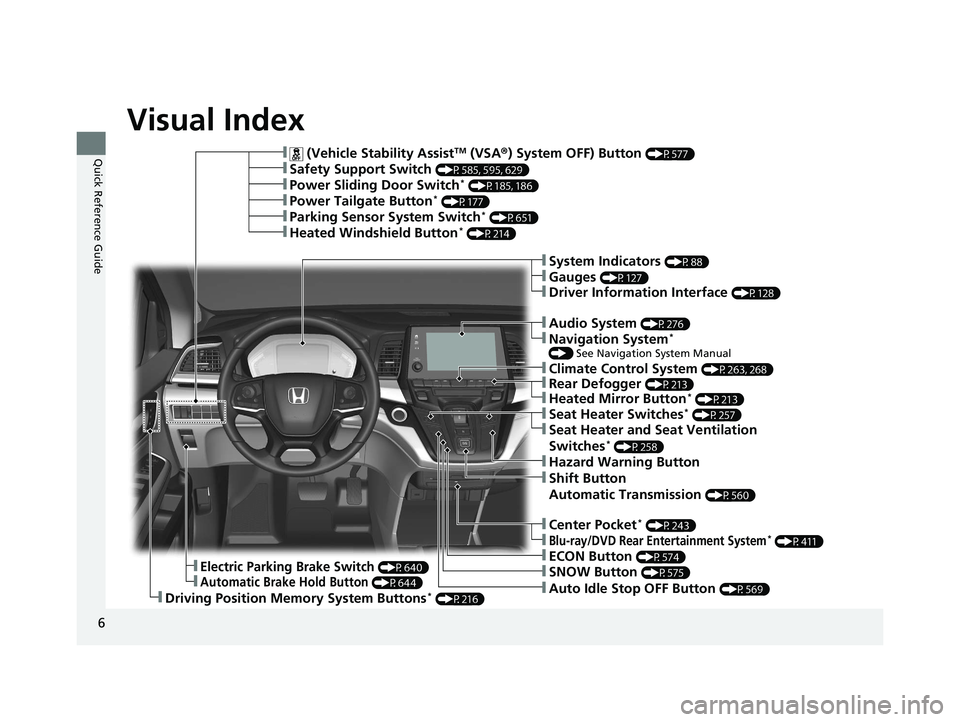

Visual Index
❚ (Vehicle Stability AssistTM (VSA®) System OFF) Button (P577)
❚Power Sliding Door Switch* (P185, 186)
❚Power Tailgate Button* (P177)
❚Climate Control System (P263, 268)
❚Driving Position Memory System Buttons* (P216)
❚Parking Sensor System Switch* (P651)
❚Heated Windshield Button* (P214)
❚Safety Support Switch (P585, 595, 629)
❚Electric Parking Brake Switch (P640)
❚Automatic Brake Hold Button (P644)
❚Shift Button
Automatic Transmission
(P560)
❚ECON Button (P574)
❚SNOW Button (P575)
❚Auto Idle Stop OFF Button (P569)
❚Hazard Warning Button
❚System Indicators (P88)
❚Gauges (P127)
❚Driver Information Interface (P128)
❚Audio System (P276)
❚Navigation System*
() See Navigation System Manual
❚Rear Defogger (P213)
❚Heated Mirror Button* (P213)
❚Seat Heater Switches* (P257)
❚Seat Heater and Seat Ventilation
Switches* (P258)
❚Center Pocket* (P243)
❚Blu-ray/DVD Rear Entertainment System* (P411)
21 US ODYSSEY-31THR6310.book 6 ページ 2020年6月17日 水曜日 午後2時46分
Page 9 of 787

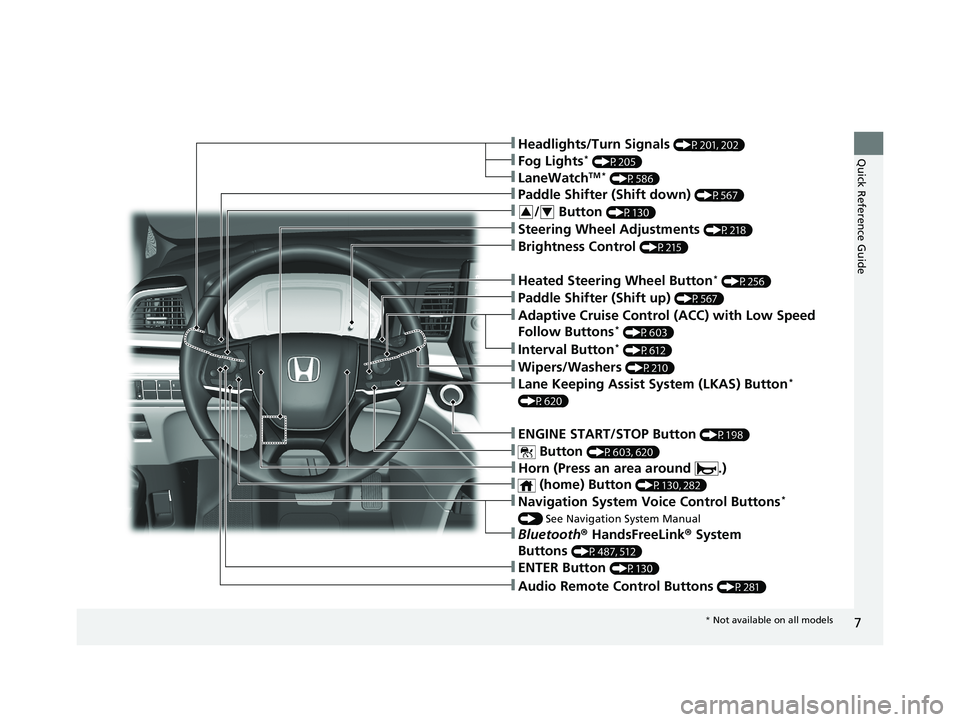

7
Quick Reference Guide
❚Navigation System Voice Control Buttons*
() See Navigation System Manual
❚Audio Remote Control Buttons (P281)
❚Steering Wheel Adjustments (P218)
❚Brightness Control (P215)
❚ENTER Button (P130)
❚/ Button (P130)34
❚Headlights/Turn Signals (P201, 202)
❚LaneWatchTM * (P586)
❚Fog Lights* (P205)
❚Bluetooth ® HandsFreeLink ® System
Buttons
(P487, 512)
❚Paddle Shifter (Shift down) (P567)
❚Heated Steering Wheel Button* (P256)
❚Paddle Shifter (Shift up) (P567)
❚Adaptive Cruise Control (ACC) with Low Speed
Follow Buttons* (P603)
❚Interval Button* (P612)
❚ENGINE START/STOP Button (P198)
❚ Button (P603, 620)
❚Wipers/Washers (P210)
❚Lane Keeping Assist System (LKAS) Button*
(P620)
❚ (home) Button (P130, 282)
❚Horn (Press an area around .)
* Not available on all models
21 US ODYSSEY-31THR6310.book 7 ページ 2020年6月17日 水曜日 午後2時46分
Page 10 of 787

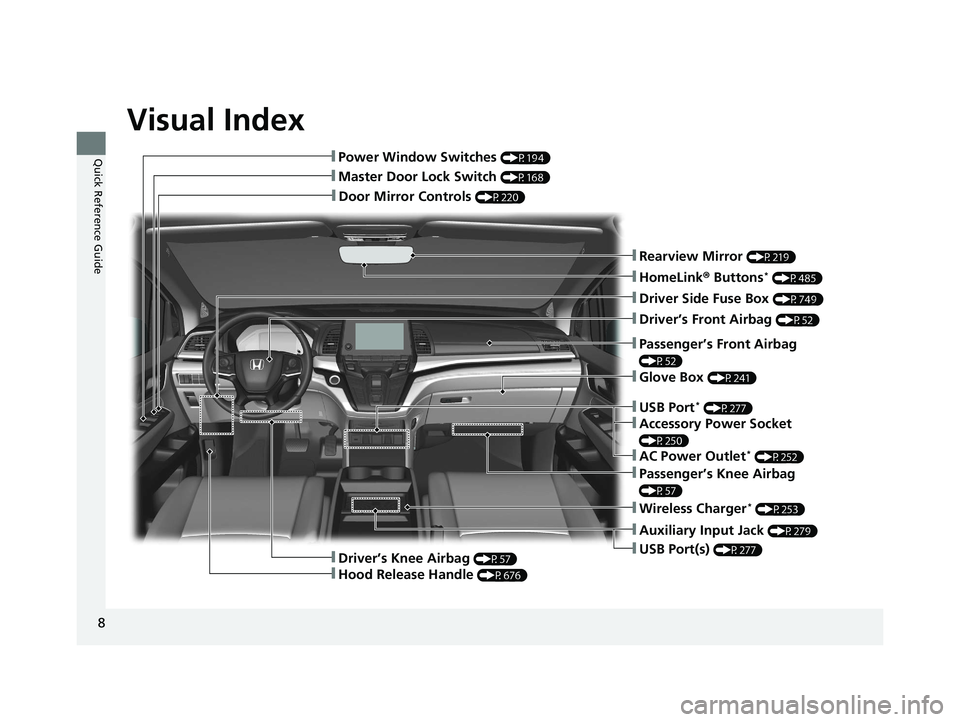

Visual Index
8
Quick Reference Guide
❚Door Mirror Controls (P220)
❚Master Door Lock Switch (P168)
❚Power Window Switches (P194)
❚Rearview Mirror (P219)
❚Driver Side Fuse Box (P749)
❚Glove Box (P241)
❚Driver’s Front Airbag (P52)
❚Passenger’s Knee Airbag
(P57)
❚Auxiliary Input Jack (P279)
❚USB Port(s) (P277)
❚Passenger’s Front Airbag
(P52)
❚HomeLink® Buttons* (P485)
❚Wireless Charger* (P253)
❚Driver’s Knee Airbag (P57)
❚Hood Release Handle (P676)
❚USB Port* (P277)
❚Accessory Power Socket
(P250)
❚AC Power Outlet* (P252)
21 US ODYSSEY-31THR6310.book 8 ページ 2020年6月17日 水曜日 午後2時46分
