HONDA ODYSSEY 2021 Owner's Manual (in English)

Continued269

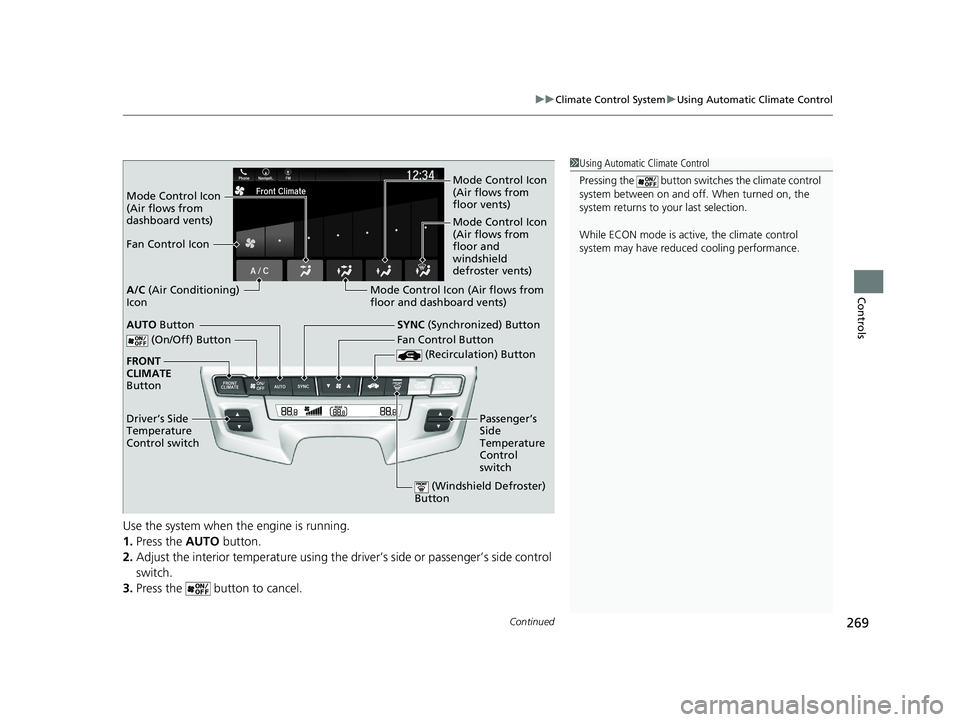

uuClimate Control System uUsing Automatic Climate Control
Controls
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
switch.
3. Press the button to cancel.
1Using Automatic Climate Control
Pressing the button switch es the climate control
system between on and off. When turned on, the
system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Mode Control Icon
(Air flows from
dashboard vents) Mode Control Icon
(Air flows from
floor vents)
Mode Control Icon
(Air flows from
floor and
windshield
defroster vents)
Fan Control Icon
Mode Control Icon (Air flows from
floor and dashboard vents)
A/C
(Air Conditioning)
Icon
(On/Off) Button
(Recirculation) Button
SYNC (Synchronized) Button
FRONT
CLIMATE
Button
Driver’s Side
Temperature
Control switch Fan Control Button
Passenger’s
Side
Temperature
Control
switchAUTO Button
(Windshield Defroster)
Button
21 US ODYSSEY-31THR6310.book 269 ページ ２０２０年６月１７日　水曜日　午後２時４６分

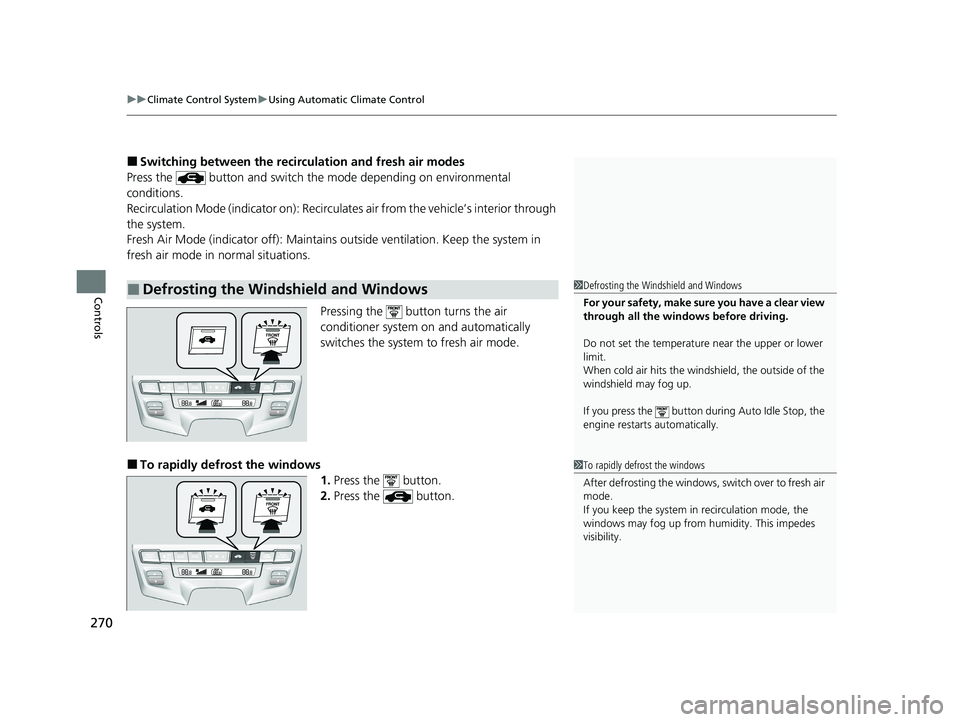

uuClimate Control System uUsing Automatic Climate Control
270
Controls
■Switching between the recirc ulation and fresh air modes
Press the button and switch the mode depending on environmental
conditions.
Recirculation Mode (indicator on): Recirculat es air from the vehicle’s interior through
the system.
Fresh Air Mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
Pressing the button turns the air
conditioner system on and automatically
switches the system to fresh air mode.
■To rapidly defrost the windows
1.Press the button.
2. Press the button.
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If you press the button dur ing Auto Idle Stop, the
engine restarts automatically.
1 To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode.
If you keep the system in recirculation mode, the
windows may fog up from humidity. This impedes
visibility.
21 US ODYSSEY-31THR6310.book 270 ページ ２０２０年６月１７日　水曜日　午後２時４６分

271

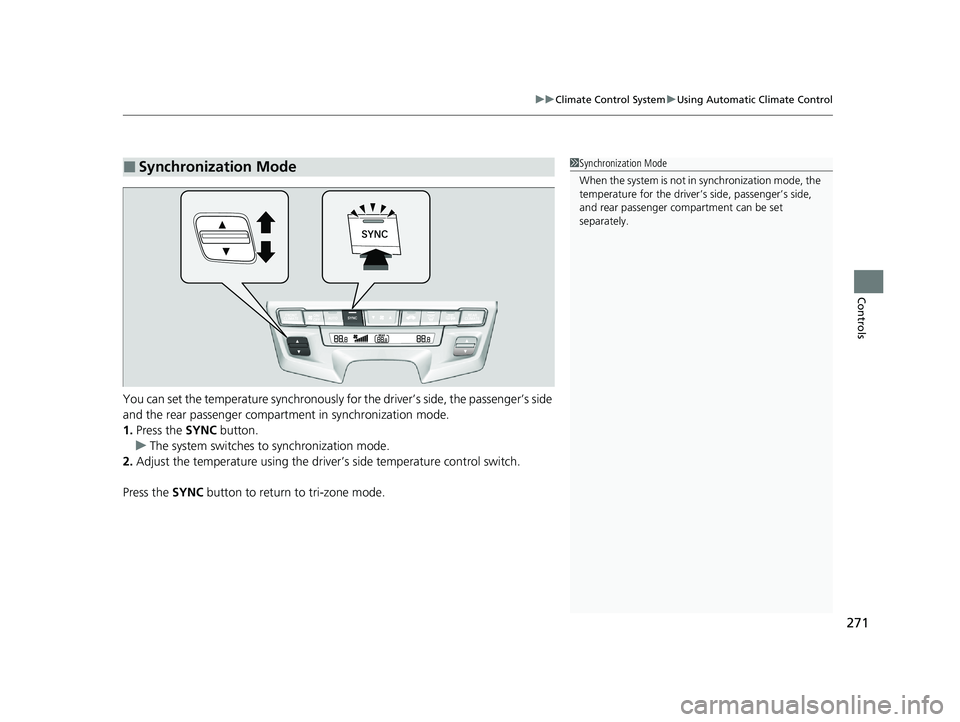

uuClimate Control System uUsing Automatic Climate Control
Controls
You can set the temperature sy nchronously for the driver’s side, the passenger’s side
and the rear passenger compartment in synchronization mode.
1. Press the SYNC button.
u The system switches to synchronization mode.
2. Adjust the temperature using the driver ’s side temperature control switch.
Press the SYNC button to return to tri-zone mode.
■Synchronization Mode1Synchronization Mode
When the system is not in synchronization mode, the
temperature for the driver ’s side, passenger’s side,
and rear passenger co mpartment can be set
separately.
21 US ODYSSEY-31THR6310.book 271 ページ ２０２０年６月１７日　水曜日　午後２時４６分

272

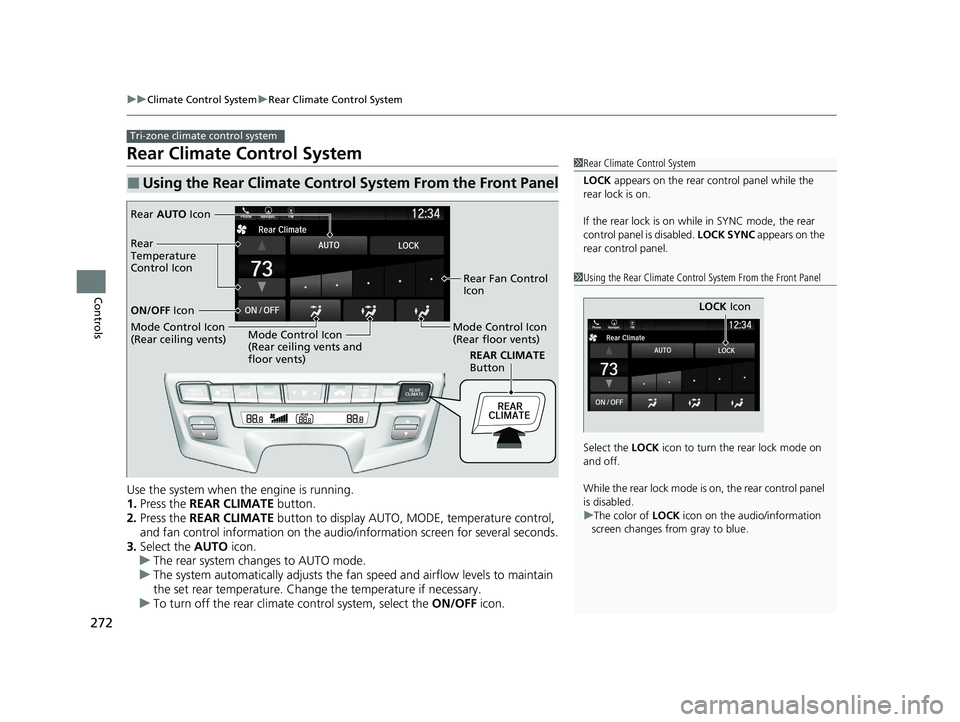

uuClimate Control System uRear Climate Control System
Controls
Rear Climate Control System
Use the system when the engine is running.
1. Press the REAR CLIMATE button.
2. Press the REAR CLIMATE button to display AUTO, MO DE, temperature control,
and fan control information on the audio/ information screen for several seconds.
3. Select the AUTO icon.
u The rear system changes to AUTO mode.
u The system automatically adjusts the fan speed and airflow levels to maintain
the set rear temperature. Change the temperature if necessary.
u To turn off the rear climate control system, select the ON/OFF icon.
■Using the Rear Climate Control System From the Front Panel
Tri-zone climate control system
1Rear Climate Control System
LOCK appears on the rear control panel while the
rear lock is on.
If the rear lock is on while in SYNC mode, the rear
control panel is disabled. LOCK SYNC appears on the
rear control panel.
1 Using the Rear Climate Control System From the Front Panel
Select the LOCK icon to turn the rear lock mode on
and off.
While the rear lock mode is on, the rear control panel
is disabled.
u The color of LOCK icon on the audio/information
screen changes from gray to blue.
LOCK Icon
REAR CLIMATE
Button
Rear AUTO Icon
Rear Fan Control
Icon
Mode Control Icon
(Rear floor vents)
Mode Control Icon
(Rear ceiling vents and
floor vents)
Mode Control Icon
(Rear ceiling vents) ON/OFF
Icon
Rear
Temperature
Control Icon
21 US ODYSSEY-31THR6310.book 272 ページ ２０２０年６月１７日　水曜日　午後２時４６分

273
uuClimate Control System uRear Climate Control System
Controls
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature usi ng the rear temperature control bar.
3. To turn off the rear climate control system, press button.
■Using the Rear Climate Control System From the Rear Panel1Using the Rear Climate Control System From the Rear Panel
When the rear lock mode is off, the temperature of
the rear passenger compar tment can be controlled
independently.
Rear ceiling
vents
Rear floor
vents
Rear ceiling vents
and floor vents
(Rear Fan
Control) Bar
Rear Temperature
Control Bar
(On/Off) Button
Rear MODE Button
Rear AUTO Button
21 US ODYSSEY-31THR6310.book 273 ページ ２０２０年６月１７日　水曜日　午後２時４６分

274

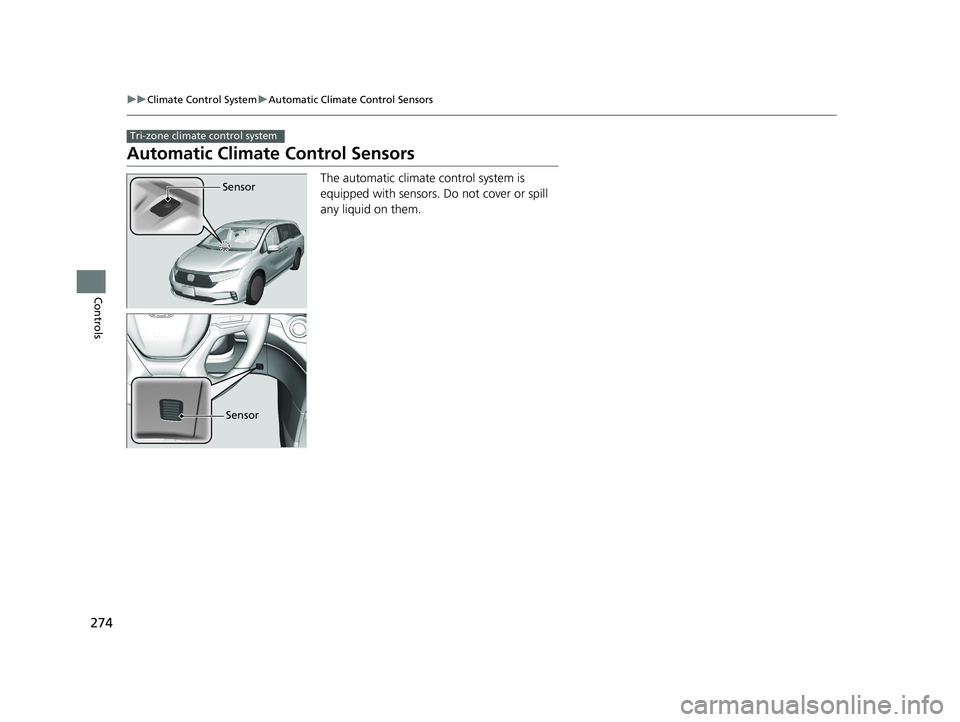

uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Tri-zone climate control system
Sensor
Sensor
21 US ODYSSEY-31THR6310.book 274 ページ ２０２０年６月１７日　水曜日　午後２時４６分

275

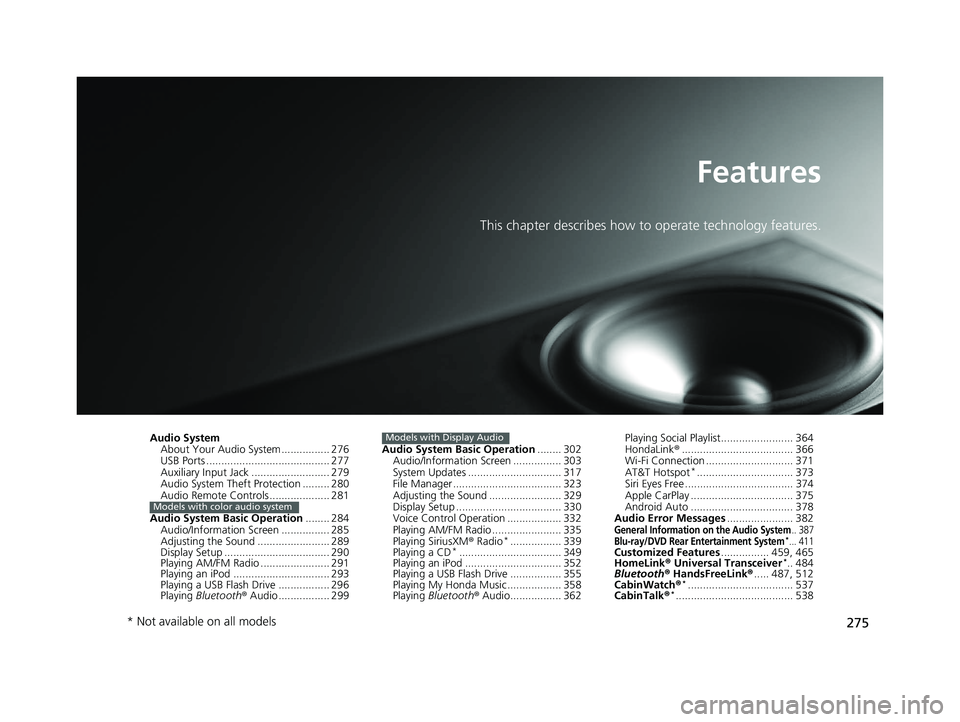

Features
This chapter describes how to operate technology features.
Audio System
About Your Audio System ................ 276
USB Ports ......................................... 277
Auxiliary Input Jack .......................... 279
Audio System Theft Protection ......... 280
Audio Remote Controls .................... 281
Audio System Basic Operation ........ 284
Audio/Information Screen ................ 285
Adjusting the Sound ........................ 289
Display Setup ................................... 290
Playing AM/FM Radio ....................... 291
Playing an iPod ................................ 293
Playing a USB Flash Drive ................. 296
Playing Bluetooth ® Audio ................. 299
Models with color audio system
Audio System Basic Operation ........ 302
Audio/Information Screen ................ 303
System Updates ............................... 317
File Manager .................................... 323
Adjusting the Sound ........................ 329
Display Setup ................................... 330
Voice Control Operation .................. 332
Playing AM/FM Radio ....................... 335
Playing SiriusXM ® Radio
*................. 339
Playing a CD*.................................. 349
Playing an iPod ................................ 352
Playing a USB Flash Drive ................. 355
Playing My Honda Music .................. 358
Playing Bluetooth ® Audio................. 362
Models with Display AudioPlaying Social Playlist........................ 364
HondaLink ®..................................... 366
Wi-Fi Connection ............................. 371
AT&T Hotspot
*................................ 373
Siri Eyes Free .................................... 374
Apple CarPlay .................................. 375
Android Auto .................................. 378
Audio Error Messages ...................... 382
General Information on the Audio System.. 387Blu-ray/DVD Rear Entertainment System*... 411Customized Features................ 459, 465
HomeLink ® Universal Transceiver*.. 484
Bluetooth® HandsFreeLink® ..... 487, 512
CabinWatch ®
*................................... 537
CabinTalk ®*....................................... 538
* Not available on all models
21 US ODYSSEY-31THR6310.book 275 ページ ２０２０年６月１７日　水曜日　午後２時４６分

276

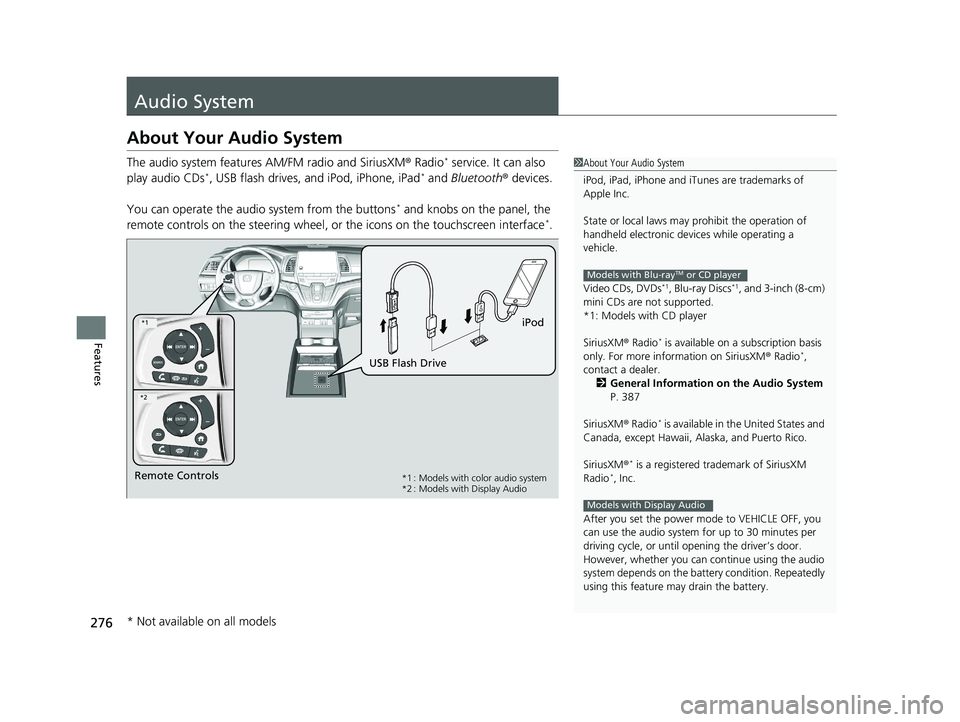

Features
Audio System
About Your Audio System
The audio system features AM/FM radio and SiriusXM® Radio* service. It can also
play audio CDs*, USB flash drives, and iPod, iPhone, iPad* and Bluetooth ® devices.
You can operate the audio system from the buttons
* and knobs on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface*.
1 About Your Audio System
iPod, iPad, iPhone and iT unes are trademarks of
Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
Video CDs, DVDs
*1, Blu-ray Discs*1, and 3-inch (8-cm)
mini CDs are not supported.
*1: Models with CD player
SiriusXM ® Radio
* is available on a subscription basis
only. For more information on SiriusXM ® Radio*,
contact a dealer.
2 General Information on the Audio System
P. 387
SiriusXM ® Radio
* is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ®
* is a registered tra demark of SiriusXM
Radio*, Inc.
After you set the power m ode to VEHICLE OFF, you
can use the audio system for up to 30 minutes per
driving cycle, or until opening the driver’s door.
However, whether you can continue using the audio
system depends on the batter y condition. Repeatedly
using this feature ma y drain the battery.
Models with Blu-rayTM or CD player
Models with Display Audio
Remote Controls iPod
USB Flash Drive*1 : Models with color audio system
*2 : Models with Display Audio
*1
*2
* Not available on all models
21 US ODYSSEY-31THR6310.book 276 ページ ２０２０年６月１７日　水曜日　午後２時４６分

277

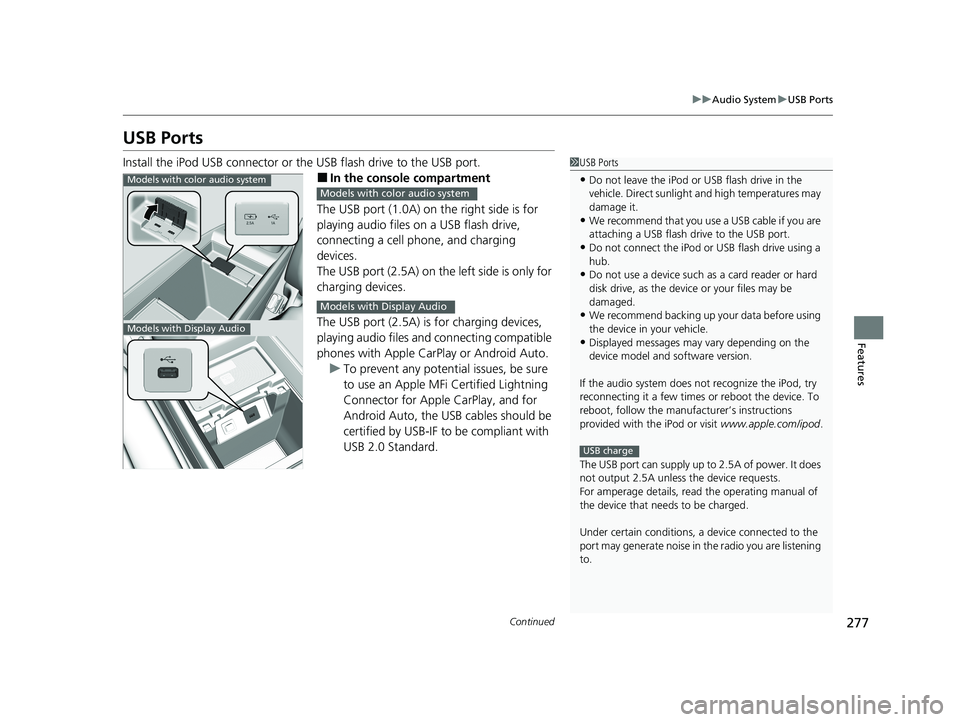

uuAudio System uUSB Ports
Continued
Features
USB Ports
Install the iPod USB connector or the USB flash drive to the USB port.
■In the consol e compartment
The USB port (1.0A) on the right side is for
playing audio files on a USB flash drive,
connecting a cell phone, and charging
devices.
The USB port (2.5A) on the left side is only for
charging devices.
The USB port (2.5A) is for charging devices,
playing audio files and connecting compatible
phones with Apple CarPlay or Android Auto. u To prevent any potenti al issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with
USB 2.0 Standard.
1 USB Ports
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend that you us e a USB cable if you are
attaching a USB flash drive to the USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 2.5A of power. It does
not output 2.5A unless the device requests.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge
Models with color audio system
Models with Display Audio
Models with color audio system
Models with Display Audio
21 US ODYSSEY-31THR6310.book 277 ページ ２０２０年６月１７日　水曜日　午後２時４６分

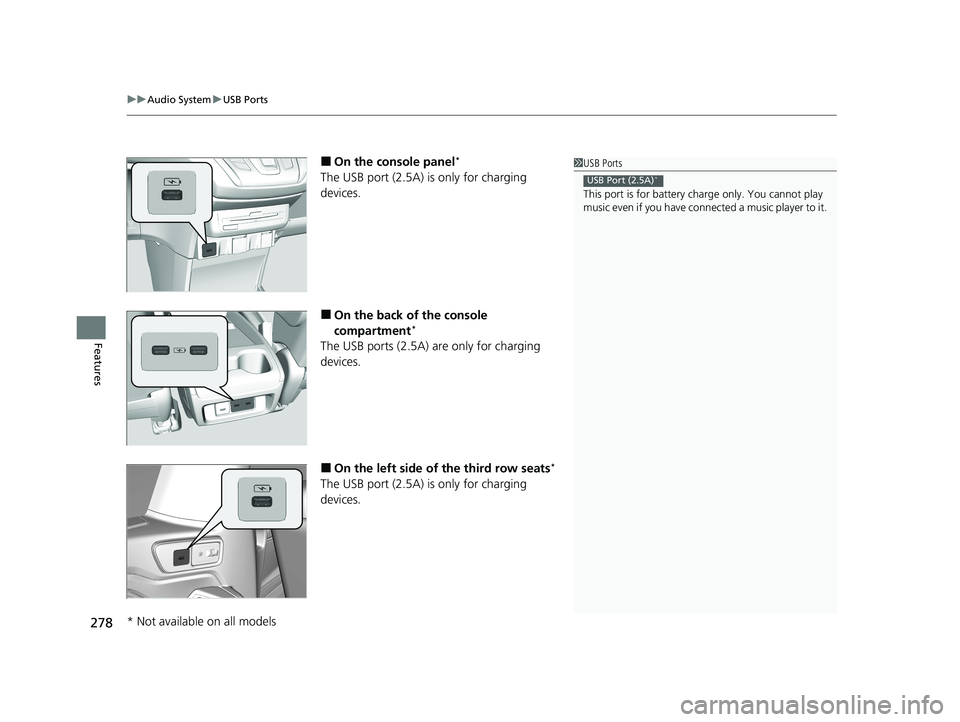

uuAudio System uUSB Ports
278
Features
■On the console panel*
The USB port (2.5A) is only for charging
devices.
■On the back of the console
compartment*
The USB ports (2.5A) are only for charging
devices.
■On the left side of the third row seats*
The USB port (2.5A) is only for charging
devices.
1 USB Ports
This port is for battery charge only. You cannot play
music even if you have conne cted a music player to it.
USB Port (2.5A)*
* Not available on all models
21 US ODYSSEY-31THR6310.book 278 ページ ２０２０年６月１７日　水曜日　午後２時４６分
