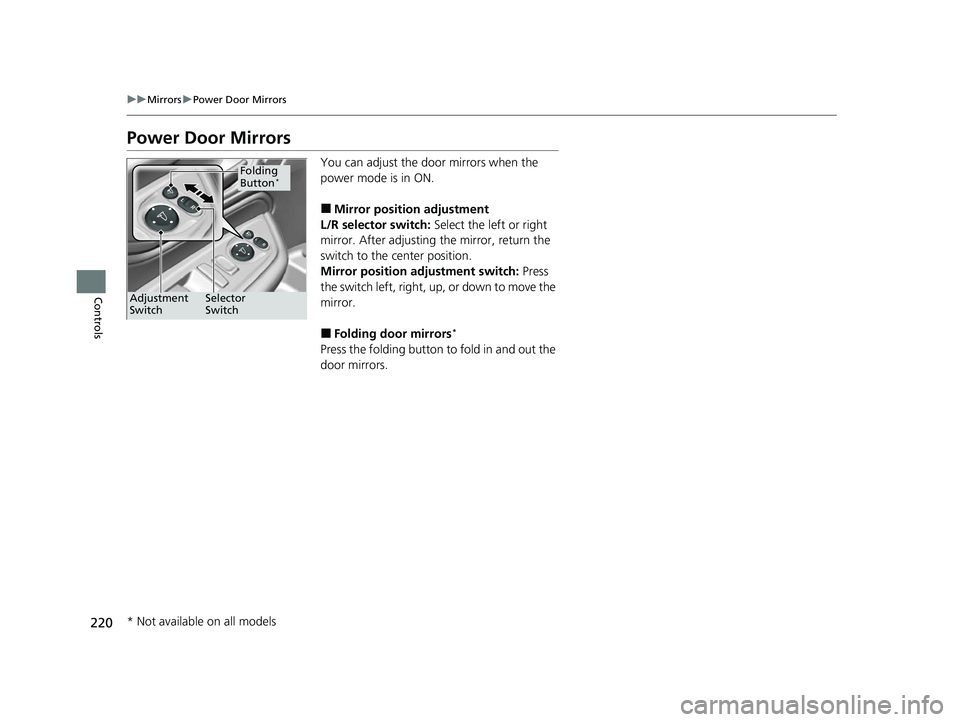

HONDA ODYSSEY 2022 Owners Manual

220
uuMirrors uPower Door Mirrors
Controls
Power Door Mirrors
You can adjust the door mirrors when the
power mode is in ON.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
■Folding door mirrors*
Press the folding button to fold in and out the
door mirrors.
Selector
Switch
Adjustment
Switch
Folding
Button*
* Not available on all models
22 US ODYSSEY-31THR6400.book 220 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

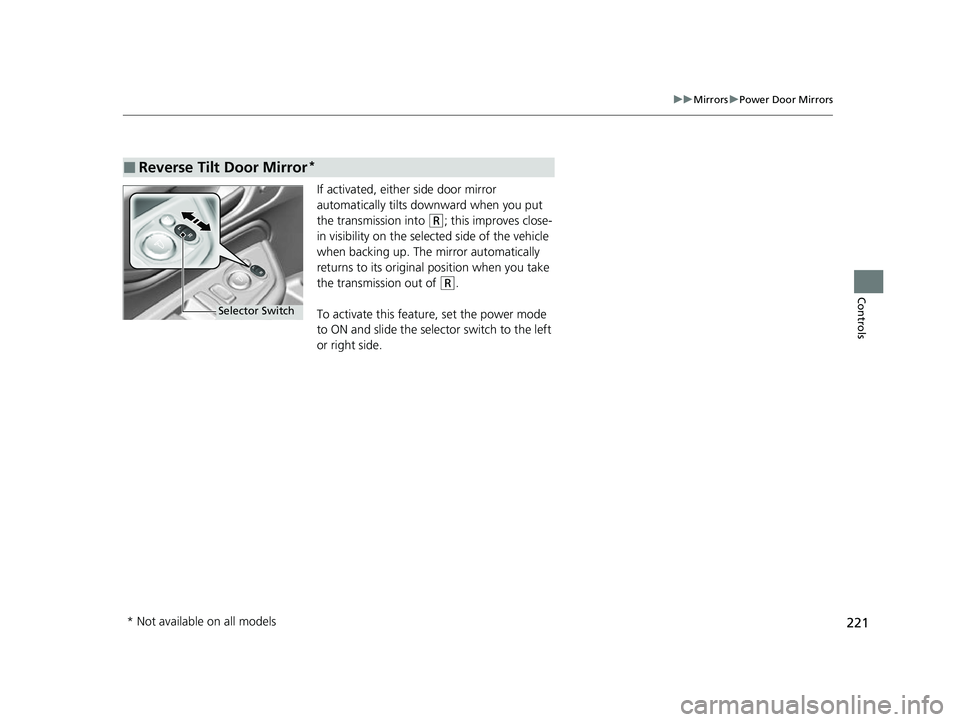

221
uuMirrors uPower Door Mirrors
Controls
If activated, either side door mirror
automatically tilts do wnward when you put
the transmission into
(R; this improves close-
in visibility on the selected side of the vehicle
when backing up. The mirror automatically
returns to its original position when you take
the transmission out of
(R.
To activate this feature, set the power mode
to ON and slide the sele ctor switch to the left
or right side.
■Reverse Tilt Door Mirror*
Selector Switch
* Not available on all models
22 US ODYSSEY-31THR6400.book 221 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

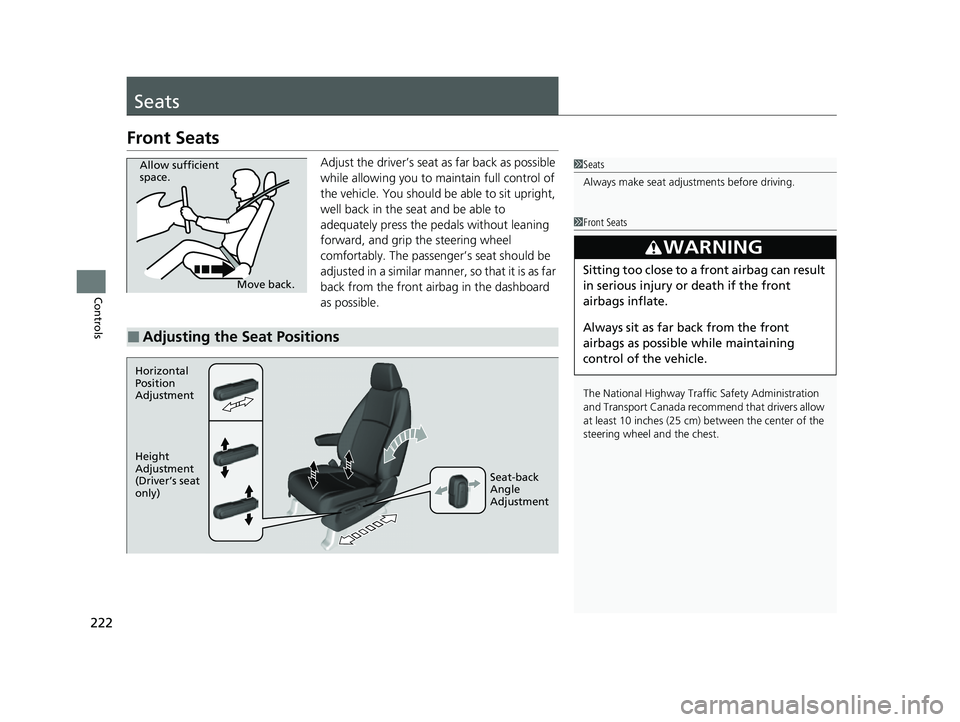

222
Controls
Seats
Front Seats
Adjust the driver’s seat as far back as possible
while allowing you to maintain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger’s seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.1Seats
Always make seat adjustments before driving.
1Front Seats
The National Highway Traffic Safety Administration
and Transport Cana da recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.
3WARNING
Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.
Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.
Move back.
Allow sufficient
space.
■Adjusting the Seat Positions
Horizontal
Position
Adjustment
Height
Adjustment
(Driver’s seat
only)
Seat-back
Angle
Adjustment
22 US ODYSSEY-31THR6400.book 222 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

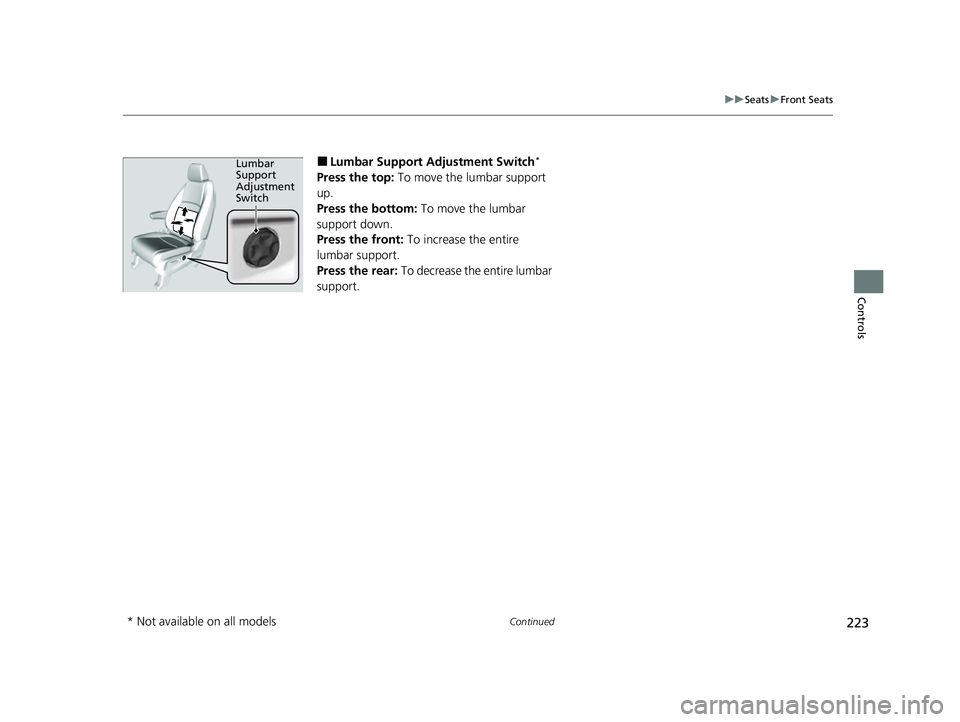

223
uuSeats uFront Seats
Continued
Controls
■Lumbar Support Adjustment Switch*
Press the top: To move the lumbar support
up.
Press the bottom: To move the lumbar
support down.
Press the front: To increase the entire
lumbar support.
Press the rear: To decrease the entire lumbar
support.
Lumbar
Support
Adjustment
Switch
* Not available on all models
22 US ODYSSEY-31THR6400.book 223 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

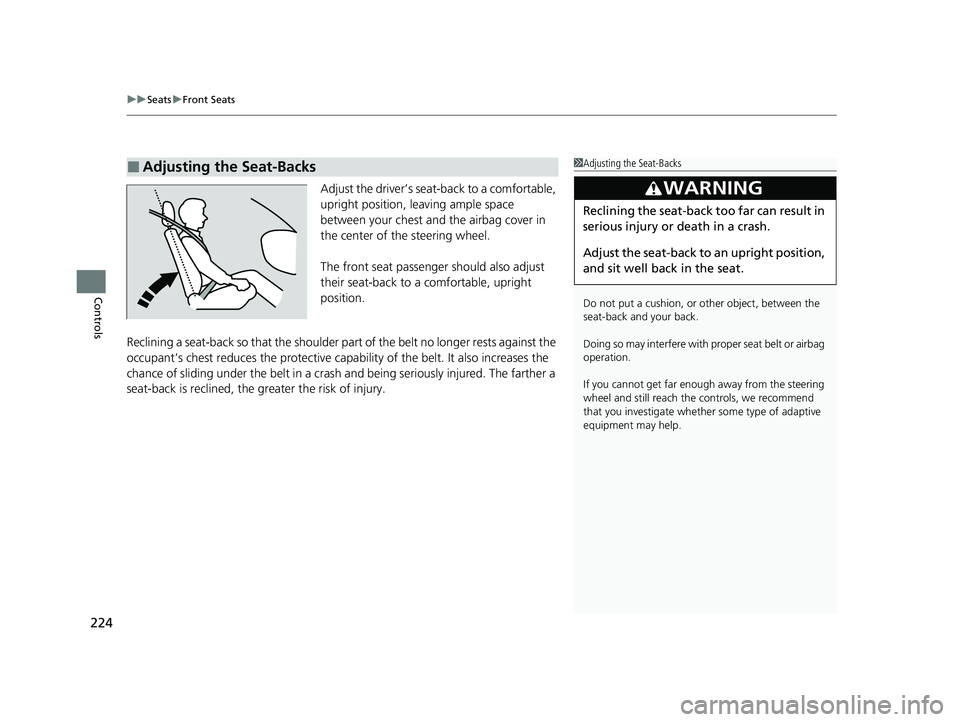

uuSeats uFront Seats
224
Controls
Adjust the driver’s sea t-back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.
The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant’s chest reduces the protective capa bility of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the gr eater the risk of injury.
■Adjusting the Seat-Backs1Adjusting the Seat-Backs
Do not put a cushion, or other object, between the
seat-back and your back.
Doing so may interfere with pr oper seat belt or airbag
operation.
If you cannot get far e nough away from the steering
wheel and still reach th e controls, we recommend
that you investigate whether some type of adaptive
equipment may help.
3WARNING
Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.
22 US ODYSSEY-31THR6400.book 224 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

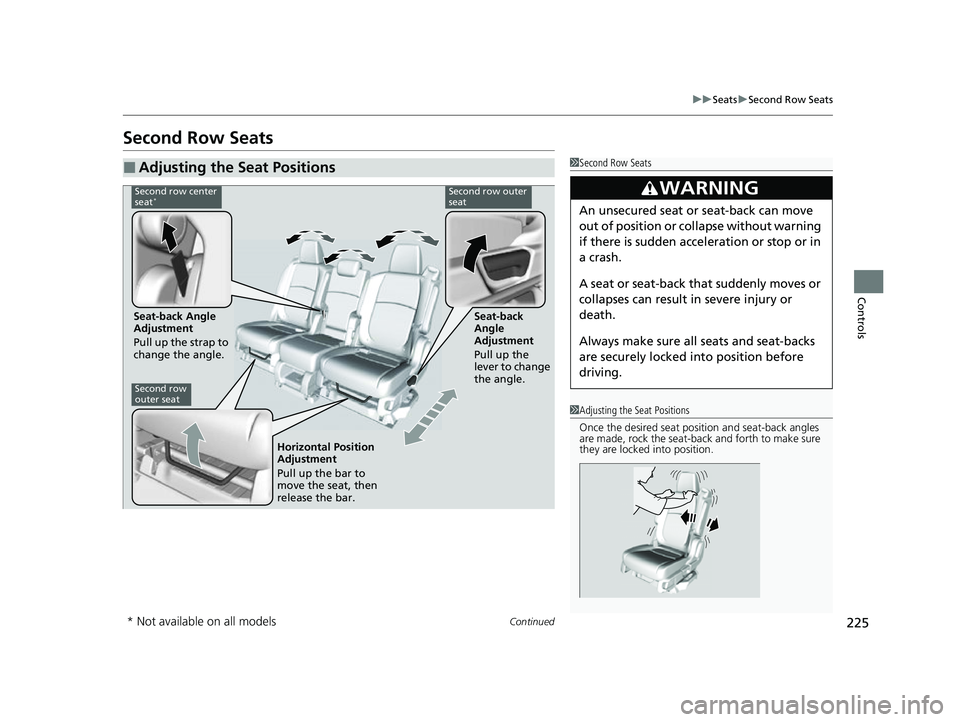

225
uuSeats uSecond Row Seats
Continued
Controls
Second Row Seats
■Adjusting the Seat Positions1Second Row Seats
3WARNING
An unsecured seat or seat-back can move
out of position or collapse without warning
if there is sudden acce leration or stop or in
a crash.
A seat or seat-back that suddenly moves or
collapses can result in severe injury or
death.
Always make sure all seats and seat-backs
are securely locked in to position before
driving.
1 Adjusting the Seat Positions
Once the desired seat posit ion and seat-back angles
are made, rock the seat-back and forth to make sure
they are locked into position.
Second row center
seat*Second row outer
seat
Seat-back Angle
Adjustment
Pull up the strap to
change the angle. Seat-back
Angle
Adjustment
Pull up the
lever to change
the angle.
Second row
outer seat
Horizontal Position
Adjustment
Pull up the bar to
move the seat, then
release the bar.
* Not available on all models
22 US ODYSSEY-31THR6400.book 225 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

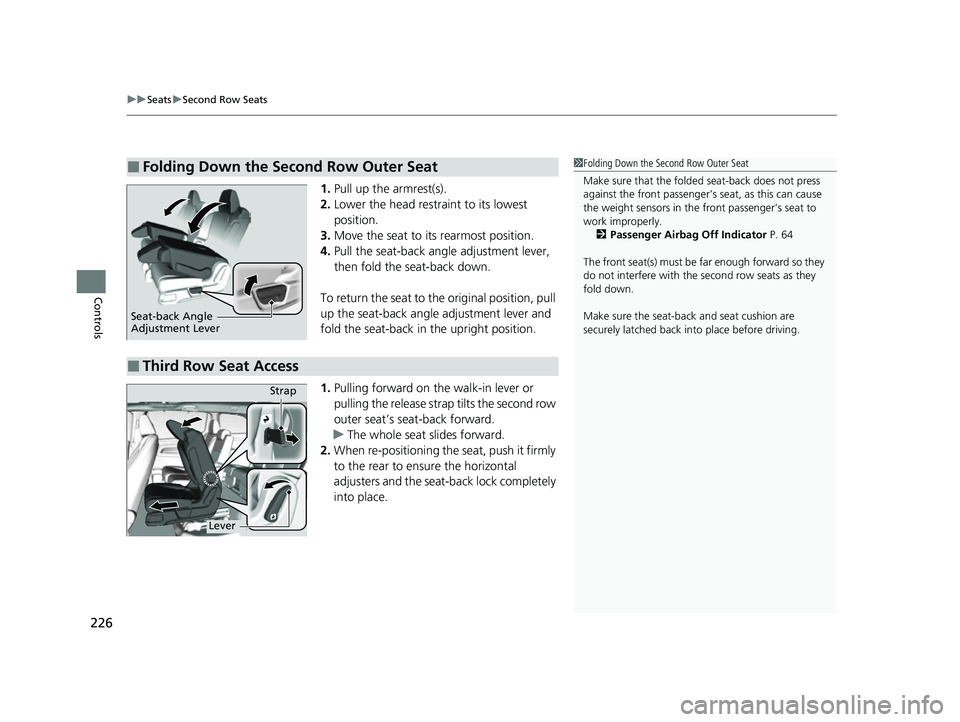

uuSeats uSecond Row Seats
226
Controls
1. Pull up the armrest(s).
2. Lower the head restra int to its lowest
position.
3. Move the seat to it s rearmost position.
4. Pull the seat-back angle adjustment lever,
then fold the seat-back down.
To return the seat to th e original position, pull
up the seat-back angle adjustment lever and
fold the seat-back in the upright position.
1. Pulling forward on the walk-in lever or
pulling the release strap tilts the second row
outer seat’s seat-back forward.
u The whole seat slides forward.
2. When re-positioning th e seat, push it firmly
to the rear to ensure the horizontal
adjusters and the seat-back lock completely
into place.
■Folding Down the Second Row Outer Seat1 Folding Down the Second Row Outer Seat
Make sure that the folded seat-back does not press
against the front passenger’s seat, as this can cause
the weight sensors in the front passenger’s seat to
work improperly. 2 Passenger Airbag Off Indicator P. 64
The front seat(s) must be far enough forward so they
do not interfere with the second row seats as they
fold down.
Make sure the seat-back and seat cushion are
securely latched back in to place before driving.
Seat-back Angle
Adjustment Lever
■Third Row Seat Access
LeverStrap
22 US ODYSSEY-31THR6400.book 226 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

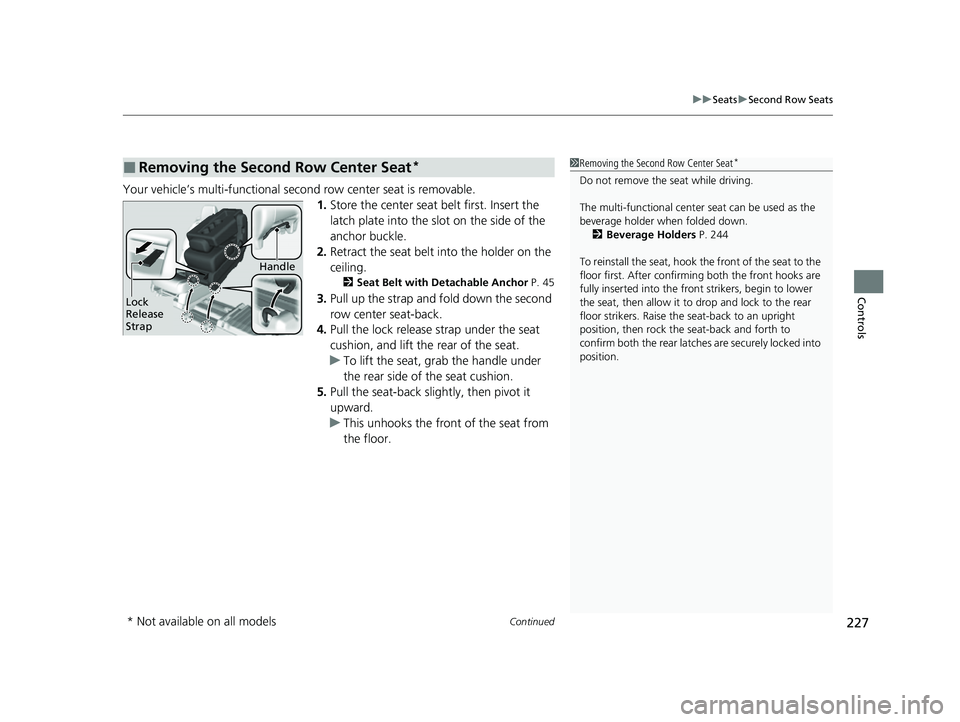

Continued227
uuSeats uSecond Row Seats
Controls
Your vehicle’s multi-functional second row center seat is removable.
1.Store the center seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 45
3.Pull up the strap and fold down the second
row center seat-back.
4. Pull the lock release strap under the seat
cushion, and lift the rear of the seat.
u To lift the seat, gr ab the handle under
the rear side of the seat cushion.
5. Pull the seat-back slightly, then pivot it
upward.
u This unhooks the front of the seat from
the floor.
■Removing the Second Row Center Seat*1Removing the Second Row Center Seat*
Do not remove the seat while driving.
The multi-functional center seat can be used as the
beverage holder when folded down. 2 Beverage Holders P. 244
To reinstall the seat, hook the front of the seat to the
floor first. Afte r confirming both the front hooks are
fully inserted into the front strikers, begin to lower
the seat, then allow it to drop and lock to the rear
floor strikers. Raise the seat-back to an upright
position, then rock the seat-back and forth to
confirm both the rear latches are securely locked into
position.
Lock
Release
Strap
Handle
* Not available on all models
22 US ODYSSEY-31THR6400.book 227 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

uuSeats uSecond Row Seats
228
Controls

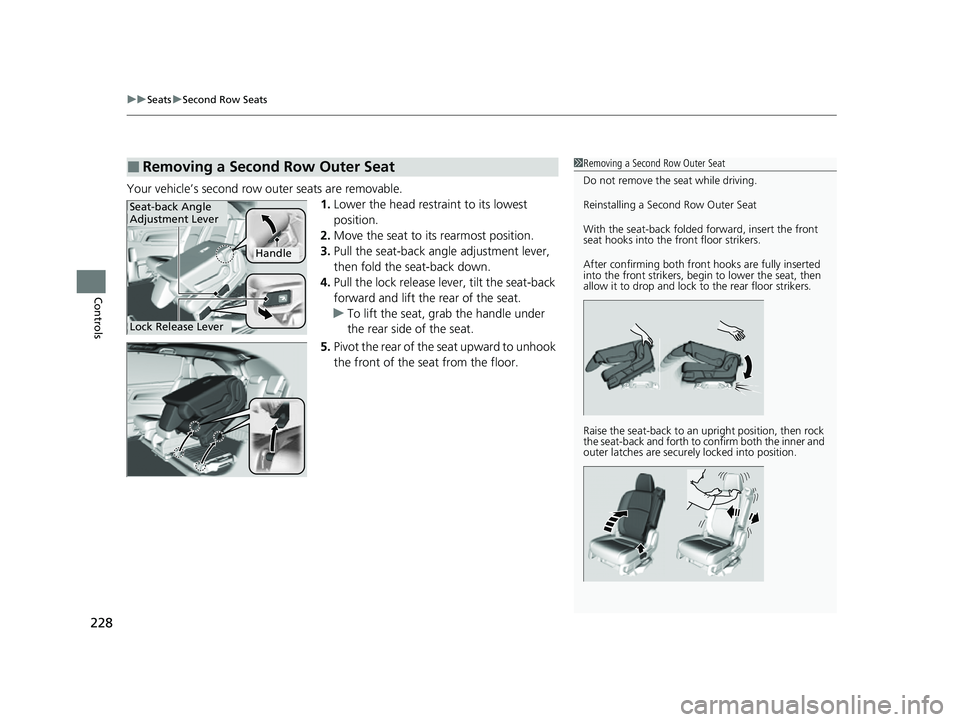

Your vehicle’s second row outer seats are removable.
1.Lower the head restra int to its lowest
position.
2. Move the seat to it s rearmost position.
3. Pull the seat-back angle adjustment lever,
then fold the seat-back down.
4. Pull the lock release lever, tilt the seat-back
forward and lift the rear of the seat.
u To lift the seat, grab the handle under
the rear side of the seat.
5. Pivot the rear of the seat upward to unhook
the front of the seat from the floor.
■Removing a Second Row Outer Seat1Removing a Second Row Outer Seat
Do not remove the seat while driving.
Reinstalling a Second Row Outer Seat
With the seat-back folded forward, insert the front
seat hooks into the front floor strikers.
After confirming both front hooks are fully inserted
into the front strikers, begin to lower the seat, then
allow it to drop and lock to the rear floor strikers.
Raise the seat-back to an upright position, then rock
the seat-back and forth to confirm both the inner and
outer latches are securely locked into position.
Handle
Seat-back Angle
Adjustment Lever
Lock Release Lever
22 US ODYSSEY-31THR6400.book 228 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

229
uuSeats uSecond Row Seats
Controls
Your vehicle’s second row outer seats are slidable.
1.Remove the second row center seat.
2 Removing the Second Row Center
Seat
* P. 227
2.Pull up the handle at the side of the second
row outer seat, then slide the seat.

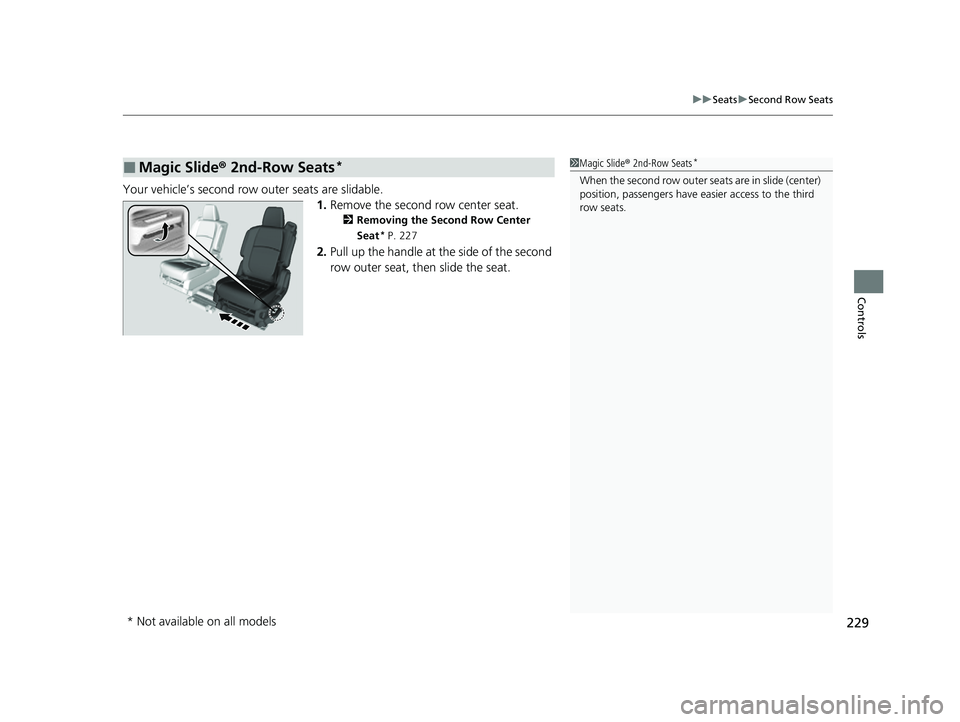

■Magic Slide® 2nd-Row Seats*1Magic Slide ® 2nd-Row Seats*
When the second row outer seats are in slide (center)
position, passengers have eas ier access to the third
row seats.
* Not available on all models
