HONDA ODYSSEY 2022 Owners Manual

230
uuSeats uThird Row Seats
Controls

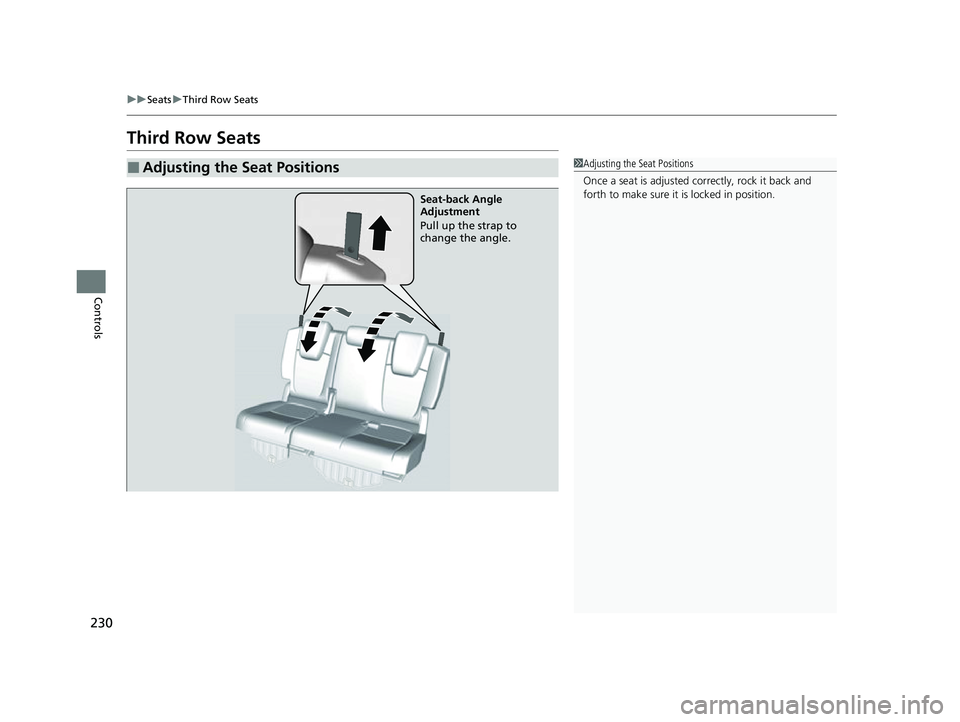

Third Row Seats
■Adjusting the Seat Positions1Adjusting the Seat Positions
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
Seat-back Angle
Adjustment
Pull up the strap to
change the angle.
22 US ODYSSEY-31THR6400.book 230 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

Continued231
uuSeats uThird Row Seats
Controls

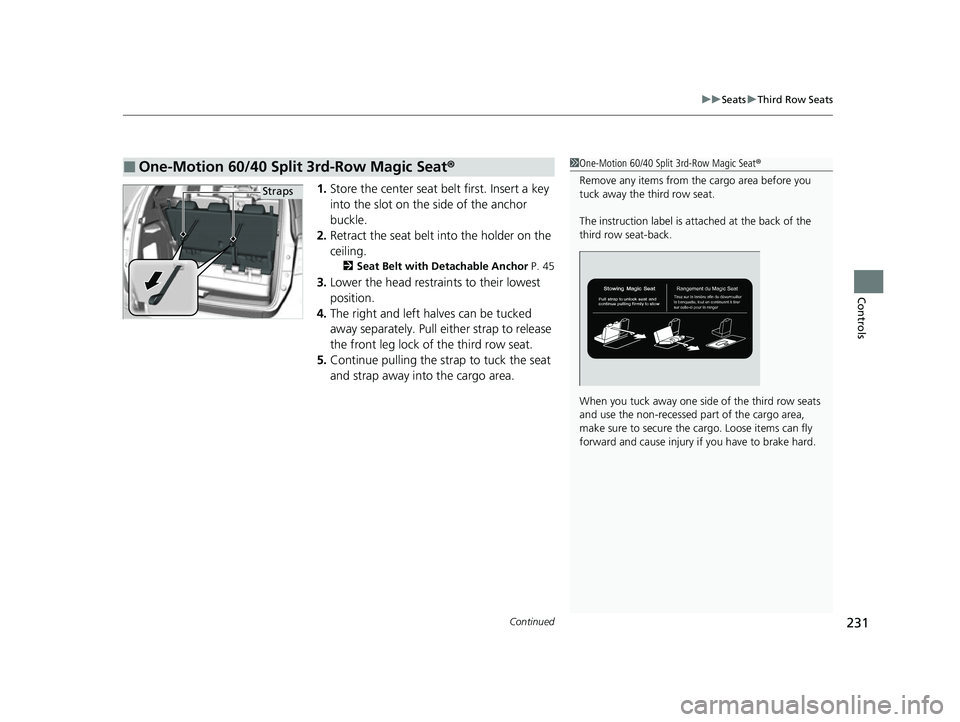

1. Store the center seat belt first. Insert a key
into the slot on the side of the anchor
buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 45
3.Lower the head restrain ts to their lowest
position.
4. The right and left halves can be tucked
away separately. Pull either strap to release
the front leg lock of the third row seat.
5. Continue pulling the strap to tuck the seat
and strap away into the cargo area.
■One-Motion 60/40 Split 3rd-Row Magic Seat ®1One-Motion 60/40 Split 3rd-Row Magic Seat ®
Remove any items from the cargo area before you
tuck away the third row seat.
The instruction label is atta ched at the back of the
third row seat-back.
When you tuck away one si de of the third row seats
and use the non-recessed pa rt of the cargo area,
make sure to secure the cargo. Loose items can fly
forward and cause injury if you have to brake hard.
Straps
22 US ODYSSEY-31THR6400.book 231 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

uuSeats uThird Row Seats
232
Controls

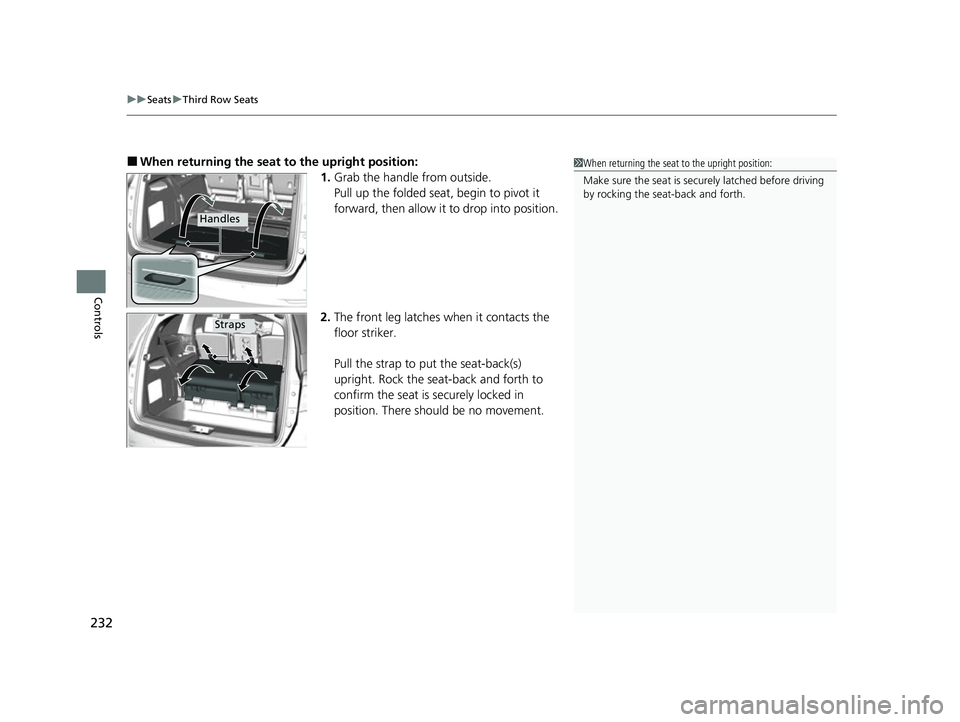

■When returning the seat to the upright position:
1. Grab the handle from outside.
Pull up the folded seat , begin to pivot it
forward, then allow it to drop into position.
2. The front leg latches when it contacts the
floor striker.
Pull the strap to put the seat-back(s)
upright. Rock the sea t-back and forth to
confirm the seat is securely locked in
position. There should be no movement.1 When returning the seat to the upright position:
Make sure the seat is securely latched before driving
by rocking the seat-back and forth.
Handles
Straps
22 US ODYSSEY-31THR6400.book 232 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

233
uuSeats uRear Seat Reminder
Controls

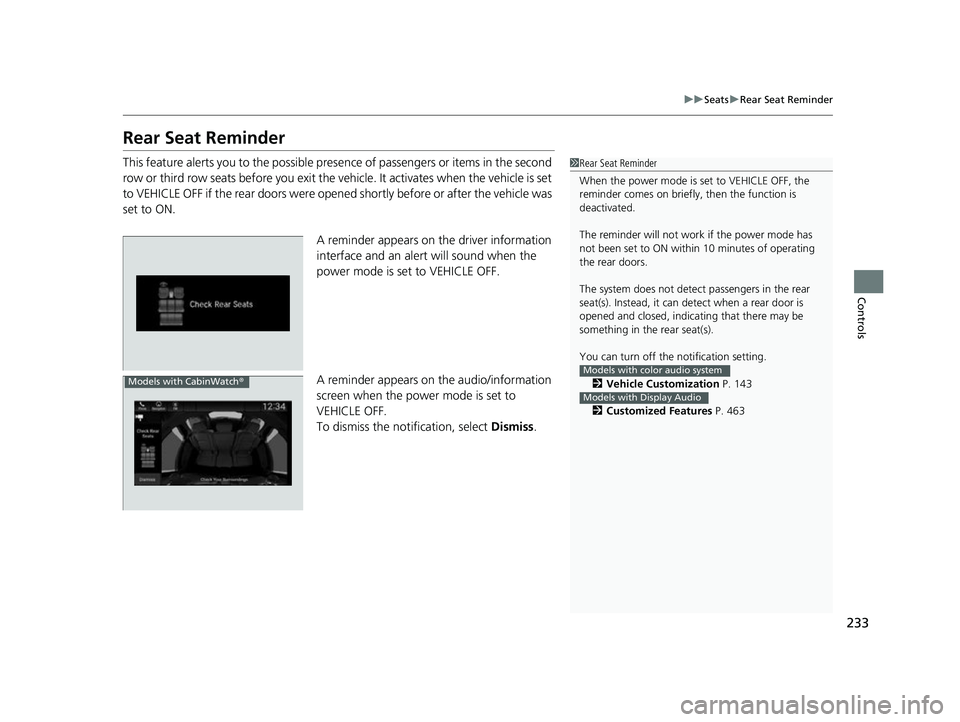

Rear Seat Reminder
This feature alerts you to th e possible presence of passengers or items in the second
row or third row seats before you exit the ve hicle. It activates when the vehicle is set
to VEHICLE OFF if the rear doors were open ed shortly before or after the vehicle was
set to ON.
A reminder appears on the driver information
interface and an alert will sound when the
power mode is set to VEHICLE OFF.
A reminder appears on the audio/information
screen when the power mode is set to
VEHICLE OFF.
To dismiss the notification, select Dismiss.1Rear Seat Reminder
When the power mode is set to VEHICLE OFF, the
reminder comes on briefly, then the function is
deactivated.
The reminder will not work if the power mode has
not been set to ON within 10 minutes of operating
the rear doors.
The system does not detect passengers in the rear
seat(s). Instead, it can detect when a rear door is
opened and closed, indica ting that there may be
something in the rear seat(s).
You can turn off the notification setting.
2 Vehicle Customization P. 143
2 Customized Features P. 463
Models with color audio system
Models with Display Audio
Models with CabinWatch ®
22 US ODYSSEY-31THR6400.book 233 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

234
uuSeats uMaintain a Proper Sitting Position
Controls

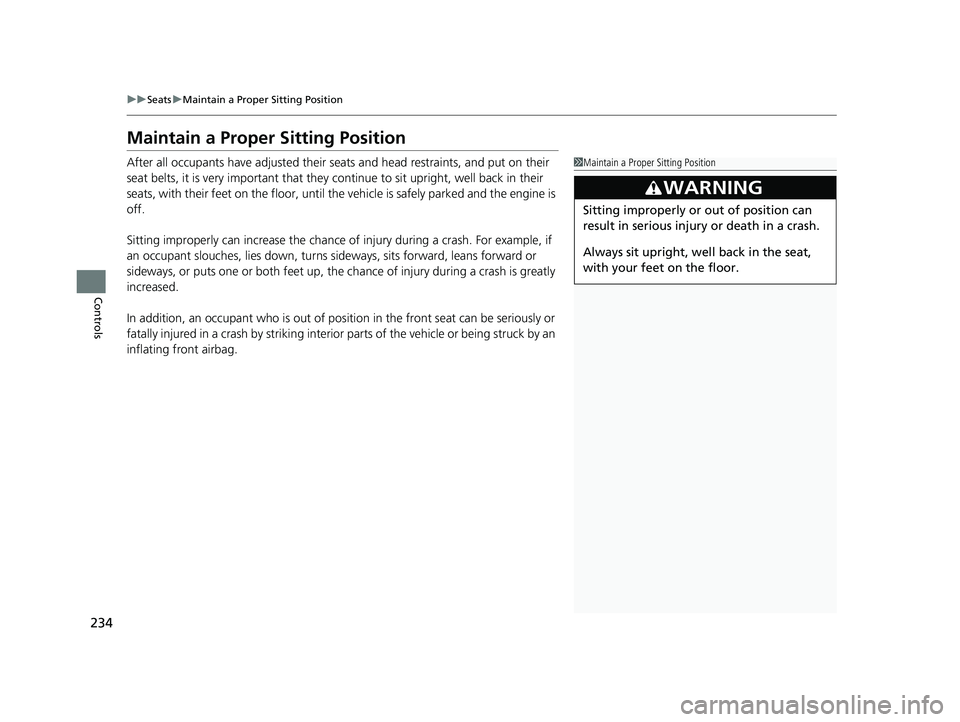

Maintain a Proper Sitting Position
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.1 Maintain a Proper Sitting Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
22 US ODYSSEY-31THR6400.book 234 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

235
uuSeats uHead Restraints
Continued
Controls

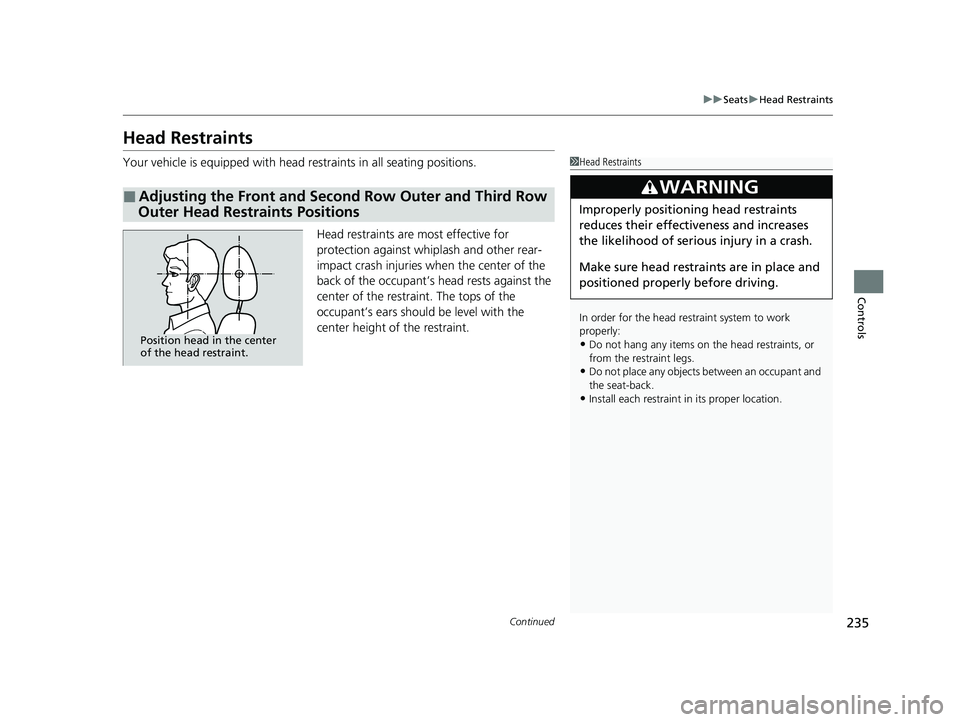

Head Restraints
Your vehicle is equipped with head restraints in all seating positions.
Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant’s head rests against the
center of the restraint. The tops of the
occupant’s ears should be level with the
center height of the restraint.
■Adjusting the Front and Second Row Outer and Third Row
Outer Head Restraints Positions
1 Head Restraints
In order for the head restraint system to work
properly:
•Do not hang any items on the head restraints, or
from the restraint legs.
•Do not place any objects between an occupant and
the seat-back.
•Install each restraint in its proper location.
3WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.
Position head in the center
of the head restraint.
22 US ODYSSEY-31THR6400.book 235 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

236
uuSeats uHead Restraints
Controls

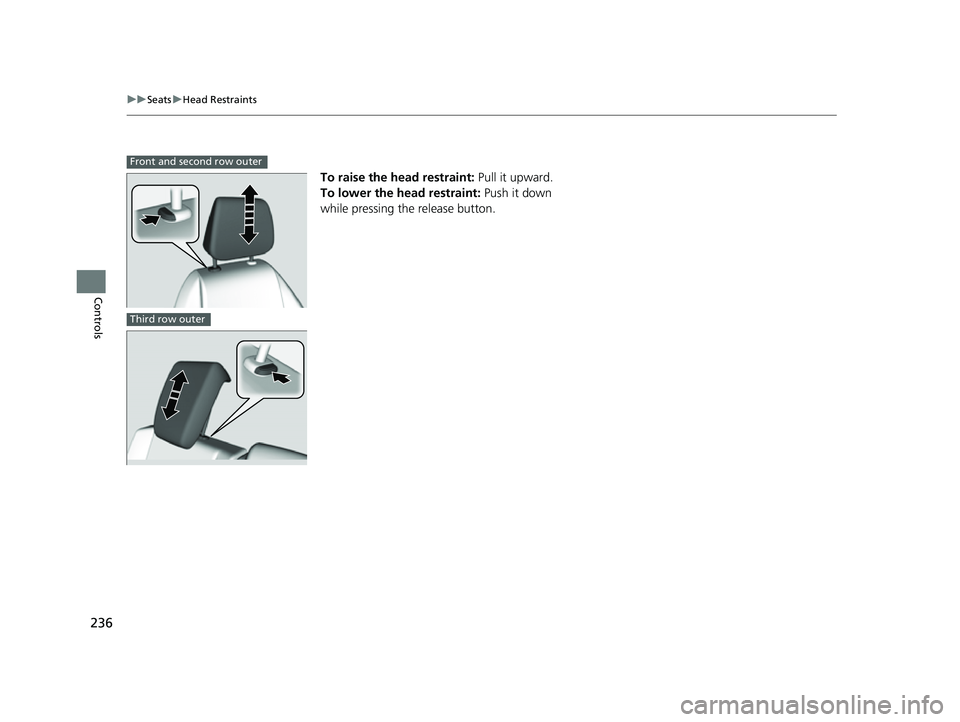

To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.
Front and second row outer
Third row outer
22 US ODYSSEY-31THR6400.book 236 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

237
uuSeats uHead Restraints
Controls

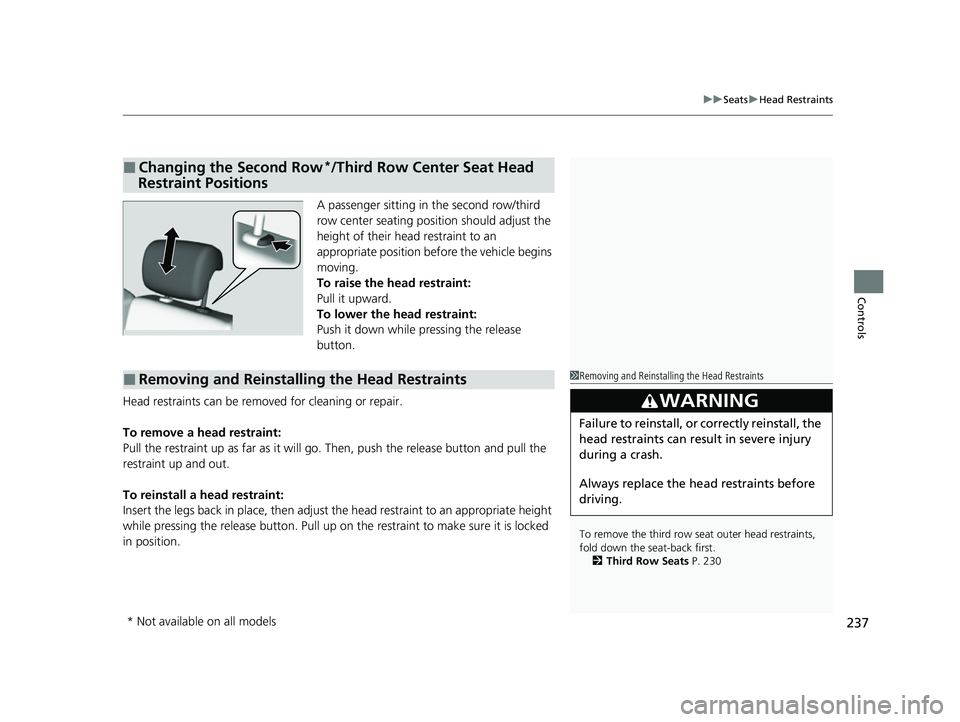

A passenger sitting in the second row/third
row center seating position should adjust the
height of their head restraint to an
appropriate position before the vehicle begins
moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then, push the release button and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.
■Changing the Second Row*/Third Row Center Seat Head
Restraint Positions
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
To remove the third row seat outer head restraints,
fold down the seat-back first.
2 Third Row Seats P. 230
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
* Not available on all models
22 US ODYSSEY-31THR6400.book 237 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

238
uuSeats uArmrest
Controls

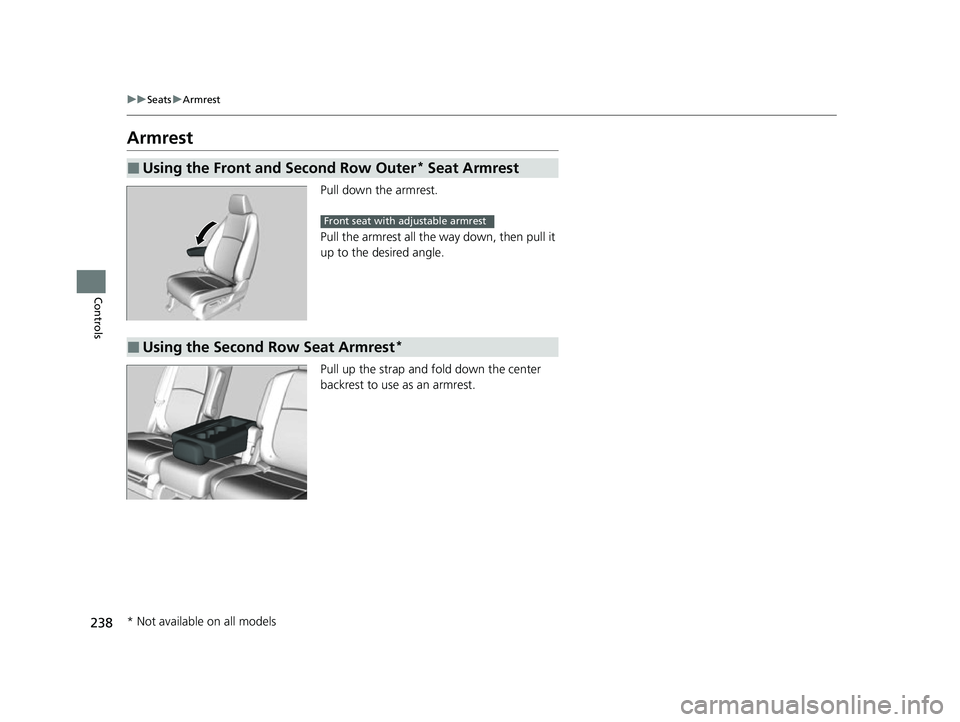

Armrest
Pull down the armrest.
Pull the armrest all the way down, then pull it
up to the desired angle.
Pull up the strap and fold down the center
backrest to use as an armrest.
■Using the Front and Second Row Outer* Seat Armrest
Front seat with adjustable armrest
■Using the Second Row Seat Armrest*
* Not available on all models
22 US ODYSSEY-31THR6400.book 238 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

239Continued
Controls

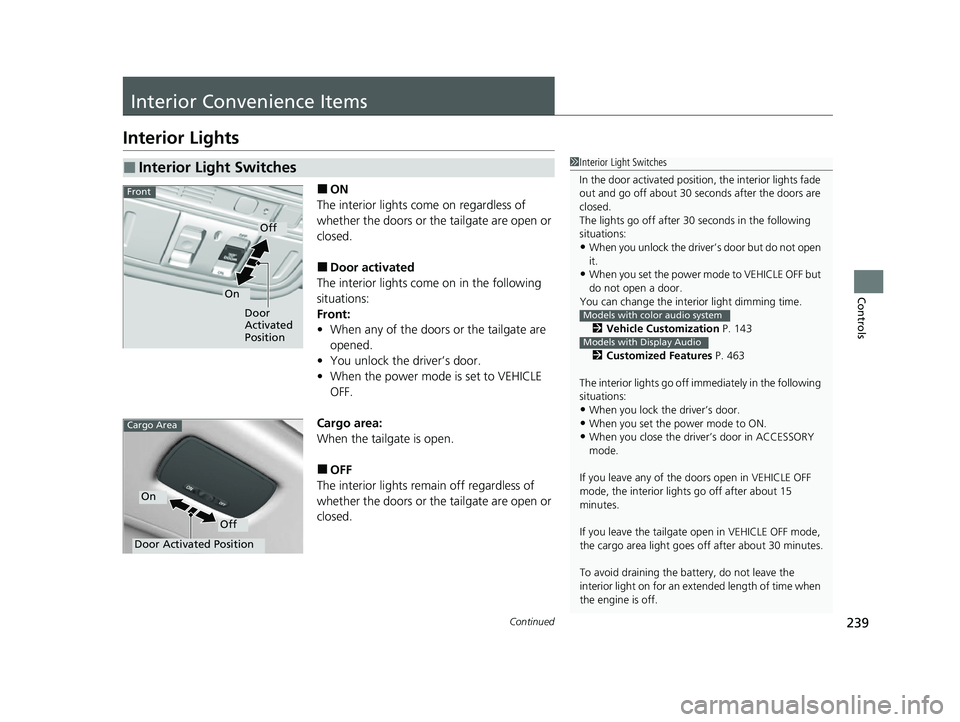

Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors or the tailgate are open or
closed.
■Door activated
The interior lights come on in the following
situations:
Front:
• When any of the doors or the tailgate are
opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF.
Cargo area:
When the tailgate is open.
■OFF
The interior lights remain off regardless of
whether the doors or the tailgate are open or
closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 seconds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF but
do not open a door.
You can change the inte rior light dimming time.
2 Vehicle Customization P. 143
2 Customized Features P. 463
The interior lights go off im mediately in the following
situations:
•When you lock the driver’s door.
•When you set the power mode to ON.•When you close the driver’s door in ACCESSORY
mode.
If you leave any of the doors open in VEHICLE OFF
mode, the interior light s go off after about 15
minutes.
If you leave the tailgate open in VEHICLE OFF mode,
the cargo area light goes of f after about 30 minutes.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine is off.
Models with color audio system
Models with Display Audio
Door
Activated
Position
Off
On
Front
Door Activated Position
Off
On
Cargo Area
