HONDA ODYSSEY 2022 Owner's Guide

30

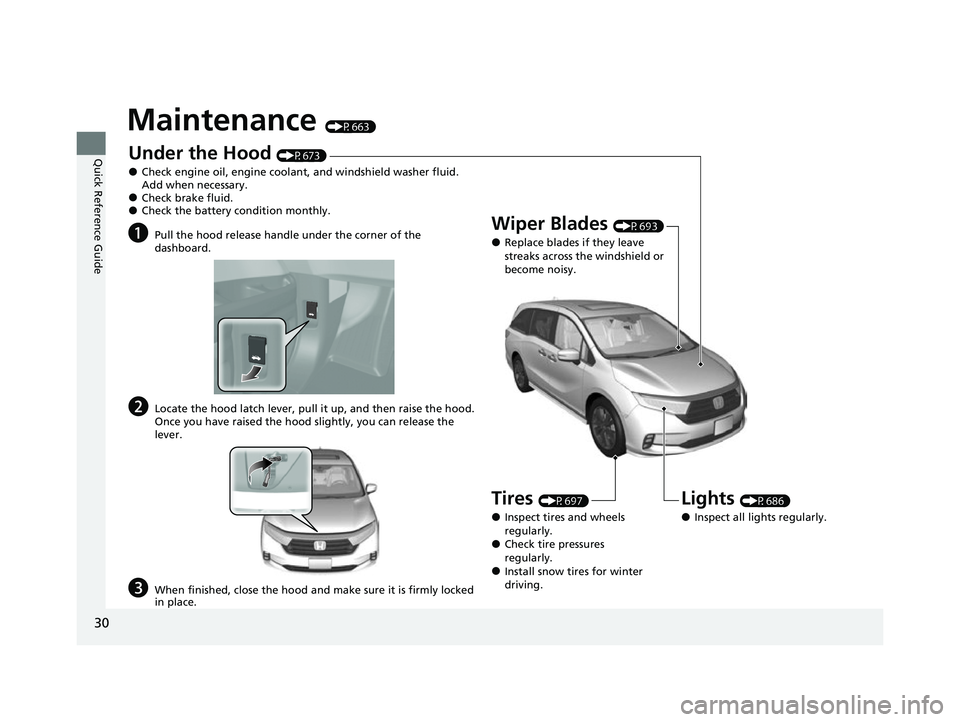

Quick Reference Guide
Maintenance (P663)
Under the Hood (P673)
●Check engine oil, engine coolant, and windshield washer fluid.
Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the hood.
Once you have raised the hood slightly, you can release the
lever.
cWhen finished, close the hood and make sure it is firmly locked
in place.
Lights (P686)
●Inspect all lights regularly.
Wiper Blades (P693)
●Replace blades if they leave
streaks across the windshield or
become noisy.
Tires (P697)
●Inspect tires and wheels
regularly.
●Check tire pressures
regularly.
●Install snow tires for winter
driving.
22 US ODYSSEY-31THR6400.book 30 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

Quick Reference Guide
31

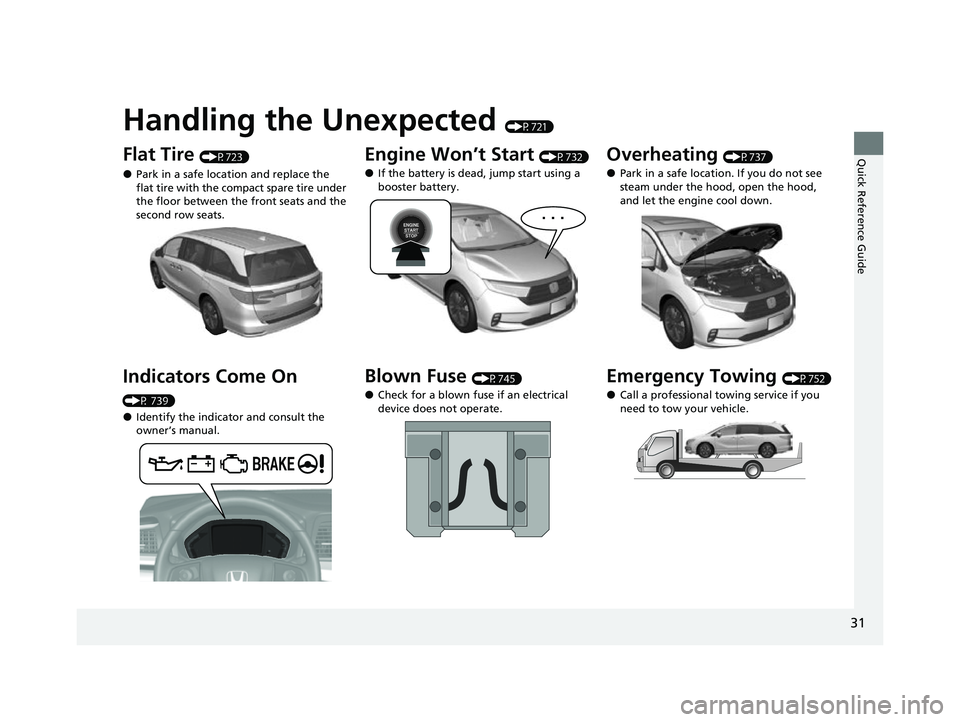

Handling the Unexpected (P721)
Flat Tire (P723)
●Park in a safe location and replace the
flat tire with the compact spare tire under
the floor between the front seats and the
second row seats.
Indicators Come On
(P 739)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P732)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P745)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P737)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P752)
●Call a professional towing service if you
need to tow your vehicle.
22 US ODYSSEY-31THR6400.book 31 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

32
Quick Reference Guide

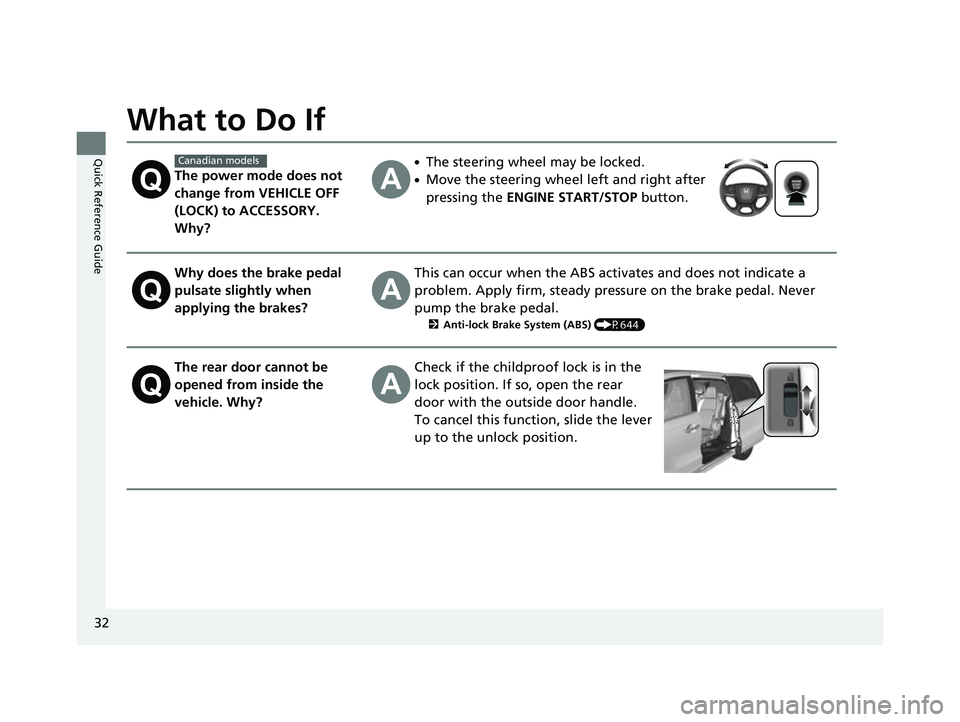

What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●The steering wheel may be locked.
●Move the steering wheel left and right after
pressing the ENGINE START/STOP button.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P644)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear
door with the outside door handle.
To cancel this function, slide the lever
up to the unlock position.
Canadian models
22 US ODYSSEY-31THR6400.book 32 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

33
Quick Reference Guide

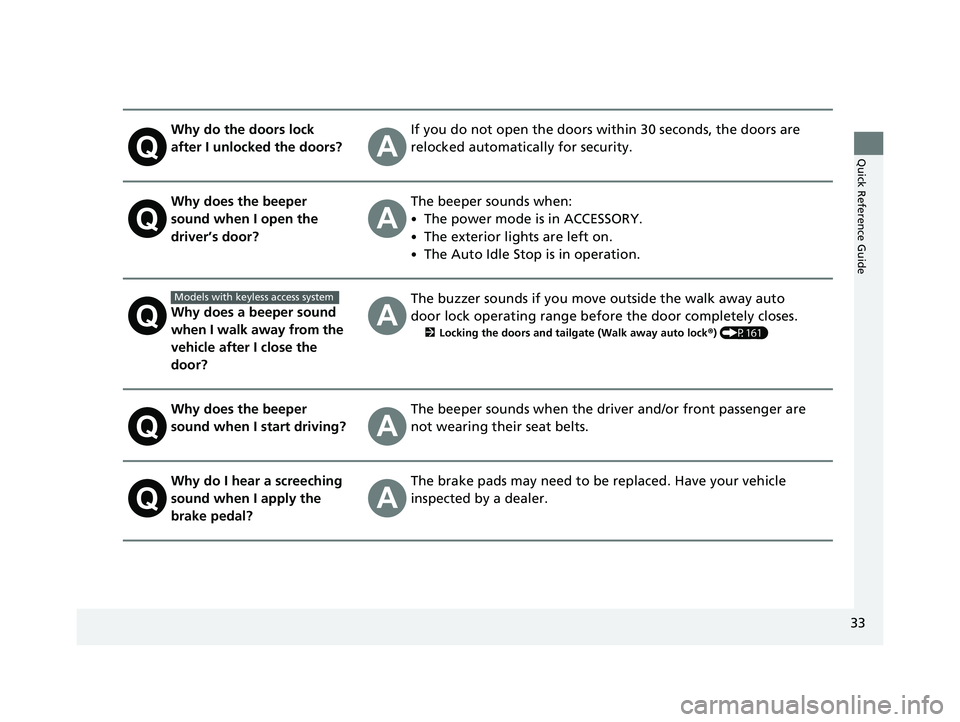

Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
•The power mode is in ACCESSORY.
•The exterior lights are left on.
•The Auto Idle Stop is in operation.
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?
The buzzer sounds if you move outside the walk away auto
door lock operating range before the door completely closes.
2Locking the doors and tailgate (Walk away auto lock ®) (P161)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Models with keyless access system
22 US ODYSSEY-31THR6400.book 33 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

34
Quick Reference Guide

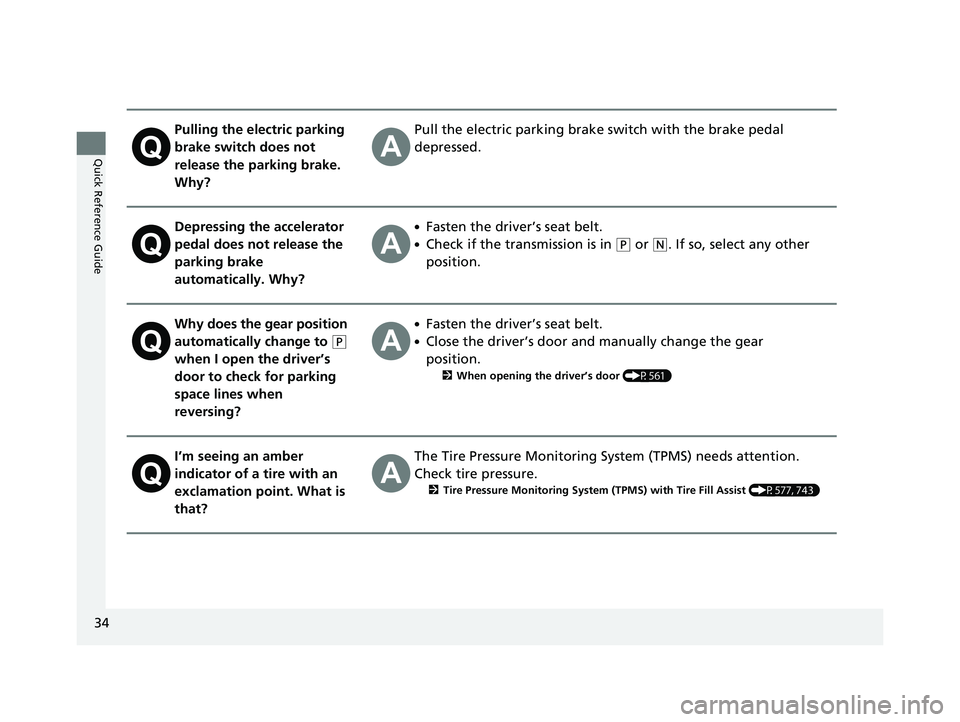

Pulling the electric parking
brake switch does not
release the parking brake.
Why?Pull the electric parking brake switch with the brake pedal
depressed.
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
Why does the gear position
automatically change to
(P
when I open the driver’s
door to check for parking
space lines when
reversing?
●Fasten the driver’s seat belt.
●Close the driver’s door and manually change the gear
position.
2 When opening the driver’s door (P561)
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring System (TPMS) needs attention.
Check tire pressure.
2 Tire Pressure Monitoring System (TPMS) with Tire Fill Assist (P577, 743)
22 US ODYSSEY-31THR6400.book 34 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

35
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe DrivingImportant Safety Precautions.............. 36
Your Vehicle’s Safety Features ............ 38
Safety CheckList ................................. 39
Seat Belts About Your Seat Belts ........................ 40
Fastening a Seat Belt .......................... 43
Seat Belt Inspection ............................ 48
Airbags Airbag System Components ............... 49
Types of Airbags ................................ 52
Front Airbags (SRS) ............................ 52 Knee Airbags ..................................... 57
Side Airbags....................................... 60
Side Curtain Airbags .......................... 62
Airbag System Indicators .................... 63
Airbag Care ....................................... 66
Child Safety Protecting Child Passengers ............... 67
Safety of Infants a nd Small Children... 69
Safety of Larger Children ................... 83
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 85 Safety Labels
Label Locations .................................. 86
22 US ODYSSEY-31THR6400.book 35 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

36
Safe Driving
For Safe Driving
The following pages explain your vehicle’s safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passengers always wear your seat belts, and
wear them properly.
■Restrain all children
Children ages 12 and under should ride properly restrained in a back seat, not the
front seat. Infants and small children shoul d be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don’t drink and drive
Alcohol and driving don’t mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don’t drink and drive, and don’t let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and te rritories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
22 US ODYSSEY-31THR6400.book 36 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

37
uuFor Safe Driving uImportant Safety Precautions
Safe Driving
■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles, and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all regul arly scheduled maintenance.
■Do not leave children unattended in the vehicle
Children, pets and people needing assistan ce left unattended in the vehicle may be
injured if they activate one or more of the vehicle controls. They may also cause the
vehicle to move, resulting in a crash in wh ich they and/or another person(s) can be
injured or killed. Also, depending on the am bient temperature, the temperature of
the interior may reach extreme levels, which can result in harm or death.
Even if the climate control system is on, never leave them in the vehicle unattended
as the climate control system can shut off at any time.
22 US ODYSSEY-31THR6400.book 37 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

38
uuFor Safe Driving uYour Vehicle’s Safety Features
Safe Driving

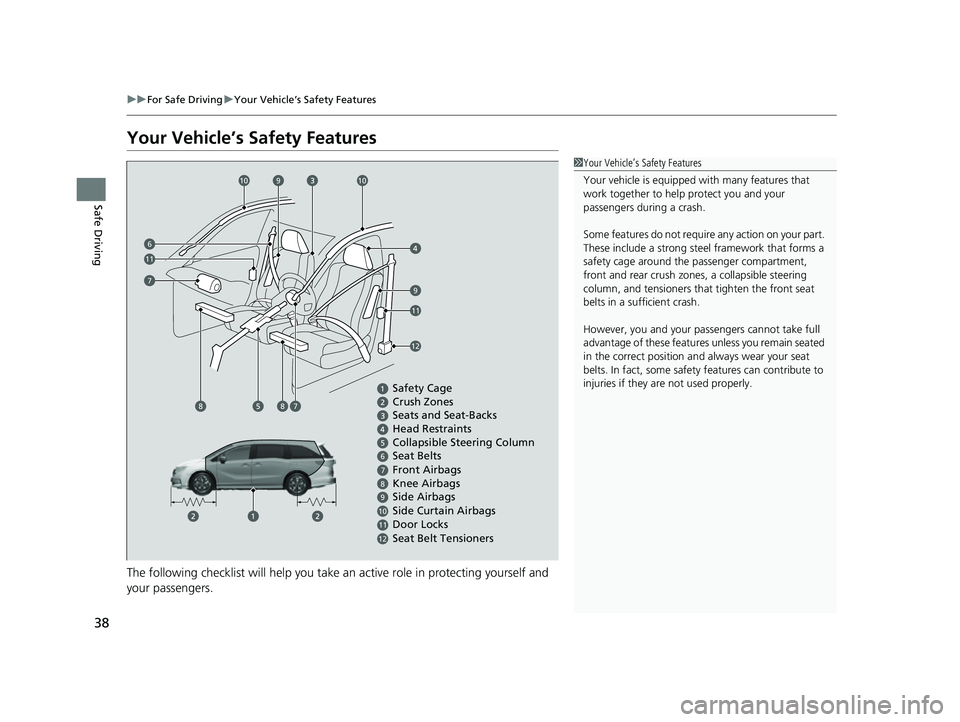

Your Vehicle’s Safety Features
The following checklist will help you take an active role in protecting yourself and
your passengers.
1 Your Vehicle’s Safety Features
Your vehicle is equipped wi th many features that
work together to help protect you and your
passengers during a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zone s, a collapsible steering
column, and tensioners that tighten the front seat
belts in a sufficient crash.
However, you and your passe ngers cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
6
789
10
11
Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Side Curtain Airbags
Seat Belt Tensioners Side Airbags
Door Locks
6
79
10
11
910
7
Knee Airbags
12
12
11
88
22 US ODYSSEY-31THR6400.book 38 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

39
uuFor Safe Driving uSafety CheckList
Safe Driving
Safety CheckList
For the safety of you and your passengers, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the tailgate are
closed and locked. Locking the doors and the tailgate helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
tailgate.
2 Locking/Unlocking the Doors from the Inside P. 166
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Seats P. 222
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint aligns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Front and Second Row Outer and Third Row Outer Head
Restraints Positions P. 235
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 43
•Protect children by using seat belts or child seats according to a child’s age, height
and weight.
2 Child Safety P. 67
1Safety CheckList
If the door and/or tailga te open message appears on
the driver information inte rface, a door and/or the
tailgate is not completely closed. Close all doors and
the tailgate tightly unti l the message disappears.
2 Driver Information Interface Warning and
Information Messages P. 108
22 US ODYSSEY-31THR6400.book 39 ページ ２０２０年１１月１６日　月曜日　午後１時４１分
