uuChild Safety uSafety of Infants and Small Children

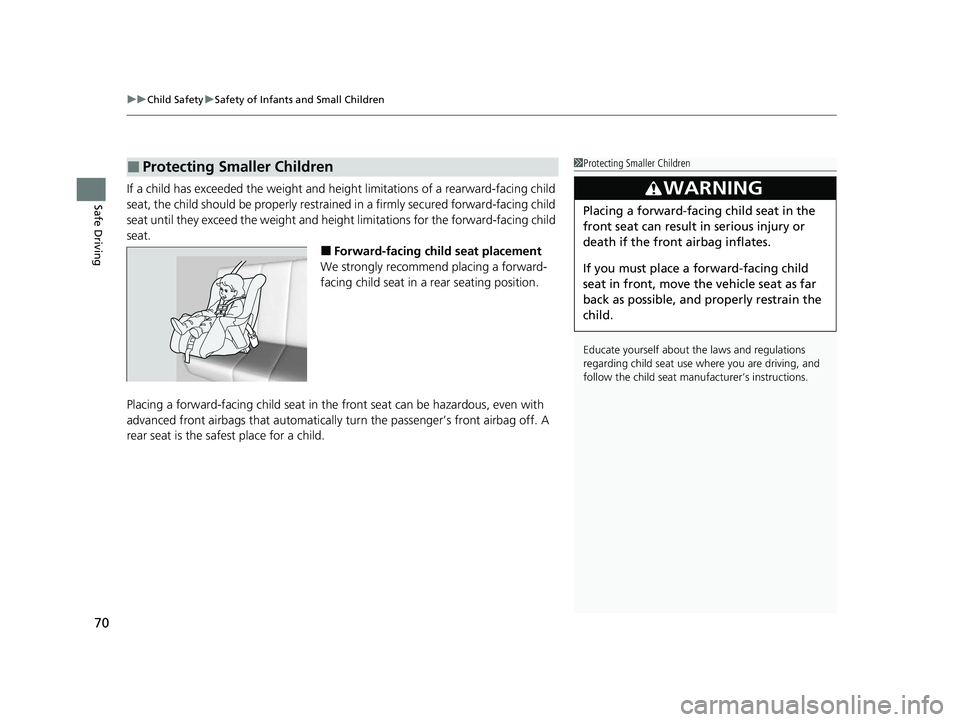

70
Safe DrivingIf a child has exceeded the weight and heig ht limitations of a rearward-facing child
seat, the child should be properly restrained in a firmly secured forward-facing child
seat until they exceed the weight and height limitations for the forward-facing child
seat.
■Forward-facing child seat placement
We strongly recommend placing a forward-
facing child seat in a rear seating position.
Placing a forward-facing child seat in the front seat can be hazardous, even with
advanced front airbags that automatically turn the passenger’s front airbag off. A
rear seat is the safest place for a child.
■Protecting Smaller Children1 Protecting Smaller Children
Educate yourself about th e laws and regulations
regarding child seat use wh ere you are driving, and
follow the child seat manufacturer’s instructions.
3WARNING
Placing a forward-facing child seat in the
front seat can result in serious injury or
death if the front airbag inflates.
If you must place a forward-facing child
seat in front, move the vehicle seat as far
back as possible, and properly restrain the
child.
22 US ODYSSEY-31THR6400.book 70 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

Continued71
uuChild Safety uSafety of Infants and Small Children

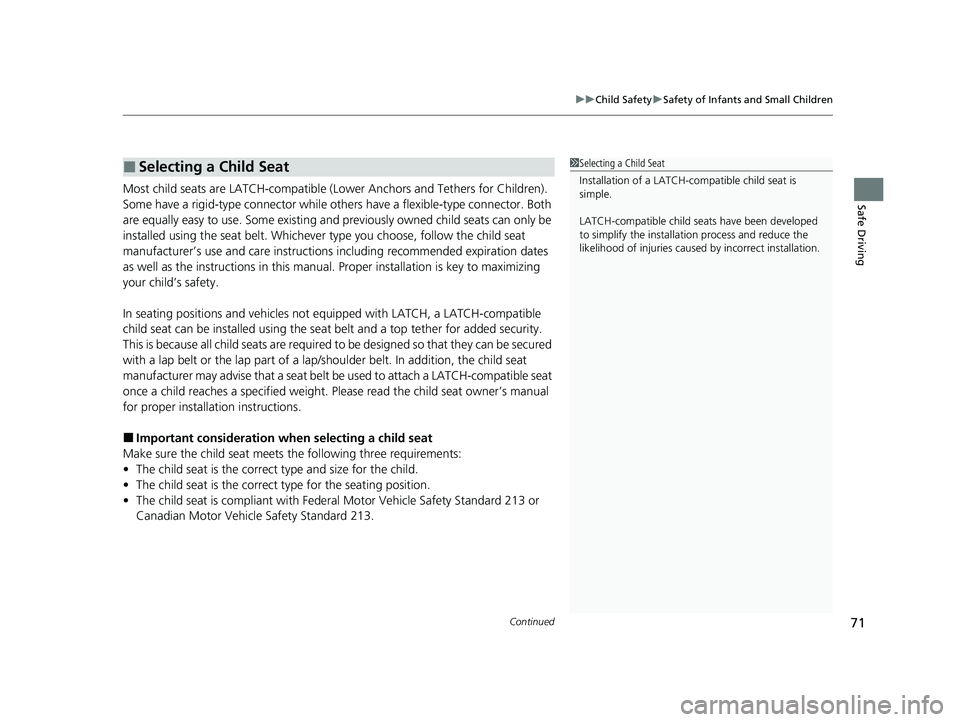

Safe DrivingMost child seats are LATCH-compatible (L ower Anchors and Tethers for Children).
Some have a rigid-type connector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Pl ease read the child seat owner’s manual
for proper installation instructions.
■Important consideration wh en selecting a child seat
Make sure the child seat meets the following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Child Seat1Selecting a Child Seat
Installation of a LATCH-compatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.
22 US ODYSSEY-31THR6400.book 71 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

uuChild Safety uSafety of Infants and Small Children

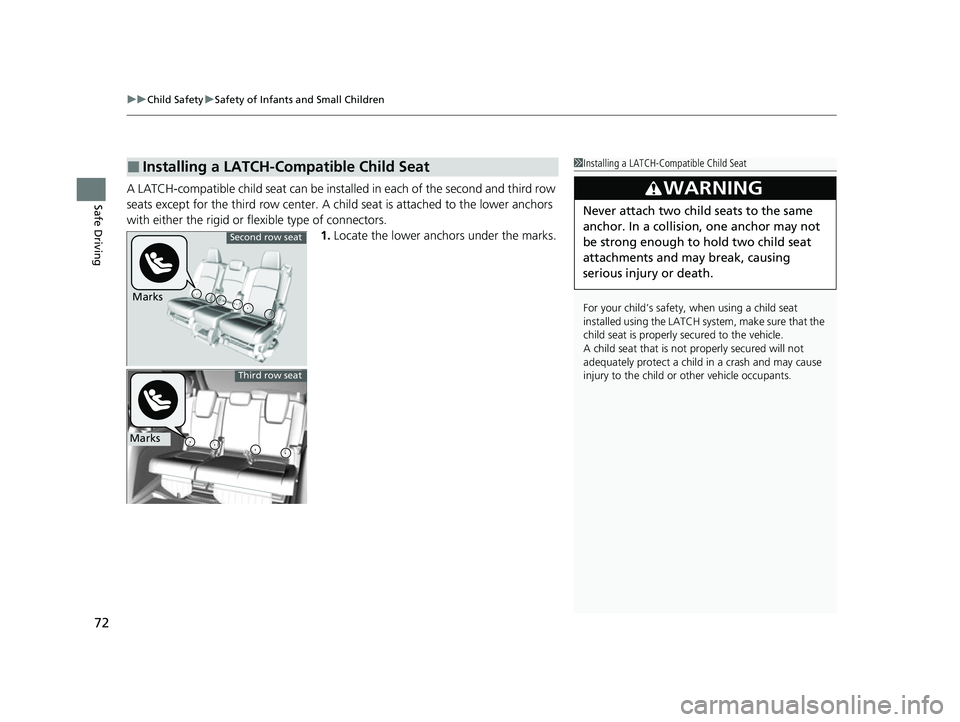

72
Safe DrivingA LATCH-compatible child seat can be installed in each of the second and third row
seats except for the third row center. A child seat is attached to the lower anchors
with either the rigid or fl exible type of connectors.
1.Locate the lower anchors under the marks.
■Installing a LATCH-Compatible Child Seat1Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle.
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
3WARNING
Never attach two child seats to the same
anchor. In a collision, one anchor may not
be strong enough to hold two child seat
attachments and may break, causing
serious injury or death.
Marks
Second row seat
Marks
Third row seat
22 US ODYSSEY-31THR6400.book 72 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

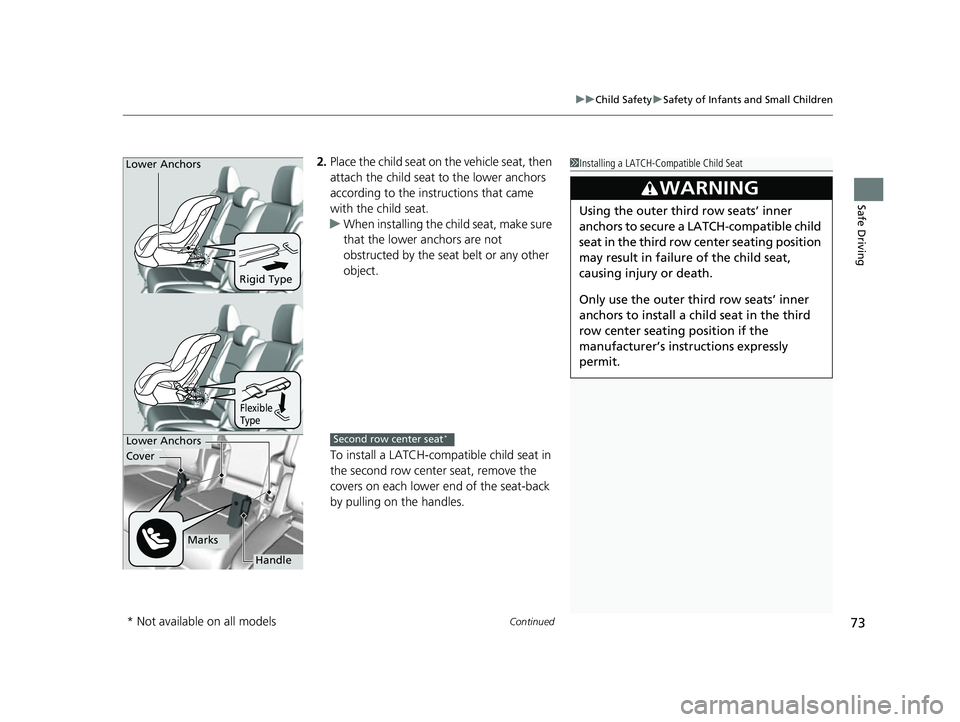

Continued73
uuChild Safety uSafety of Infants and Small Children
Safe Driving
2. Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors
according to the instructions that came
with the child seat.
u When installing the child seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.
To install a LATCH-compatible child seat in
the second row center seat, remove the
covers on each lower end of the seat-back
by pulling on the handles.1 Installing a LATCH-Compatible Child Seat
3WARNING
Using the outer third row seats’ inner
anchors to secure a LA TCH-compatible child
seat in the third row center seating position
may result in failur e of the child seat,
causing injury or death.
Only use the outer th ird row seats’ inner
anchors to install a child seat in the third
row center seating position if the
manufacturer’s instructions expressly
permit.
Rigid Type
Lower Anchors
Flexible
Type
Lower Anchors
Handle
Marks
Cover
Second row center seat*
* Not available on all models
22 US ODYSSEY-31THR6400.book 73 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

uuChild Safety uSafety of Infants and Small Children

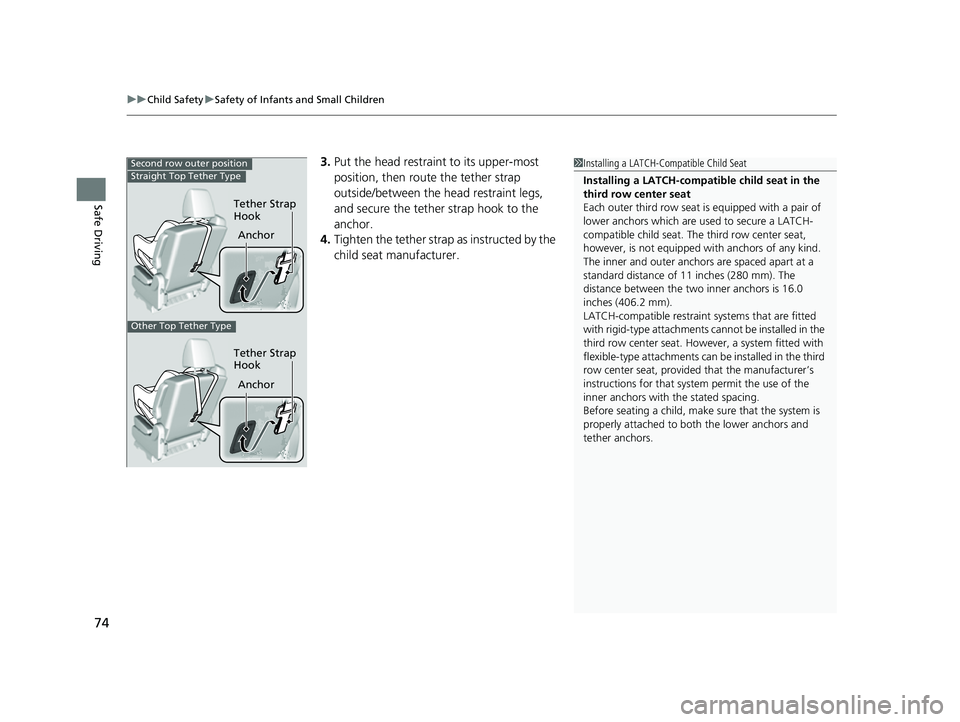

74
Safe Driving
3. Put the head restraint to its upper-most
position, then rout e the tether strap
outside/between the head restraint legs,
and secure the tether strap hook to the
anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.1Installing a LATCH-Compatible Child Seat
Installing a LATCH-compatible child seat in the
third row center seat
Each outer third row seat is equipped with a pair of
lower anchors which are used to secure a LATCH-
compatible child seat. The third row center seat,
however, is not equipped with anchors of any kind.
The inner and outer anchors are spaced apart at a
standard distance of 11 inches (280 mm). The
distance between the two inner anchors is 16.0
inches (406.2 mm).
LATCH-compatible restraint systems that are fitted
with rigid-type attachments cannot be installed in the
third row center seat. However, a system fitted with
flexible-type attachments can be installed in the third
row center seat, provided that the manufacturer’s
instructions for that system permit the use of the
inner anchors with the stated spacing.
Before seating a child, make sure that the system is
properly attached to both the lower anchors and
tether anchors.
Anchor
Tether Strap
Hook
Anchor
Tether Strap
Hook
Other Top Tether Type
Second row outer positionStraight Top Tether Type
22 US ODYSSEY-31THR6400.book 74 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

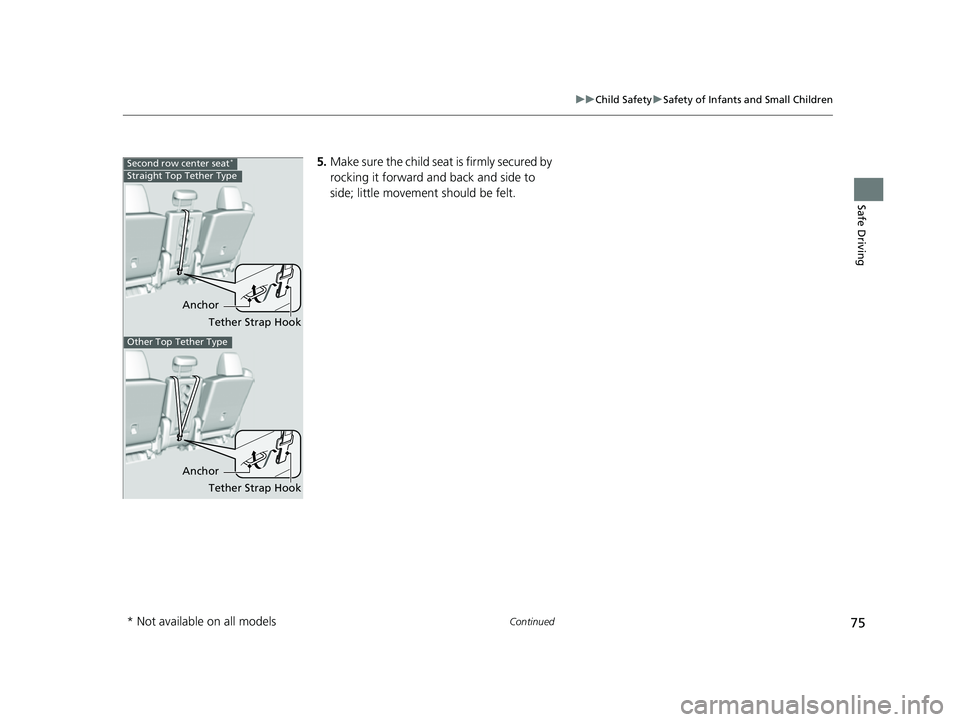

75
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
5. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
Anchor
Tether Strap Hook
Second row center seat*
Straight Top Tether Type
Other Top Tether Type
AnchorTether Strap Hook
* Not available on all models
22 US ODYSSEY-31THR6400.book 75 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

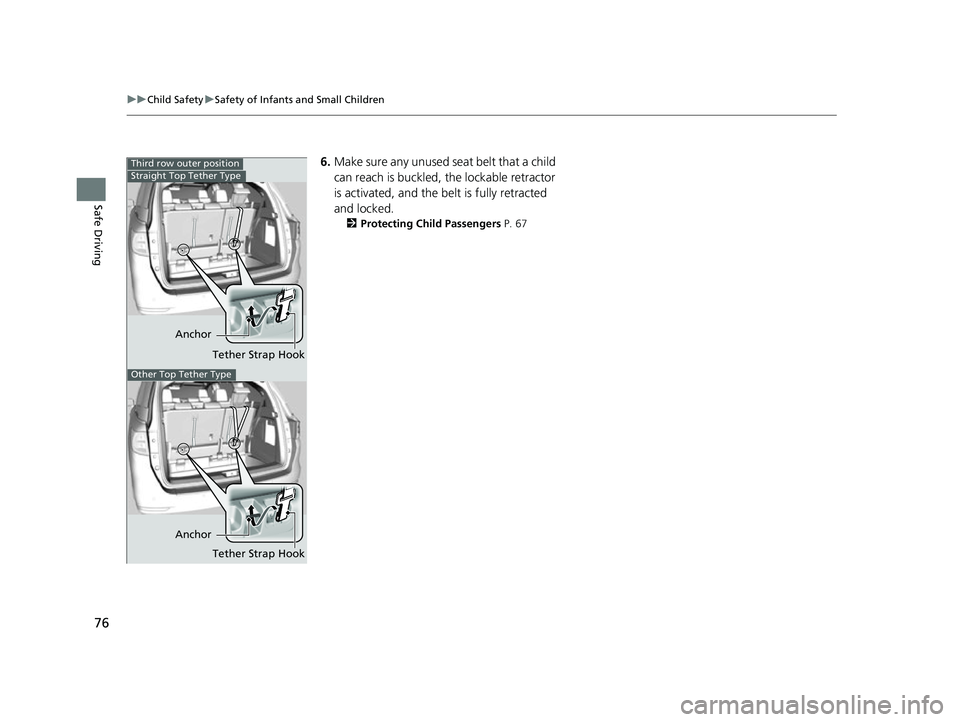

76
uuChild Safety uSafety of Infants and Small Children
Safe Driving
6. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 67
Anchor
Tether Strap Hook
Third row outer positionStraight Top Tether Type
Other Top Tether Type
AnchorTether Strap Hook
22 US ODYSSEY-31THR6400.book 76 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

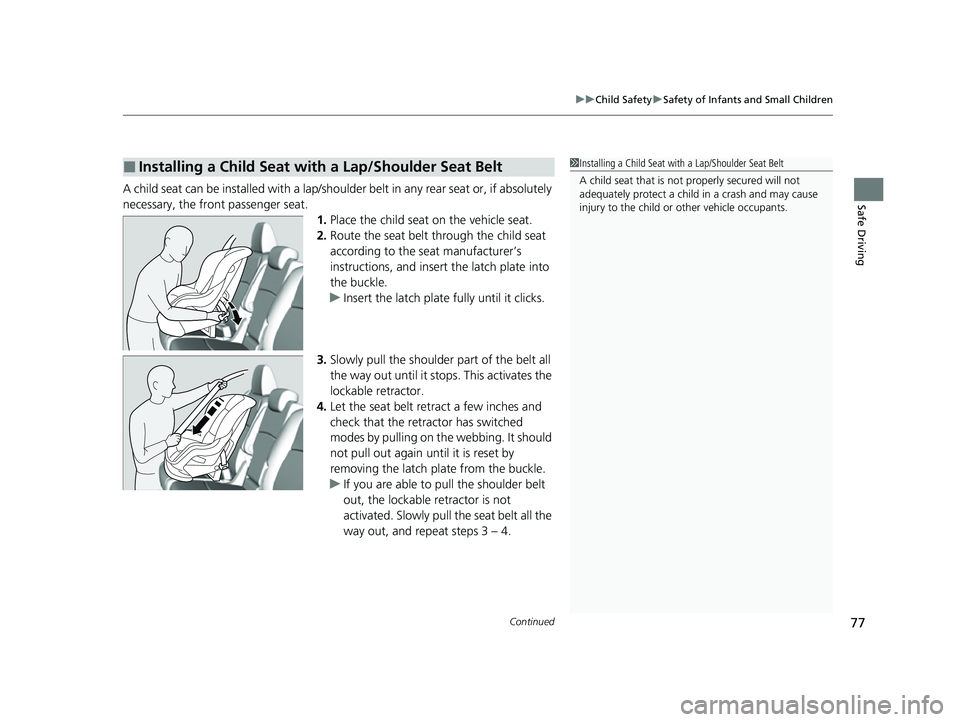

Continued77
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA child seat can be installed with a lap/should er belt in any rear seat or, if absolutely
necessary, the front passenger seat. 1.Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch pl ate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
22 US ODYSSEY-31THR6400.book 77 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

uuChild Safety uSafety of Infants and Small Children

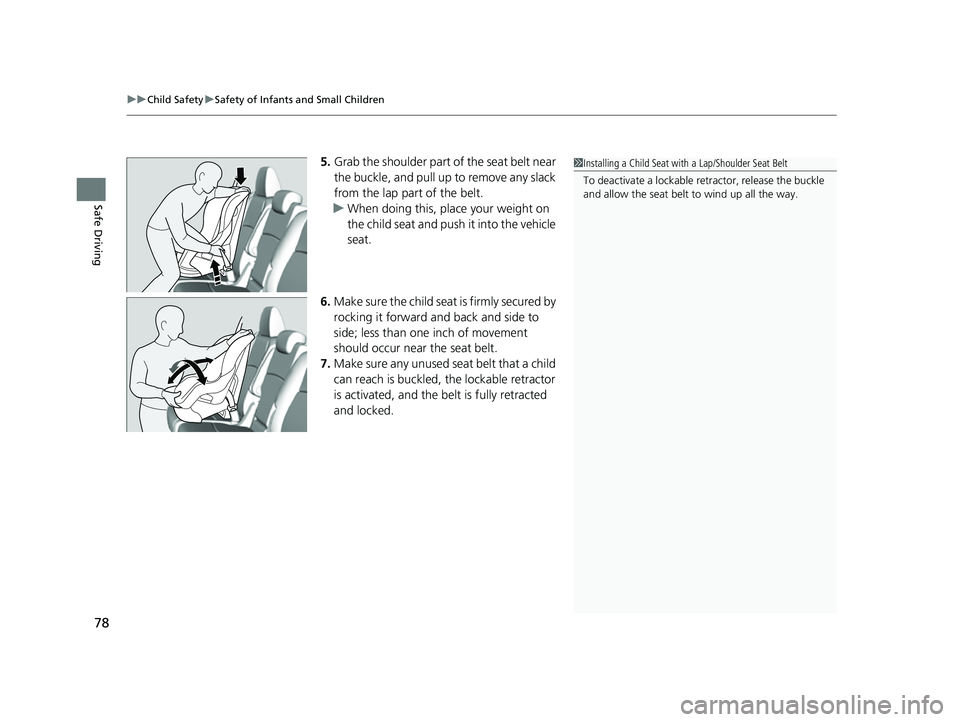

78
Safe Driving
5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, plac e your weight on
the child seat and push it into the vehicle
seat.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; less than one inch of movement
should occur near the seat belt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.1 Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
22 US ODYSSEY-31THR6400.book 78 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

Continued79
uuChild Safety uSafety of Infants and Small Children

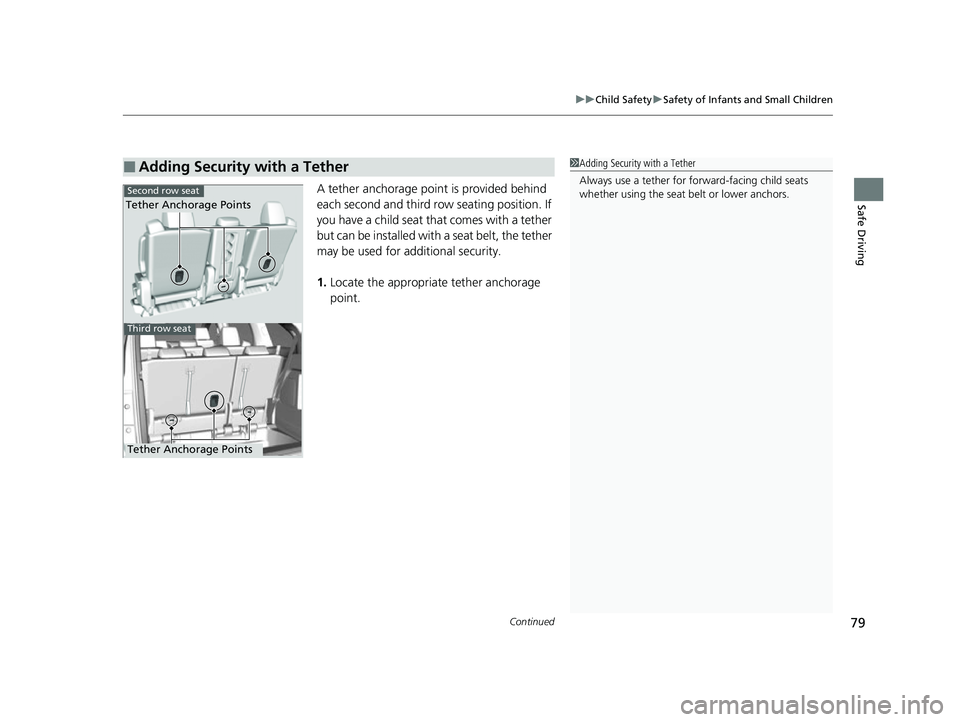

Safe DrivingA tether anchorage point is provided behind
each second and third row seating position. If
you have a child seat that comes with a tether
but can be installed with a seat belt, the tether
may be used for additional security.
1. Locate the appropriate tether anchorage
point.
■Adding Security with a Tether1Adding Security with a Tether
Always use a tether for forward-facing child seats
whether using the seat belt or lower anchors.
Second row seat
Third row seat
Tether Anchorage Points
Tether Anchorage Points
